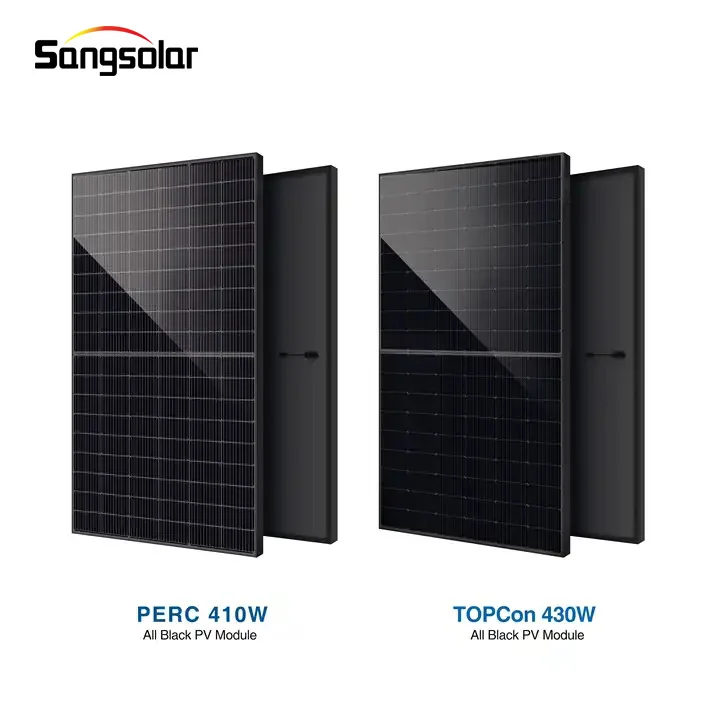

Full Black Pv Panel System 1000W Balcony Power Plant 300W 400W Glass Mono Solar Panel Pv System
- Category: >>>
- Supplier: Beijing Shan Hu International Technology Co. Ltd.
Share on (1600978467881):
Product Overview
Description
Solar Balcony Solar System
Balcony solar kit is a plug ‒and-play system composed of solar panel, micro inverter and angle-ad
justable bracket, which can be installed by yourself.
justable bracket, which can be installed by yourself.
Advantage

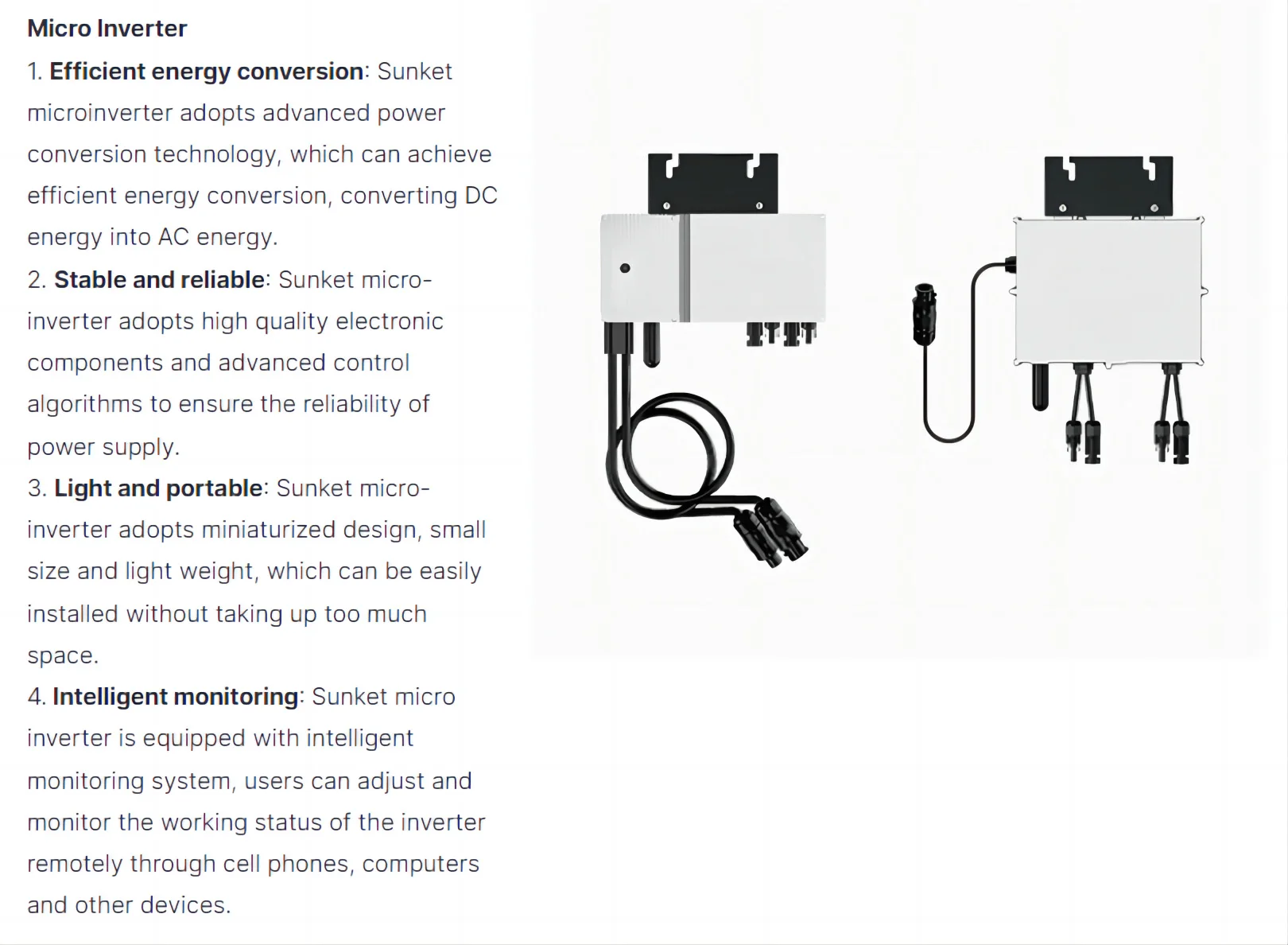

Technical Specifications
Input | DC | SKT—300 | SKT—600 | SKT—800 | |||
Recommended PV Module Power Range /W | 450 | 450 x 2 | 600 x 2 | |||
MPPT Voltage Range /V | 22-55 | 22-55 | 22-55 | |||
Startup Voltage /V | 24 | 24 | 24 | |||
Max. Input Voltage /V | 60 | 60 | 60 | |||
Max. Input Current /A | 14 | 18 x 2 | 17 x 2 | |||
Overvoltage Protection Category | II | |||||
Output | AC | ||||||
Peak Output Power /VA | 350 | 600 | 800 | |||
Max. Continous Output Power /VA | 300 | 580 | 750 | |||
Rated Output Voltage /V | 230 | 230 | 230 | |||
Nominal Output Voltage Range /V | Configurable | Configurable | Configurable | |||
Max. Continous Output Current /A | 1.3 | 2.52 | 3.26 | |||
Nominal Frequency / Range /Hz | 50 / Configurable | 50 / Configurable | 50 / Configurable | |||
Power Factor (Nominal/Adjustable Range) | 1.0/0.8 leading…0.8 lagging | 1.0/0.8 leading…0.8 lagging | 1.0/0.8 leading…0.8 lagging | |||
AC Short Circuit Fault Current Over 3 cycles /Arms | 2.2 | 4.4 | 8.2 | |||
THDi@Rated Power | <3% | <3% | <3% | |||
Max. Units per 20A Branch | 12 | 6 | 5 | |||
Overvoltage Protection Category | III | III | III | |||
Efficiency | ||||||
Peak Efficiency | 97.1% | 97.1% | 97.3% | |||
MPPT Efficiency | >99.5% | >99.5% | >99.5% | |||
Night Power Consumption /mW | 80 | 110 | 110 | |||
General Data | ||||||
Operating Ambient Temperature Range/℃ | -40~65 | -40~65 | -40~65 | |||
Relative Humidity Range | 0-100% | 0-100% | 0-100% | |||
Dimensions (W x H x D) /mm | 180 x 186 x 25 | 227 x 132 x 50 | 268 x 250 x 42 | |||
Weight /kg | 1.5 | 2.9 | 2.9 | |||
DC Connector Type | MC4 | MC4 | MC4 | |||
AC Connection Type (inverter-inverter) | Daisy Chain AC Bus | Daisy Chain AC Bus | Trunk Cable | |||
Communication Method | PLC or WiFi | PLC or WiFi | PLC or WiFi | |||
Detailed Images

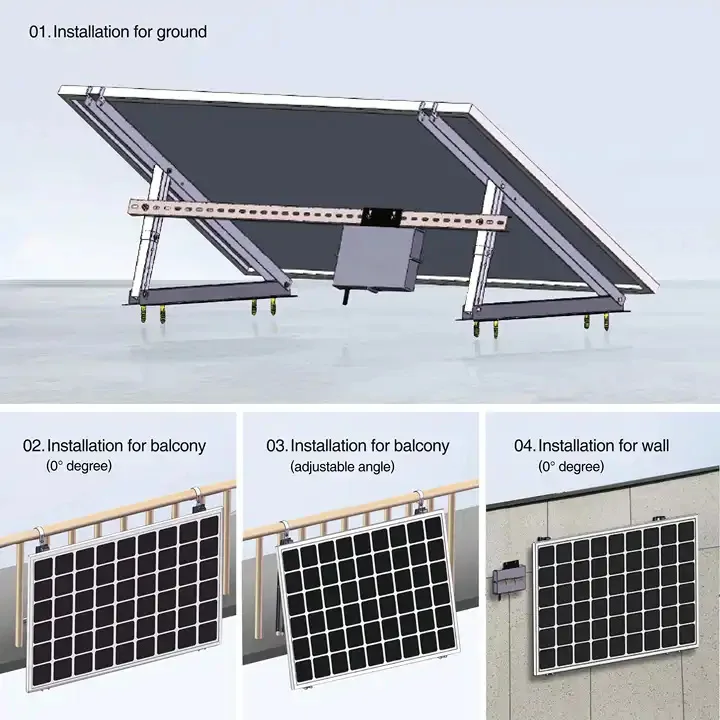

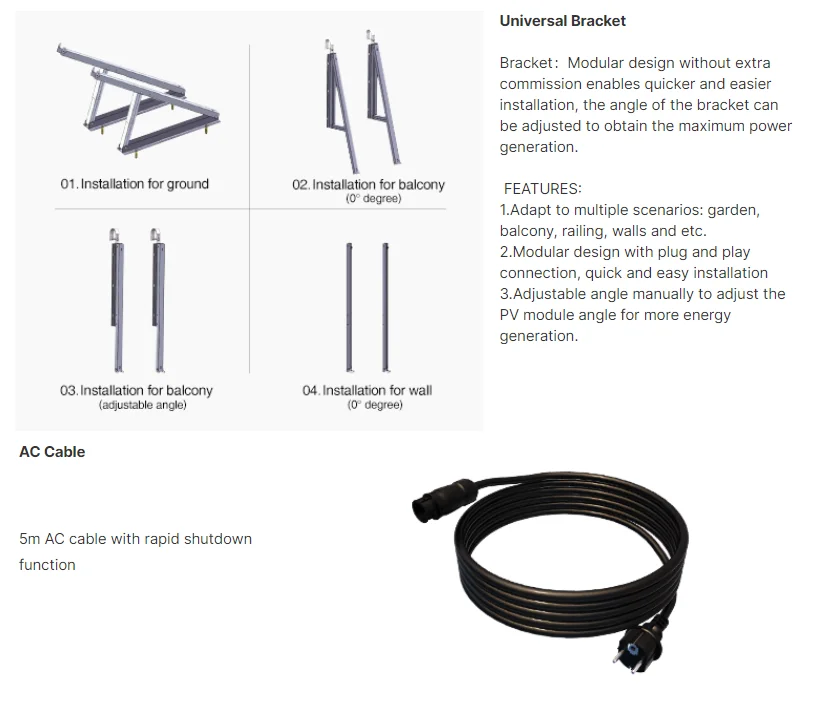

Three support methods

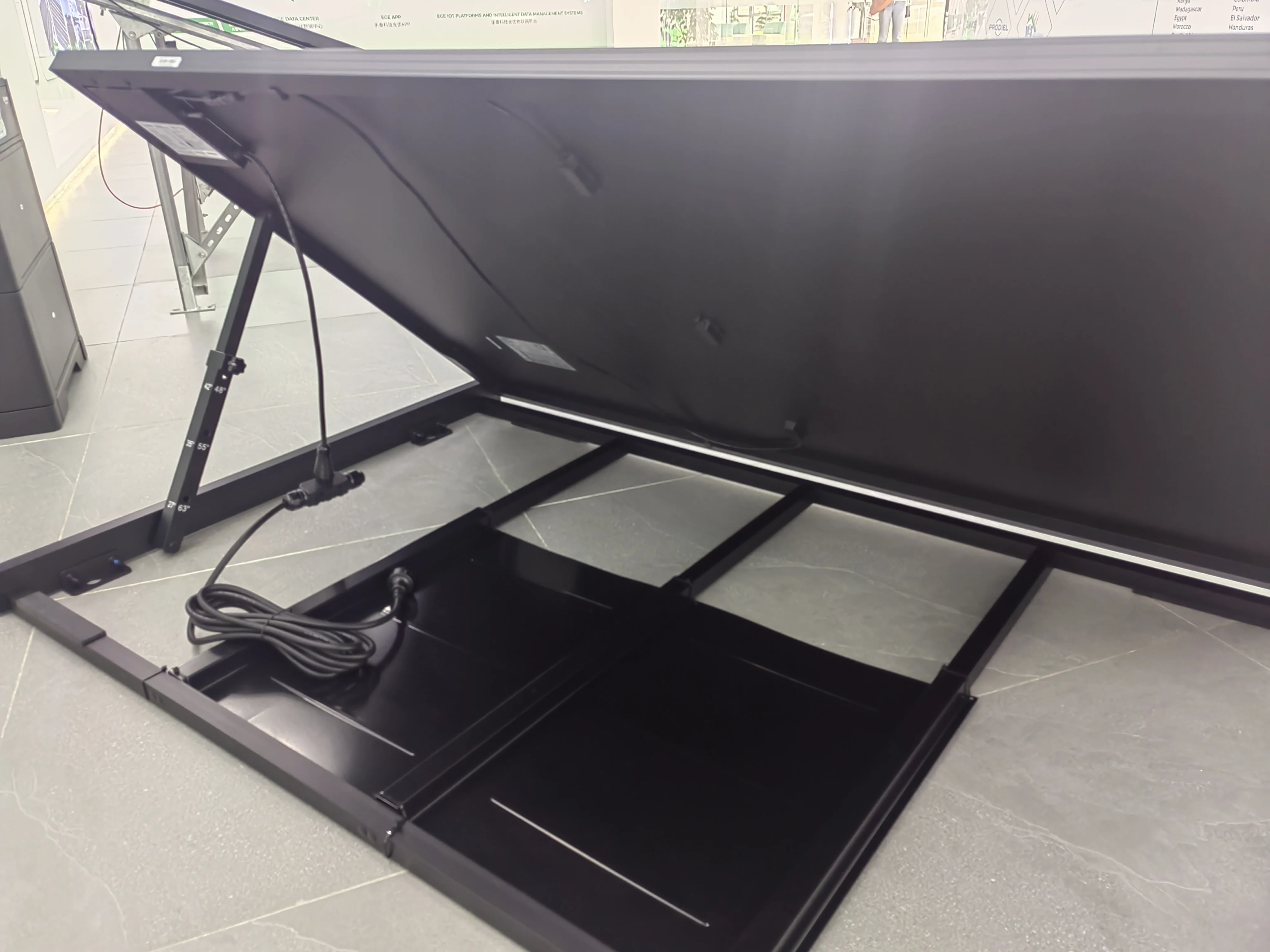

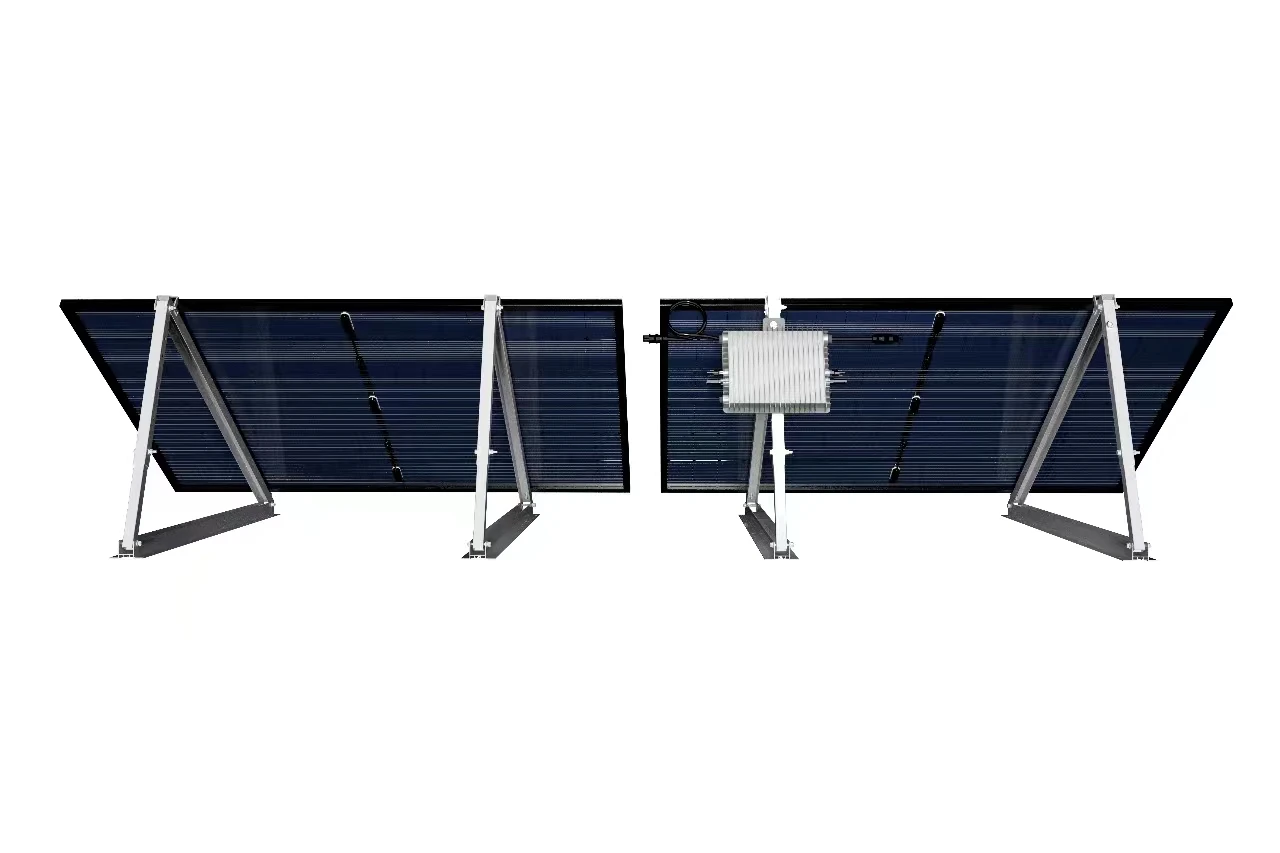

Ground photovoltaic support system
The ground photovoltaic support system is movable and easy to operate and install.

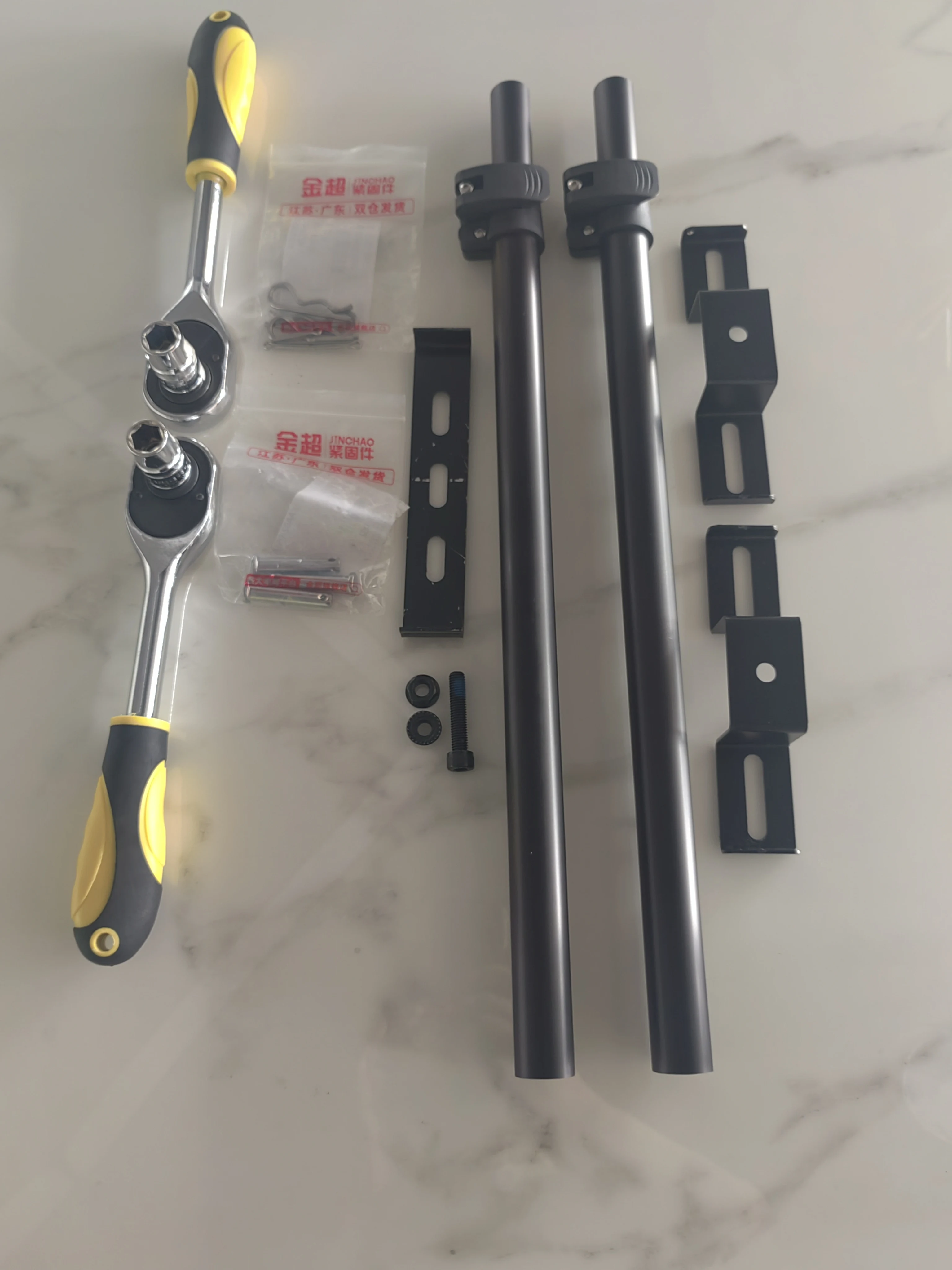

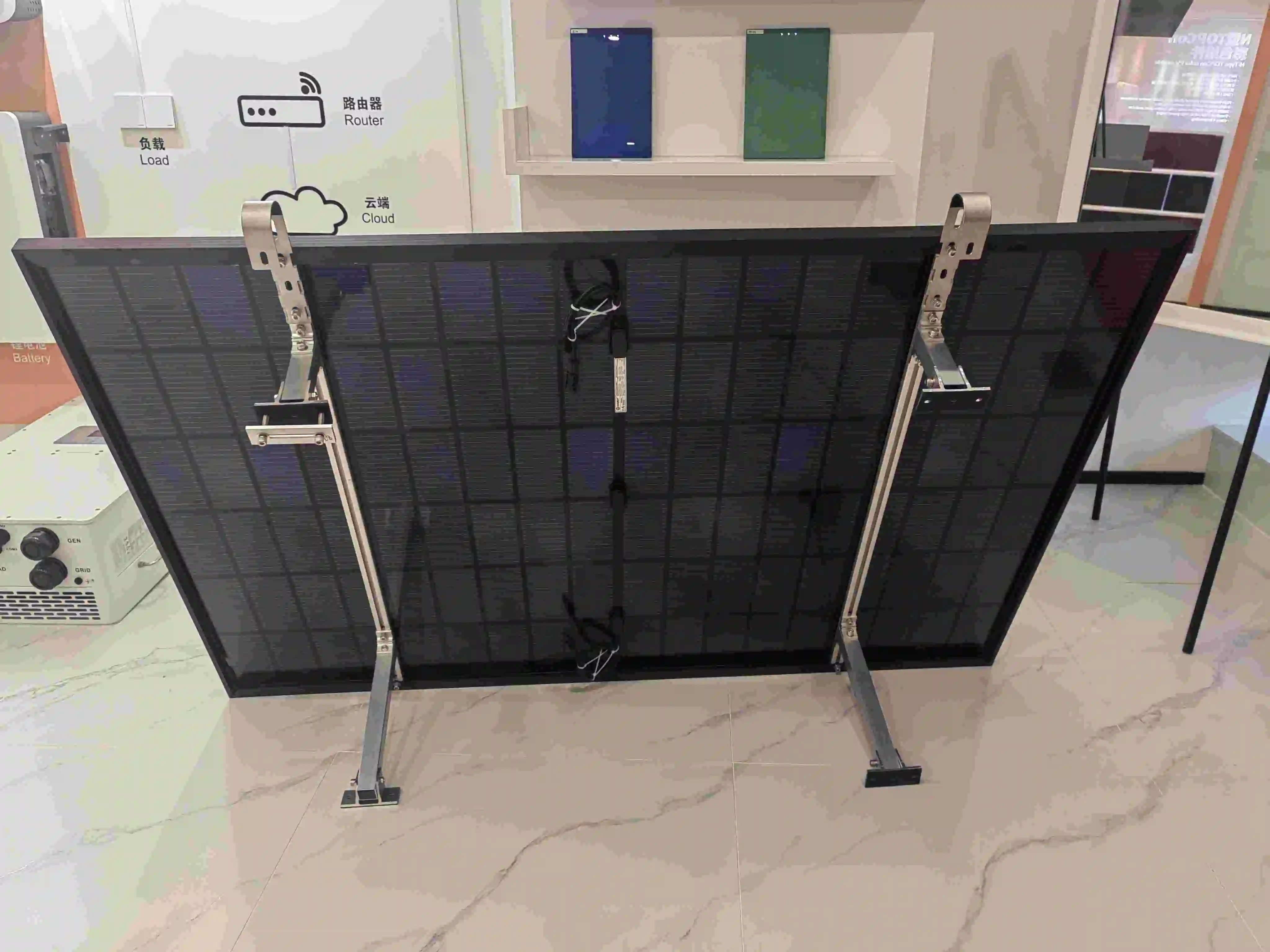

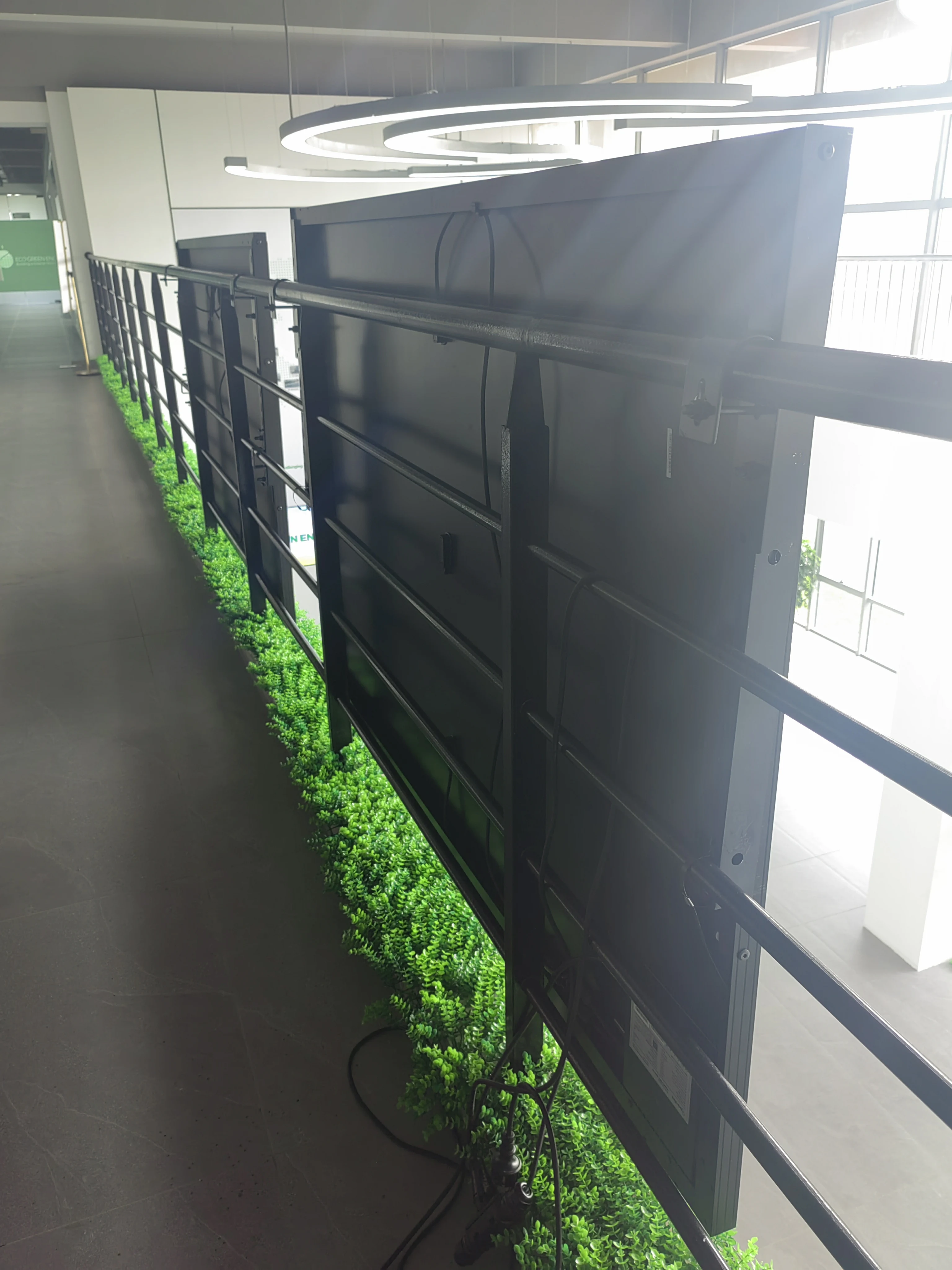

Hook photovoltaic bracket system
The hook photovoltaic bracket system has low cost and is widely used

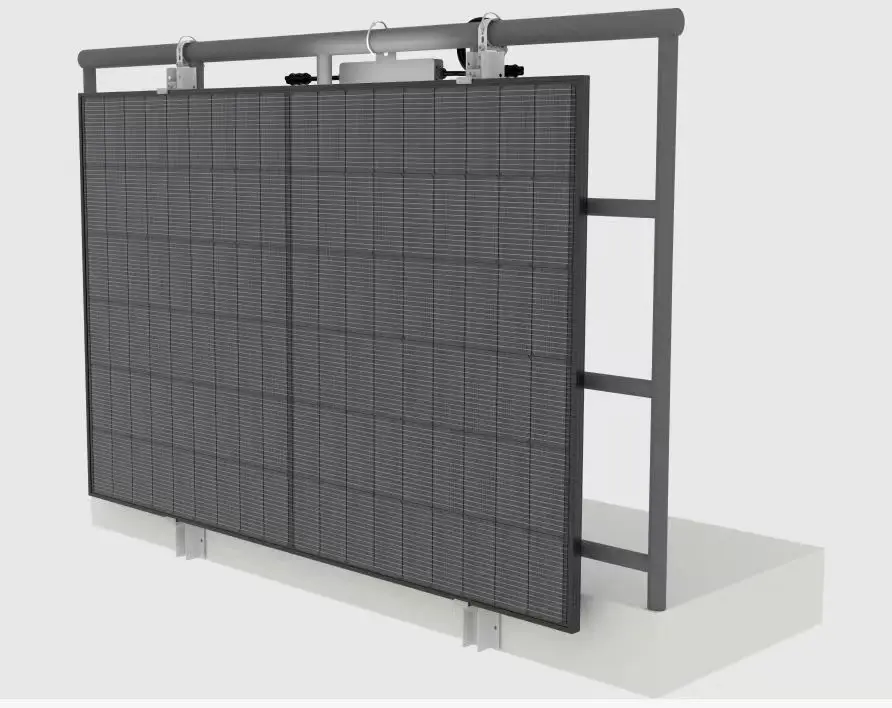

Direct hook photovoltaic support system
Adjustable angle for higher power generation efficiency
Case presentation
