VMC640 five axis turning processing machining center type cnc tapping and drilling machining center
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1600978487395):
Product Overview
Description
Product Description
Main Features:
1. VMC640 is a multi-purpose machine which could mill surface & drill holes. 2. This machine adopts domestic/overseas branded numerical control system and realizes full-screen edition in Chinese.
3. Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting
functions.
4. Machining body adopts ultrasonic frequency hardening treatment.
5. Both X-axis & Z-axis adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball
screws.
6. With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life.
7. The machine is widely applied to instruments, meters, light industries, electronics, home appliances, medical instruments,
aeronautics & astronautics and etc. industries.
8. It is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals & stainless
steel) as well as an ideal equipments for large automation production.
9. This machine could process holes below 16mm, milling plane below 18mm and milling depth below 3mm.
Specification | VMC640 |
Worktable Size | 800X320mm |
Travel（Longitudinal X/ Horizontal Y/ Vertical Z） | 600X400X450mm |
Distance of Spindle Axis to Guideway Plane | 400mm |
Distance of Spindle End to Worktable | 80-530mm |
Max. Spindle Rotating Speed | 8000rpm Servo Spindle |
Spindle Taper | BT40 |
Main Motor Power | 5.5KW |

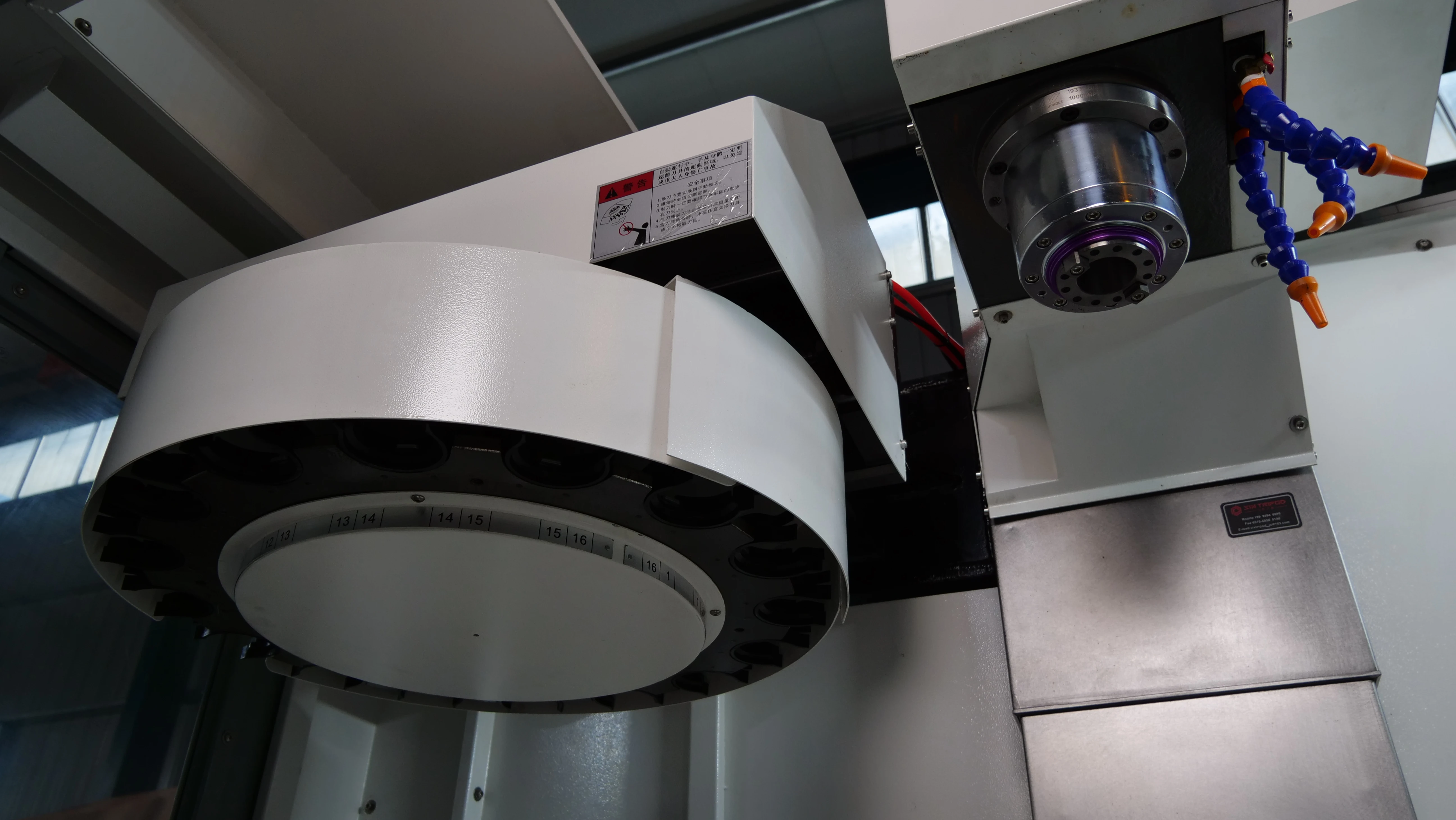

Tool Magazine | 12T Taiwan Umbrella Type |
Z Motor Torque | 15N.m |
X Motor Torque | 6N.m |
Y Motor Torque | 6N.m |
The Vertical Permissible Error of Spindle Axis to Worktable Plane | ≤0.02mm |
Positioning Accuracy | 0.02mm |
Repeated Positioning Accuracy | 0.01mm |

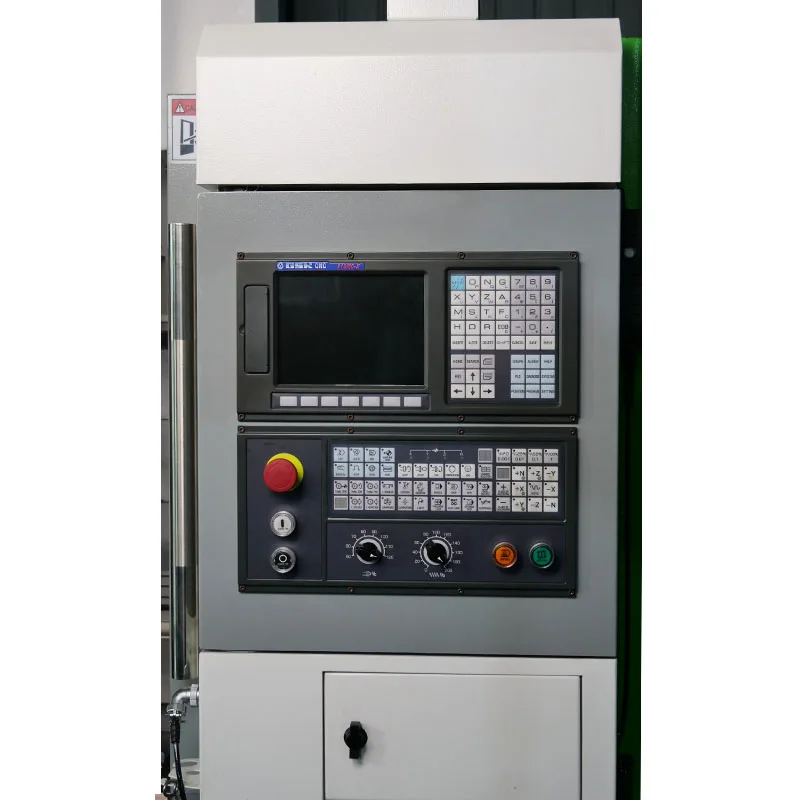

System Configuration | Siemens/FANUC/GSK Available |
Machine Overall Dimension (L*W*H) | 2300*1950*2400mm |
Machine Net Weight | 2600kgs |
External Protection Level | Full Closed |

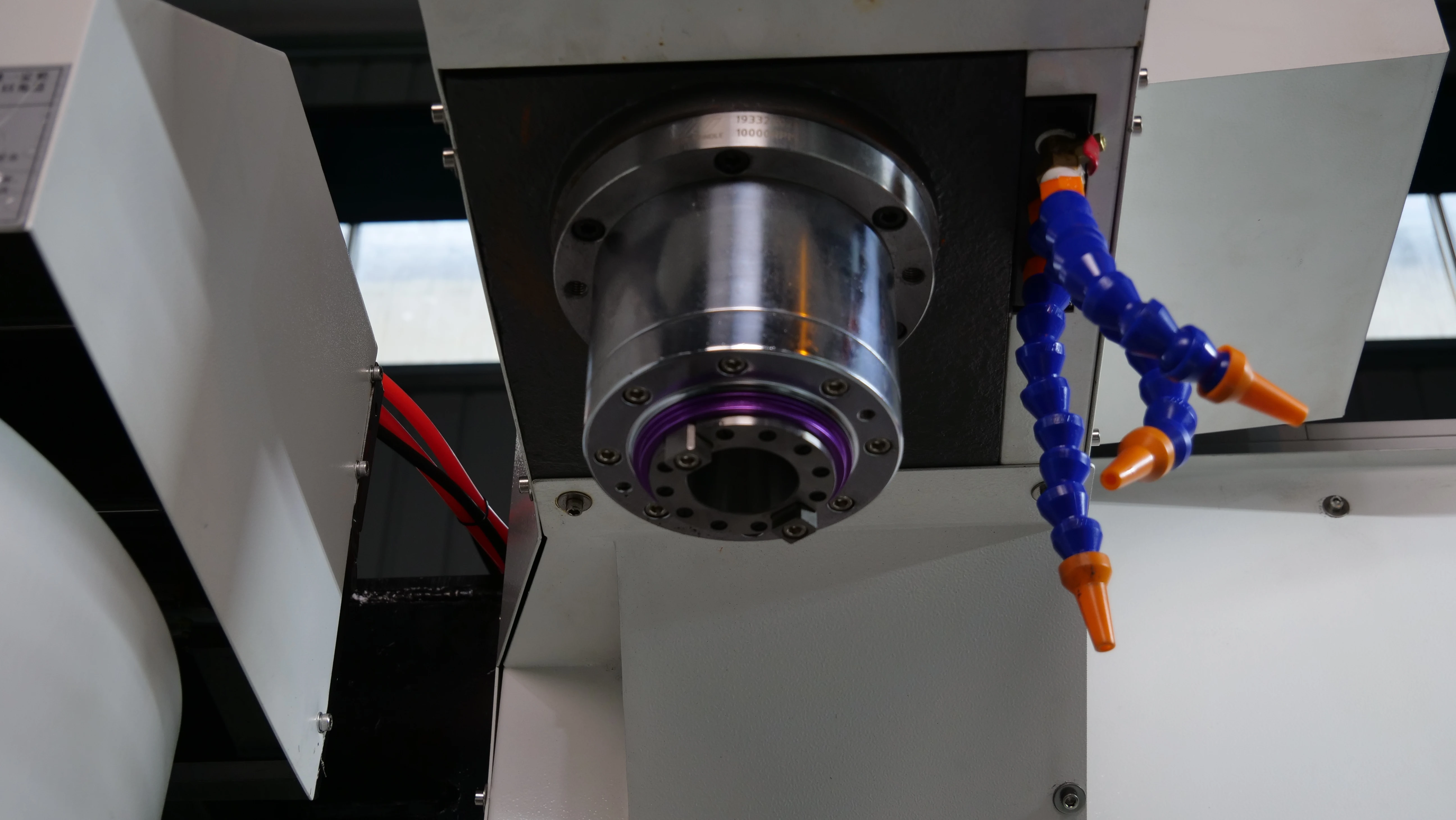

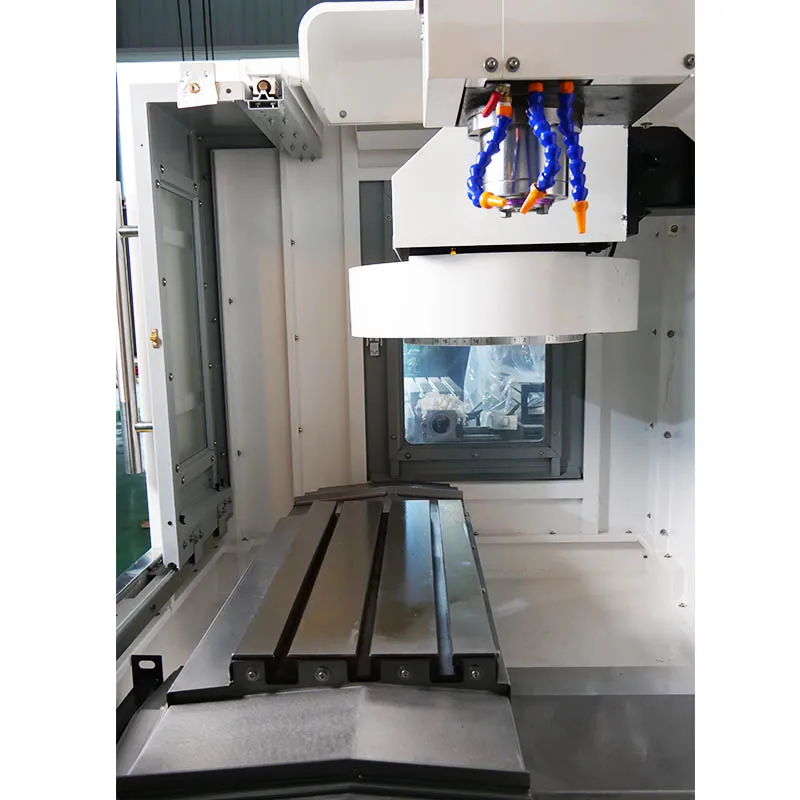

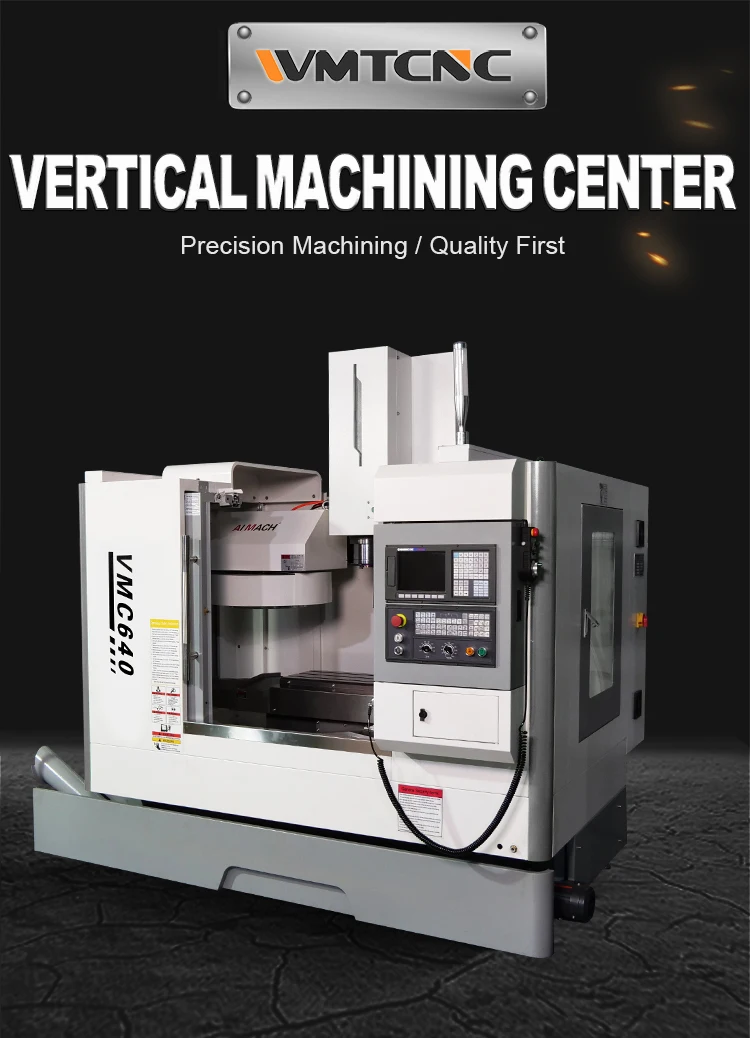

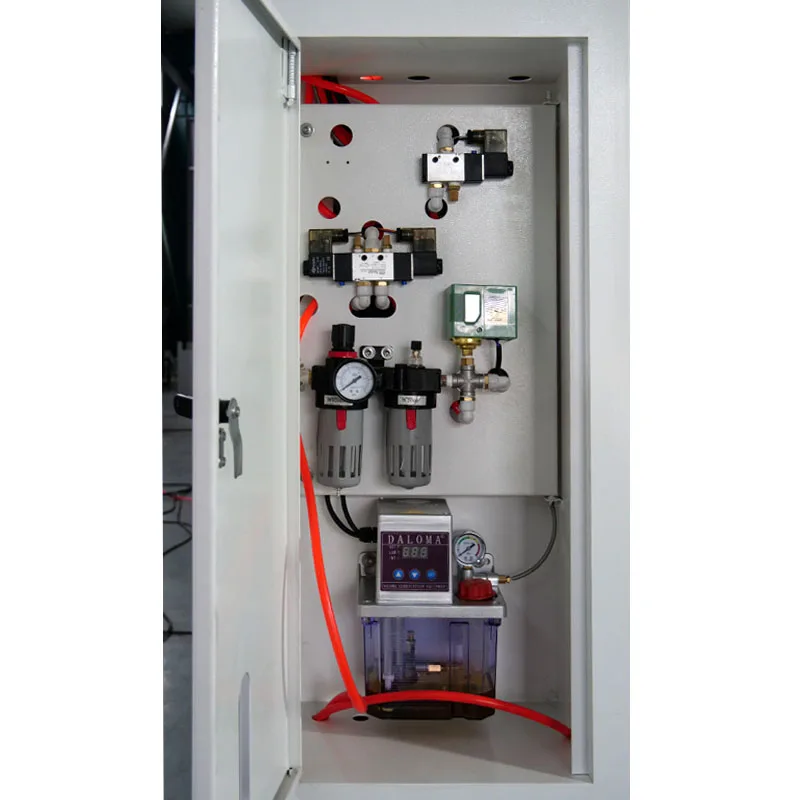

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
