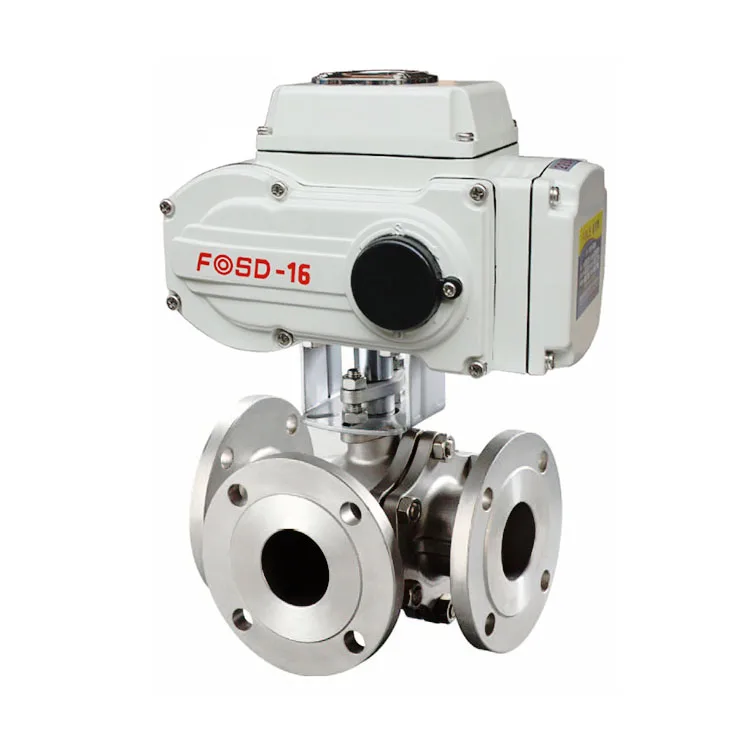

Wholesale UPVC PPH CPVC PVDF PP Body material Electric three way flange ball valve
- Category: >>>
- Supplier: Guangzhou Rotk Valve Technology Co. Ltd.
Share on (1600978488446):
Product Overview
Description
Product Description
Size Range | 1/2"~4", DN150~DN100 | ||||
Operating Pressure | 1.6MPa | ||||

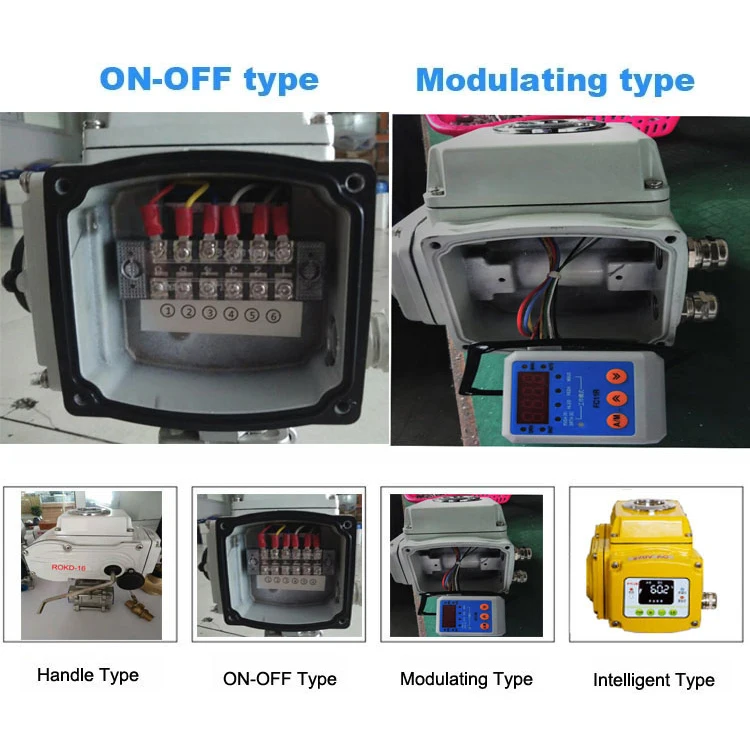

Control Mode | On Off Type / Modulating Type | ||||
Optional Voltage | DC12~24V (±10%), AC110-220V, 50/60Hz | ||||
Body Material | UPVC, PPH, CPVC, PVDF, PP | ||||
Bal Material | UPVC, PPH, CPVC, PVDF, PP | ||||
Sealing Material | EPDM, PTFE, PPL | ||||
Threaded Connection | Double union, flange | ||||
Applicable Media | Control of Water, Air, Gas, Oil, Liquid, Steam | ||||
Optional Accessories | Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke | ||||
Food & Beverage, Water & Wastewater, Ultra Pure Water,Desalination,Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries | |||||

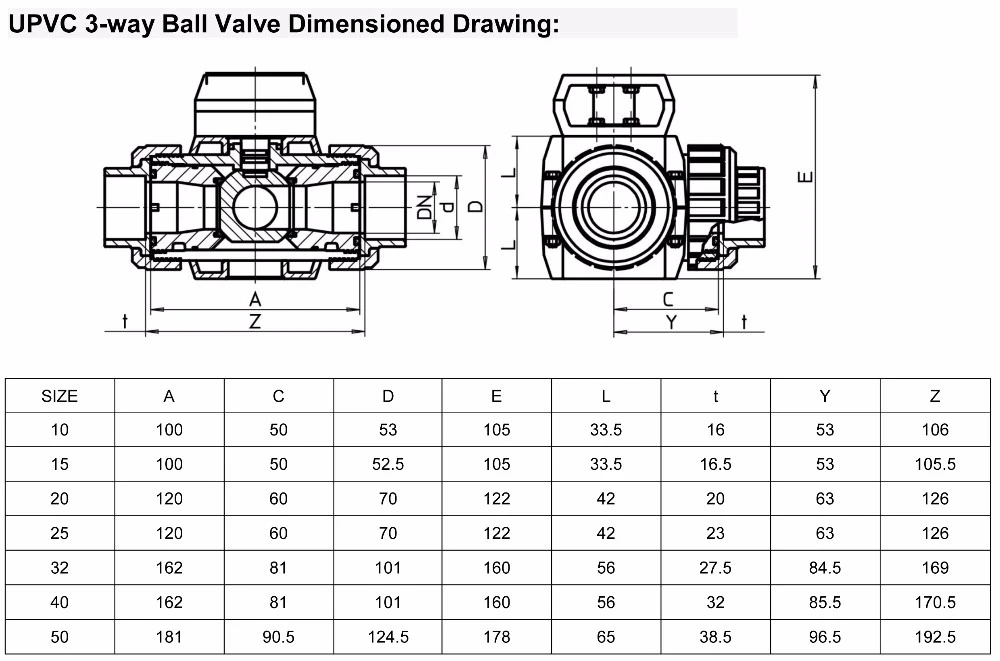

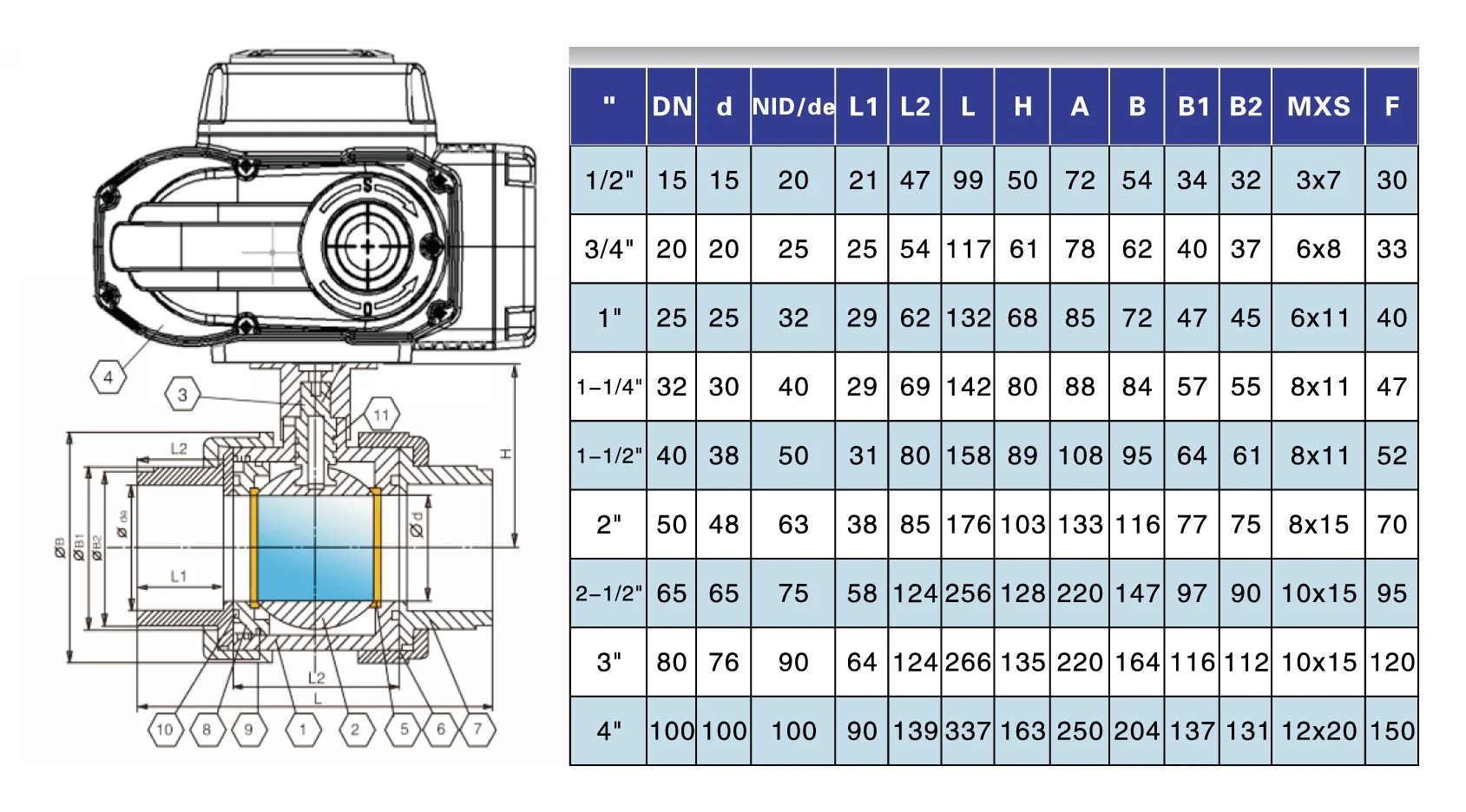

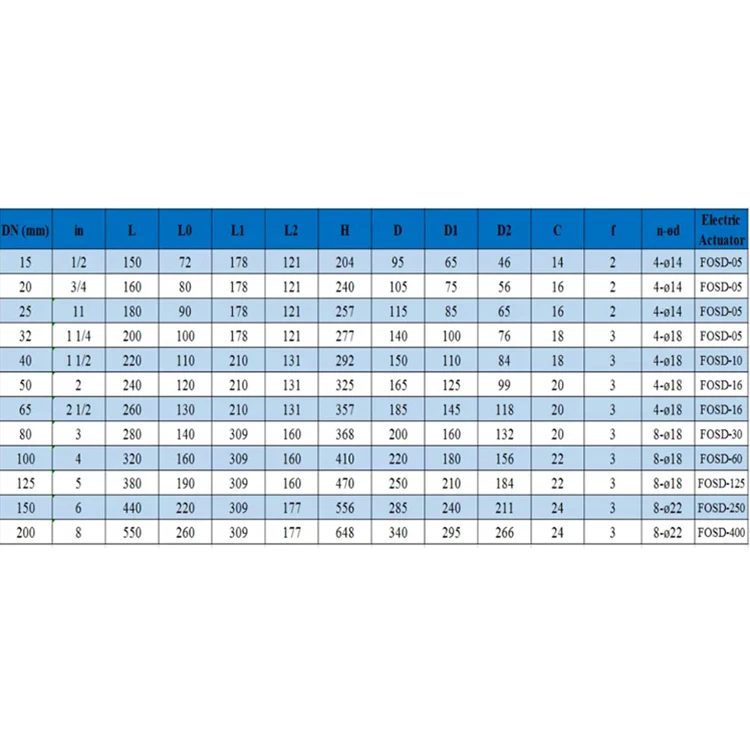

Specification
Electric plastic true union valve is union connection, and it is characterized by compact structure, strong corrosion resistance, easy installation, easy maintenance. The valve body is hygienic, non-poisonous and non harmful with light weight. It is widely used in water supply industry, such as purifier water system, drinking water system, drainage system, sewage system, salt water system, chemical solution system.\t
PVC Electric Ball Valve adopt the double union and flange connection, which can be installed easily without special tools. With the advantages of compact structure, Anti-abrasion, quick detachable, wasy repair and maintenance,etc. Body Material Health and non-toxic, corrosion resistance, light weight, wide application. For example: water and raw water piping systems, drainage and sewage piping systems, salt water and sea water piping systems, acid and chemical solution systems and other industries.
Features
1. Opeating temperature range: -40°C-+95°C.
2. With excellent strength and toughness.
3. With excellent chemical resistance capabilities.
4. Retardant properties is the self-extinguishing.
5. Low thermal conductivity, about 1/200 of the steel.
6. The content of heavy ion in the medium up to the ultrapure water standards.
7. Health indicators in line with national health standards.
8. Clean and smooth of the Tube wall, which can generate a smaller friction and adhesion when transferring fluid.
9. Light weight, the equivalent of 1/5 of steel, 1/6 of Brass.
10. Easy to install. can be connected by flange, double union etc.
11. Excellent anti-aging and UV resistance, so that there is a great extension of the normal useful life than other piping systems.

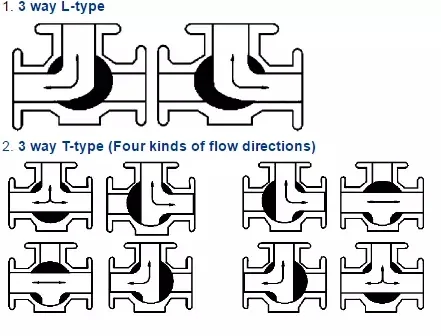

3 way ball valve flow diagram
Cooperate with 0-90 degrees rotating actuator, can realize the following flow:

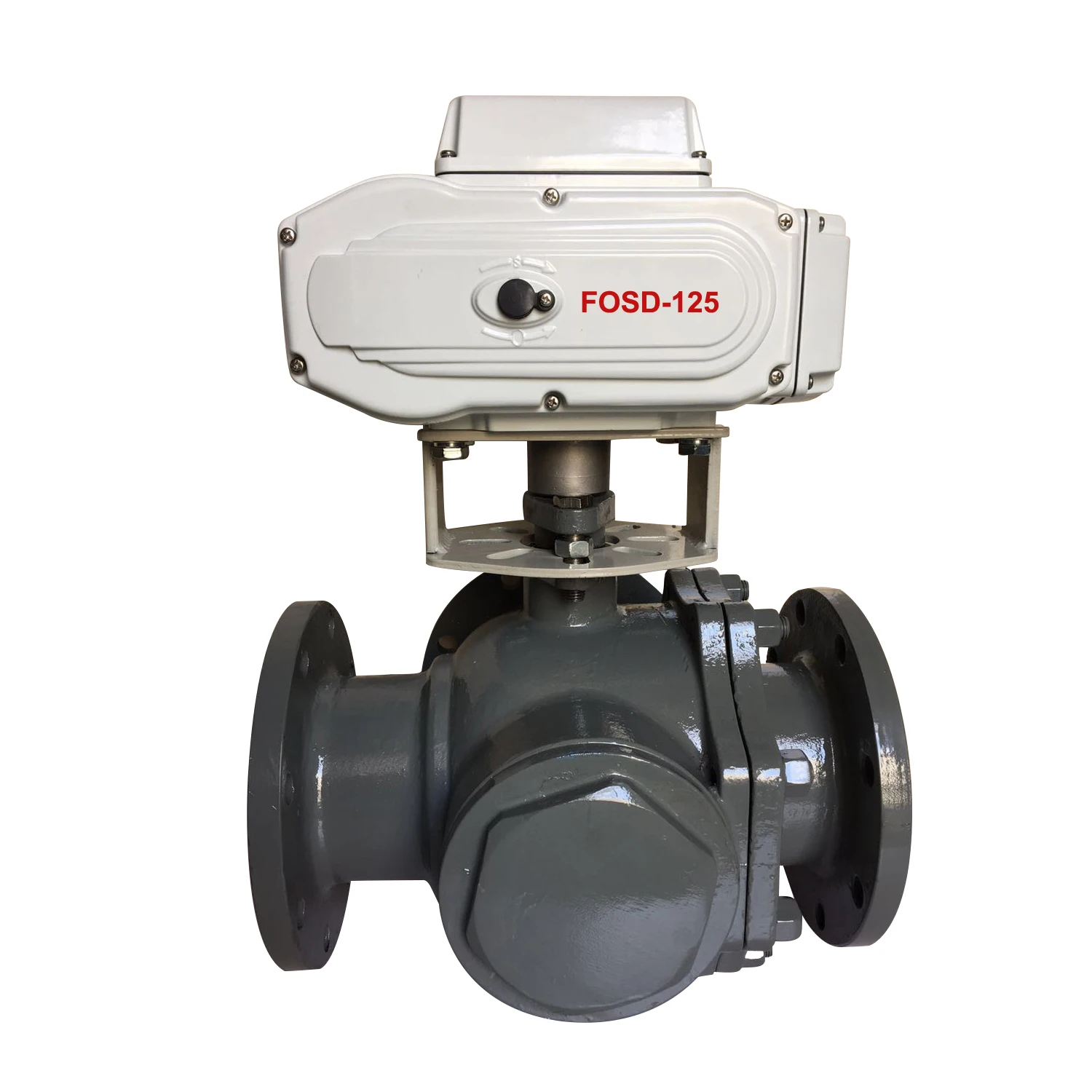

Stainless steel 304 female thread 3 way automatic valve
Recommend Products
Company Profile
Packing & Delivery

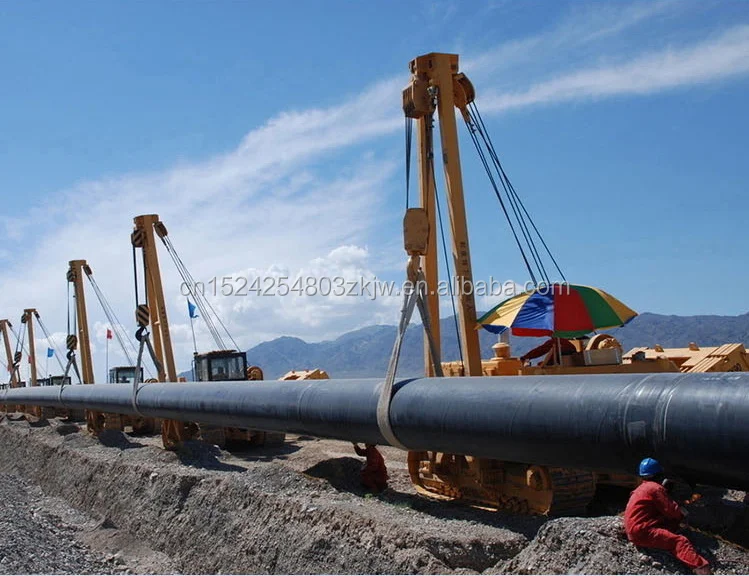

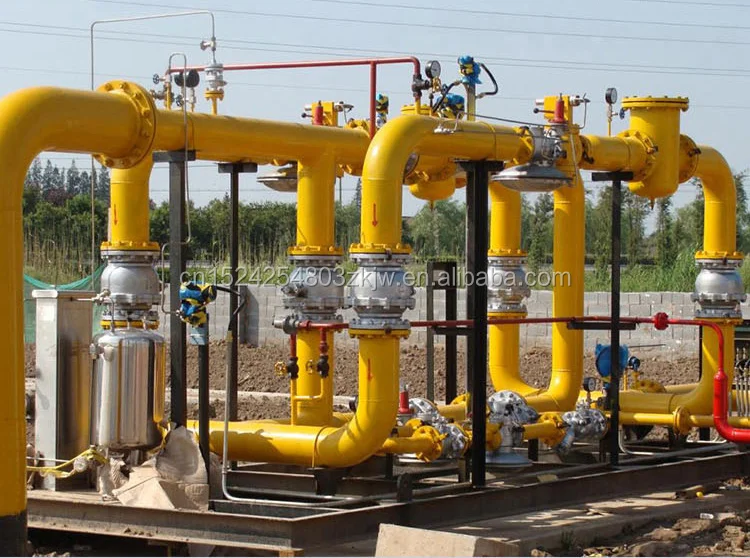

Application
FAQ
1.How to use the electric actuator butterfly valve?
We have detailed product instructions to help you the use pneumatic valve.
2.What is the material of electric actuator?
The valve is made of aluminum alloy.
3.Are you a manufacturer or trading company?
We are manufacturer.
4.Can you do OEM&ODM?
Yes, OEM is accepted. We will offer you a reasonable price as your requirement and make samples for you.
5.How long is your delivery time?
Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
6.Can I have a sample order?
Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
7.What is your terms of payment ?
Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment.
