XY 3r 400*1200 Rubber Calender Machine / Rubber Sheet Calendering Machine
- Category: >>>
- Supplier: Qingdao Toplit Industry Co. Ltd.
Share on (1600978569286):
Product Overview
Description

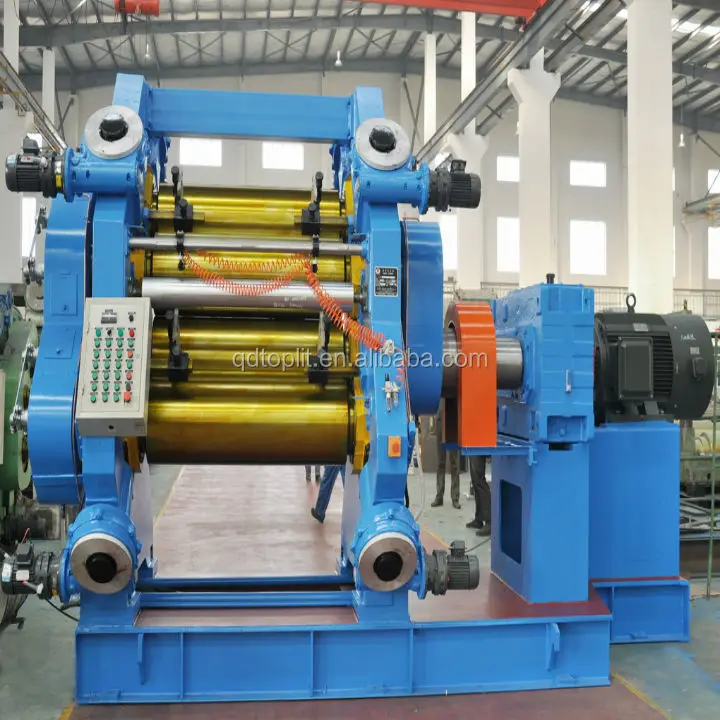

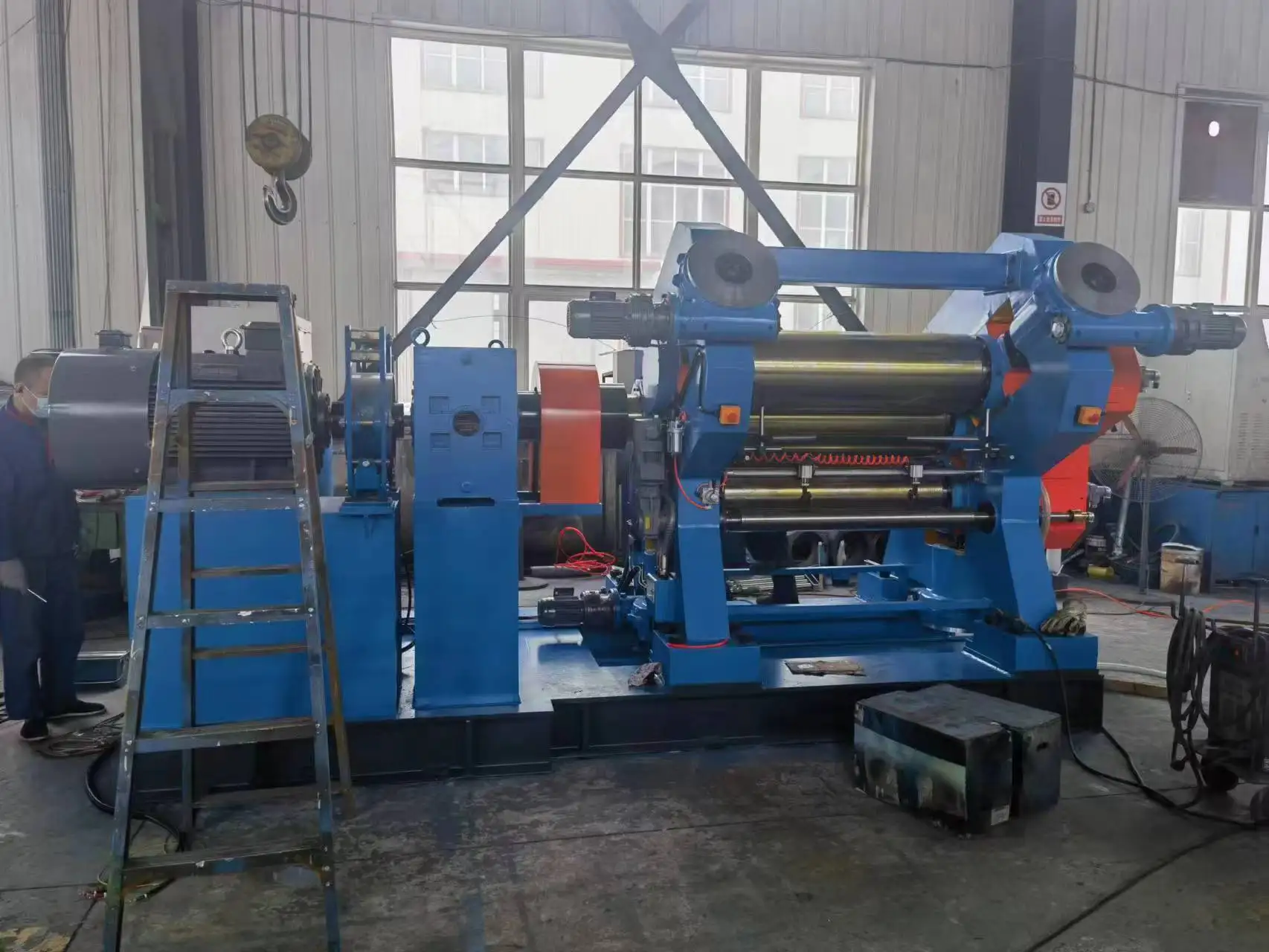

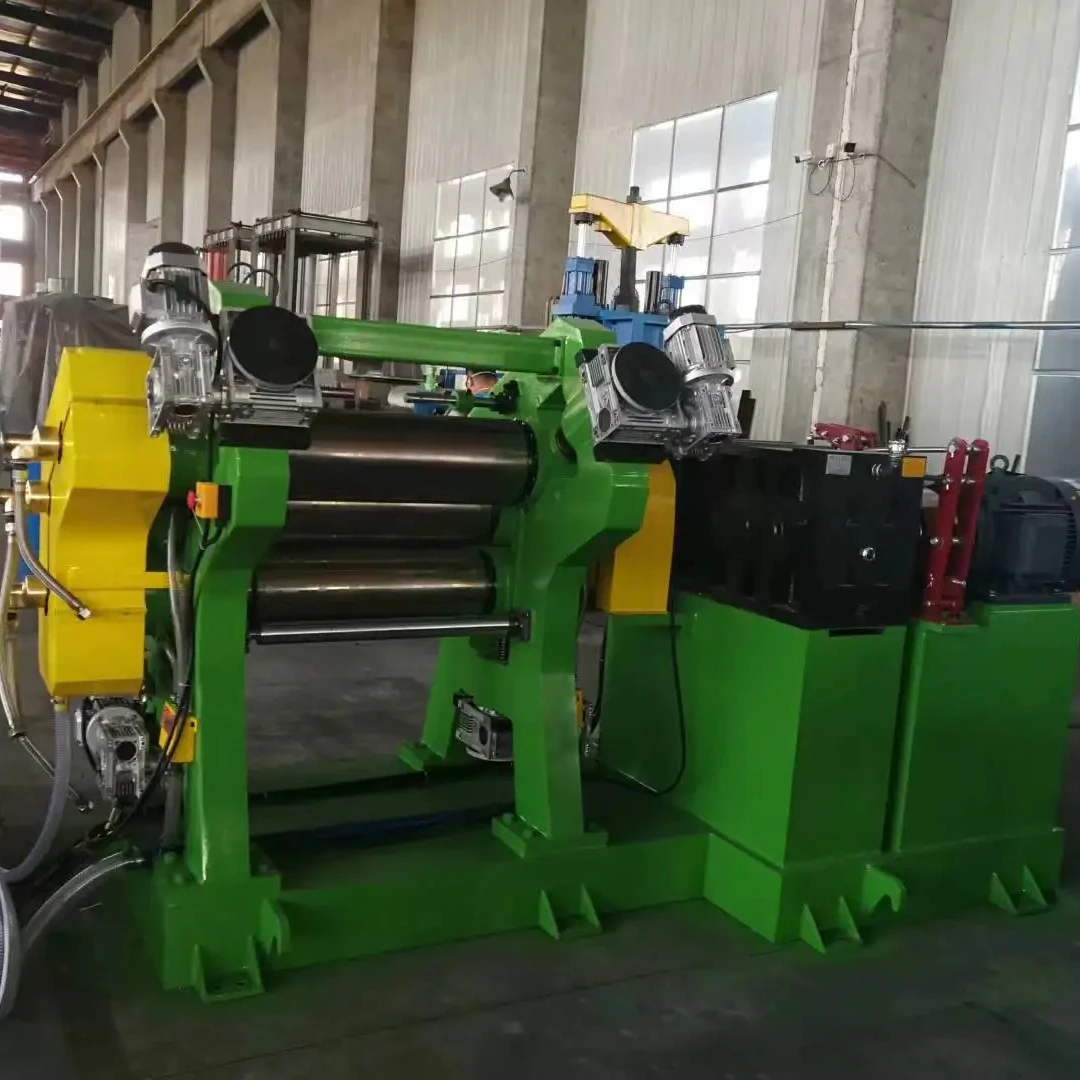

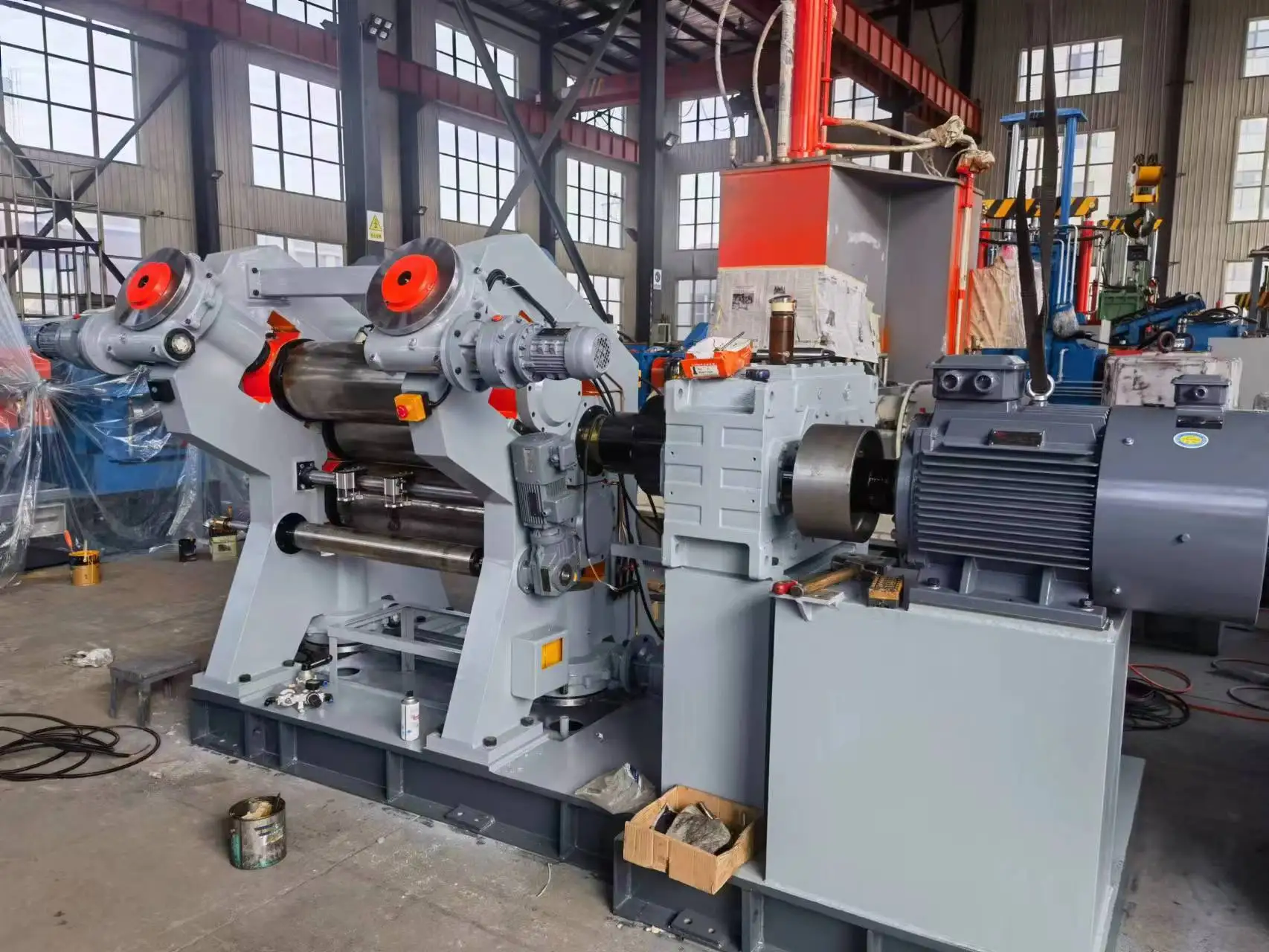

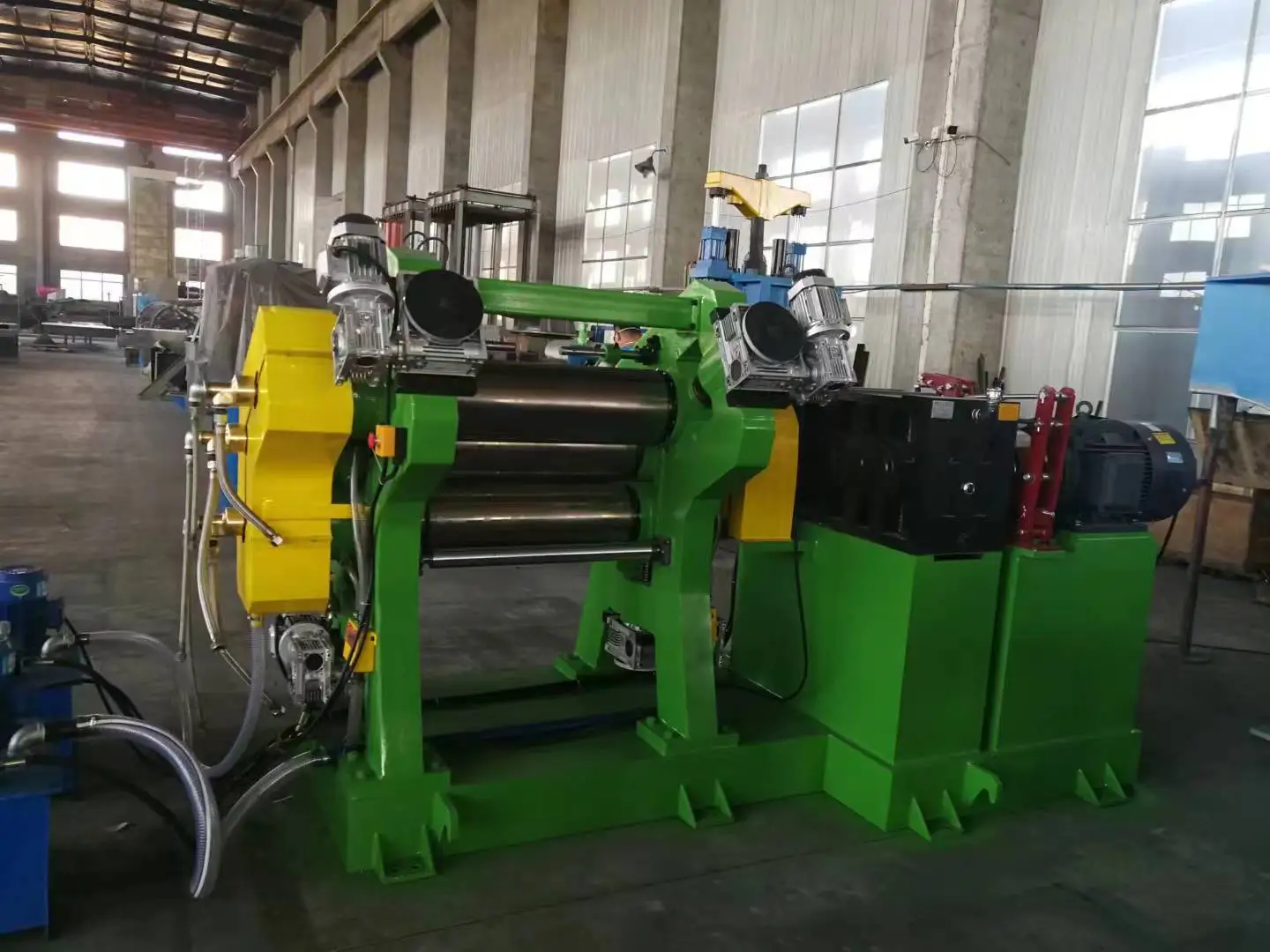

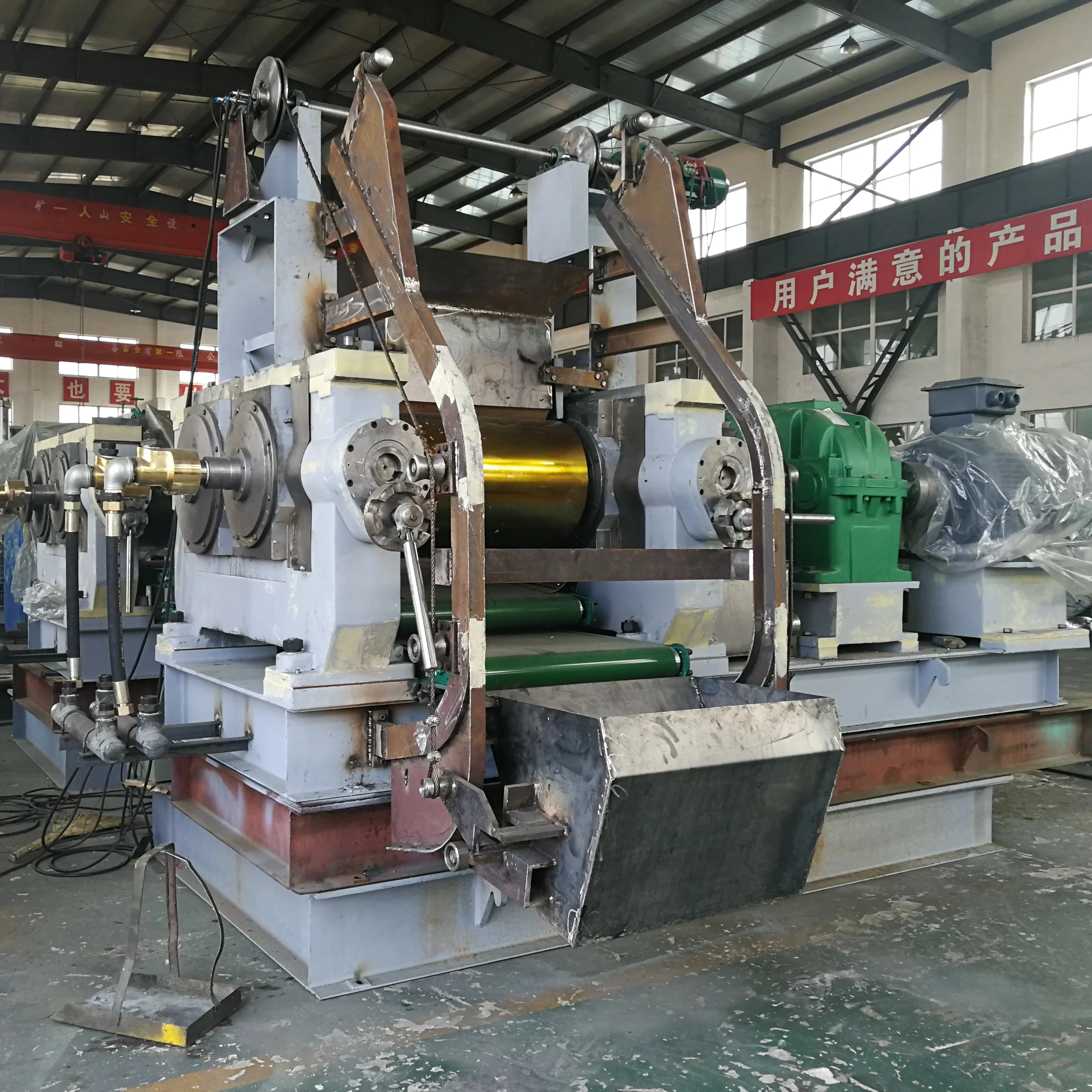

XY-3r 400*1200 Three Roll Rubber Calender Machine/ Rubber Sheet Calendering Machine
Wechat / Whats App: 0086-13963951313
Product Description
1.Technical spec.:
Model
| XY-31 900 | XY-31 1120A
| XY-31 1400 | XY-31 1200 XY-31 1500 | |
Working diameter of rolls | mm | 300 | 360 | 400 | 450 |
Working length of rolls | mm | 900 | 1120 | 1200 | 1200(1500) |
Speed ratio |
| 1:1:1
| 1:1:1 0.733:1:1 0.733:1:0.733 | 1:1:1 1:1.385:1.385 1:1.385:1 | 1:1:1 1:1.5:1 |
Working linear speed of middle roll(m/min) | mm | 1.8-18 | 7.0-21.06 | 8.8-26.39 | 8.36-25.08 |
Adjusting nip range ratio | mm | 0-10 | 0-10 | 0-10 | 0-6 |
Min.Calendaring product thickness | mm | 0.2 | 0.2 | 0.2 | 0.2 |
Calendaring product width | mm | 700 | 920 | 1000 | 1100(1400) |
Driving motor power | KW | 30 | 45 | 55 | 75/25 |
Overall Size | mm | 4200×1500×1950 | 5550×1640×2120 | 6350×1410×2385 | 6900×1910×2750 |
Weight | kg | 9000 | 14000 | 18000 | 17000 |
2.Application:
Rubber calendering machine is mainly used for: Textile (cloth, canvas, etc.) of glue and eraser; steel cord adhesive; rubber compression and pressure type; cord attached to the fit of the isolation film and multilayer film.
3.Main Features:
1.The machine is made of chilled castiron alloys,whose work surface has high hardness,so it is wear-resistant and durable.
2.While using,the steem,cooling water and heat-conducting oil can be passed into the roller's cavity,so that the working temparature can be adjusted in order to meet the technological requirement.
3.Roller space can be adjusted both by manual or electric mode.
4.Roller bearings' lubricating can adopt drier oil or dilute oil.
Our Services
4.Best Service:
- Professional and quick response to your questions at any time.
- We will communicate with our production dept. and keep you updated about production progress in time.
- Customized manufacture available as per clients
- Fast delievery to save your time.
- Good after sale service will eliminate your worry.
- Long guarantee period of the quality will reduce your cost and trouble.
- Professional packing and ocean shipping control to make your order safe and sound.

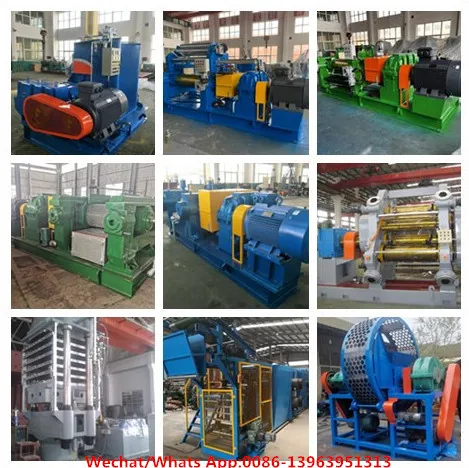

5. Related machines:
- Rubber mixing equipment: Bale cutter, Kneader, Bucket elevator, Mixing mill
- Rubber vulcanizing machine: Four-column press, Frame press, Tire & tube press,etc
- Automatic & Semi-automatic waste tire recycling machine

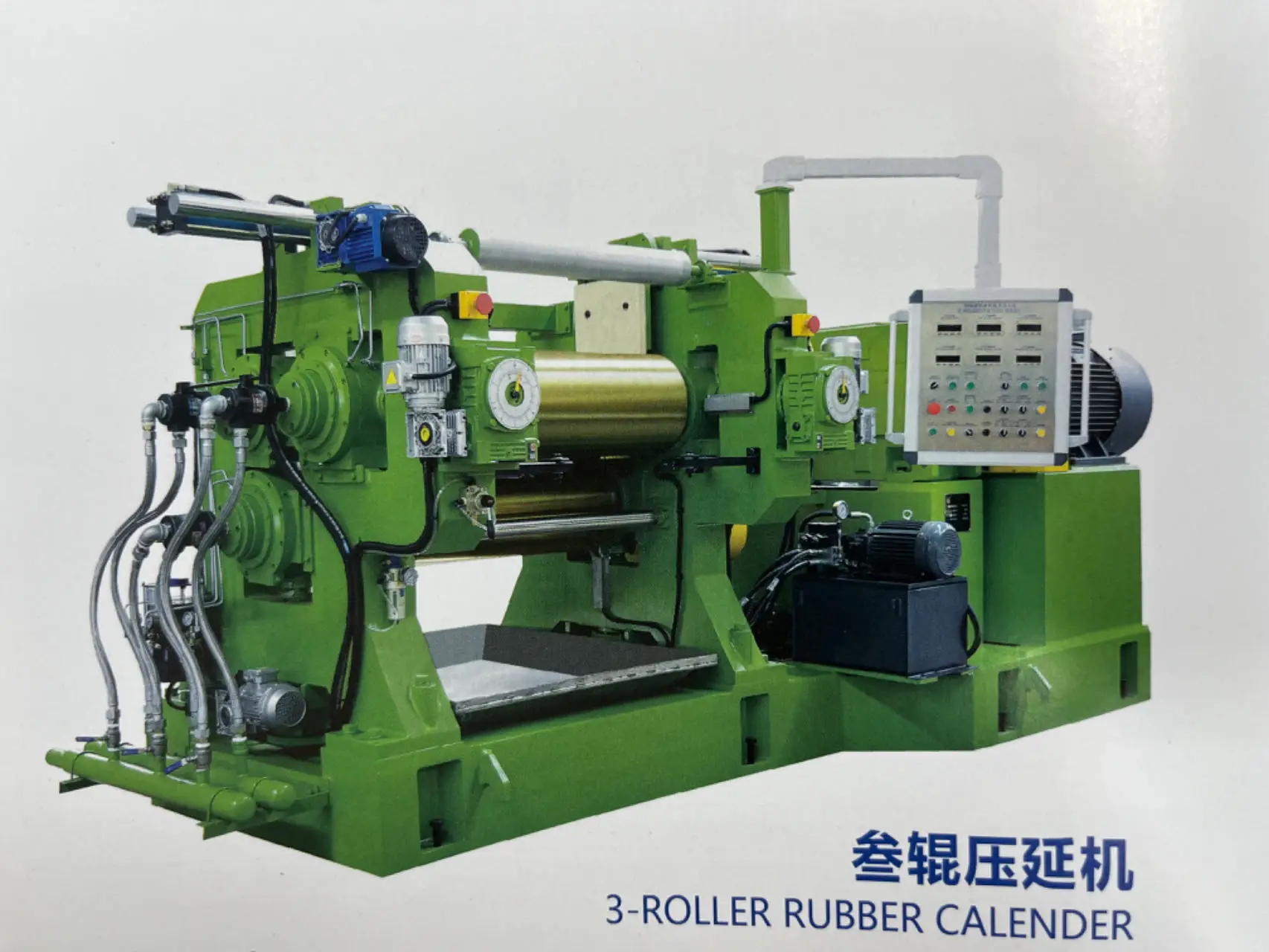

- Rubber calender machine: 3 roll & 4 roll calender
- Rubber extruding machine: cold feed extruder & hot feed extruder
- Reclaimed rubber production line: Dynamic devulcanizer, Cracker mill, Rubber refiner,etc
FAQ
1.Are you factory company?
We have been engaged in Rubber&Plastic mixing machine since 1998. We have workshop and R&D department.
2.What about the operational guidance?
Training of customer's operator and maintenance personnel and long-term technical consultation is provided.
3.How about the warranty time?
One year's non-charge warranty period is provided for units in normal operation and long-term spare parts/component are available.
4.Do you offer the customization of the machine?
Of course, we will give you the most proper recommendation and setting according to your materials and demand.
Warmly welcome to visit our factory at any time for further cooperation ,expecting to build a good&long-term cooperation with clients all over the world.
