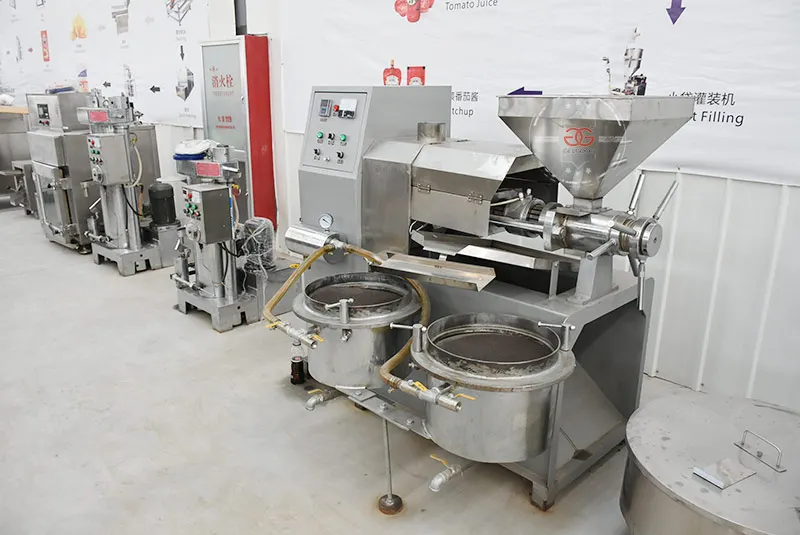

300 500Kg/H Safflower Oil Press Niger Grape Seed Oil Extraction Machine
- Category: >>>
- Supplier: Gelgoog Intelligent Technology Co. Ltd.
Share on (1600978569826):
Product Overview
Description
Product Description

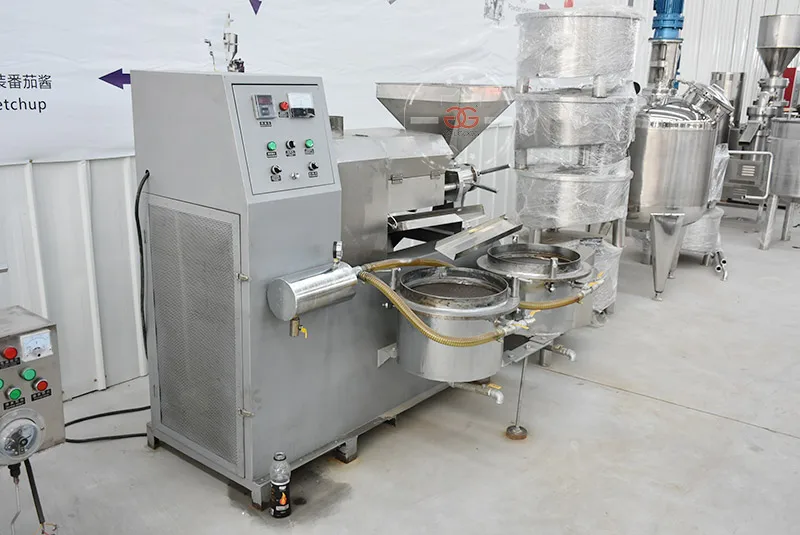

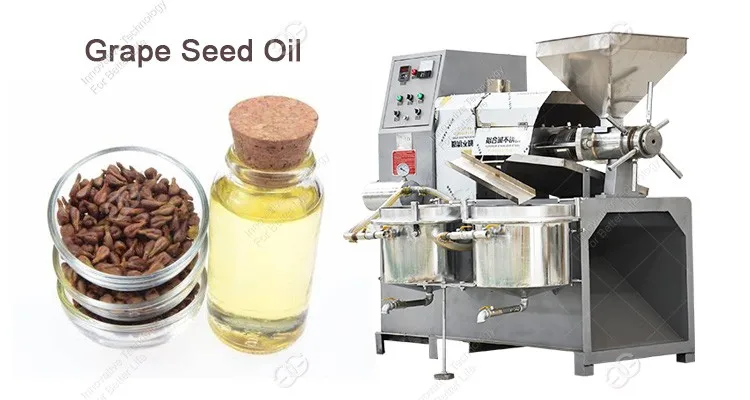

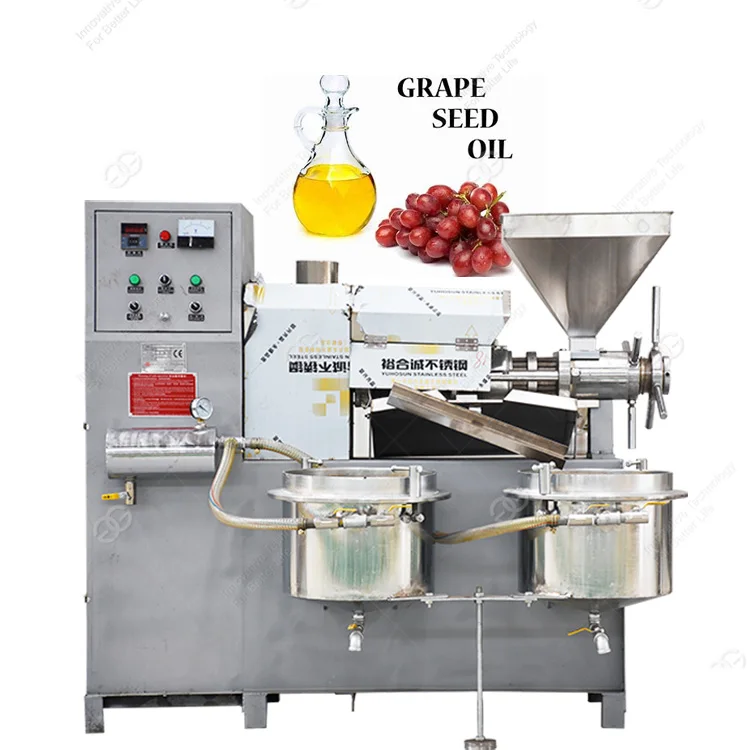

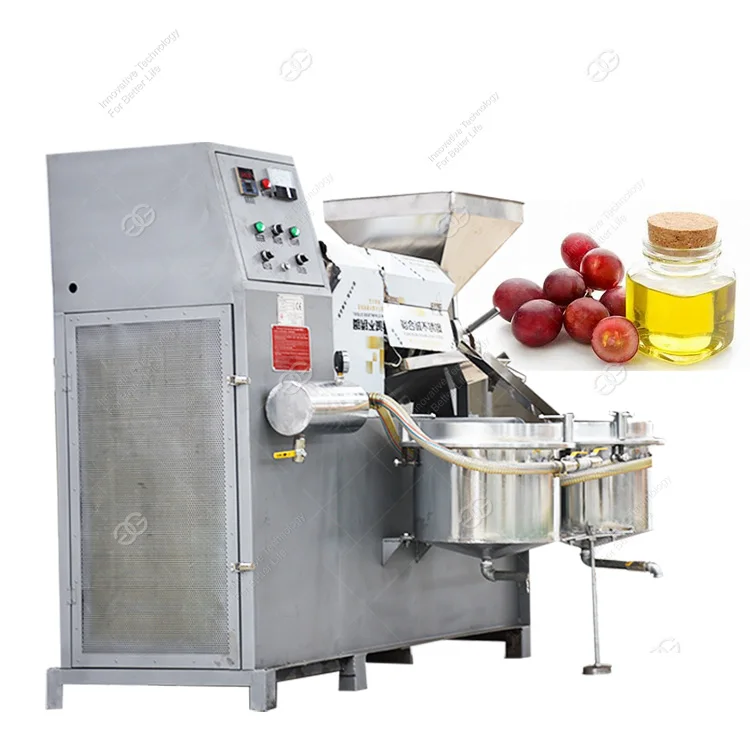

Introduction of Grape Seed Oil Extraction Machine
Grape seed oil extraction machine is scientific in design, reasonable in structure, simple in operation, safe and stable. It adopts fully automated equipment and takes only a few minutes from the time of feeding to the finished product.
Parameters of Safflower Oil Extraction Machine

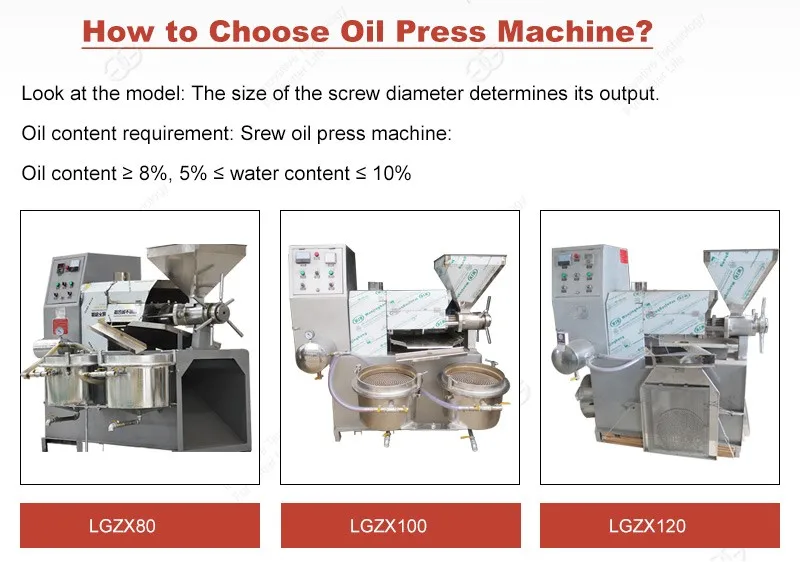

Model | GG-ZX80 | GG-ZX100 | GG-ZX120 | GG-ZX130 |
Spiral Diameter | 80mm | 100mm | 120mm | 130mm |
Spiral Speed | 47r/min | 38r/min | 37r/min | 32r/min |
Power | 5.5KW | 7.5KW | 11-15KW | 15-18.5KW |
Vacuum Pump Power | 0.75KW | 1.5KW | 1.5KW | 1.5KW |
Heater Powder | 2.2KW | 2.2KW | 3.0KW | 3.0KW |
Capacity | 65-130Kg/h | 140-200Kg/h | 200-300Kg/h | 300-500Kg/h |
Weight | 880Kg | 1250Kg | 1500Kg | 1800Kg |
Dimnesion(mm) | 1500*1300*1550 | 1700*1300*1650 | 2050*1300*1800 | 2100*1300*1800 |
Materials | Oil Content | Gelgoog | Other manufacturers |
Peanut | 45%-50% | 39%-44% | 35%-43% |
Sesame | 50%-60% | 44%-54% | 39%-45% |
Almond | 50%-65% | 40%-45% | 35%-43% |
Walnut | 65%-70% | 50%-60% | 45%-55% |
Soybean | 10%-15% | 10%-12% | 8%-10% |
Sunflower Seed | 45%-54% | 38%-48% | 35%-43% |
Pine Nuts | 50%-55% | 45%-60% | 42%-56% |
Pumpkin Seeds | 30%-35% | 24%-29% | 20%-27% |
Application of Niger Seed Oil Press Machine
The niger seed oil press machine is suitable for small and medium oil processing plants and individual professional households, and can also be used for pre-pressing of oil mills.
Features of Grape Seed Oil Extraction Machine
1. Scientific design, reasonable structure, easy operation, safety and stability.
2. With a fully automated device, it takes only a few minutes from the time of feeding to the completion of the finished product.
3. It adopts high carbon steel, which is made by high frequency quenching and heat treatment.
Related Products

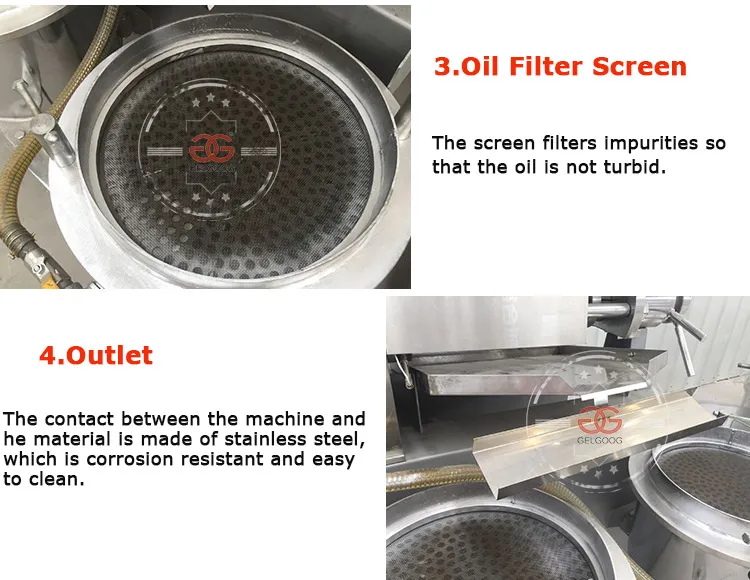

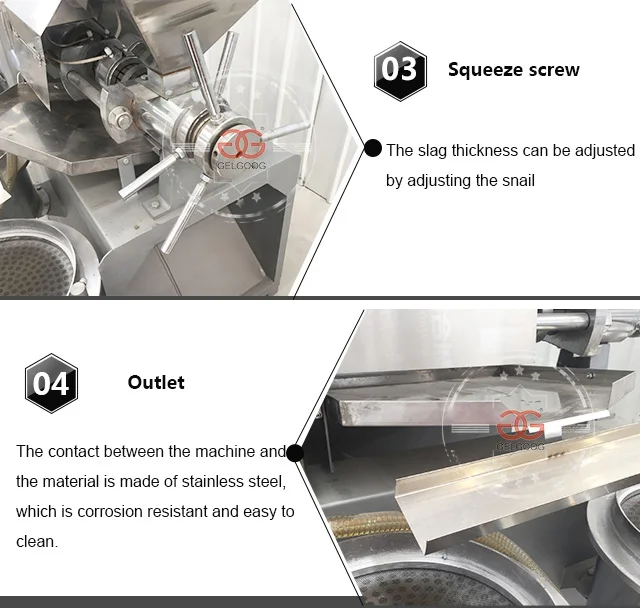

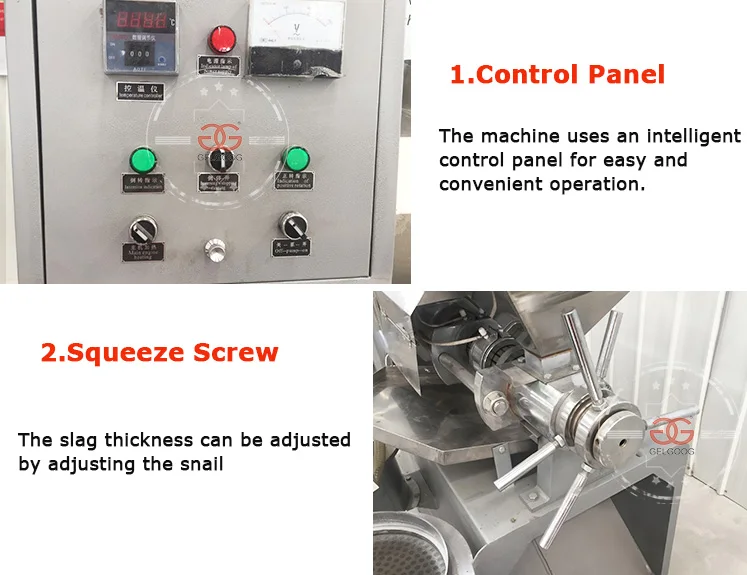

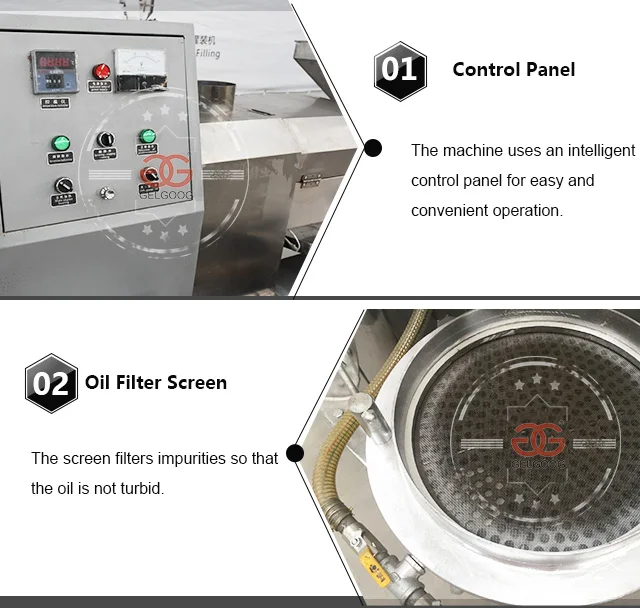

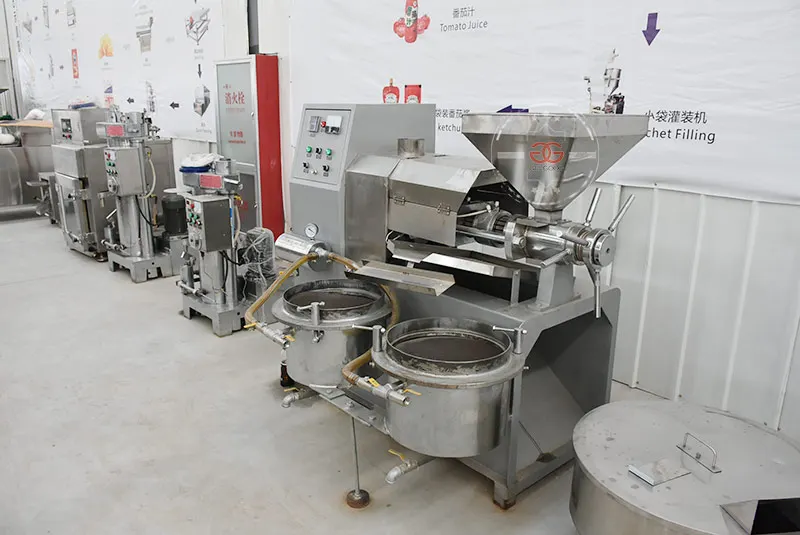

Detailed Image
FAQ
1. What is the material for the screw press?
Oil crops such as peanut, soybean, rapeseed, sesame, oil sunflower, flax seed, camellia seed, cottonseed, pepper seed, walnut kernel, tung seed, ramie, almond, palm, coconut shell, etc.
2.What is the reason for not producing oil or low oil yield?
The material is not wet or too dry, the oil drain is blocked by the oil slag or the squeezer is too tightly assembled.
3. What is the oil content of the slag?
Generally hot pressed slag oil content of 6-10% (according to the appropriate temperature of the pressing temperature)
4. What are the requirements for working temperature?
Cold pressing oil requires 2-3 times of pressing, oil pressing temperature (below 100 degrees Celsius), hot pressing once, oil extraction temperature (130-145 degrees Celsius)
5. What are the requirements for materials?
Oil content 8%, 5% water content 10%.
Customer Visit

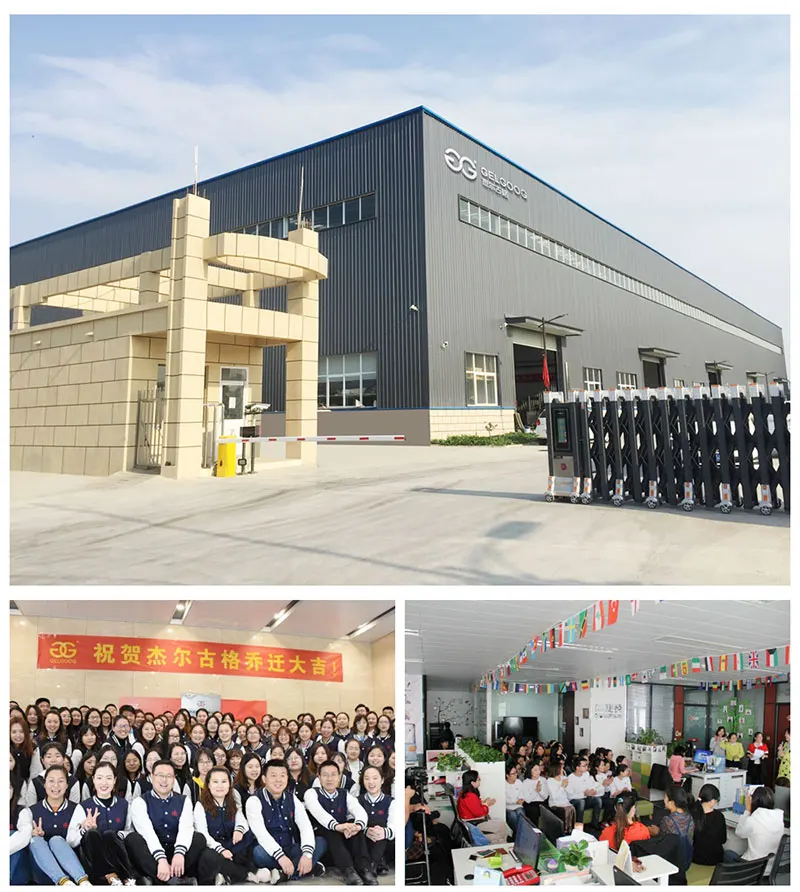

Company Profile
