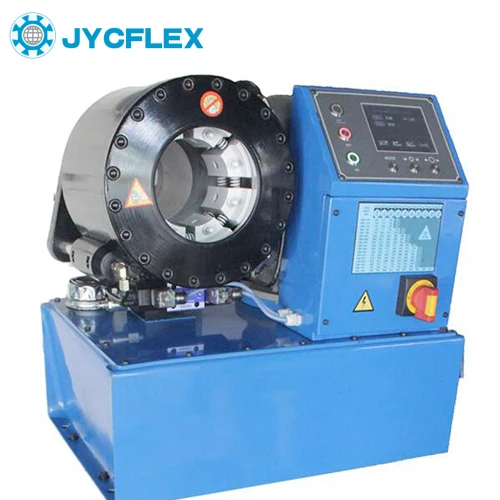

Automatic High Pressure ultra thin Hydraulic Pipe Rubber Hose Crimping Machine Effective hydraulic hose crimping machine
- Category: >>>
- Supplier: Weifang JYC Import And Export Co. Ltd.
Share on (1600978592437):
Product Overview
Description
MACHINE Description
Hydraulic hose crimping machine Application
Due to less wearing parts ,JYC-P150 Medel has the least down time.
The control panel has been re-designed with soft touch button commands for all the operations.
It is most user-friendly, safe & simple in operation.
SPECIFICATIONS FOR HYDRAULIC HOSE CRIMPING MACHINE | ||||||
Production name | hose crimping machine | Machine model | JYC-P150 | |||
Machine type | hydraulic crimping tool | Application | crimping hose | |||
Crimping range | 6-76mm(1/4--3inch) | System pressure | 31.5Mpa | |||
Crimping force | 4900kN | Operation mode | electrical | |||
Dies set | 15 sets | Die length | 75mm | |||
Dimension | 450*650*1500mm | Weight | 550KG | |||
Voltage | 220V/380V | Power | 3KW/4KW | |||
Rated Flow | 10ml/r | Prodection Class | IP54 | |||
P32 Hose Crimping Machine Features
High Efficiency High Precision Good Product Consistency
Low labor Intensity Good Management Simple In Operation
Detailed Images
Machine Parts

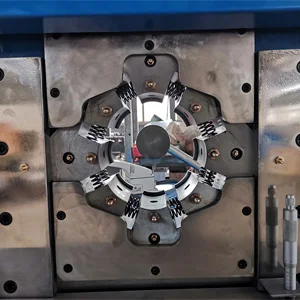

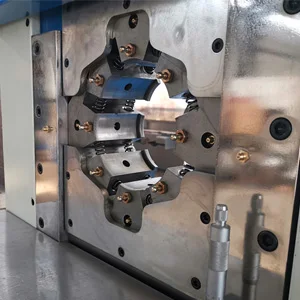

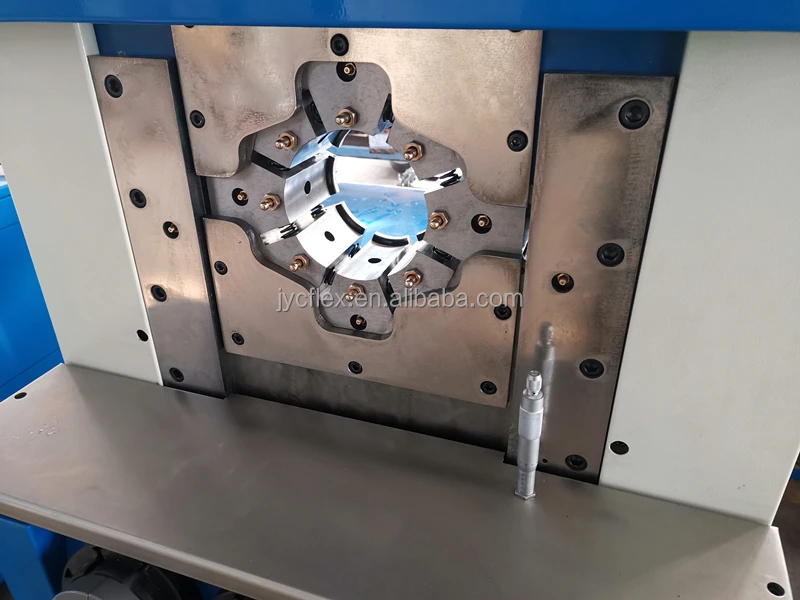

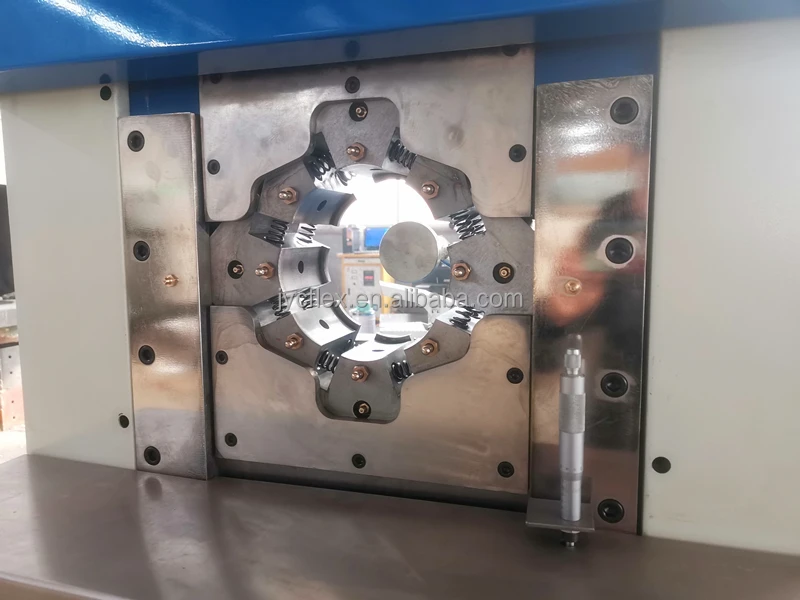

Name: Crimping machine head
Front housing cover,cylinder and piston rod use material with CR,improve the oil cylinder and piston rod fatigue resistance.
Machine Parts

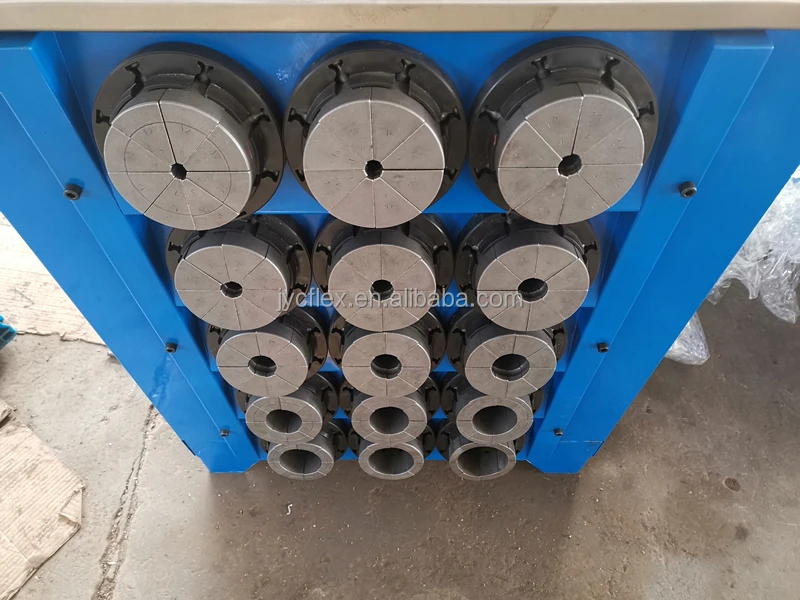

Name: Crimping machine die sets
High quality
reliable
durable
High performance to price ratio
Professional
Machine Parts
Name: Oil seal kits
It will drive parts in the need to lubricate the parts and components of the output of the isolation, not to allow the leakage of lubricating oil.
Crimping Machine Application:
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

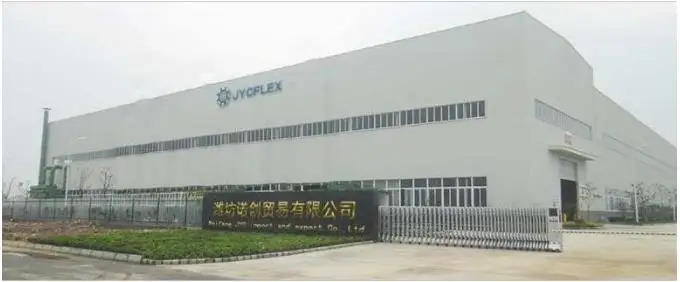

* View our Factory.
After-Sales Service
*24x7 service
* Training how to install and use the machine
* Engineers available to service machinery overseas.
Certifications

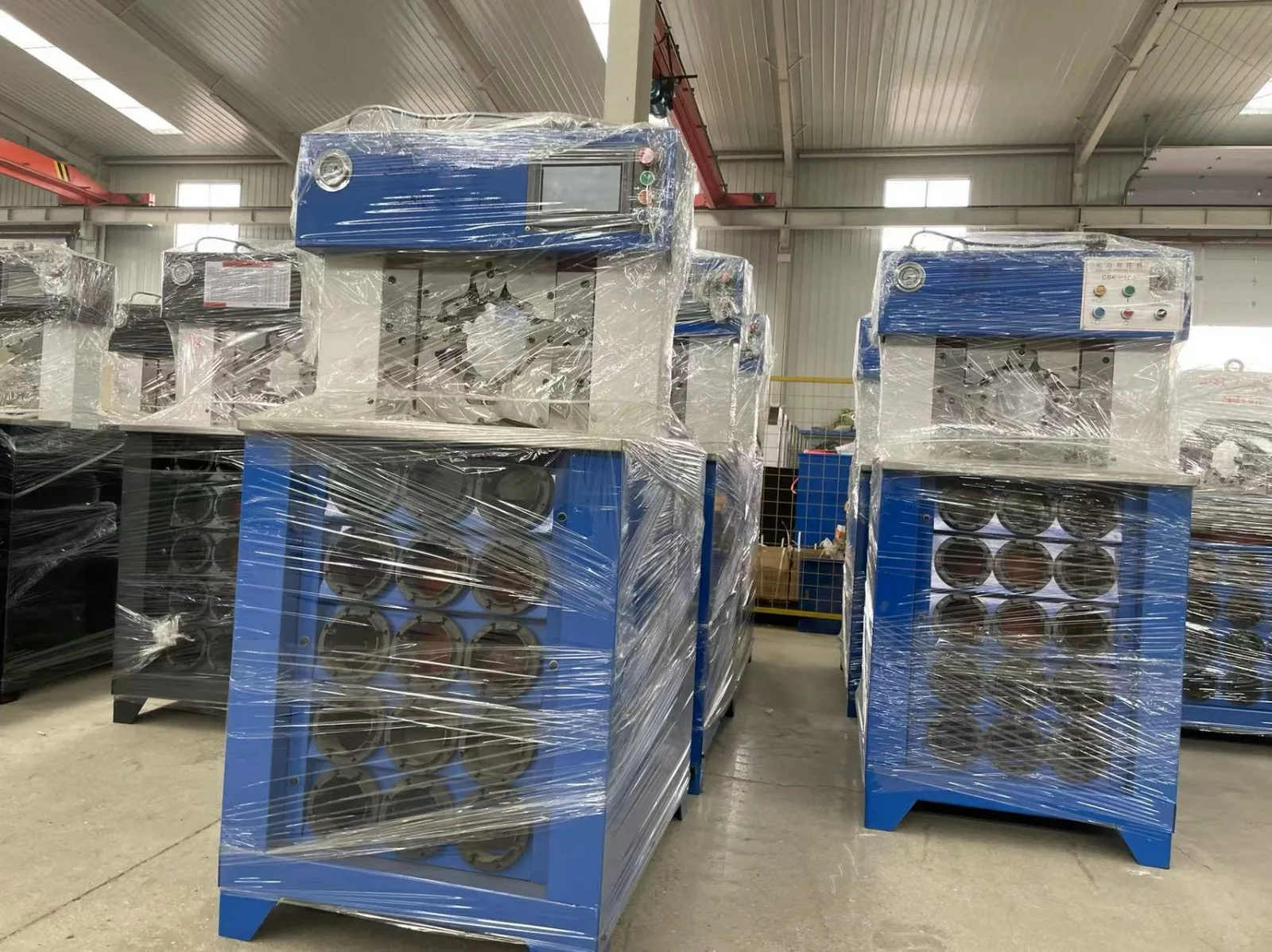

Packing & Delivery
Packaging | ||
Size | 650(L) * 470 (W) * 620(H) | |
Weight | 290KG | |
Packaging Details | Covering the machine with films,and package the machine with the starndard export wooden case. The normal package is wooden box(Size: 670*490*640). Before delivery,we will make sure the package is in good condition. | |
Packaging | ||
Size | 450 (L) * 630(W) * 1500(H) | |
Weight | 550KG | |
Packaging Details | The normal package is wooden box(Size: 670*490*640).We could custom package according to customer request.We will do every effort to make sure the machine protected to deliver to our customer's hands. | |
