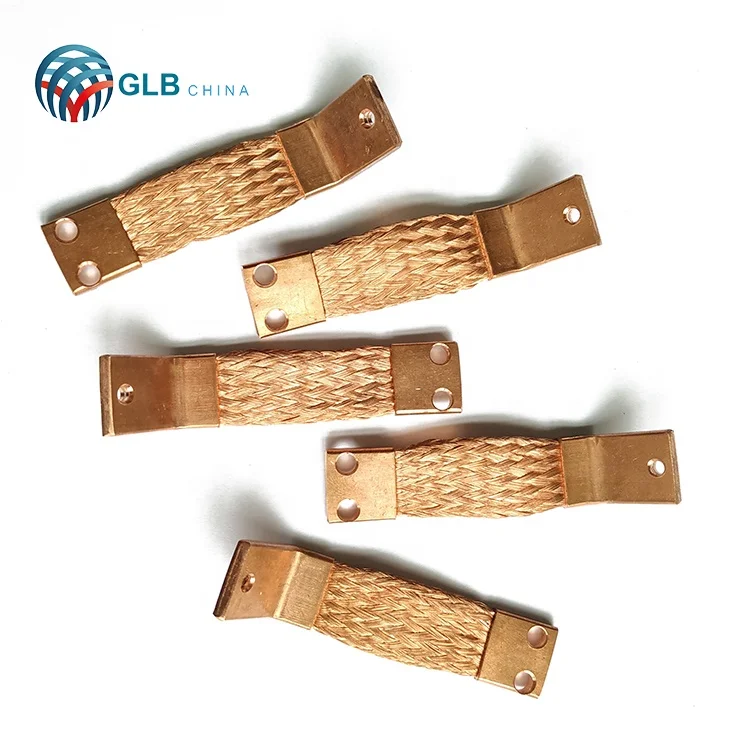

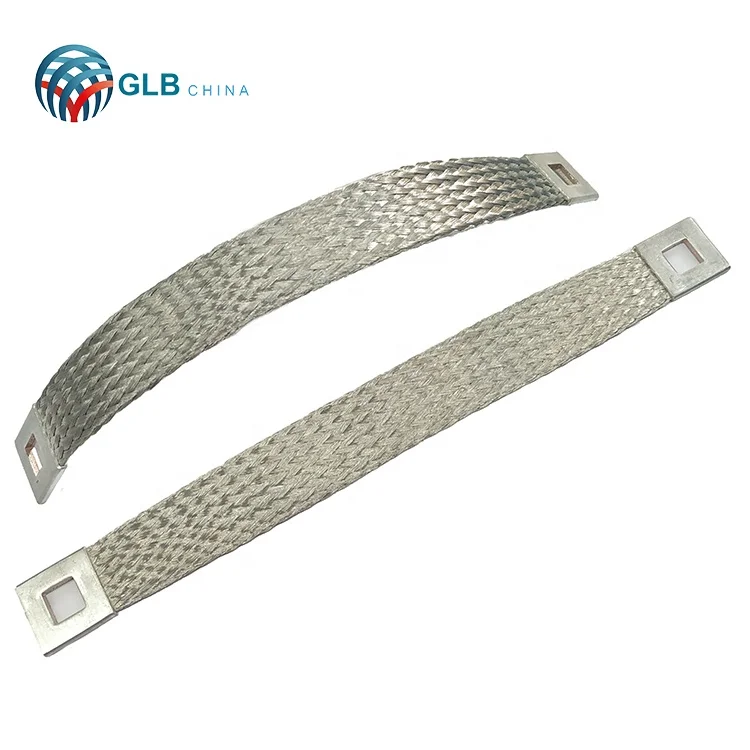

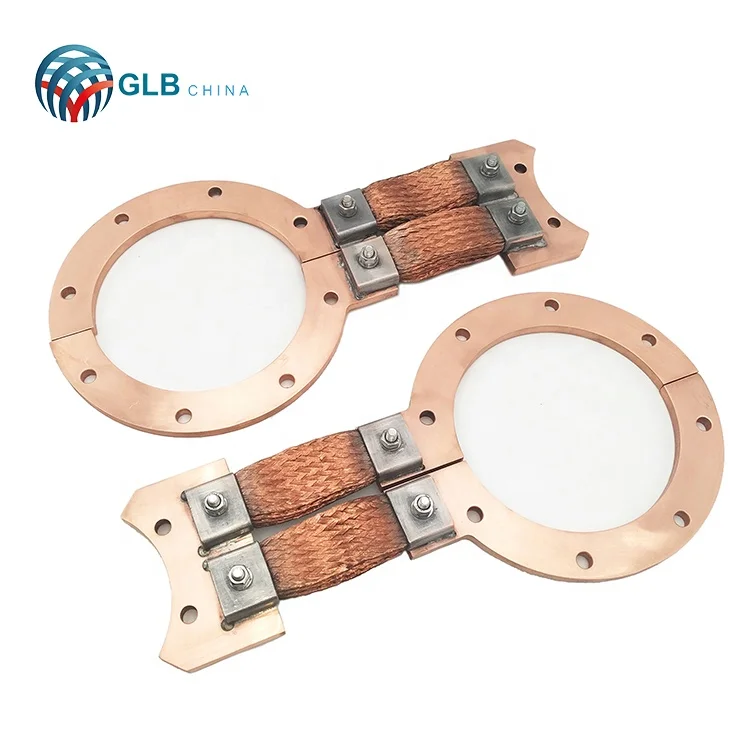

Factory High Quality Flexible Earth Bonding Strap High Current Braided Copper Strip Copper Braided Shunt Product
- Category: >>>
- Supplier: Wenzhou Glb Copper Co. Ltd.
Share on (1600978650775):
Product Overview
Description
Product Description

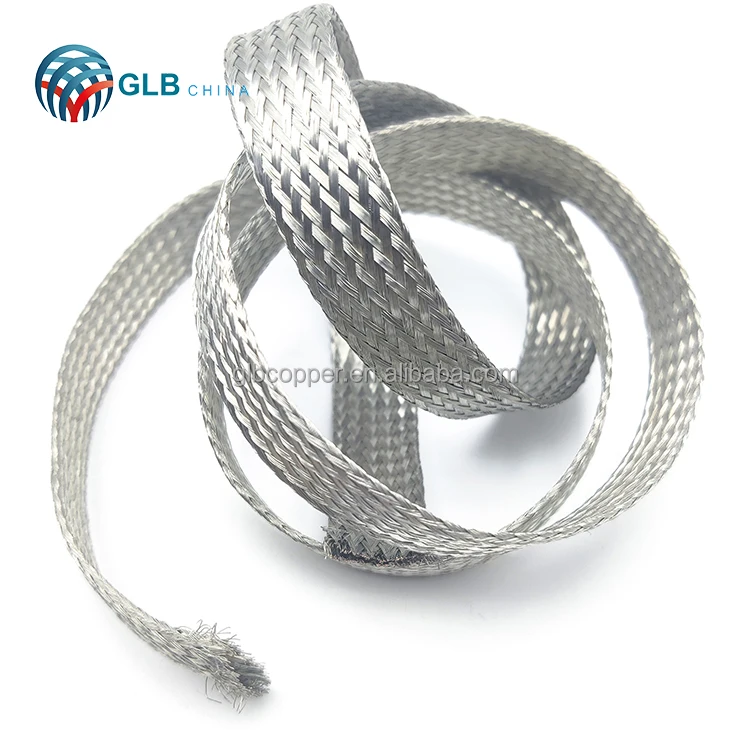

Copper braid wire, also known as copper braided cable or copper grounding strap, is a type of flexible electrical conductor made from woven copper strands. The braid provides an excellent electrical connection and is often used for grounding, shielding, and conducting electricity in a variety of applications.
The copper strands in the braid are typically made from high-quality, high-conductivity copper, which allows for efficient and reliable electrical conductivity. The strands are then woven together to create a flexible, flat or round cable that can be easily bent and maneuvered into place.
Copper braid wire comes in a range of sizes and configurations, including different numbers of strands, widths, and thicknesses.
It is commonly available in tinned and bare copper finishes.Some common applications for copper braid wire include:
* Grounding and bonding in electrical systems
* Shielding electromagnetic interference (EMI) in electronic devices
* Conducting electricity in high-temperature environments
* Connecting and securing components in electronic and electrical equipment
Overall, copper braid wire is a versatile and reliable electrical conductor that is used in a wide range of industrial,
commercial, and consumer applications.
The copper strands in the braid are typically made from high-quality, high-conductivity copper, which allows for efficient and reliable electrical conductivity. The strands are then woven together to create a flexible, flat or round cable that can be easily bent and maneuvered into place.
Copper braid wire comes in a range of sizes and configurations, including different numbers of strands, widths, and thicknesses.
It is commonly available in tinned and bare copper finishes.Some common applications for copper braid wire include:
* Grounding and bonding in electrical systems
* Shielding electromagnetic interference (EMI) in electronic devices
* Conducting electricity in high-temperature environments
* Connecting and securing components in electronic and electrical equipment
Overall, copper braid wire is a versatile and reliable electrical conductor that is used in a wide range of industrial,
commercial, and consumer applications.
Core parameters | Our data |
Material | C11000/T2/CW004A/E-Cu58 |
Copper content | >99.9% |
Tin content | >99.99% |

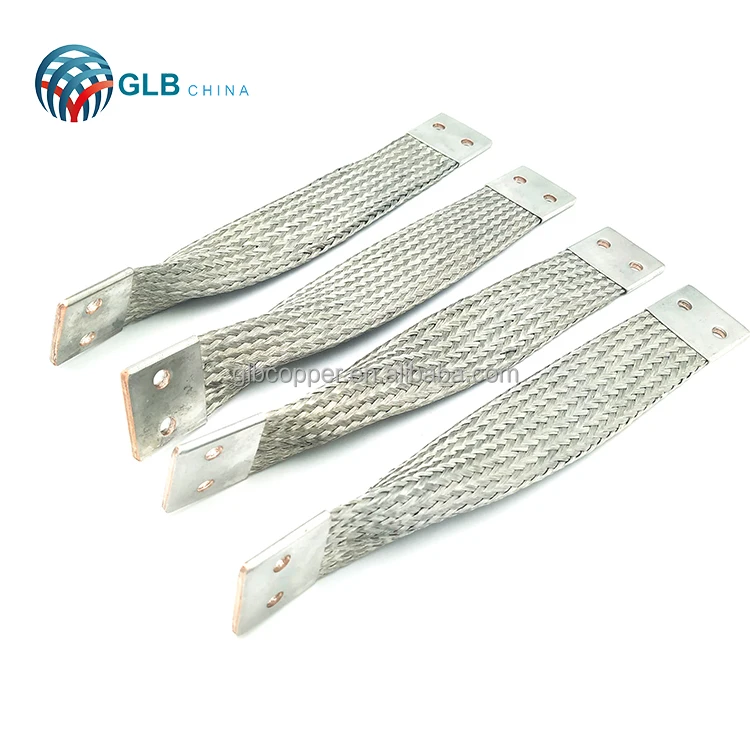

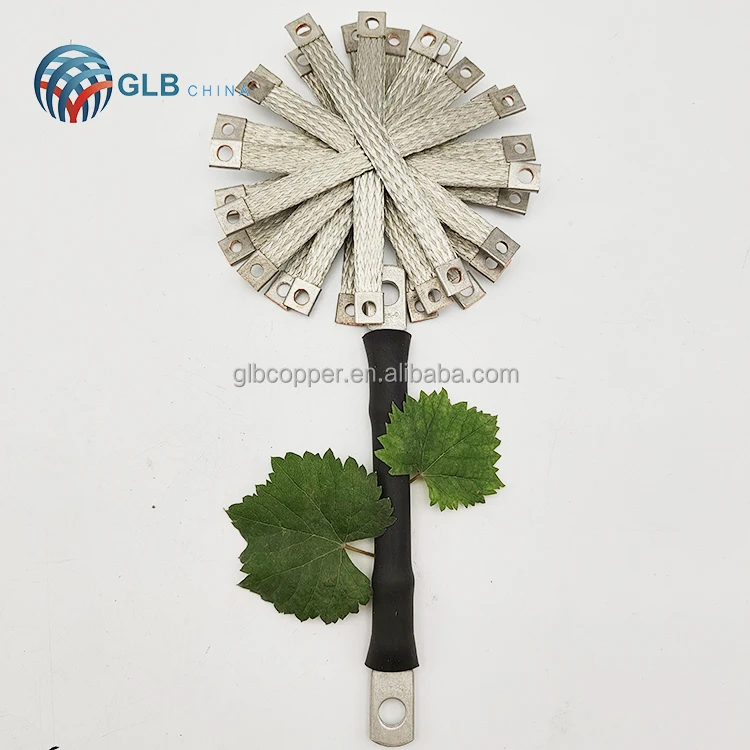

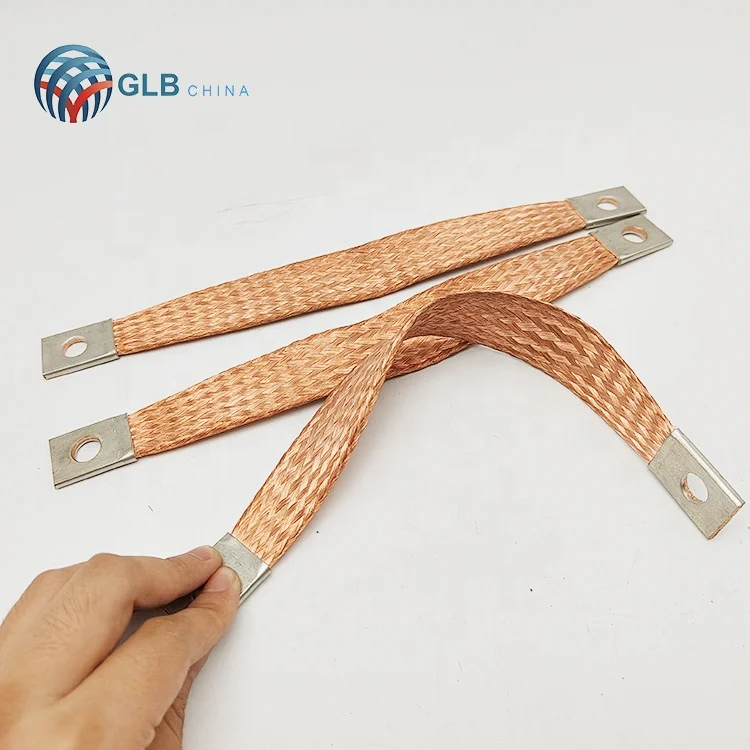

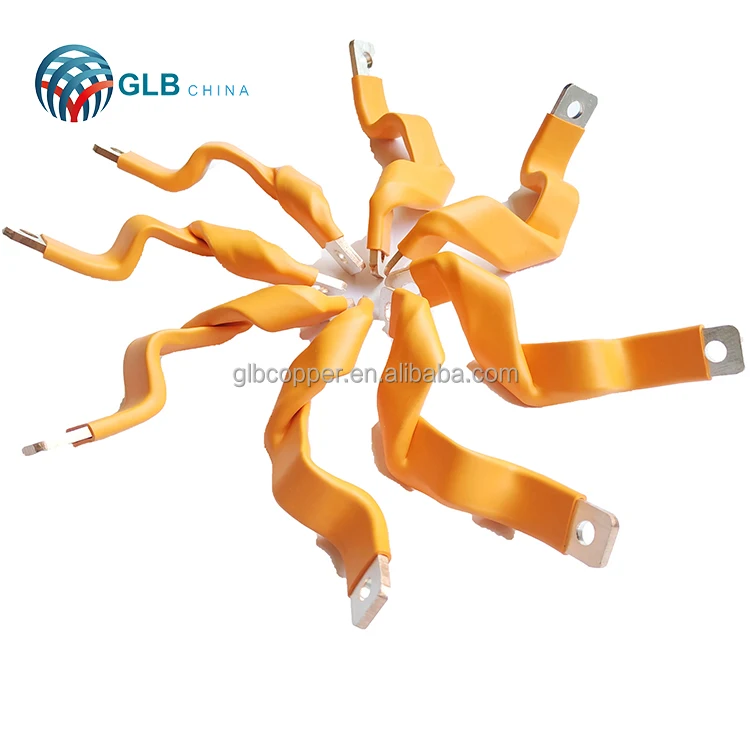

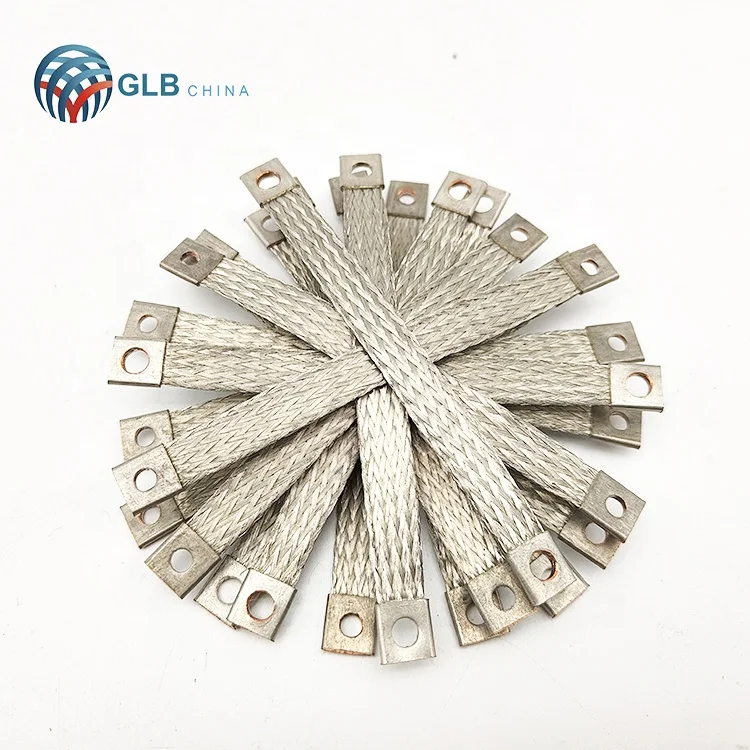

Details Images
Specification
Specifications can be based on our conventional product specifications as shown below, and we can also customize products according to your requirements
Part Number | Cross section (mm2) | Structure | Width Approx(mm) | Thickness Approx(mm) | Weight(kg/km) | Capacity (A) Based on temperature of 35 ℃ |
TZ-15/1.5 | 1.5 | 24*4*1/0.15 | 4 | 0.8 | 15.8 | 21 |
TZ-15/2 | 2 | 24*5*1/0.15 | 5 | 0.8 | 19.6 | 25 |
TZX-15/2.5 | 2.5 | 24*6*1/0.15 | 6 | 0.8 | 23.5 | 30 |
TZX-15/3 | 3 | 36*5*1/0.15 | 7 | 1 | 27.4 | 35 |
TZX-15/4 | 4 | 24*10*1/0.15 | 8 | 1.3 | 39.2 | 40 |
TZX-15/5 | 5 | 32*8*1/0.15 | 10 | 1.3 | 41.2 | 45 |
TZX-15/6 | 6 | 36*10*1/0.15 | 12 | 1.3 | 58.9 | 55 |
TZX-15/8 | 8 | 48*10*1/0.15 | 15 | 1.3 | 79 | 70 |
TZX-15/10 | 10 | 48*12*1/0.15 | 18 | 1.3 | 94 | 85 |
TZX-15/12 | 12 | 48*15*1/0.15 | 20 | 1.5 | 118 | 95 |
TZX-15/16 | 16 | 48*20*1/0.15 | 22 | 2 | 159 | 120 |
TZX-15/20 | 20 | 48*23*1/0.15 | 25 | 2 | 188 | 135 |
TZX-15/25 | 25 | 48*30*1/0.15 | 30 | 2 | 238 | 150 |
TZX-15/35 | 35 | 64*30*1/0.15 | 38 | 2 | 317 | 195 |
Product application

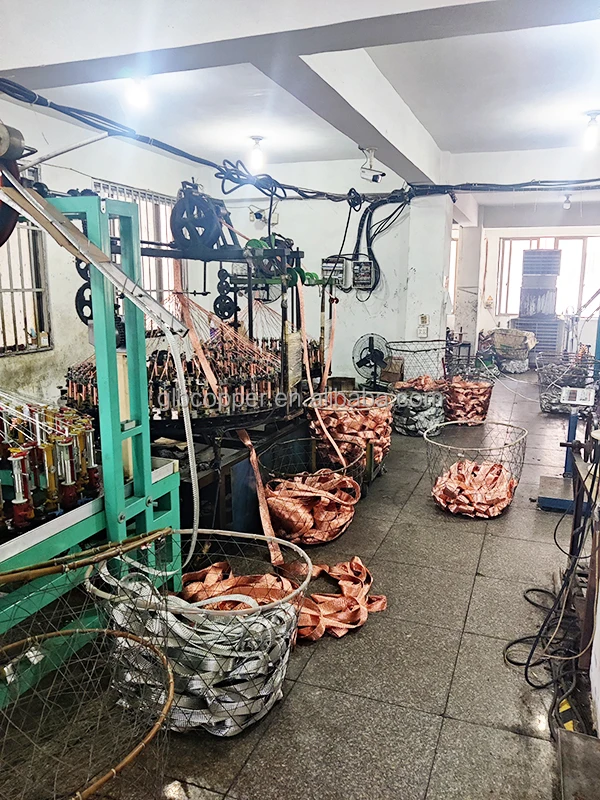

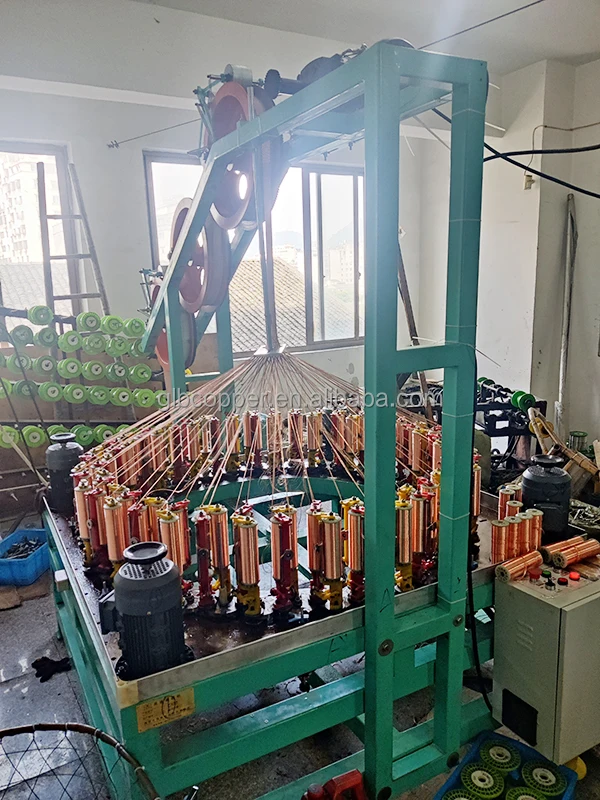

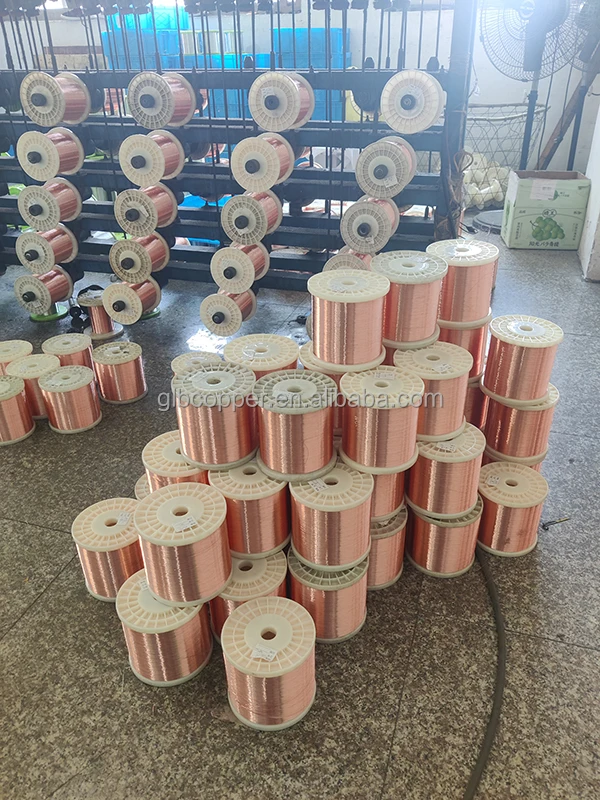

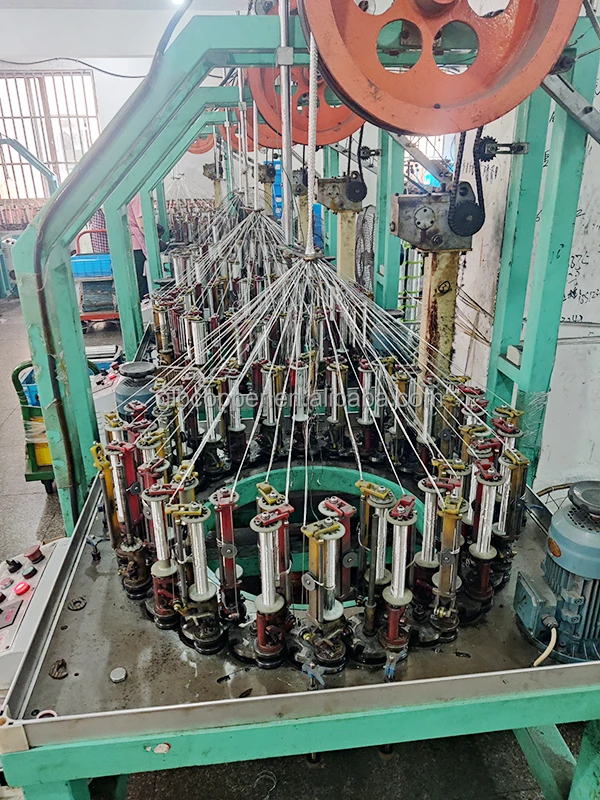

Workshop
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Wenzhou GLB Copper Co., Ltd. was established in 2017, specializing in copper braided wire and copper flexible connection products. With 10 years of professional production experience, it has 14 outstanding sales personnel, 15 strong technical teams, and 230 workers. It has a modern new factory building, covering an area of 3500 square meters. Its products are exported to Europe, the Americas, Southeast Asia, and other regions, and its high-quality products are widely praised. It has ISO9001, ISO 14000, and ROHS certificates.
1) Best price - factory direct sale
2) High quality products - full inspection of products
3) One-stop service - excellent engineers can assist in the design
4) Smooth communication - professional sales team
5) Can be customized according to samples or drawings
2) High quality products - full inspection of products
3) One-stop service - excellent engineers can assist in the design
4) Smooth communication - professional sales team
5) Can be customized according to samples or drawings
