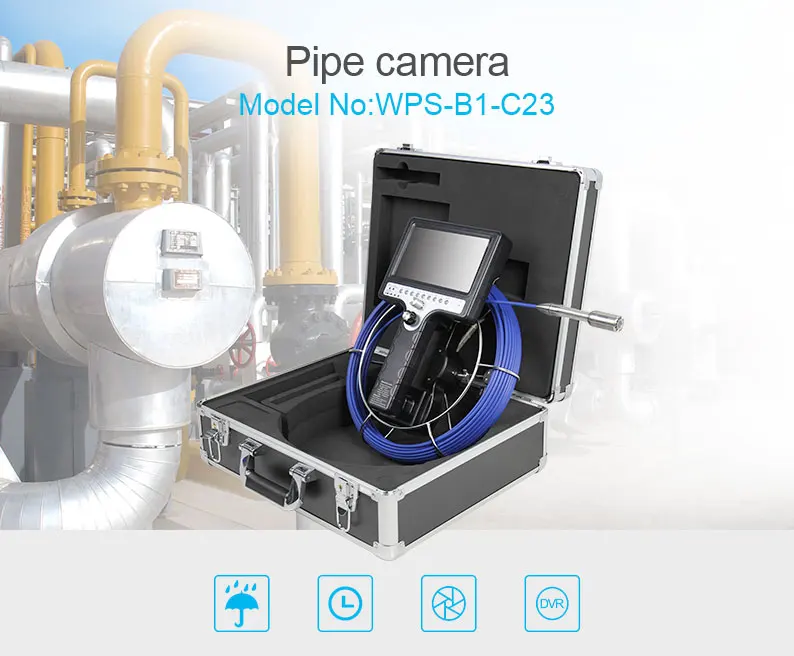

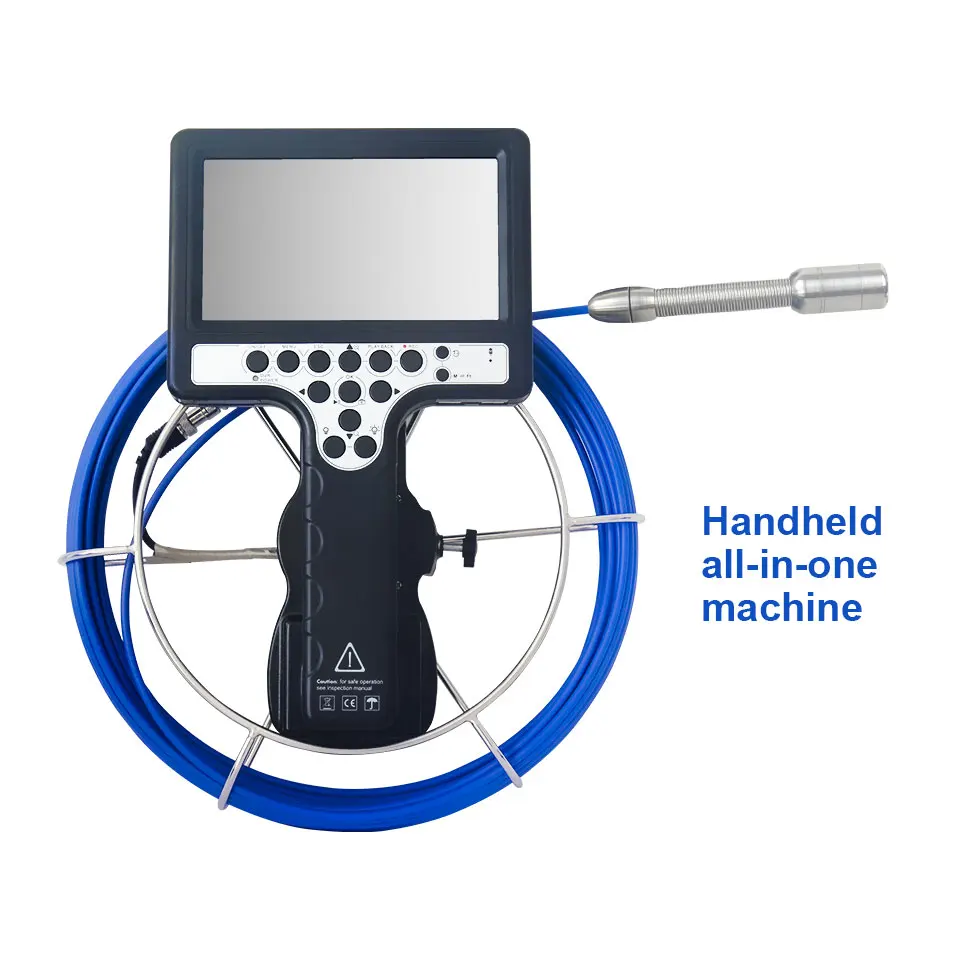

24 inch industry horizontal pipe endoscope machine vision usb 5.5mm flexible inspection camera for smartphone

Product Overview

Description



Specification

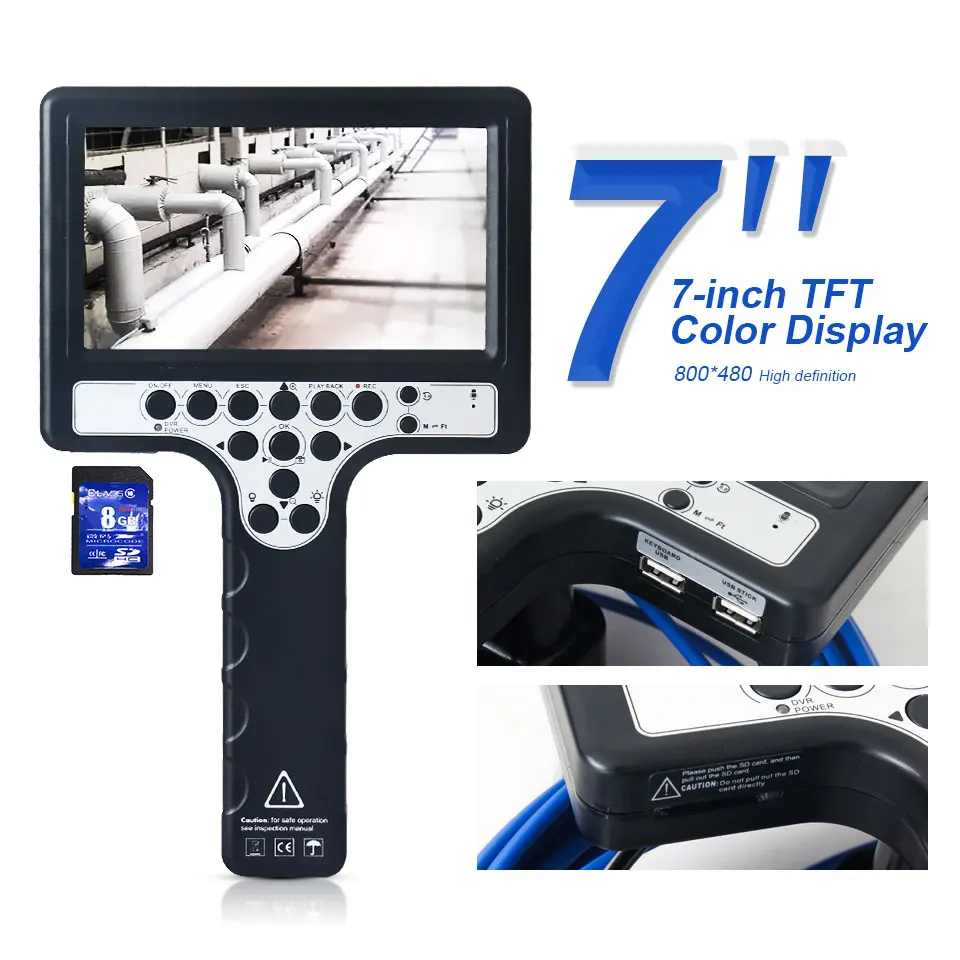

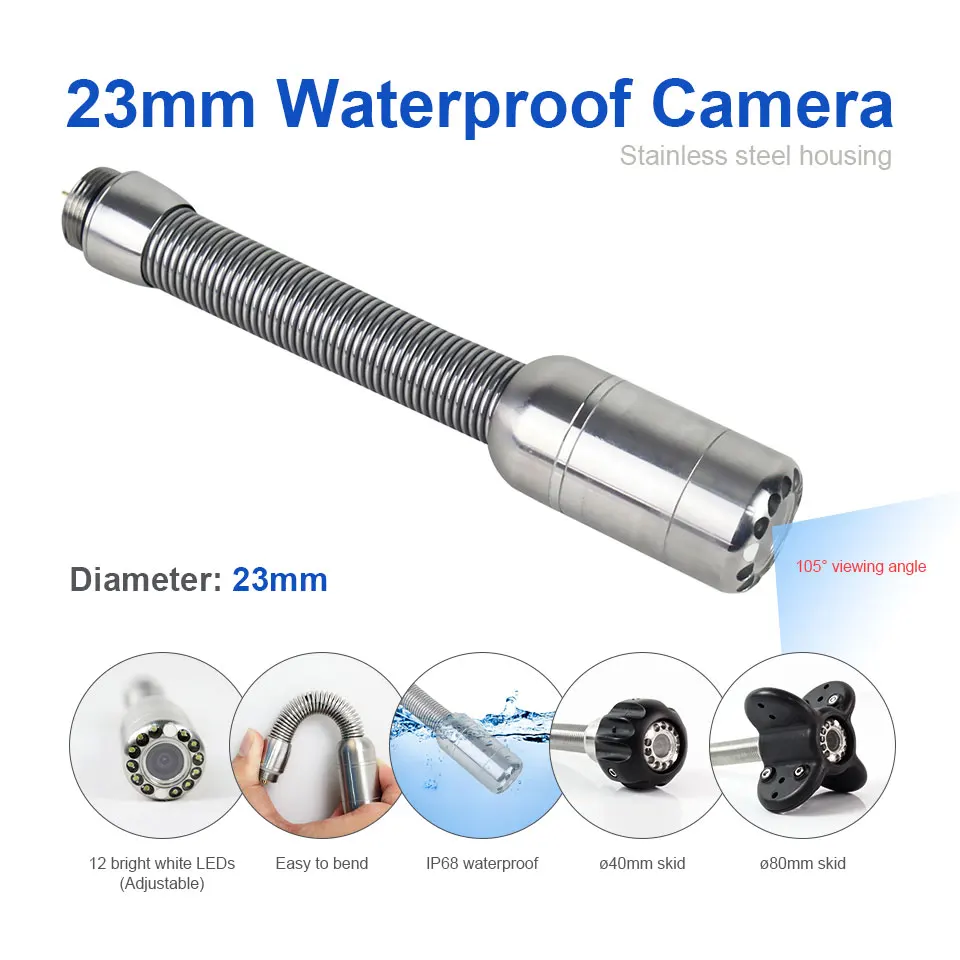

Camera & skid: Camera size: ø23mm*120mm Video resolution: 720*576 Leds: 12pcs View angle: 105°    Waterproof: IP68     Skids: 40/80mm Suitable pipe diameter: 30-200mm	Control box: Storage medium: 8G SD card (max 256G) &USB stick DVR pixels: 720*576 Movie format: AVI 8 levels digital zoom Screen size: 7 inch TFT color Screen pixels: 800*480

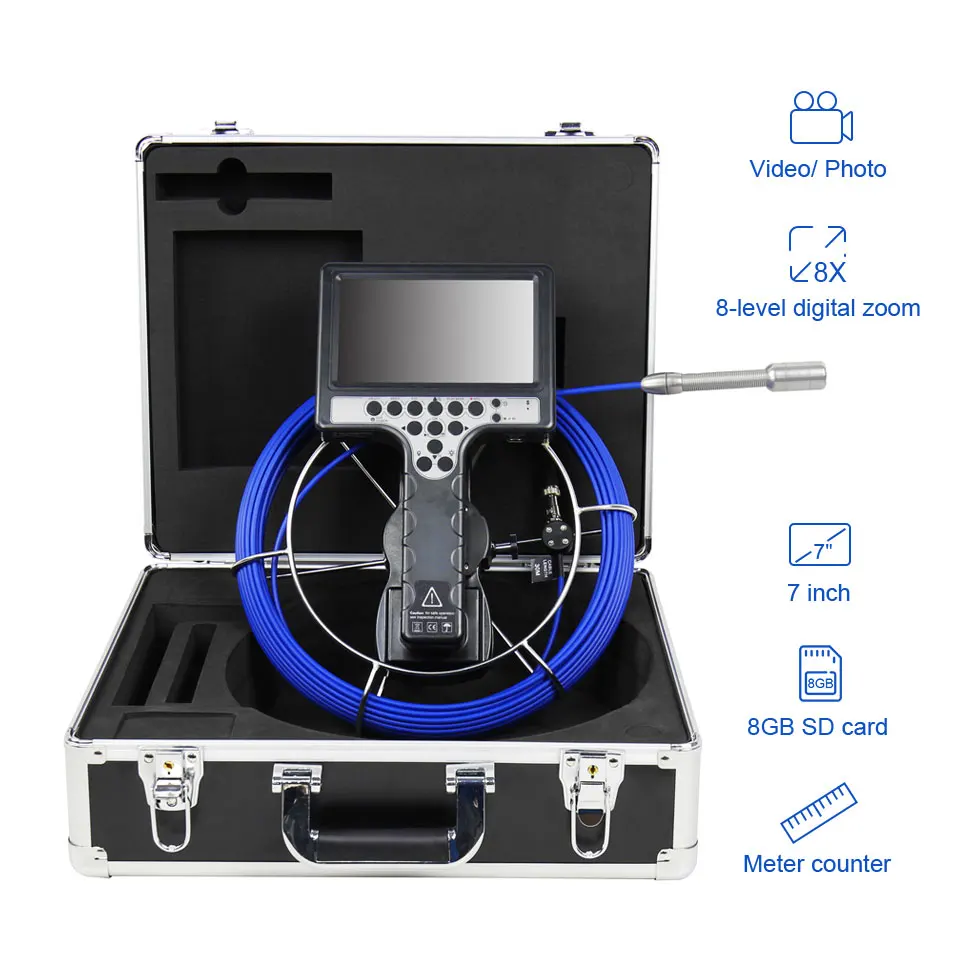

Cable reel: Cable size: ø330*132(h)mm Cable length: 30m Cable diameter: ø5mm Max length: 40m Charger time: 5 hours Running time: ≥7 hours	Case: Size: L440*W395*H165mm Case material: Fire board and aluminum alloy







One-touching

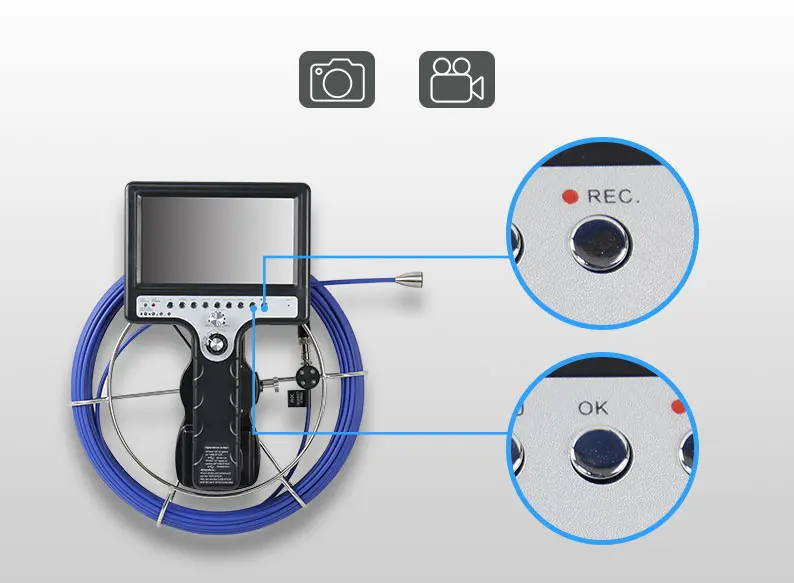

video / audio recording and image capture

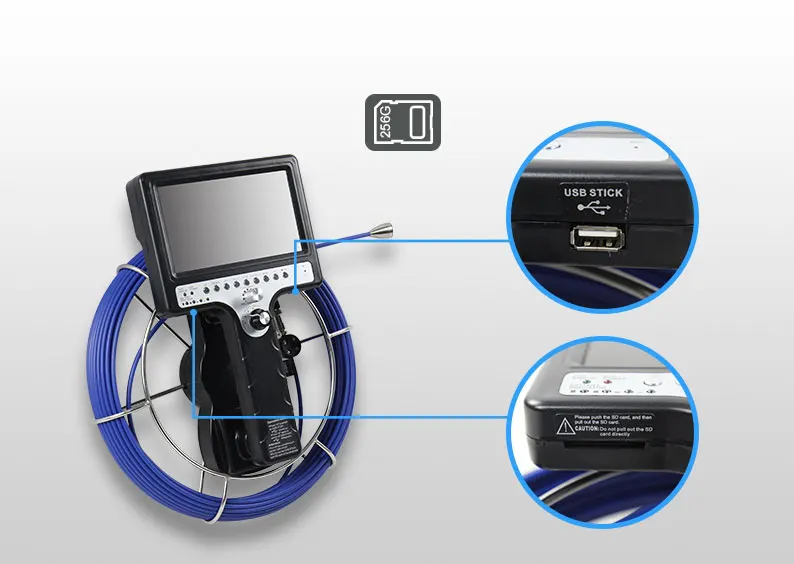

Supporting max 256G SD card

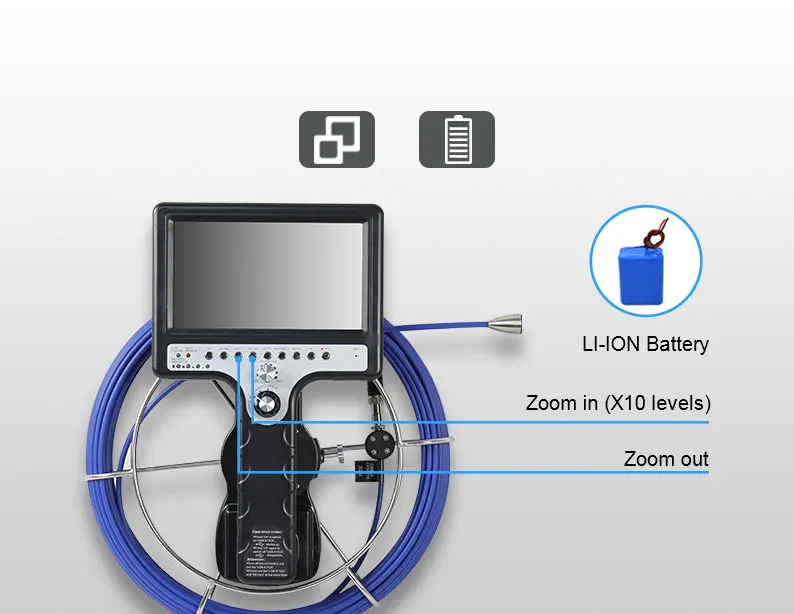

Zoom function (x10 levels) & 7-hour battery life



Optional

Camera heads(720*576 waterproof IP68)



Model	Size	LEDs	View angle	Suitable pipe diameter	Other function
C17	ø17*142mm	6pcs	60°	30-60mm	none
C23AB	ø23*160mm	12pcs	60°	30-150mm	self-levelling
C28	ø28*156mm	12pcs	105°	70-200mm	self-levelling 512Hz transmitter(optional)



Cable & camera head

X-151CJ-C12	X-156CJ
Size: ø12*115mm View angle: 65° Waterproof: IP68 Leds: 6pcs Suitable pipe diameter: 20-45mm	Size: ø6*48mm View angle: 60° Waterproof: IP66 Leds: 4pcs Suitable pipe diameter: 10-40mm

























































512R Receiver & transmitter

512R	512T1	512T
Size: 512l*110w*118hmm Range: 4.5m	Size: ø16*45lmm Range:4.5m	Size: ø22.5*48lmm Range: 5m



Application field



Introduction



FAQ

1.Q:If i order today, how long it takes for the shipment?

A: Our delivery time is about 3-5 days after got your payment and the shipping time is about 4-10 days upon your choose the shipment.

2.Q:What’s the payment terms?

A:We accept T/T, paypal,western union,Welcome to use the Alibaba Trade Assurance .

3.Q:Could you offer wholesale price?

A: Yes, of course. If you order in large quantity, we can give you the wholesale price and more discount

4.Q:Can you give me best shipping cost?

A: Sure, we give our customer best shipping cost and fast shipping time. Usually we use DHL, UPS, Fedex, TNT to keep the good quality.

5.Q:Are the quality of your product guaranteed?

A: We provide one year limited mfg. warranty, We have QC to control the quality one by one. So do not worry about the quality. If you got a defective item, we can refund your money or send you new item as compensation.

6.Q:I'm shopping at your company at the first time, how can I trust you?

A: We totally understand if you have some doubt about us at our first cooperation. You are welcome to visit our company or shop anytime you like.

7.Q:I'm a potential customer, can I get some free samples first?

A: We can provide a sample to you for test before give us a big order.but so sorry to tell you that there are no free samples in our company.

8.OEM&ODM service.

OEM/ODM service is welcome,we will provide all the details to you during the mass production.

Customize your mould according to your need.

your requirement and complaints are highly respected.

necessary test and certification can be obtained as you request.
