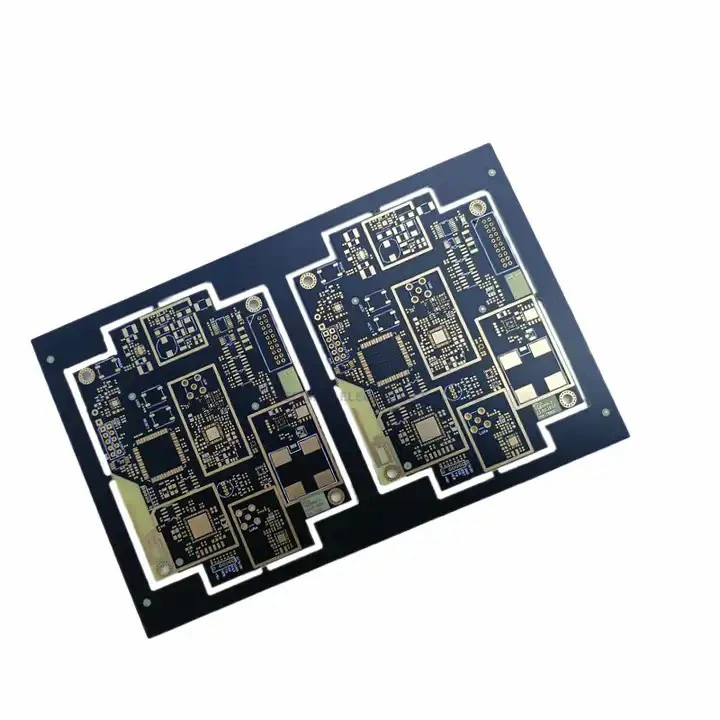

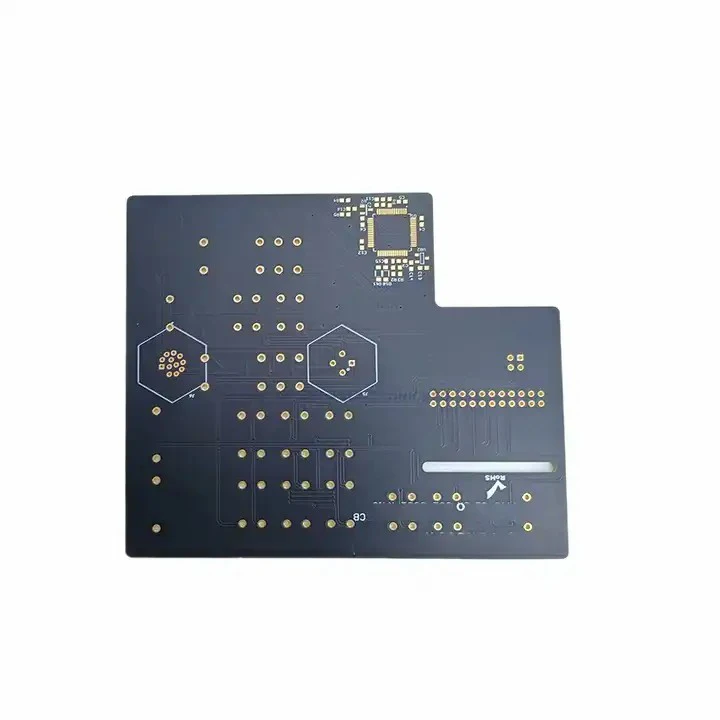

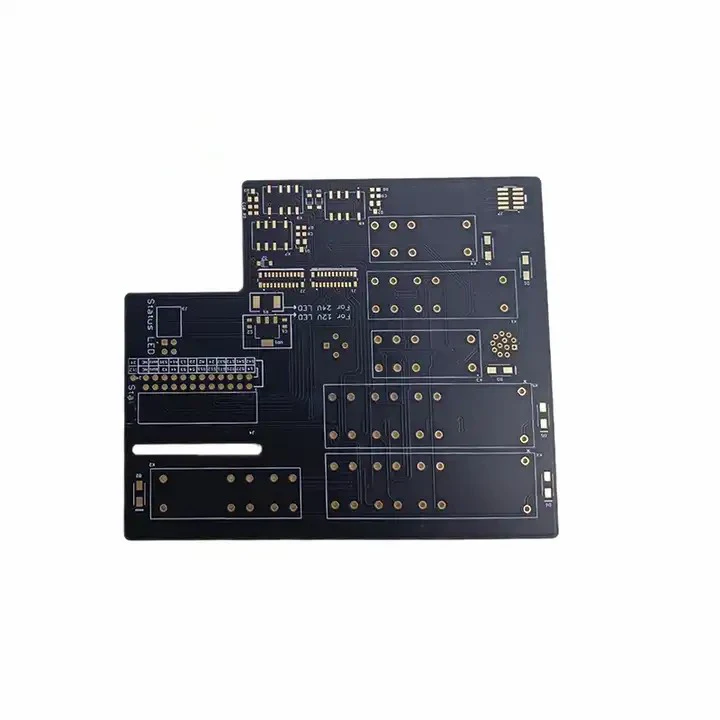

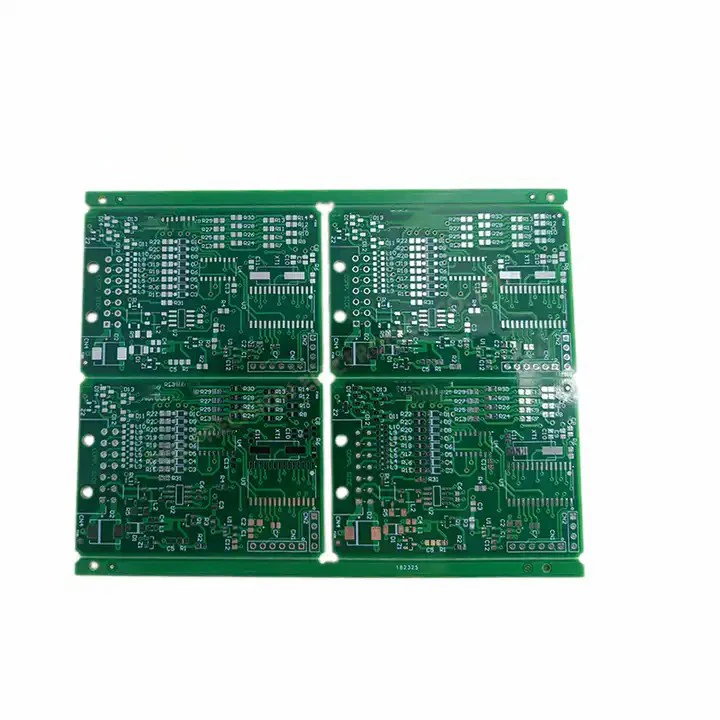

TG180 94v0 multilayer pcb custom manufacturing printed circuit board fabricate circuit board supplier other pcb
- Category: >>>
- Supplier: Kunshan Susda Electronics Co. Ltd.
Share on (1600978703370):
Product Overview
Description
Company Capability | ||||||||
Layers | 1-40 layers | |||||||
Copper Thickness | 0.5-6OZ | |||||||
Material | FR4(Shengyi China, ITEQ, KB A+, HZ), HI-TG, FR06, Rogers, Taconic, Argon, Nalco, Isola and so on | |||||||
Solder Mask | green, yellow, white, blue, black, red | |||||||
Finished Surface | conventional hasl, lead free hasl, immersion gold, immersion tin, immersion silver, hard gold, OSP... | |||||||
Silkscreen color | white, black | |||||||
Products Type | HF(High-Frequency)&(Radio Frenquency)board, impendance controlled board, HDI board, BGA&Fine pitch board | |||||||
Minimum line width/gap | 3.5/4mil(laser drill) | |||||||
Minimum hole size | 0.15mm(mechanical drill)/4mil(laser drill) | |||||||
Minimum Annlar Ring | 4mil | |||||||
Max Copper thickness | 6OZ | |||||||
Min Solder Mask Bridge | 0.08mm | |||||||
Plugging Vias capability | 0.2-0.8mm | |||||||
Sales Team
A professional sales team will provide you with good pre-sales and after-sales services. Quick to respond and extremely proficient in meeting any of your requests.
Exhibition
we join in numerous trade shows over the world each for lead
generation and brand management purposes.

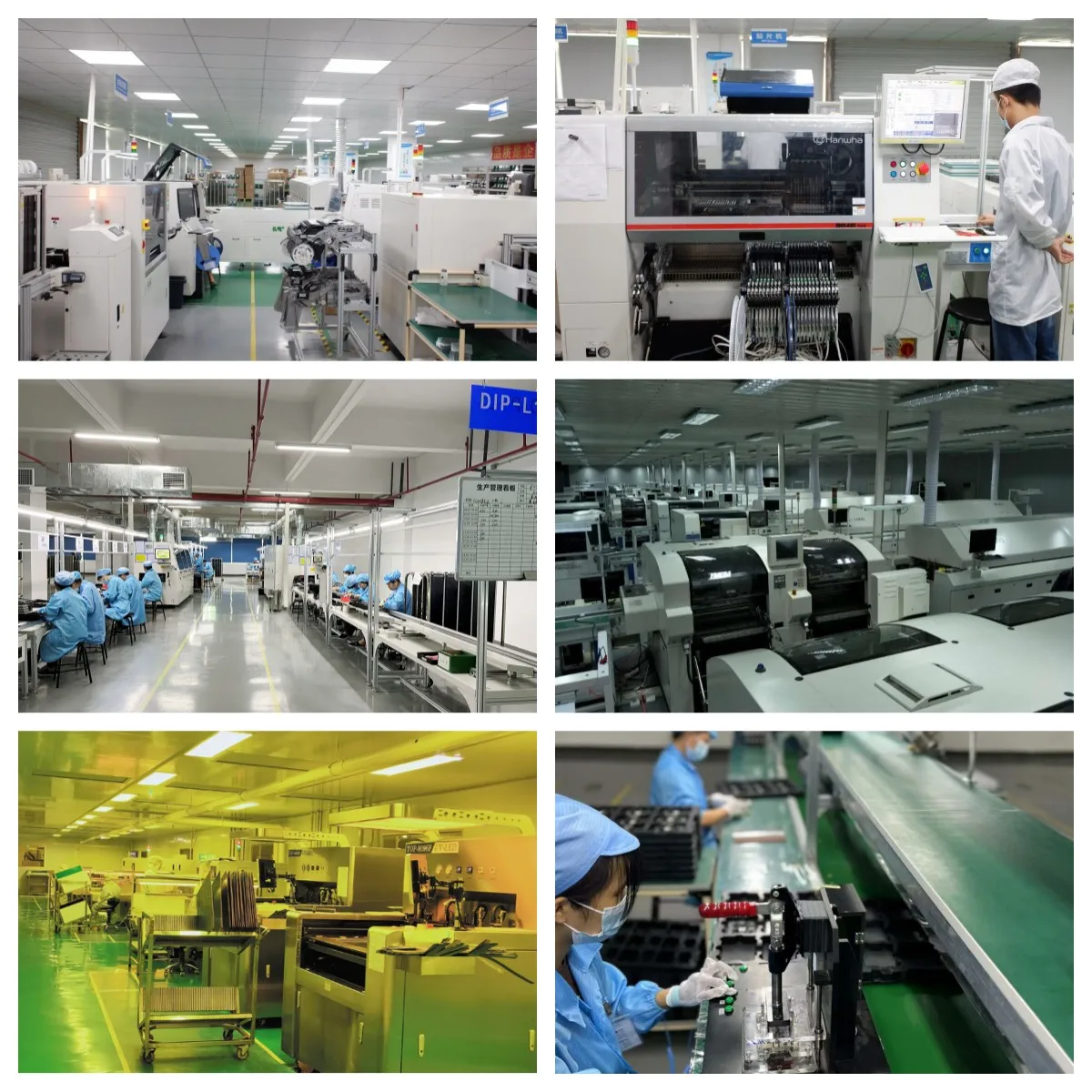

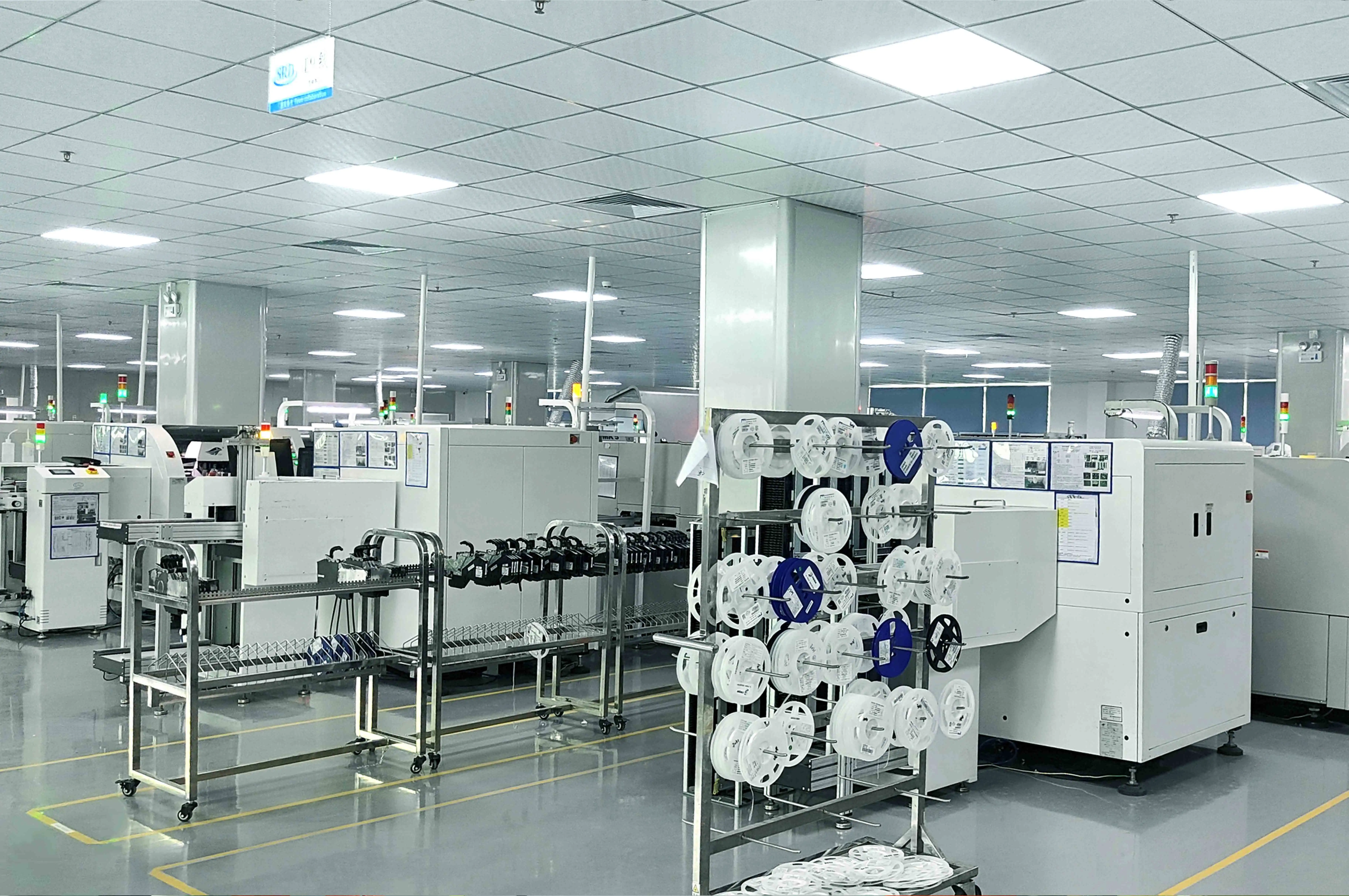

One-stop EMS Contract Manufacturer
More than 15 years of experience in various fields of electronics
sourcing, prototyping &
manufacturing.
Project (PCB) | Capability (PCB) |
base material | FR-4 / High TG FR-4 / Halogen-free |
Number of layers | 1-40 |
Copper thickness | 1-6 ounces |
Finished board thickness | 0.2-7.0mm |
Minimum aperture | Mechanical hole: 0.15mm Laser hole: 0.1mm |
controlled impedance | +/-5% |
surface treatment | Spray tin, lead-free spray tin, immersion gold, immersion tin, immersion silver, hard gold, flash gold, OSP... |
solder mask | Green/Blue/Black/White/Red/Pink/Orange/Yellow |
Plugging ability | 0.2-0.8mm |
outline outline | Milling/V-cut/Bridge/Stamp Hole |
Lead Time | ||
layer | Fast forward/normal time | mass production |
2 layer | 24 hours/4-5 days | 8-10 days |
4th floor | 24 hours/4-5 days | 10-12 days |
Level 6 | 72 hours/7-8 days | 12-14 days |
8th floor | 72 hours/8-10 days | 16-18 days |
10th floor | 96 hours/12-14 days | 18-20 days |
... | ... | ... |
Susda is an OEM manufacturer focusing on rigid PCB and flexible PCB manufacturing for more than 15 years. We have the capability to manufacture PCBs from basic single panels to 40 layers, and provide one-stop turnkey services including PCB manufacturing, PCB assembly, component sourcing, functional testing services and enclosures, etc. Established in 2008, we have always provided high quality, technologically advanced products within our customers' time so that we can provide you with the best electronic services. This commitment, combined with the experience and expertise we have gained over the years, means we can provide comprehensive solutions to our customers’ PCB needs.
delivery time | standard Time | urgent order |
Prototype＜20 pieces | 2 days | 8 hours |
Small batch 20-100 pieces | 6 days | 24 hours |
Medium quantity 100-1000 pcs | 10 days | 3 days |
Mass production＞1000 pieces | Depends on the component | Depends on the component |
FAQ
Q1. What is needed for quotation?
PCB: Quantity, Gerber file and Technic requirements(material, surface finish treatment, copper thickness, board thickness...)
Q2. What file formats do you accept for production?
Gerber file：CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel(PDF, WORD, TXT)
Q3. Are my files safe?
Your files are held in complete safety and security. We protect the intellectual property for our customers are never shared with any third parties.
Q4. MOQ?
There is no MOQ in POE. We are able to handle small as well as large volume production with flexibility.
Q5. Shipping cost?
The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the freight.
Q1. What is needed for quotation?
PCB: Quantity, Gerber file and Technic requirements(material, surface finish treatment, copper thickness, board thickness...)
Q2. What file formats do you accept for production?
Gerber file：CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel(PDF, WORD, TXT)
Q3. Are my files safe?
Your files are held in complete safety and security. We protect the intellectual property for our customers are never shared with any third parties.
Q4. MOQ?
There is no MOQ in POE. We are able to handle small as well as large volume production with flexibility.
Q5. Shipping cost?
The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the freight.
