lifepo4 48v batterie long life solar battery lithium iron phosphate 110v li ion 5.12kwh lifepo4 rack 48v 100ah battery
- Category: >>>
- Supplier: Shenzhen Kaimeiweike Electronics Co. Ltd.
Share on (1600978747430):
Product Overview
Description
Features of the KMW48V100D

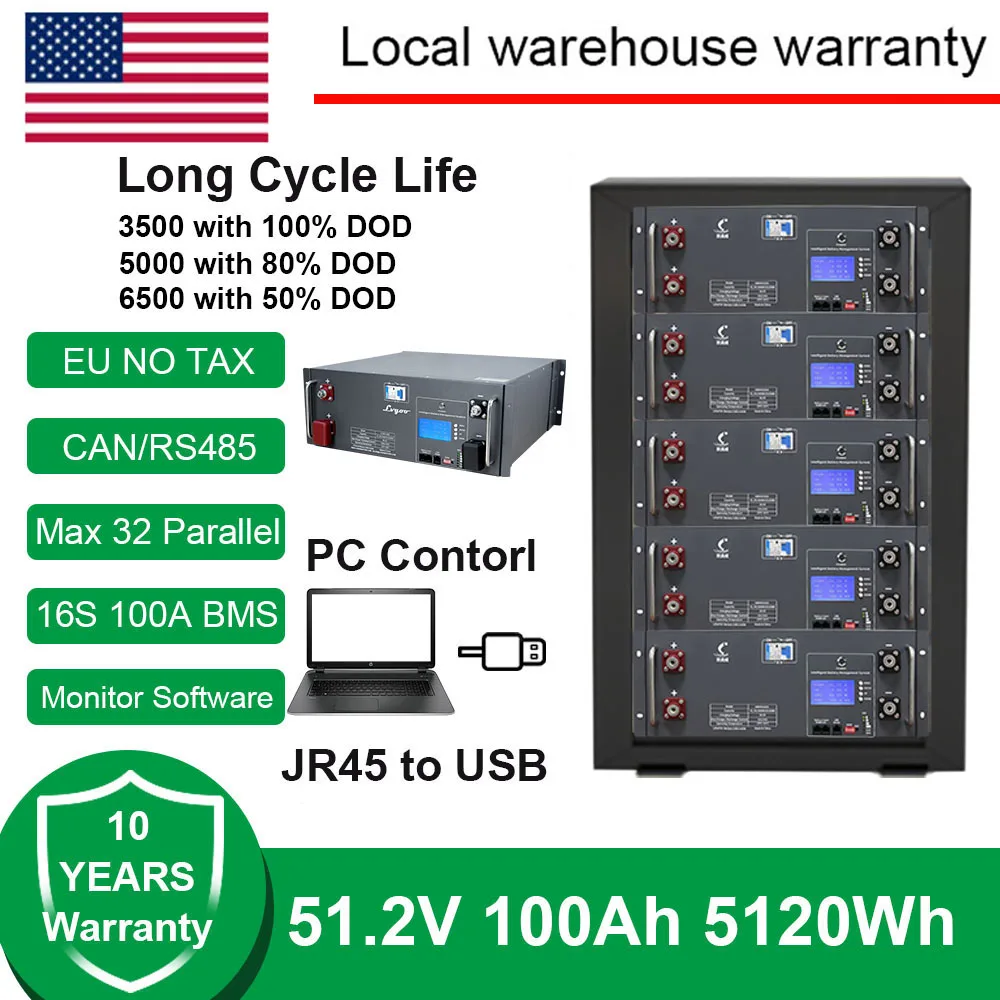

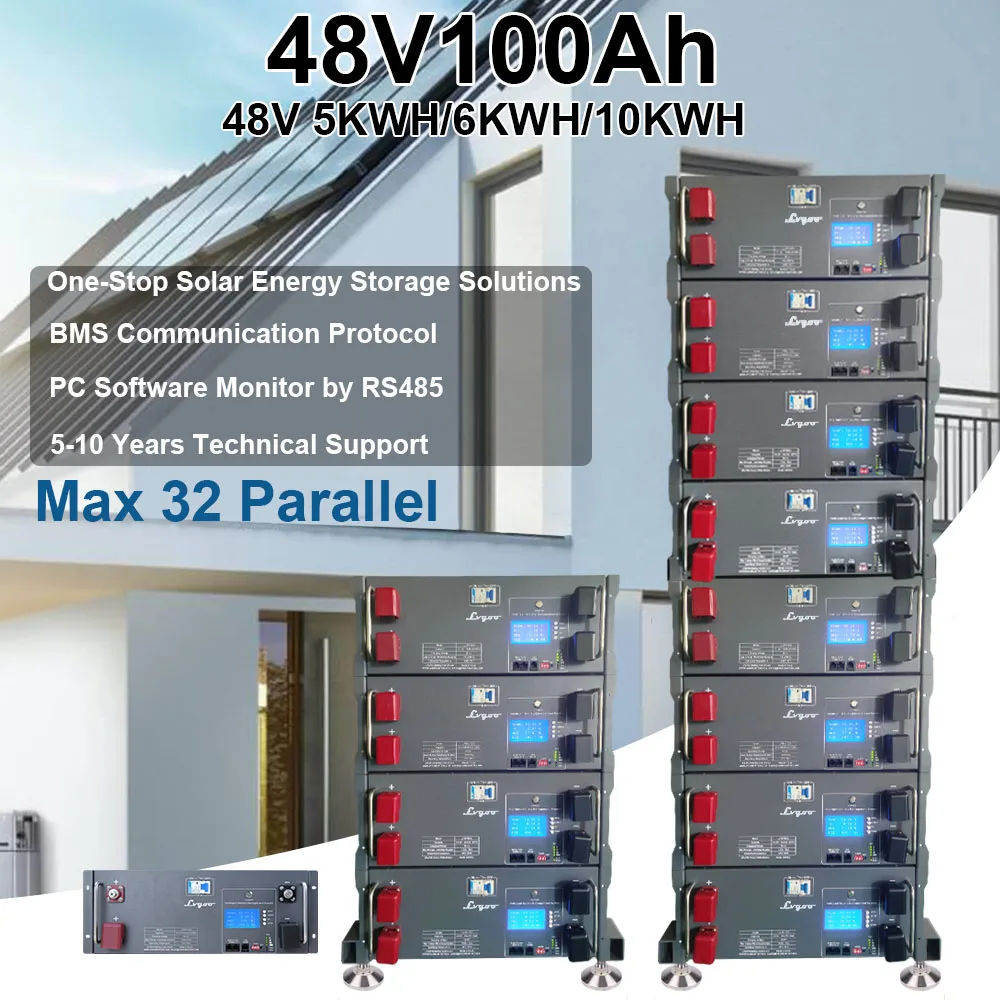

The KMW48V100D is designed to be the highest quality, safest and most maintainable lithium iron phosphate (LiFeP04) battery pack available.
>High performance True A+ cells*16 Internally serviceable and replaceable.
>Cells rated at 80% capacity after 4000 cycles, 100% DOD @1C Rate 80% DOD .5C Rate typical capacity over 7000 cycles.
>48 Volt (51.2V nominal) 100Ah, 5.12 kWh
>20 year typical life and 10 year warranty
>Built in intelligent Battery Management System (BMS) to provide automated and maintenance-free battery operation
>5 temperature sensors for protection from low and high temperatures
>Pre-charge circuitry to prevent BMS damage.
>Removable cover, user serviceable and replaceable BMS and other components.

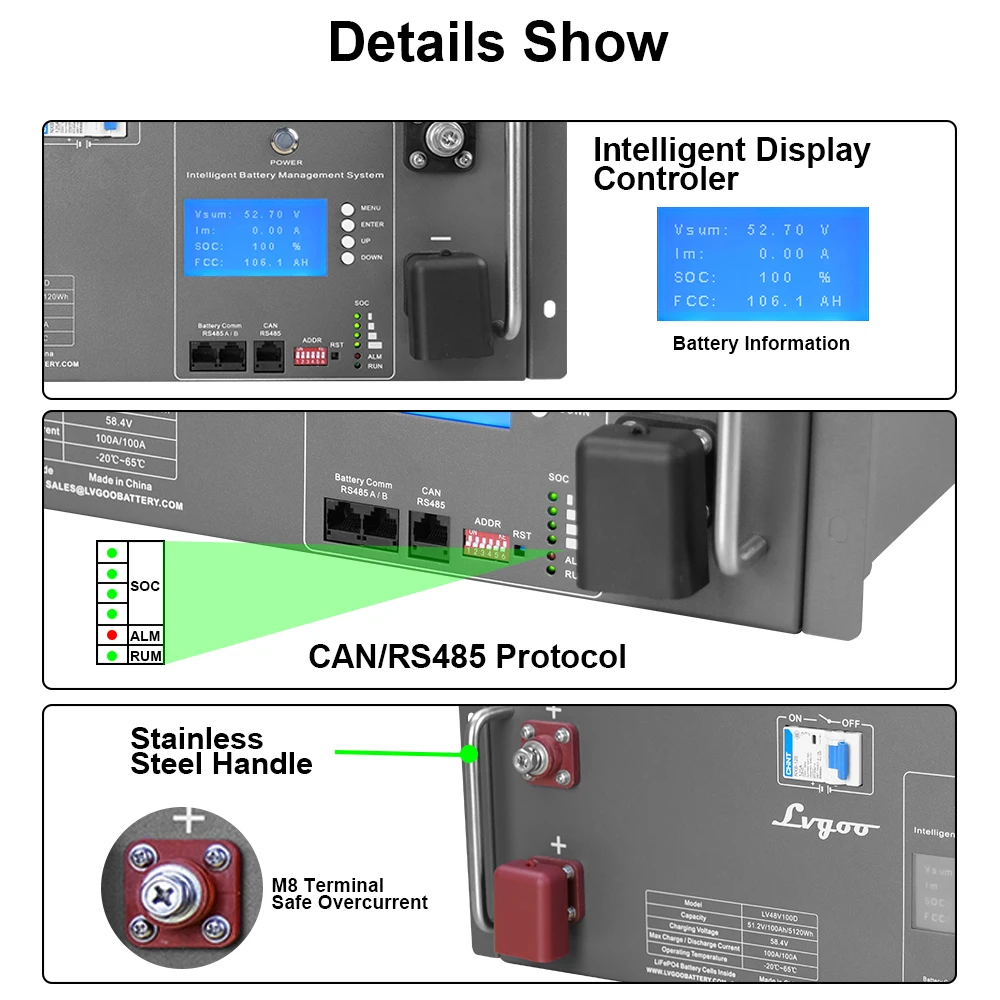

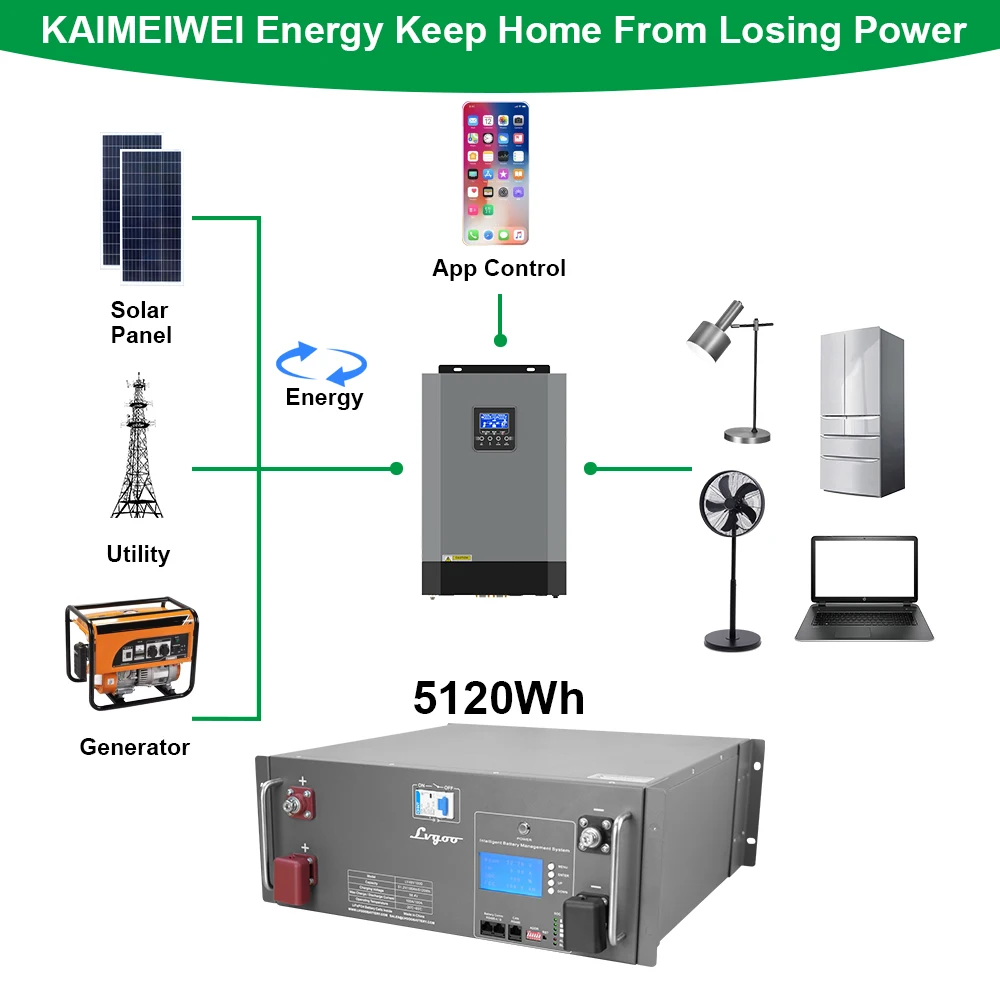

>RS485 & CAN Bus communication, compatible with multiple inverters via display and keypad (be sure to choose the right communication cable).
>Rack mountable design for quick and easy installation into standard 19" EIA server racks and custom KAIMEIWEI server racks
>High performance True A+ cells*16 Internally serviceable and replaceable.
>Cells rated at 80% capacity after 4000 cycles, 100% DOD @1C Rate 80% DOD .5C Rate typical capacity over 7000 cycles.
>48 Volt (51.2V nominal) 100Ah, 5.12 kWh
>20 year typical life and 10 year warranty
>Built in intelligent Battery Management System (BMS) to provide automated and maintenance-free battery operation
>5 temperature sensors for protection from low and high temperatures
>Pre-charge circuitry to prevent BMS damage.
>Removable cover, user serviceable and replaceable BMS and other components.
>RS485 & CAN Bus communication, compatible with multiple inverters via display and keypad (be sure to choose the right communication cable).
>Rack mountable design for quick and easy installation into standard 19" EIA server racks and custom KAIMEIWEI server racks
Product Description
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | SZKMW |
Model Number | kmw-48100 |
Battery Type | LiFePO4 |
Type | Rackmount Lithium Battery |
Battery type | Lithium Iron Phosphate Battery |

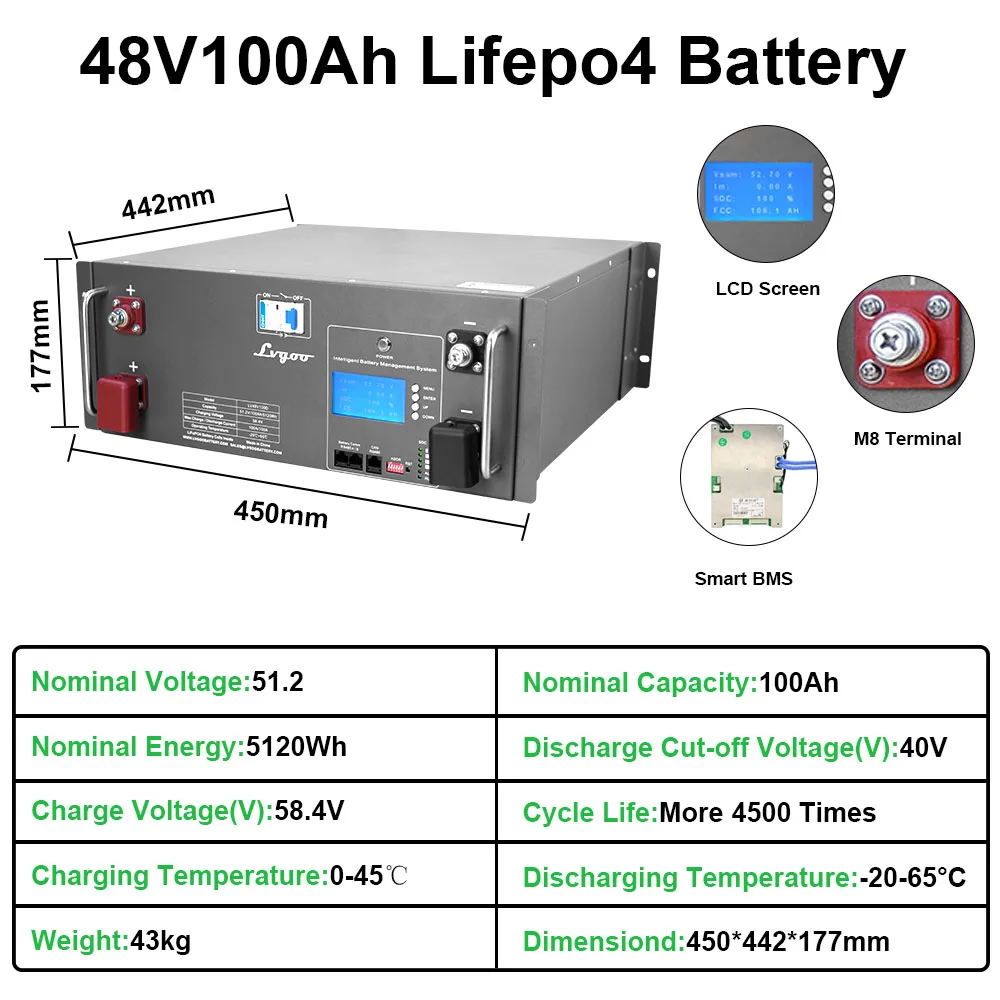

battery size | 450*442*177mm |
Overcharge cut-off voltage | 58.4V |
Over discharge voltage | 40V |
BMS | 48V 16S 100A BMS |
Communication Interface | CAN,RS485 |
Max.Charge | 50A |
Discharge Current(A) | 100A |
Packing & Delivery

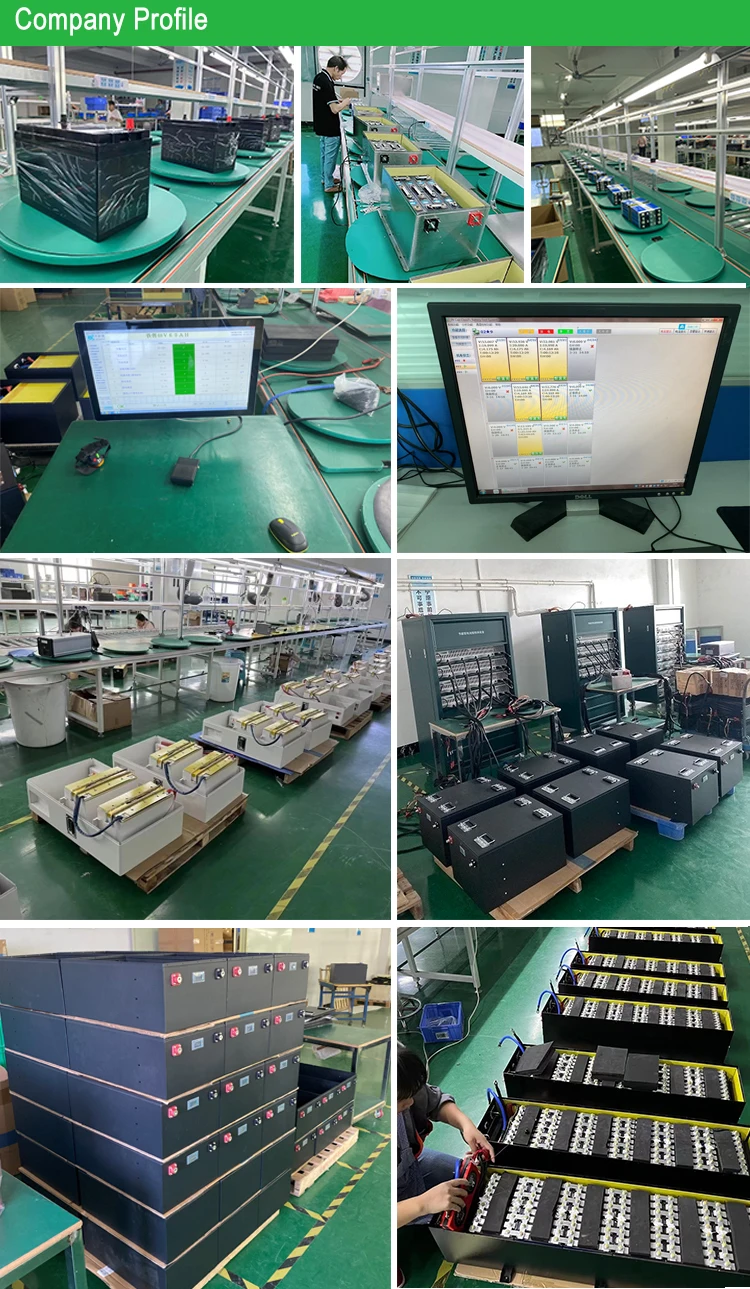

Company Profile
Shenzhen Kaimeiweike Electronics Co., Ltd., established in 2013, is a medium-sized comprehensive enterprise integrating product development, production and sales.The company is located in Guangming New District, Shenzhen. It has a professional R&D team, a scientific management team and more than 100 employees who have undergone rigorous skills training. Our company mainly provides lithium battery packs, ternary lithium batteries, lithium iron phosphate batteries, chargers, etc. for domestic and foreign customers. We always adhere to the corporate tenet of "survive by quality and develop by reputation". We rely on reliable quality, Satisfactory service and preferential prices are well received by agents and customers. The products are certified, MSDS, UN38.3, CE, Rohs ,etc., based on the business philosophy of "quality, service, innovation", and relying on the unremitting efforts of all Kaimeiwei people to make Kaimeiwei products change with each passing day. We are willing to cooperate sincerely with friends all over the world to seek common development and create brilliance together.
Certifications
FAQ
Q. Is the shipping cost on the website accurate?
A: Please contact us before placing an order, the default shipping cost on the website is basically calculated according to the usual air freight price, different countries, different order weights, different shipping costs. Please contact us in time, we will provide you with the best shipping method and accurate shipping cost.
A: Please contact us before placing an order, the default shipping cost on the website is basically calculated according to the usual air freight price, different countries, different order weights, different shipping costs. Please contact us in time, we will provide you with the best shipping method and accurate shipping cost.
Q. I am wise in price, I am a battery pack wholesaler, if I sell your battery pack in my city with low profit, can I get cheaper price? I can see your competitors selling cheaper than you.
A: We strongly recommend you to compare with our competitors. In fact, some suppliers offer low cost battery packs, but with cheap materials. Please note the cycle life and warranty, we have shockproof design and communication design. Please contact us directly and we will tell you more. Most importantly, can we provide you with a professional solution for your local market? Low profit? Don't worry, our team of engineers will help you.
A: We strongly recommend you to compare with our competitors. In fact, some suppliers offer low cost battery packs, but with cheap materials. Please note the cycle life and warranty, we have shockproof design and communication design. Please contact us directly and we will tell you more. Most importantly, can we provide you with a professional solution for your local market? Low profit? Don't worry, our team of engineers will help you.
Q. Why the shipping time is so long and the waybill number is not updated for nearly a month?
A: As you know, batteries (especially high power batteries) are special commodities with very strict transportation conditions. We transit our products through regular DG logistics channel, it is slower than normal logistics because it needs to wait for DG ship/train schedule. Due to the special nature of the product and logistics, the tracking number we provide will not be updated until the shipment passes through the customs of your country/region. Don't worry, your shipment is still in normal transit. The tracking information will be updated when the shipment passes through your country's customs and you will receive it within 3-7 days.
A: As you know, batteries (especially high power batteries) are special commodities with very strict transportation conditions. We transit our products through regular DG logistics channel, it is slower than normal logistics because it needs to wait for DG ship/train schedule. Due to the special nature of the product and logistics, the tracking number we provide will not be updated until the shipment passes through the customs of your country/region. Don't worry, your shipment is still in normal transit. The tracking information will be updated when the shipment passes through your country's customs and you will receive it within 3-7 days.
Q. How can I be sure that the product you send me is of good quality?
A:Our batteries are all Class A. No matter how many you order, we will check and test each battery before shipping to ensure quality.
A:Our batteries are all Class A. No matter how many you order, we will check and test each battery before shipping to ensure quality.
Q. I saw your company's post that the warranty is 5 years, so it's 5 years no matter what the battery pack is used for?
A: No sir, perhaps you know that the cycle life of a battery depends not only on the quality itself, but is also affected by the discharge/charge rate at the actual temperature. Therefore, it would be totally irresponsible for the supplier to tell you the cycle life without talking about the actual usage. With room temperature 25℃, 1C discharge and 0.5C charge, the battery pack can have a cycle life of over 4000 times with 5 years warranty for energy storage use only.
A: No sir, perhaps you know that the cycle life of a battery depends not only on the quality itself, but is also affected by the discharge/charge rate at the actual temperature. Therefore, it would be totally irresponsible for the supplier to tell you the cycle life without talking about the actual usage. With room temperature 25℃, 1C discharge and 0.5C charge, the battery pack can have a cycle life of over 4000 times with 5 years warranty for energy storage use only.
Q. are these battery packs compatible with my inverter? Do you have a list of companies with compatible inverters?
A: Yes sir, our battery packs are compatible with most brands of inverters in the market, please contact us and let me tell you more.
A: Yes sir, our battery packs are compatible with most brands of inverters in the market, please contact us and let me tell you more.
