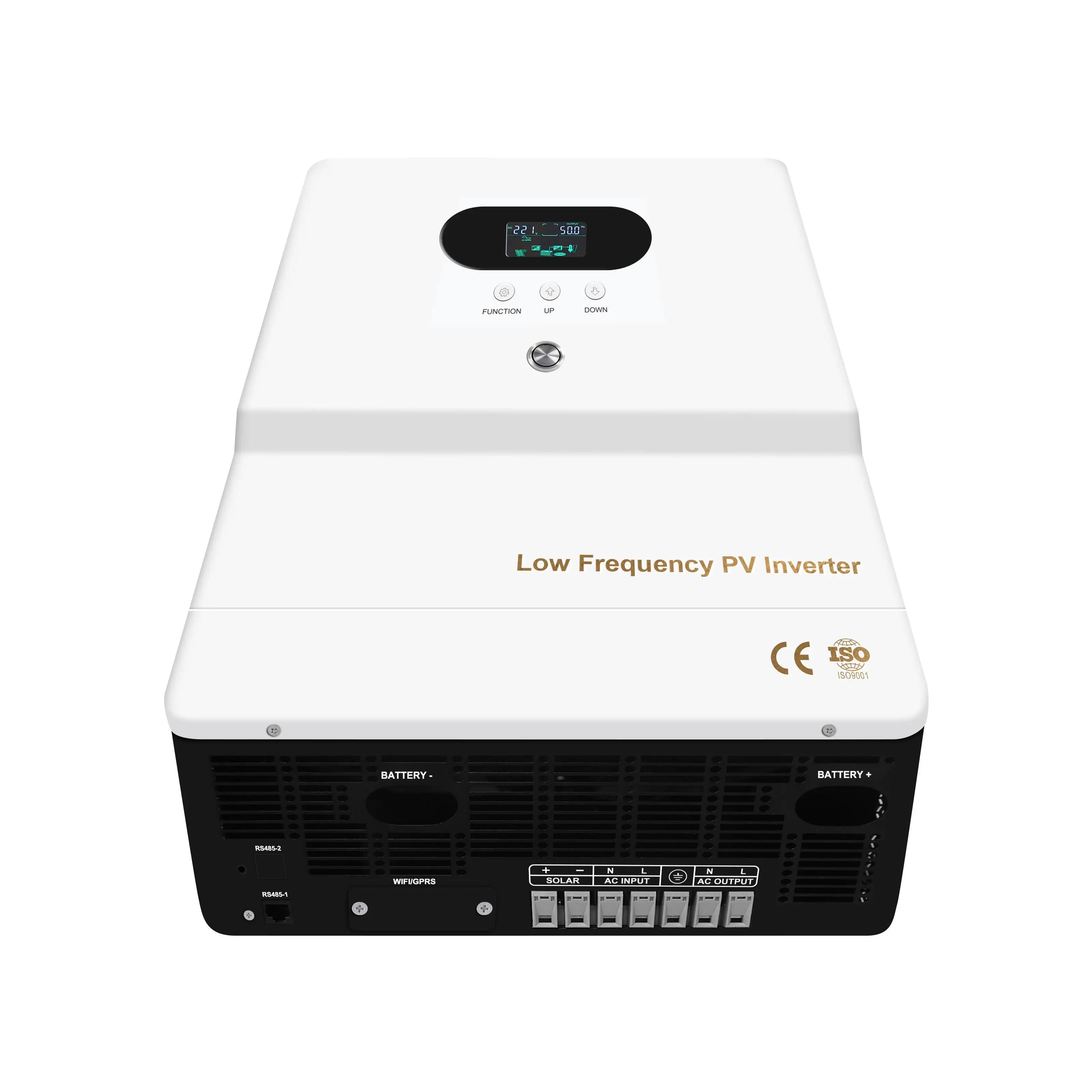

APP Optional 24C 48V DC 120V 220V AC Output 60A MPPT Charge Controller 3KW 3000W Low Frequency Hybrid Solar Power inverter
- Category: >>>
- Supplier: Harbin Shinenovo Technology Development Co. Ltd.
Share on (1600978956190):
Product Overview
Description
APP Optional 24C 48V DC 120V 220V AC Output 60A MPPT Charge Controller 3KW 3000W Low Frequency Hybrid Solar Power inverter
Products Features
1. Pure sine wave, toroidal low loss transformer, customizable mode dual output voltage.
2.Smart LCD show equipment status and parameters.
3.The adjustable mains charging current range is 0~30A.
4.Suffer 3 times peak power, ensure the safe and stable operation of the equipment.
5.Support diesel and gasoline generators, suitable for various power grid.
6.Suitable for industrial and residential used, wall-mounted design.
2.Smart LCD show equipment status and parameters.
3.The adjustable mains charging current range is 0~30A.
4.Suffer 3 times peak power, ensure the safe and stable operation of the equipment.
5.Support diesel and gasoline generators, suitable for various power grid.
6.Suitable for industrial and residential used, wall-mounted design.
Specfication
Model :LF | 10212/24/48 | 15212/24/48 | 20212/24/48 | 30224/48 | 40224/48 | 50248 | 60248 | |||||||
Power | ||||||||||||||
Rated Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | |||||||
Phase Type | Single phase L-N ; Split phase can be customized L1-L2,L1-N,L2-N | |||||||||||||
Battery | ||||||||||||||
Standard Battery Voltage | 12/24/48VDC | 24/48VDC | 24/48VDC | 48VDC | 48VDC | |||||||||

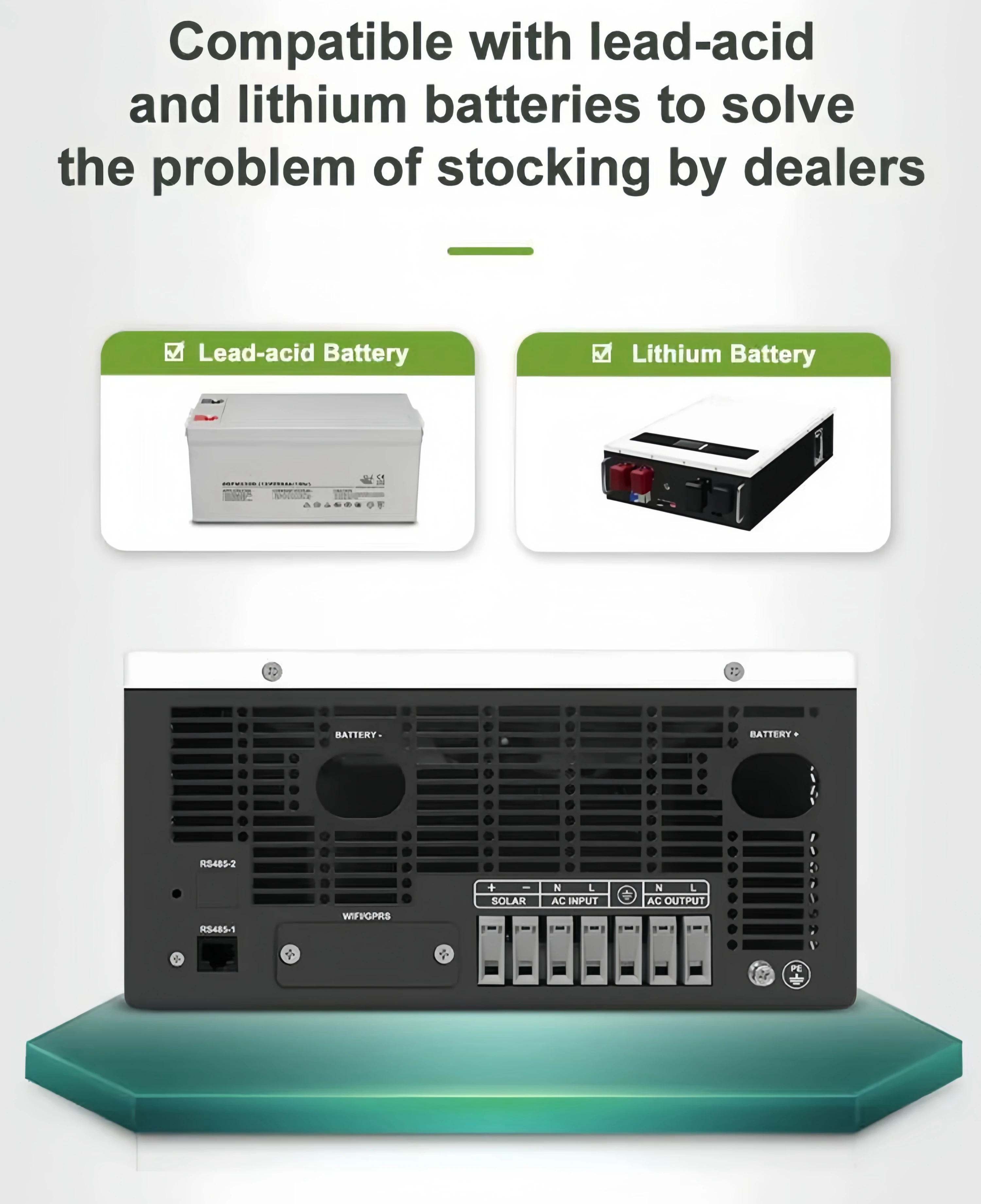

Battery Type | Lead-acid / Gel Battery / Lithium Batteries / Custom battery | |||||||||||||
AC Input | ||||||||||||||
Rated Input Voltage | 110VAC/120VAC/220VAC /230VAC/ 240VAC | |||||||||||||
AC Input Voltage Range | 85VAC~138VAC（110VAC）/ 95VAC~148VAC（120VAC）/ 170VAC~275VAC（220VAC）180VAC~285VAC（230VAC）/ 190VAC~295VAC（240VAC） | |||||||||||||
AC Input Frequency Range | 45Hz~55Hz（50Hz），55Hz~65Hz（60Hz） | |||||||||||||
AC Output | ||||||||||||||
Output Wave / Conversion Efficiency | Pure Sine Wave/>85% | |||||||||||||
AC Output Voltage / Frequency Range(INV mode) | 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10% | |||||||||||||
Built-in MPPT Solar Charge Controller （Optional） | ||||||||||||||
Rated Current | 30A | 60A | 100A | 100A | ||||||||||
PV Array Max Power | 12V（420W）/ 24V（840W）/ 48V（1680W） | 12V（840W） / 24V（1680W）/ 48V（3360W） | 4480W | 5600W | ||||||||||
Max PV Input Voltage（Voc） (At The Lowest Temperature) | 12V/24V system：120VDC；48V system：180VDC | |||||||||||||
MPPT Tracking Voltage Range | 12V System（15V-80V）/24V System（30V-100V）/48V System（60V-140V） | |||||||||||||
Other | ||||||||||||||
Protection | Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection | |||||||||||||
Protection Degree | IP20 | |||||||||||||
Display | LCD | |||||||||||||
Cooling Method | Cooling Fan in Intelligent Control | |||||||||||||

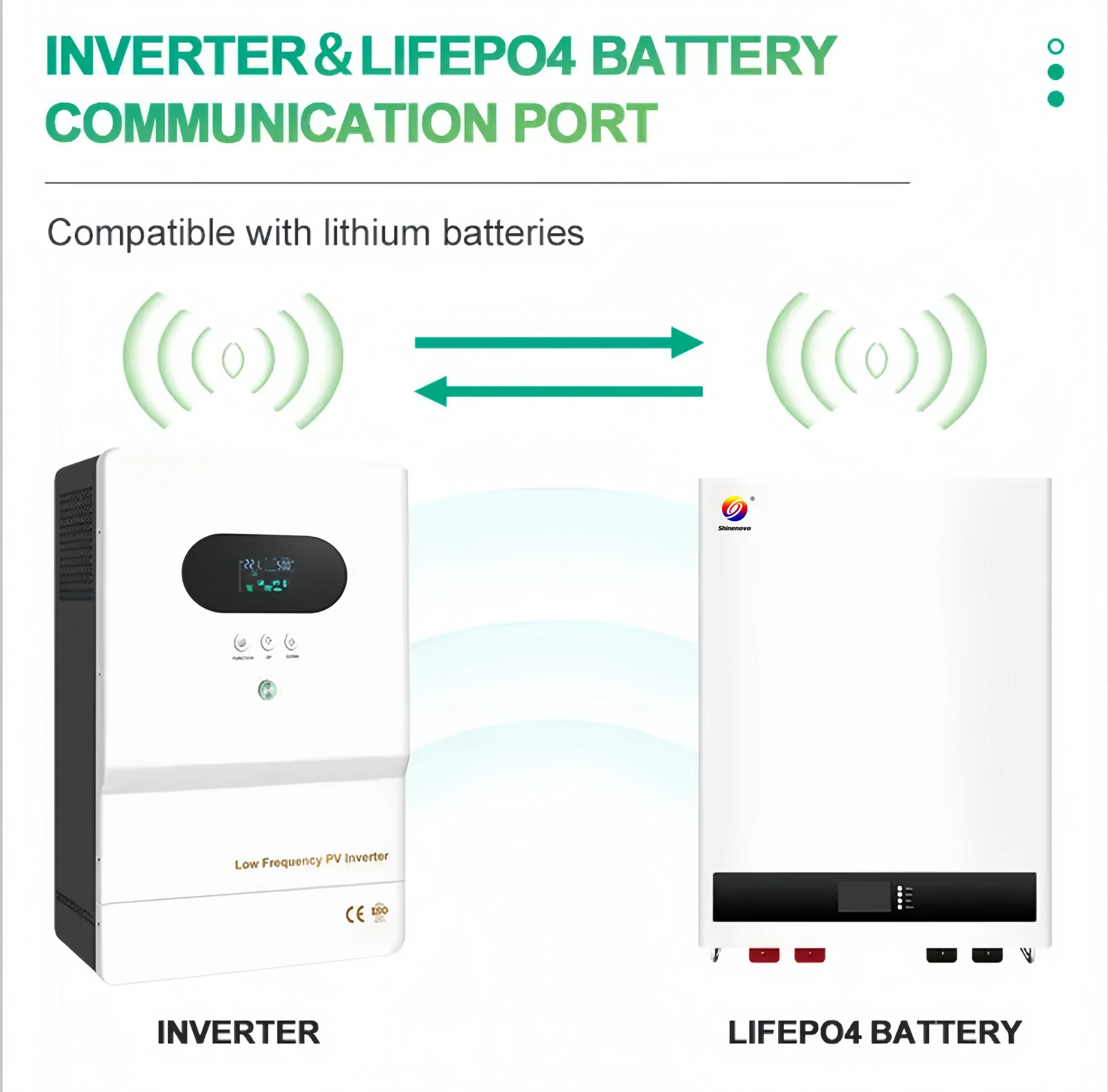

Communication Interfaces | RS485/RS232,APP（WIFI monitoring or GPRS monitoring）Optional | |||||||||||||
Working Mode（settable） | Battery priority / Mains priority | |||||||||||||
Operating Temperature | -15℃~40℃ | |||||||||||||
Relative Humidity | 0%~95% , No Condensation | |||||||||||||
Dimensions and Weight | ||||||||||||||
Product Size(L*W*Hmm) | 333*253*126 | 500*300*140 | 530*335*150 | |||||||||||
Packing Size(L*W*Hmm) | 423*318*205 | 550*365*223 | 610*400*233 | |||||||||||
N.W.(kg) | 9 | 13.5 | 18 | 20 | 22 | 24 | 26 | |||||||
G.W.(kg) | 10 | 15 | 19.5 | 21.5 | 24 | 26 | 28 | |||||||
APP Optional 24C 48V DC 120V 220V AC Output 60A MPPT Charge Controller 3KW 3000W Low Frequency Hybrid Solar Power inverter

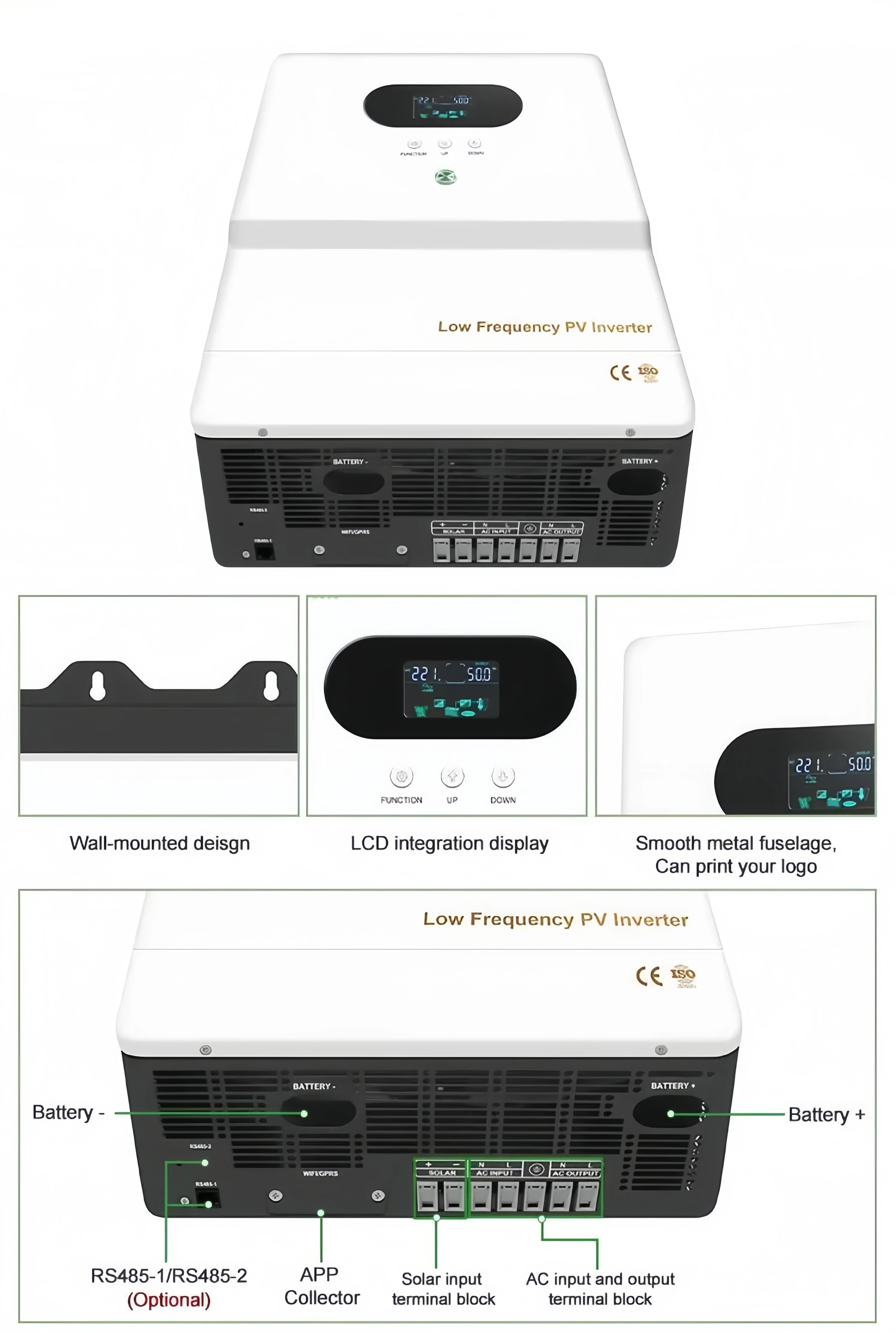

Product Details
APP Optional 24C 48V DC 120V 220V AC Output 60A MPPT Charge Controller 3KW 3000W Low Frequency Hybrid Solar Power inverter

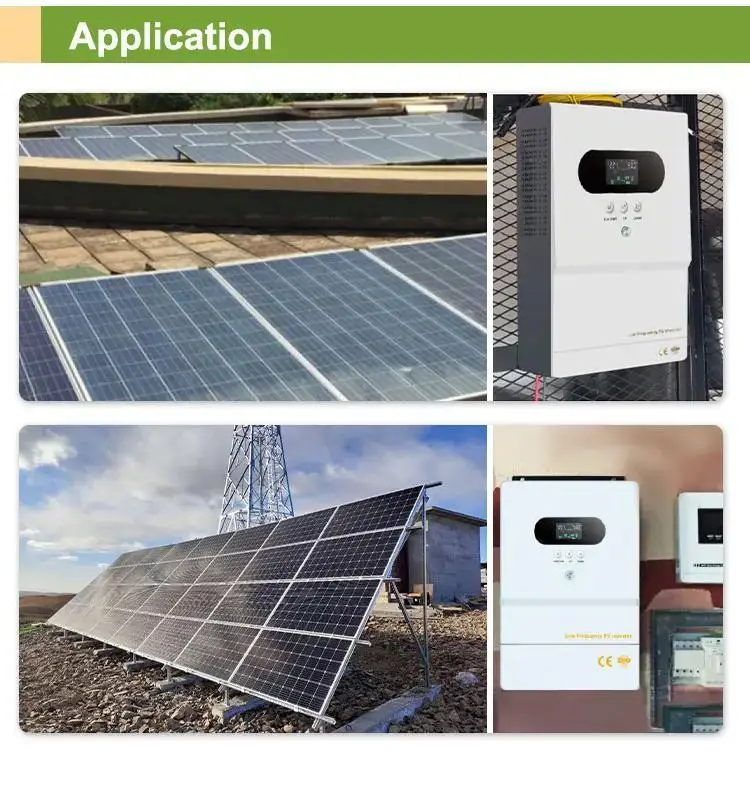

Application
