DFSK K01 K01L K02 model kei truck 1.3 L gasoline mini truck with spare parts service
- Category: >>>
- Supplier: Chizhong(Chongqing) Lmp.& Exp. Co. Ltd.
Share on (1600978971587):
Product Overview
Description

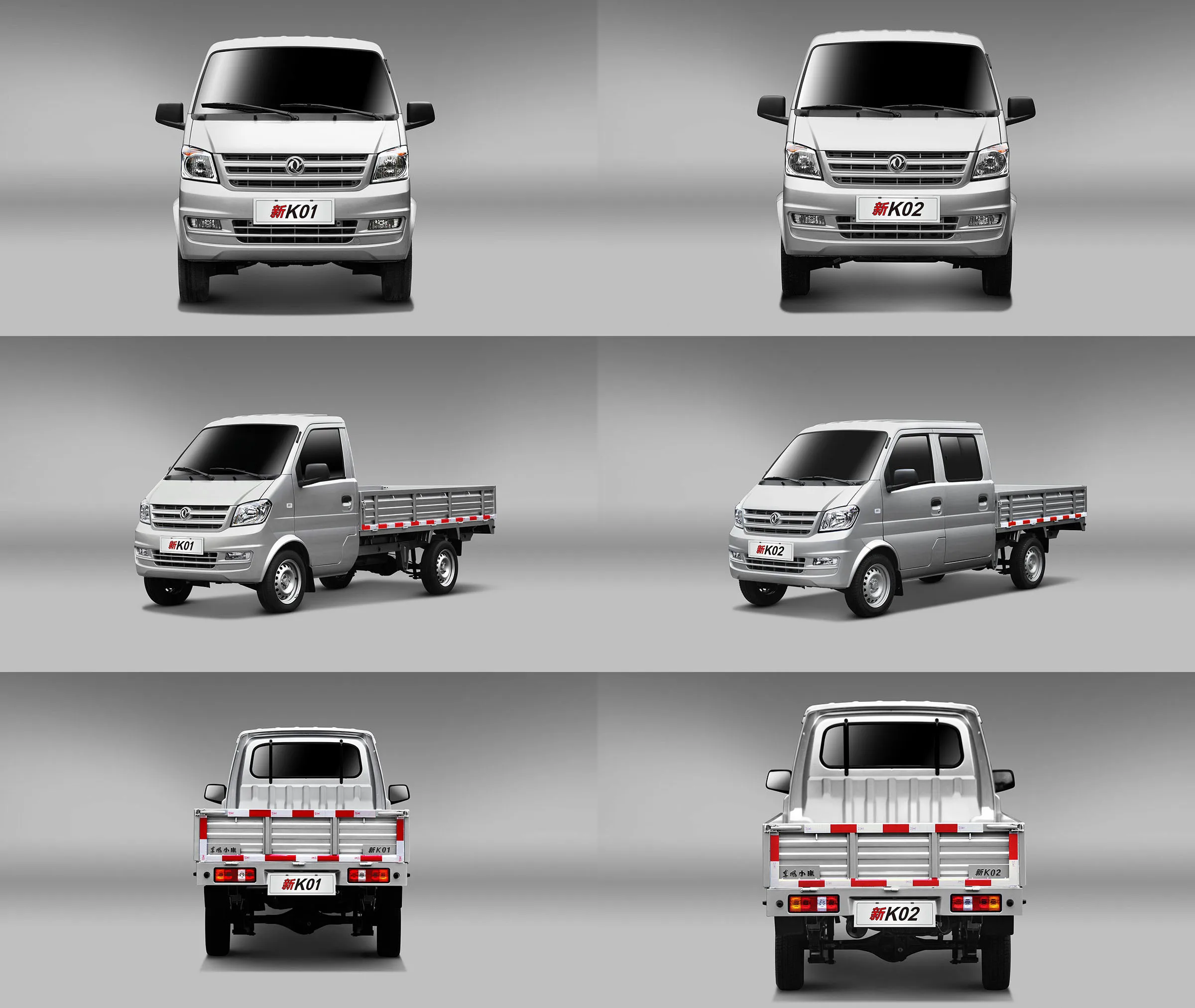

DFSK K01 K01L K02 model kei truck 1.3 L gasoline mini truck with spare parts service
DFSK K01,K01L,K02 mini truck with fuel efficient power engine

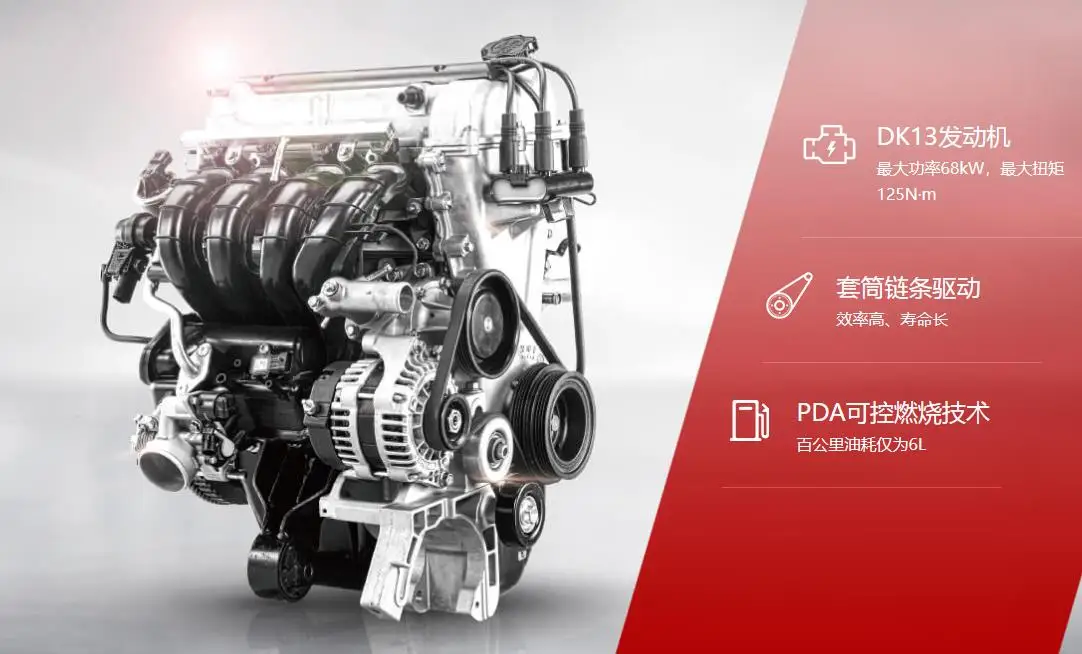

DFSK K01,K01L,K02 mini truck has DK13 engine, maximum power 68kW, maximum torque 125Nm; Sleeve chain drive, timing chain drive with high efficiency and long life.
PDA controllable combustion technology improves engine performance, fuel consumption is only 6L per 100km, fuel saving is more efficient, economical and more environmentally friendly.
PDA controllable combustion technology improves engine performance, fuel consumption is only 6L per 100km, fuel saving is more efficient, economical and more environmentally friendly.

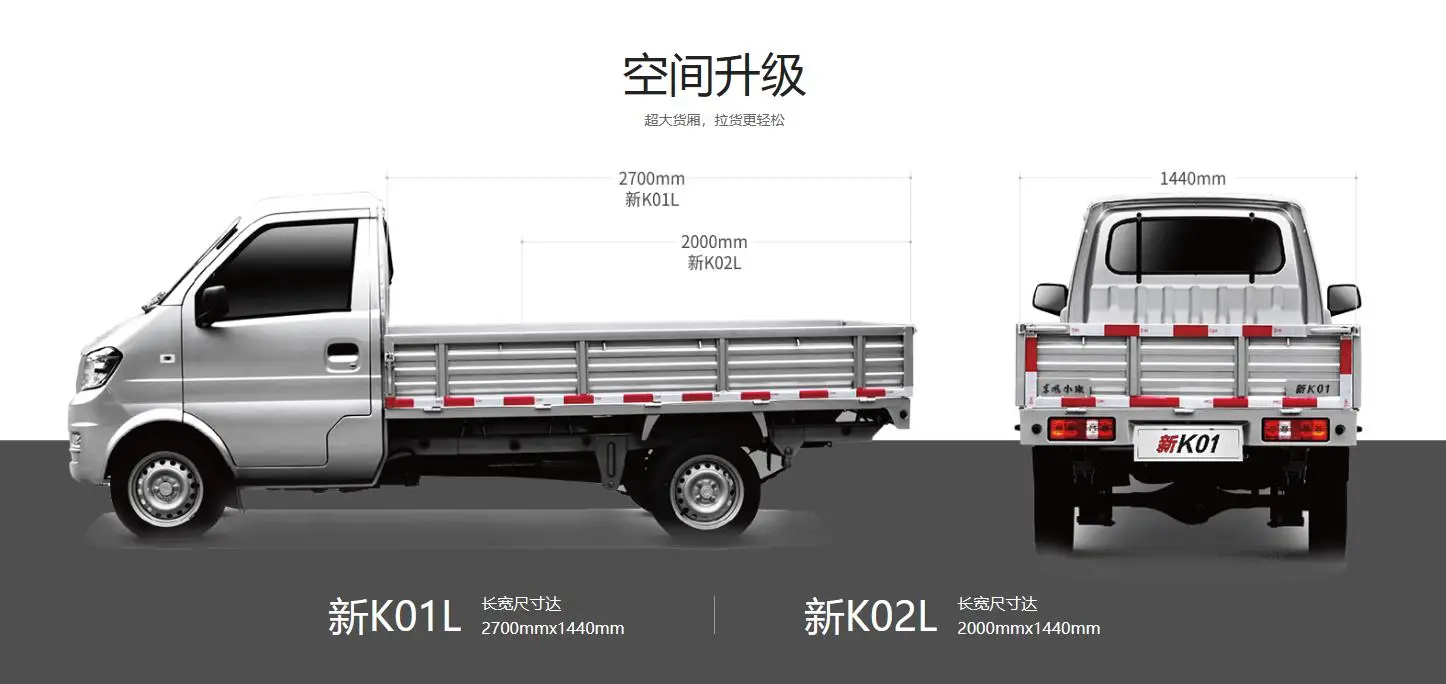

DFSK K01L,K02 mini truck cargo size
K01L length and width size: 2700mmx1440mm.
K02 length and width size: 2000mmx1440mm.
DFSK K01,K01L/K02 mini truck high loading performance
The third generation of chassis design technology, seven vertical and two horizontal reinforced design to ensure that it can be installed, stable and not deformed.

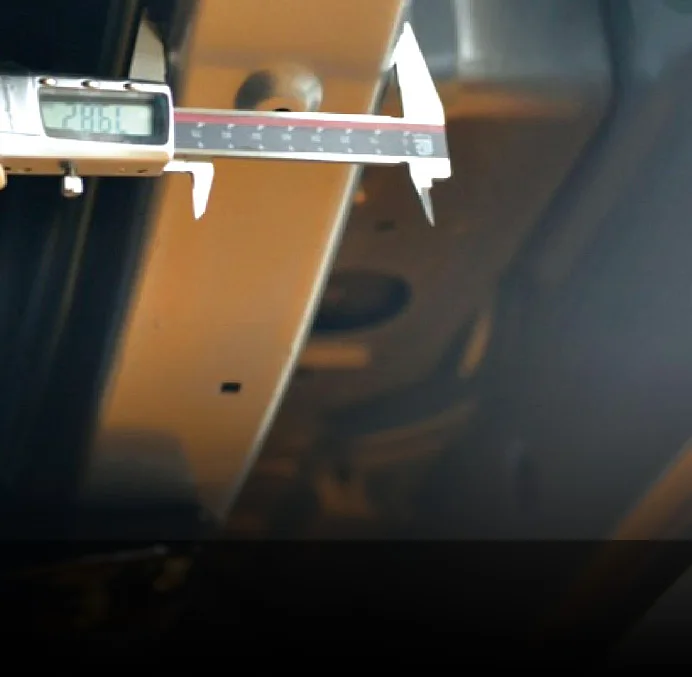

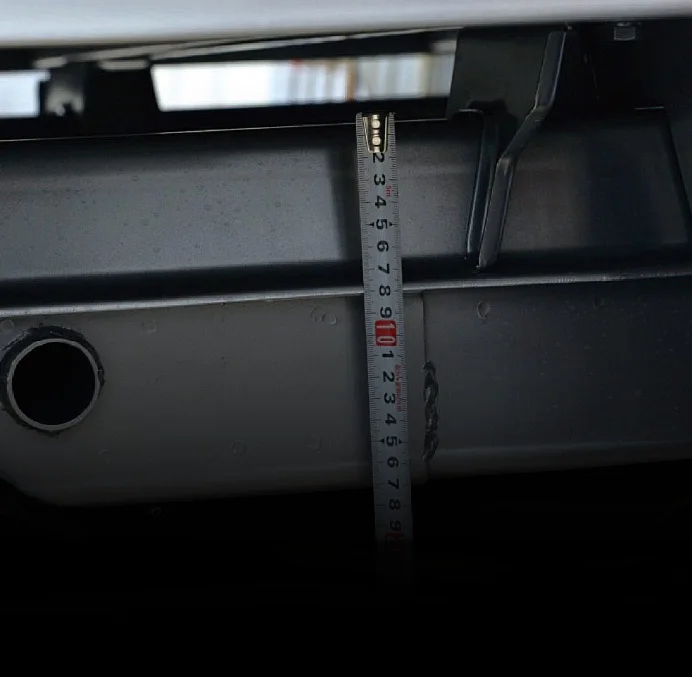

Reinforced auxiliary beam design, thickness up to 170mm, width up to 79.82mm, greatly improved bearing capacity.
Reinforced auxiliary beam design, thickness up to 170mm, width up to 79.82mm, greatly improved bearing capacity.
Model | DFSK K01 | DFSK K01L | DFSK K02 | ||
Basic parameters | |||||
Number of Crew Members (People) | 2 | 5 | |||
Emission standards | CHINA 6 | ||||
Outline size: length * width * height (mm) | 3960*1560*1825 | 4435*1560*1825 | 4600*1560*1840 | ||
Carton size: length * width * height (mm) | 2260*1440*340 | 2700*1440*370 | 2000*1440*370 | ||
Wheelbase(mm) | 2515 | 2760 | 2760 | ||
Track Front/Rear (mm | 1310/1310 | ||||
Kerb weight(kg) | 880 | 910 | 990 | ||
Total mass(kg) | 1770 | 1920 | 1990 | ||
Engine model | DK13 | DK13 | DK13 | ||
Engine type | Inline four-cylinder, four-stroke, water-cooled, electronically controlled fuel-injected gasoline engine | ||||
Displacement (ml) | 1293 | 1293 | 1293 | ||
Maximum power (kW) | 68 | 68 | 68 | ||
Maximum torque (N.m) | 125 | 125 | 125 | ||
Fuel tank capacity(L) | 50 | ||||
Combined fuel consumption (L/100km) | 6 | 6 | 6 | ||
Gearbox type | Five-speed/manual | ||||
Maximum speed (km/h) | 100 | 100 | 100 | ||
Body form | Load-bearing body | ||||
Drive mode | Mid-mounted rear drive | ||||
Braking device | Front disc rear drum, dual-circuit hydraulic brake | ||||
Front and rear suspension | MacPherson independent suspension with front overhang, leaf spring non-independent suspension with 5 pieces at the rear | ||||
Turn to form | Mechanical steering (○Optional electronic assistance) | ||||
Tire model | 165R14 | ||||
Primary configuration | |||||
Body color | Elegant white/crystal silver | ||||
Steel wheel decorative covers | ● | ● | ● | ||
New styling front face | ● | ● | ● | ||
Steel wheels | ● | ● | ● | ||
Front/rear fenders | ● | ● | ● | ||
Electrically adjustable headlights | ● | ● | ● | ||
Front fog lights | ○ | ○ | ○ | ||
Six-piece leaf spring type non-independent suspension overhang | - | ○ | ○ | ||
Corrugated boxes | - | ● | ● | ||
Rear fence | ○ | ○ | ○ | ||
Full interior style | Black interior | ||||
Main drive visor | ● | ● | ● | ||
Electronic instrument cluster | ● | ● | ● | ||
ESC radio | ● | ● | ● | ||
Ashtrays | ● | ● | ● | ||
Cigarette lighter | ● | ● | ● | ||
Anti-lock braking system (ABS/EBD) | ● | ● | ● | ||
Front door power windows | ○ | ○ | ○ | ||
Key fob (with central lock) | ○ | ○ | ○ | ||
Single steam air conditioner | - | ○ | ○ | ||
● means included,○ means optional,- means none.
1.Who are we?
Chizhong (Chongqing) lmp.& Exp.Co.,Ltd. is manufacturer of commercial vehicles,electric vehicles,suvs and mpvs,our brands are DFSK and SERES.We have 4 factories in China,each one for gasoline commercial vehicles,electric commercial vehicles,gasoline suv and mpv,Seres EV.
Welcome to visit our factory.
2.What vehicles you can offer?
OTTC certificate vehicles for Russia market,EEC certificate vehicles for Euro market,GCC market etc.
And we can offer Right Hand Drive vehicles.
3.Aftermarket Service?
For all our brand vehicles,we can offer all spare parts of our vehicles.
Chizhong (Chongqing) lmp.& Exp.Co.,Ltd. is manufacturer of commercial vehicles,electric vehicles,suvs and mpvs,our brands are DFSK and SERES.We have 4 factories in China,each one for gasoline commercial vehicles,electric commercial vehicles,gasoline suv and mpv,Seres EV.
Welcome to visit our factory.
2.What vehicles you can offer?
OTTC certificate vehicles for Russia market,EEC certificate vehicles for Euro market,GCC market etc.
And we can offer Right Hand Drive vehicles.
3.Aftermarket Service?
For all our brand vehicles,we can offer all spare parts of our vehicles.
