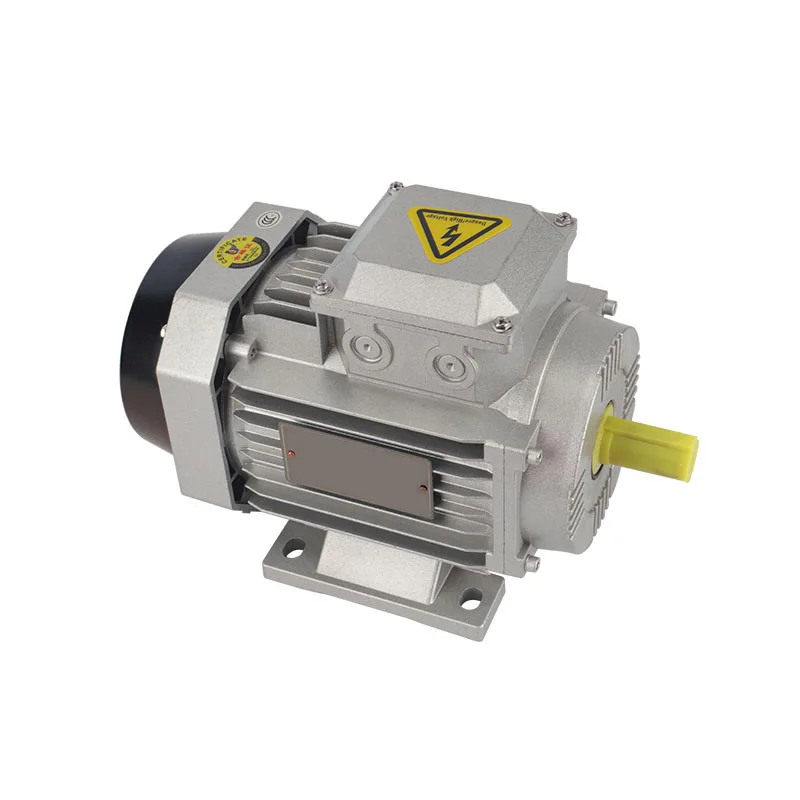

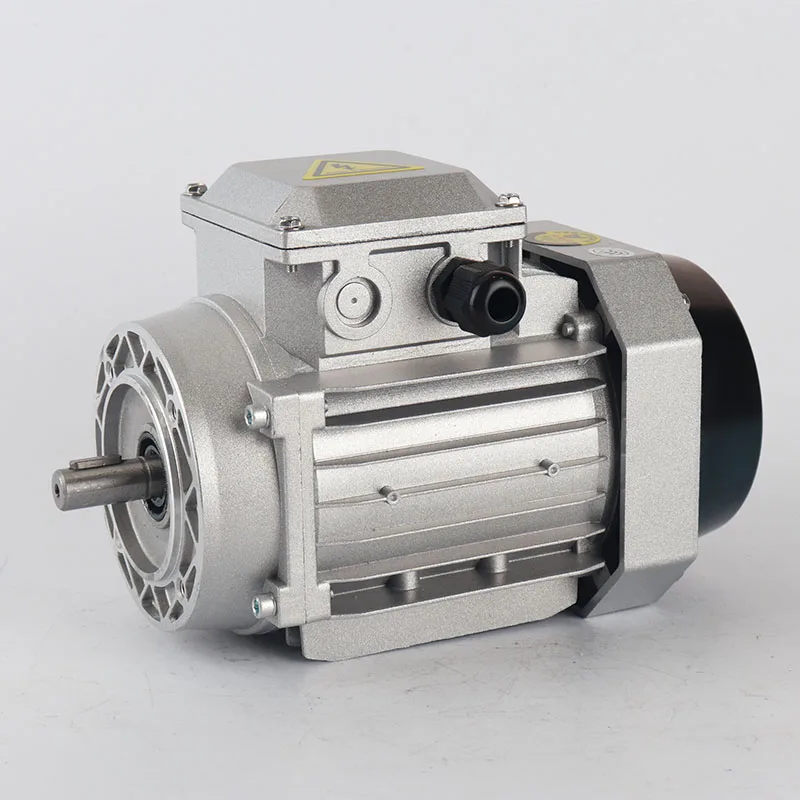

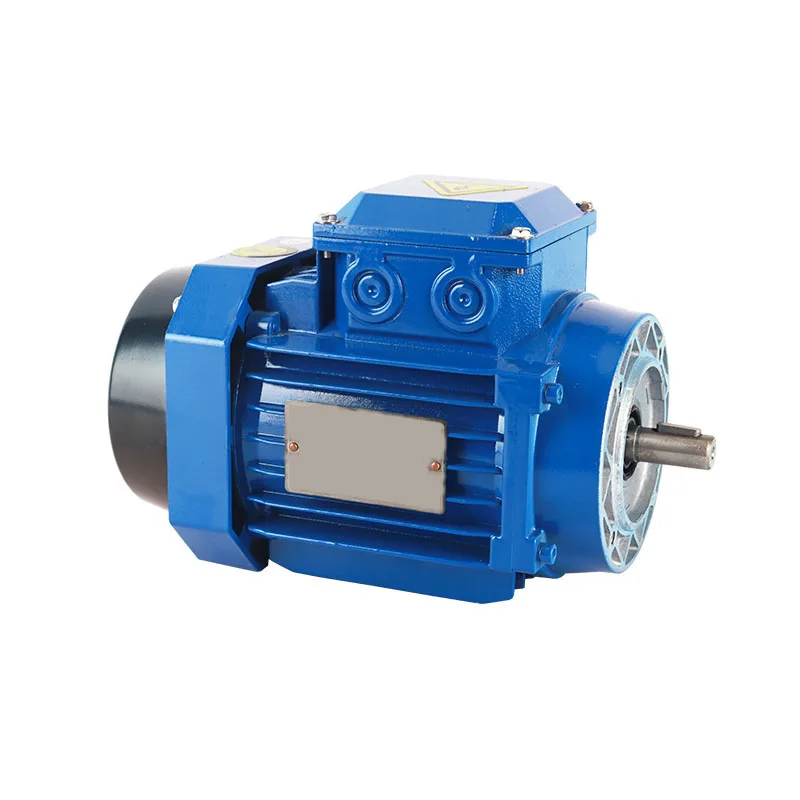

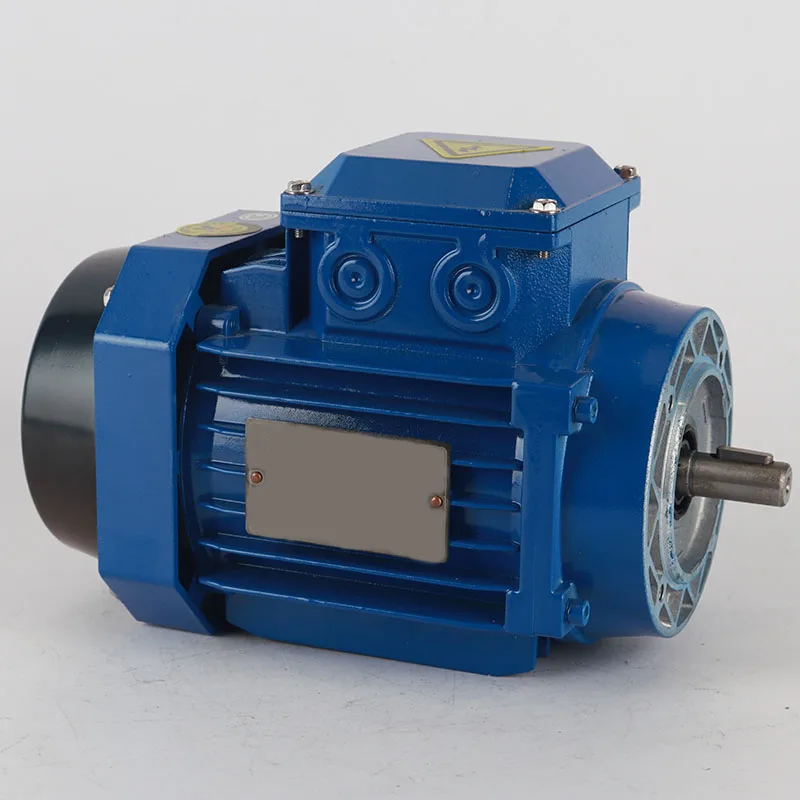

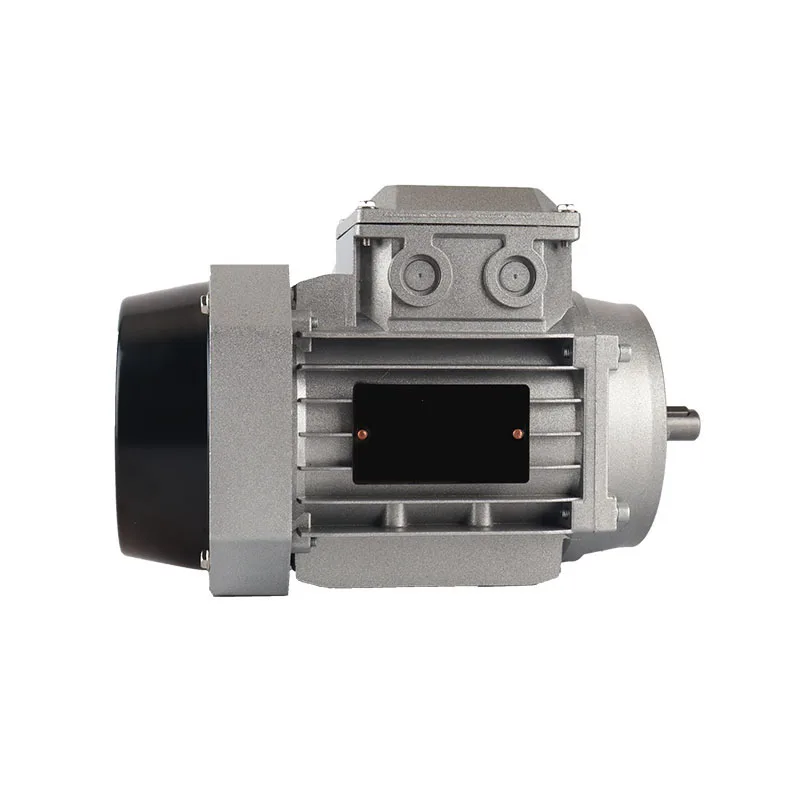

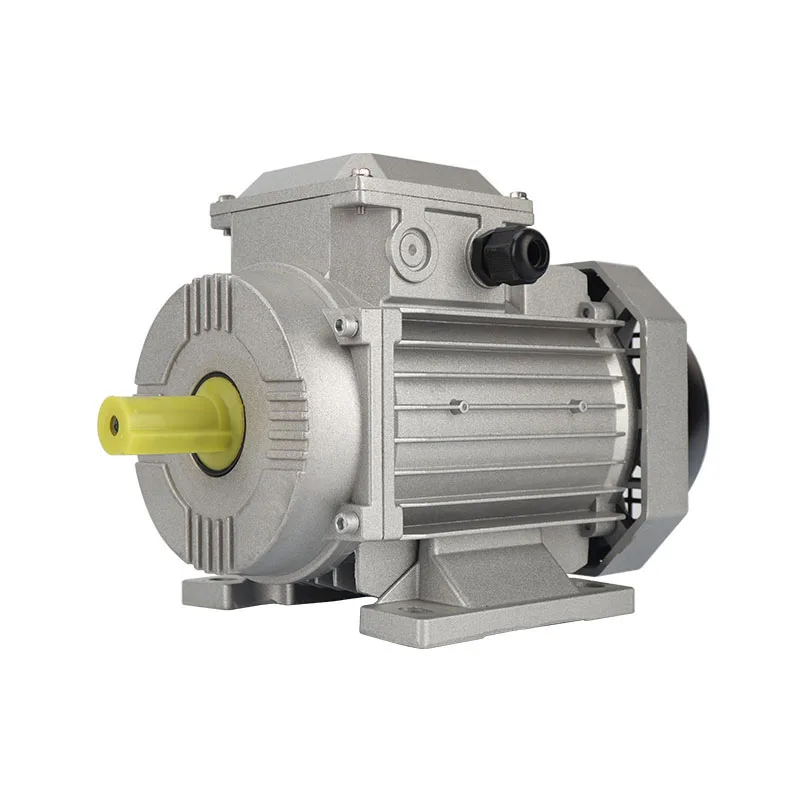

YS Series 0.37KW 0.75KW 1.5KW 2.2KW 3KW 4KW Aluminum Induction Electric Three Phase Asynchronous Motor

Share on (1600978991345):


Price:$185.00 - $199.00

Quantity:


Product Overview

Description



Products Description


Three-Phase Asynchronous Motor
Three-phase asynchronous motor is a kind of induction motor. It is a type of motor powered by 380V three-phase AC current (phase difference 120 degrees) at the same time. Because the rotor and stator of the three-phase asynchronous motor rotate The magnetic field rotates in the same direction and at different speeds, and there is a slip rate, so it is called a three-phase asynchronous motor. The rotational speed of the rotor of the three-phase asynchronous motor is lower than the rotational speed of the rotating magnetic field. The rotor winding generates electromotive force and current due to the relative motion between the rotor winding and the magnetic field, and interacts with the magnetic field to generate electromagnetic torque to realize energy conversion.


Altitude:
Not exceeding 1000 meters
Rated voltage:
220V/380V/415V/440V/customed
Rated frequency:
50HZ/60HZ
Insulation class:
Class B/F/H
Protecting class:
IP55
Cooling type:
ICO141
Duty:
Rating Continuos(S1)








Company Profile


Shandong Lijiu Electrical Machinery Co., Ltd
Shandong Lijiu Electrical Machinery Co., Ltd is an electric motor systems manufacturer and service provider with more than 40 years of expert manufacturing experience.It has a Tech-center of Shandong Provincial grade, a Special Purpose Motor Engineering Research Center, a National Grade Post-doctoral Research Workstation and owns 68 national patents, participated to establish 16 national and industrial standards. What's more it offers special and high quality motor system products and services to customers.
The main products include: Three main categories which are special electric motors, standard electric motors and motor-controlling systems.






Exhibition








Certifications






Packing & Delivery




Packing Details: Wooden Crate
Delivery Details: Shipped in 30-45 days after payment


FAQ


1. Q: Are you trading company or manufacturer?
A: Yes. We are a professional motor manufacturer with 40 years experience.
2. Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 30-40 days if the goods are not in stock, it is according to
quantity.
3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but we need to charger samples fee and freight fees.
4.Q: What is your terms of payment?
A: Payment<=1000USD,100% in advance. Payment>=1000USD, 40% T/T in advance, balance before shipment.
