B610TP LGA1700 12th Alder Lake S/13th gen Raptor Lake S series TDP65W 2*DDR5 2*HDI 2*DP eDP/LVDS 2*LAN PCIe4.0x16 4*COM GPIO TPM

TEKET INNOVATION founded in year 2003 in Beijing, provides embedded motherboard, industrial PC and related parts (chassis, power supply, RAM, SSD, LCD panel and wireless input device). We also sell VIA / ASUS / ASRock / Gigabyte / MSI industrial motherboards, Intel NUC mini PC and laptop.

Intel,VIA,Asus,Asrock,Gigabyte,MSI and TEKET embedded motherboard

Intel,ASUS,Gigabyte,MSI and TEKET mini pc

AUO,BOE industrial panel touchscreen and LVDS/eDP cable

PC chassis, power supply module, RAM and SSD support

Our main target customers are system integrators and equipment manufacturers.

In short, we are committed to researching, developing and producing space-saving and energy-saving embedded computer systems, which are usually applied to the fields of embedded industrial automation/control, inquiry machine, VR(virtual reality), medical equipment, education & training, digital signage, digital security & surveillance, soft routing, network security,PFsense,firewall,retail (POS/Kiosk/ATM),HTPC and thin client.

Product model

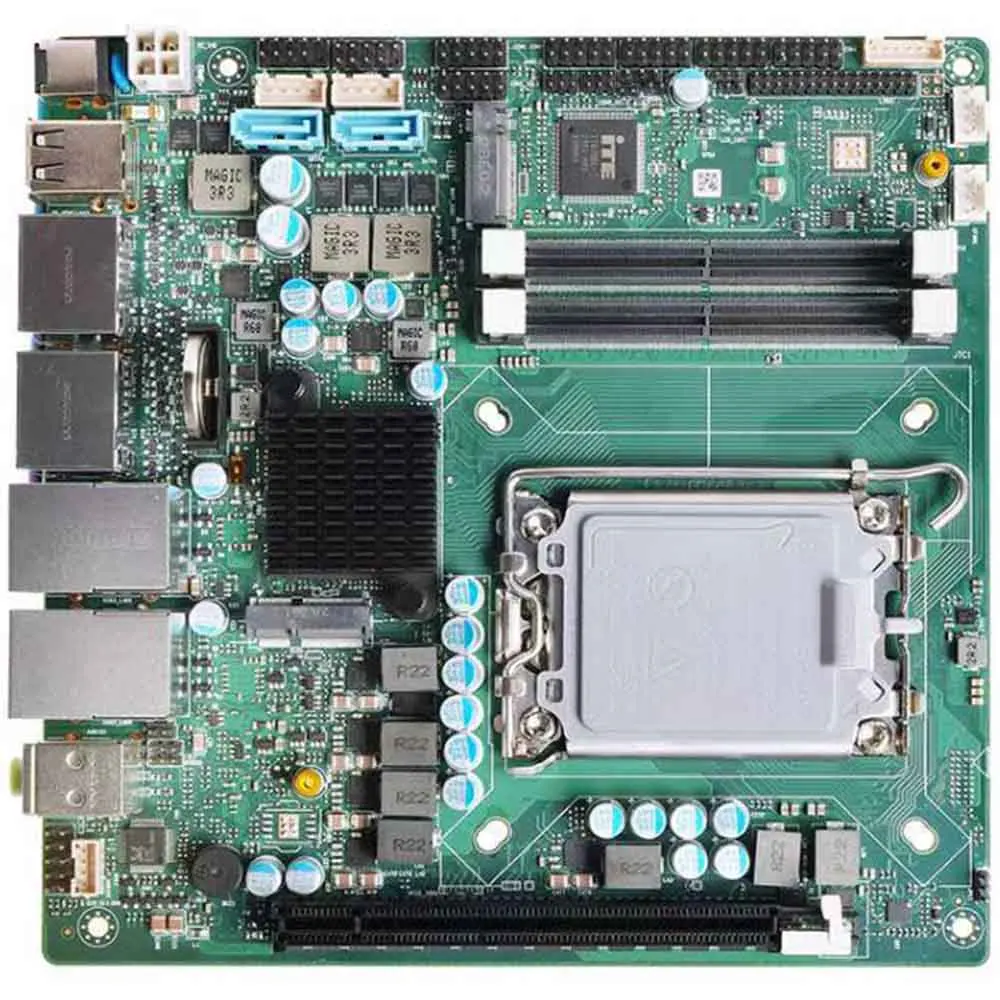

B610TP(R100)

processor

Intel 12th generation Alder Lake-S series/13th generation Raptor Lake-S series, LGA1700, TDP 65W

EFI BIOS

Memory

2 * DDR5 SO-DIMM 4800MHz, maximum 64GB

storage

1 * M.2 M-Key 2280 (NVMe PCIe 3.0_x4 default/optional SATA3.0 protocol) storage interface

2 * SATA3.0 interface

display

2 * HDI2.1 interface, supporting 4096x2160@60Hz

2 * DP1.4, supported 7680x4320@60Hz

eDP/LVDS

Board side I/O interface

DC JACK,2*USB2.0

2*HDI + DP

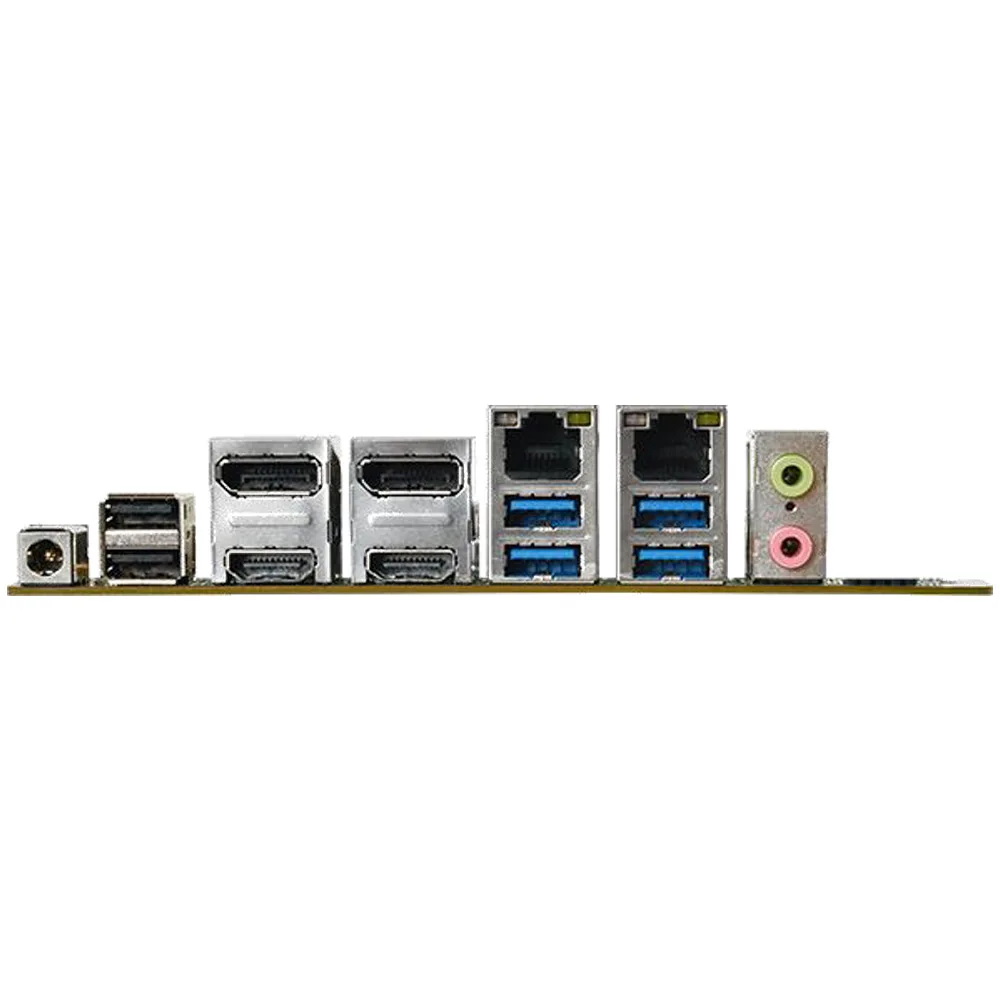

2 * (LAN+2 * USB3.2), 2-port audio input/output (Line out, Mic in)

Extension interface/function

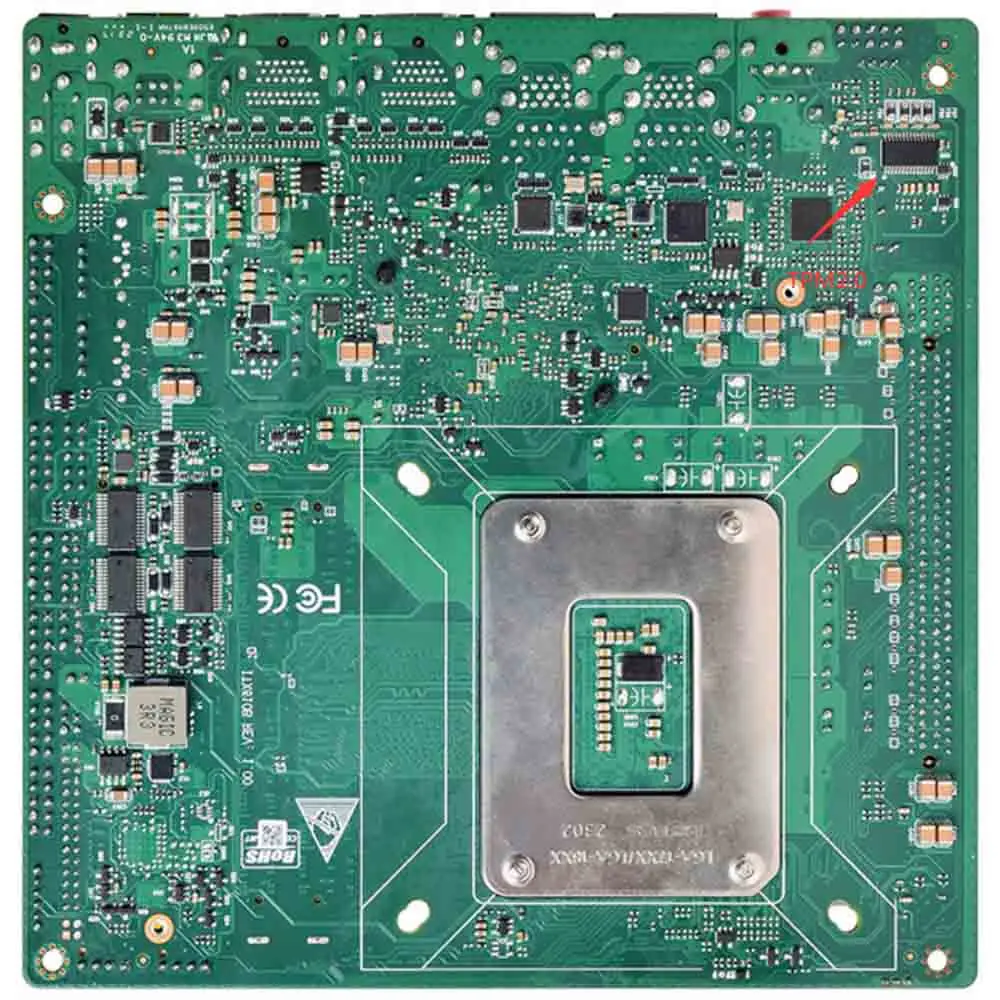

TPM2.0 optional, default not available

1 * PCIe_ X16 (PCIe 4.0_16x protocol)

1 * M.2 E-Key (PCIe 3.0/USB2.0 protocol, supporting WIFI/BT modules)

4 * COM pin arrangement, 2x5Pin, with a spacing of 2.54m; COM1/2 optional RS232/485, COM3/4 is RS232

2 sets of 4 USB 2.0 rows of pins with a spacing of 2.54mm (including 1 USB 2.0 and BT that share the same layer)

8 * GPIO pin, 2x5Pin, spacing 2.54mm

1 * 4Pin PWM CPU fan, 1 * 4Pin system fan

Power

DC 12-24V, above 120W

work environment

Working temperature: -20 ℃~+60 ℃; Working humidity: 5%~90%

Storage temperature: -40 ℃~+85 ℃; Storage humidity: 5%~90%

Operating system support

Win10,Win11,Linux

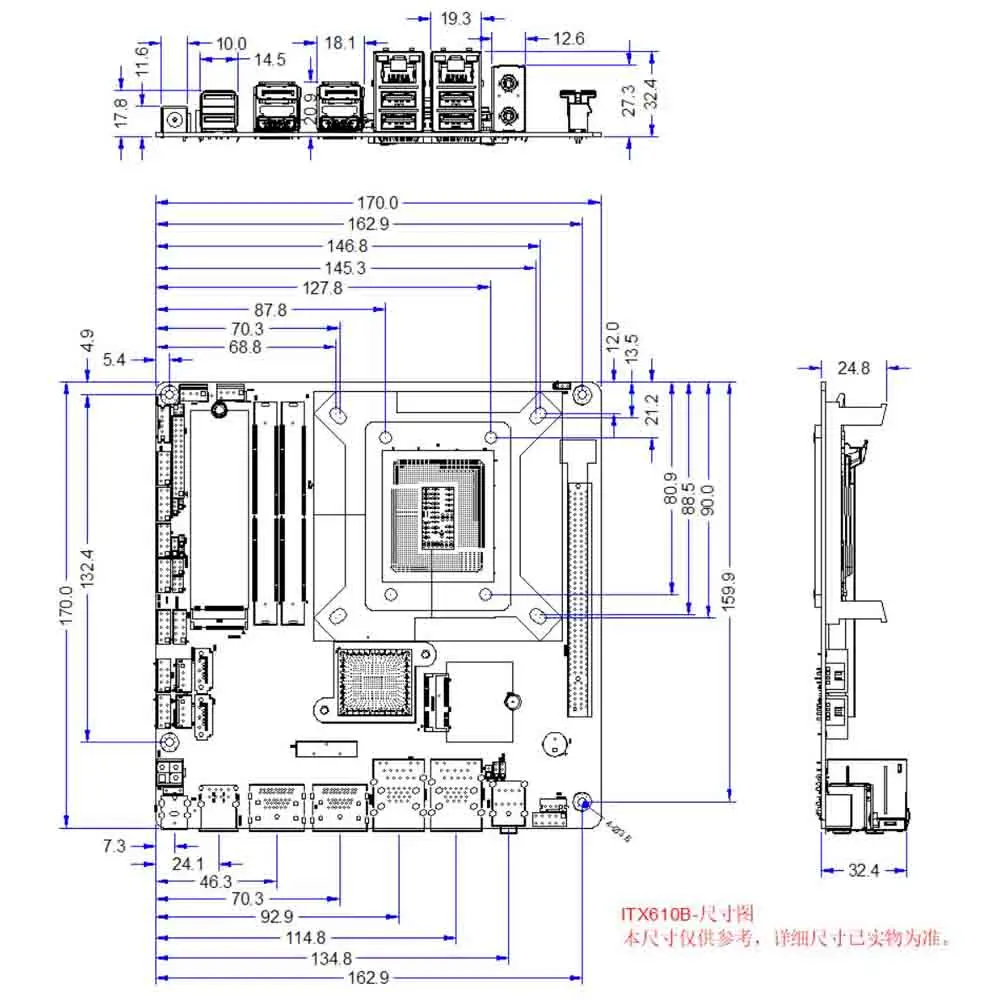

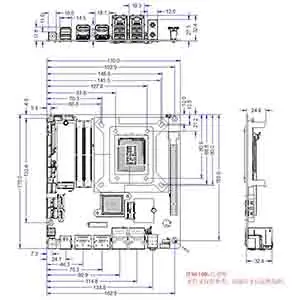

size

170x170 mm

weight

About 400g
