Push Pull Factory Cost Ventilation Exhaust Fan Greenhouse Poultry Farm Exhaust Fan
- Category: >>>
- Supplier: Qingzhou Boost Temperature Control Equipment Co. Ltd.
Share on (1600979145256):
Product Overview
Description
Products Description

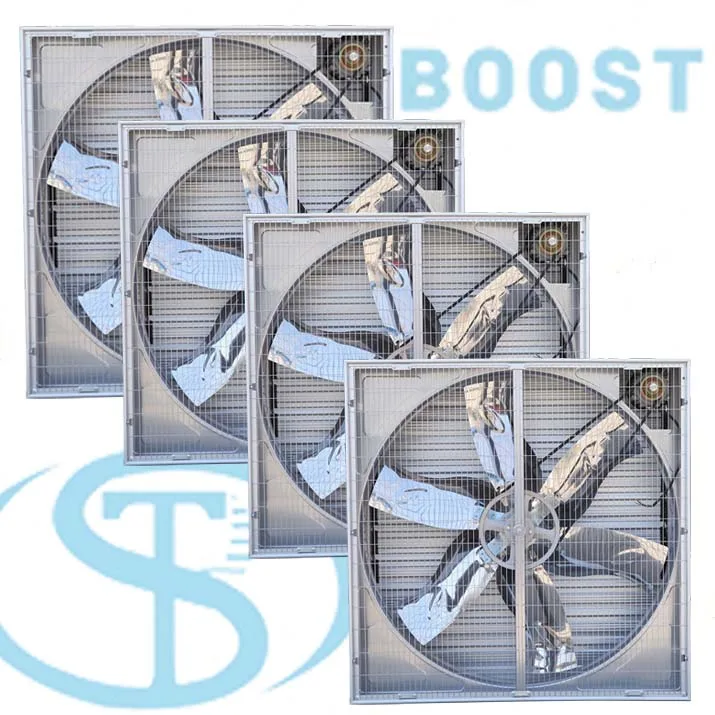

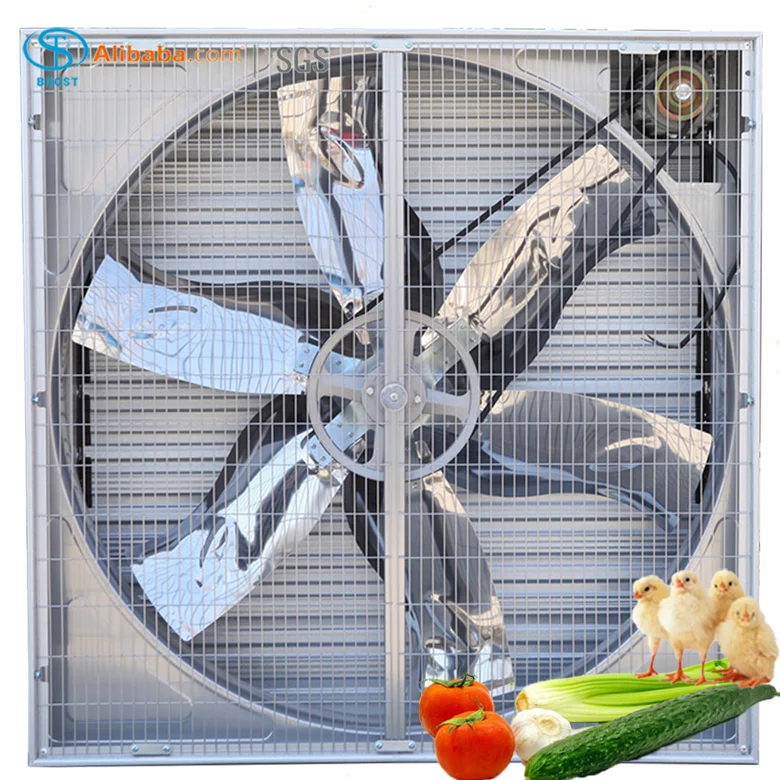

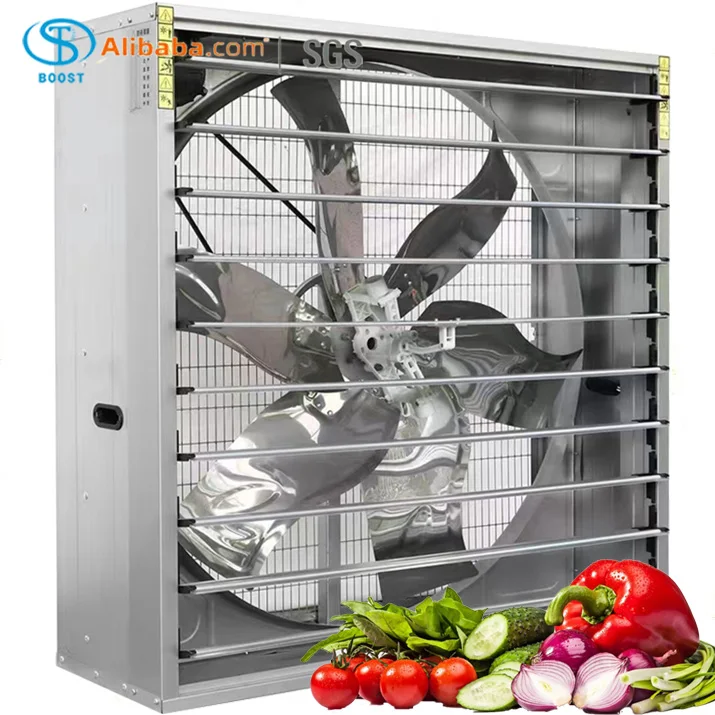

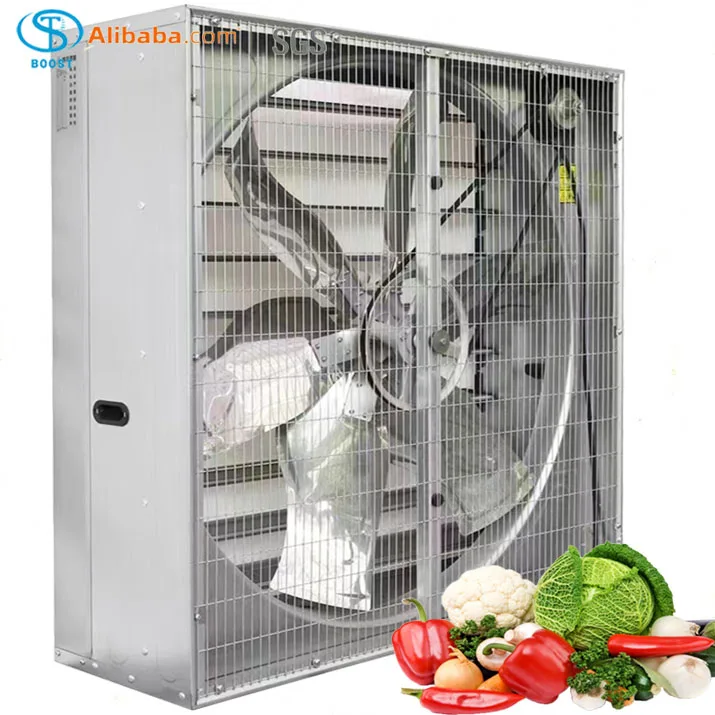

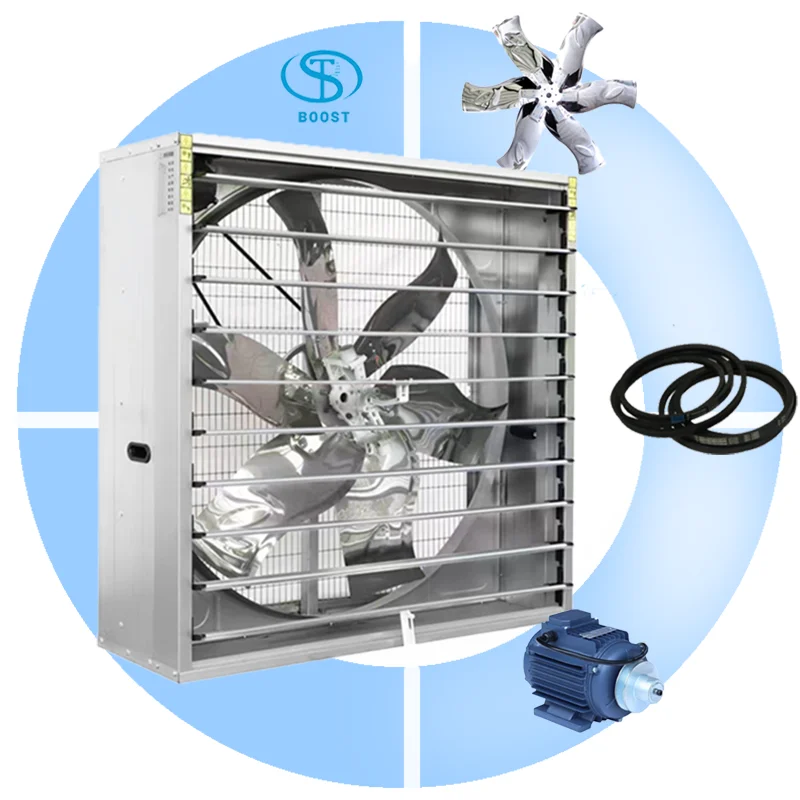

The BOOST Push-Pull centrifugal fan is a 380 volt industrial livestock greenhouse ventilation fan with a blade diameter of 50 inches, made of high-strength materials, with high air volume and loss resistance characteristics.
The product is widely used for ventilation and cooling in agricultural and industrial fields. It is mainly used in animal feeding,poultry house, livestock farm, greenhouse, factory workshop, textile and other industries.
The product is widely used for ventilation and cooling in agricultural and industrial fields. It is mainly used in animal feeding,poultry house, livestock farm, greenhouse, factory workshop, textile and other industries.
Model | Blades Diameter(mm) | Blades Rotational Speed (rpm) | Motor Rotational Speed (rpm) | Air flow (m³/hr) | Total pressure(Pa) | Noise (db) | Input power (KW) | Dimension(mm) |
BST800 | 710 | 660 | 1400 | 25000 | 60 | ≤60 | 370 | 800*800*450 |
BST1000 | 900 | 610 | 1400 | 33000 | 70 | ≤70 | 550 | 1000*1000*450 |
BST1100 | 1000 | 600 | 1400 | 35500 | 70 | ≤70 | 750 | 1100*1100*450 |
BST1220 | 1100 | 460 | 1400 | 41000 | 73 | ≤70 | 1100 | 1220*1220*450 |
BST1380 | 1250 | 439 | 1400 | 47000 | 56 | ≤75 | 1100 | 1380*1380*450 |
BST1530 | 1400 | 325 | 1400 | 56800 | 60 | ≤70 | 1500 | 1530*1530*450 |
The difference between push-pull fan and heavy hammer fan
Push-pull centrifugal fan
Hammer exhaust fan
Product type | Push-pull centrifugal fan | Hammer exhaust fan |
Blade size | wide | narrow |
Air flow | 47000m3/h | 44000m3/h |
Opening of shutter | Push-pull device opens directly | Open with two non-powered pendulums |
Fan thickness | 450mm | 400mm |
Taking BST-1380 model as an example, it can be seen that:
1. The size of the fan blade is different: the fan blade of the push-pull fan is wide, and the fan blade of the heavy hammer fan is narrow.
2. Different air volume: The air volume of push-pull fans with the same configuration is larger than that of hammer fans.
3. The louver opening method is different: push-pull fan is mechanical opening and closing, the louver opening method is directly connected to the louver and wheel hub by the push-pull device; The heavy weight fan uses two unpowered pendulum to open and close the shutters.
4. The material thickness is different: the push-pull fan material is thicker than the hammer fan, so the push-pull fan machine weight is heavier.
1. The size of the fan blade is different: the fan blade of the push-pull fan is wide, and the fan blade of the heavy hammer fan is narrow.
2. Different air volume: The air volume of push-pull fans with the same configuration is larger than that of hammer fans.
3. The louver opening method is different: push-pull fan is mechanical opening and closing, the louver opening method is directly connected to the louver and wheel hub by the push-pull device; The heavy weight fan uses two unpowered pendulum to open and close the shutters.
4. The material thickness is different: the push-pull fan material is thicker than the hammer fan, so the push-pull fan machine weight is heavier.

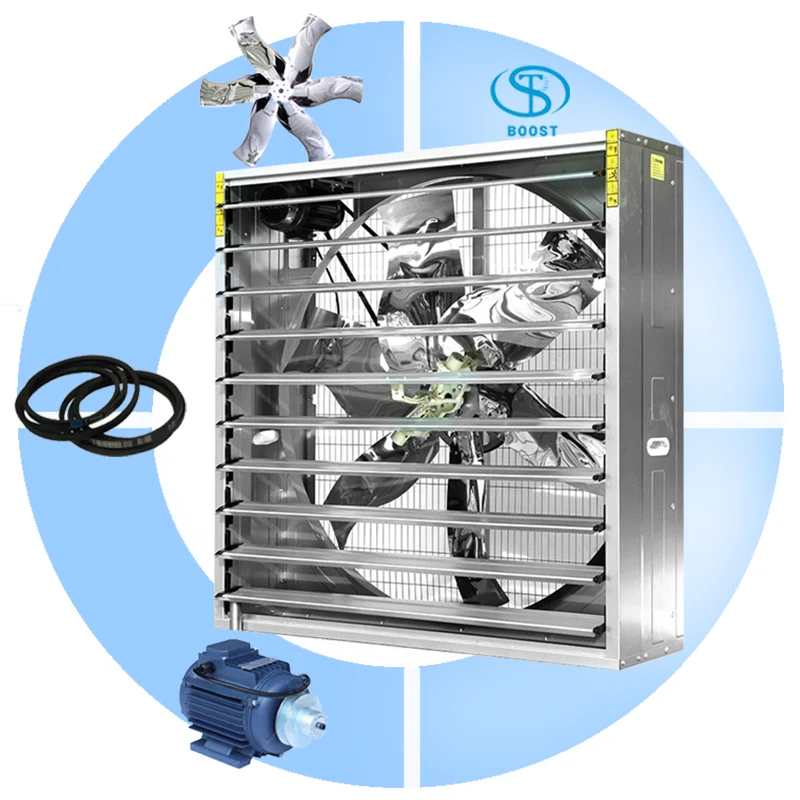

Seven reasons to choose a BOOST push-pull fan

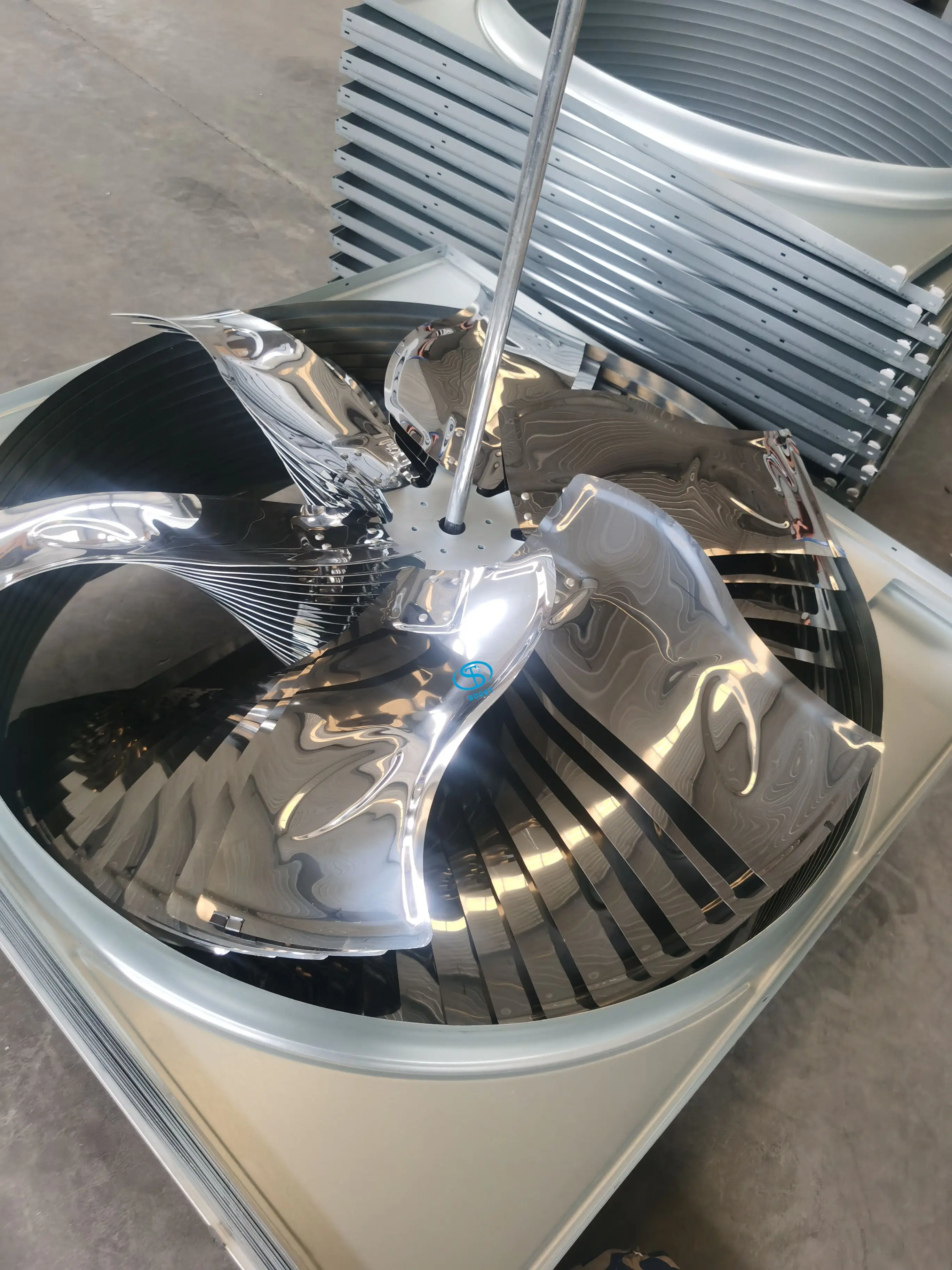

Fan blade
Fan blade material has stainless steel, galvanized sheet, aluminum alloy three materials to choose from.
Special blade shape design ensures large air volume, no deformation, no fracture. Stainless steel thickness 1.2mm, surface finish grade BA.

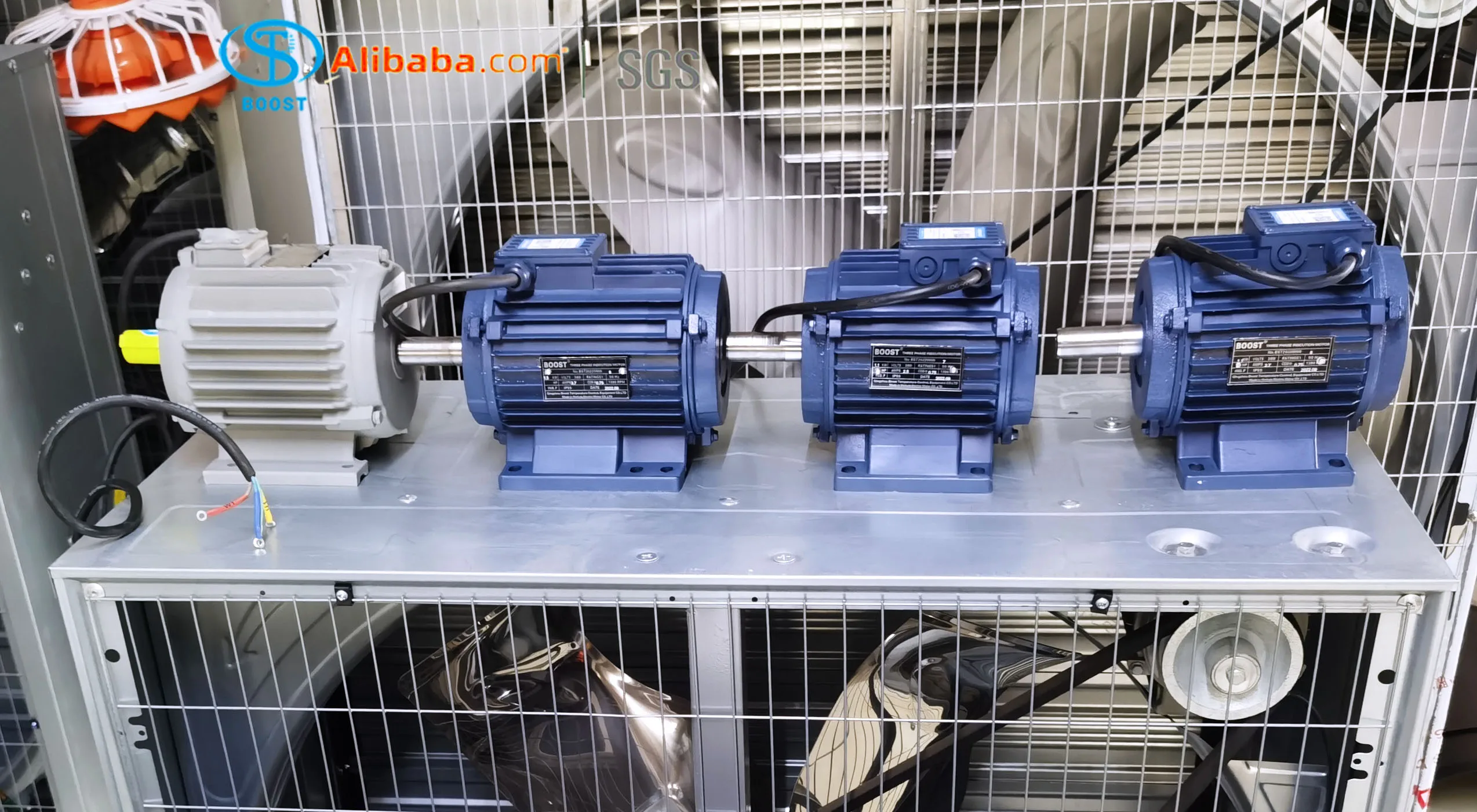

Fan motor
Motors are divided into domestic well-known brand motors and Siemens motors, which can be customized according to customer needs.
The domestic motor has added a phase loss protection device to power off control when the power is in phase loss. The motor adopts IP55 protection and F insulation.

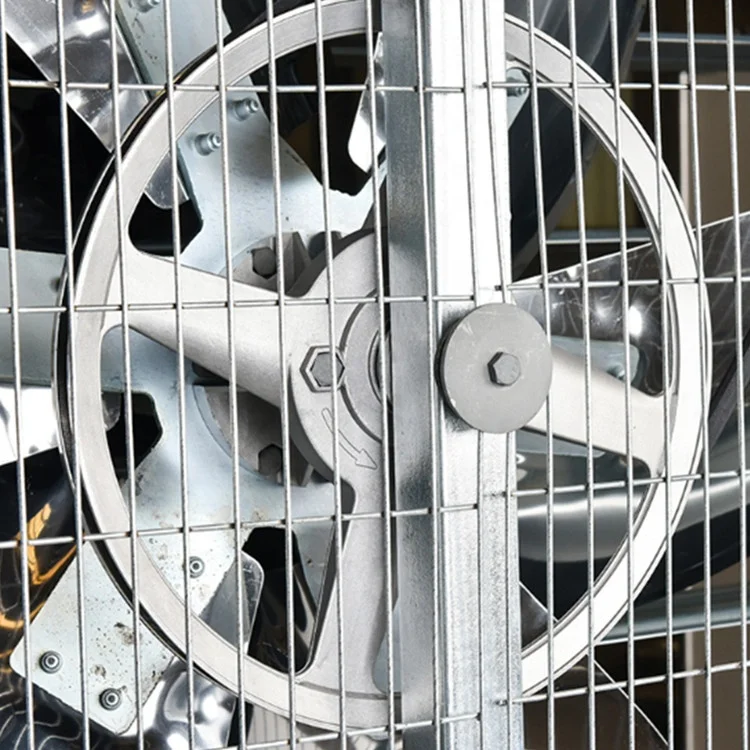

Belt pulley
The fan belt pulley and aluminum flange are made of high strength aluminum magnesium alloy die casting, light weight and low vibration.
And after sandblasting treatment beautiful appearance, eliminate internal stress, effectively improve their own
strength.
strength.
Centrifugal opening mechanism
The centrifugal opening mechanism reduces the resistance when the shutter is switched on and off, and increases the air volume.
Made of high quality nylon PA66, the parts are connected with copper rivets, and the guide rod is made of 304 stainless steel, which makes it wear-resistant and flexible, and greatly improves the service life
Made of high quality nylon PA66, the parts are connected with copper rivets, and the guide rod is made of 304 stainless steel, which makes it wear-resistant and flexible, and greatly improves the service life

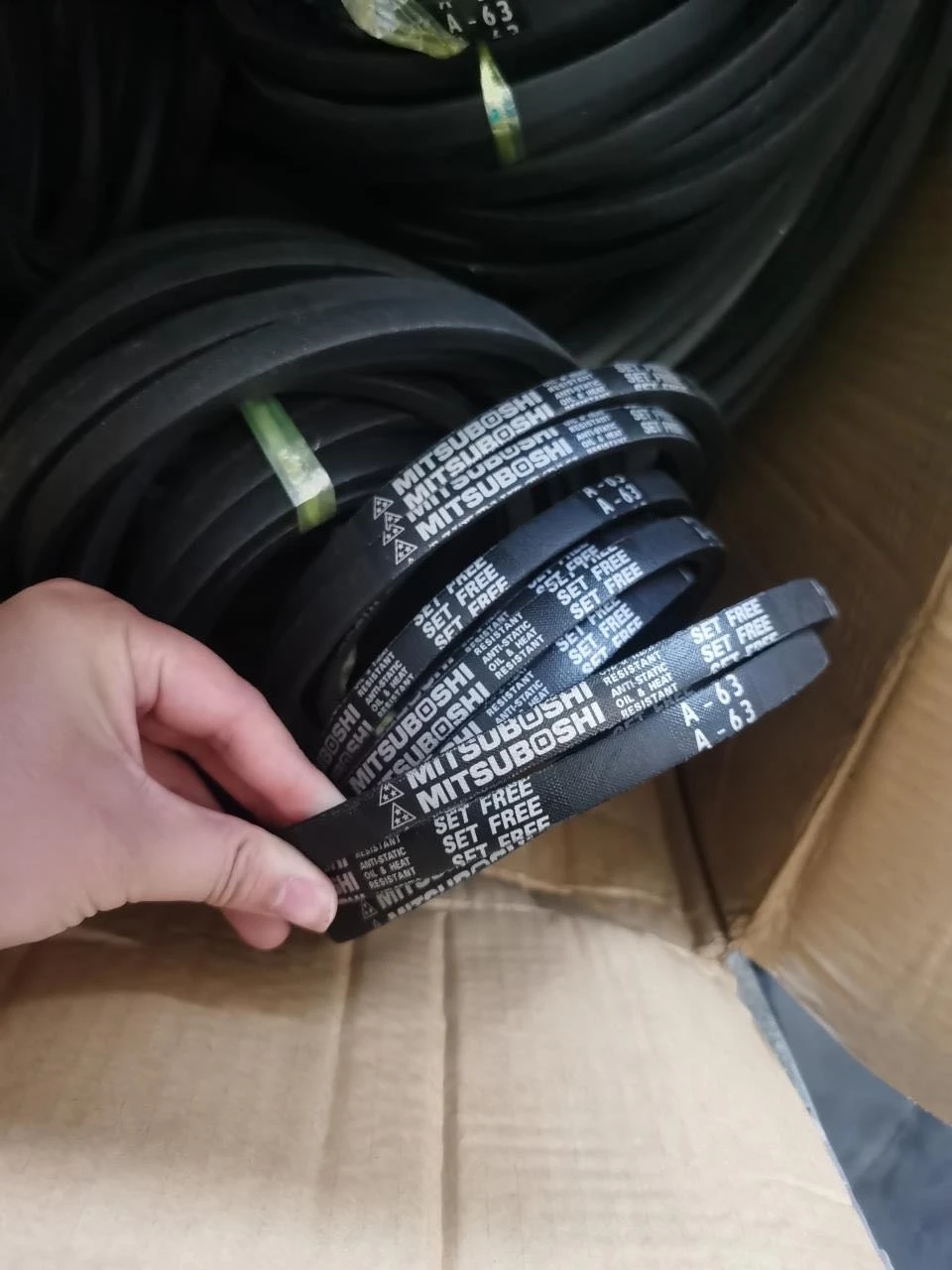

Belt
Adopt imported belt to ensure service life and maintenance free.
Fan frame
The outer frame is made of hot-dip galvanized steel plate, and the shutter link is made of high quality nylon.
Effectively improve the corrosion resistance of the fan and ensure the service life.
Details and installation of Push-pull centrifugal fan
Large air flow
No deformation
No fracture
No dust
Attractive
Durable
Blade optional material Galvanized sheet
Aluminum alloy
Multiple quality assurance
Pure copper wire
Customizable
High efficiency
Energy saving
Energy saving
Multiple authentication assurance
CCC certification
IP55 protection grade
F insulation grade
Good appearance
Light weight
Long service life
High quality nylon PA66
Wear resistant
Durable
Connect parts with copper rivets
Reduce the friction coefficient
Good flexibility
Not rust
Improves the service life
Service life is 3 times longer than type A
Long service life
No maintenance required
Corrosion resistance
No deformation
High quality nylon joint
Flexible joints
Ultra-long term use
Installation of fan
1. Adjust the horizontal and vertical , keeping the fan blade running smoothly.
2. After fixing the fan, the remaining gap need to be sealed.
3. The Expansion screws and Self tapping screw can be used to fix.
3. The Expansion screws and Self tapping screw can be used to fix.
Factory&Workshop
Packing&Shipping
FAQ
Q: Is your company a manufacture or Trading company?
Q: Can you open our own brand?
A: Yes,we can offer OEM/ODM service,put your logo for the produce.
Q: What is your minimum oreder quantity?
A: We accept small order quantity, but the freight cost will be very high.
Q: Voltage your can offer?
A: Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q: How about the quality of your product?
A: All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q: Can you accept an inspection of a Third-party detection instituation?
A: Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before,and have got perfect inspection report.
A: We are professional manufacture of Ventilation equipment,Cooling equipment and Heating equipment for poultry,workshop and greenhouse in China.
Q: Can you open our own brand?
A: Yes,we can offer OEM/ODM service,put your logo for the produce.
Q: What is your minimum oreder quantity?
A: We accept small order quantity, but the freight cost will be very high.
Q: Voltage your can offer?
A: Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q: How about the quality of your product?
A: All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q: Can you accept an inspection of a Third-party detection instituation?
A: Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before,and have got perfect inspection report.
