RIQNO vfd ac drive three phase asynchronous motor vfd drive for motor vfd 185 kw
RIQNO vfd ac drive three-phase asynchronous motor vfd drive for motor vfd 185 kw
RIQNO vfd ac drive three-phase asynchronous motor vfd drive for motor vfd 185 kw
RIQNO vfd ac drive three-phase asynchronous motor vfd drive for motor vfd 185 kw
RIQNO vfd ac drive three-phase asynchronous motor vfd drive for motor vfd 185 kw
RIQNO vfd ac drive three-phase asynchronous motor vfd drive for motor vfd 185 kw
RIQNO vfd ac drive three-phase asynchronous motor vfd drive for motor vfd 185 kw

RIQNO vfd ac drive three phase asynchronous motor vfd drive for motor vfd 185 kw

Share on (1600979159270):


Price:$1,858.00 - $1,950.00

Quantity:


Product Overview

Description



Product Description




A800 series Frequency Inverter is one creatively module design based on the DSP control system,adopts current vector technology,and cooperated with a variety of protection methods.It can be applied to all kinds of asynchronous motors and provide excellent driving performance.The product has greatly improved customer ease of use and environmental adaptability in terms of air duct design,hardware configuration,and software functions.The key components are all international brands such as TI,ON,INFINEON,etc.,which provides a reliable guarantee with long service life.


Specification


item
value
Place of Origin
China
Jiangsu
Brand Name
RIQNO
Model Number
A800-160RG/185RP-T4
Warranty
18 months
Type
AC/DC/AC
Certification
OEM/ODM
Size
425*702*326mm
Customized
Yes
Control Mode
Vector control or V/F control
Rated Power
304/344A
Nominal Voltage
380V
power phase number
three phase
Condition
100% Original Brand
Frequency
50 / 60Hz
Communication
RS-485
Quality
100%original 100%brand
Protection
IP 20
OEM
Support
MOQ
1pcs
PAYMENT
TT\\Western Union\\ LC
Application
General purpose
Warranty
18 Months


Model


No.
Product model
Power (KW)
Power capacity (KVA)
Output(A)
Product Dimension (W*H*D)(mm）
Brake unit
1
A800-0R7G-T4
0.75/1.5
1.5
2.1/3.8



78*203*145
Built-in
2
A800-1R5G-T4
1.5/2.2
3.0
3.8/5.1
Built-in
3
A800-2R2G-T4
2.2/4.0
4.0
5.1/9.0
Built-in
4
A800-4R0G-T4
4
5.9
9.0
Built-in
5
A800-4R0G/5R5P-T4
4.0/5.5
5.9
9.0/13


93*235*145
Built-in
6
A800-5R5G/7R5P-T4
5.5/7.5
8.9
13/17
Built-in
7
A800-7R5G-T4
7.5
11.0
17
Built-in
8
A800-7R5G/11RP-T4
7.5/11
11.0
17/25


142*282.5*187
Built-in
9
A800-11RG/15RP-T4
11/15
17.0
25/32
Built-in
10
A800-15RG-T4
15
21.0
32
Built-in
11
A800-15RG/18RP-T4
15/18.5
21.0
32/37


150*305*202
Built-in
12
A800-18RG/22RP-T4
18.5/22
24.0
37/45
Built-in
13
A800-22RG-T4
22
30.0
45
Built-in
14
A800-22RG/30RP-T4
22/30
30.0
45/60

180*330*208.5
Built-in
15
A800-30RG-T4
30
40.0
60
Built-in
16
A800-30RG/37RP-T4
30/37
40.0
60/75


240*358*224
Optional
17
A800-37RG/45RP-T4
37/45
57.0
75/91
Optional
18
A800-45RG-T4
45
69.0
91
Optional
19
A800-45RG/55RP-T4
45/55
69.0
91/112


268*380.5*246
Optional
20
A800-55RG/75RP-T4
55/75
85.0
112/150
Optional
21
A800-75RG-T4
75
114.0
150
Optional
22
A800-75RG/90RP-T4
75/90
114.0
150/176

287*625*270
Optional
23
A800-90RG/110RP-T4
90/110
134.0
176/210
Optional
24
A800-110RG/132RP-T4
110/132
160.0
210/253
317*661*320
Optional

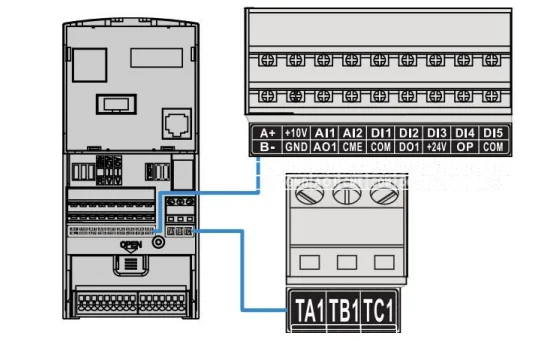

Wiring Diagram






Packing & Delivery






Company Profile




Jiangsu RIQNO Electric Co., Ltd. is an enterprise integrating automation control, motor drive, system solution integration and technical services. For many years, the company has been focusing on the research and development, production, sales and service of electric drive products.
At present, the company has strong technical strength and excellent production quality system which are the guarantee for providing customers with high-quality services. The company has mastered key technologies such as high-performance vector frequency conversion technology, servo drive technology and automation control technology, and has a high-quality, high-level R&D team to maintain continuous upgrading and improvement of core technology.
Since its establishment, the company has always been adhering to the business philosophy of "seeking truth, being pragmatic,pioneering, and innovating", and is committed to providing customers with "all-round, full-cycle, and sustainable operation" industrial automation solutions to achieve the common value of corporate and customer values To grow and be committed to becoming the most trustworthy partner of customers.




FAQ


1.Can I get some samples?
Yes,Sample order is available for quality check and market test.

2.What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order.

3.What's your payment terms?
We usually accept all kinds of payment terms.Such as T/T,L/C, Western Union.PayPal,Cash.

4.What's your warranty terms?
We offer 18 months warranty time.

5.Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order quantity.
