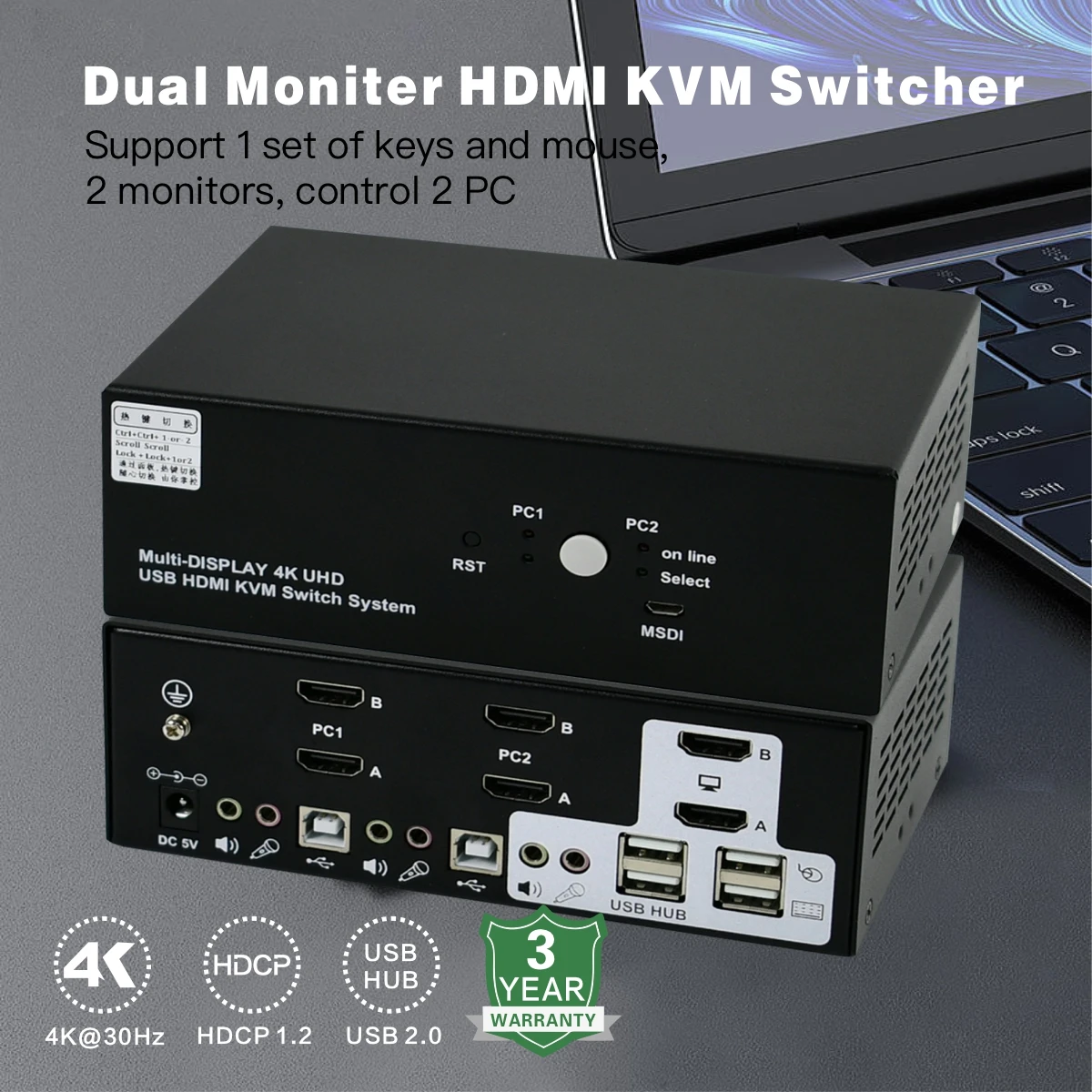

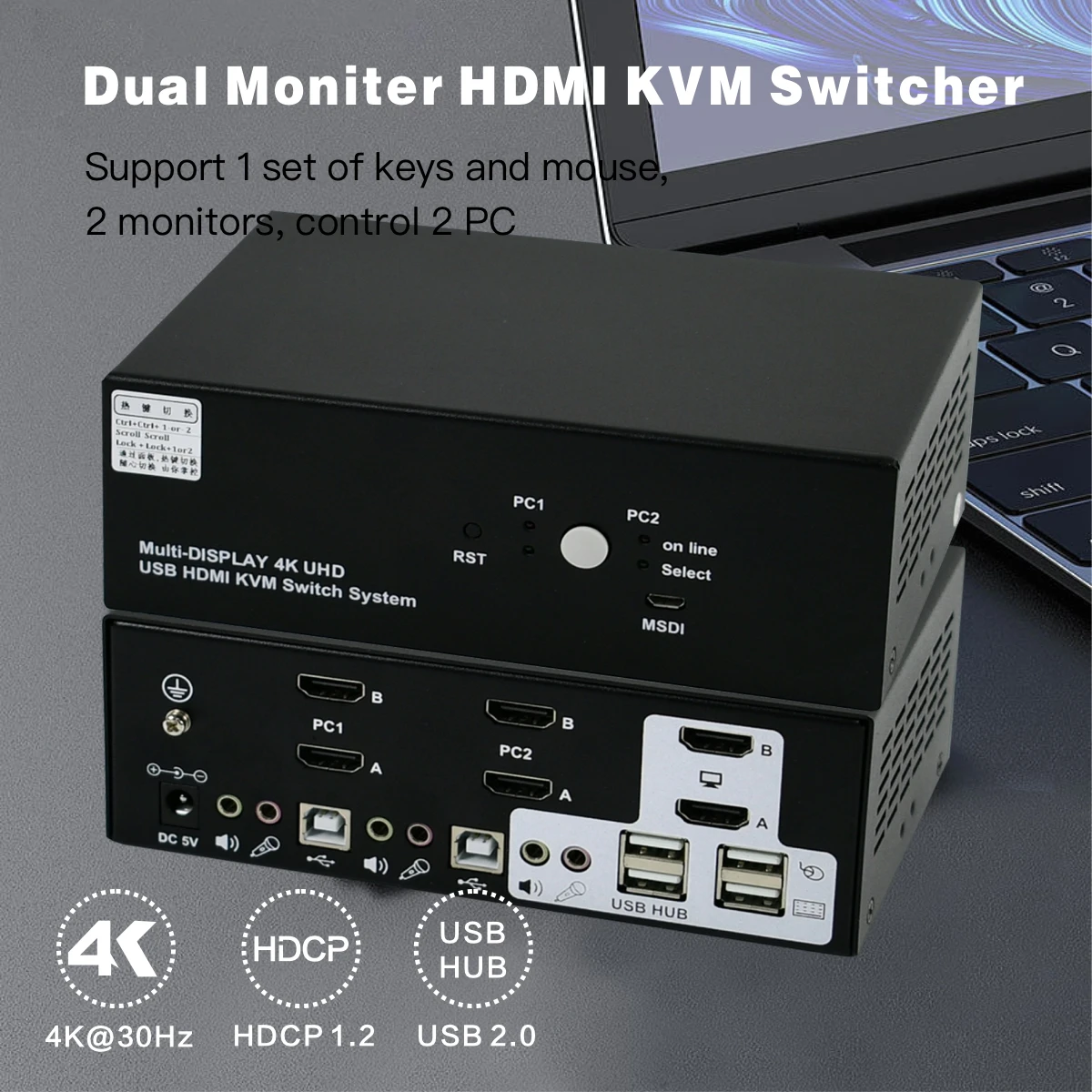

4K Dual Monitor HDMI 2 in 1KVM Switch 2 Port Dual Monitor KVM Switch
- Category: >>>
- Supplier: Zhengzhou Axtron Electronic Technology Co. Ltd.
Share on (1600979180109):
Product Overview
Description
Product Description

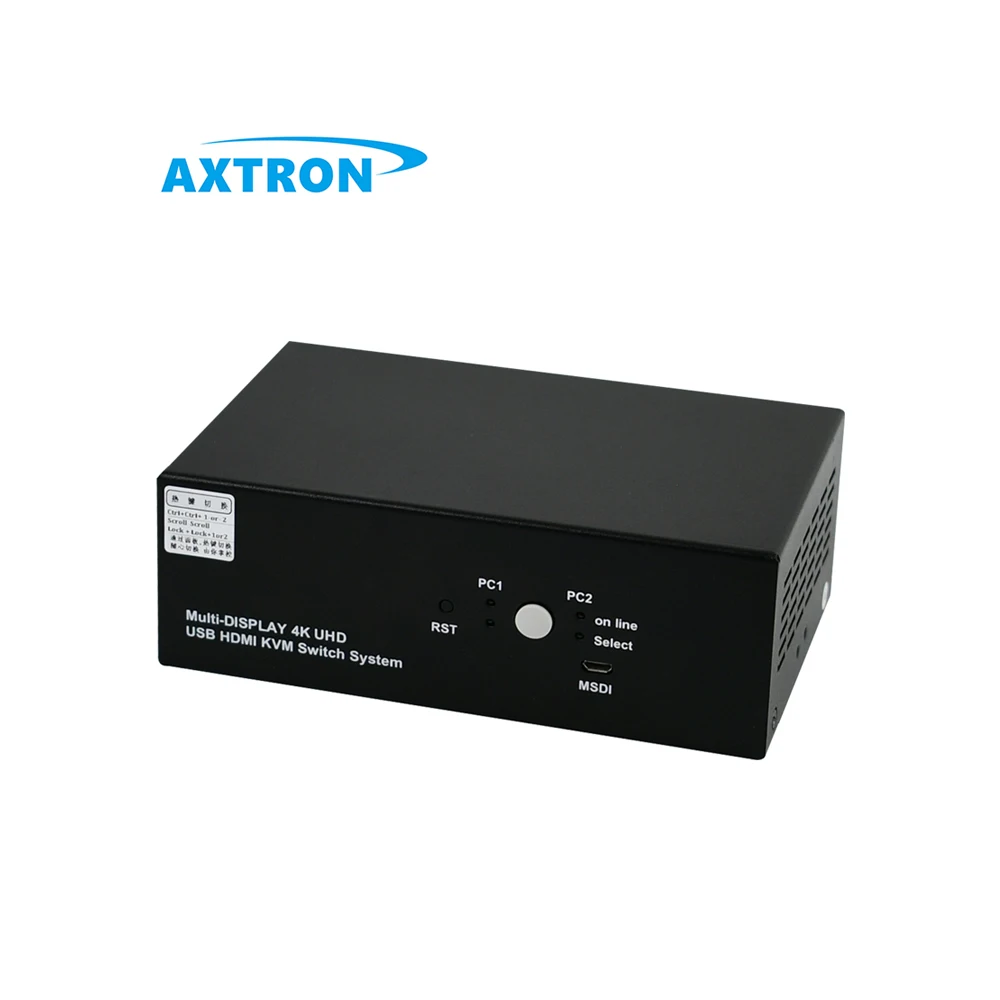

The AXDMKVM42 switch is a KVM switch that supports two inputs and two outputs at 4K Ultra HD resolution, allowing customers to switch access to two computers with two HDMI display interfaces using a single set of keyboard and mouse. Both inputs and outputs support HDMI 1.4 interfaces, providing 2.1 channel audio and rich audio output. The switch is simple and fast to install, simply plugging the cables into the correct ports. No software settings are required, no installation program is required, and there are no compatibility issues. The desktop-sized compact design, metal casing, is easy to install and place, providing multiple computer video interface options, providing users with multiple fast switching options for audio, video, and USB devices, saving desktop space, making it an ideal choice for multimedia applications such as SOHO office.
Features
1. A single set of USB-controlled keyboard and mouse can control 2 computers and USB 2.0 HUB peripherals.
2. Built-in USB 2.0 hub, compatible with USB 1.0/3.0 protocol specifications.
3. HDMI video supports a maximum resolution of 4K@60Hz, 1920x1200, 1920x1080p, and other resolutions are downward compatible.
4. Keyboard hotkey switch shortcut function and device panel button switch function are provided for selection.
5. Supports various operating systems on multiple platforms.
6. BIOS-level hardware connection, no need for installation of driver programs or control software.
7. Expansion USB interface on the front panel of the device allows users to connect USB keyboards, mice, USB drives, USB printers, and other peripherals.
8. Multiple hotkey options and setting functions are provided, allowing users to set their own hotkeys according to the situation.
9. Automatically scans the online status of the connected computers.
10.This product supports EDID read/write function, and in order to match good compatibility, each port must input signal connection display, power-on built-in light will blink for 3 seconds after read/write is completed.
Detailed Images

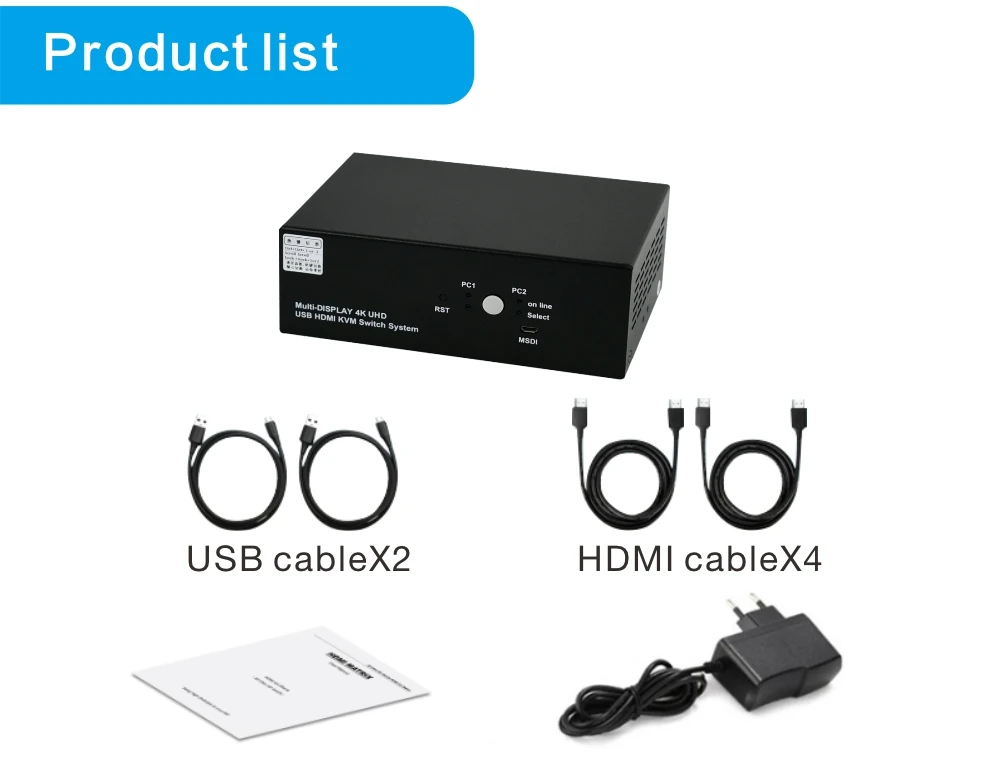

Package Content
HDMI 2x2 switcher-------------------------------------------1PCS
USB Cable---------------------------------------------------- 2PCS
HDMI Cable--------------------------------------------------- 4 PCS
Power Adaptation-------------------------------------------- 1PCS
User Manual---------------------------------------------------1PCS

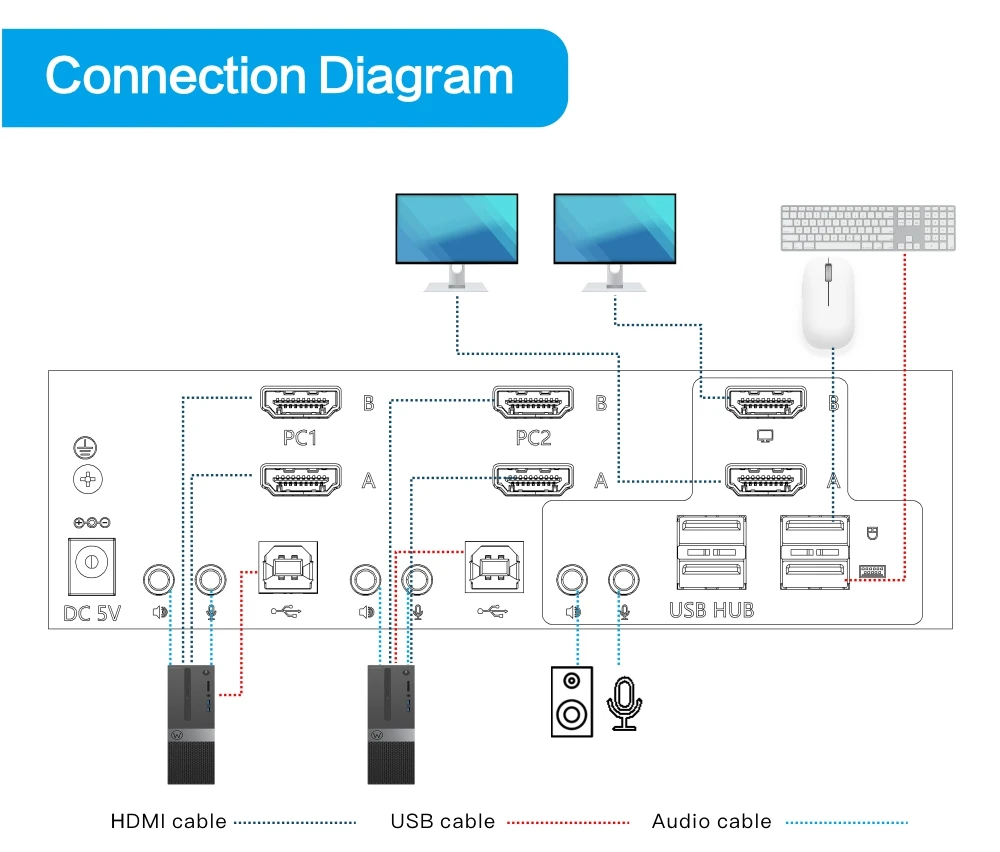

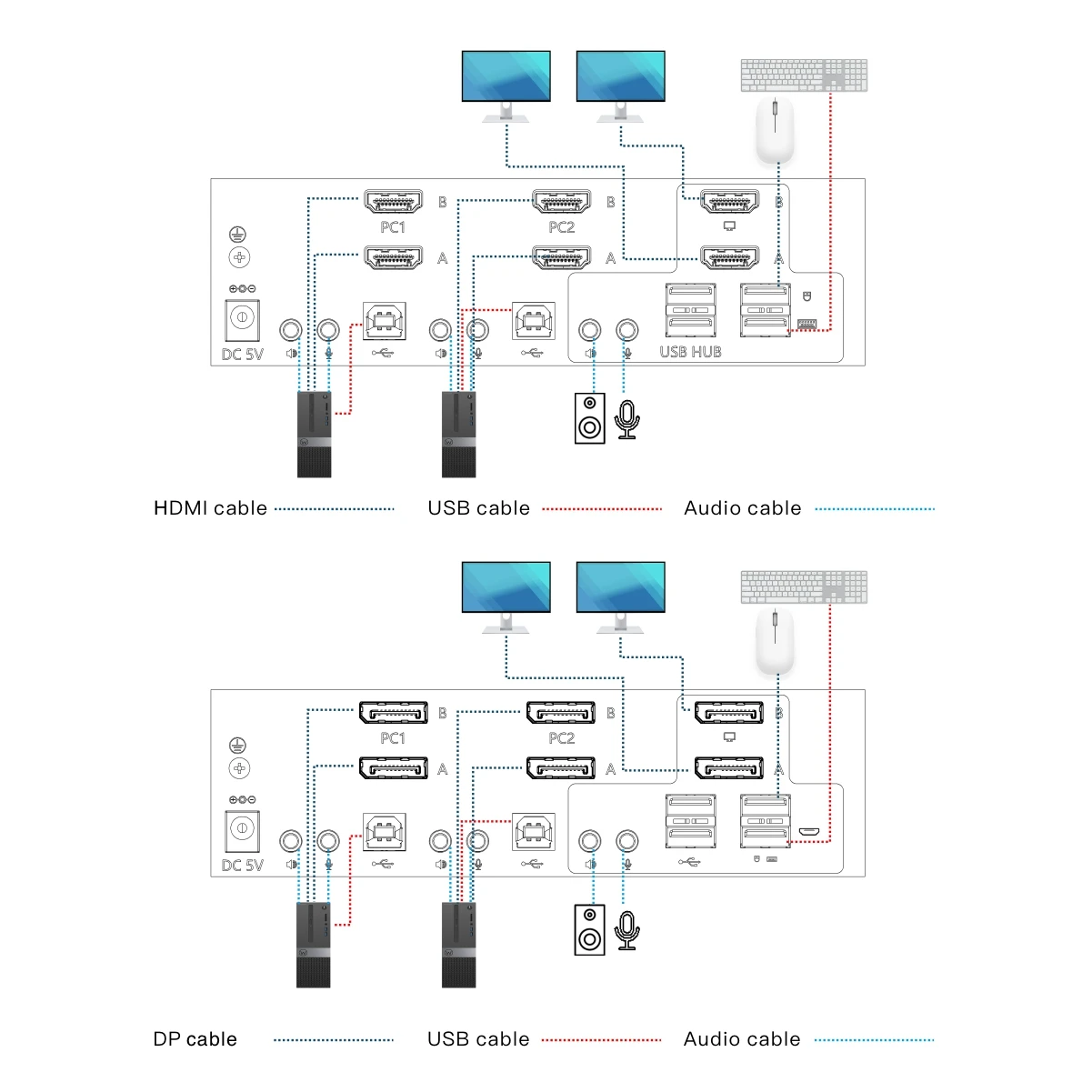

Connectivity Diagram
Technical parameters
| Computer Port | 2 | ||
| Port selection | Hotkeys, front panel keys | ||
| Connection head | Control port | Monitor | 2 x HDMI Type A female head |
| Keyboard | 1 x USB Type A female head | ||
| Mouse | 1 x USB Type A female head | ||
| HUB2.0+ | 2 x USB Type A female head | ||
| loudspeaker | 1 x DC3.5 stereo jack green female head | ||
| Microphone | 1 x DC3.5 stereo jack powder female head | ||
| Computer port | Monitor | 2 x HDMI Type A female head | |
| Keyboard and mouse | 2 x USB Type B female head | ||
| loudspeaker | 1 x DC3.5 stereo jack female head | ||
| Microphone | 1 x DC3.5 stereo socket female head | ||
| Power | 1 x DC socket | ||
| Switching switch | KVM switch button | 1 x Touch button | |
| LED indicator light | Computer online port | 2 x red | |
| Select the control port | 2 x green | ||
| Simulation mode | Keyboard and mouse | USB Port | |
| Maximum resolution video | 4K@60:1920x1080@60; 1280x1024@Hz and other resolutions compatible | ||
| Hotkey | Ctrl + Ctrl+Enter / Scroll Lock+ Scroll Lock 1 or 2 | ||
| Operating environment | Temperature of operation | ’-10-50℃ | |
| Storage temperature | ‘-20-60℃ | ||
| Humidity | 0-80%RH,No condensation | ||
| Attributes of body | Shell of machine | metal | |
| Dimensions | 168 x 99 x60mm | ||
| weight | 0.82Kg | ||
Certifications
Advantages
FAQ
How long is the warranty on your product?
Our product warranty is 1 years.
Can you accept customized products? OEM and ODM?
We accept customization, our mature R&D team can accept all kinds of customization
About customized products, can I customize them according to the use environment?
Our professional engineering team has provided solutions to many Different use requirements clients.
How can i get a sample?
You can contact us directly and we will arrange samples for you.
Can your products be used in the international rail transit industry?
Yes, we can. Our certificates are certified by formal institutions. Our products guarantee reliability, safety and environmental protection.
Can you provide product inspection report service and online video tracking inspection service?
We provide product test report, you can also directly through the phone video tracking product performance test, we will provide you with test project information. However, please note that long time test items need to make an appointment.
