10000nm3/H LNG / Lox / Lin / Lar Ambient Air Vaporizer
- Category: >>>
- Supplier: Nangong Zhuoyue Gas Equipment CO. LTD.
Share on (1600979209681):
Product Overview
Description
Product Description
| Product name | Industrial air heated vaporizer | ||
| Model | Maximum evaporation (Nm3/h) | Maximum working pressure (Mpa) | Empty weight (kg) |
| RM-50/25 | 50 | 2.3 | 100 |
| RM-100/25 | 100 | 2.3 | 185 |
| RM-150/25 | 150 | 2.3 | 245 |
| RM-200/25 | 200 | 2.3 | 350 |
| RM-500/25 | 500 | 2.3 | 610 |
| RM-1200/25 | 1200 | 2.3 | 2100 |
| RM-1400/25 | 1400 | 2.3 | 2250 |
| RM-2000/25 | 2000 | 2.3 | 3220 |
| RM-4000/25 | 4000 | 2.3 | 5500 |
Main Technical Parameter
Working pressure: 0.8-35.0 Mpa;
Flow Rate : 50-16000 NM3/H ( If need more could use combined structure);
Medium: LOX,LIN,LAr,LCO2,LNG,LC2H4,LPG,ect.
Matrial: Aluminum Alloy
Standard: GB,ASME,PED(CE),CCS,CNNC,CASC
| Model | Working pressure (Mpa) | Capacity (Nm^3/h) | Temperature (ºC) | Outer Size (mm) | Weight (kg) | Remark |
| QQLNG-500/1.6 | 1.6 | 500 | -20ºC~50ºC | 1705*1455*5415 | 1041 | Finned tube Dia φ200 |
| QQLNG-700/1.6 | 700 | 2471*1450*5415 | 1286 | |||
| QQLNG-900/1.6 | 900 | 2471*1709*5765 | 1774 | |||
| QQLNG-1000/1.6 | 1000 | 2471*1963*5765 | 1953 | |||
| QQLNG-1500/1.6 | 1500 | 2217*2471*7265 | 3108 | |||
| QQLNG-2000/1.6 | 2000 | 2497*2776*7515 | 4986 | |||
| QQLNG-2500/1.6 | 2500 | 2217*5437*6165 | 5179 | |||
| QQLNG-3000/1.6 | 3000 | 2217*5437*7265 | 6216 |

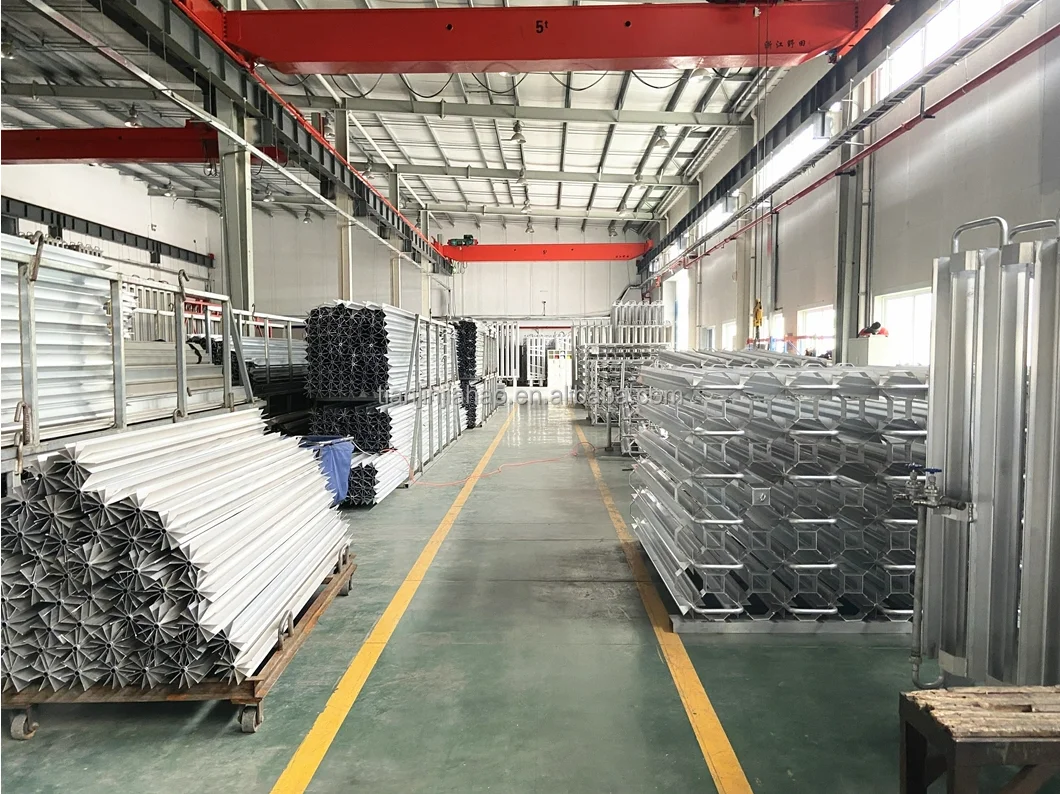

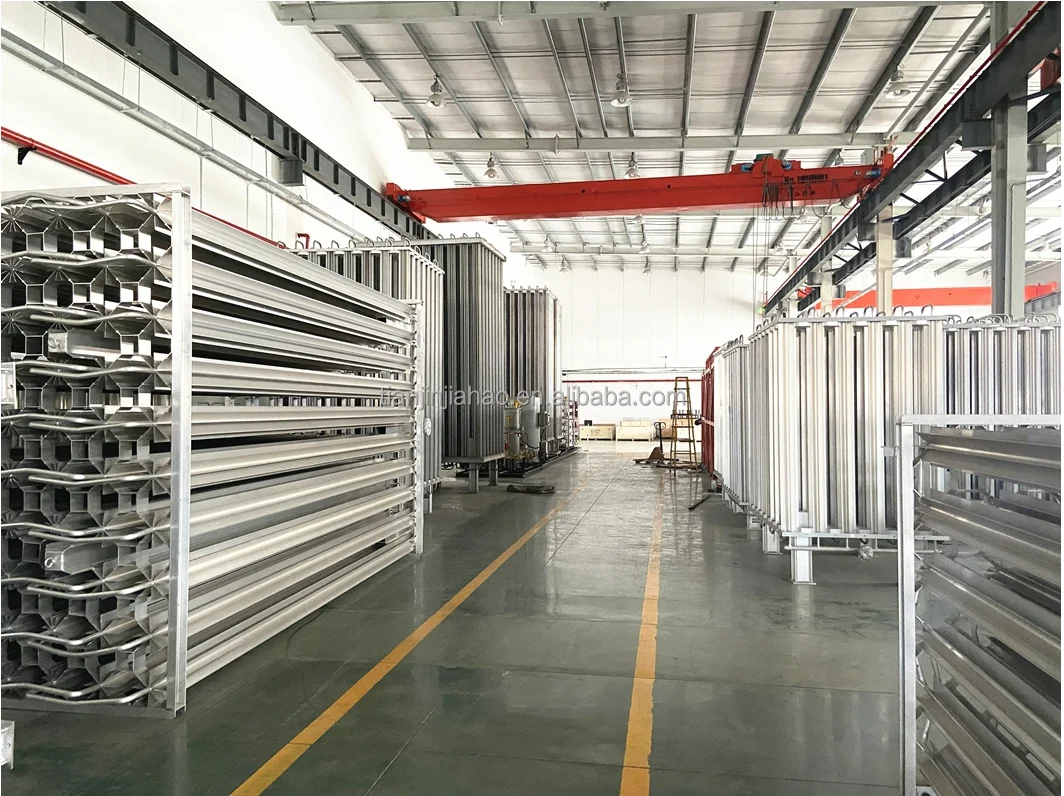

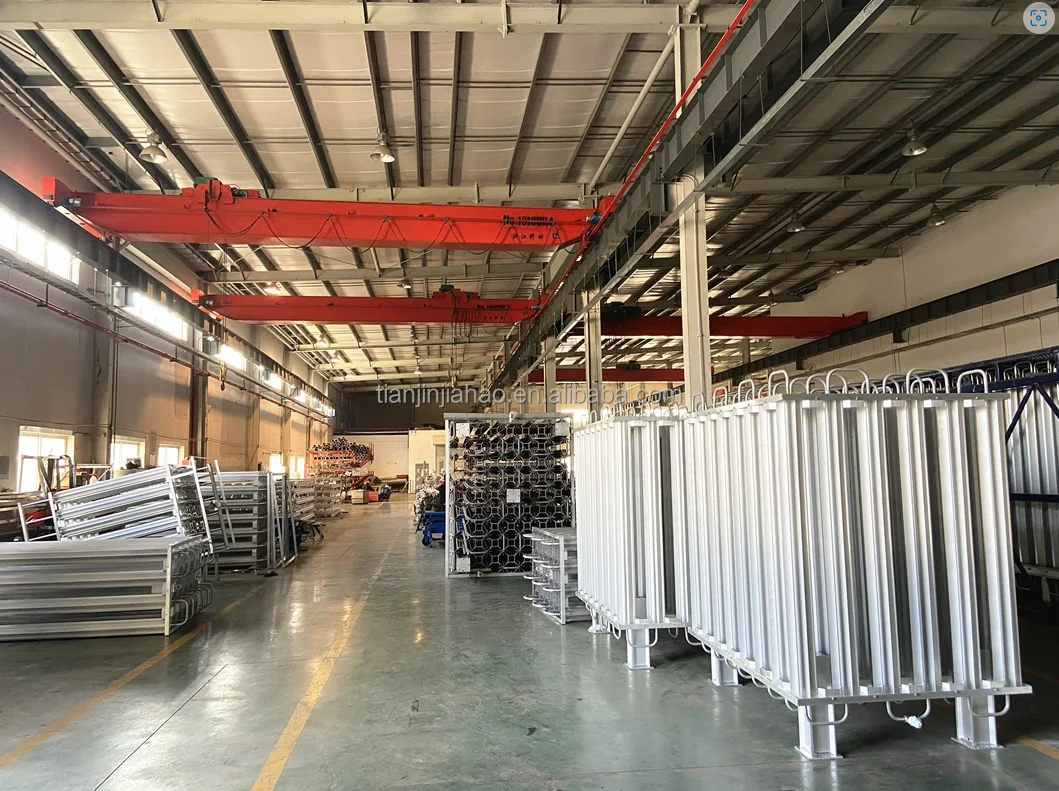

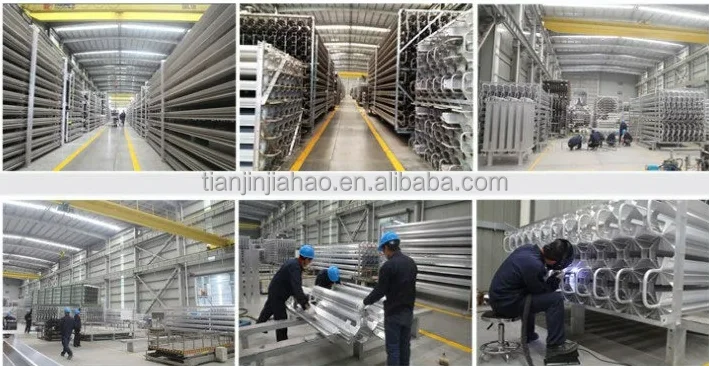

Factory Workshop

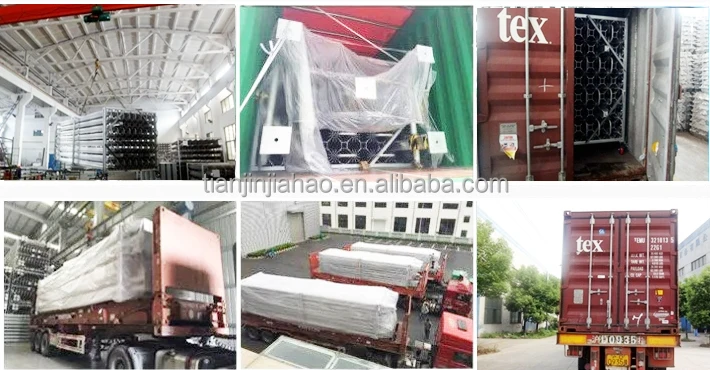

Packing & Delivery

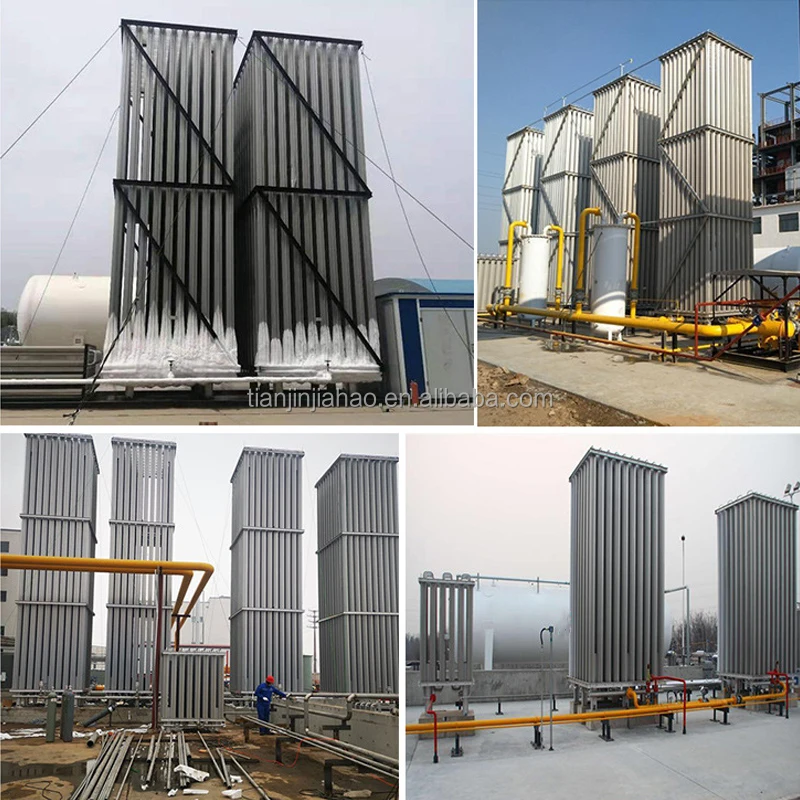

Product Application
Product Program
Contact US
Emma Wang
Email: emma(at)gasequipment.ltd
Mob/Whatsapp :+86 18202255898
Web:https://gasequipment.ltd/
