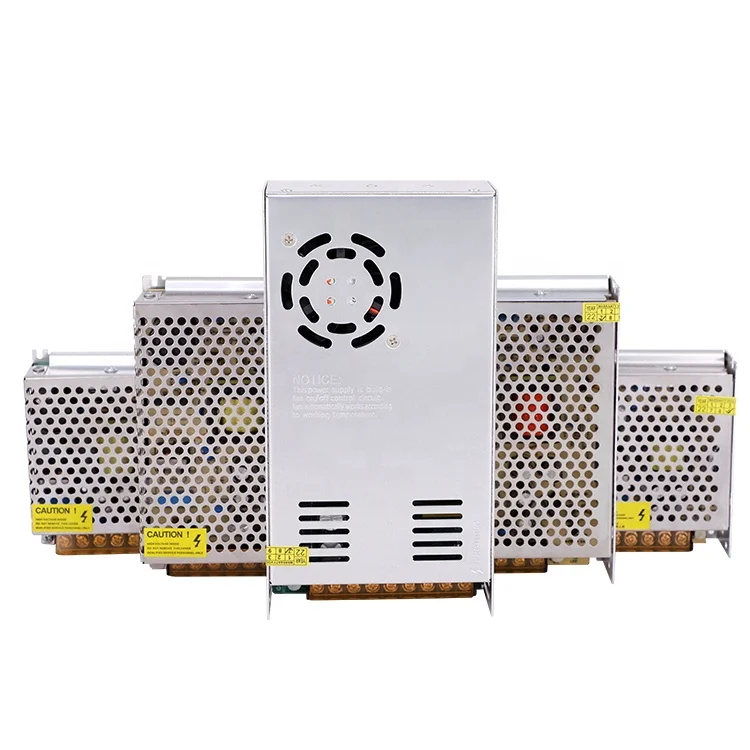

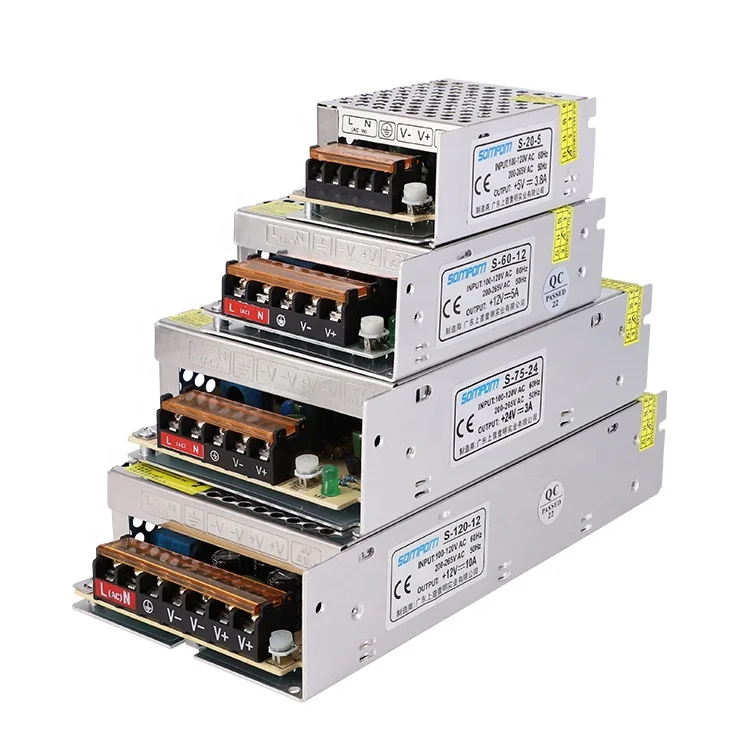

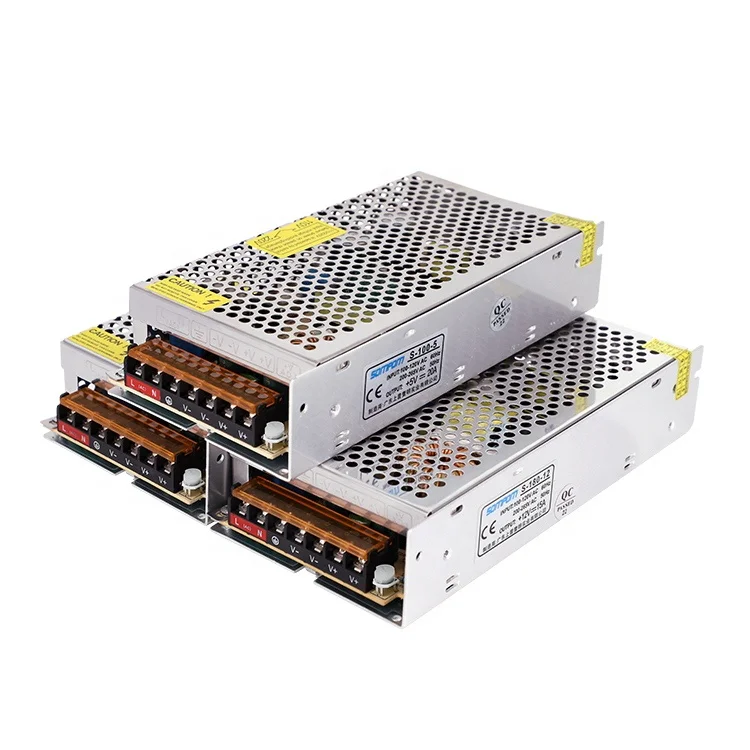

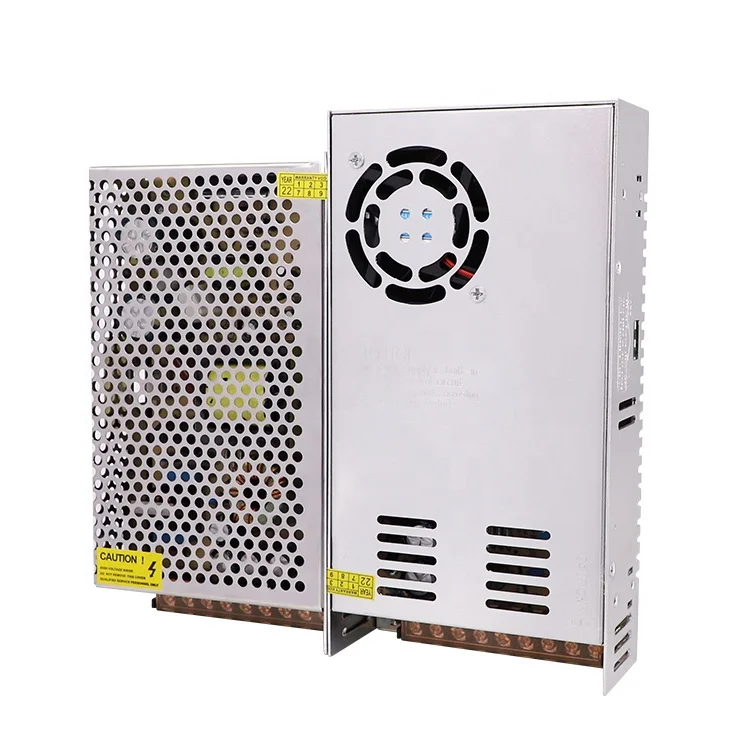

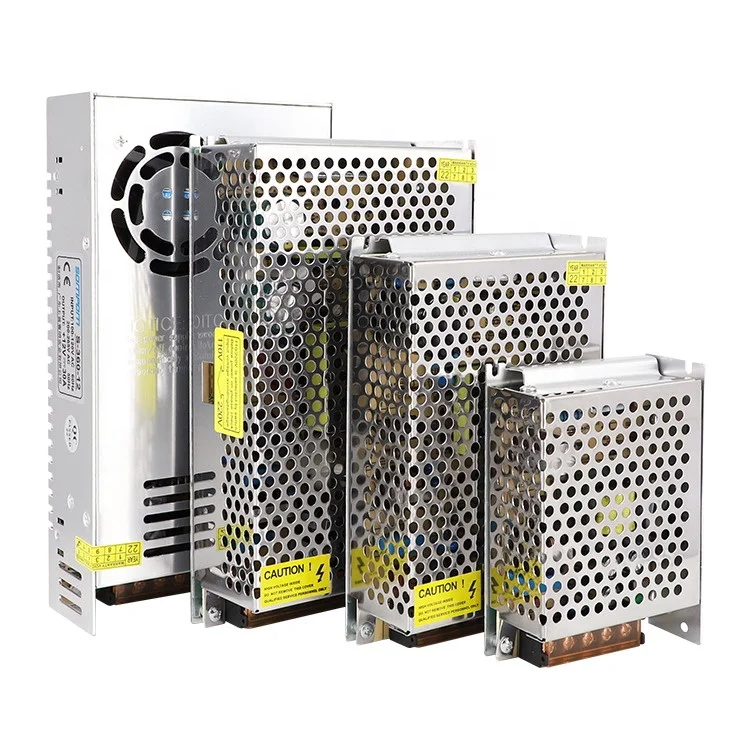

110V 220V AC to DC 5V 12V 24V 36V 48V DC Regulated Power Supply Driver Transformer Adapter Converter For LED Strip Light
- Category: >>>
- Supplier: Guangdong Province Sompom Industrial Co. Ltd.
Share on (1600979211114):
Product Overview
Description
SOMPOM Resources And Capabilities!
1.Technical Support.
Factory trained&100% power focused engineering team. Experienced application support. Highest qualifications of power products knowledge.
2.Warehousing.
Expansive power supply inventory. Quickly delivery. Professional warehouse logistics team to accurately fulfill orders. Fast shipping all over the world !
3.Competitive Price.
SOMPOM focus on Power Supply more than 20 year, lots of products ready to ship.
Product Description
SOMPOM 5V 12V 24V 36V 48V LED Switching Power Supply 1A 2A 3A 5A 10A 15A 20A 30A 40A 50A With CE RoHS For LED Strip Light
| DC Output | DC Voltage: 5v 12v 24v 36v 48v |
| DC Current : 1A 2A 3A 5A 10A 15A 20A 30A 40A 50A | |
| Ripple & Noise: 80MV | |
| DC Adjustable Range: ±10% Rated Voltage | |
| Voltage Tolerance: ±2.0% | |
| Line Regulation: ±0.5% | |
| Load Regulation: ±1% | |
| Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC | |
| AC Input | AC Voltage Range: 85-264VAC |
| Frequency Range: 47-63Hz | |
| Efficiency:>82% | |
| AC Current: 0.86/115V 0.4A/230V | |
| AC Inrush Current: 20A/115V 40A/230V | |
| Leakage Current< 0.5mA /240VAC | |
| Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
| Over-voltage: 115%-135% Cut Off the Output,Auto-recovery | |
| Over-temp. : Shut down O/P voltage, Auto-recovery | |
| Environment | Working temp.: -10~ +60C° (Refer to output load derating curve) |
| Working Humidity:20 ~ 90% RH, non-condensing | |
| Storage Temp.: -10~ +60C° | |
| Storage Humidity: 10 ~ 95% RH | |
| Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH |
| Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| Safety standards: CE,RoHS,FCC,ISO9001 |

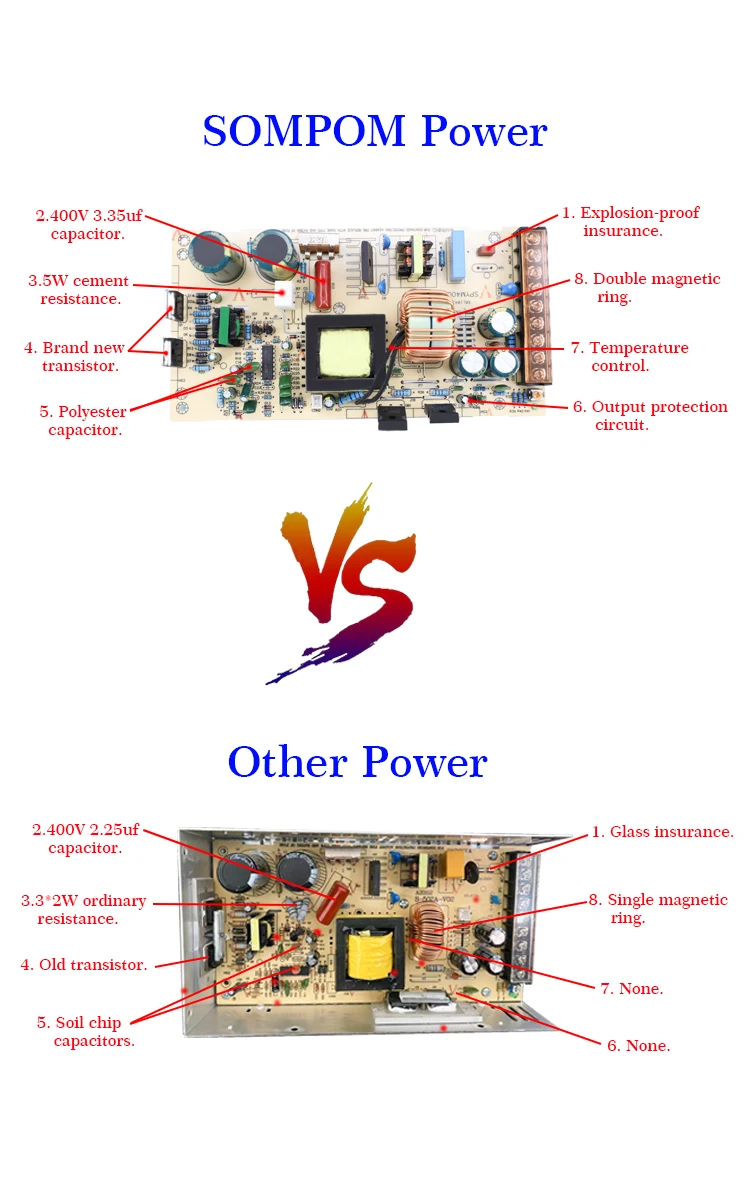

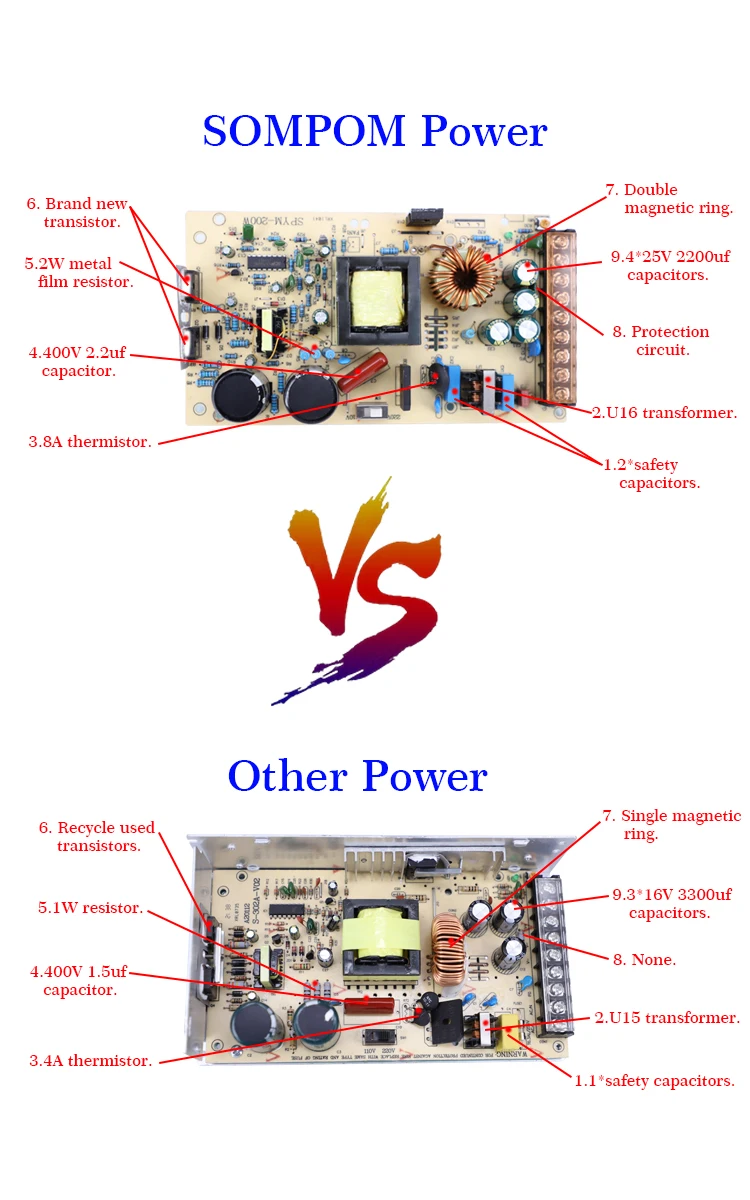

Comparison between SOMPOM power supply and power supply PCB in the same industry

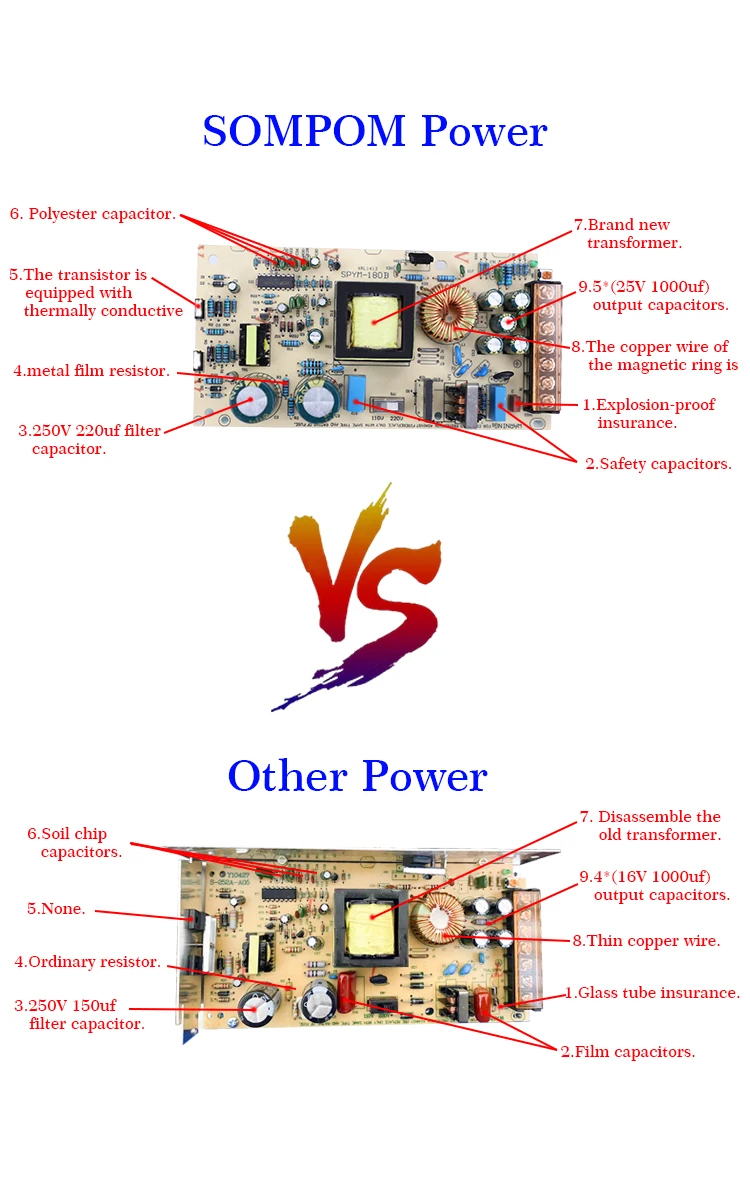

120W,250W PCB Comparison Chart

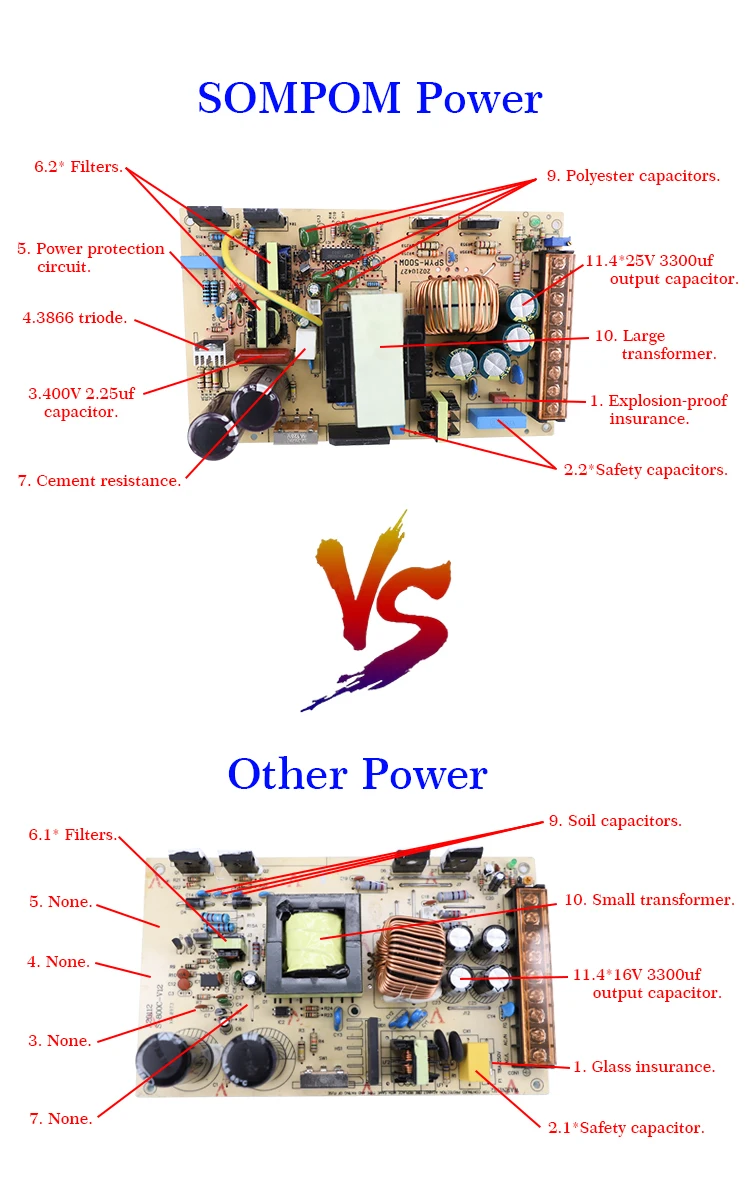

360W,500W PCB Comparison Chart
Related products
About us
SOMPOM is focusing on offering LED switch power, waterproof switch power,rainproof switch power,AC-DC power adapter and CCTV camera power. Withe the over load protection, over voltage protection and high temperature protection. SOMPOM wins customer’s favor by its high efficiency, reliability and long life span. Each of the switch power is extremely safe and stable after 5 times testing. All of our powers have the ISO9001,CE,FC,ROHS certification. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering.
Our factory
Our certificate
Q1:What is your MOQ of switch power?
A:Our MOQ is 1 piece.
Q2:How many year warranty of your Led driver?
A:Two years.
Q3:Do you offer sample of power?
A:Yes,We offer free sample,but you need pay the shippment.
Q4:Do you have switch power factory?
A:Yes,we are OEM & ODM manufacturer in Dongguan.
Q5:Is your power with copper transform or something?
A:We can do with complete copper transform and copper cladding aluminum.
Q6:What is your MOQ of switch power?
A:Yes,we have CE,RoHS,FCC and ISO9001 right now.If you need other certification with large order,We can apply for it.
