RPT630R Pneumatic Pin Nailer
$74.00-82.00

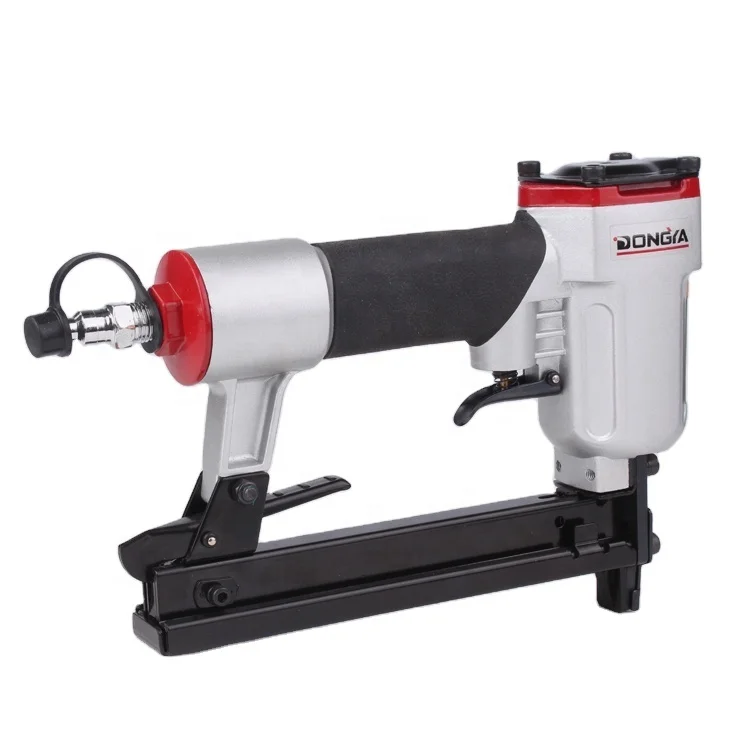

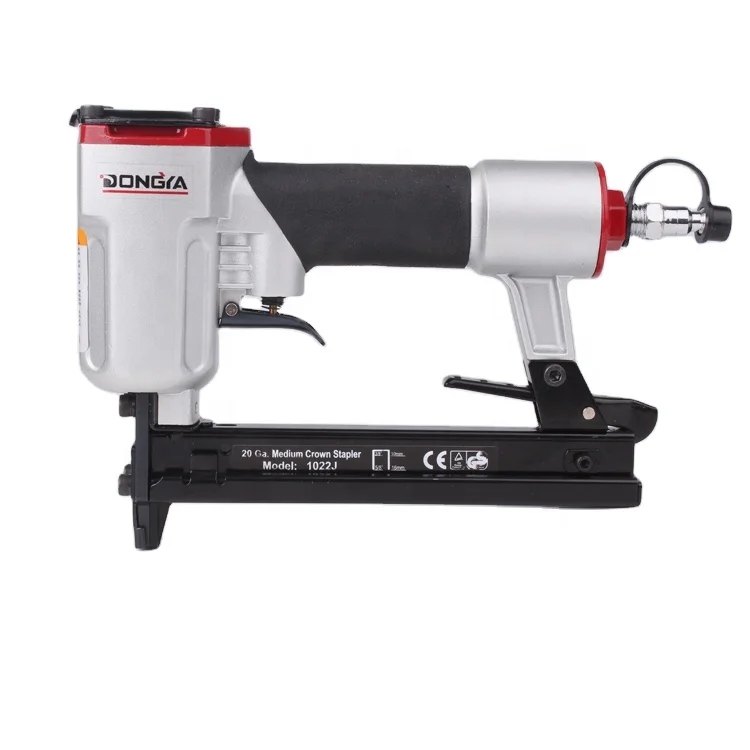

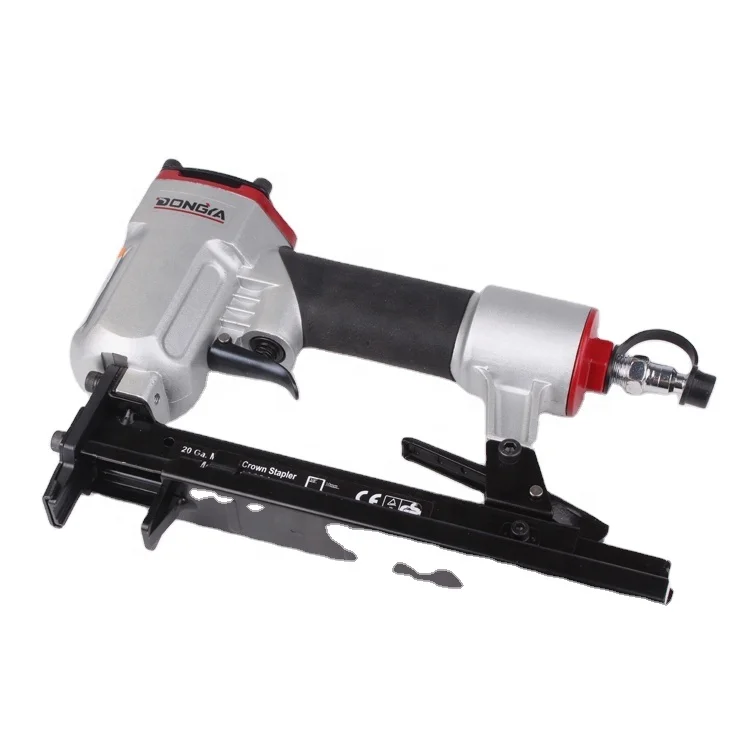

20 Gauge Pneumatic Air Nail Gun 1022J Fine Wire Staple Gun
- Category: >>>
- Supplier: Zhejiang Dongya Facility Co. Ltd.
Share on (1600979211364):
Product Overview
Description
Product Description
40 Years Production Experience
Industry's Leading Factory
Engineer With 30 Years Experiences In Nail Gun Industry
Imported Spare Parts
1022j Staple Gun
FEATURE • Depth Control system • Light die cast body of aluminum alloy • Bottom loading design • Safety lock in the trigger available • Extremely easy jam clearing design |
|
1022 Staple Gun Parameters
| Tool Diamensions: | 240x55x165mm (9.45x2.17x6.50 in.) |
| Net Tool Weight: | 1.25kgs (2.75lbs) |
| Operate Pressure: | 4~7.0Kg/cm (60~100Psi) |
| Load Capacity: | 100 Staples |
| Staple Crown: | 11.20mm(0.441 ") |
| Staple Length : | 10-22mm(13/32 " -7/8 " ) |
| Staple Thickness : | 20 Gauge 1.2x0.6mm(0.047 ” x0.024”) |
1022 Staple Gun Advantage
1. 300000 working times
2. CE and ISO9001 international certificate
3. Easily broken parts are imported
4. 100% Spare parts can be supplied to you.
5. Very powerful for hard wood
20 Ga. Pneumatic 1022 Sofa Staples Gun Tacker Machine
MAIN APPLICATION FOR 1022 Staple Gun
Packaging & Shipping
Service and Repars
SERVICE AND REPAIRS
| No. | Symptom | Problems | Solutions | |
| 1.1 | Air Leak | Air leak in the cylinder cap when tools don't work | 1.Loose head valve piston seal or o-rings . | Check and replace the head valve piston set |
| 2.Worn or damaged o-ring or cylinder cap gasket under cylinder cap | Check and replace o-ring or cylinder cap gasket under the cylinder cap | |||
| 1.2 | Air leak in Trigger area when tools don't work | 1.Damaged o-ring in trigger valve | Check and replace o-ring | |
| 2.Damaged o-ring in trigger valve stem | Check and replace o-ring | |||
| 3.Dirt in the trigger valve | Check and clean the trigger valve | |||
| 1.3 | Air leak in cylinder cap when tools are working | 1.Damaged head valve piston o-rings | Check and replace o-rings | |
| 2.Damaged seal under cylinder cap | Check and replace seal | |||
| 1.4 | Air leak in nose when tools are working | 1.Worn or damaged bumper | Check and replace bumper | |
| 2.Loose driver(piston unit) thread | Check and replace driver(piston unit) | |||
| 1.5 | Air leak in Trigger area when tools are working | 1.Worn or damaged trigger valve head | Check and replace trigger valve head | |
| 2.Damaged head valve piston o-rings | Check and replace head valve piston o-rings | |||
| 2 | Failed to get driver(piston unit) back to the correct position completely. | 1.The driver(piston unit) is not straight or the driver guide(nose) is wrong assembled. | Straighten the driver(piston unit) or verify driver guide(nose) and magazine | |
| 2.Worn or damaged nozzle | Check and replace nozzle | |||
| 3.The space between piston o-ring and cylinder is too tight. | Check if the cylinder is adequate lubrication or replace the o-ring on the piston. | |||
| 3 | Work weakly and sluggishly | 1. Worn or damaged piston o-ring | Check and replace piston o-ring | |
| 2.Inadequate lubrication for head valve piston o-rings or too tight head valve piston o-rings | Place 2 or 6 drops of oil on o-rings or replace head valve piston o-rings | |||
| 3.Dirt in the nozzle | Check and clean the nozzle | |||
| 4 | Tool jams frequently | 1.Damaged or Worn driver (piston unit) | Check and replace driver (piston unit) | |
| 2.Damaged or Worn driver guide (nose) | Check and replace driver guide (nose) | |||
| 3.Driver guide cover is bent,so the space between driver guide cover and driver guide is too big | Check and replace driver guide cover | |||
| 5 | Nail can not be shot | 1. Driver (piston unit) can't return to the correct position. | Refer to no. 1 Symptom | |
| 2.Driver guide(nose) can not match magazine well | Check and correct the position between driver guide(nose) and magazine | |||
| 3.Worn or damaged nail pusher compression spring | Check and replace nail pusher compression spring | |||
