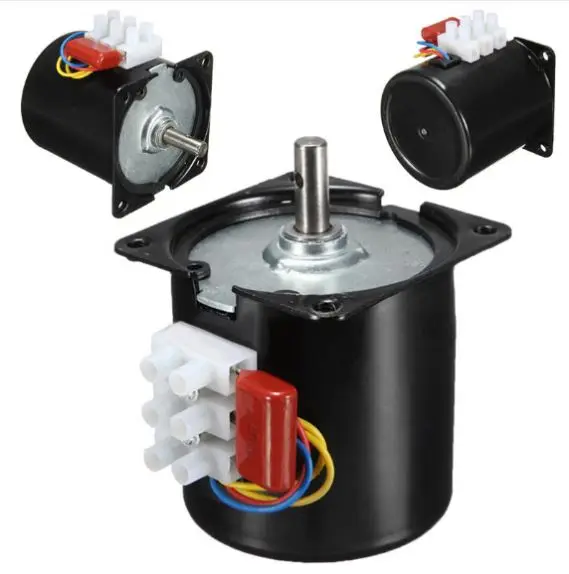

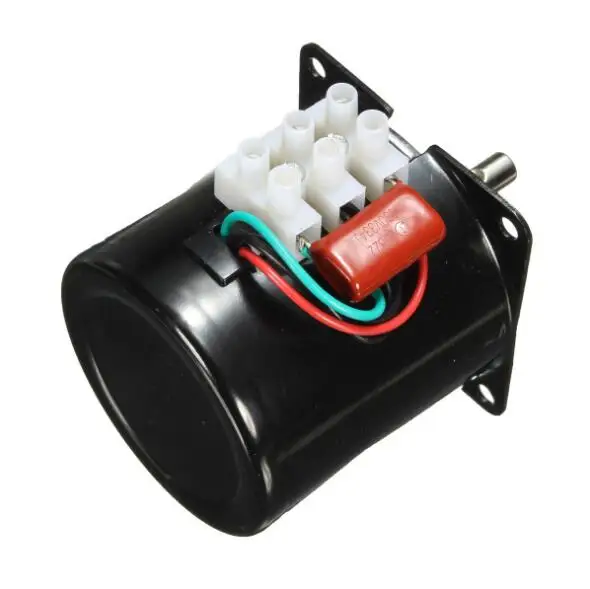

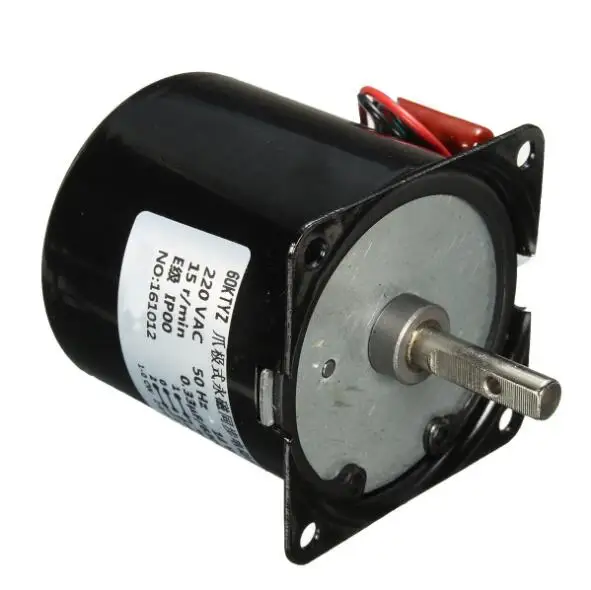

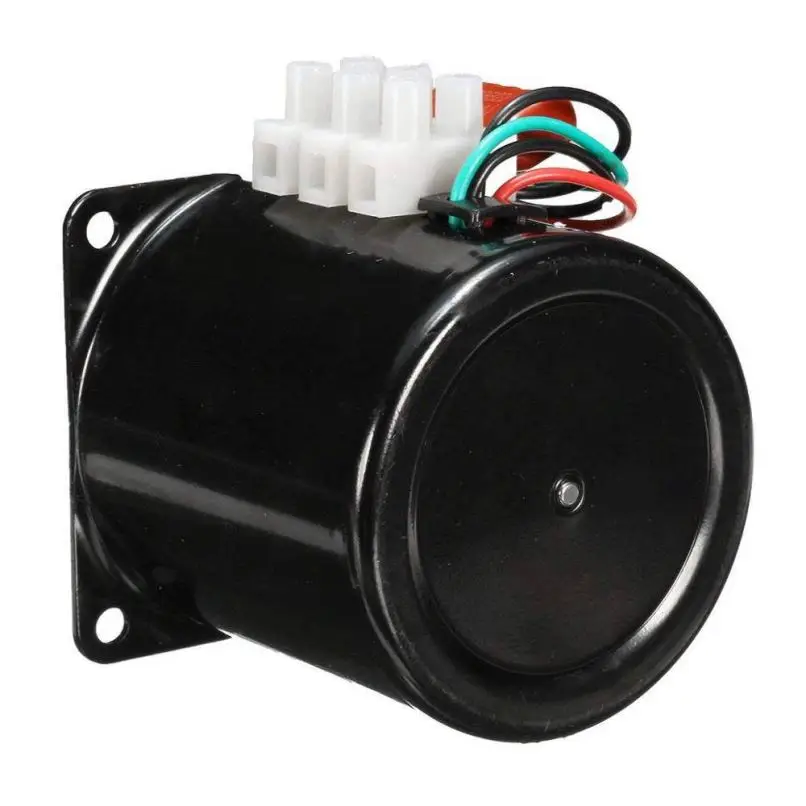

220V AC 28W Micro Gear Motor 68KTYZ 50Hz Permanent Magnet Synchronous Gear Motor Low Speed Reversible Geared Components
- Category: >>>
- Supplier: Wuhan Zhenguan Industry And Trade Co. Ltd.
Share on (1600979217838):
Product Overview
Description
25
Product Description

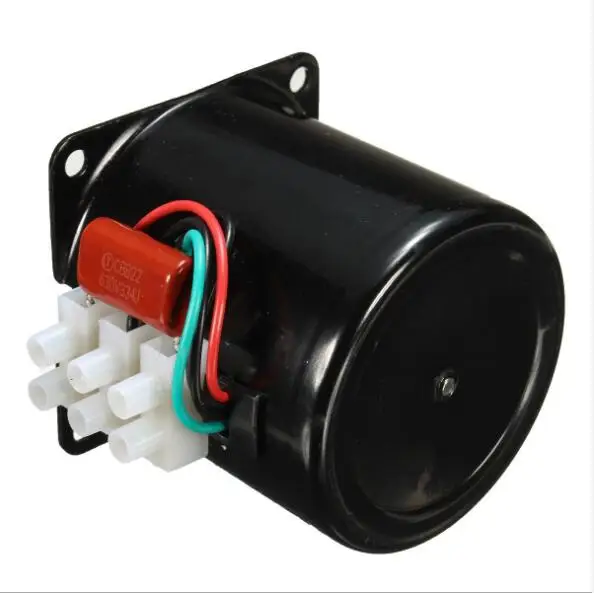

220V AC 28W Micro Gear Motor 68KTYZ 50Hz Permanent Magnet Synchronous Gear Motor Low Speed Reversible Geared Components
Features:

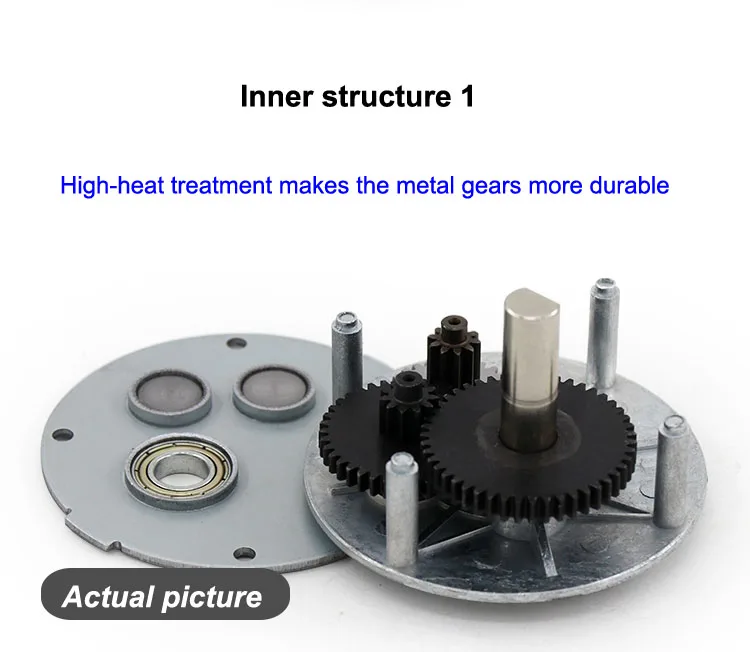

1.High-heat treatment makes the metal gears more durable.

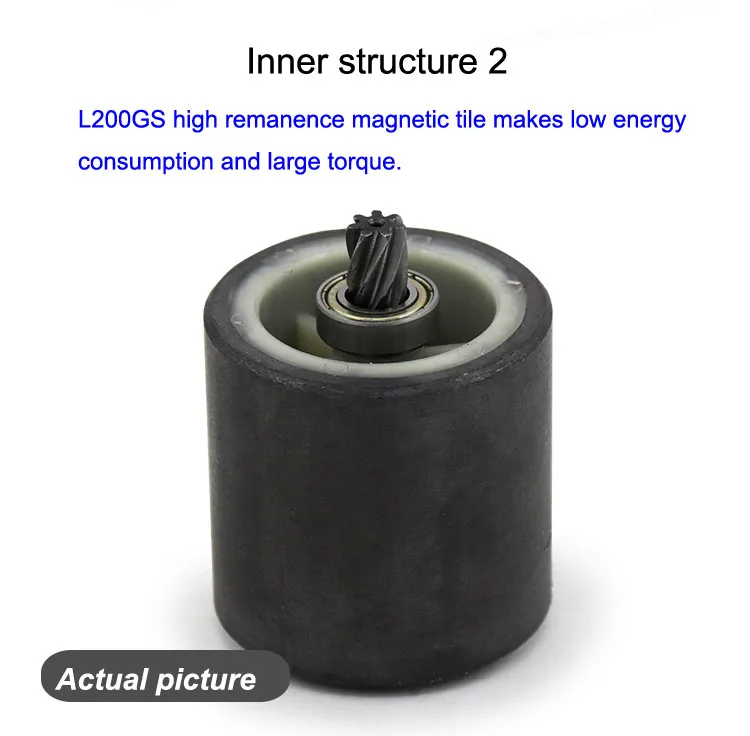

2. L200GS high remanence magnectic tile makes low energy consumption and large torque.

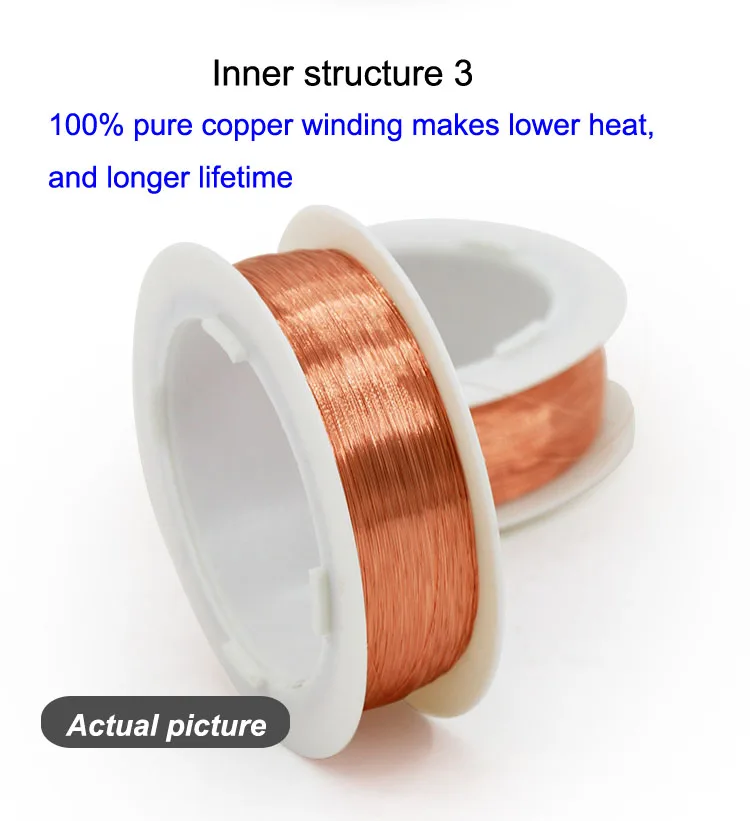

3. 100% pure copper winding makes lower heat and longer lifetime.
Specification
Technical Parameters Of 68KTYZ Synchronous Motor
| Voltage (V) | Input power (W) | Input Current (mA) | Starting voltage (V) | Temperature Rise(K) | Noise (dB) | Adaptation Capacitor (uF) | Rotation Direction | Dimension (D*H mm) | Ambient Temperature (°C) |
| 100-120 | ≤28 | ≤135 | (100-120) ±15% | ≤60 | ≤40 | 3.5 | CW/CCW | 60x68 | -15~+45 |
| 220-240 | ≤28 | ≤65 | (220-240) ±15% | ≤60 | ≤40 | 0.68-0.8 | CW/CCW | 60x68 | -15~+45 |
Torque and speed of 68KTYZ synchronous motor
| Rated Speed (rpm) | 2.5 | 5 | 10 | 15 | 20 | 30 | 50 | 60 | 80 | 110 |
| Normal Torque (Kgf.cm) | 60 | 52 | 35 | 20 | 14 | 9 | 6 | 5 | 3 | 2 |
| Higher Torque (Kgf.cm) | 100 | 70 | 38 | 22 | 16 | 11 | 7 | 6 | 4 | 3 |
Product Details

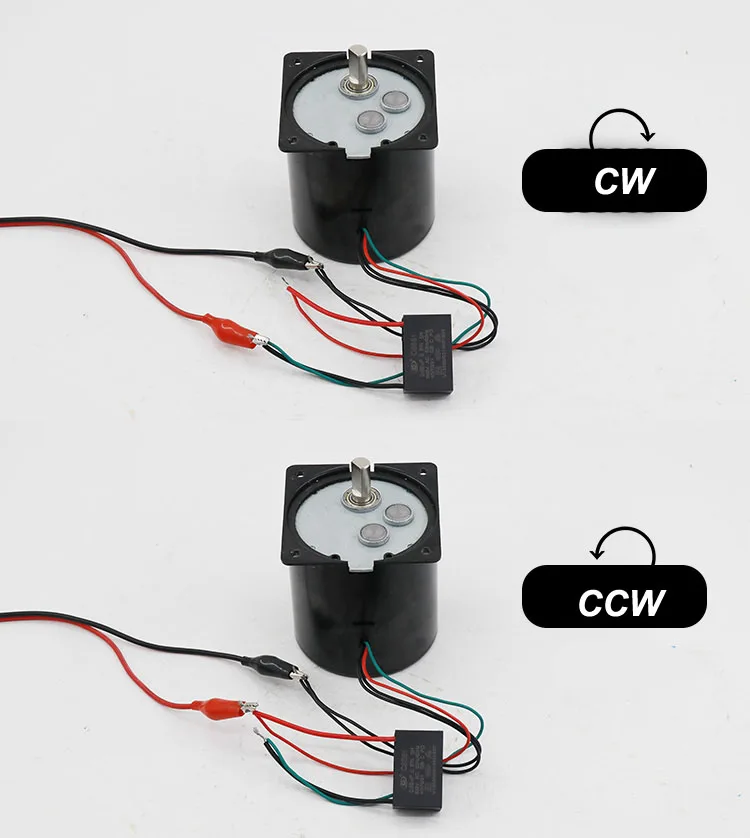

Connection diagram
Company Information
Customer Visiting
Our Services
1.We will reply your enquiry within 24hours.Fast Online contact response.
2.High quality,Reasonable price,Fast delivery.
3.All products will be inspected strictly before packing.
4.Well and proper packing,reduce the damage during the shipping as much as possible.
5.After-sale service:
We guarantee 1 year quality warranty.Within one year,if the products come out any quality problem,we promise to make free replacement.
6.OEM is welcomed:
We are accepting customer’s design,including the label design,colour box design.
