energy conservation Boiling Dryer Vertical Fluid Bed Dryer
energy conservation Boiling Dryer Vertical Fluid Bed Dryer
energy conservation Boiling Dryer Vertical Fluid Bed Dryer
energy conservation Boiling Dryer Vertical Fluid Bed Dryer
energy conservation Boiling Dryer Vertical Fluid Bed Dryer
energy conservation Boiling Dryer Vertical Fluid Bed Dryer
energy conservation Boiling Dryer Vertical Fluid Bed Dryer

energy conservation Boiling Dryer Vertical Fluid Bed Dryer

Share on (1600979222003):


Price:$5,499.00 - $5,999.00

Quantity:


Product Overview

Description



Products Description


Small Visual spray dryer machine

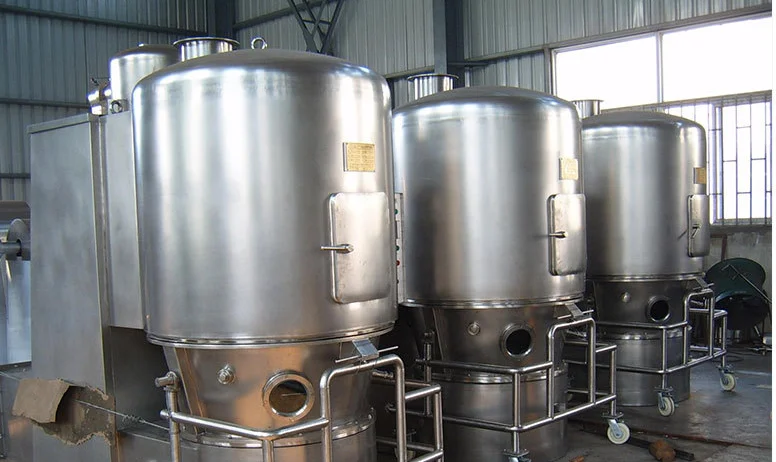

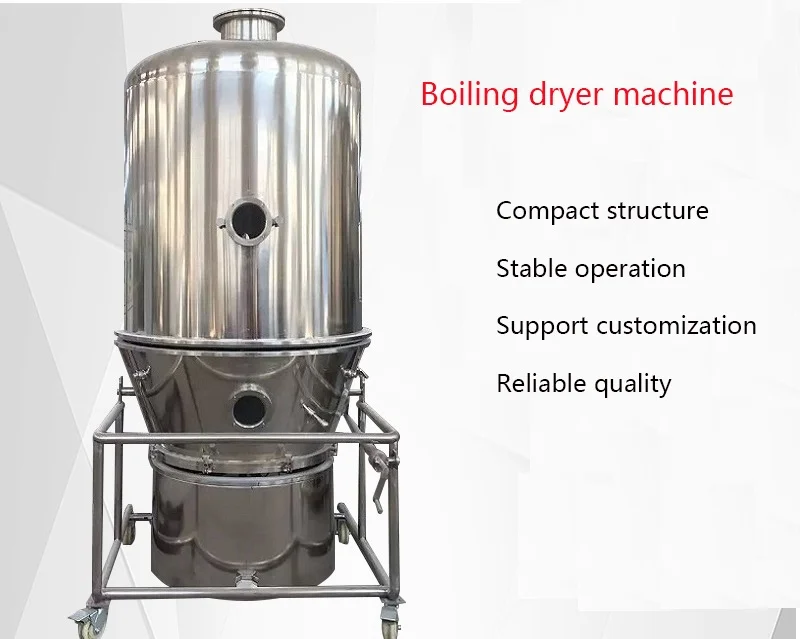

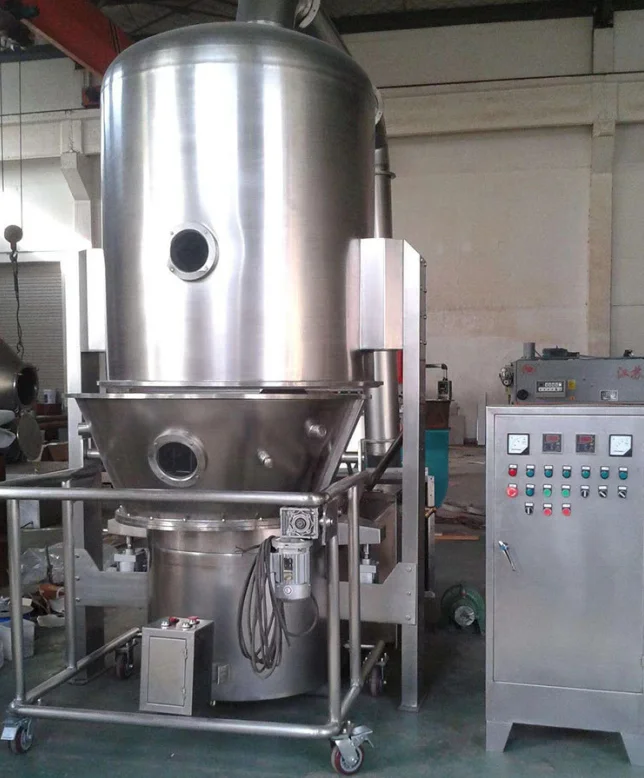

Vertical fluidized bed dryer is a drying equipment, also known as fluidized bed, generally composed of a heater, fluidized bed host, cyclone separator, bag dust collector, induced draft fan, and operating platform. Depending on the nature of the material, a cyclone separator or bag filter can be selected as needed. The vertical boiling dryer can change the fluidity and reduce dust flying through powder granulation; Change its solubility through powder granulation; Mixing, granulation, and drying complete one-step granulation in one machine; Adopting anti-static filter cloth, stable equipment operation; Set pressure relief holes;, Loading and unloading materials are light and fast, and they are washed clean.




Model
Feeding/Kg
Powder Kw
stirring power
Stir to rotate rpm
operate time/min
Host height/mm
CFG60
60
7.5
0.55
 11
15~30
2700
GFG100
100
11
0.55
 11
15~30
2900
GFG120
120
11
0.55
 11
15~30
2900
GFG150
150
15
0.55
 11
15~30
2900
GFG200
200
 22
0.75
 11
15~30
3100
GFG300
300
30
 0.75
 11
15~30
3600
GFG500
500
45
1.1
 11
15~30
3600


Details Images

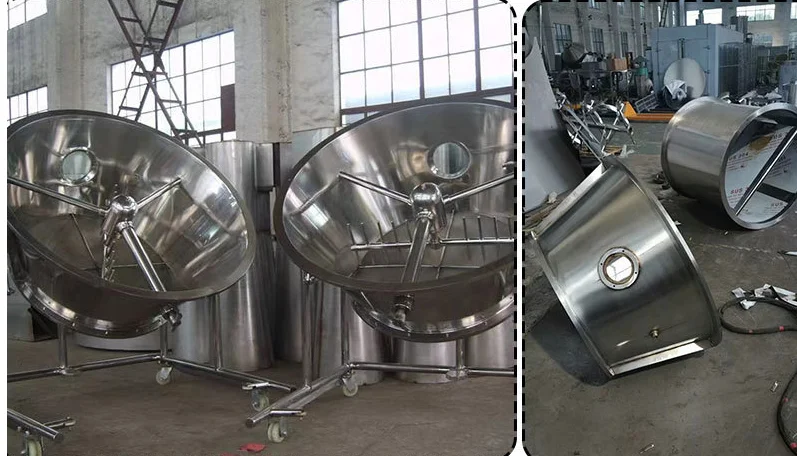

Excellent material selection

Made of stainless steel, smooth and flat, corrosion-resistant, and not easily deformed



Low energy consumption
and high efficiency

Simple machine operation and high material efficiency



Smooth operation

Simple structure, stable operation, safe operation, noiseless and easy to clean


Application effect




Recommend Products




Company Profile




FAQ


Q1: Where is your factory? How can I visit there?
A1: Our factory location is Changzhou, China.If want to visit our company , you can fly to Shanghai Pudong Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
