Dual Smart Battery Isolator Kit 12V 140Amp Voltage Sensitive Relay VSR Double Battery Automatic Charging Relay Compatible
- Category: >>>
- Supplier: Dongguan Andu Electronics Co. Ltd.
Share on (1600979224397):
Product Overview
Description
Product Description

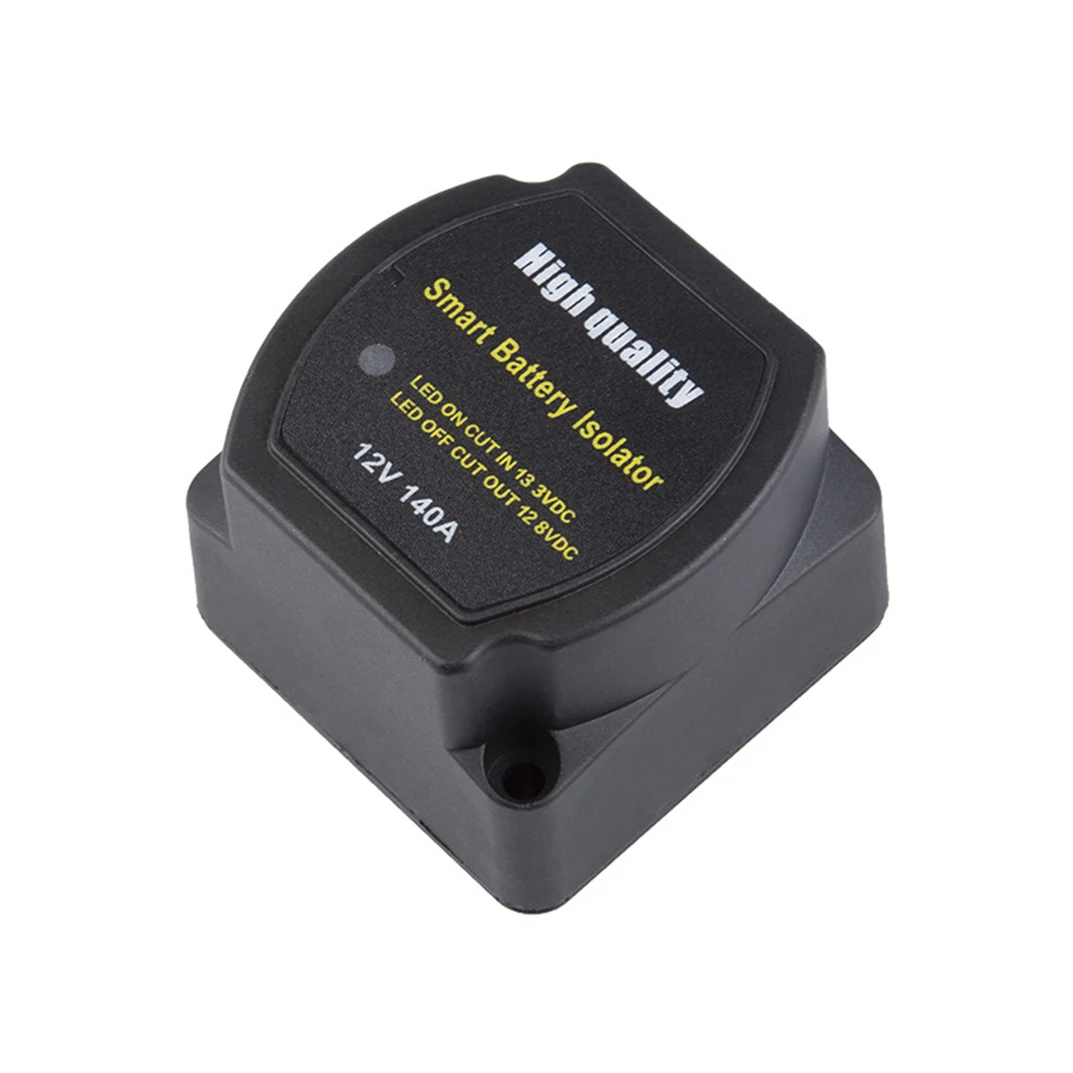

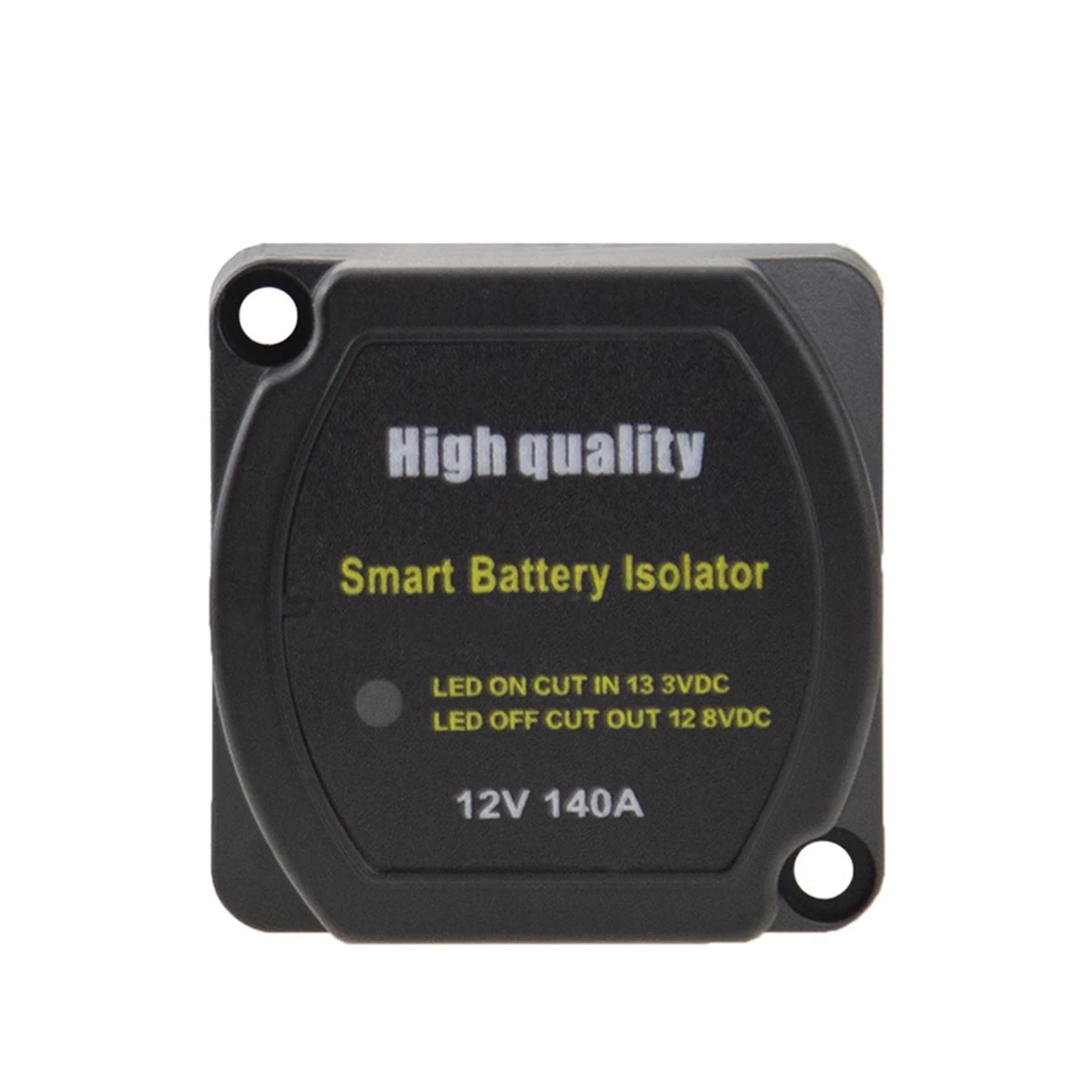

12V voltage sensitive relay
This battery isolators are small and suitable for almost anywhere, for ATV, UTV, Boats, RV's，marine vehicle, truck, caravan.

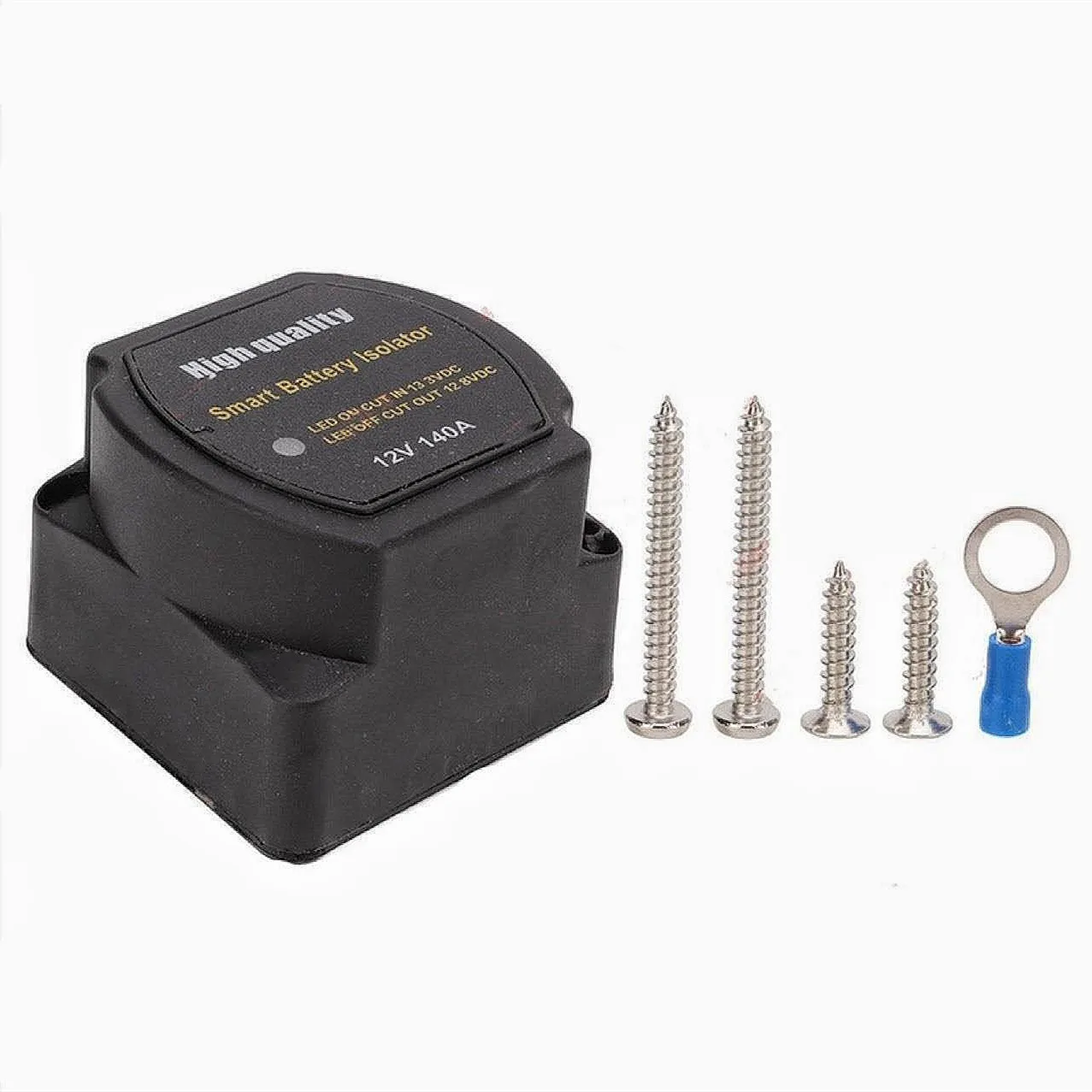

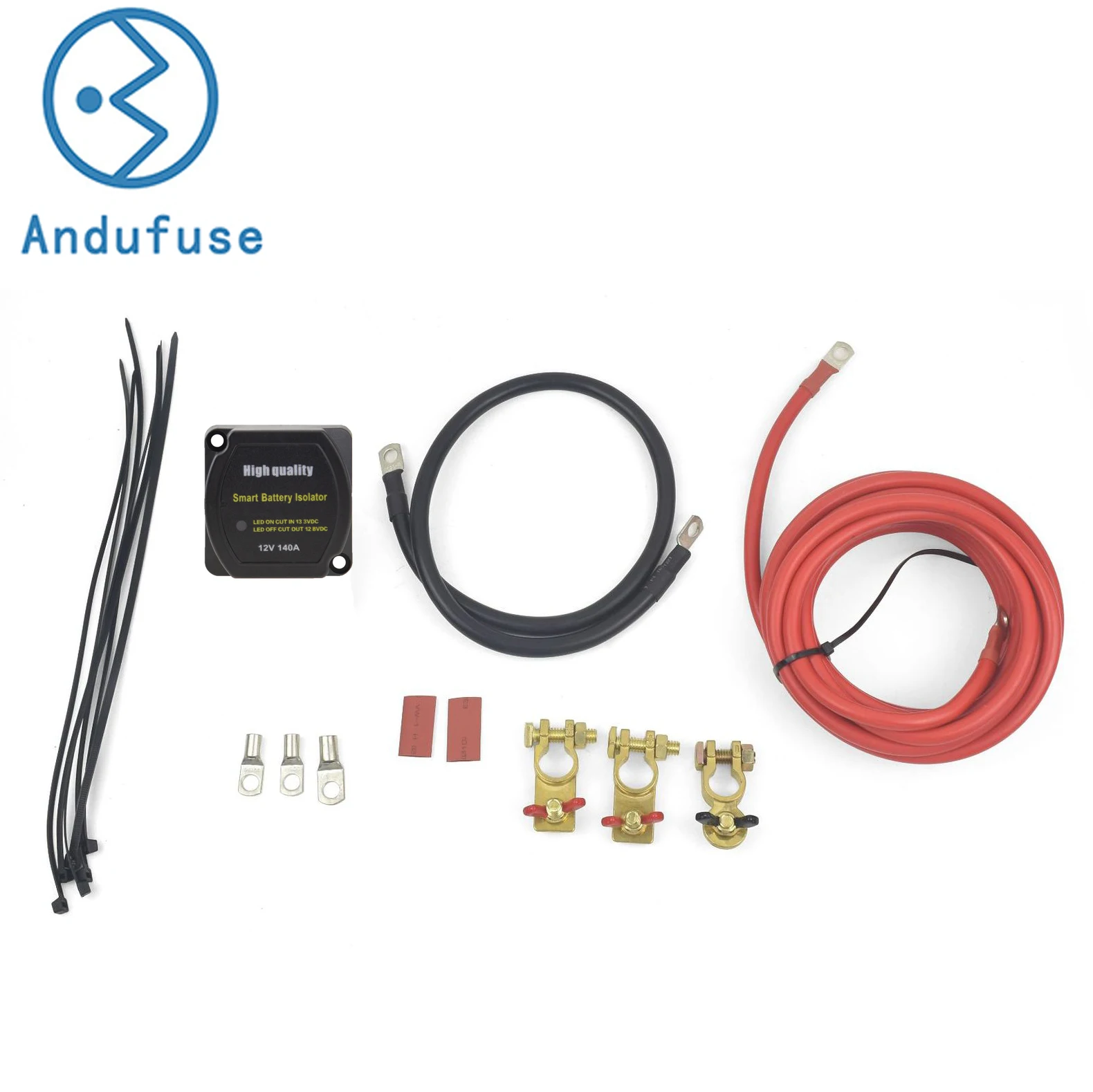

1 x Smart Battery Isolator with mounting screws
1 x 600cm length of 10mm sq red cable
1 x 60cm Black earth cable
2 x Positive Marine battery terminals
1 x Negative Marine battery terminal
1 x SC25-10 Copper crimp lug
2 x 16-8 Copper crimp lugs
2 x Red heat shrink
1 x Insulated blue ring terminal
6 x 200mm cable ties
1 x 600cm length of 10mm sq red cable
1 x 60cm Black earth cable
2 x Positive Marine battery terminals
1 x Negative Marine battery terminal
1 x SC25-10 Copper crimp lug
2 x 16-8 Copper crimp lugs
2 x Red heat shrink
1 x Insulated blue ring terminal
6 x 200mm cable ties
Continuous current | 80-100A |
Instantaneous current | 125 Amps |
Current consumption - charging | 240mA |
Current consumption - standby | 8mA |
Disengagement delay | 5-10S |
Recommended fuses | 80Amp |
Power stud | M6 Copper screw nut |
Surge protection | Built-in |
Size | 66x52x66mm |

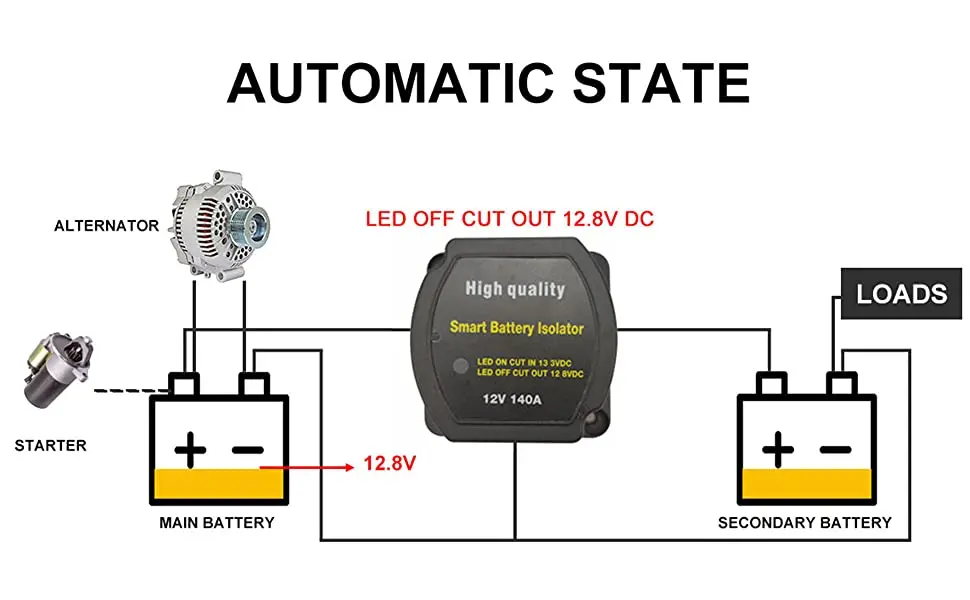

Voltage Sensitive Relay (VSR) cuts in at 13.3 volts and cuts out at 12.8 volts to ensure your primary battery is always charged and ready to run your vehicle.
With the engine running the VSR will engage when the starting battery reaches 13.3 Volts and the LED light will illuminate. This means that both batteries are now linked and the system is working.Once you turn off your vehicle the system will disengage the two batteries as it reaches 12.8 Volts,leaving your main battery safe to start again.
When connecting accessories to your second battery ensure they are fused within 0.98FT.
