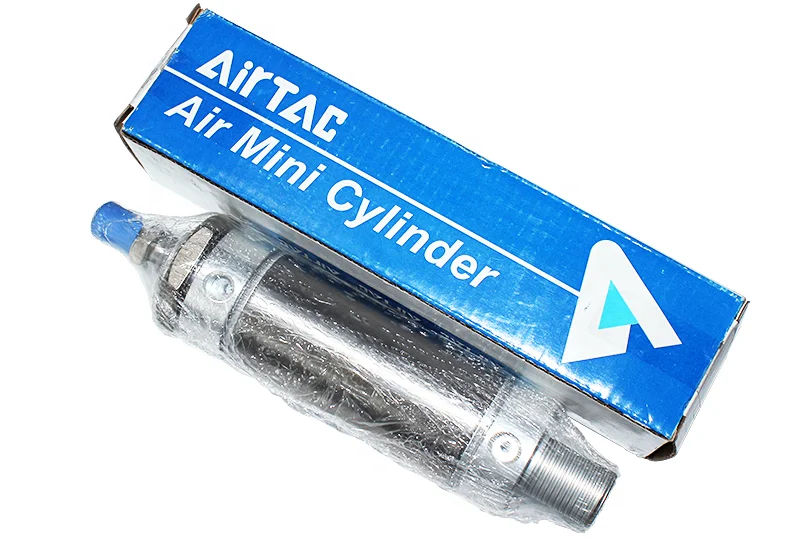

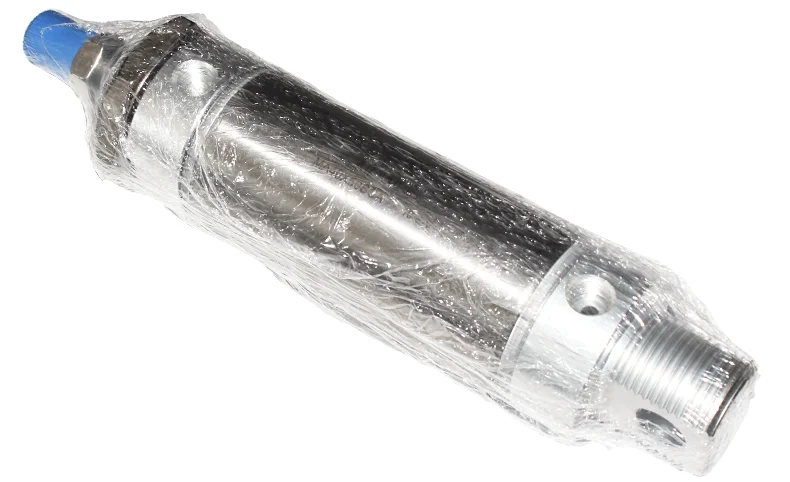

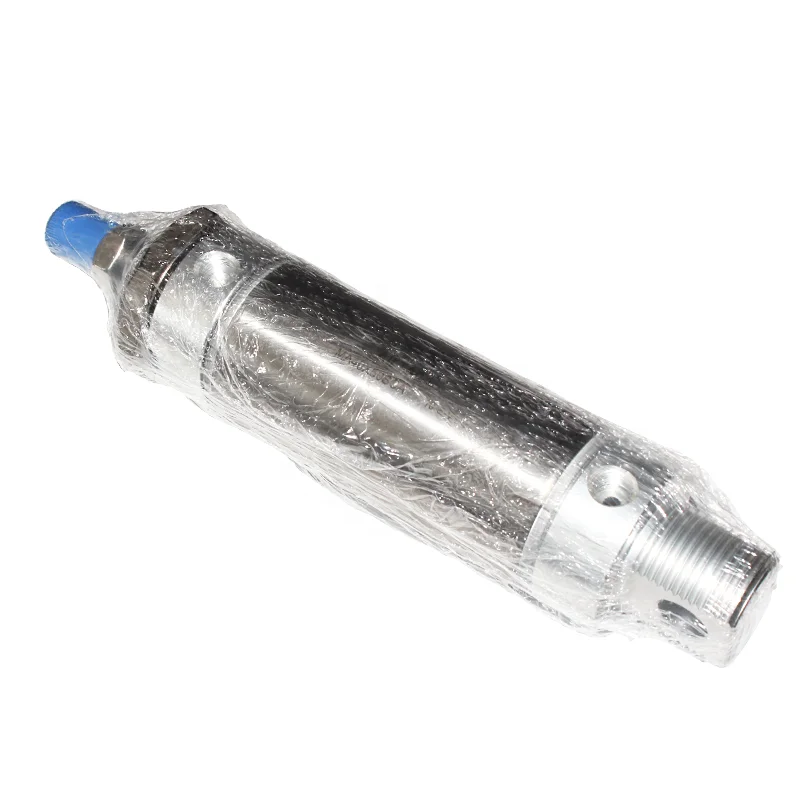

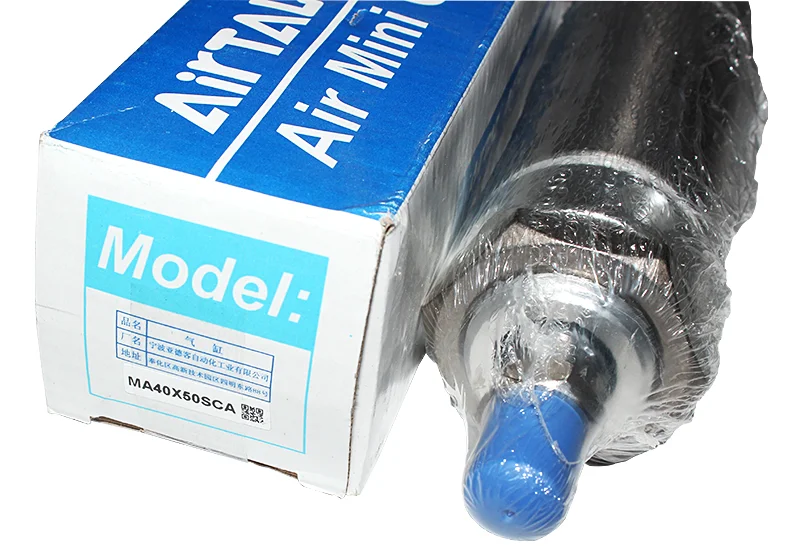

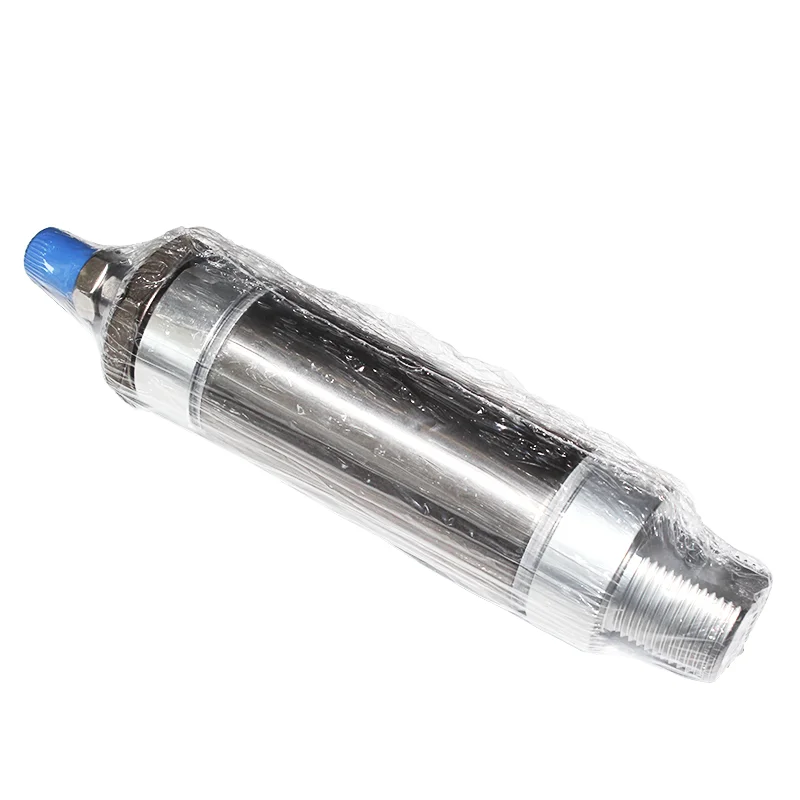

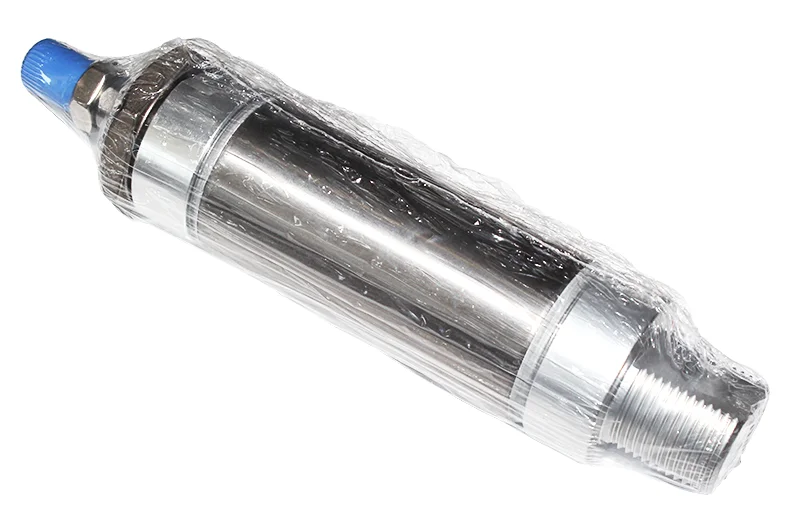

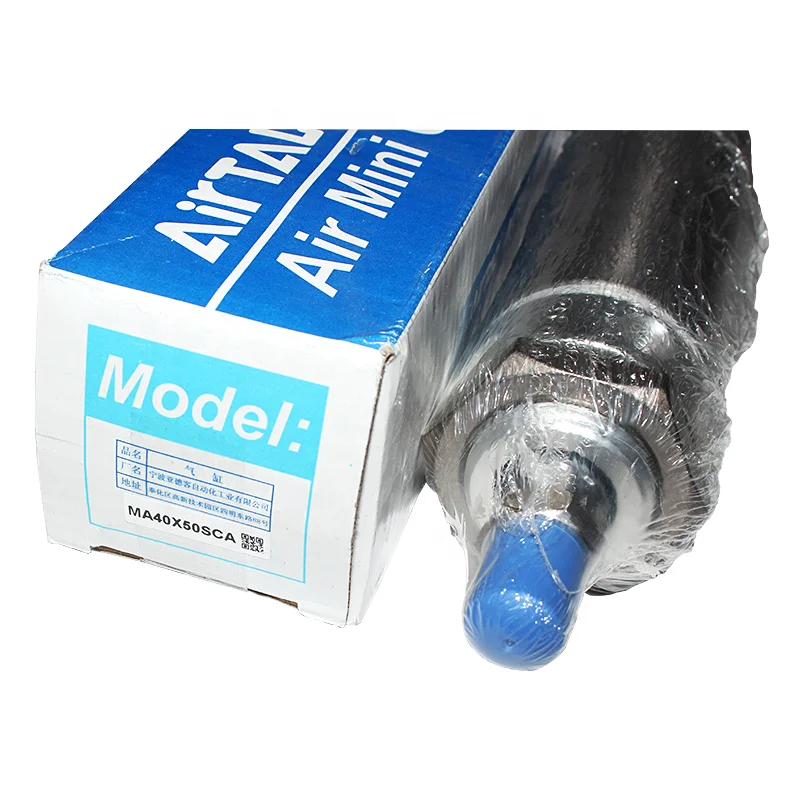

airtac Original MA stainless steel mini cylinder pneumatic actuator 20X40 20X8025X40 25X80 All models are complet

Product Overview

Description



Bore size (mm)	Standard stroke (mm)
MA16	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450  500
MA20	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450  500
MA25	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450  500
MA32	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450  500
MA40	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450  500

 Speicfication

Working Medium	Air
Voltage regulation range	0.05-0.85mpa
Max Pressure	1MPa
Working Temperature	0~60℃
Filtering accuracy	5μm



MA AirTAC cylinder

Standard cylinder manufactured by our enterprise.Piston adopts heterogeneous two-way seal structure, It hascompact size and has the function of grease reservation.

Front cover has fixed bumper which can reduce the impact ofdirection change of the cylinder.

There are several modes of back cover, which makes theinstallation of cylinder more convenient.

Front and back cover and stainless steel block adopt rivetedrolling packed structure to form a reliable connection.

The cylinder body has stainless steel pipes with high precisionto produce high strength and corrosion resistance.

There are cylinders and mounting accessories with severalspecifications for your choice. All cylinders of this series have magnet.

Bore size(mm)		16	20	25	32	40	50	63
Acting type	MSA/MTA	Single acting					-
	MA/MAD/MAJ	Double acting					-
	MAR	-	Double acting
	MAC/MACD/MACJ	Double acting with cushion
Fluid		Air(to be filtered by 40um filter element)
Operating pressure	Double acting	0.15-1.0MPa(22-145psi)(1.5-10.0bar)
	Single acting	0.2-1.0MPa(28-145psi)(2.0-10.0bar)
Proof pressure		1.5MPa(215psi)(15bar)
Temperature℃		-20-70
Speed range mm/s		Double acting: 30-800 Single acting: 50-800
Stroke tolerance		0~150+10>150+1.5
Cushion type		MAC/MACD/MACJ Series: Variable cushion; Other series: Bumper
Port size (Note1)		M5x0.8	1/8”				1/4”
