CNC multiple drilling 6 side drilling machine Single Sided Double Sided Multi Layer used PCB Drilling Machine
CNC multiple drilling 6 side drilling machine Single Sided Double Sided Multi Layer used PCB Drilling Machine
1. High technology compact machine making possible to drill holes on 6 sides, groove top and bottom, route shapes in one process
without necessary of turning panel. Continuous working for various batch sizes and patterns to fit complex production. High accuracy and processing effective, basically no complaints.
without necessary of turning panel. Continuous working for various batch sizes and patterns to fit complex production. High accuracy and processing effective, basically no complaints.
2. Easy production management due to self-recording function. Automatic detection of panel size reducing man made mistakes. Adjustment of panel position by best compensation automatically to suit furniture assembly process. Open port for international popular software, compatible with many file formats like xml, mpr etc.
3. Choosing from powered or simple roller conveyor for feeding in and out of panel to form a production line based on requirements.
PRODUCT OVERVIEW
TECHNICAL PARAMETERS
Technical Parameters | ||

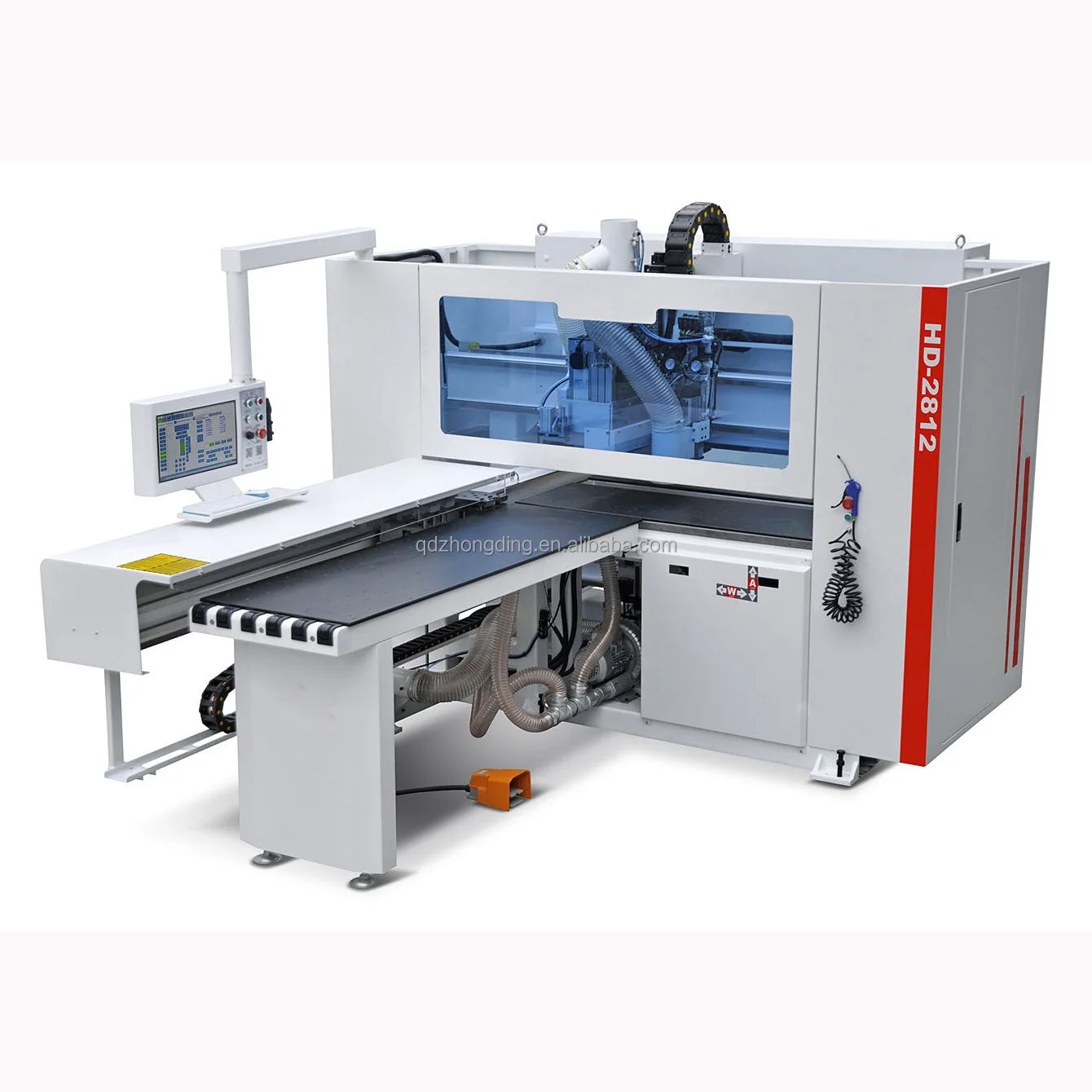

Model | HD2812 CNC 6 Sided Drilling Machine | |
Total Power | 22kw | |
Drilling box | 2.2kw/ 12 up & 9 down vertical /8 horizontal driller | |
Spindle | 3.5kw air cooling spindle/ 0-18000rpm/ ER25 collet | |
Motor & driver | Leadshine servo motor & driver | |
Inveter | 3.7kw EDT inveter | |
Control system | Taiwan LNC MW2560PC control system | |
Guide rail | Taiwan Hiwin square linear guide rail | |
Transmission | Helical gear rack | |
Reducer | Japan Shimpo reducer | |
Position | automatic position control system | |
Lubrication system | Electric oil pump lubrication system | |
Electrical line | Kanai flexible cable | |
Bed structure | Annealing of heavy bed | |
Dust collector | Upper dust suction port φ200mm; lower dust suction port φ125mm | |
Working table | Air-floating counter top table | |
Driver | Taiwan Shilin | |
Voltage | 380V/3 Phase/ 50-60hz | |
Side close | Automatic side close | |
DETAILS OF MACHINE
Control system
Higerman control system

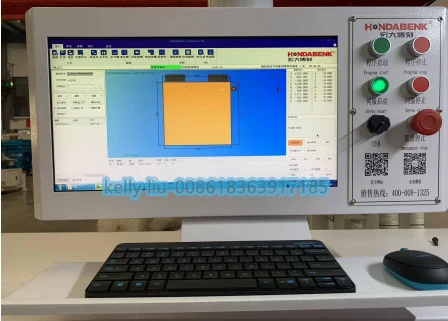

It adopts Windows human-machine interface, and 3D Home intelligent CAM software.
Drilling data can be imported using CAD, which is quick and convenient to operate.
Can be matched with user production design management software, no need to input drilling data independently.
It adopts Windows human-machine interface, and 3D Home intelligent CAM software.
Drilling data can be imported using CAD, which is quick and convenient to operate.
Can be matched with user production design management software, no need to input drilling data independently.
Drilling head

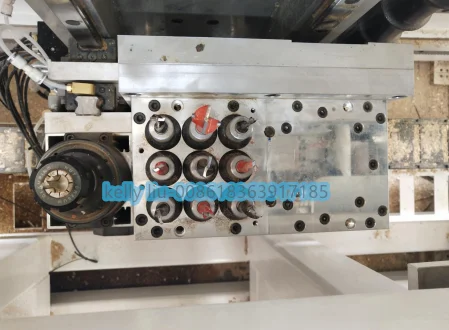

Using CC brand developed CNC drilling heads, Manufacturing in accordance with international standards,After
three-coordinate detection, the accuracy is guaranteed.
One time processing can complete panel 6-side drilling & 2-side grooving works.
Drilling bits:
Top: Vertical 12pcs + Horizontal 8pcs
Bottom: Vertical 9pcs
Milling spindle: 3.5kw * 2pcs (1 Top + 1 Bottom)
three-coordinate detection, the accuracy is guaranteed.
One time processing can complete panel 6-side drilling & 2-side grooving works.
Drilling bits:
Top: Vertical 12pcs + Horizontal 8pcs
Bottom: Vertical 9pcs
Milling spindle: 3.5kw * 2pcs (1 Top + 1 Bottom)
working table

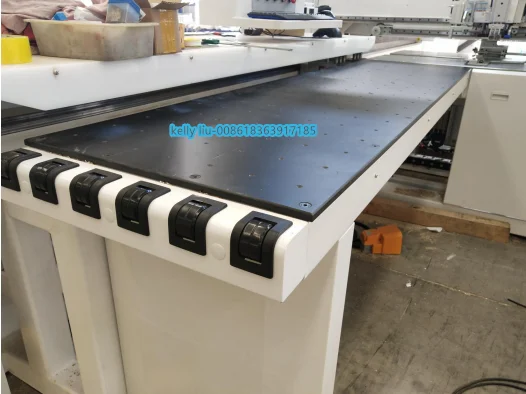

Air floating table to keep the boards feed smooth
Electric box

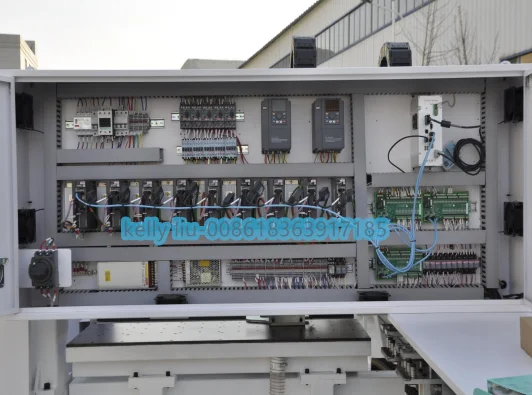

PLC + DELTA Brand Frequency Converter, nice quality electric compenents, high sensitivity, longer lifetime
Samples
Single-person operation, small workload, can be directly docked with a variety of billing software, mainly used for all types of artificial plate six faces (through holes, semi-through holes, hinge holes, horizontal drilling), with the spindle can be slotted milling type and other auxiliary processing.
We provide customize the production line for you !

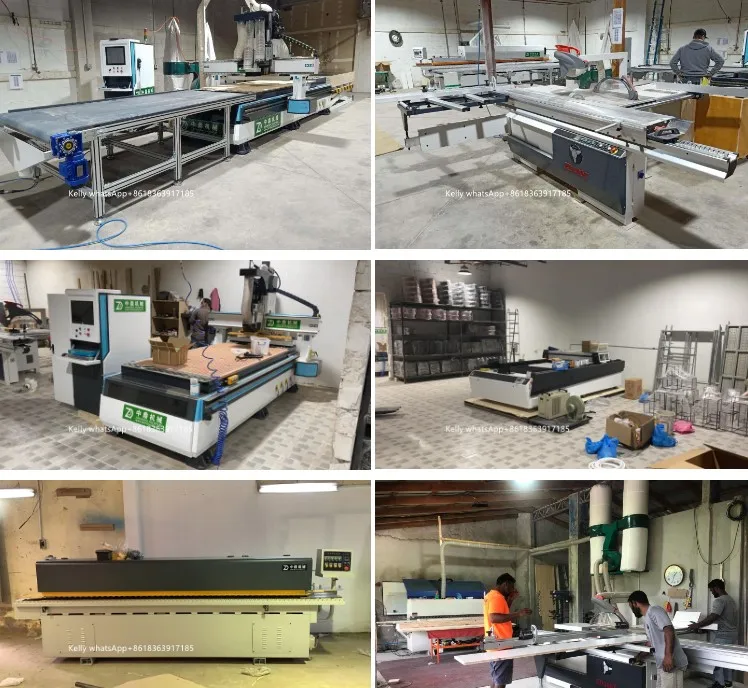

We have served more than 80 countries clients , if you have interest to check machine project at your local, please let me know, i am glad to contact our old client.
We aim to supply a one-stop solution for the small to the middle furniture workshop. We will provide the best solution to balance your budget and demand, provide the customization service for you!
We aim to supply a one-stop solution for the small to the middle furniture workshop. We will provide the best solution to balance your budget and demand, provide the customization service for you!
If you buy more, we could gave you more discount!
If you order more than 20GP, you will be our VIP customer , you could enjoy the service like we could gave you suggested spare parts package for you as gift, if you buy them seperatly, the cost is expensive, or we could extend the warranty period!
