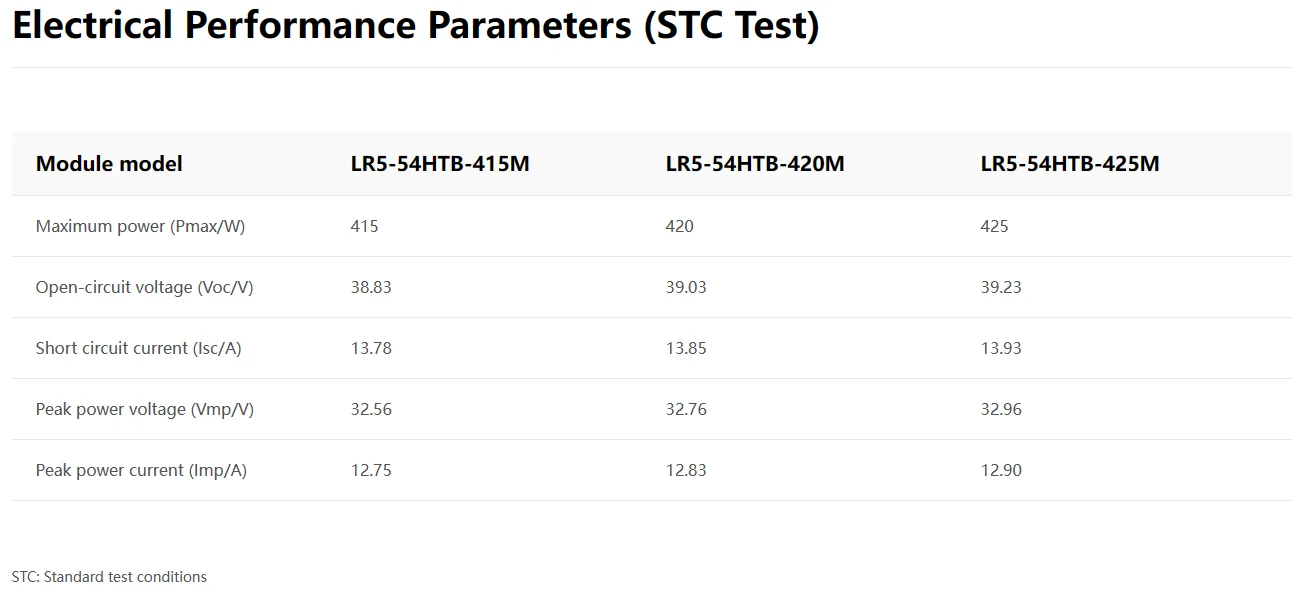

Module Type | LR5-54HTB 410M | LR5-54HTB 420M | LR5-54HTB 425M | LR5-54HTB 430M | |||
Module Efficiency | 21% | 21.5% | 21.8% | 22% | |||
Voltage Max Power | 32.36V | 32.76V | 32.96V | 33.16V | |||
Open Circuit Voltage | 38.63V | 39.03V | 39.23V | 39.43V | |||
Current Max Power | 12.67A | 12.83A | 12.9A | 12.97A | |||
Short Circuit Current | 13.7A | 13.85A | 13.93A | 14A | |||
Backside Increase | NO | ||||||
Cell Type | N Type | ||||||

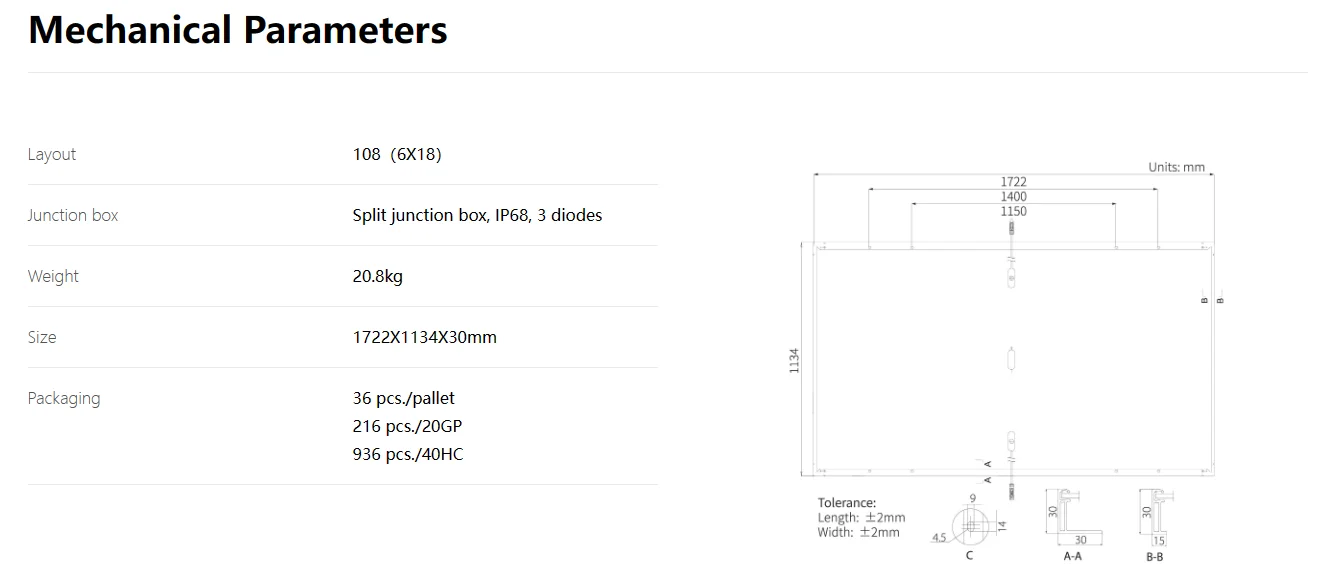

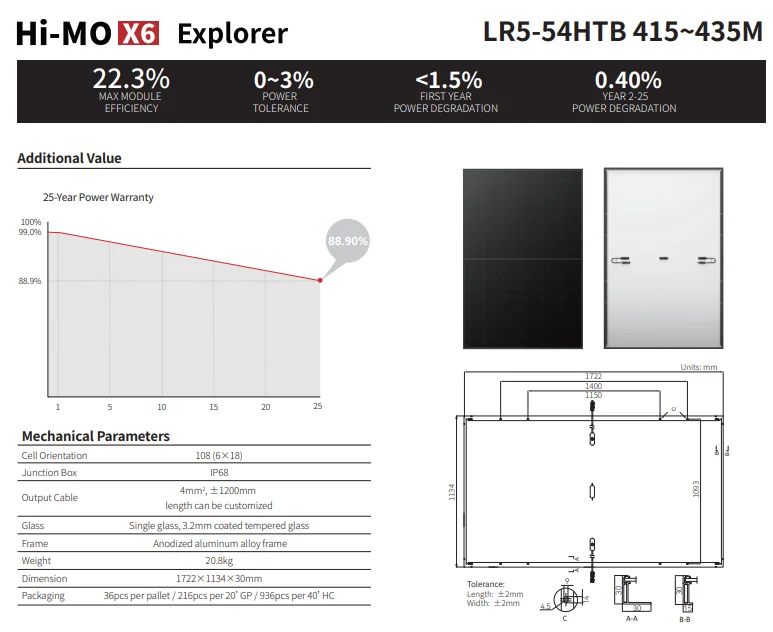

Dimension | 1722*1134*30mm | ||||||
Weight | 20.8kg | ||||||
Junction Box | IP68, three diodes | ||||||
Glass | Single Glass | ||||||
Frame | Black Anodized Aluminum Alloy |
