WittFlow Automatic Smart Water Timer for Garden Irrigation
- Category: >>>
- Supplier: Shenzhen Fine Offset Electronics Co. Ltd.
Share on (1600979284754):
Product Overview
Description
WittFlow Automatic Smart Water Timer for Garden Irrigation
Product Overview
1. Welcome to use WFC01, a product that enables intelligent irrigation. WFC01 communicates with GW2000 hub on SUB_G ISM radio band. The GW2000 hub can work with or without internet (smart mode is only available when the GW2000 hub is connected to our cloud server).
2. The Smart Water Timer is equipped with a flow meter as well as a built-in temperature sensor(not provided in Beta test period), which not only functions as a water timer but also allows real-time monitoring of water flow and temperature. This provides you with a better understanding of water usage in your home or business. WFC01 supports cloud-based control, and all water usage log is stored in the cloud. Users can check their water usage anytime, manage and optimize it for more convenient control and achieve more scientific and rational water usage.
3. This product can be set up in the Ecowitt APP and can be linked with Ecowitt Soil Moisture Sensors to enable automatic irrigation. It is also possible skipping off the current watering plan when predefined skip conditions are met, for example: rain is detected by Ecowitt Rain Sensors, water temperature is too low/high. The SMART mode or plan skip feature is only accessible when hub is talking to our cloud server normally. Scheduled plans are saved on hub locally and it is not affected in case of network issues, the pre-set plans can still operate normally.
4. The Smart Water Timer utilizes Sub G radio frequency transmission technology, ensuring stable and reliable communication between the timer and the gateway within a range of 100 meters in an open area. Remote control is possible through the Ecowitt APP, allowing you to control your water timer anytime and anywhere. The radio status can be further monitored by the app with both device’s RSSI level.
5. With a design featuring all-copper pipelines and connectors, the Smart Water Timer can withstand water pressure of up to 0.9 MPa. It is IP66 waterproof and dustproof, durable, corrosion-resistant
Specification
| Product Name | Smart Water Timer |
| Product Model | WFC01 |

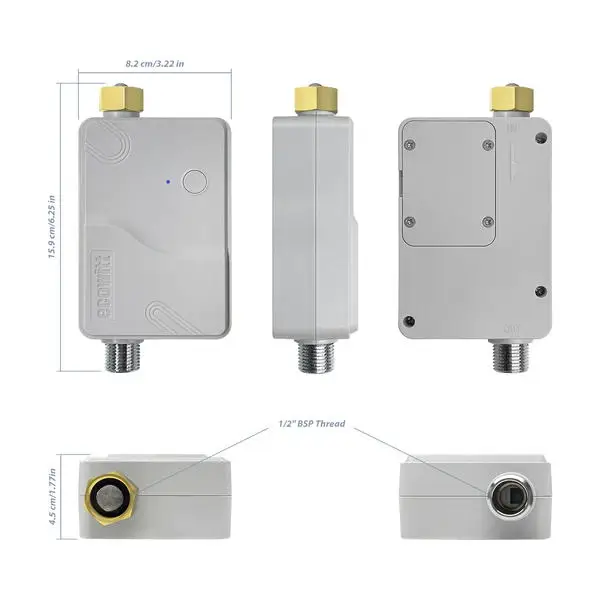

| Product Size | 159*82*45MM |
| Weight | 520G |
| Shell Material | ABS+PC |
| Inlet Material | Brass |
| Outlet Material | Brass+Chrome Plating |
| Waterproof Level | IP66 |
| Power Supply | 1.5V AA Battery * 2 |
| Power | 1.5mW(Average power of opening and closing once a day) |
| Battery Runtime | 6 months (Average runtime of opening and closing once a day) |
| Interface Type | G1/2 inch thread |
| Maximum Type | 30L/min |
| Working Pressure | 0.03-0.9MPa |
| Flow Rate Error | ±10% |
| Working Temperature | 1-60°C(The equipment can still transfer data during -40∼0°C,but water free zing may cause DAMAGE to the product) |
| Working Humidity | 1∼99% |
| RF Communication Distance | 100 meters |
Main Features
1.Allows real-time monitoring of water flow and temperature,providong you with a better understanding of water usage in your home.
2.WFC01 supports cloud-based control,and all water usage log is stored in the cloud .Users can check their water usage anytime and manage and optimize it for more convenient control and achieve more scientific and retional water usage.
3.Set up in the Ecowitt App and can be linked with Soil Moisture Sensors to enable automatic irrigation.
4.Remote control is possible trough the Ecowitt App,allowing you to control your water timer anytime and anywhere.
5.Stable and reliable communication between the timer and the gateway within a range of 100 meters in an open area.
6.With a design featuring all copper pipelines and connectors,the Smart Water Timer can withstand water pressure of up to 0.9MPa.
7.IP66 waterproof and dustproof,durable,corrosion-resistant,with a long service life.
Packaging & Shipping
Company Information
Shenzhen Fine Offset Electronics Co., Ltd. is a professional manufacturer of domestic use weather forecast products. With strong technology backup and profound knowledge on RF and digital sensor technology, we designed and manufacture many high end weather stations with features of WiFi connection, wind, rain function and PC interface. 20 R&D people, 2200 square meters workshop, more than10 years experience, this is how we keep superior quality and competitive offer for global valued customers.We have acquired a series of European and North America certifications for products such as CE, FCC. We are also in compliance with RoHS standards.We consistently keeps improving and committed to providing customers with high-quality and cost-effective product.
FAQ
Q: Are you the final manufacturer?
A: Yes, We are SENSOR manufacturer and exporter in china with 10+ years experience and with the factory authorized by SGS.
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you. But the minimum quantity is 10pcs for the first order .
Q: Do you offer free samples?
A: Sorry , we do not offer free samples . You should pay for the samples and freight cost.
Q: What payment ways do you accept?
A: You can pay us by T/T , L/C.
Q: What is your normal delivery way?
A: Goods will be sent by DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.
Q: How is your quality assurance service?
A: Our service is free exchange within one month and 12 months quality guarantee
Q: Could we make a visit to your factory?
A: Yes, you are welcomed . But before that, we will do the visiting investigation.
