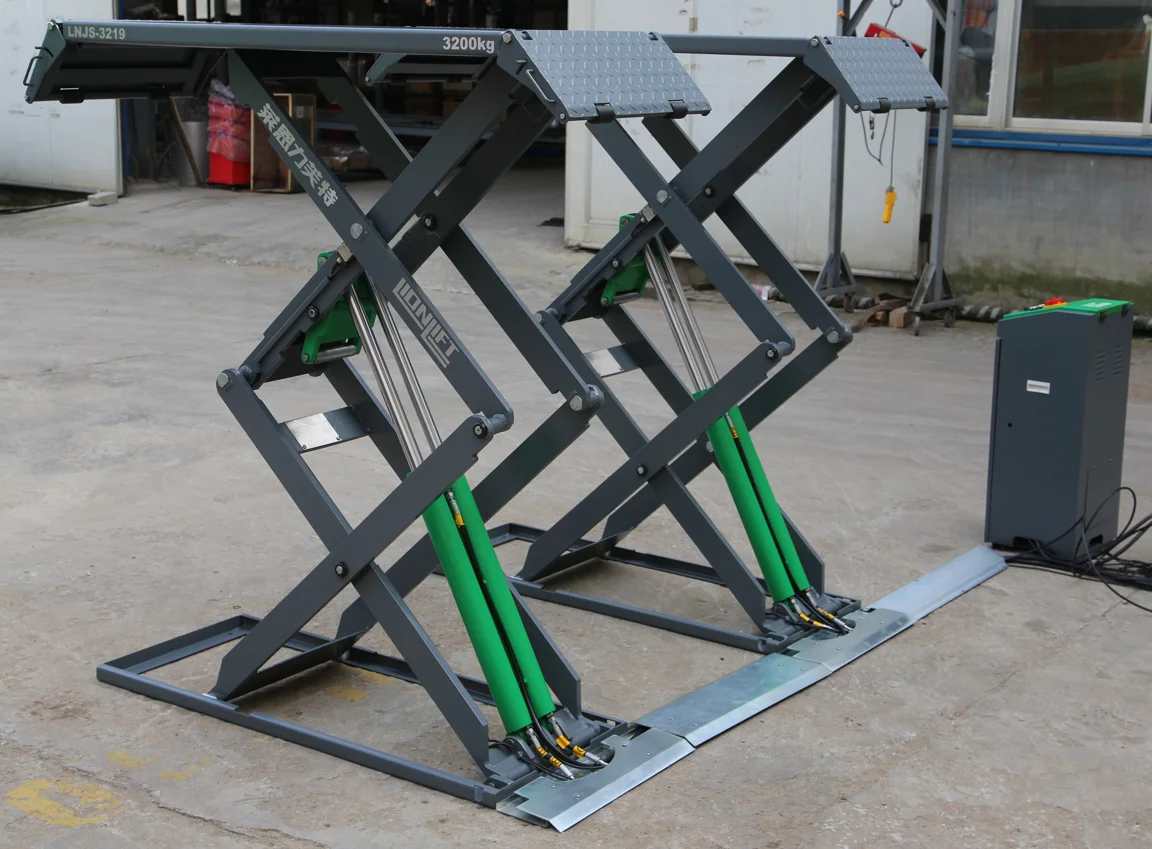

Hydraulic car scissor lift with CE /auto scissor lift LNJS 3219
- Category: >>>
- Supplier: Yantai Uniliner Electromechanical Equipment Manufacturing Co. Ltd.
Share on (1600979288163):
Product Overview
Description

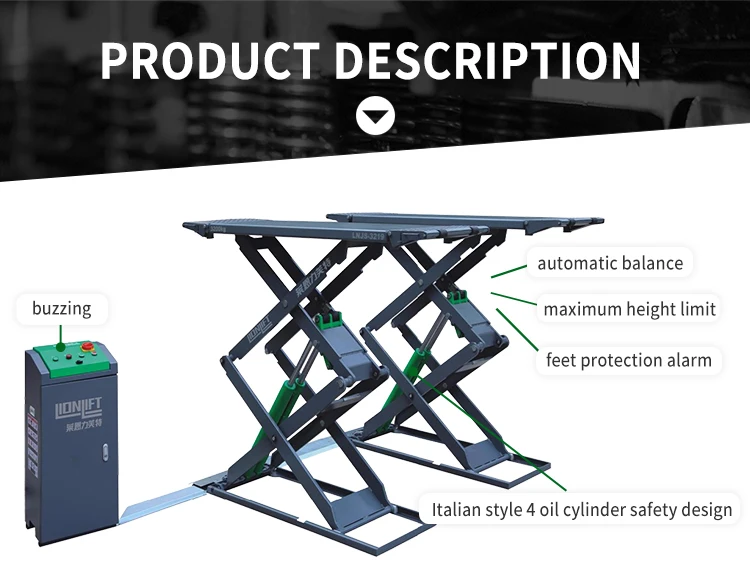

Product Description
Name: Full Height Electrical Car Life Price China with CE
Ultraflat consruction allows lifting of very low built sport-cars.
Twin-hydraulic-cylinders on both sides and a tip-lever-system provides a strong lifting.
With the development of auto repair market and more specified and professional requirements, scissor lift gets more and more popular for auto inspection and fast repair.
With the development of auto repair market and more specified and professional requirements, scissor lift gets more and more popular for auto inspection and fast repair.
This machine is used on the ground with Italian technique and hydraulic parts,
Max height cut-off, foot protective from 50mm to the ground, rollover avoidance control,automatic leveling rams, Min height 105mm

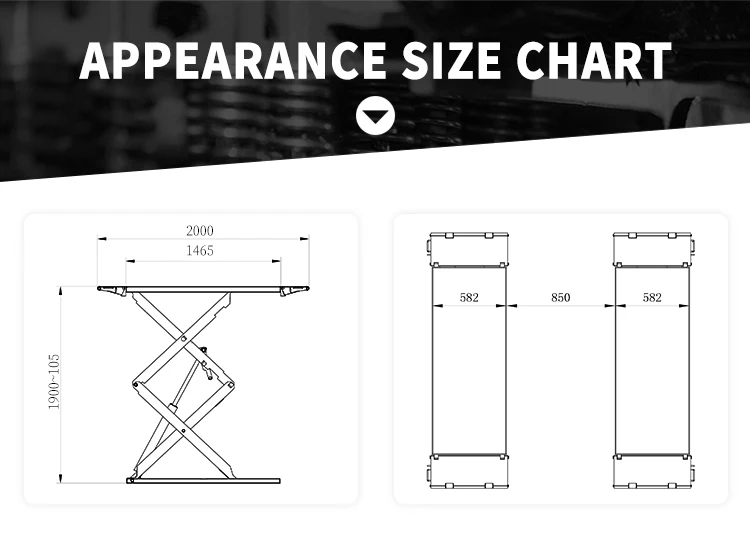

Detailed Images
Model | LNJS-3219 |
Lfiting weight | 3200kg |
Max Lifting height | 1900mm |
Drive on height | 105mm |
platform length(mm) | 1460mm |
plartform width | 585mm |
Operation pressure | 0.6-0.8mpa |
Rated voltage | 25 |
Power volatge | 380v/220v |
Motor power | 2.2kw |
Equipment weight(kg) | 810kg |
Lifting time | 50-60s |
Features
Features:
*Top built quality with CE-certificate
*Manufactured according to ISO 9001
*CE-Stop and signal sound during the final lowering phase
*Twin-hydraulic-cylinders on both sides
*Hydraulic synchronization (following concept)
*Automatic safety-lock and unlock
*No connection between both platforms
*Tip-lever-system for strong lifting
*Top qualitiy and massive construcion

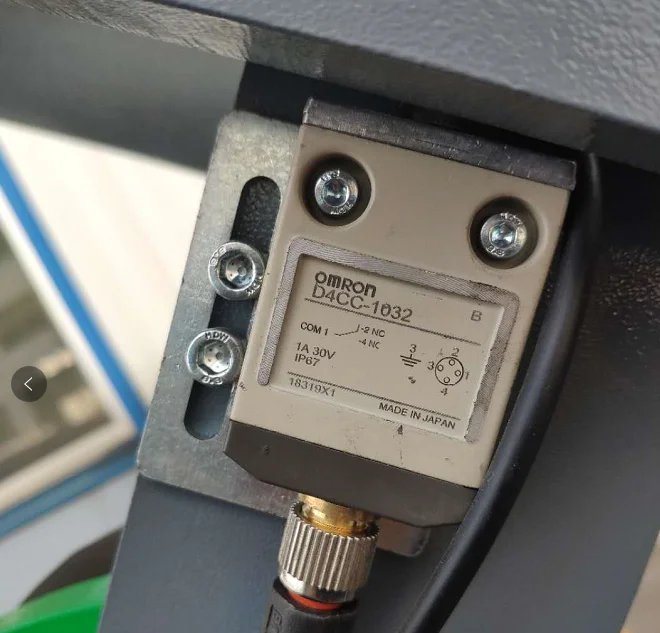

*Signal sound (foot protection)
*Emergency lowering
*Anti rollover function
*Top built quality with CE-certificate
*Manufactured according to ISO 9001
*CE-Stop and signal sound during the final lowering phase
*Twin-hydraulic-cylinders on both sides
*Hydraulic synchronization (following concept)
*Automatic safety-lock and unlock
*No connection between both platforms
*Tip-lever-system for strong lifting
*Top qualitiy and massive construcion
*Signal sound (foot protection)
*Emergency lowering
*Anti rollover function

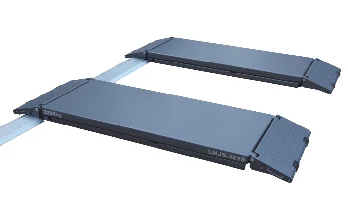

min height is 105mm from ground level, it's more difficult to achieve it on condition that the lifting capacity is 3200kg.
105mm is much easier for low chassis cars.
105mm is much easier for low chassis cars.

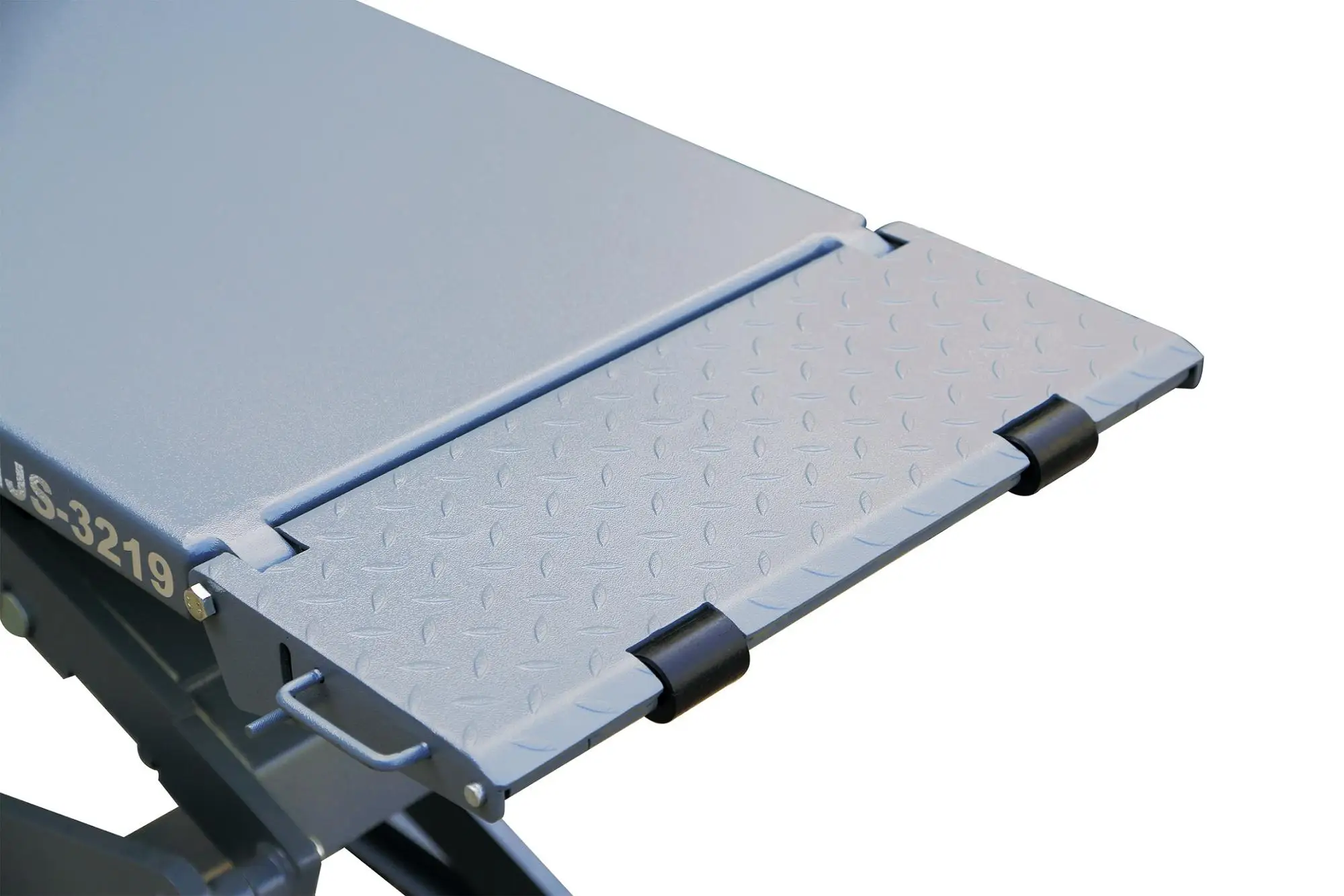

2. Adjustable ramps
Adjustable vehicle ramps for a longer lifting surface, which can extend the platform to 2000mm, and are available to various vehicles including SUV and business vehicles.

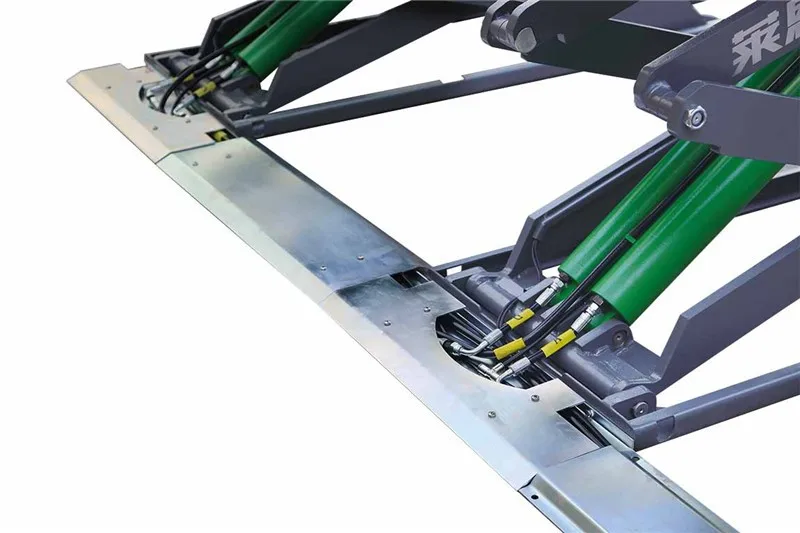

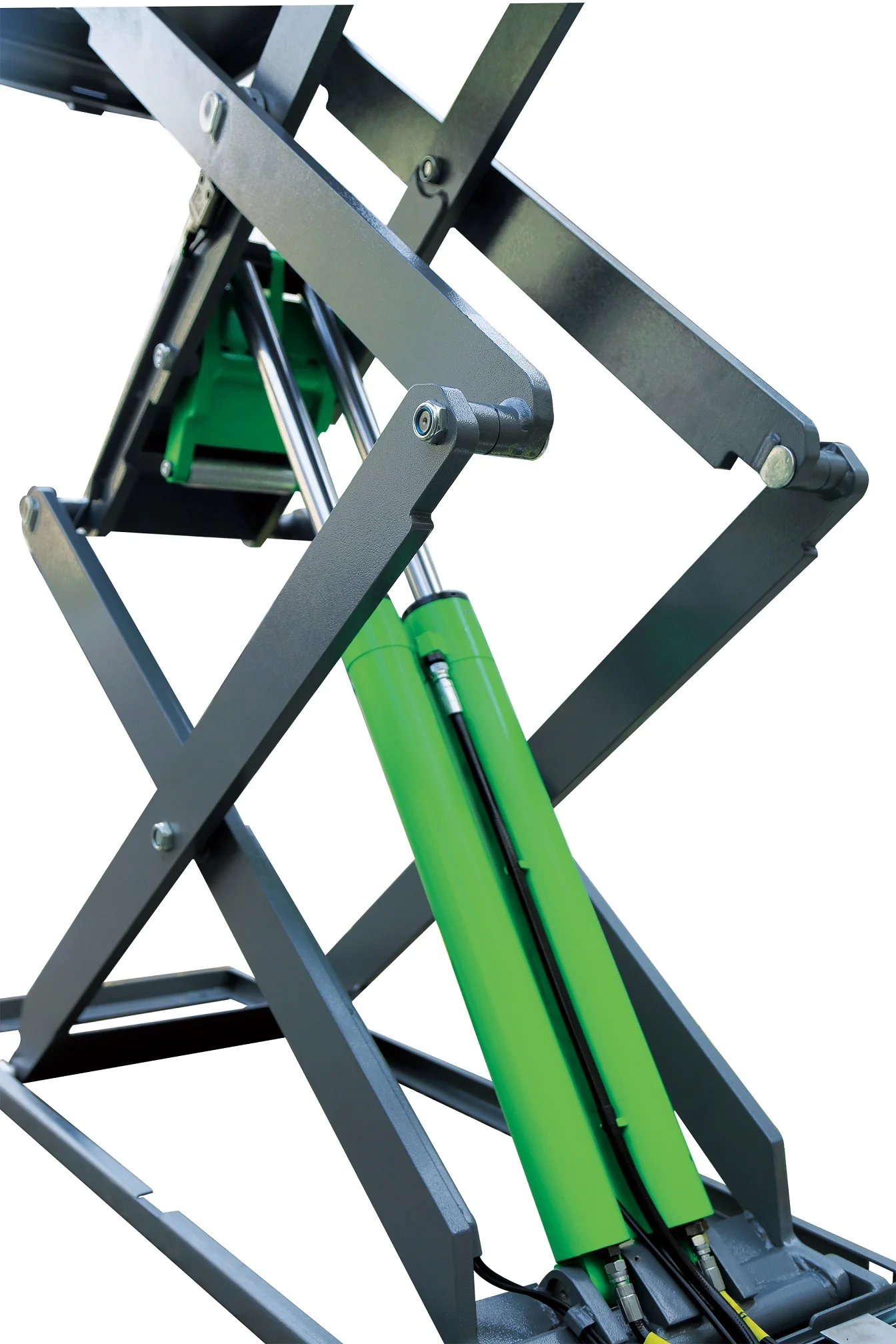

3. Hydraulic cylinders
With Italian technology, two tandem synchronous balance hydraulic cylinder make the two tables at the same level always.
Seals and steel rings are made in Italy.
4. Explosion-proof valves
Special explosion-proof valve acts as hydraulic selflocking function, which can prevent platforms from falling suddenly.
No need the mechanical locking blocks.

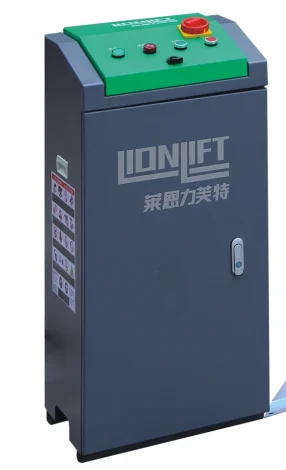

5. Control unit
Easy to handle control unit(24V control voltage) with emergency stop

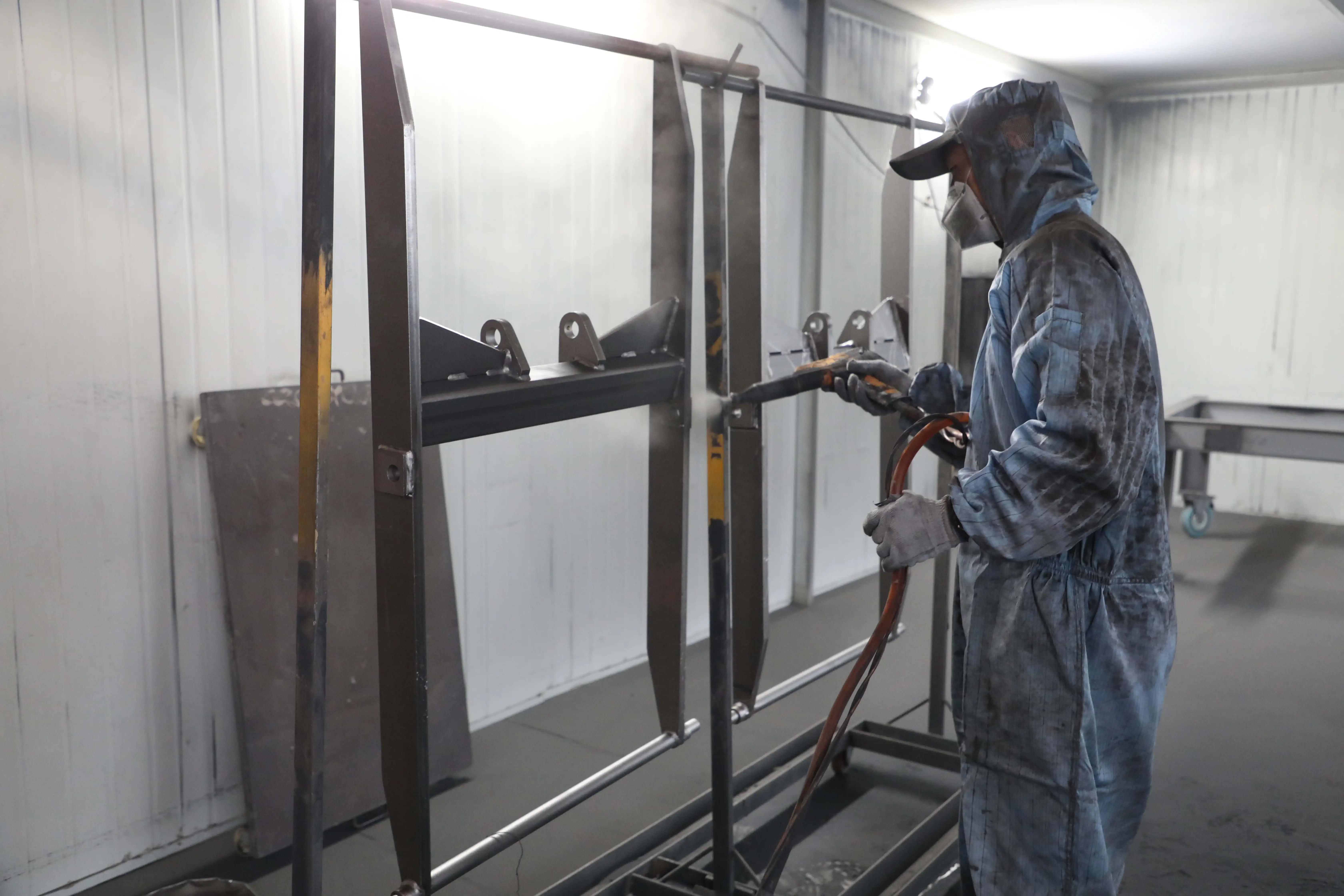

6. Powder coated
The whole lifting is powder coated and all fixing are galvanized

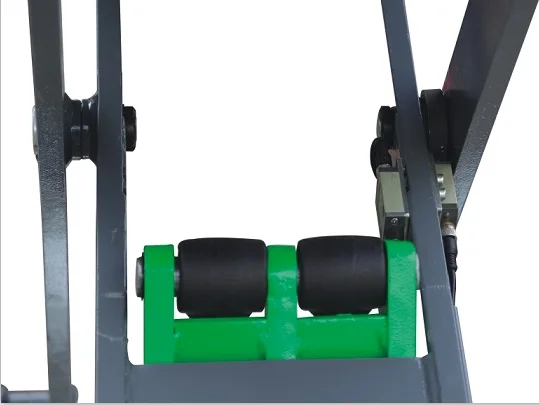

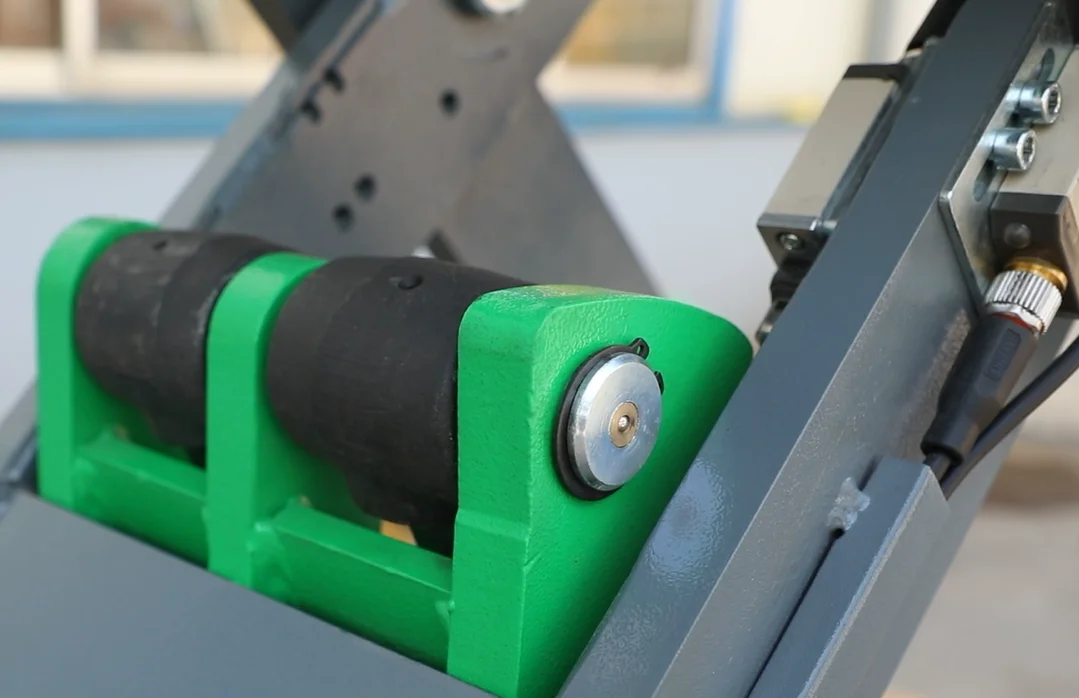

Tip-lever-system ensures strong lifting of platforms when they lift from the ground.

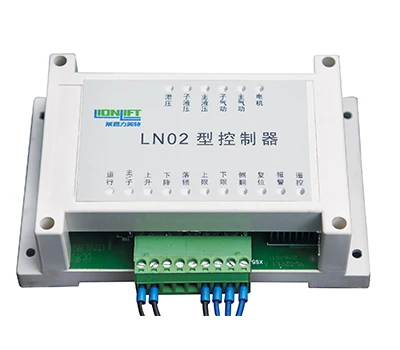

8.Circuit board
Computerized controller

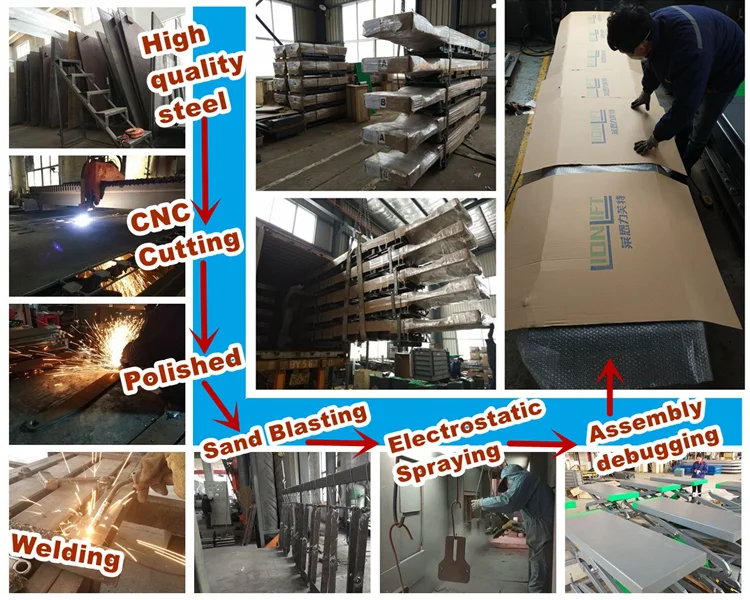

Packing & Delivery

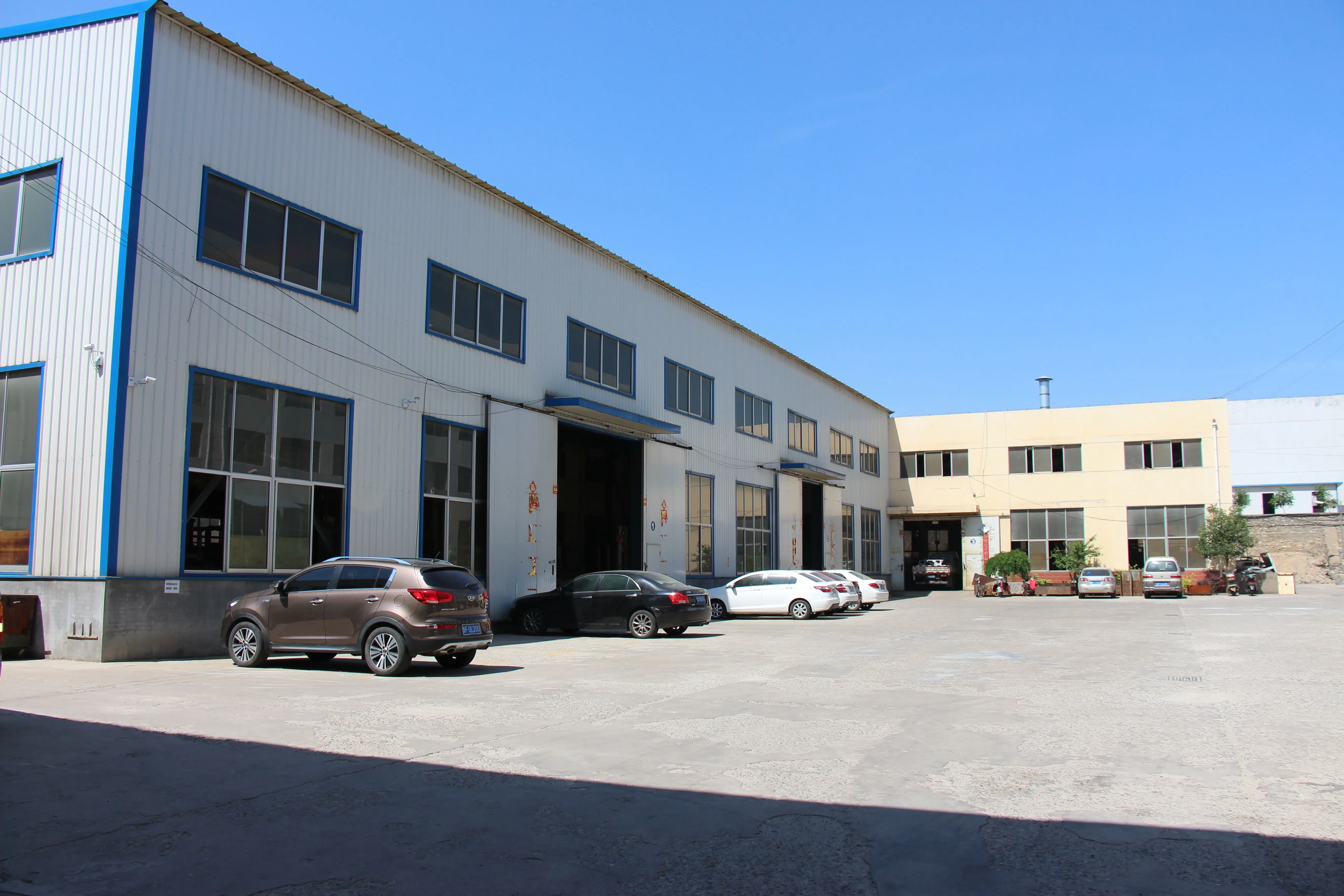

About Us
YANTAI LION AUTOMOBILE EQUIPMENT CO., LTD.which is a branch of Yantai Uniliner Electromechanically Equipment Manufacturing Co.,Ltd.(//www.ytlionlift.com), is long-term committed to automotive high-end scissor lifts researching ,developing and producing, has become a professional modern machinery manufacturing enterprise.
LION bases on high-grade customer serving and high-grade equipment manufacturing, Italy advanced technology. The quality pursuits benefits, the innovation seeks development, the leader of the scissor lifting equipment industry .
LION bases on high-grade customer serving and high-grade equipment manufacturing, Italy advanced technology. The quality pursuits benefits, the innovation seeks development, the leader of the scissor lifting equipment industry .

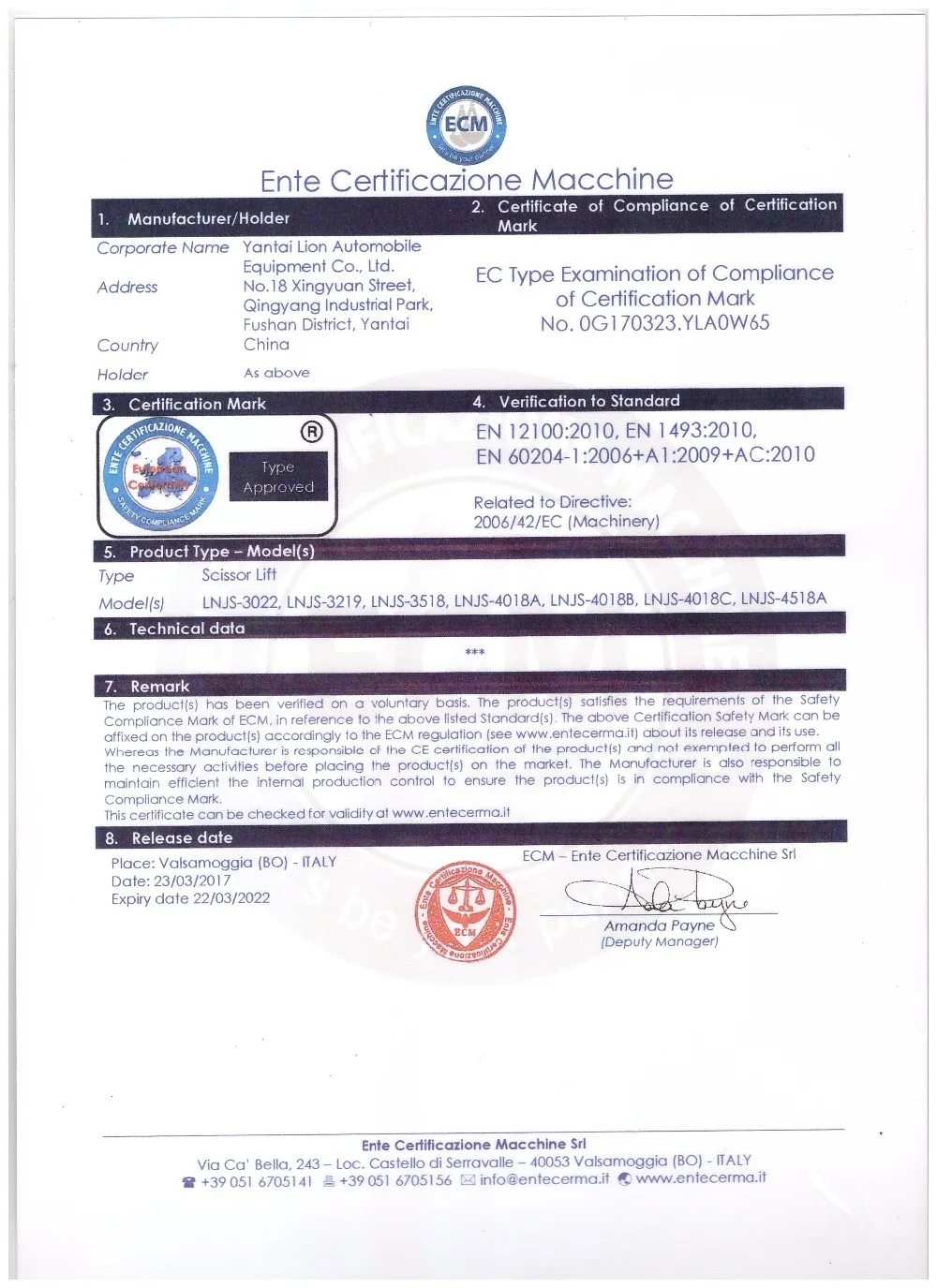

Certifications
Recommend Products
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
