Anern 4.2kw 5kw 6.2kw mppt inverters & converters for solar panels
- Category: >>>
- Supplier: Guangzhou Anern Energy Technology Co. ltd.
Share on (1600979288726):
Product Overview
Description
Products Description

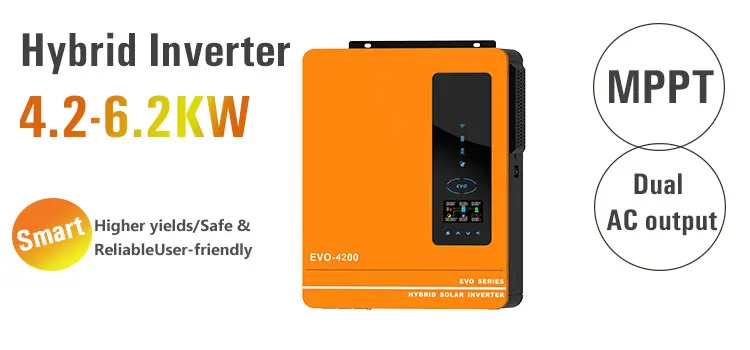

Anern off grid hybrid 3.6kw 4.2kw 6.2kw solar inverter with mppt charge controller
Key Features:

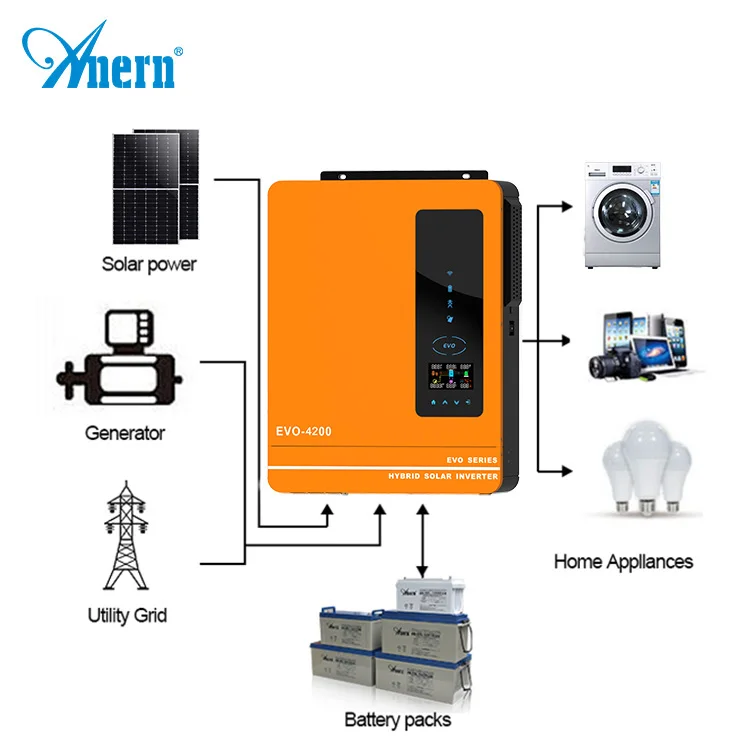

◆ Compatible for both off-grid & on-grid applications, able to feed surplus solar power into the grid;

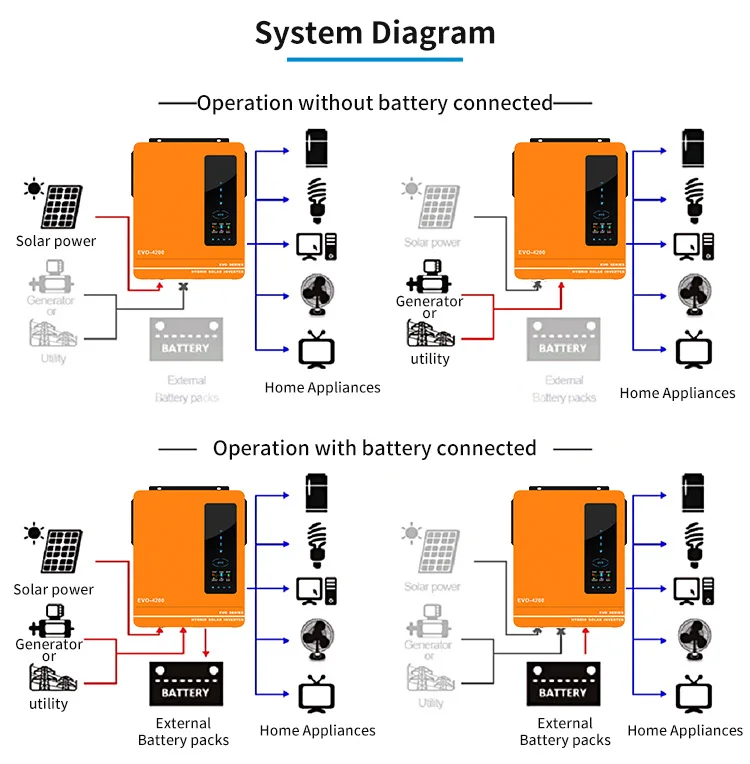

◆ Be able to run without battery;
◆ One-key restoring to factory default settings;
◆ Built-in Lithium battery automatic activation;
◆ Bulit-in MPPT solar controller, max charge current 120A;
◆ Max 6200W & 6500W solar input power respectively;
◆ Wide PV input voltage range (90-450VDC);
◆ Built-in anti-dusk kit for harsh environment.
◆ Smart battery charge design to maximize battery lifespan
◆ Dual AC output;

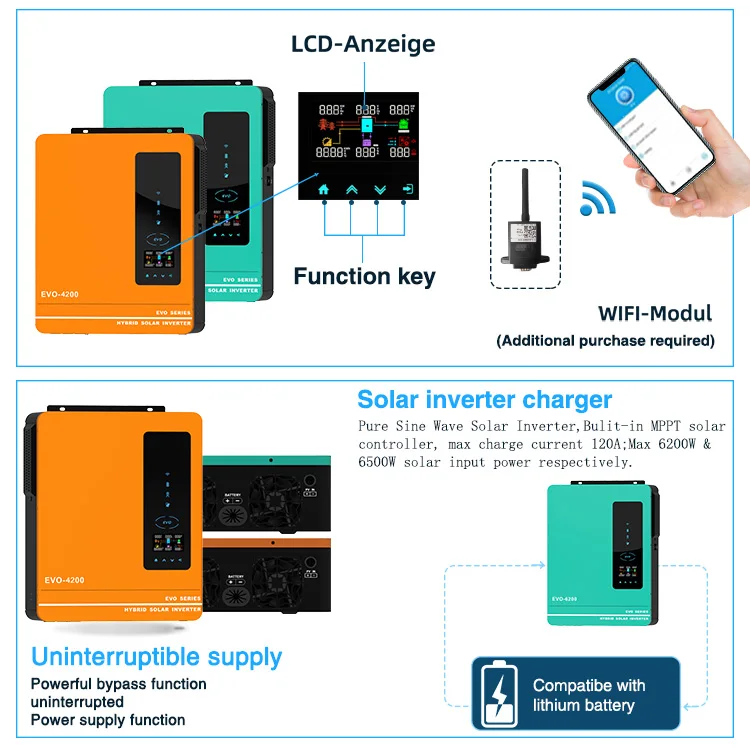

◆ WIFI available for IOS and Android systems.
◆ Be able to run without battery;
◆ One-key restoring to factory default settings;
◆ Built-in Lithium battery automatic activation;
◆ Bulit-in MPPT solar controller, max charge current 120A;
◆ Max 6200W & 6500W solar input power respectively;
◆ Wide PV input voltage range (90-450VDC);
◆ Built-in anti-dusk kit for harsh environment.
◆ Smart battery charge design to maximize battery lifespan
◆ Dual AC output;
◆ WIFI available for IOS and Android systems.

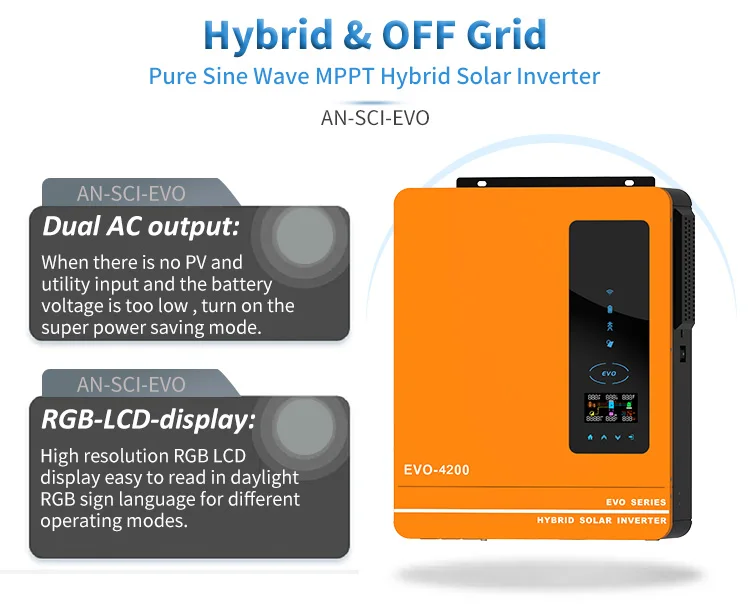

Dual AC output function description:
Under normal conditions, the main circuit and secondary circuit outputs are used normally. When there is no PV and mains power input and the battery voltage is too low, the main circuit is disconnected and only the secondary circuit output is retained to save power.
Under normal conditions, the main circuit and secondary circuit outputs are used normally. When there is no PV and mains power input and the battery voltage is too low, the main circuit is disconnected and only the secondary circuit output is retained to save power.

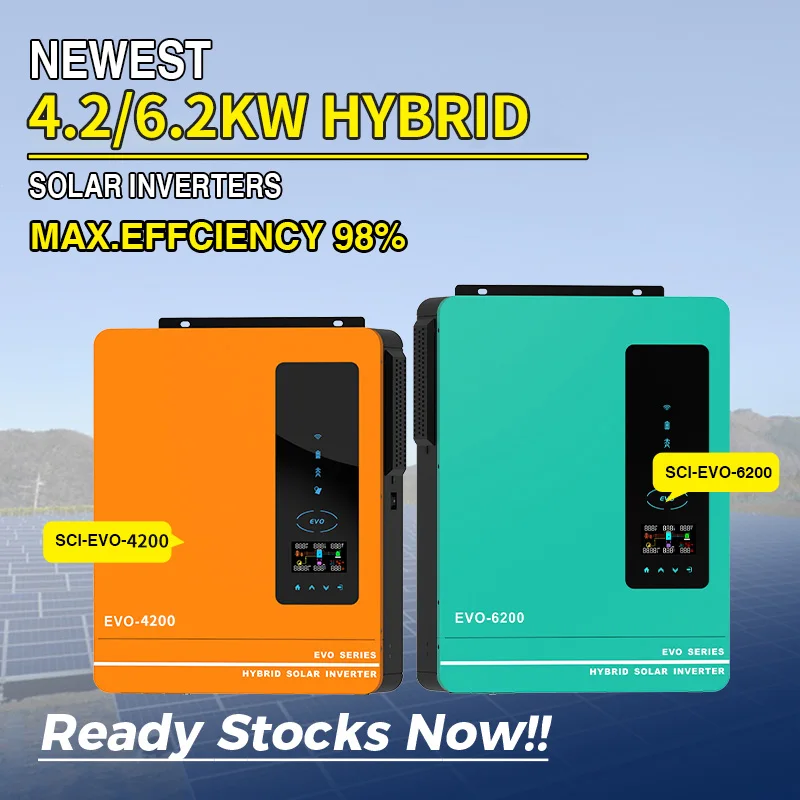

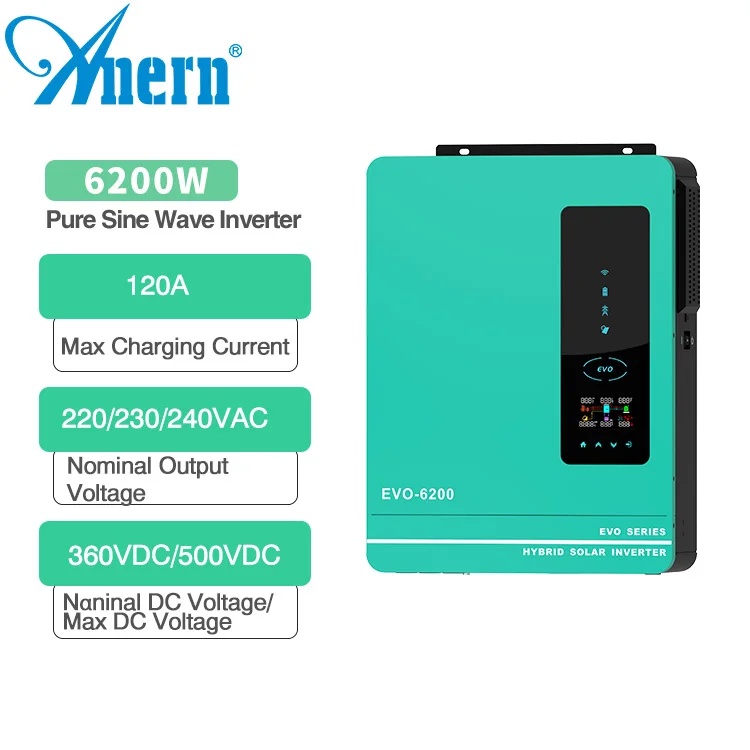

Model | SCI-EVO-4200 | SCI-EVO-6200 | ||
RATED POWER | 4200W | 6200W | ||
Maximum PV Input Power | 6200W | 6500W | ||
GRID-TIED OPERATION | ||||
PV INPUT (DC) | ||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |||
MPPT DC Voltage Range | 60-450VDC | |||
Number of MPPT Trackers/Maximum Input Current | 1/27A | |||
GRID OUTPUT (AC) | ||||
Nominal AC Output Voltage | 220/230/240VAC | |||
AC Output Voltage Range | 195.5-253VAC | |||
Nominal AC Output Current | 15.7A | 27.0A | ||
Power Factor | >0.99 | |||
Feed-in Grid Frequency Range | 49-51±1Hz / 59-61±1Hz | |||
EFFICIENCY | ||||
Maximum Conversion Efficiency (Solar to AC) | 98% | |||
TWO LOADS OUTPUT POWER | ||||
Full Load | 4200W | 6200W | ||
Maximum Main Load | 4200W | 6200W | ||
Maximum Second Load (battery mode) | 1400W | 2067W | ||
Main Load Cut Off Voltage | 22VDC | 44VDC | ||
Main Load Return Voltage | 26VDC | 52VDC | ||
OFF-GRID OPERATION | ||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |||
Acceptable AC Input Voltage Range | 90-280VAC or 170-280VAC | |||
Maximum AC Input Current | 30A | 40A | ||
Nominal Operating Frequency | 50/60Hz | |||
Surge Power | 8400W | 12400W | ||
BATTERY MODE OUTPUT (AC) | ||||
Nominal Output Voltage | 220/230/240VAC | |||
Output Waveform | Pure sine wave | |||
Efficiency (DC to AC) | 94% | |||
BATTERY & CHARGER | ||||
Nominal DC Voltage | 24VDC | 48VDC | ||
Maximum Charging Current(Solar to AC) | 120A | |||
Maximum AC Charging Current | 100A | |||
GENERAL | ||||

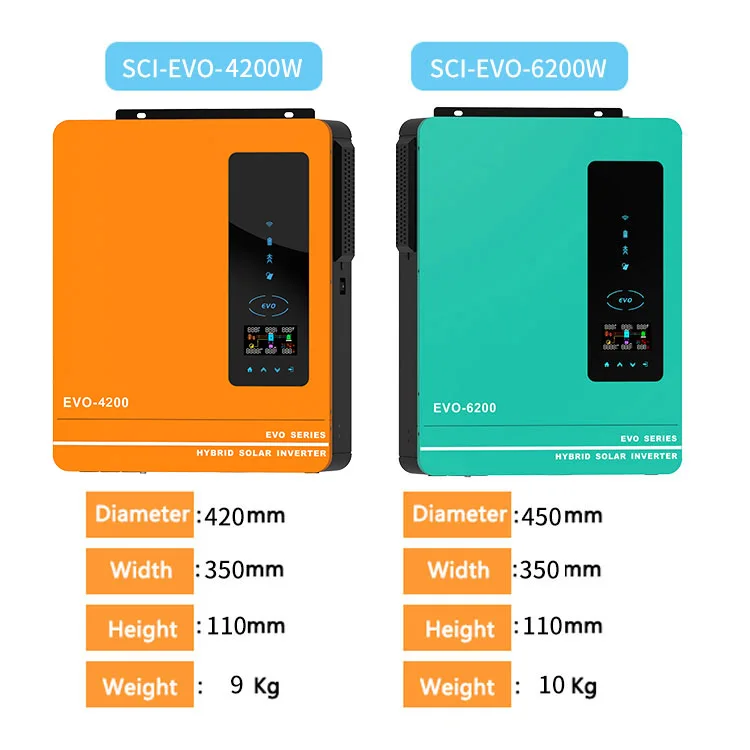

Dimension, D x W x H (mm) | 420*350*110mm | 450*350*110mm | ||
Net Weight (kgs) | 9 | 10 | ||
Communication interface | WIFI | |||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||
Operating Temperature | –10°C - 50°C | |||
Storage Temperature | –15°C - 60°C | |||
Product Details
Project & Feedback

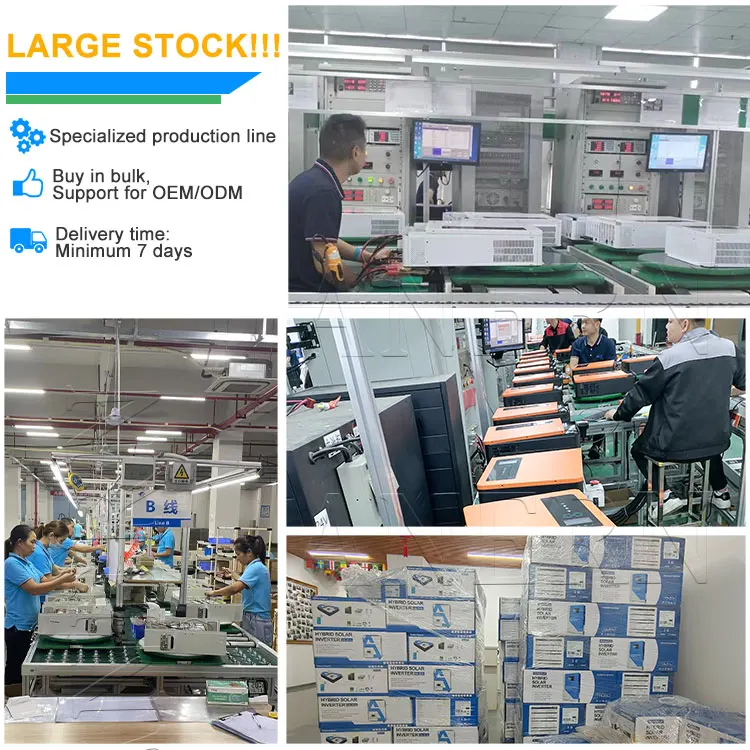

Anern Factory
