AP3 C20 series High Precision food Metering pump
- Category: >>>
- Supplier: Shanghai Acepack Intelligent Technology Co. Ltd.
Share on (1600979296760):
Product Overview
Description

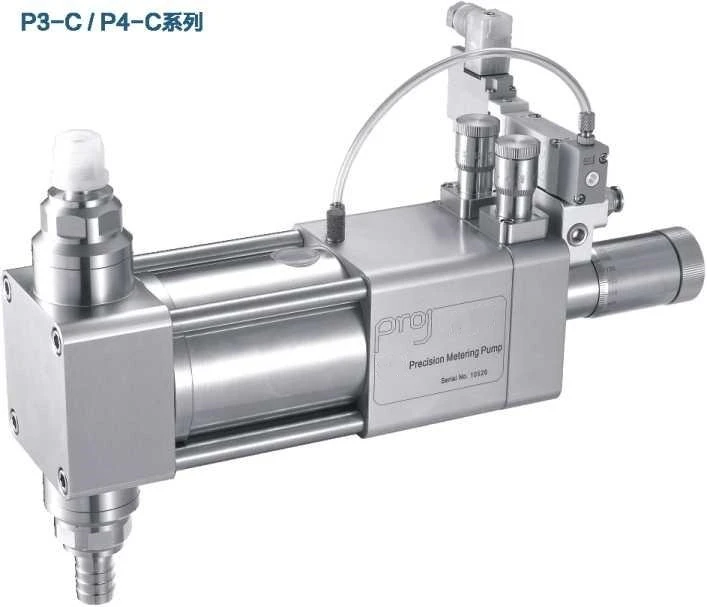

PNEUMATIC CHECK VALVE PUMP
•The Check Valve Style Dispensing Pumps are designed for filling low to medium viscosity liquid without containing particles.
•Precise micrometer volume adjustor is for setting accuracy dispensing volume, and the built-in speed control system is fbr controlling plunger motion speed smoothly, by which the pumps are suitable for different working condition. Typical accuracy is within ±0.5%.
•Complete 316 stainless steel pump construction. All pump parts have better chemical compatibility for corrosive liquid .like Li-Ion battery electrolyte.
•P4-C series pumps have special pneumatic-electric control unit with forward position sensor. The plunger return automatically after complete dispensing stroke. Patent build-in speed control unit makes the pump more compact.
•Precise micrometer volume adjustor is for setting accuracy dispensing volume, and the built-in speed control system is fbr controlling plunger motion speed smoothly, by which the pumps are suitable for different working condition. Typical accuracy is within ±0.5%.
•Complete 316 stainless steel pump construction. All pump parts have better chemical compatibility for corrosive liquid .like Li-Ion battery electrolyte.
•P4-C series pumps have special pneumatic-electric control unit with forward position sensor. The plunger return automatically after complete dispensing stroke. Patent build-in speed control unit makes the pump more compact.
Specification
Model | Plunger Dia MM | Stroke MM | Dispensing Vol ML | Cycle Rate time/MIN | Air Consumption L/MIN | Weight KG |
P3-C20 | 31.8 | 38.1 | 0-30 | 0-70 | 40 | 5 |
P3-C26 | 41.3 | 38.1 | 0-50 | 0-70 | 40 | 5 |
P4-1-C34 | 54.0 | 25.4 | 0-58 | 0-150 | 51 | 6.8 |
P4-2-C34 | 54.0 | 50.8 | 0-116 | 0-120 | 85 | 7.6 |
P4-3-C34 | 54.0 | 76.2 | 0-174 | 0-90 | 102 | 8.3 |
P4-4-C34 | 54.0 | 101.6 | 0-232 | 0-60 | 115 | 9.8 |
Our Advantages
Precision metering pump
High precision performance; Material saving; wide application
Pneumatic diaphragm pump
Performing good accuracy, stability, durability. It is easy operation and free for maintenance in actual production.
Solvent Recycler
An environment protection product that can recycle all different waste solvent to be clean and useful solvent..
We have always been convinced that only strict quality control, excellent process management do provide client more reliable quality, longer service life and more favorable price. Acepack research on ISO 9001 Quality Management System since the establishment. With the company's development and the scale expansion, now our company's supply chain system have full implementation of ERP management, combined with PDM system and OA, CRM system, our company realized enterprise informationization construction.
Till now, our company has obtained 17 invention patents, 55 utility model and design patents. There are 4 invetion patents and 8 utility model patents under application.

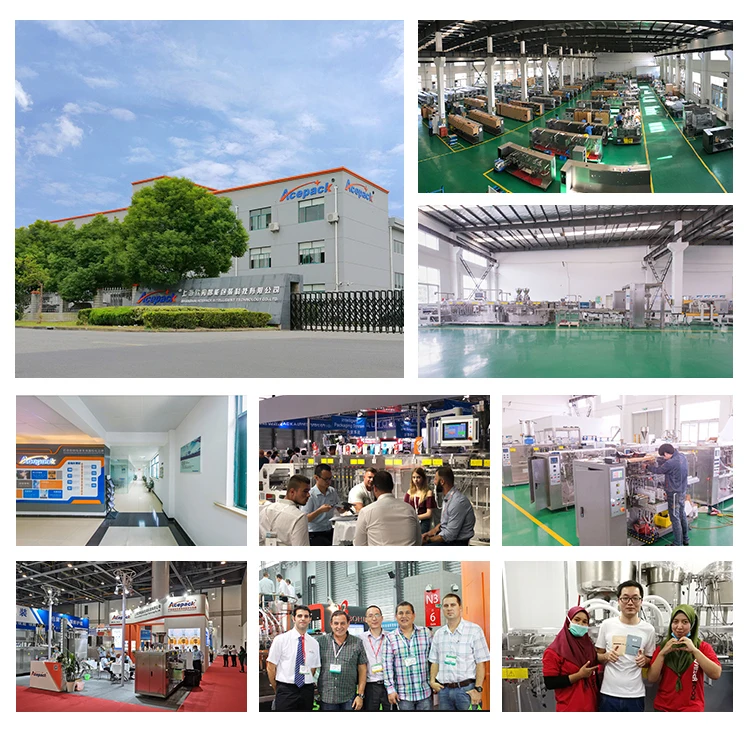

Company Profile
Shanghai Acepack Intelligent Technology CO., LTD.(Shanghai Oushuo Packaging Machinery Co.,Ltd) is a non-governmental joint stock enterprise that is dedicated to design and distribution services for horizontal fully automatic packaging machinery and fully automatic filling machinery. Oriented towards market demands on diversity of product packaging and the scope of packaging service, the company utilizes advanced design concept and technology from Europe. The product lines cover a variety of sectors including foodstuff, daily chemicals, agricultural chemicals, petrochemicals, medicine etc.
Shanghai Acepack Intelligent Technology CO., LTD. adheres to the long-term development strategy of becoming a global packaging system provider and it follows the marketing strategy of consolidating technological innovation from time to time. Under the business tenet of "customer's need is our pursuit", Shanghai Acepack carries forward the concept of "based on top quality and services" and is providing you with excellent solutions thanks to latest design philosophy and experience in packaging industry.
Shanghai Acepack Intelligent Technology CO., LTD. adheres to the long-term development strategy of becoming a global packaging system provider and it follows the marketing strategy of consolidating technological innovation from time to time. Under the business tenet of "customer's need is our pursuit", Shanghai Acepack carries forward the concept of "based on top quality and services" and is providing you with excellent solutions thanks to latest design philosophy and experience in packaging industry.
Certifications
Our Customers
FAQ
1. Are you manufacturer or trading company?
We are manufacturer. Our factory is located in Shanghai, warmly welcome to visit us.
2. How far is your factory from the airport?
Our factory is only 1 hour from Shanghai Pudong International Airport (PVC) and Shanghai Hongqiao Airport. We can pick you up from the airport.
3. Can you pick me up from my hotel in the downtown of Shanghai?
Yes, sure.
4. What kind of bags can your packing machine pack?
Our packing machine can pack doypack( stand up pouch) and sachet( flat bag). Optional function includes adding zipper, spout, making shaped pouch, etc.
5. What product can your packing machine pack?
Our packing machine can pack different types of product, such as powder, granule and liquid. Also our machine can pack irregular product.
6. What is the packing capacity( speed) of your machine?
We have simplex machine(30-80 ppm), duplex machine(60-160 ppm), triplex machine(90-240 ppm) and quadruplex machine(120-320 ppm).
7. What kind of payment do you accept?
We accept bank transfer and letter of credit. For other payment, please check with us.
8. How long is the delivery time?
It depends on which model you order. Standard machine commonly is 30-60 days. Customized machine need longer time.
We are manufacturer. Our factory is located in Shanghai, warmly welcome to visit us.
2. How far is your factory from the airport?
Our factory is only 1 hour from Shanghai Pudong International Airport (PVC) and Shanghai Hongqiao Airport. We can pick you up from the airport.
3. Can you pick me up from my hotel in the downtown of Shanghai?
Yes, sure.
4. What kind of bags can your packing machine pack?
Our packing machine can pack doypack( stand up pouch) and sachet( flat bag). Optional function includes adding zipper, spout, making shaped pouch, etc.
5. What product can your packing machine pack?
Our packing machine can pack different types of product, such as powder, granule and liquid. Also our machine can pack irregular product.
6. What is the packing capacity( speed) of your machine?
We have simplex machine(30-80 ppm), duplex machine(60-160 ppm), triplex machine(90-240 ppm) and quadruplex machine(120-320 ppm).
7. What kind of payment do you accept?
We accept bank transfer and letter of credit. For other payment, please check with us.
8. How long is the delivery time?
It depends on which model you order. Standard machine commonly is 30-60 days. Customized machine need longer time.
