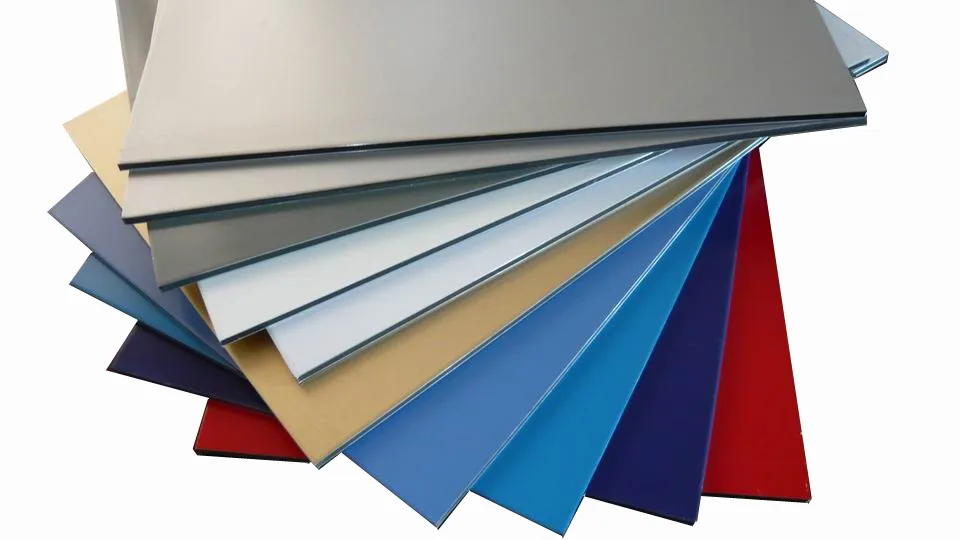

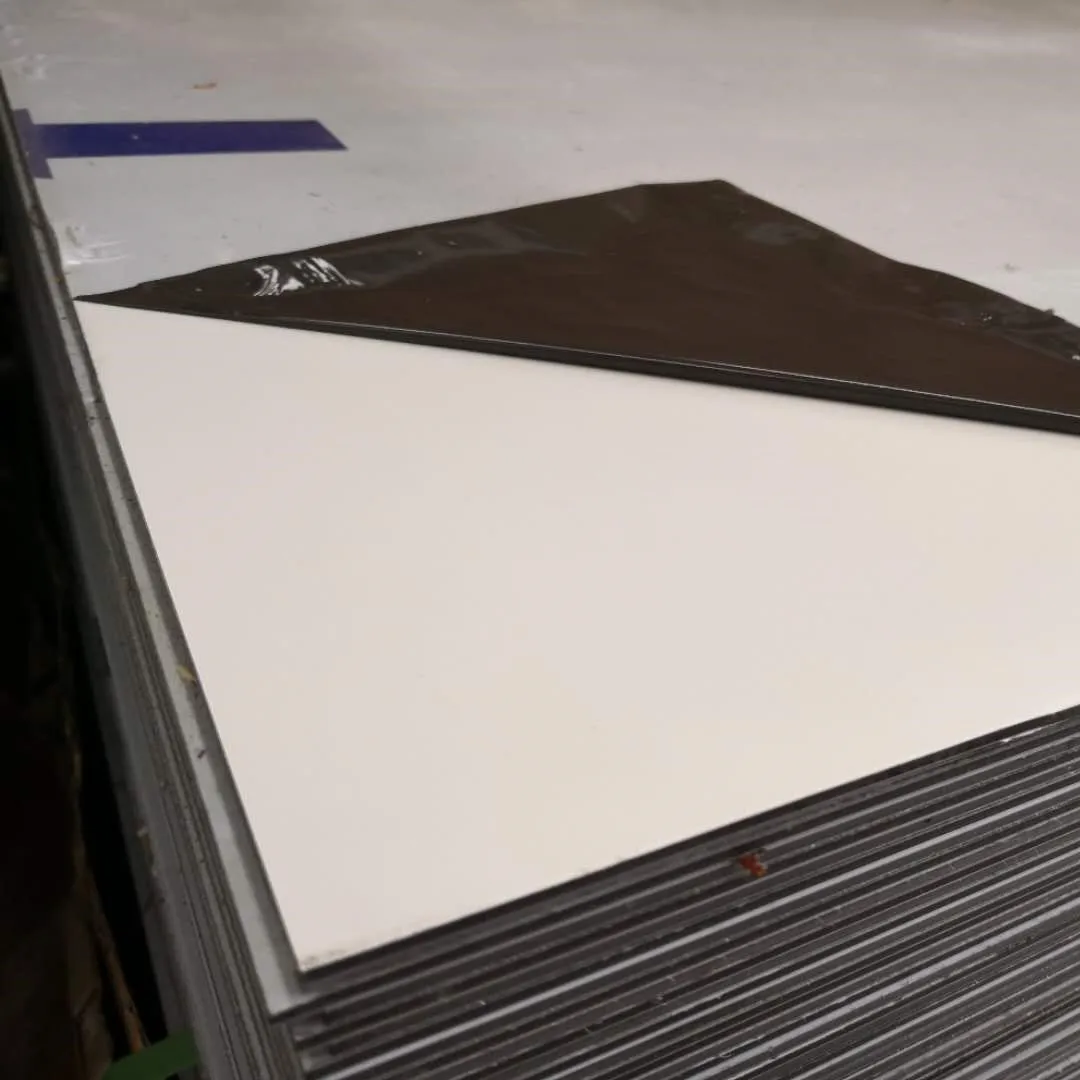

Alumetal 3mm/4mm/5mm alucobond PVDF ACP Facade Materials Aluminum Composite Panel
- Category: >>>
- Supplier: Bodo Industrial Inc.
Share on (1600979306492):
Product Overview
Description
Certifications
Aluminum Composite Panel | ||||
Technical Data | ||||
Testing Project | Unit | Test Result | ||
Deflection temperature under heat | .C | 117 | ||
Flexural Rigidity | Kg/mm2 | 14.0*1.05 | ||
Flexural Elasticity | Kg/mm2 | 4055 | ||
Tensile Strength | Mpa | 49.6 | ||
Flexural Strength | Mpa | 108 | ||
Fire Propagation | Class B1 | |||
Smoke Develop | ≤45 | |||
Finishing Coating Thickness | um | 29 | ||
Pencil Hardness | H | 3H | ||
Impact Resistance | No crack after 60kg.cm. | |||
Specification | ||||
Width | 1000mm/ 1220mm/ 1250mm/ 1500mm/1575mm etc. | |||
Length | 2440mm/4000mm or customized | |||
Thickness of Panel | 2-8mm | |||
Thickness of Aluminum | 0.05-0.5mm | |||

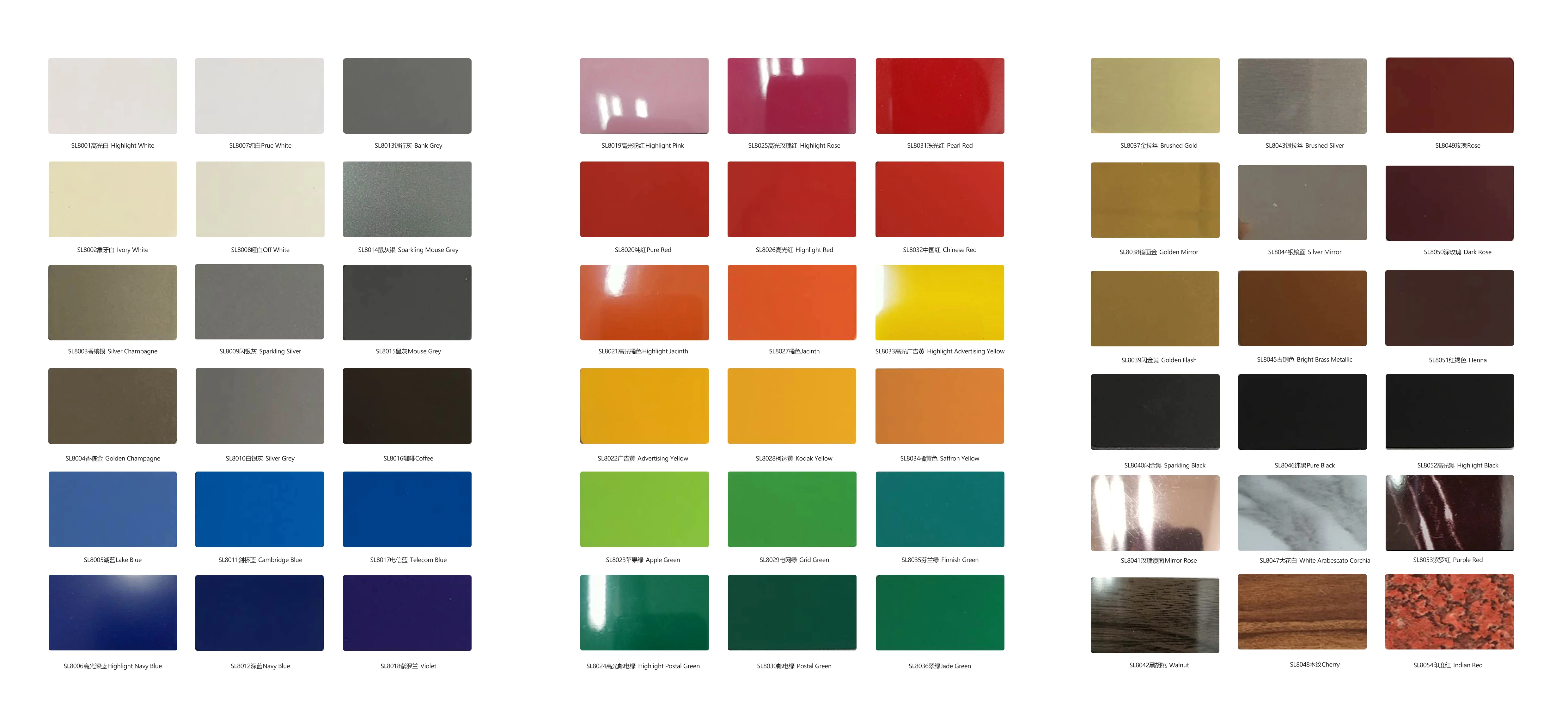

Color | BoDo Standard colors or Customized | |||
Top coating | PE coating for indoor (5-8 years guarantee) PVDF coating for outdoor (20 years gurantee) | |||

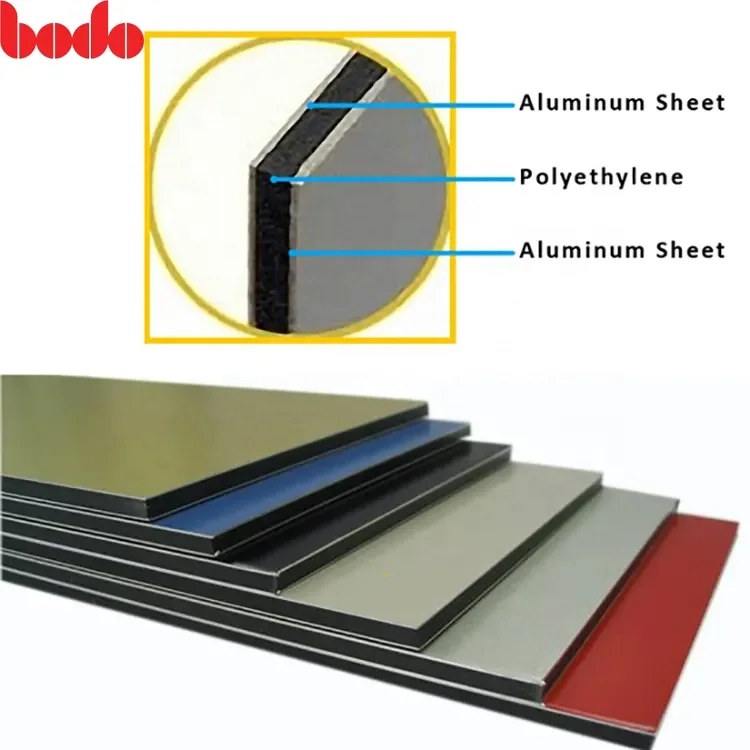

Top Skin | Aluminum alloy coated with PVDF / PE resin | |||
Back Skin | Aluminum alloy sheet coated with primer / mill finish | |||
Core | Non-toxic & low-density polyethylene (LDPE) plastic | |||
Density | 0.5-0.55g/cm3 | |||
Flame Expansion | BS476-7 S1 | |||
FR rated | GB8254-1997 A Class | |||
Product Description
Features:
Light weight, high strength, extreme rigidity and flatness.
Good weatherproof, acid-resistance, alkali-resistance.
Outstanding color and gloss retention in a virtually limitless range of hues.
Excellent in heat insulation, sound insulation.
Easily processed and fabricated, quickly installed.
Good flexibility fits various designs.
Easily maintenance, simply cleaning.
Good weatherproof, acid-resistance, alkali-resistance.
Outstanding color and gloss retention in a virtually limitless range of hues.
Excellent in heat insulation, sound insulation.
Easily processed and fabricated, quickly installed.
Good flexibility fits various designs.
Easily maintenance, simply cleaning.

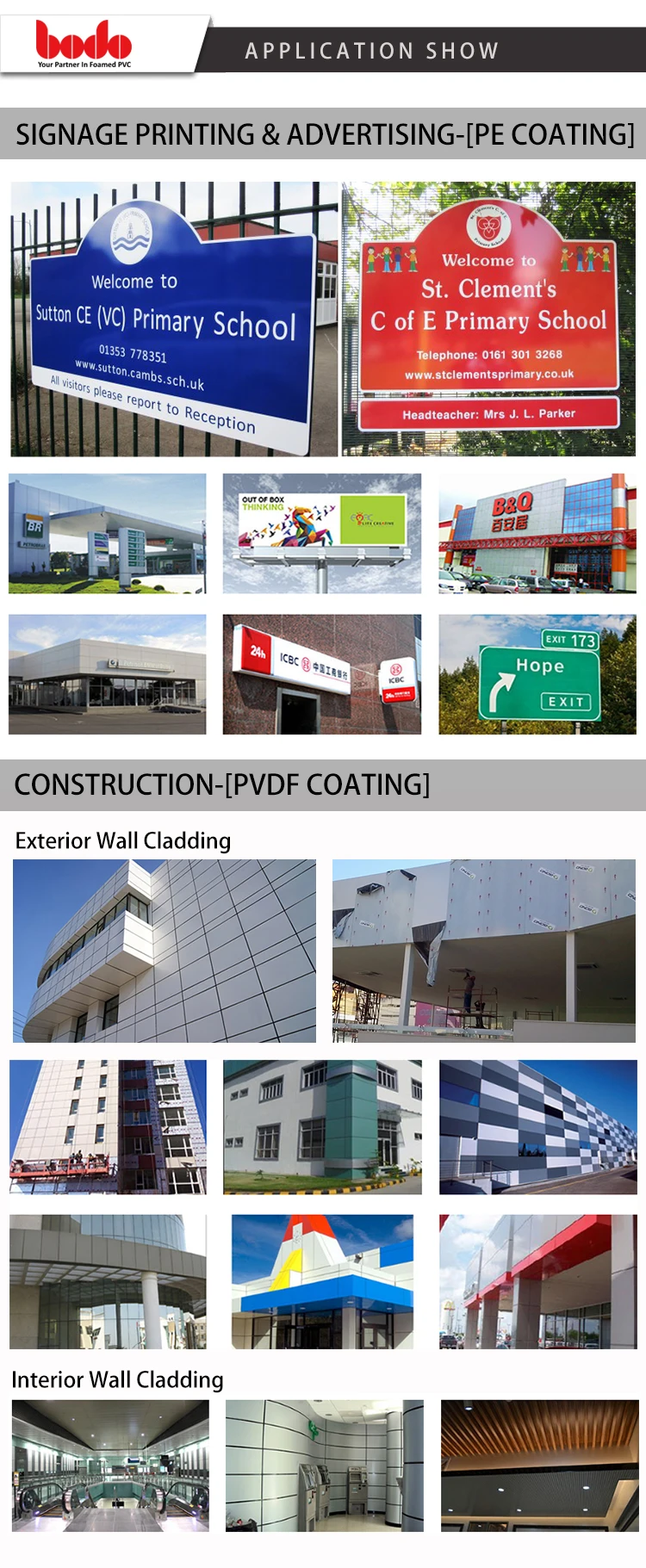

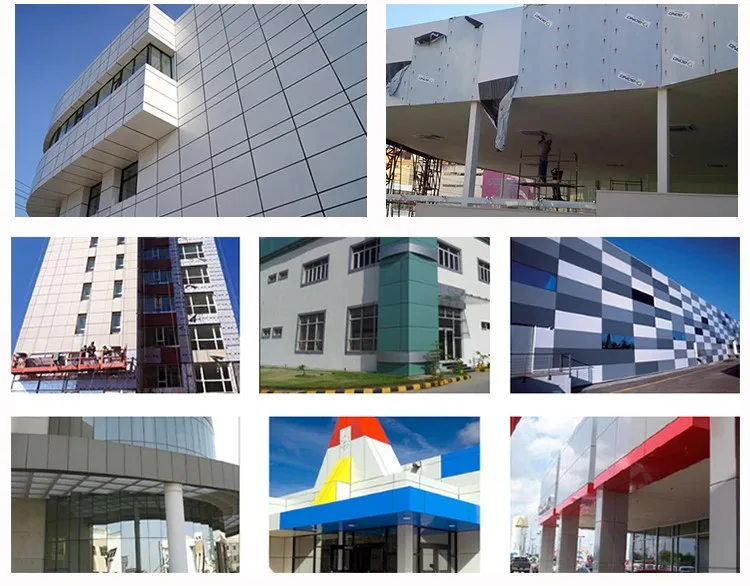

ACRYLIC SHEET APPLICATION
Related Products
Company Introduction
VR

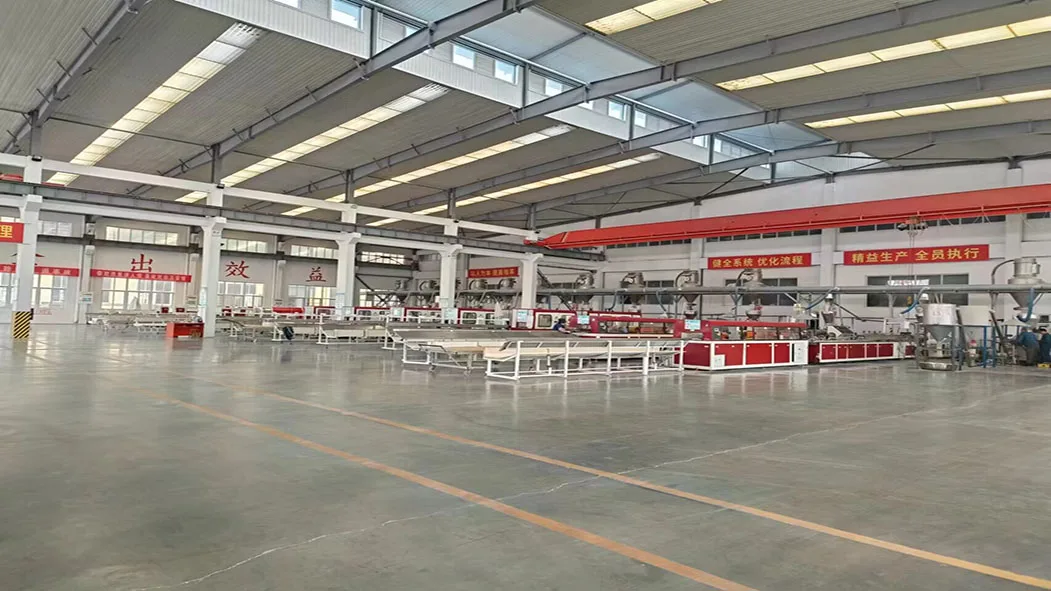

Bodo Industrial Inc. is located in Shanghai City, China Business Center. We manufacture and export Plastic Sheets. We have rich experience in past more than 10 years in this field, and now we are one of the leading and most professional manufacturers for Plastic Sheets in China, especially for PVC Foam Sheet, PVC Celuka Sheet, Rigid PVC Sheet, Acrylic Sheet, and PP Hollow Sheet. And we also established a new factory for Aluminum Composite Panel in 2016.
We keep research and innovate our products that have high performance and meets our clients' market standards. Our strict quality control system allows us to offer our customers with high quality products all along.
All of our business are built on friendship, mutual trust and respect. Cooperating with Bodo means the assurance of high quality products with the most competitive prices and perfect service. Whether you are an end user or distributor, you will find that Bodo is the best choice.
More importantly, we are dedicated to a win-win partnership with all of our friends. And we are keeping to be better and better.
We keep research and innovate our products that have high performance and meets our clients' market standards. Our strict quality control system allows us to offer our customers with high quality products all along.
All of our business are built on friendship, mutual trust and respect. Cooperating with Bodo means the assurance of high quality products with the most competitive prices and perfect service. Whether you are an end user or distributor, you will find that Bodo is the best choice.
More importantly, we are dedicated to a win-win partnership with all of our friends. And we are keeping to be better and better.
Why Choose Us

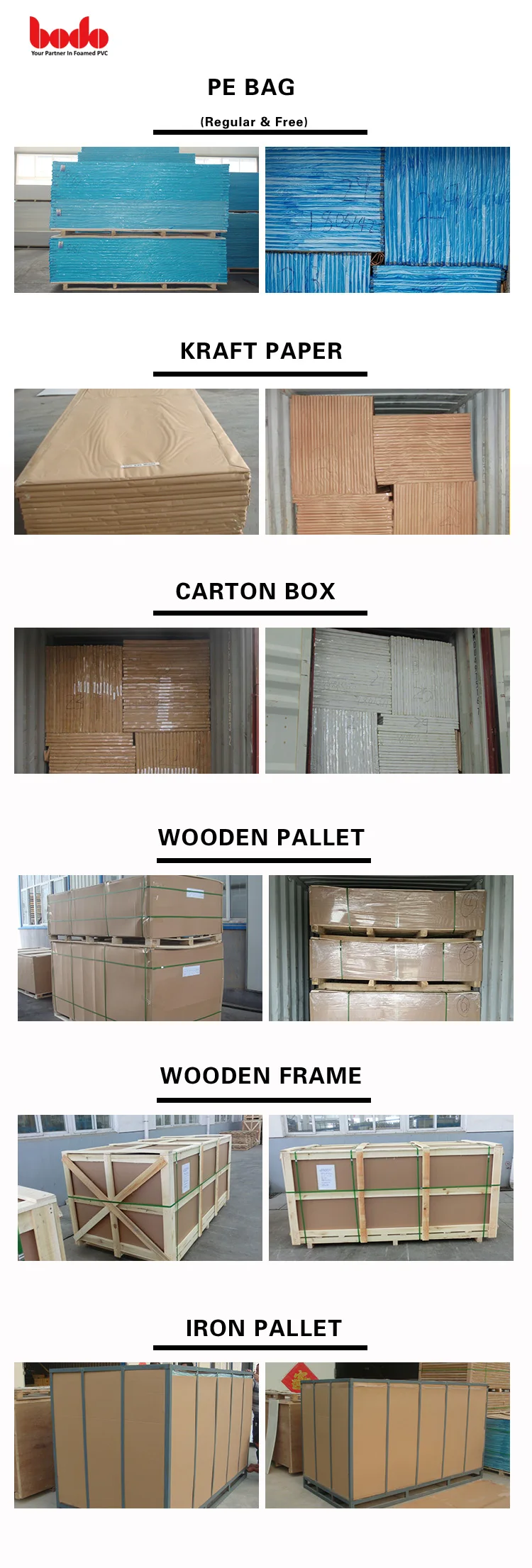

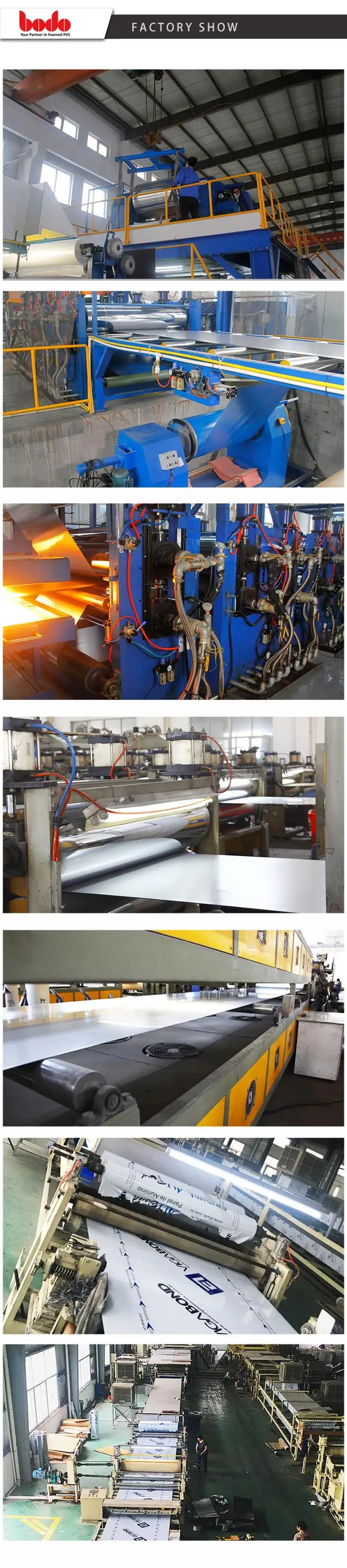

Packing&Shipping
FAQ
* 1, Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer with 16 years experience in this field. And we have 33 industrial lines.
* 2, Q: How can i get the sample?
A: Small samples available are free, just freight collect.
* 3, Q: How long can I expect to get the sample?
A: We can prepare samples within 3 days. Usually it takes about 5-7 days for the delivery.
* 4, Q: Can we have our Logo or company name to be printed on your package?
A: Sure. Your Logo can be putted on the package by printing or sticker.
* 5, Q: What is your lead time for mass production?
A: Normally 10-30 days, depends on the size, quantity and season.
* 6, Q: What is your payment term?
A: T/T, L/C, Paypal, Western Union, DP
* 7, Q: How do you pack it?

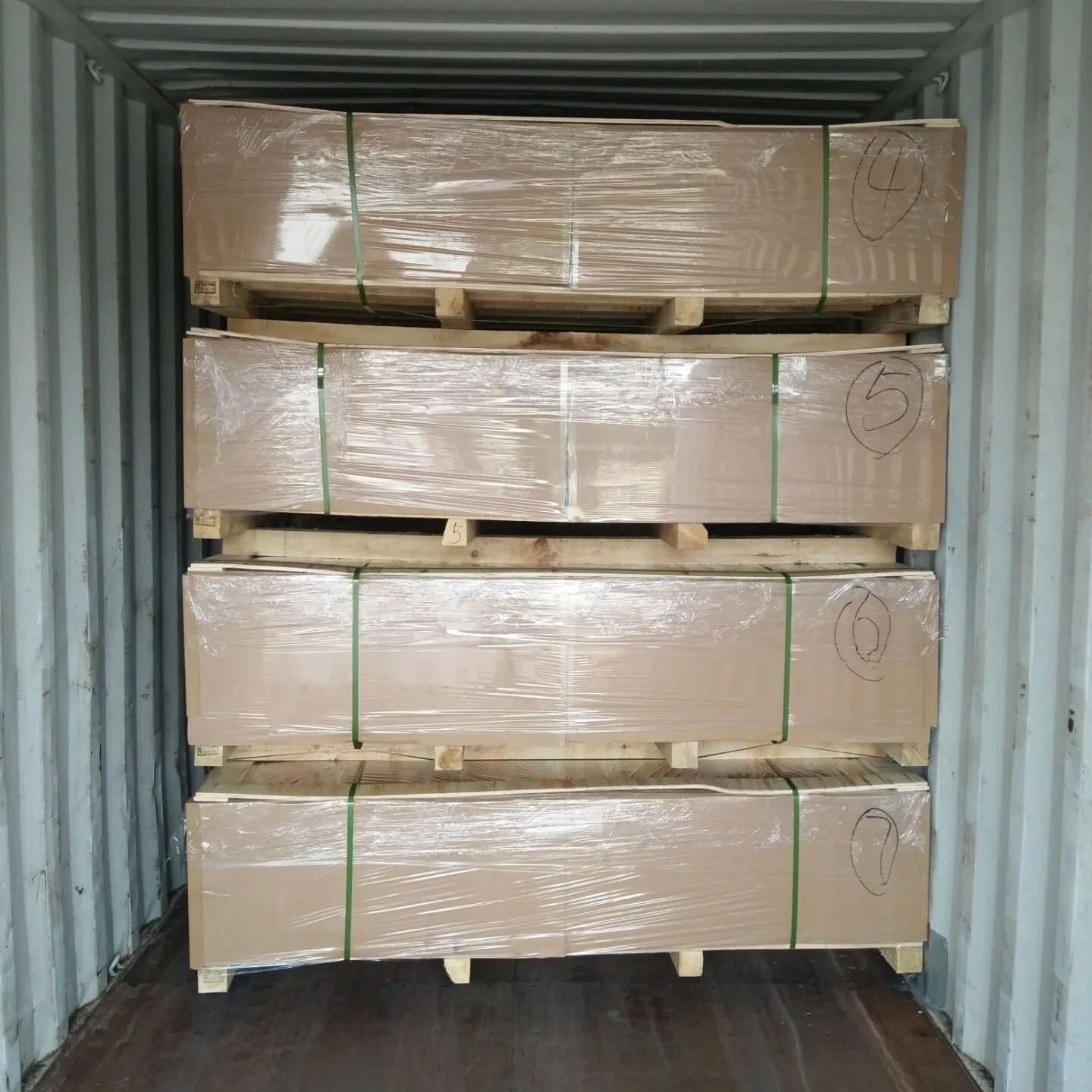

A: Each sheet covered by PE film or craft paper, around 1.5 tons packed in a wood pallet.
If you do not find the answer you want, please contact us, and then you will get the answer you want!
A: We are a professional manufacturer with 16 years experience in this field. And we have 33 industrial lines.
* 2, Q: How can i get the sample?
A: Small samples available are free, just freight collect.
* 3, Q: How long can I expect to get the sample?
A: We can prepare samples within 3 days. Usually it takes about 5-7 days for the delivery.
* 4, Q: Can we have our Logo or company name to be printed on your package?
A: Sure. Your Logo can be putted on the package by printing or sticker.
* 5, Q: What is your lead time for mass production?
A: Normally 10-30 days, depends on the size, quantity and season.
* 6, Q: What is your payment term?
A: T/T, L/C, Paypal, Western Union, DP
* 7, Q: How do you pack it?
A: Each sheet covered by PE film or craft paper, around 1.5 tons packed in a wood pallet.
If you do not find the answer you want, please contact us, and then you will get the answer you want!
