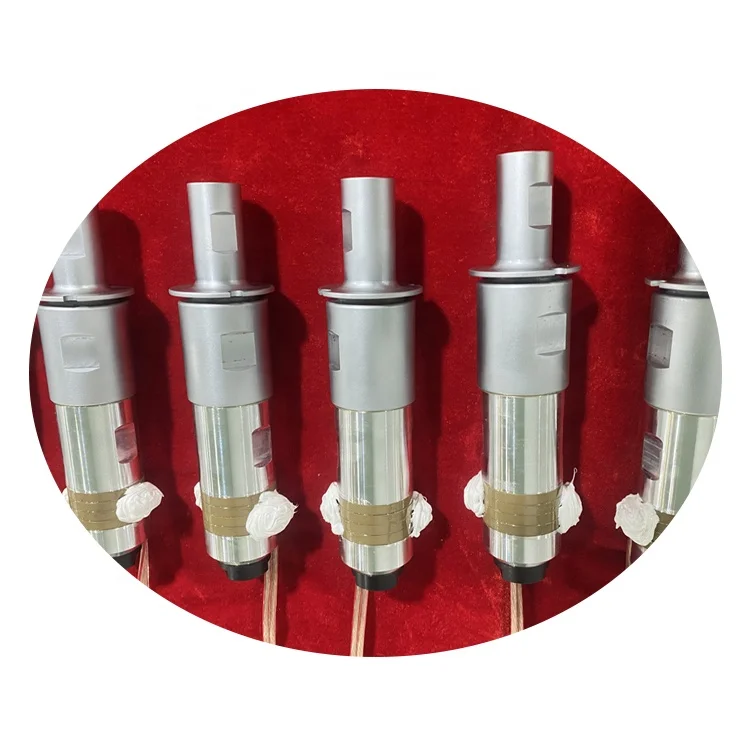

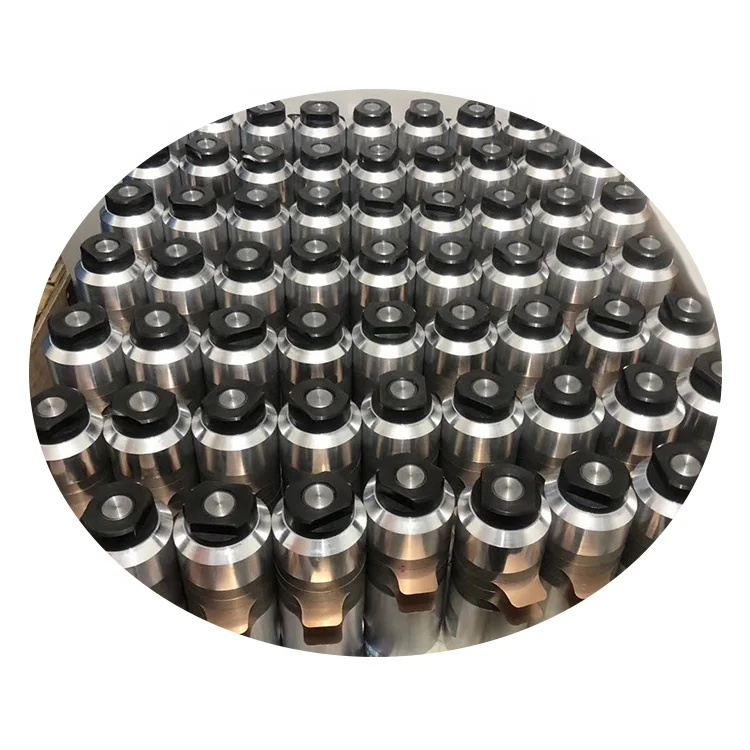

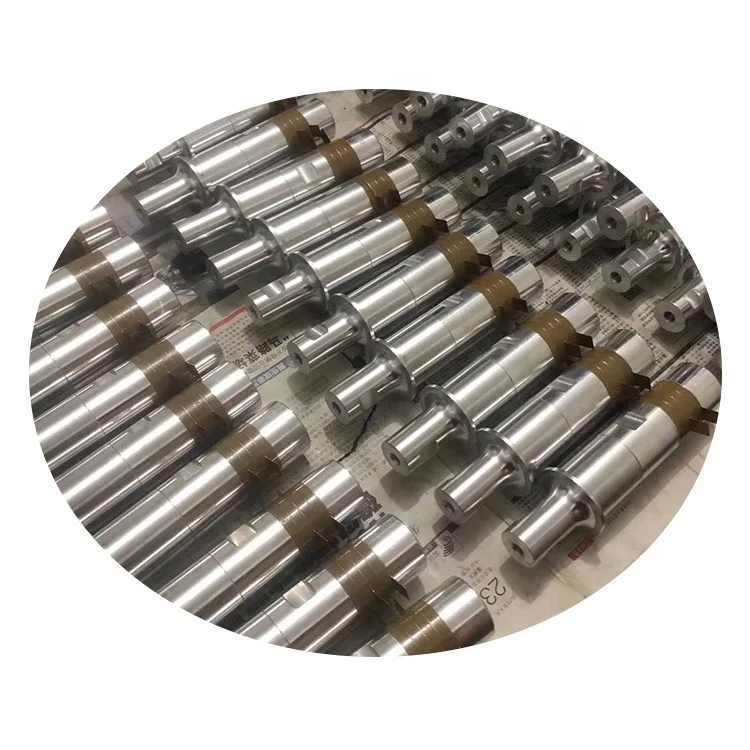

Factory direct cost effective ultrasonic welding transducer 20K universal ultrasonic booster

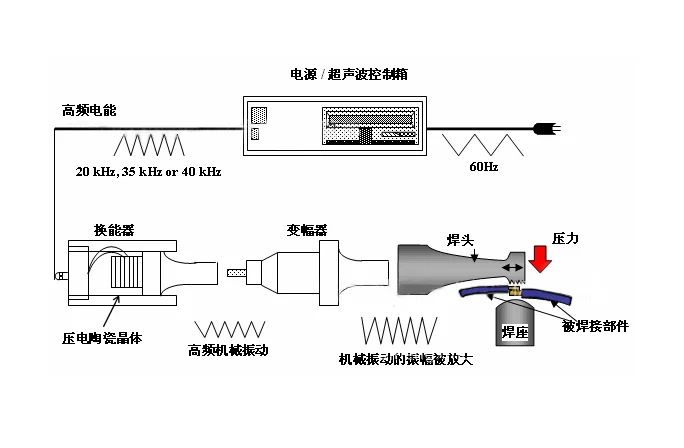

20kHz Piezoelectric Ultrasonic Transducer, Ultrasonic Generator and Ultrasonic Horn or Welding Head, which are consist of ultrasonic welding system, Ultrasonic welding principle is that the welder operate by inducing ultrasonic frequencies in machining components that is converted into heat between the welded laminates.  Frictional heat is produced so that thermoplastic parts melt and an insoluble connection between parts is forged in a very short period of time. The melting points of both working pieces is nearly equivalent which helps to form a uniform weld area.  The welded area is usually as strong as the matrix material.

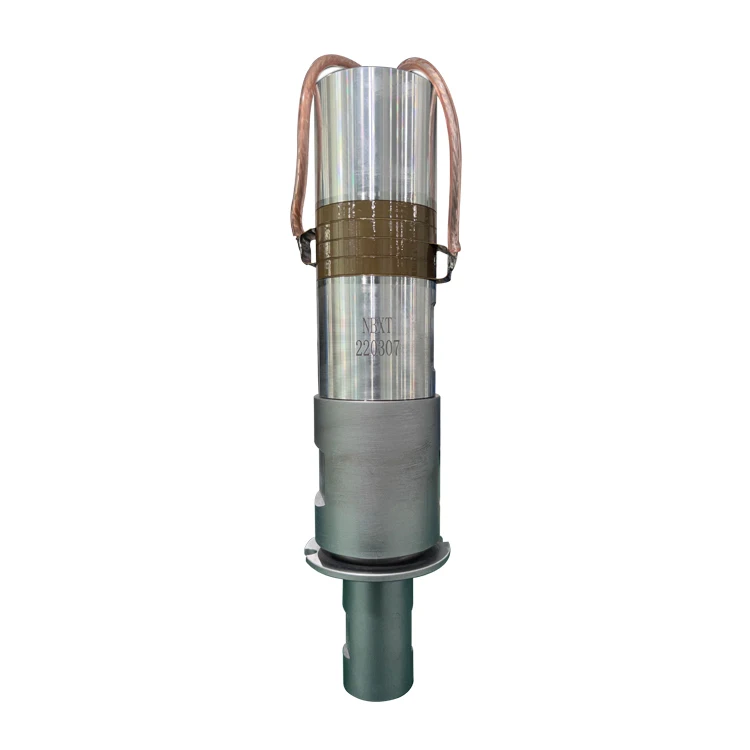

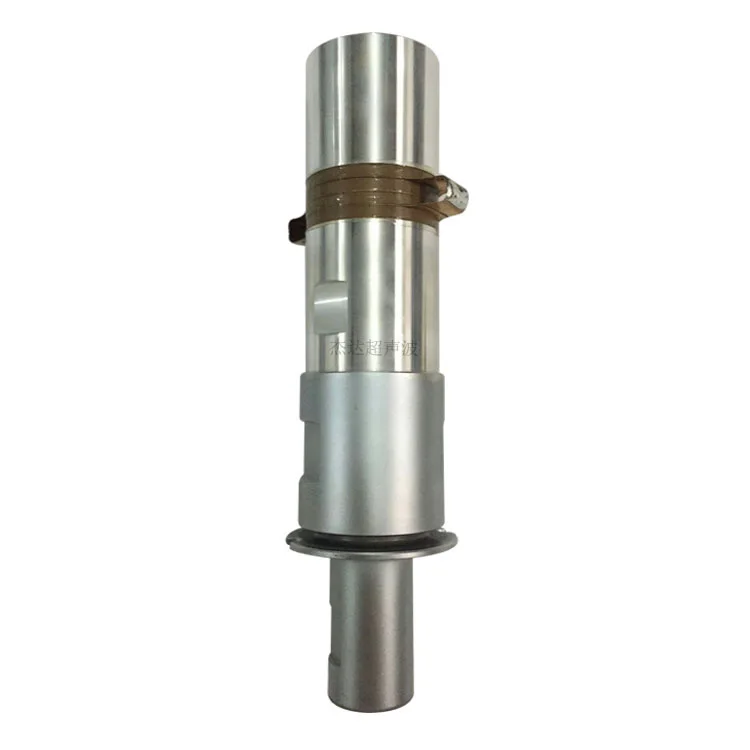

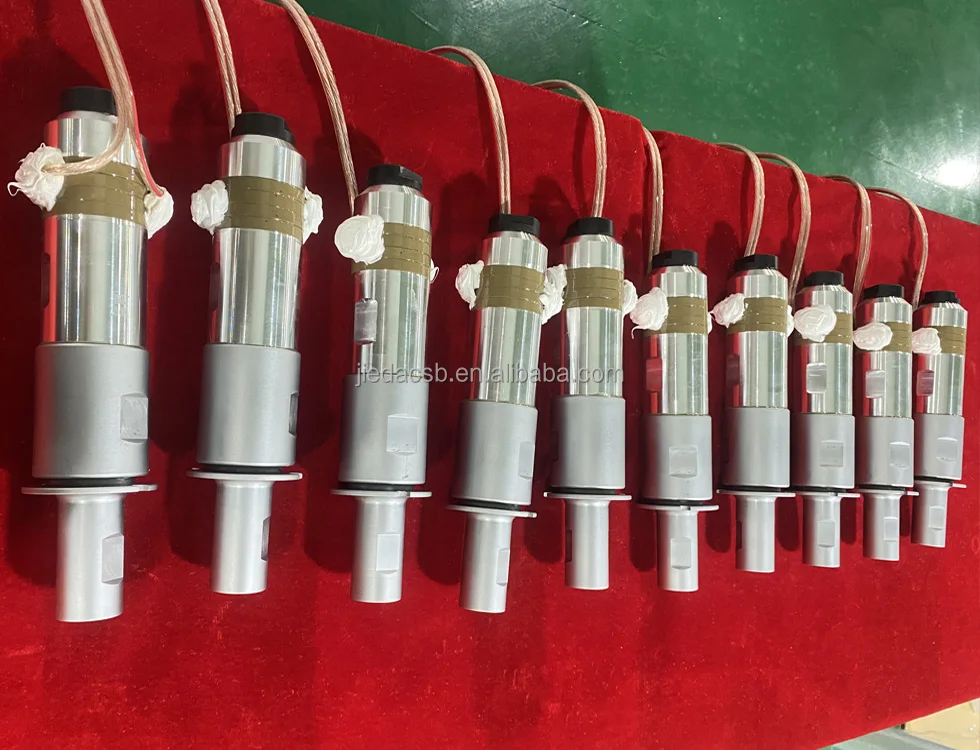

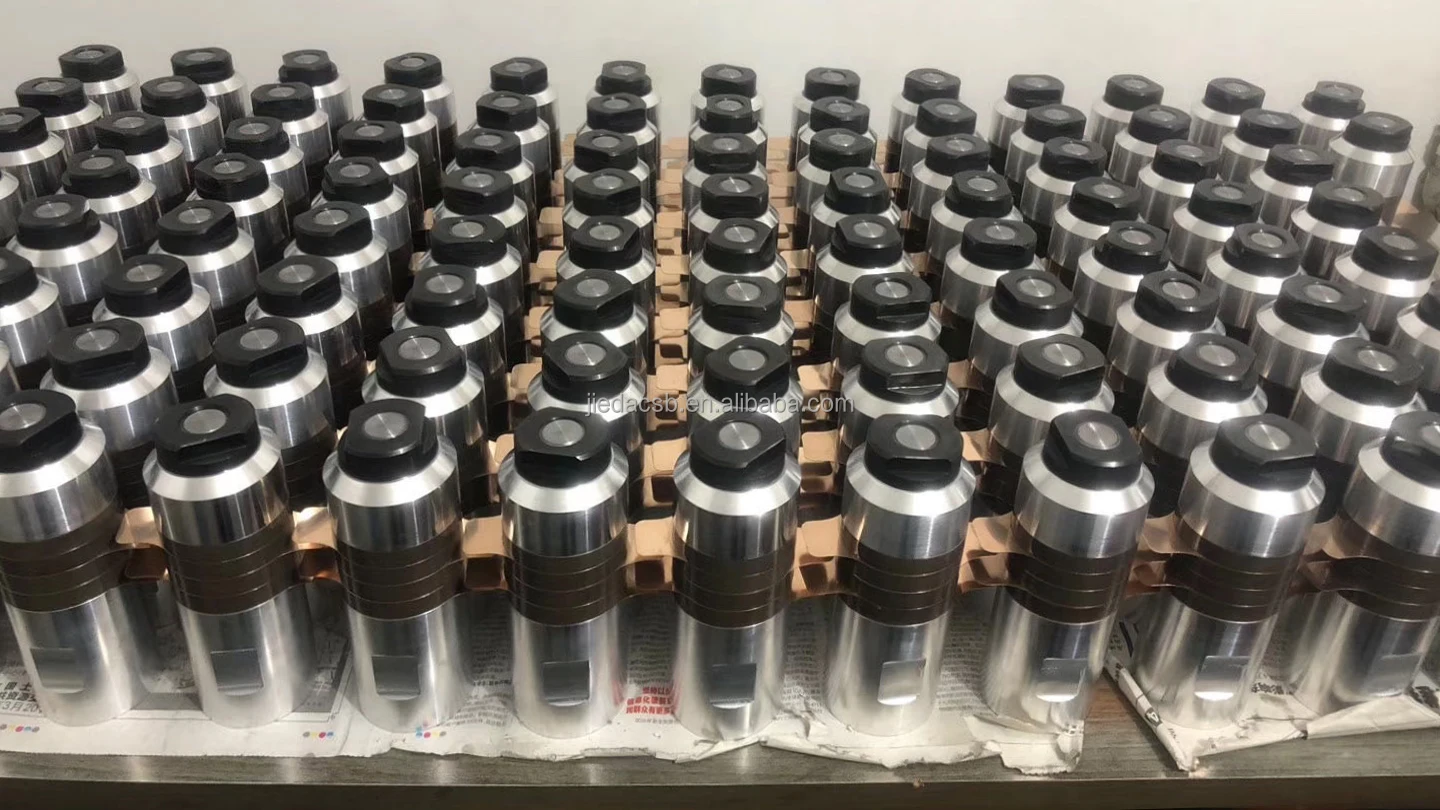

20k ultrasonic transducer

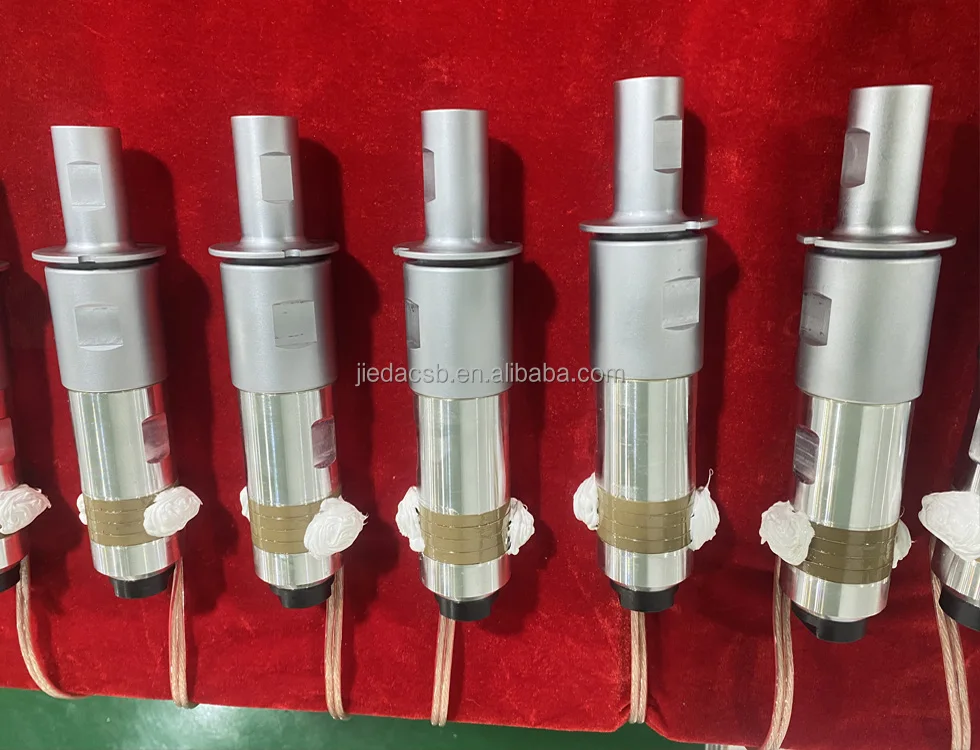

20K ultrasonic transducer can match a variety of ultrasonic equipment, with ultrasonic generator and ultrasonic welding head, for a complete set of ultrasonic welding system, can be applied to plastic bags, non-woven fabrics, masks, paper cups, plastic products, etc., welding.

Components:
1. central piezoelectric ceramic element 2. front and rear metal cover
3. prestressing screw 4. electrode sheet 5. insulating tube

Features:
The piezoelectric ceramic chip adopts original imported parts, which ensures strong and stable ultrasonic power output;

High efficiency: high mechanical quality factors, in the vibration of the frequency point of work can be extremely high
electro-acoustic conversion efficiency

High performance: high mechanical quality factor, electro-acoustic conversion energy rate of more than 90%.

Large amplitude: high vibration speed of the vibrator, through the dowel directly fixed to the bottom of the cleaning tank, so that the strength in order to improve, compared with the magnetostrictive vibrator, amplitude increased by more than 50%.

Good heat resistance: wide temperature range, small resonance impedance, small heat generation.
Strong structure: fastened with dowel, easy to install, high reliability.
