In Stock IPC HDBW2441R Z(A)S Dahua IK10 IP67 12 VDC/PoE power supply 4MP IR 40m Vari focal Dome WizSense Network Ip Camera
- Category: >>>
- Supplier: Shenzhen Ruoxi Technology Co. Ltd.
Share on (1600979373772):
Product Overview
Description
Products Description

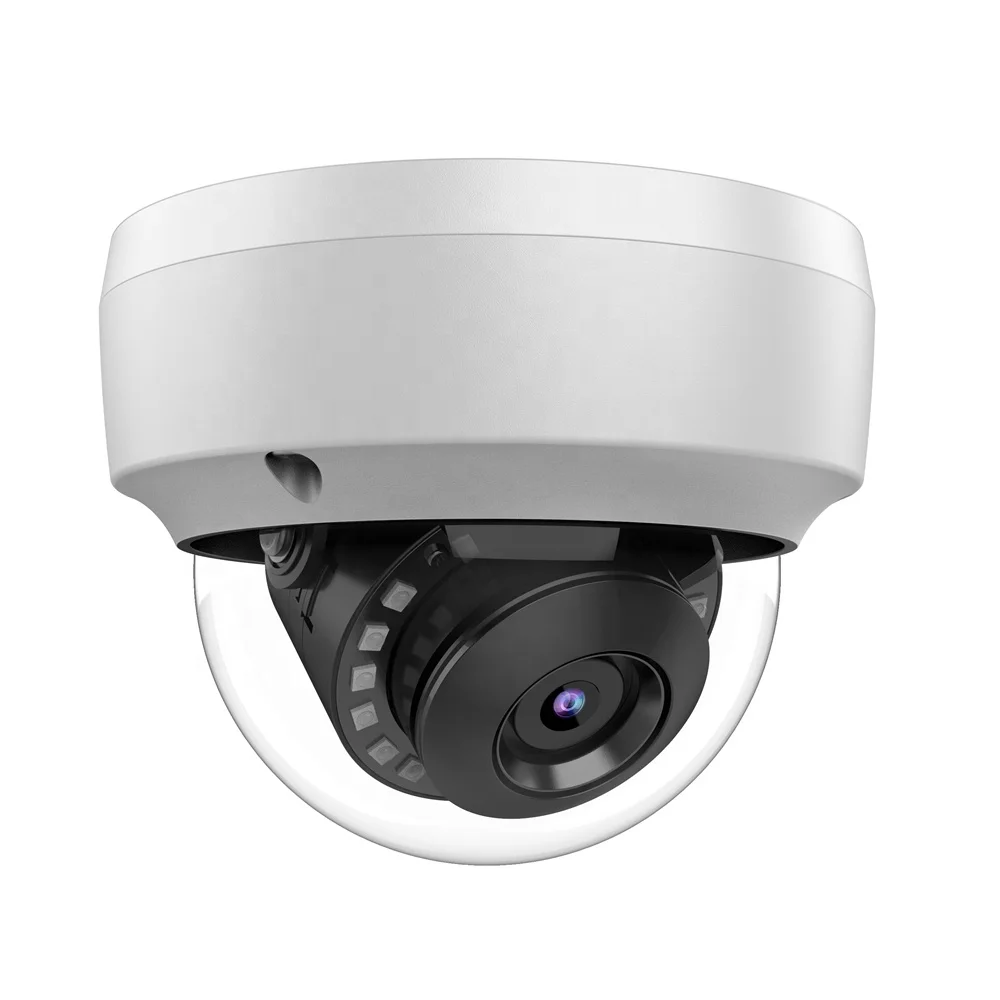

4MP IR Vari-focal Dome WizSense Network Camera
· 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
· Outputs max. 4 MP (2688 × 1520)@20 fps and supports 2560 × 1440 (2560 × 1440)@25/30 fps.
· H.265 codec, high compression rate, ultra-low bit rate.
· Built-in IR LED, and the max. illumination distance is 40 m.
· Built-in IR LED, and the max. illumination distance is 40 m.
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
· Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
· Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
· Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); supports max. 256 G Micro SD card; built in MIC.
· Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); supports max. 256 G Micro SD card; built in MIC.
· 12 VDC/PoE power supply, easy for installation.

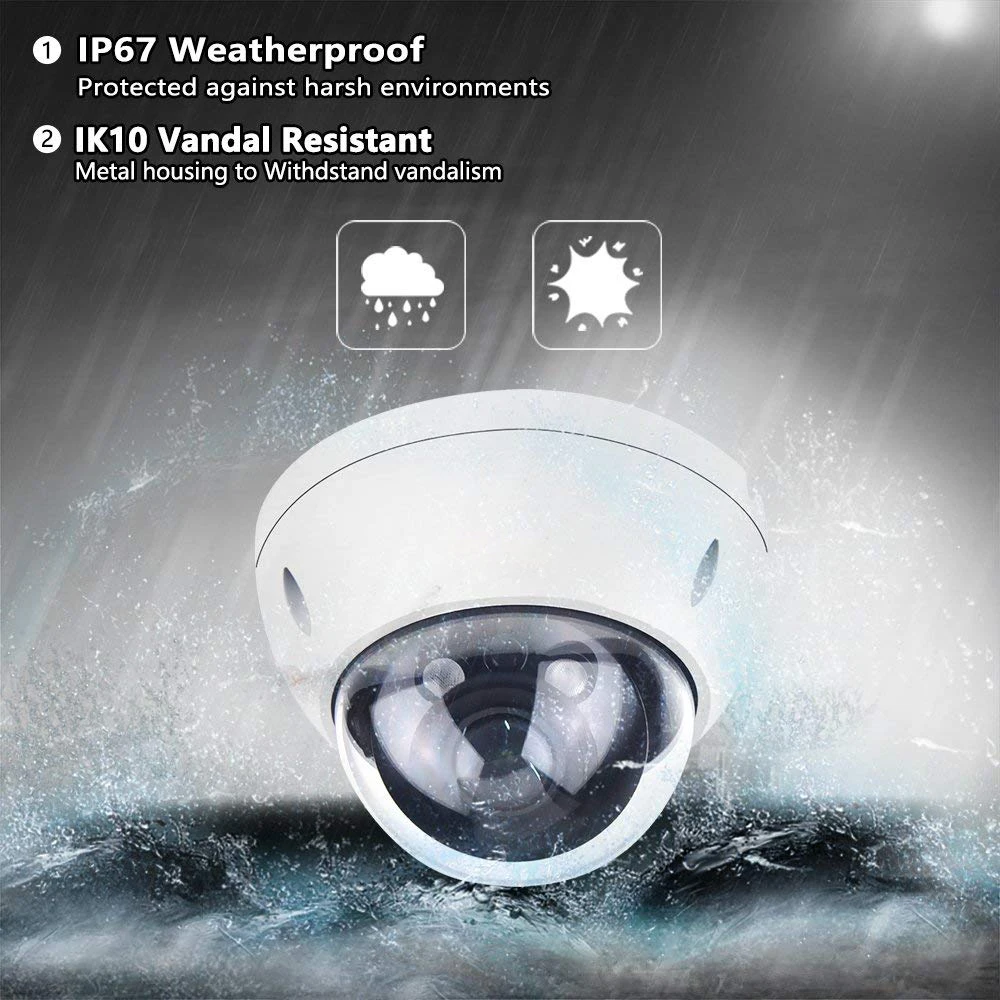

· IP67 and IK10 protection.
· SMD Plus.
Specification
Camera | |
Image Sensor | 1/2.9" CMOS |
Max. Resolution | 2688 (H) × 1520 (V) |
ROM | 128 MB |
RAM | 128 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination | 0.006 lux@F1.5 (Color, 30 IRE) 0.0006 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
S/N Ratio | >56 dB |
Illumination Distance | 40 m (131.23 ft) (IR LED) |
Illuminator On/Off Control | Auto; Manual |
Illuminator Number | 2 (IR LED) |
Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355° |
Lens Type | Motorized vari-focal |
Lens Mount | φ14 |
Focal Length | 2.7 mm–13.5 mm |
Max. Aperture | F1.5 |
Field of View | H: 104°–29°; V: 54°–16°; D: 125°–34° |
Iris Control | Fixed |
Close Focus Distance | 0.8 m (2.62 ft) |
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+ Smart H.264+ |
Video Frame Rate | Main stream: 2688 × 1520@(1–20 fps )/2560 × 1440@ (1-25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
Stream Capability | 2 streams |
Resolution | 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control | CBR/VBR |
Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
Day/Night | Auto(ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control | Manual;Auto |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) | Yes (4 areas) |
Smart Illumination | Yes |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
Mirror | Yes |
Privacy Masking | 4 areas |
Built-in MIC | Yes |
Audio Compression | G.711a; G.711Mu; G.726; PCM |
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only- ZAS supports); SMD; security exception |
Network Port | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
Interoperability | ONVIF (ProfileS/Profile T); CGI; P2P; Milestone |
User/Host | 6 (Total bandwidth: 36 M) |
Storage | FTP; SFTP; Micro SD card (support max. 256 GB) |
Browser | IE Chrome Firefox |
Management Software | Smart PSS; DSS; DMSS |
Mobile Client | iOS; Android |
Our Advantages
Company Profile
Certifications
Transport & Payment
FAQ
Q. What's the actual products I can get?
A:we send the original products ,only the origianl products can work with the offical app(hik-connect)
Q. What's ETA time and stock status?
A: With Sales & Support department and US/EU/AU/RU warehouse, we provide most lines of stock products. So if stock products, the
ETA is about 3-5 days, and for products with bulk quantity, the delivery time is about 2-4 weeks.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products, OEM products are with 3 years.
Q.What is your method of payment?
A: T/T, Western Union, Paypal, credit card is welcomed.
Q.What is Minimum Order Quantity?
A: Sample order is welcomed, while the price is more competitive for big quantity .
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, Fedex, TNT, UPS etc. For bulk order, we can ship the
products to your forwarder or will find a best shipping way for you.
A:we send the original products ,only the origianl products can work with the offical app(hik-connect)
Q. What's ETA time and stock status?
A: With Sales & Support department and US/EU/AU/RU warehouse, we provide most lines of stock products. So if stock products, the
ETA is about 3-5 days, and for products with bulk quantity, the delivery time is about 2-4 weeks.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products, OEM products are with 3 years.
Q.What is your method of payment?
A: T/T, Western Union, Paypal, credit card is welcomed.
Q.What is Minimum Order Quantity?
A: Sample order is welcomed, while the price is more competitive for big quantity .
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, Fedex, TNT, UPS etc. For bulk order, we can ship the
products to your forwarder or will find a best shipping way for you.
