Product Overview
Description
Product Description

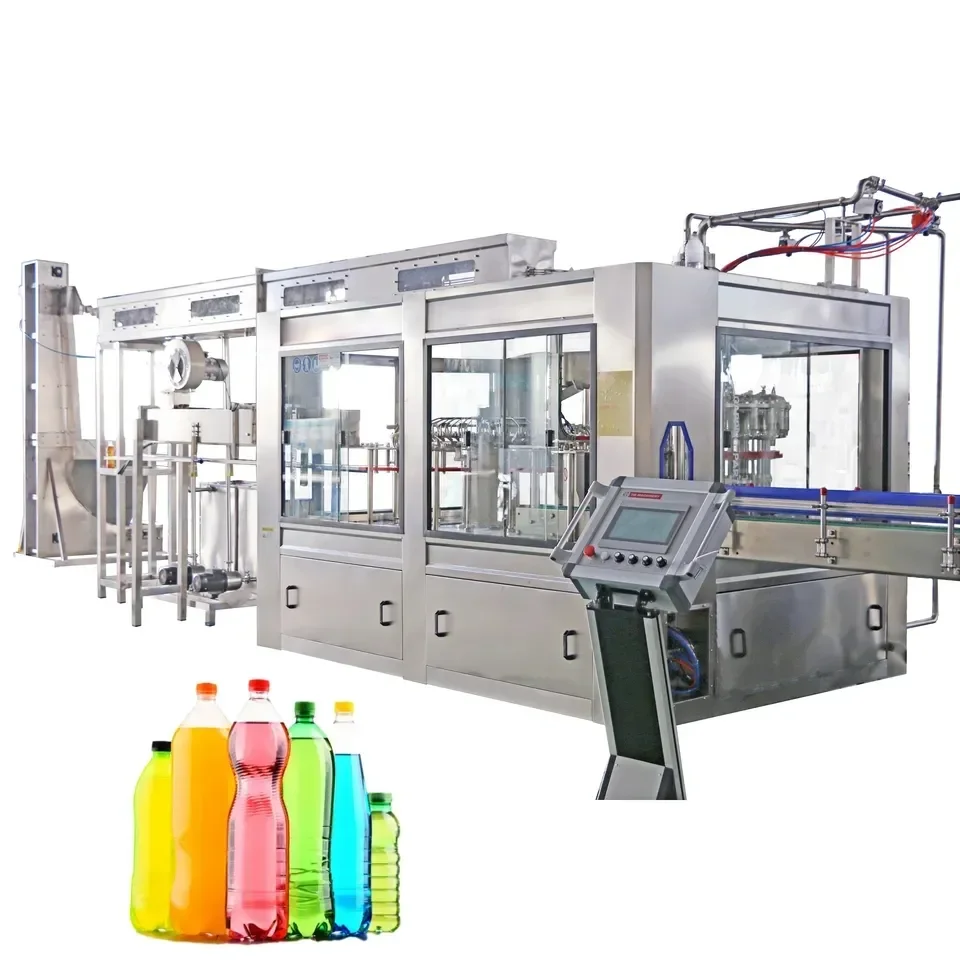

The carbonated beverage filling machine is a three-in-one filling machine integrating rinsing, filling and capping. It is suitable for the filling production of soda water and other gas-containing beverages in polyester bottles. The whole machine is controlled by PLC system, operated by touch screen, and has a high degree of automation. According to the characteristics of gas-containing beverages, the filling valve adopts an isobaric filling valve, with precise liquid level control and stable filling. Equipped with a pressure regulating device for precise control of carbon dioxide pressure, the filling level is accurate and stable. The main engine is equipped with protection and alarm devices such as bottle jam, lack of bottle, lack of cap, overload, etc., to ensure the quality of carbonated beverages produced.
Specification
Model | SYD 24-24-8 |
Washing head | 24 |
Filling head | 24 |
Capping head | 8 |
Production capacity 500ml B/H | 6000-8000 |
Applicable bottle height | 150-330mm |
Applicable bottle inner diameter | Round,Φ50-Φ105MM |
Rinsing water pressure | 0.2-0.25 (MPa) |
Air pressure | 0.4 (MPa) |
Filling temperature | 4℃ |
Air consumption | 0.4 (m³/min） |
Rinse water consumption | 1500 (kg/h) |
Power (KW) | 4.3 |
Dimensions (L*W*H) | 3300*2300*2400 |
Weight (kg) | 5500 |
Product Details

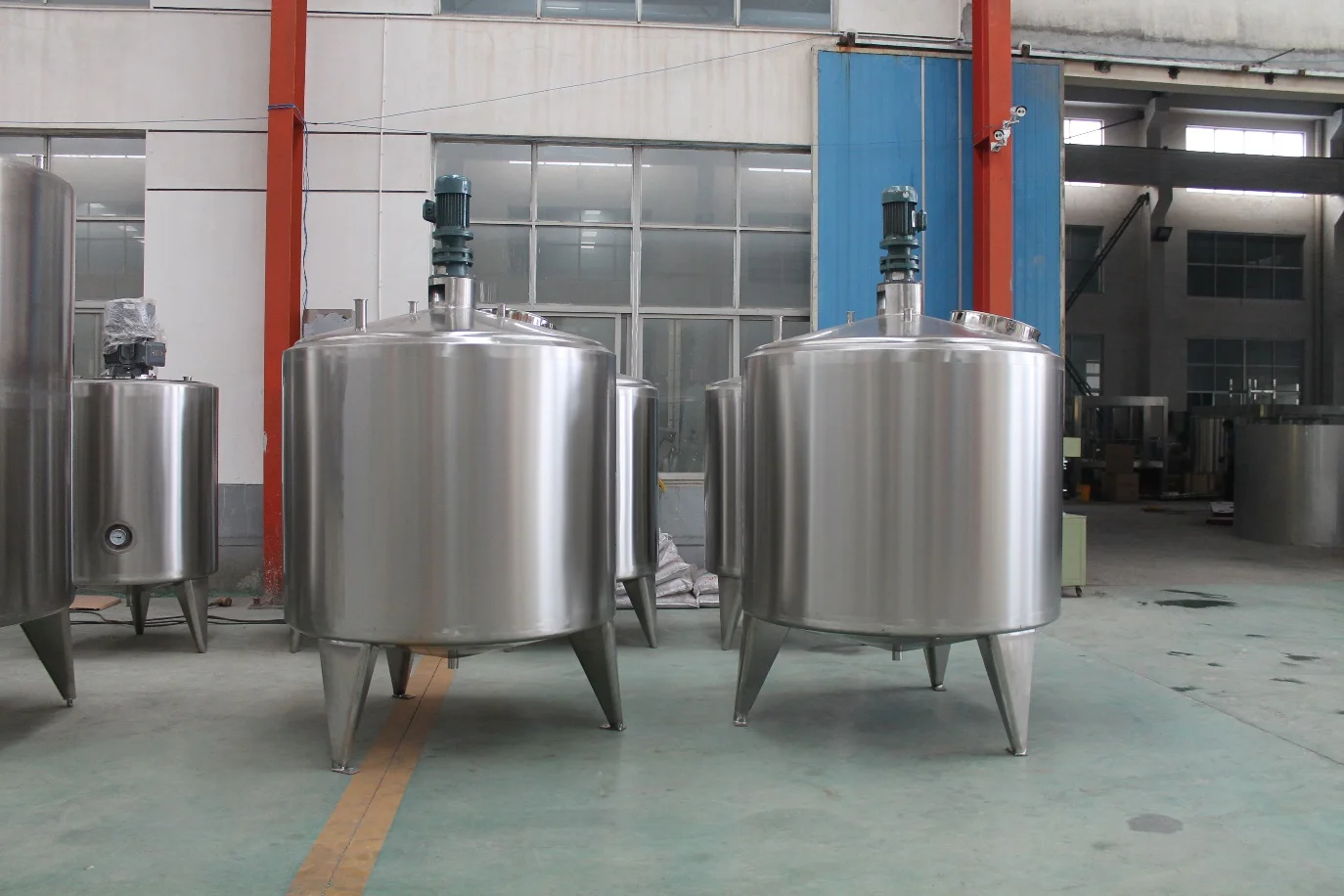

Beverage mixing tank
The tank is made of SUS304, the motor drives mixing head to mix sugar(or syrup) and water, and other material in drink you want to
mix, it is preparation before freezing, pump taking directly, reduce re-pollution;

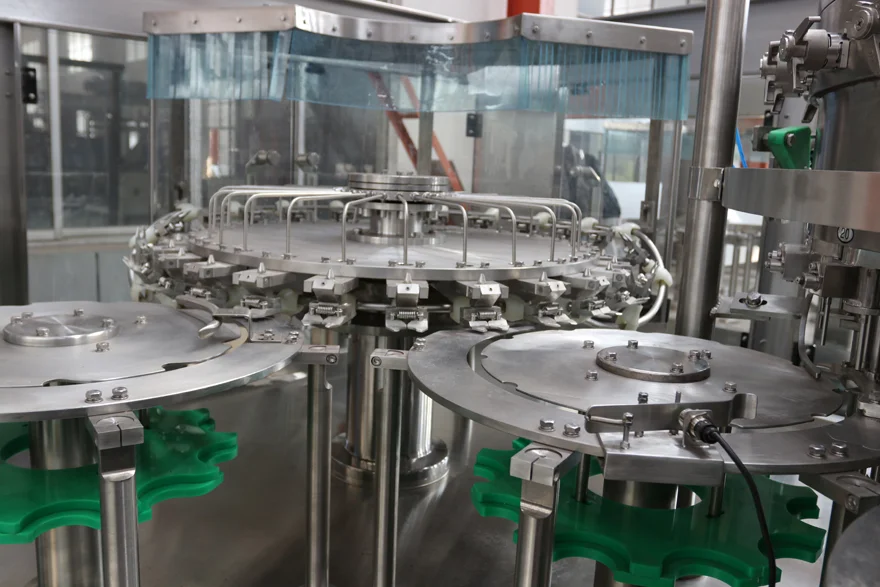

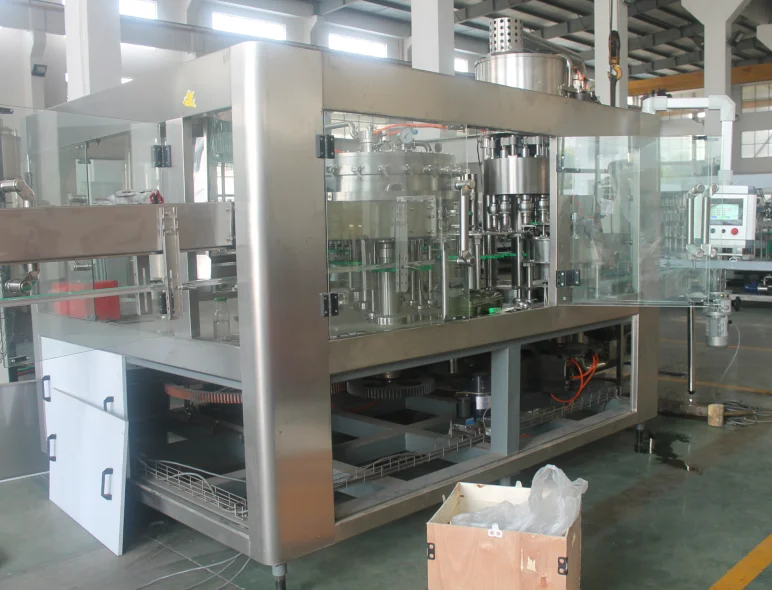

3 in 1 rinser-filler-capper for carbonated drink
The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The
filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.

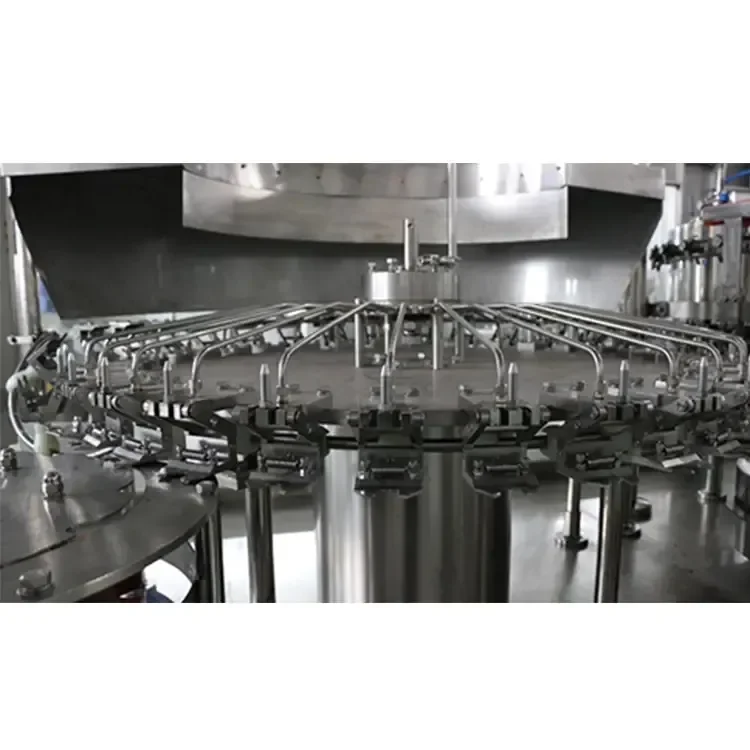

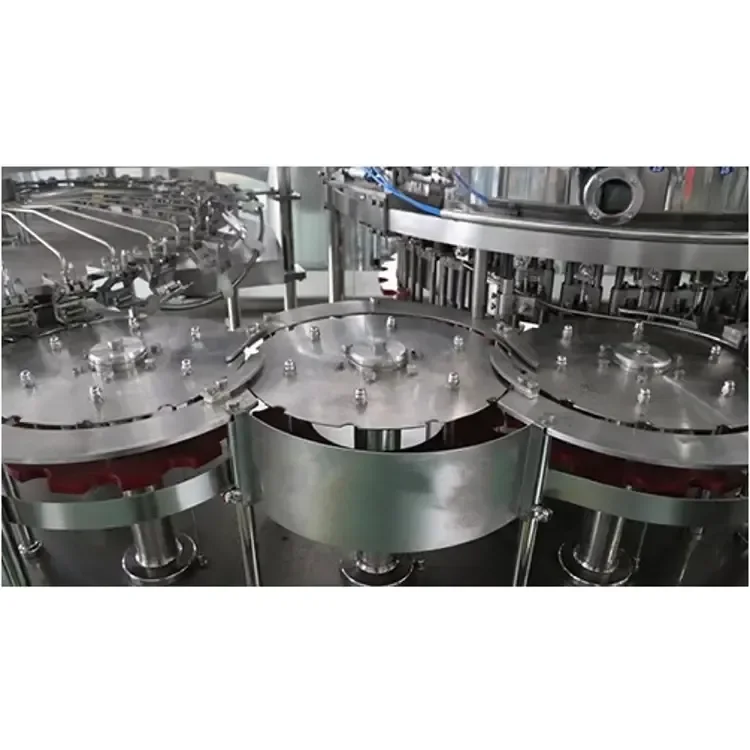

Bottle Rinser part:
1）Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are
made of stainless steel 304.
2）The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.
3）The gripper is made of stainless steel, the position where hold the bottleneck is also made of stainless steel, compared with
the traditional rubber gripper, it is much hygiene, durable, and no quick-wear parts, the screw parts of the bottleneck can avoid
being polluted by the rubber gripper.
made of stainless steel 304.
2）The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.
3）The gripper is made of stainless steel, the position where hold the bottleneck is also made of stainless steel, compared with
the traditional rubber gripper, it is much hygiene, durable, and no quick-wear parts, the screw parts of the bottleneck can avoid
being polluted by the rubber gripper.

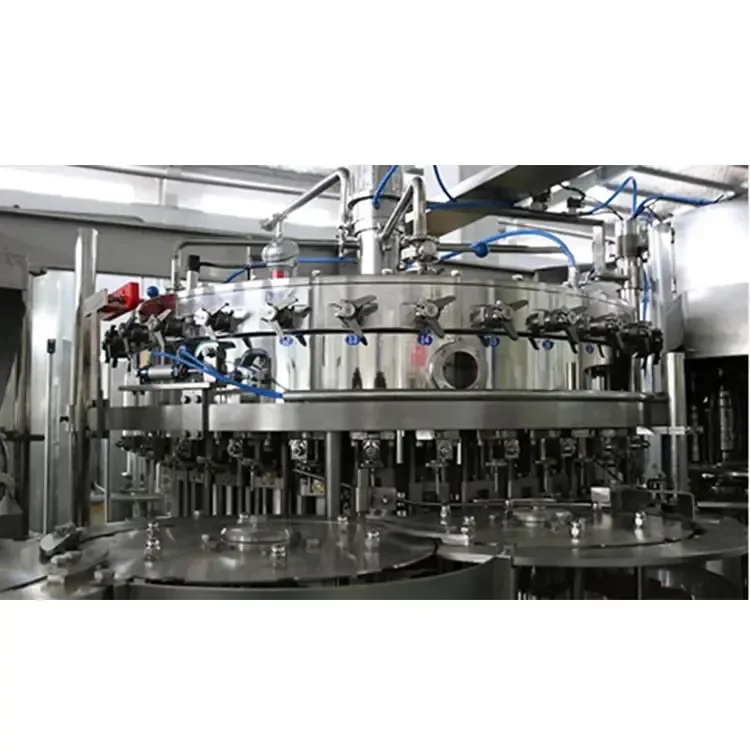

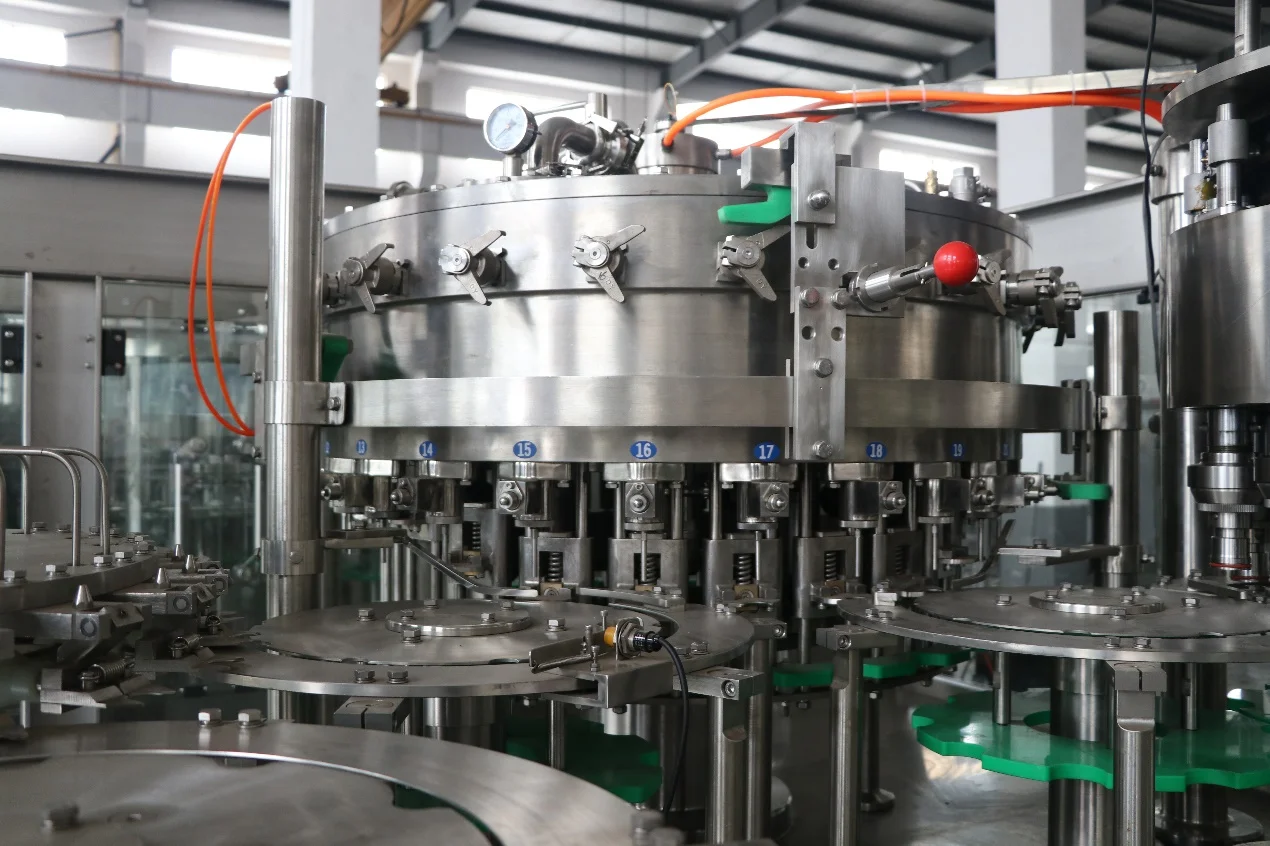

Bottle Filler part
1)Adopted Germany anti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
2) The rotate plate is made of SUS AISI304, large flat toothed bearing.
3) The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of 304 stainless steel.
2) The rotate plate is made of SUS AISI304, large flat toothed bearing.
3) The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of 304 stainless steel.

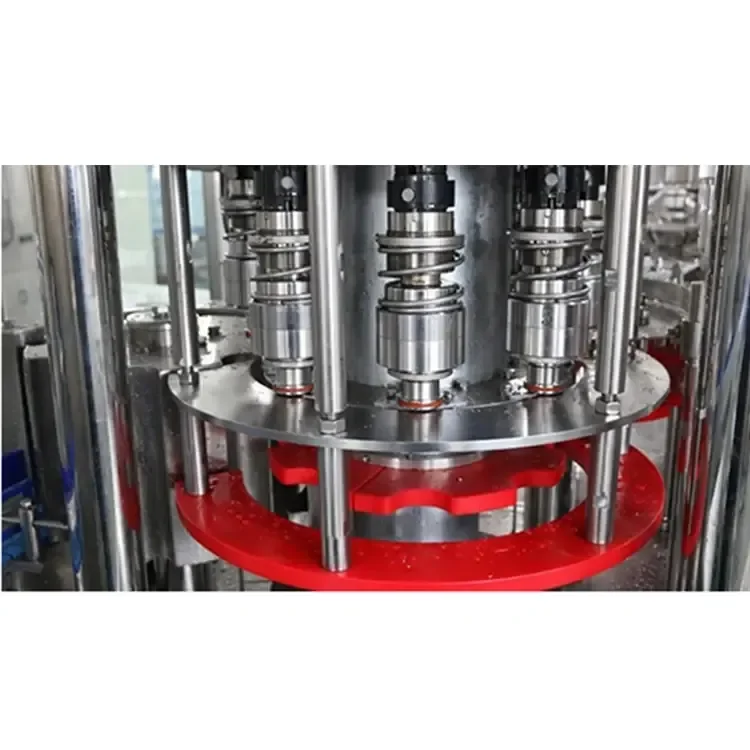

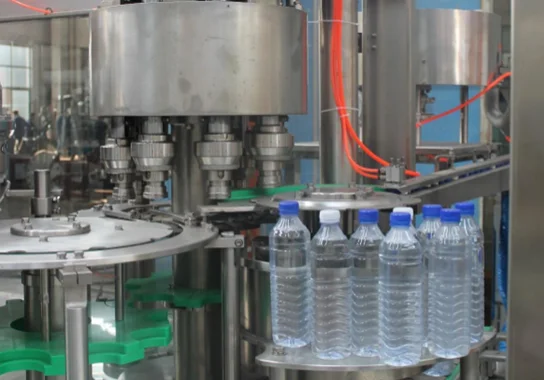

Bottle Capper part
Introduce most advanced cap sealing technology called France “ZALKIN “. With the help of expert from institute of electro mechanics and mechanical engineering of Shanghai Communications University, we successfully designed. For example: I) the screwing capping head cam (the main parts which can assure the machine run stationary), while adopting “ZALKIN” technology, the expert improve the authenticity and stability of the machine focused on dynamics and kinematics. II) Screwing capping head (the main parts which can assure the capping quality)

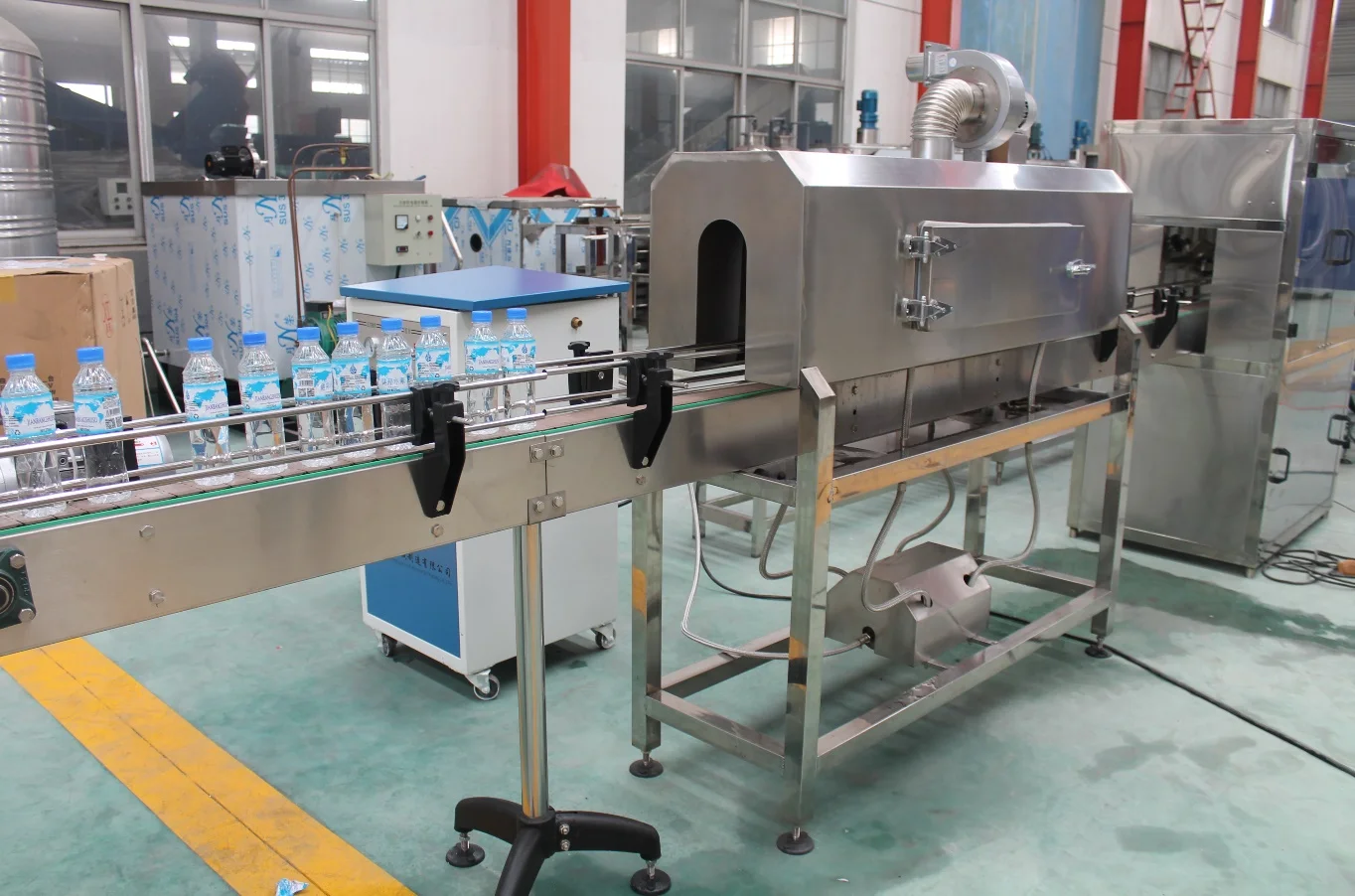

Sleeve labeling table + Steam shrink tunnel+ steam generator
Semi-automatic PE film shrink packing machine
● Motor adjust the speed
● Pushing the bottle, thermo sealing and cutting are adopt pneumatic system.
● Double-wind cycling fan machine, ensure the temperature in shrinkage tunnel evenly.
● Super wind-volume cooling system, ensure get into shape quickly.
● Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.
● Motor adjust the speed with belt convey structure.
● Wing type stainless iron heating system, endurance used.
● Pushing the bottle, thermo sealing and cutting are adopt pneumatic system.
● Double-wind cycling fan machine, ensure the temperature in shrinkage tunnel evenly.
● Super wind-volume cooling system, ensure get into shape quickly.
● Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion.
● Motor adjust the speed with belt convey structure.
● Wing type stainless iron heating system, endurance used.
Packing & Delivery
Company Profile
FAQ
Q1. How can I trust you for the first-time business?
Please note our business license and certificates above. if you still worry about our company, we suggest using
Please note our business license and certificates above. if you still worry about our company, we suggest using
Alibaba trade assurance service for all transactions to protect your money and ensure our service for you.
Q2. How about the after-sale service and guarantee period?
1. 18-month warranty period for whole machine except for human factors etc. and 18 months’ after-sale service starts from the date when you receive machine or 18 months when installation finished.
2. Consultation services for whole machine life, and 24 hours technical support by email or video on line
3. English software, user manual and the installation & debugging by our experienced technicians.
Q3. If we have very special request on the production line, could you help me to do the design?
Customized design is provided.
Q4. How does the machine fit our voltage? How can I know your machine is designed for my product?
1. For each equipment, our sales team will confirm the voltage with the customer.If you need standard machines and samples, we can buy samples for your product testing in China, provided we have prototype machines.
2. If you need non-standard machine and special sample, please communicate with our team, then pay the deposit first, we will customize the machine according to the sample, after the production, we will provide you with detailed operation video and equipment photos.
Q5. How can you ensure the machine's quality after we put the order?
Before delivery, we will produce the equipment according to the agreed requirements, and after production, we will provide detailed installation videos, operation videos, operating instructions, testing documents, certification documents, etc.
Alternatively, we can arrange a third-party inspector to perform FAT, and we also support SAT.
Q2. How about the after-sale service and guarantee period?
1. 18-month warranty period for whole machine except for human factors etc. and 18 months’ after-sale service starts from the date when you receive machine or 18 months when installation finished.
2. Consultation services for whole machine life, and 24 hours technical support by email or video on line
3. English software, user manual and the installation & debugging by our experienced technicians.
Q3. If we have very special request on the production line, could you help me to do the design?
Customized design is provided.
Q4. How does the machine fit our voltage? How can I know your machine is designed for my product?
1. For each equipment, our sales team will confirm the voltage with the customer.If you need standard machines and samples, we can buy samples for your product testing in China, provided we have prototype machines.
2. If you need non-standard machine and special sample, please communicate with our team, then pay the deposit first, we will customize the machine according to the sample, after the production, we will provide you with detailed operation video and equipment photos.
Q5. How can you ensure the machine's quality after we put the order?
Before delivery, we will produce the equipment according to the agreed requirements, and after production, we will provide detailed installation videos, operation videos, operating instructions, testing documents, certification documents, etc.
Alternatively, we can arrange a third-party inspector to perform FAT, and we also support SAT.
