Portable Handheld Metal Detector Airport Subway Body Scanner Security Metal Finder Security Check For Large Events

MD3003B1 special security detector handheld metal detector

Advantage of the product: This detector is suitable for airports, stations, wharves, customs, public security, border guards, security departments, sports stadium security checks or any other occasions where you need confidentiality and security. When metal is detected, it will emit a sharp sound and light. It can also be used for precious metal detection, such as gold and silver jewelry.

Product technical features.

Easy to use, convenient, no need to adjust, high and low sensitivity two options, alarm mode has sound and vibration two options, power on, power off sound or vibration prompt function, battery exhausted automatically continuous sound or vibration alarm, external charging jack.

Metal object test distance: big head pin 10mm, 1 yuan coin 60mm, 6 inch wrench 120mm

Product general characteristics.

Power on detection.

Turn on the power switch, hear the "ta" sound, time about 3-5 seconds, that the power has been connected, self-test time is complete, can be used normally.

At the same time, the green light is on. If the green light does not indicate that the battery is not installed or poor battery contact; such as continuous sound non-stop or continuous vibration or do not call, table

Battery can not be used again, should be replaced by a new battery.

Sound, vibration switch selection.

Press the yellow button switch, the alarm mode is vibration. Release the yellow button switch, the alarm mode is sound.

High sensitivity test.

Turn on the power supply, you can carry out high sensitivity testing, holding the handle will detect the surface of the probe around the object to be tested, there are metal objects will be issued.

Alarm sound or vibration, at the same time the green light becomes red; stop sweeping, the alarm sound or vibration stops, the red light becomes green.

Low sensitivity test.

If you need to exclude the metal objects in the very small objects, you can press and hold the low sensitivity switch, the test object around the scanning, there are

When metal objects, the alarm sound or vibration will be issued, at the same time, the green light becomes red; stop scanning, the alarm sound or vibration will stop, and the red light becomes red.

For the green light, because this time the sensitivity is reduced by more than 5 times, so this time to measure the general are relatively large metal objects.

Sensitivity adjustment.

If the detection distance does not meet the requirements of the regulations or sensitivity is too high to cause instability or no metal on the human body to detect the sweeping also issued sound or

When the sensitivity should be adjusted, put the sound, vibration switch in the "release" state, use a small screwdriver to adjust the sensitivity.

From the small hole in the detector handle into the counterclockwise rotation, adjusted to sound, and then counterclockwise rotation adjusted to not sound and then clockwise rotation.

Turn half a circle, until the sensitivity to meet the requirements.

Note: The sensitivity of the device can be adjusted by turning it half a turn clockwise until it meets the requirements.

Do not forget to turn off the power after use, long-term use should be removed from the battery, the probe fixed to the metal object does not emit sound or vibration, only in the

When the probe is fixed against metal objects, it does not emit sound or vibration, but only emits sound or vibration when it is swept over metal objects, when charging, please turn off the power switch, do not use it.

Power supply: 6F22 9V battery.

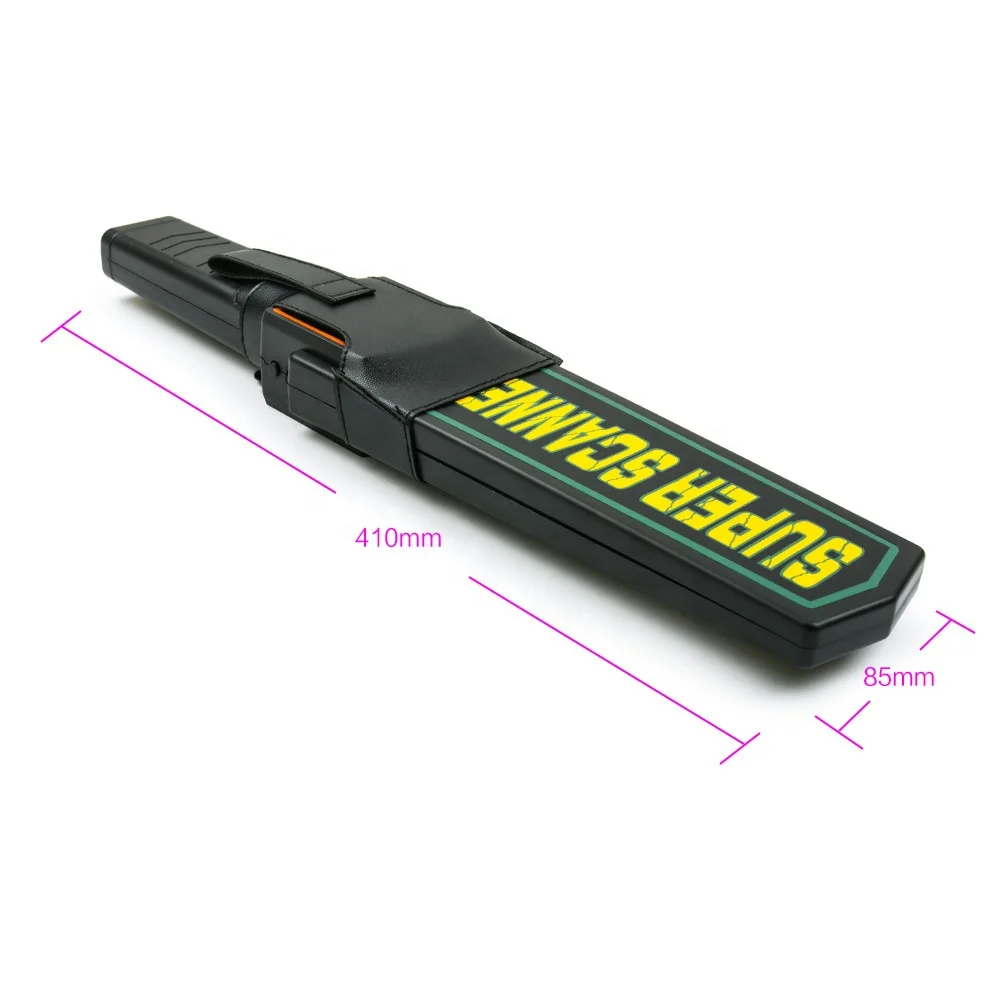

Product size: 410x85x45mm

Weight:about 310g(without battery)

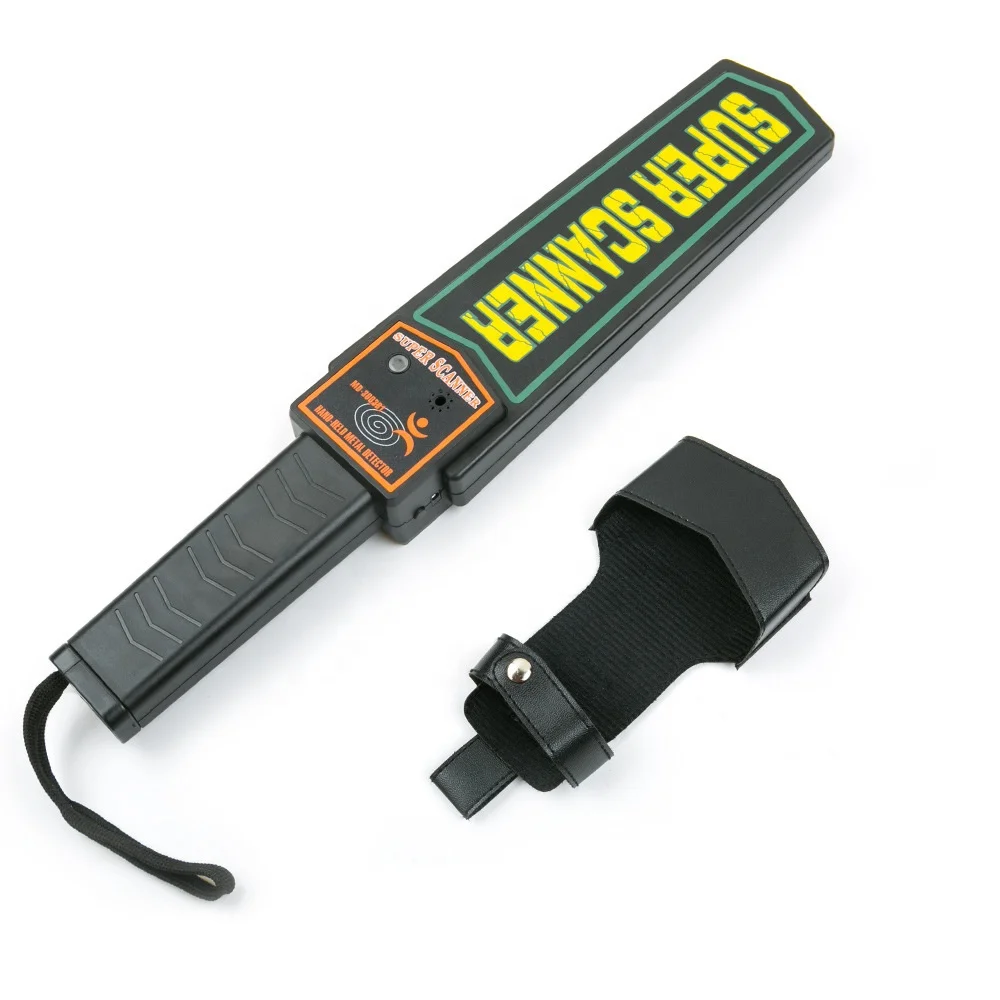

Standard Configurations:Bare watch(no battery inside),Leather case,Battery,Instruction manual.
