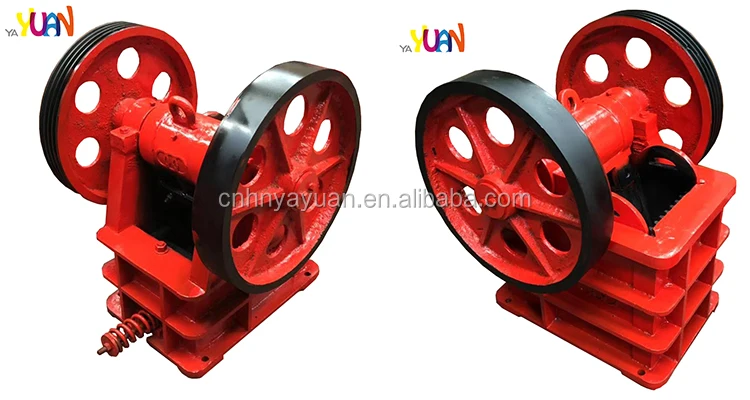

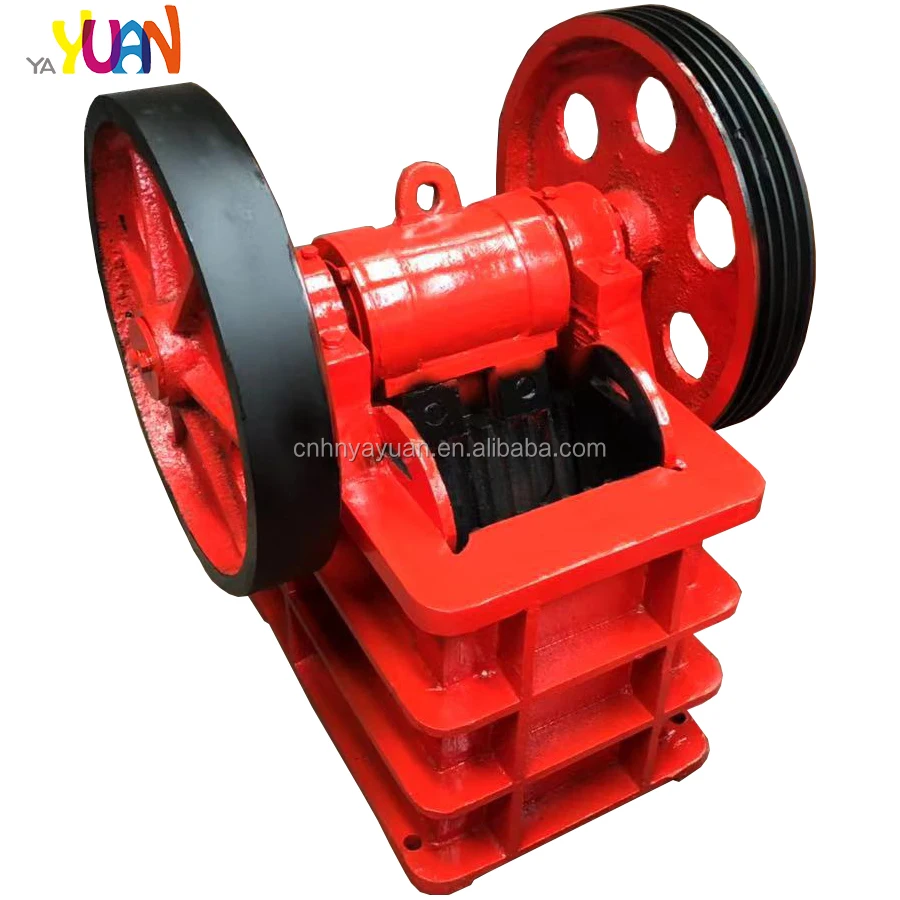

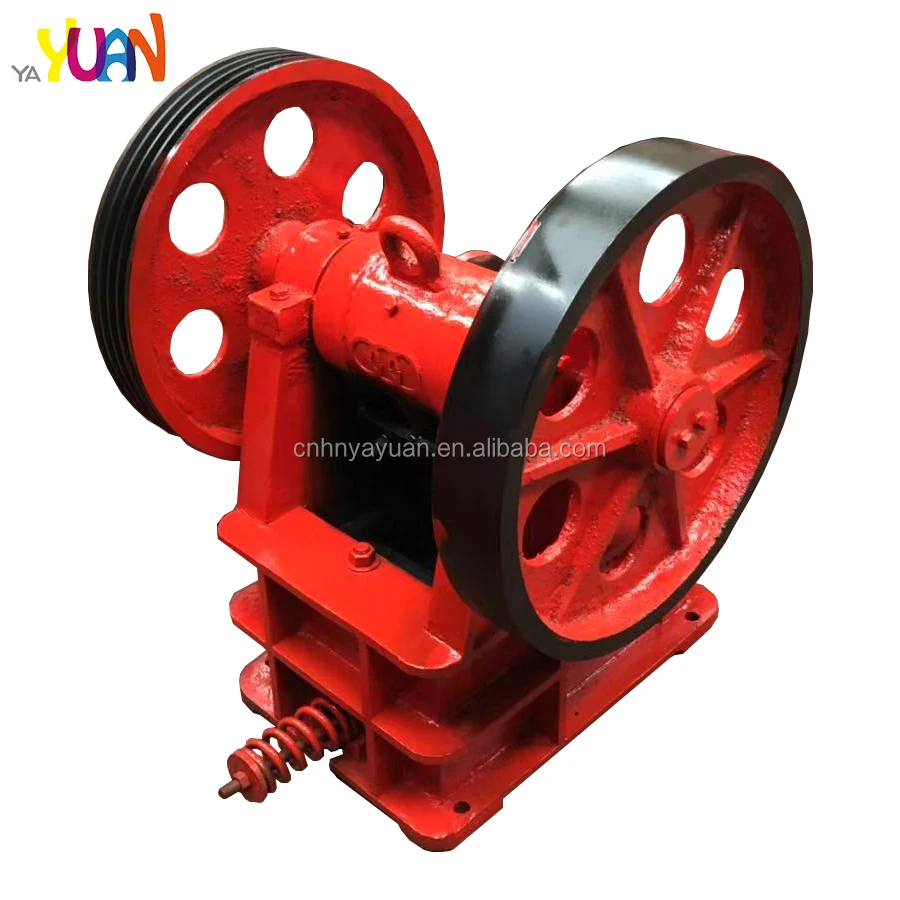

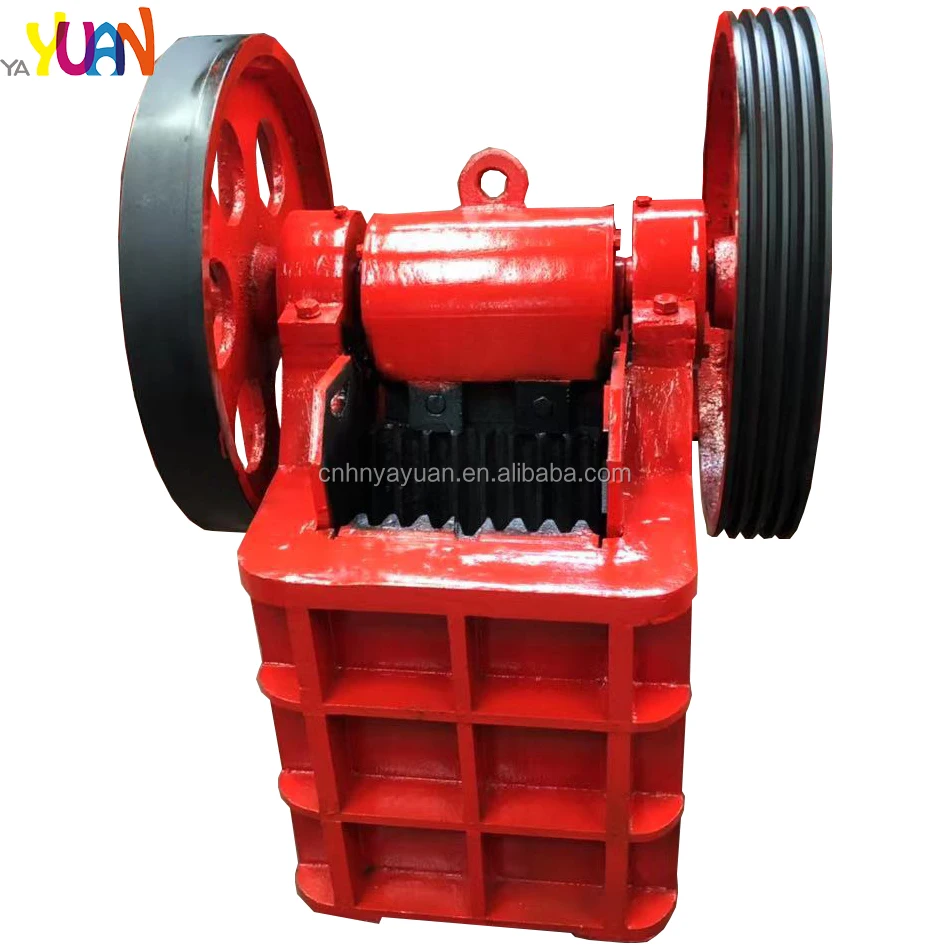

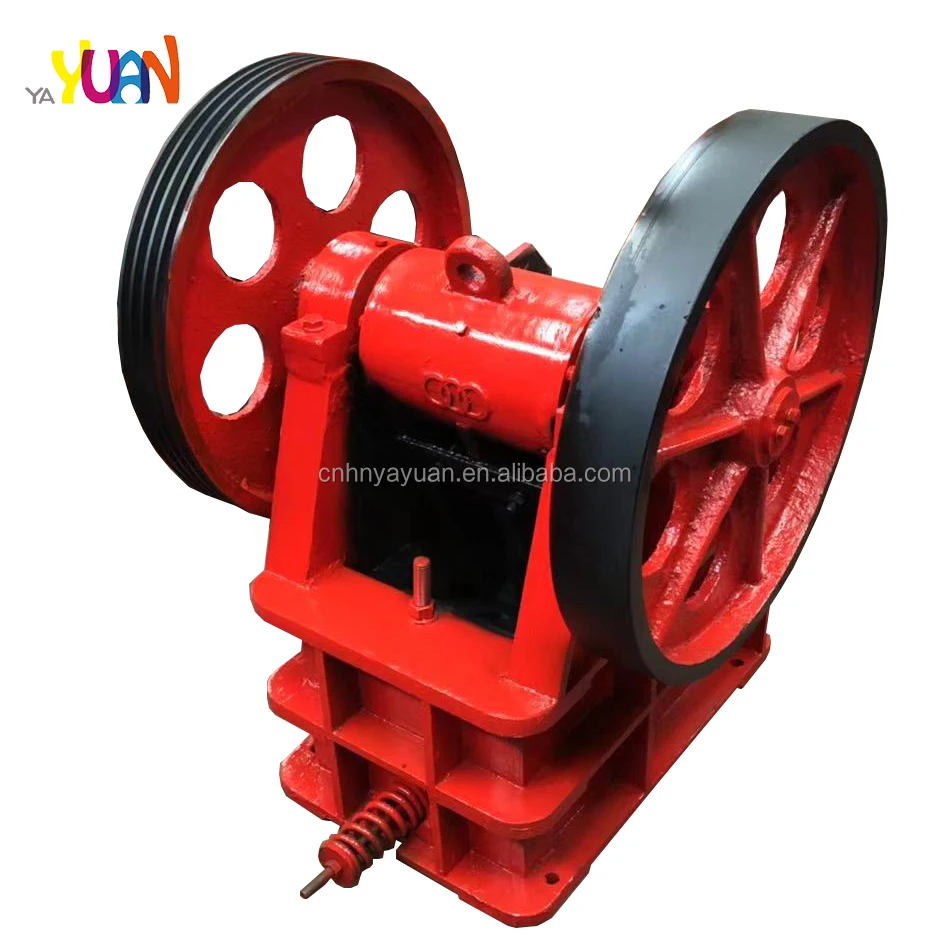

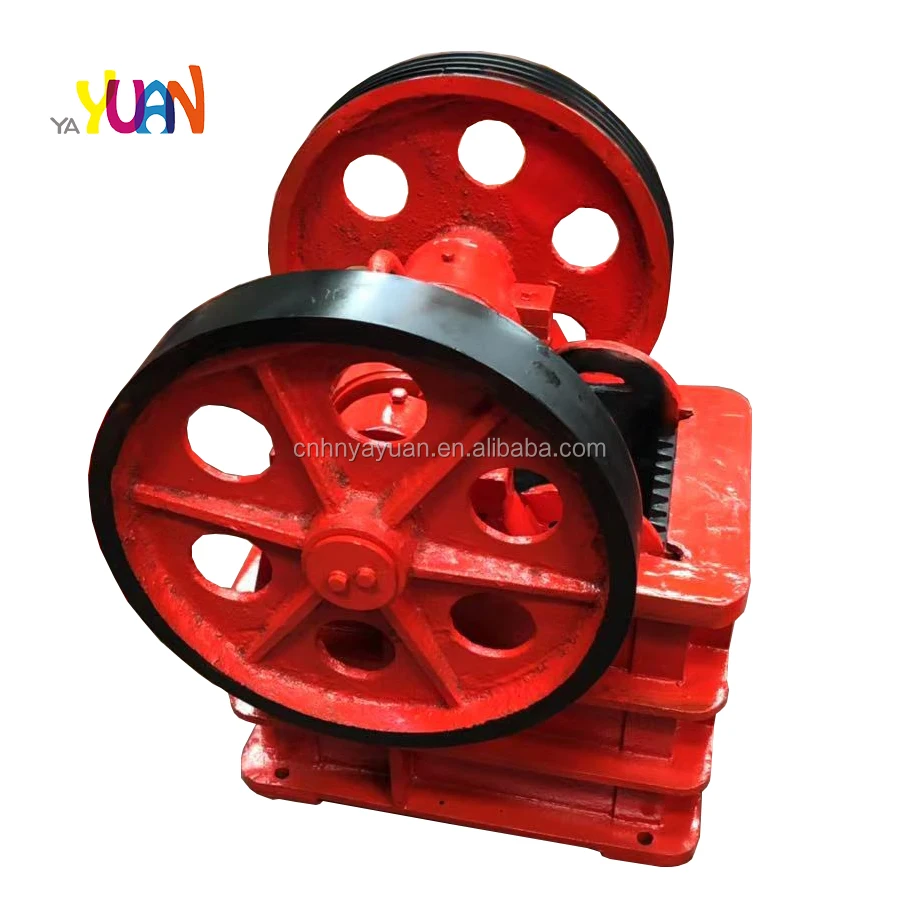

Yayuan Double toggle jaw crusher small ceramic jaw crusher machine
- Category: >>>
- Supplier: Gongyi Yayuan Trade Co. Ltd.
Share on (1600979774563):
Product Overview
Description
Product Description
Advantages of small jaw crusher
1.Crushing chamber depth and had no dead zone, increasing the feed capacity and production.
2. The crushing ratio, uniform particle size.
3. Gasket-style nesting adjustment device, reliable and convenient adjustment range, increase the flexibility of the device.
4. Lubrication system safe, reliable, easy to replace parts, equipment maintenance simple.
5. Structure is simple, reliable, low operating cost.
6. Equipment Energy: A Single-saving 15% ~ 30%, the system energy saving more than doubled.
7. Adjusting the nesting range, can meet different user requirements.
2. The crushing ratio, uniform particle size.
3. Gasket-style nesting adjustment device, reliable and convenient adjustment range, increase the flexibility of the device.
4. Lubrication system safe, reliable, easy to replace parts, equipment maintenance simple.
5. Structure is simple, reliable, low operating cost.
6. Equipment Energy: A Single-saving 15% ~ 30%, the system energy saving more than doubled.
7. Adjusting the nesting range, can meet different user requirements.

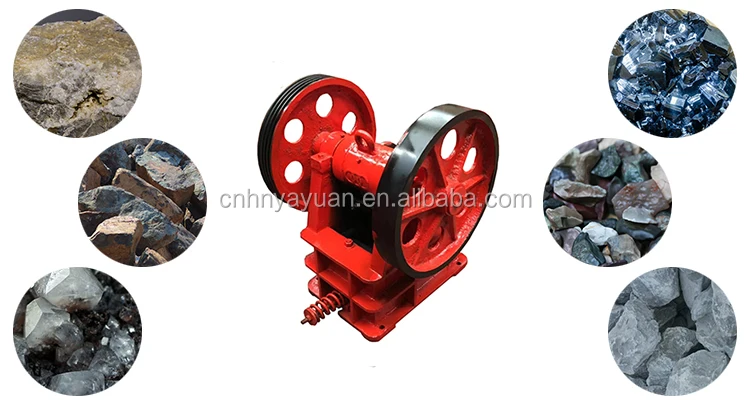

Application of jaw crusher
1.Jaw crusher is mainly used in industrial sectors such as metallurgy, mining, chemical, cement, construction, refractory materials and ceramics. It can crush and finely break all kinds of medium hard ore and rock.
2. This series of crushers is most suitable for crushing various soft and hard ores with compressive strength not higher than 300MPa (MPa). The maximum block size of the crushed materials shall not exceed the technical parameters.
2. This series of crushers is most suitable for crushing various soft and hard ores with compressive strength not higher than 300MPa (MPa). The maximum block size of the crushed materials shall not exceed the technical parameters.
Working principle of jaw crusher

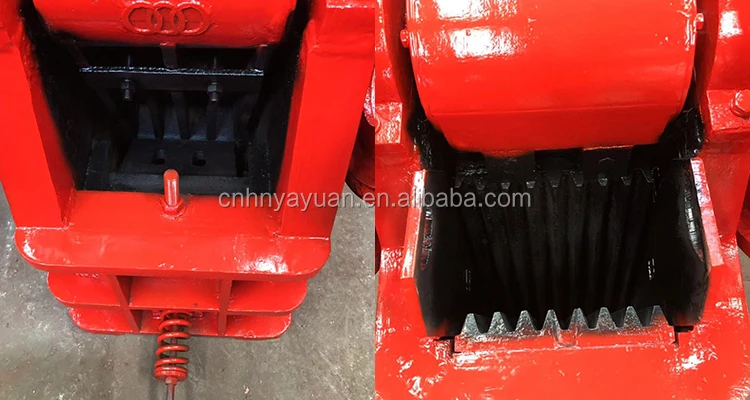

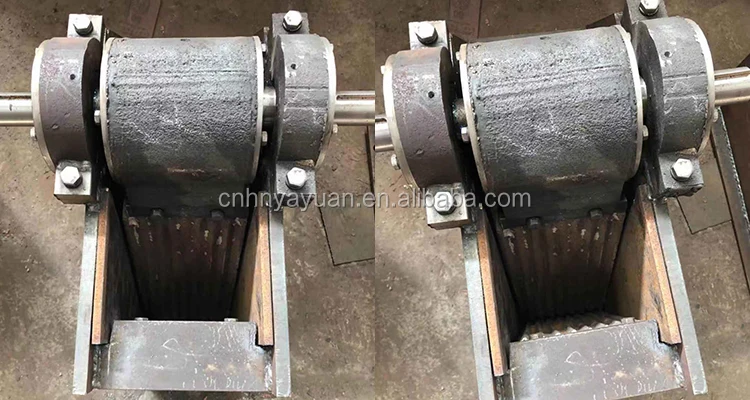

The jaw crusher is powered by an electric motor. Connect the motor to the pulley via a V-belt. The motor drives the pulley to rotate, thereby driving the movement of the eccentric shaft, so that the movable jaw reciprocates according to a predetermined trajectory. Thereby, the material entering the crushing cavity composed of the fixed raft, the movable raft and the side lining is broken, and the finished material is discharged through the lower discharge opening.
Parameters for PE200-300 small jaw crusher
Diemension(mm) | 910*750*990 |
Feed hole size(mm) | 200*300 |
Max feed size(mm) | 180 |
Discharge size(mm) | 20-50 |
Volatge | 380V /50Hz |
Power | 11Kw |
Weight | 1500KG |
productivity | 3.5-10 t/h |
Certifications
OUR ADVANTAGES
ABOUT US
Our company has advanced production equipment and first-class technical talents. According to the different conditions proposed by customers. We can design product solutions that meet the actual needs of customers, and provide pre-sales, sales, and after-sales full-service, which can solve actual production for customers and Any problem in operation.
Our company adheres to the principle of honesty , and serves our customers as our purpose. We are constantly pioneering and innovating so that our products are well received by customers both at home and abroad.
Welcome friends from all over the world to visit our company and discuss cooperation.
Our Service
1,Quality assurance period is 1 year for the whole machine, but the failures caused by operational errors are the responsibility of the customer.
2,We will test all machines before shipment to ensure that the equipment you receive is normal.
3,We have technical personnel to abroad to install and commission, and train your workers until they can be produced independently.
4,You can contact us at any time if you have problems .
5,Special sizes can be custom-made specially.
Packing & Delivery
Packaging details of stone crusher: sea worthy wooden case or iron box ,or container
Delivery Time:7-10 days after deposit
Supply ability:100 Set/Sets per Month
Port:Qingdao
FAQ
1,How about after-sale? A:Our technicians will guide you in solving problems | ||||||
2,What can we do when the machine doesn't work? A:We will focus on your needs all the time and serve you with all-round carefulness and consideration, even send our engineer to serve you until the problem be done. | ||||||
3,How does the LAB crusher work? A:It works on electricity at 220V or 380V. | ||||||
