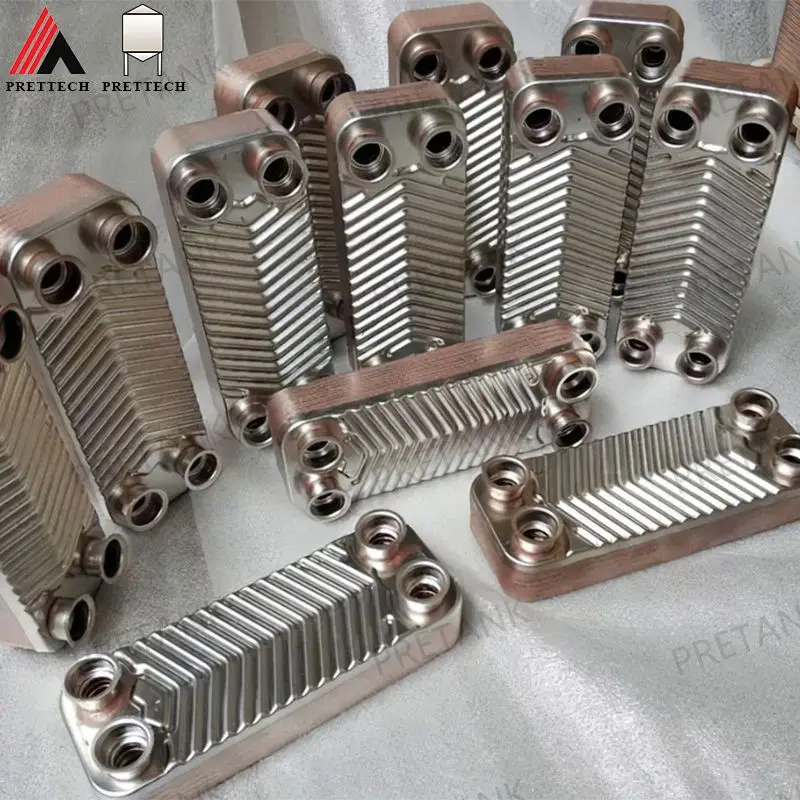

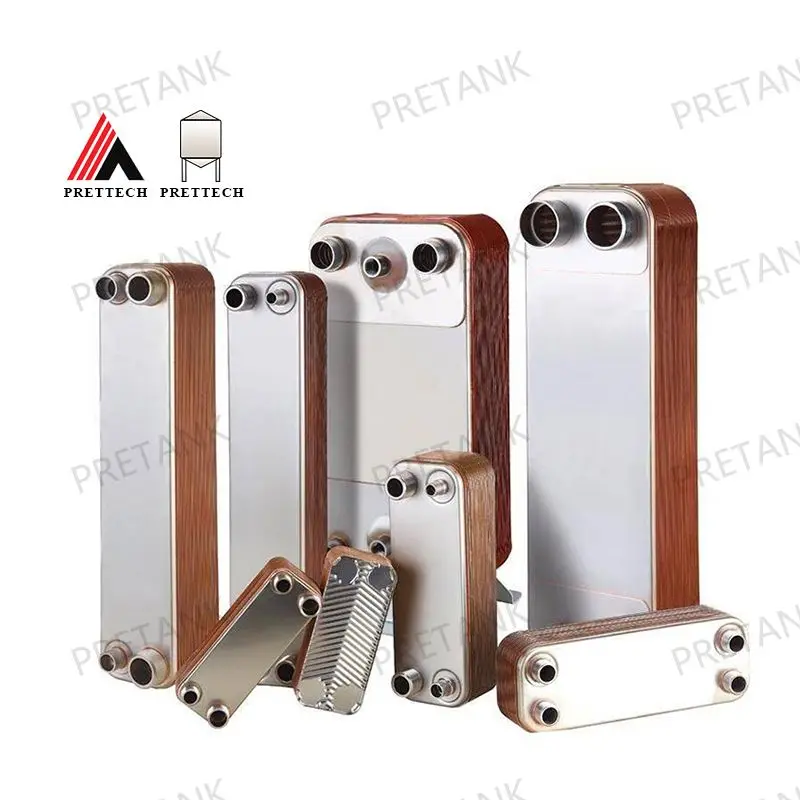

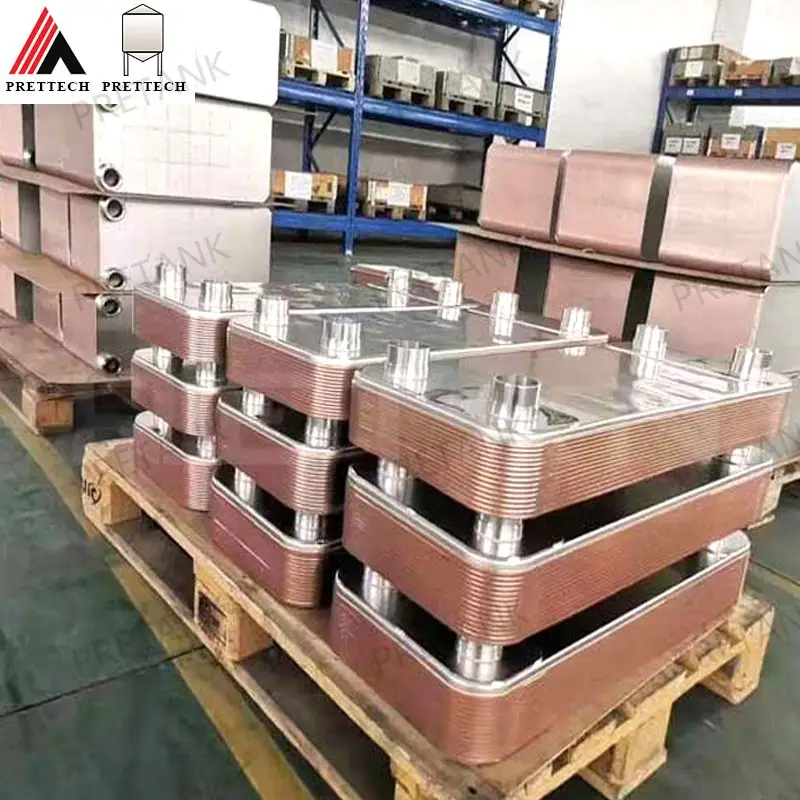

18KW Heat Surface Area 0.8M2 SS316 Brazed Plate Heat Exchanger For Heat Pump Evaporator
- Category: >>>
- Supplier: Jiangsu Pretank Process Co. Ltd
Share on (1600979774978):
Product Overview
Description

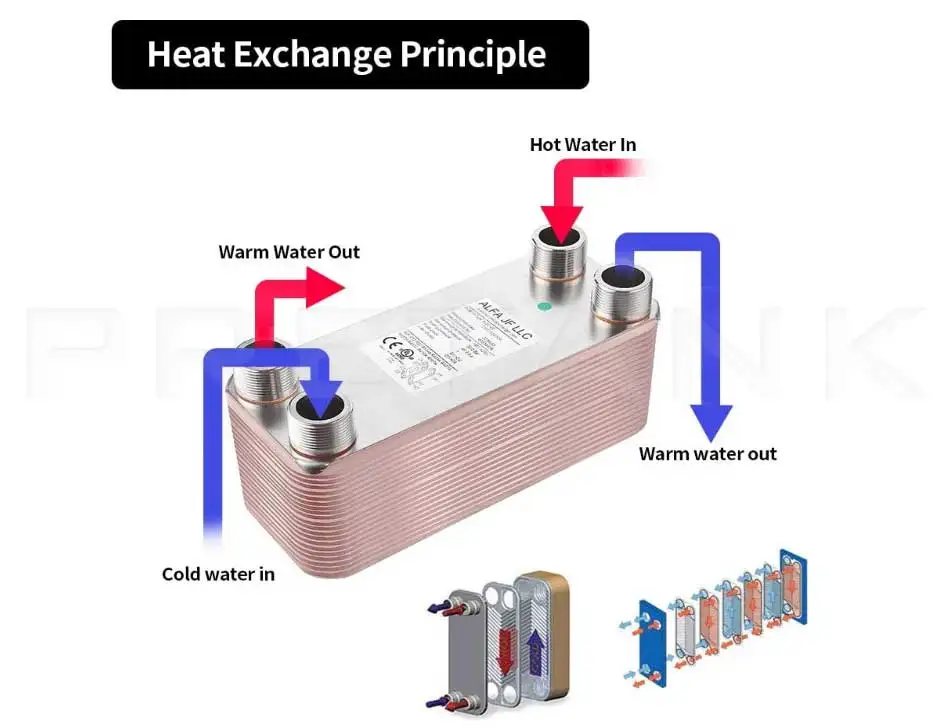

BRAZED PLATE HEAT EXCHANGERS are one of the most efficient means to transfer heat from one medium to another. it can act as condensers, evaporators,oil or gas coolers and widely used in many different industries,such as heat pump system,chiller system,air conditioning process,refrigeration,data center cooling and residential heating.
Product Paramenters

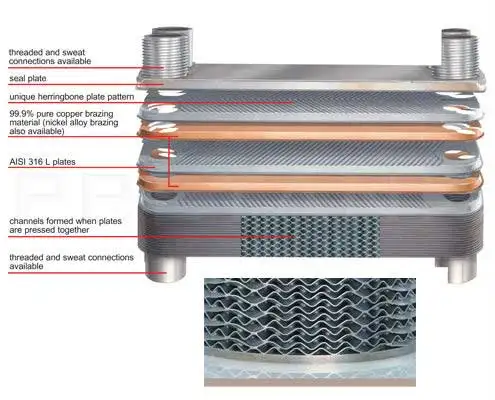

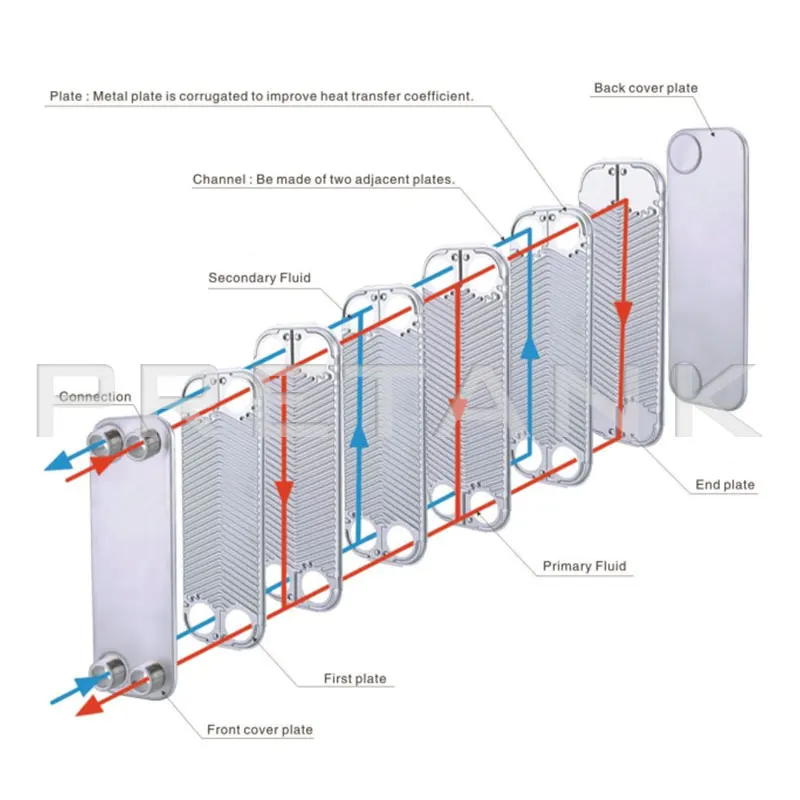

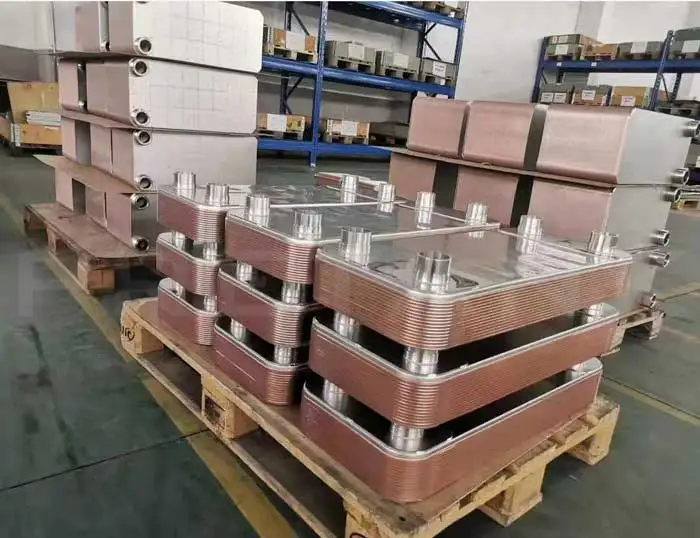

Heat exchanger is made of SS316/SS304 plate by copper ornickel welding.Provides high corrosion resistance to various fluid,and the vacuum hard welding process enables the plate heat exchanger to reach a pressure resistance of 45 bar.
Due to their compact structure,they occupy less space thangasketed heat exchangers.High resistance temperatureMIN-180°℃ / MAX 250°℃,Can be used as super coolers and condensers.
APPLICATION

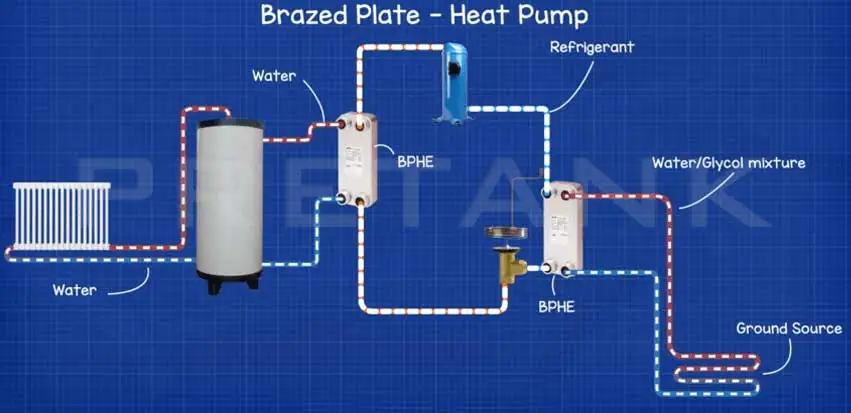

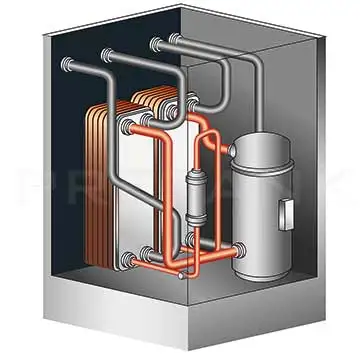

The brazed plate heat exchanger can be used for many industries, including the evaporator and condenser of air conditioning and chiller unit,commercial and industrial refrigeration parts,district heating and domestic sanitary hot water,heat pumps,gas wall-mounted boilers, energy storage,fuel cells,oil and fuel cooling,hydraulic systems,engine cooling, air compressors and air dryers, etc.
Products Advantages
THE ADVANTAGES AS BELOW:
Compact – Our brazed plate heat exchangers are extremely compact compared with other technologies. The carbon footprint can be as little as one tenth that of a shell and tube heat exchanger or half that of a gasket plate heat exchanger.
Efficient – With no need for gaskets or supporting equipment, about 95% of the material is used to transfer heat. The highly turbulent flow also enables you to use small temperature differences efficiently.
Reliable – The robust construction requires no gaskets, eliminating their risk of leaking.This means stable thermal and hydraulic performance, with minimal maintenance and operational downtime.
Flexible – The compact size uses space efficiently and makes system design more flexible. Larger installations can be constructed unit by unit via standard doors and elevators, and it is easy to expand capacity when demand increases.
Flexible – The compact size uses space efficiently and makes system design more flexible. Larger installations can be constructed unit by unit via standard doors and elevators, and it is easy to expand capacity when demand increases.
Cost-effective – You will save on energy, maintenance, spare parts, and installation. The life-cycle cost over 15-20 years can often be half that of a corresponding gasketed solution.
Self-cleaning – Our brazed plate heat exchangers are normally self-cleaning, thanks to highly turbulent flows. In applications with a high risk of fouling or scaling, Cleaning in Place is easy without disassembly. Read more about plate heat exchanger cleaning.
Customized – By combining plate design, materials, and connections from standard components, we keep lead times short while still maximizing output in your specific application.

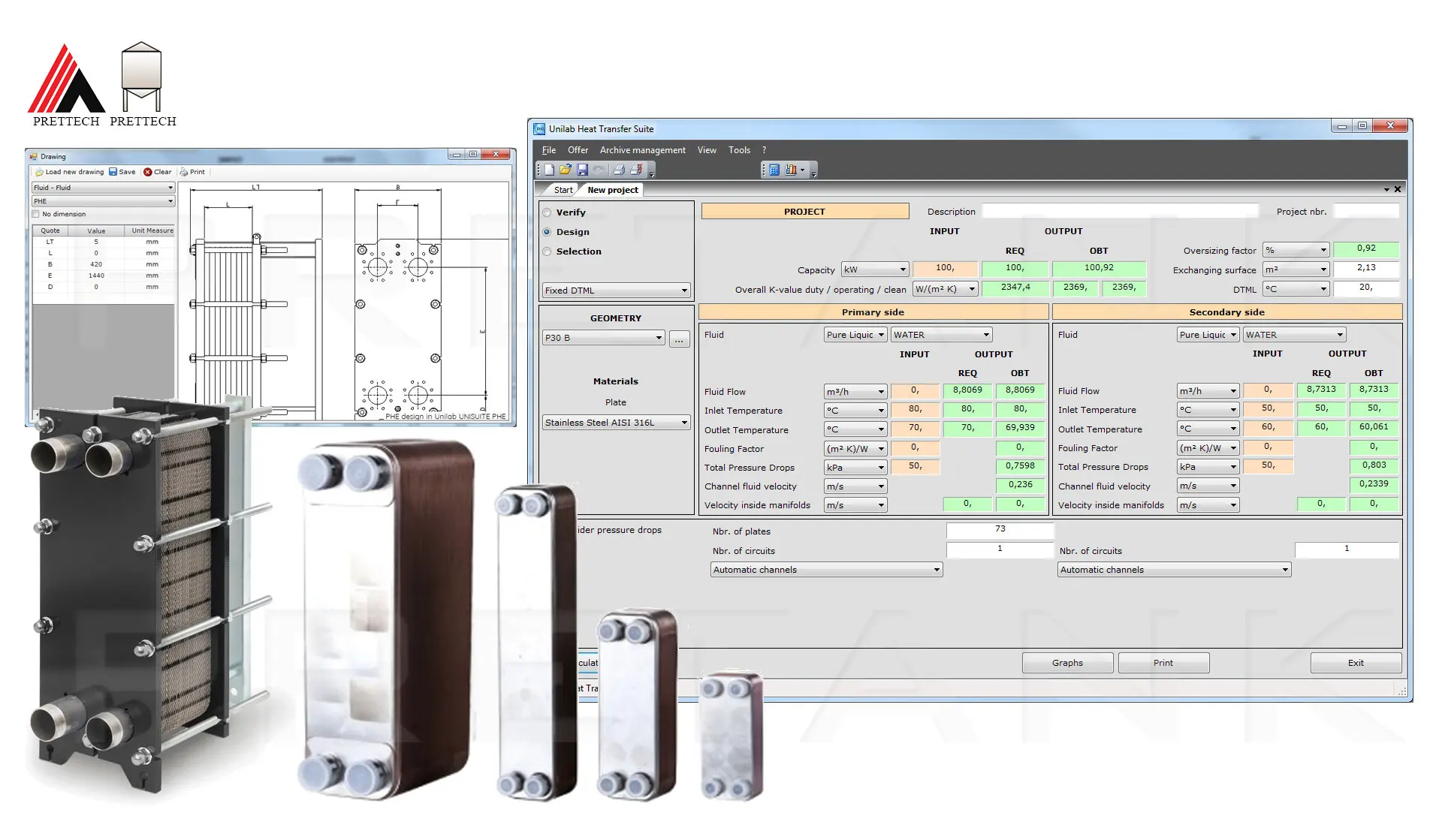

DESIGN SOFTWARE
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
Unisuite PHE is the thermal design software chosen by the best manufacturers for the design, rating & selection of gasketed & brazed plate heat exchangers. Considered by the market the most accurate solution for the design, selection and rating of PHEs and BPHEs, PHE results are validated by experimental data and consolidated customer satisfaction.
The user can choose between fluid-fluid calculations (without phase change), evaporation, condensing and steam. Software works in verify, design or selection mode. In VERIFY mode you have to specify all the exchangers data, so geometry plate, number of plates, number of passes primary and secondary side. In DESIGN mode you have to specify the following exchangers data, so geometry plate, number of passes primary and secondary side. The software will calculate the best number of plates that satisfy the requested parameters, like for example capacity and pressure drops. In SELECTION mode you can specify the requested parameters, like for example capacity,max pressure drops, number of passes. The software will calculate the best plate geometry and the number of plates.
PHE can also analyze 30°, 45° and 60° herringbone angles. You can easily realize your own design calculation, using High-Theta or Low-Theta plates or even create a custom Chevron Angle for the pattern. The user can also set the percentage of High Theta or Low Theta plates used in the exchanger.
Unisuite PHE is the thermal design software chosen by the best manufacturers for the design, rating & selection of gasketed & brazed plate heat exchangers. Considered by the market the most accurate solution for the design, selection and rating of PHEs and BPHEs, PHE results are validated by experimental data and consolidated customer satisfaction.
The user can choose between fluid-fluid calculations (without phase change), evaporation, condensing and steam. Software works in verify, design or selection mode. In VERIFY mode you have to specify all the exchangers data, so geometry plate, number of plates, number of passes primary and secondary side. In DESIGN mode you have to specify the following exchangers data, so geometry plate, number of passes primary and secondary side. The software will calculate the best number of plates that satisfy the requested parameters, like for example capacity and pressure drops. In SELECTION mode you can specify the requested parameters, like for example capacity,max pressure drops, number of passes. The software will calculate the best plate geometry and the number of plates.
PHE can also analyze 30°, 45° and 60° herringbone angles. You can easily realize your own design calculation, using High-Theta or Low-Theta plates or even create a custom Chevron Angle for the pattern. The user can also set the percentage of High Theta or Low Theta plates used in the exchanger.
The capacity range from 1-1200kW,the specifications are tailored,please send your RFQ for more details. Meanwhile,we also supply shell&tube heat exchanger,reactor,hot water tank,dissolving tank,alkali tank,vaccum buffer tank,sterilizing tank and CIP system. If you need them please inquire particularly.
Related Products
About Us
Jiangsu Pretank Process Co.,Ltd
Jiangsu Pretank Process Co.,Ltd(called PRT below) has been in designing and fabricating sanitary stainless steel tanks for 20s years, we have the most advantage technology R& D capability in the industry, adopt PDM, 3D and FEM to design vessels according to standard ofGBAPIULAS and NZS, and provide relative certificates, Laser and auto. Machines are used foiimproving quality and shorten construction period,all welders are certified, every PRT'stanks aretested and inspected strictly before delivery,all of such works make sure the tanks are made infirst quality and delivered to the clients in perfect conditions.
The over engineered and heavy-duty made stainless steel vessels are used to solve materialtransferring, boiling, mashing, fermenting, processing, mixing and distilling in following industries.
1. Food& Beverageinclding all kinds of juice(wine)liquir, spirits and other non-alcohol drinks
2. Chemicals& Daily Chemicals(shampoo,soap,detergent)
3. Agricultural product deep processing, such as corn starch, isolated soy protein, flavorings
4. Environment protection, such as water treatmen.
5. Flavorings, such as vinegar, soy sauce
6. Low-pressure vessel, thermal oil, paper making equipment
7. Oil& Fats
2. Chemicals& Daily Chemicals(shampoo,soap,detergent)
3. Agricultural product deep processing, such as corn starch, isolated soy protein, flavorings
4. Environment protection, such as water treatmen.
5. Flavorings, such as vinegar, soy sauce
6. Low-pressure vessel, thermal oil, paper making equipment
7. Oil& Fats
PRT have served for 100, 000 customers home and abroad, the sanitary stainless steel tanks areexported to over 100 countries of Asia, Europe, America, Africa, our excellent product quality andservices get most favorable praise and notices, the whole of Prettech group wish to offer furtherconstructive solutions for fluid processing.
Process Equipment
All of tanks have the characteristics as below
1. Made by sanitary stainless steel AlSI 304 orAISI316L.
2. Exterior brushed finish for beautiful looking andeasy cleaning, interior 2B finish or polished.
3. Cylindricals are butt welded onto the ends andports, easy for washing.
4. Internal welds are grounded and acid passivation.
5. All accessories have high quality, butterflyvalvehave multi-position to adjust liquid flow, sanitaryEPDM sealing gasket is wear proof.
6.Customized.
2. Exterior brushed finish for beautiful looking andeasy cleaning, interior 2B finish or polished.
3. Cylindricals are butt welded onto the ends andports, easy for washing.
4. Internal welds are grounded and acid passivation.
5. All accessories have high quality, butterflyvalvehave multi-position to adjust liquid flow, sanitaryEPDM sealing gasket is wear proof.
6.Customized.
Related Cooperation Projects
Pretank serves over 100,000 cus-tomers in China, We have keptperfect relationship with someworldwide companies such asHennessy,Changyu, Inbev,Bucher Unipektin,TMCI padovan.
Certificate

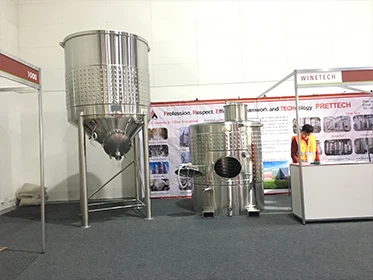

Exhibition Show
We actively participate in various exhibition activities, with for-eign friends to establish a good relationship of cooperation,promote the development of the national economy.
Packing&Shipping
PACKING & SHIPPING
1.Seaworthy packaging & reinforcement to minimize damagesduring shipping&transportation.
2.Delivery to customer's door, and self-loading truck service available if necessary.
3.Varied container types are optimized including general containerand flat rack.
2.Delivery to customer's door, and self-loading truck service available if necessary.
3.Varied container types are optimized including general containerand flat rack.
FAQ
Q1. Can you produce tanks with S.S.316L?
Yes we can, the wetted-parts are produced by S.S.316L to guarantee the corrosion resistance, the non-wetted parts are produced by S.S.304 to reduce cost.
Q2. What’s the lead time?
35-50 working days depend on the order quantity.
Q3. How do you ship the goods?
We usually ship by sea in containers or flat rack.
Q4. Are you factory or trading company?
We are a manufacturer and export by ourselves.
Q5. Can your factory produce according to our samples or drawing?
Yes, we can do OEM and customization.
Q6. What is your nearest port?
Qingdao port,China
Q7. Do you supply door to door shipping?
Yes we do, Pretank do ocean shipping, customs clearance, import procedures and deliver products to the appointed place.
Q8. How do you guarantee this machine normally operating?
Every machine is tested in our factory before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.
Q9. Do you supply after-sale services?
Yes we do, if any defects occurred, Pretank would give instructions on how to handle, fast repair locally is available if needed.
Q10. What inspections will you do before delivery in your factory?
All tanks would be tested by static pressure test, dye penetration or X-ray test if requested.
Yes we can, the wetted-parts are produced by S.S.316L to guarantee the corrosion resistance, the non-wetted parts are produced by S.S.304 to reduce cost.
Q2. What’s the lead time?
35-50 working days depend on the order quantity.
Q3. How do you ship the goods?
We usually ship by sea in containers or flat rack.
Q4. Are you factory or trading company?
We are a manufacturer and export by ourselves.
Q5. Can your factory produce according to our samples or drawing?
Yes, we can do OEM and customization.
Q6. What is your nearest port?
Qingdao port,China
Q7. Do you supply door to door shipping?
Yes we do, Pretank do ocean shipping, customs clearance, import procedures and deliver products to the appointed place.
Q8. How do you guarantee this machine normally operating?
Every machine is tested in our factory before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.
Q9. Do you supply after-sale services?
Yes we do, if any defects occurred, Pretank would give instructions on how to handle, fast repair locally is available if needed.
Q10. What inspections will you do before delivery in your factory?
All tanks would be tested by static pressure test, dye penetration or X-ray test if requested.
