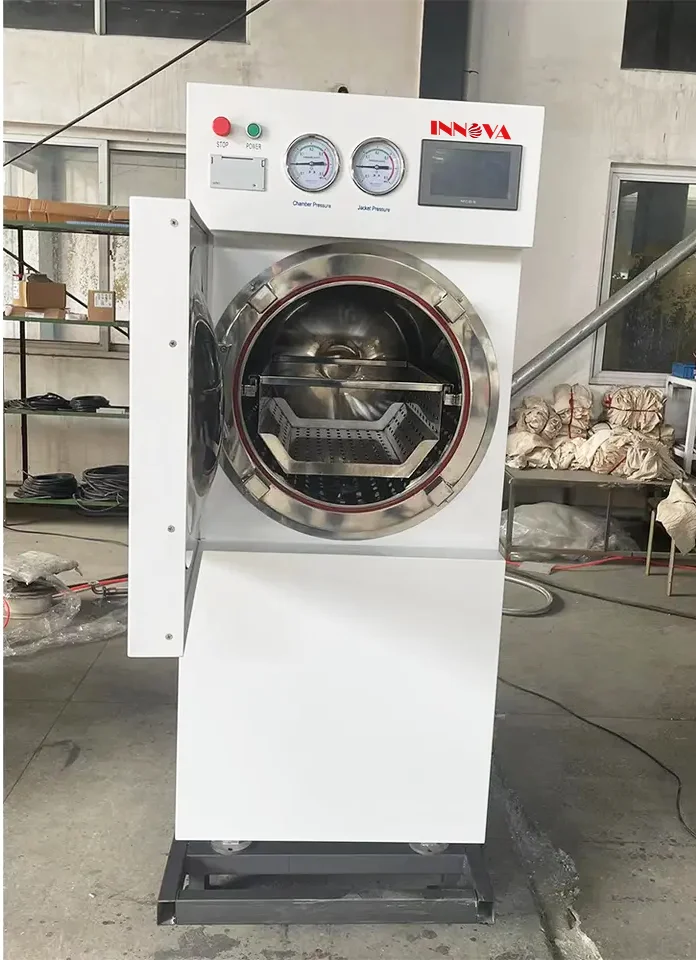

Innova Steam sterilizer Horizontal Steam Sterilizer Equipment

Innova Horizontal Steam Sterilizer is strictly designed and manufactured in accord with GMP technical Standard. It has passed ISO9001
quality management qualification standard and ISO13485Certificate of Quality Management System for Medical Devices.The relevant
data can be saved and printed automatically. This autoclave is suitable for hospital, scientific research institute and other
units to sterilize asepsis clothes, tools, ulture medium and so on.


Horizontal Steam Sterilizer Features:

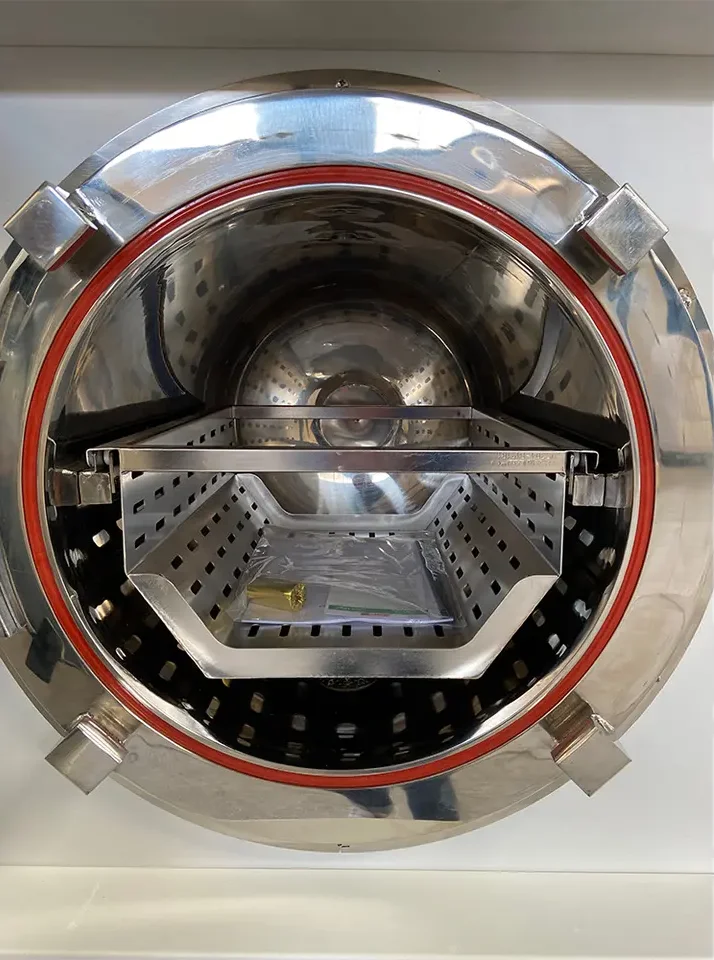

1.Horizontal square inner chamber + jacket structure,safety, heat preservation, and drying function;
2.Disc type embedded gear + Electric lock door structure,safety and reliable;
3.The door seal is pneumatic, single or double door(double door interlock)
4.Equipped with standard equipment verification interface

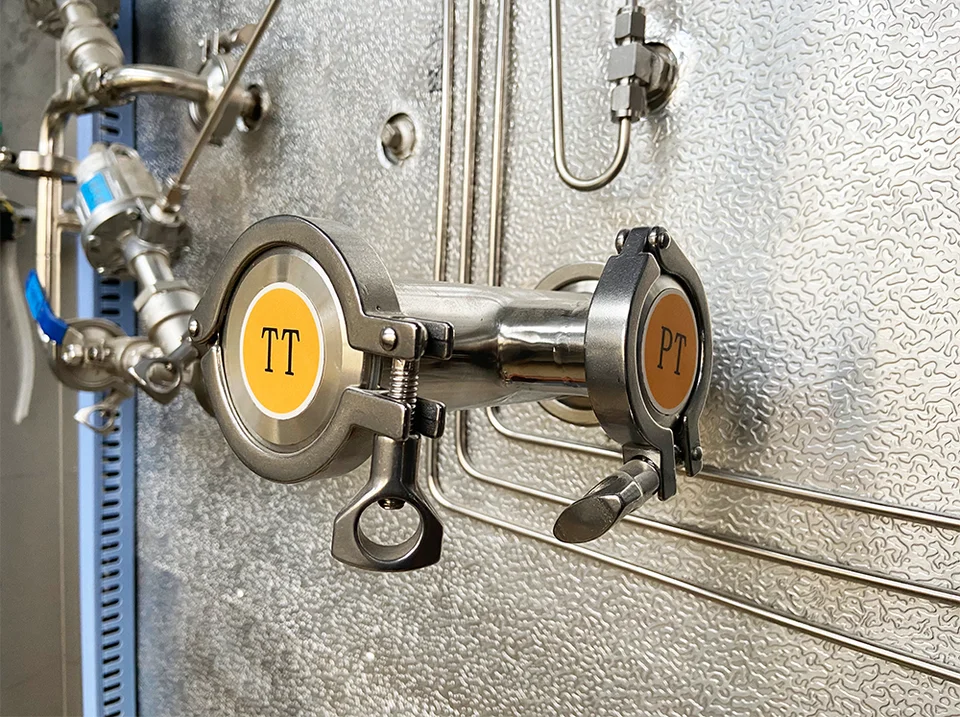

5.Pipeline system for the optimal design, SUS304 pipeline, clamp structure, quick assembly

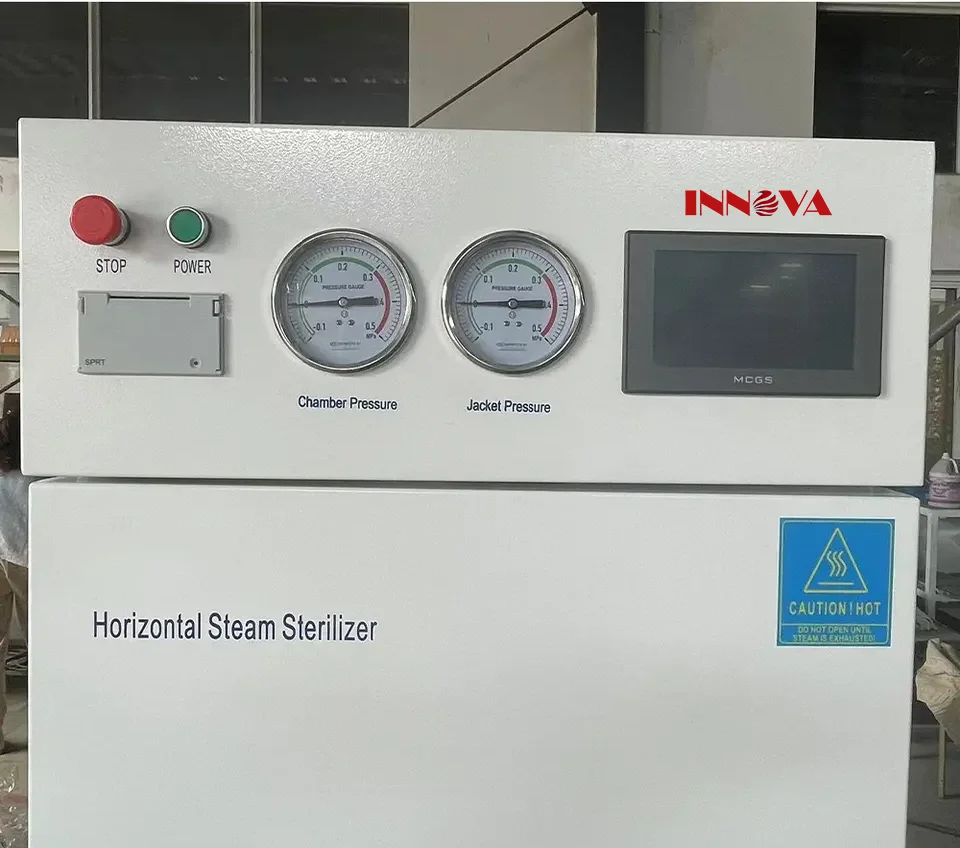

Control system: HMI man-machine interface,touch screen+PLC



6.F0 value and temperature time double guarantee sterilization effect, with perfect sterilization records; With program selection,parameter setting, equipment operation, report processing and traceability Functions;

7.Three levels of authority management

8.Multiple safety protection(over-temperature, over-pressure protect) 9.Sterilization process: fabric, equipment, liquid,BD,pressure testing, custom defined multiple procedures





Product Accessories






Products Technical Parameters


Modle
INOF-150D
(S)(M)
INOF-300D
(S)(M)
INOF-600D
(S)(M)
INOF-800D
(S)(M)
INOF-1000D
(S)(M)
INOF-1200D
(S)(M)
INOF-1500D
(S)(M)
Volume
150L
250L
600L
800L
1000L
1200L
1500L
Power（KW)
2+18
2+24
3+36
3.5+45
3.5
4.5
4.5
Voltage
Three-phase five-wireAC 380V、50HZ
Design pressure
-0.1~0.3Mpa
Design temperature
144℃
Rated working pressure
0.245Mpa
Working temperature
105-138℃
Vacuum
-0.086Mpa
Temperature Equilibrium
<+2.0℃
Water Pressure
0.1-0.2Mpa
Compressed air pressure
0.4~0.7Mpa
Steam Pressure
0.3-0.7Mpa
Cycle time per batch
About 40-70 minutes
Overall Dimensions (L*W*H)mm
950*1120*1760
1030*1300*1900
1440*1310*1900
1700*1310*1900
1500*1440*1950
1700*1440*1950
2100*1440*1950
Chamber Size (L*W*H)mm
450*480*700
600*600*780
610*910*1190
610*910*1450
680*1180*1250
680*1180*1450
680*1180*1850
Steam Consumption (KG)
≤14
≤18
≤30
≤35
≤42
≤50
≤60
Water Consumption (KG)
≤190
≤200
≤210
≤220
≤200
≤200
≤200
Net Weigh Single/Double door (KG)
700/750
980/1050
1150/1250
1200/1300
1380/1500
1530/1650
1680/1800


Modle
INOY-100D(S)(M)
INOY-150D(S)(M)
INOY-200D(S)(M)
INOY-300D(S)(M)
INOY-400D(S)(M)
Volume
100L
150L
200L
300L
400L
Power（KW)
2+12
2+15
2+15
2+18
2+18
Voltage
Three-phase five-wireAC 380V、50HZ
Design pressure
-0.1~0.3Mpa
Design temperature
144℃
Rated working pressure
0.245Mpa
Working temperature
105-138℃
Vacuum
-0.086Mpa
Temperature Equilibrium
<+2.0℃
Water Pressure
0.1-0.2Mpa
Compressed air pressure
0.4~0.7Mpa
Steam Pressure
0.3-0.7Mpa
Cycle time per batch
About 40-70 minutes
Overall
Dimensions
(L×W×H)mm
1160×650×1680
1290×690×1680
1560×690×1680
1430×850×1760
1755×850×1760
Chamber Size
(L×W×H)mm
Ø420×750
Ø472×880
Ø472×1150
Ø620×995
Ø620×1320
Steam Consumption (KG)
≤11
≤13
≤15
≤20
≤25
Water
Consumption
(KG)
≤190
≤190
≤190
≤200
≤200
Net Weigh Single/Double door
(KG)
280/310
370/410
400/440
480/530
540/590
