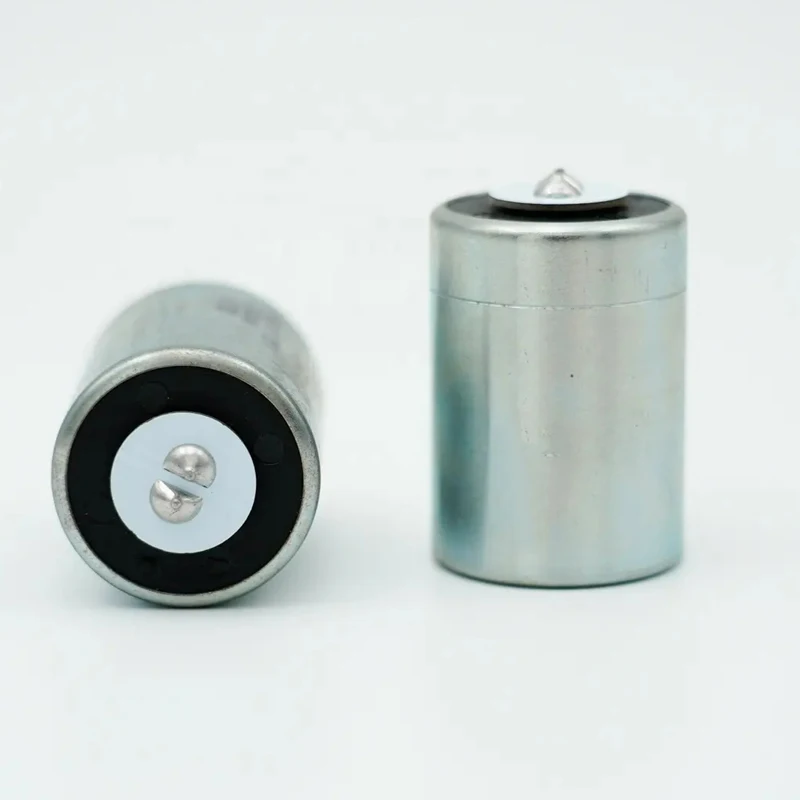

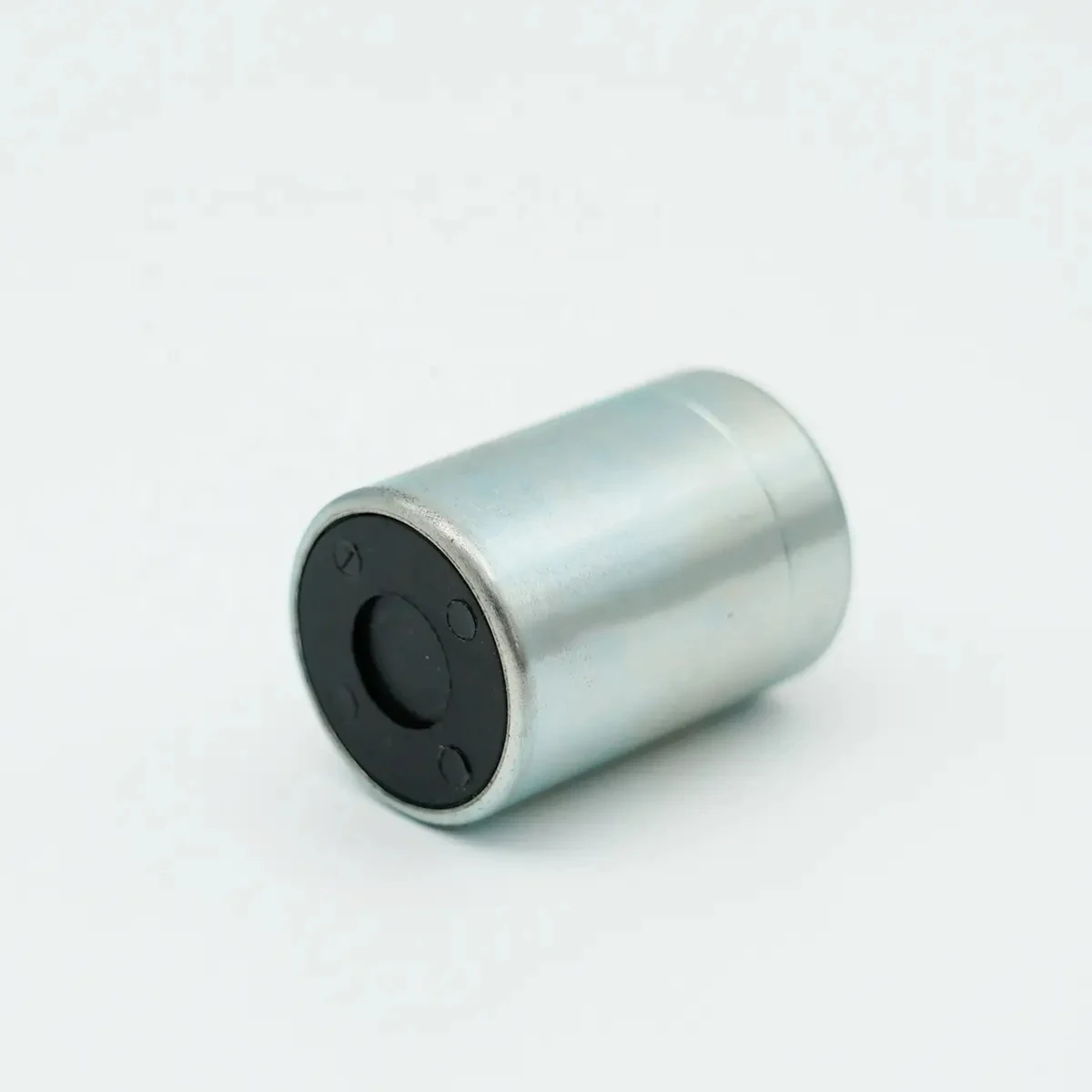

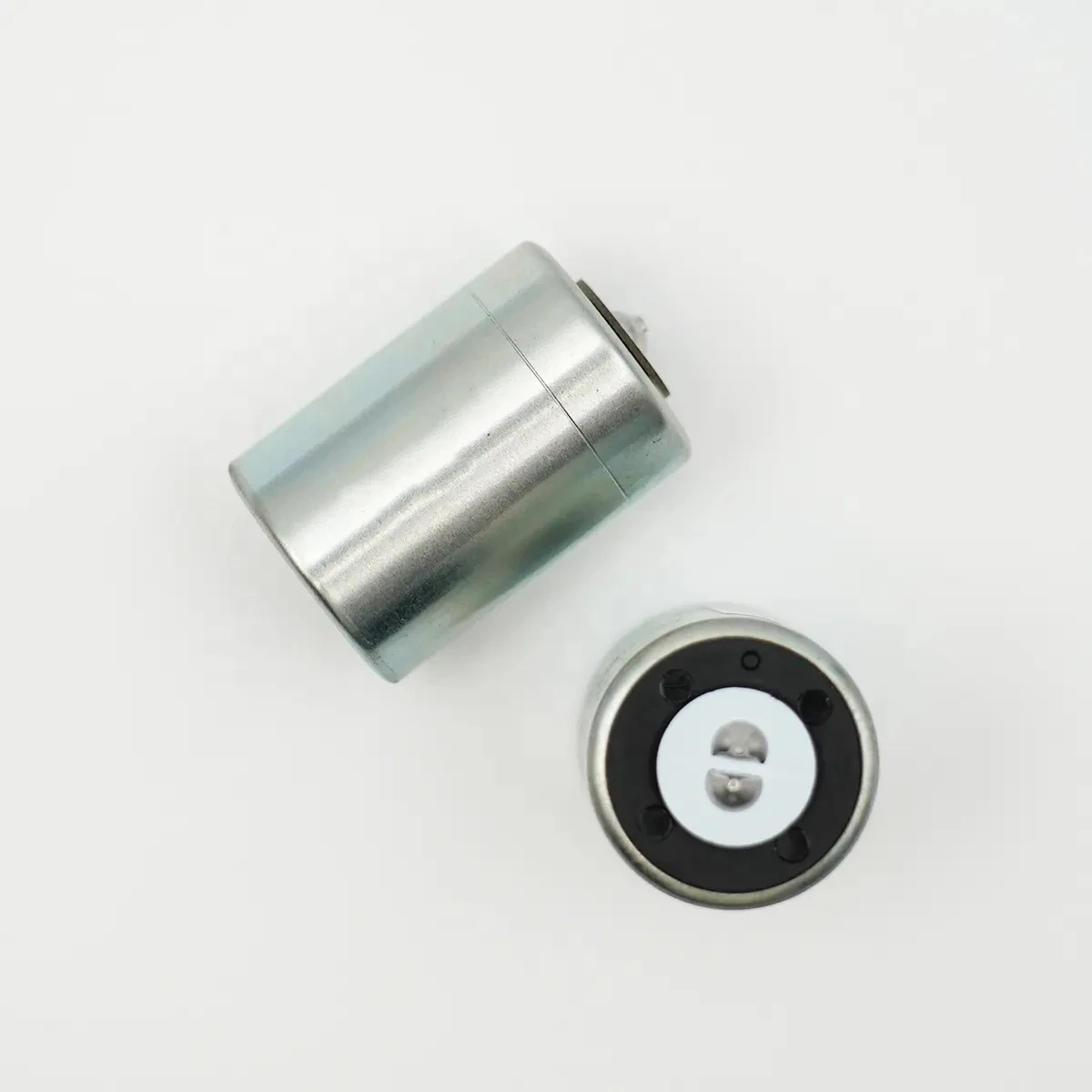

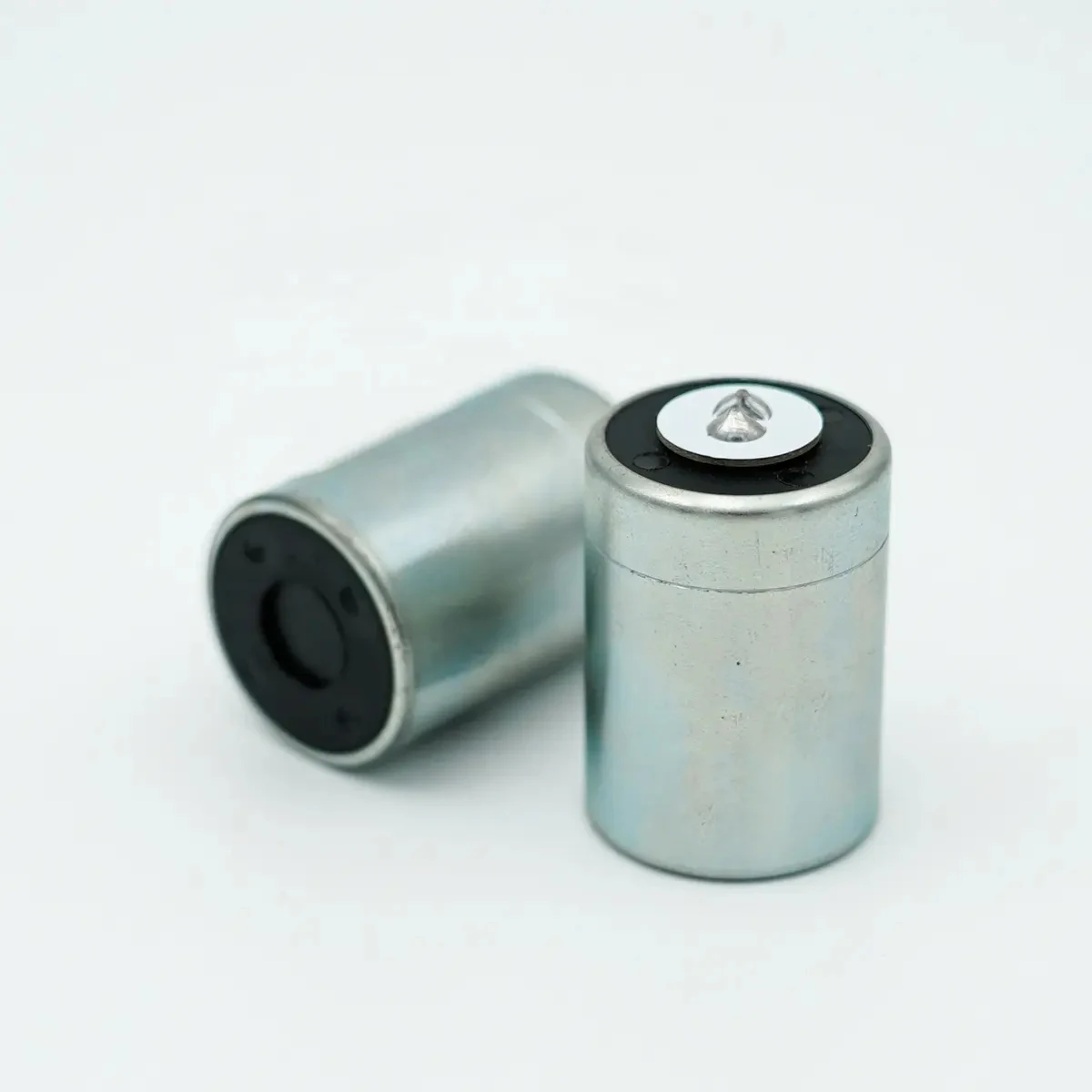

High Sensitivity 4.5hz Horizontal Seismic Geophone Element For Geological Seismograph

Share on (1600979822986):


Price:$25.00 - $29.70

Quantity:


Product Overview

Description



Product Description











 4.5Hz Geophone Element





4.5Hz horizontal Seismic Geophone

High quality, reliable and cost effective
3 years limited warranty 2-D and 3-D seismic application Suitable for land, transition zone, marsh and shallow water environments with different cases

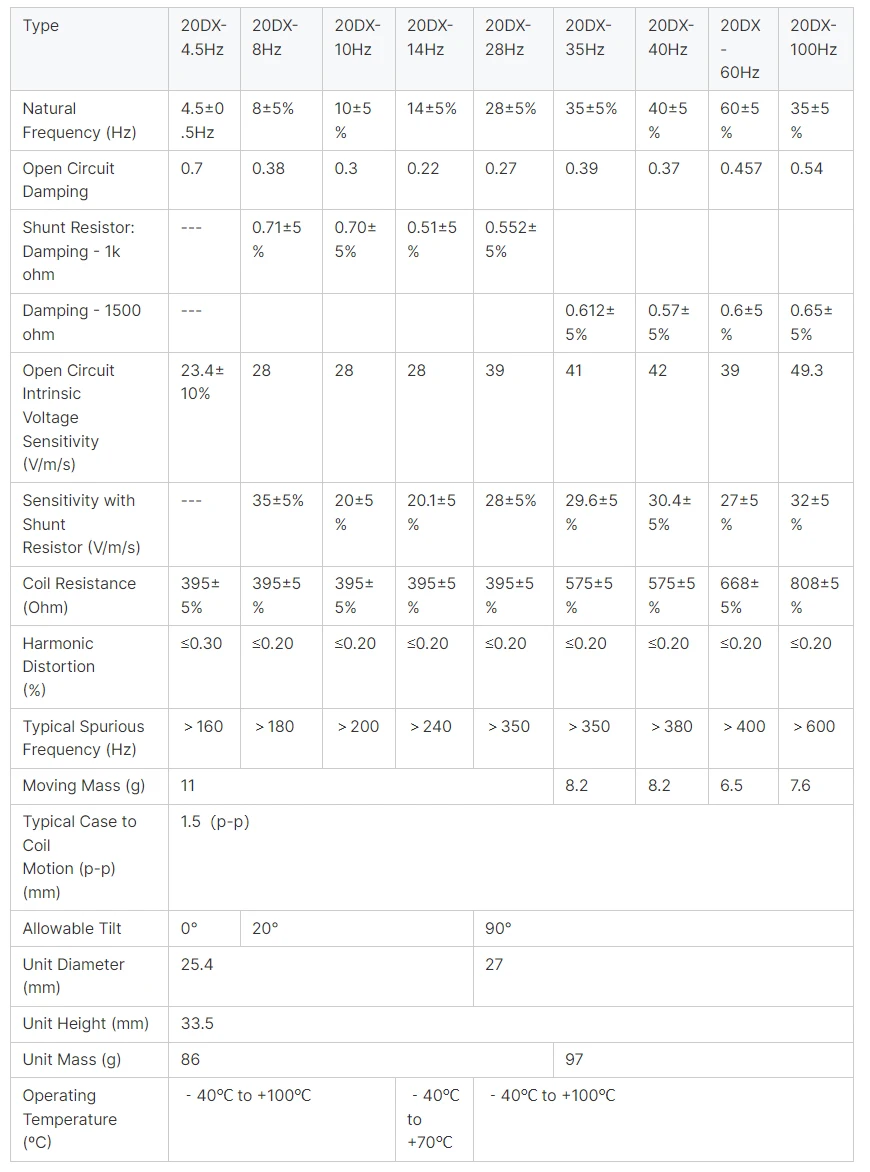

Product parameters





























































































4.5Hz geophone element

All parameters are specified at +20° C in the vertical position unless otherwise stated.


Frequency


Natural Frequency (Fn)


4.5Hz


Tolerance


±0.5Hz


Spurious Frequency


>120Hz


Distortion


Distortion


< 0.2%


Distortion at vertical


< 0.2% measured at 12 Hz with 0.7 in/s p-p


Damping


Open Circuit Damping


0.6


Tolerance


± 5%


Coil Resistance


Standard


375ohm


Tolerance


± 5%


Sensitivity


Open Circuit Intrinsic Horizontal Sensitivity


28.8 V/m/s (0.73 V/in/s)


Tolerance


±5%


Physical
Characteristics


Moving Mass


11 .1g (0.39 oz)


Max. Coil Excursion p.p.


4mm (0.16 in)


Diameter


25.4 mm (1.0 in)


Height


36mm (1.4 in)


Weight


81 g (2.86 oz)


Operating Temperature Range


 - 40℃ - +90℃



Warranty excludes damage caused by high voltage and physical damage to the element case.

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
