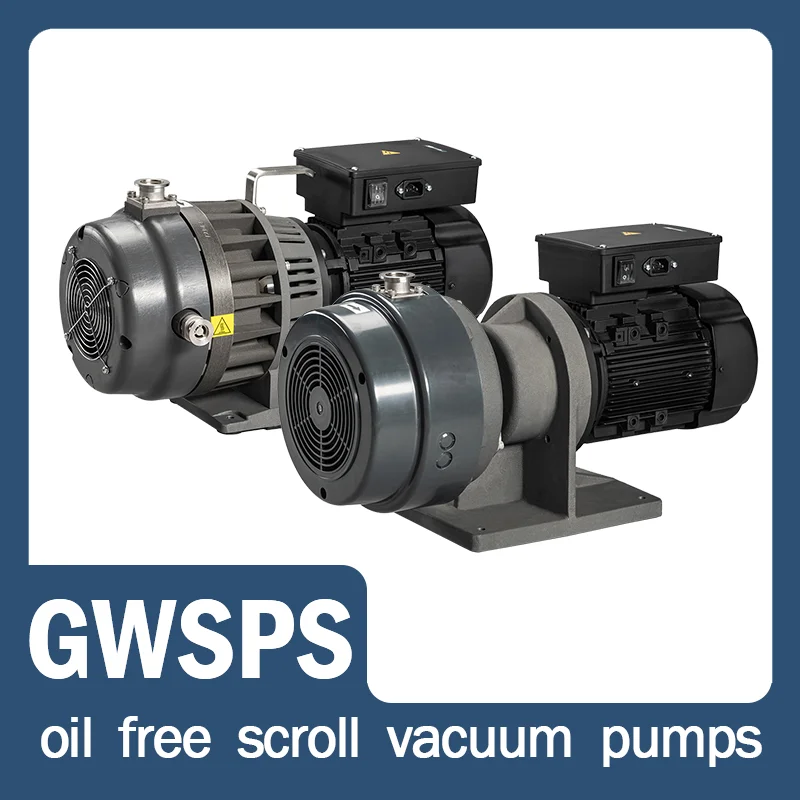

15.8~18.9m3/h GWSPS300 laboratory 100% oil free vacuum pump scroll vacuum pump
- Category: >>>
- Supplier: Shenyang Geowell Applied Technology Co. Ltd.
Share on (1600979877034):
Product Overview
Description
Working Principle.
GWSPS oil free scroll vacuum pump is constructed with a pump head kit, motor kit and racket kit. There are two scroll plates, one orbiting and the other fixed. The orbiting scroll plate is offset and orbiting against the fixed scroll plate with an offset of 180° to form several crescent-shaped pockets of diferent sizes. By means of a motor driven, the orbiting scroll plate is made to orbit about the fixed scroll plate, reducing the volume of the crescent-shaped pockets and compressing gas from outside towards the inside thereby pumping the gas from vacuum chamber.
Features & Benefits
100% oil free
Pumping speed from 4.2~50m³/hSuitable for 100~460V, 1 and 3 phase power supply
Low noise or vibration
High efficiency,easy maintenance
No oil contamination of vacuum chamber or environment

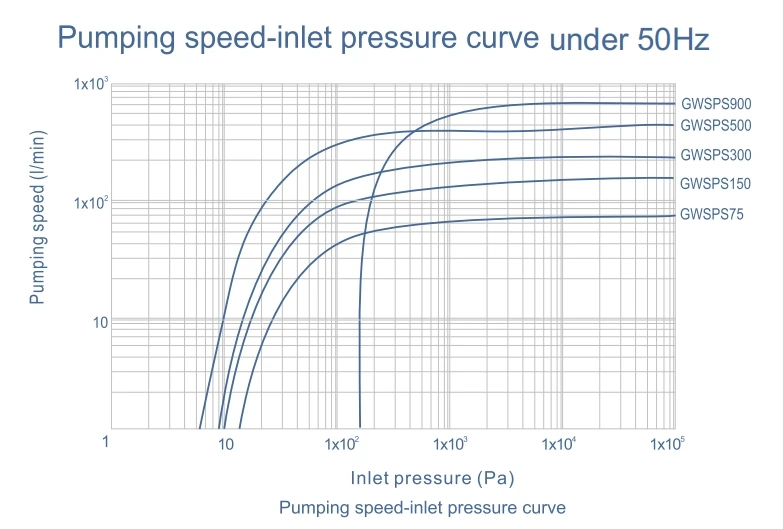

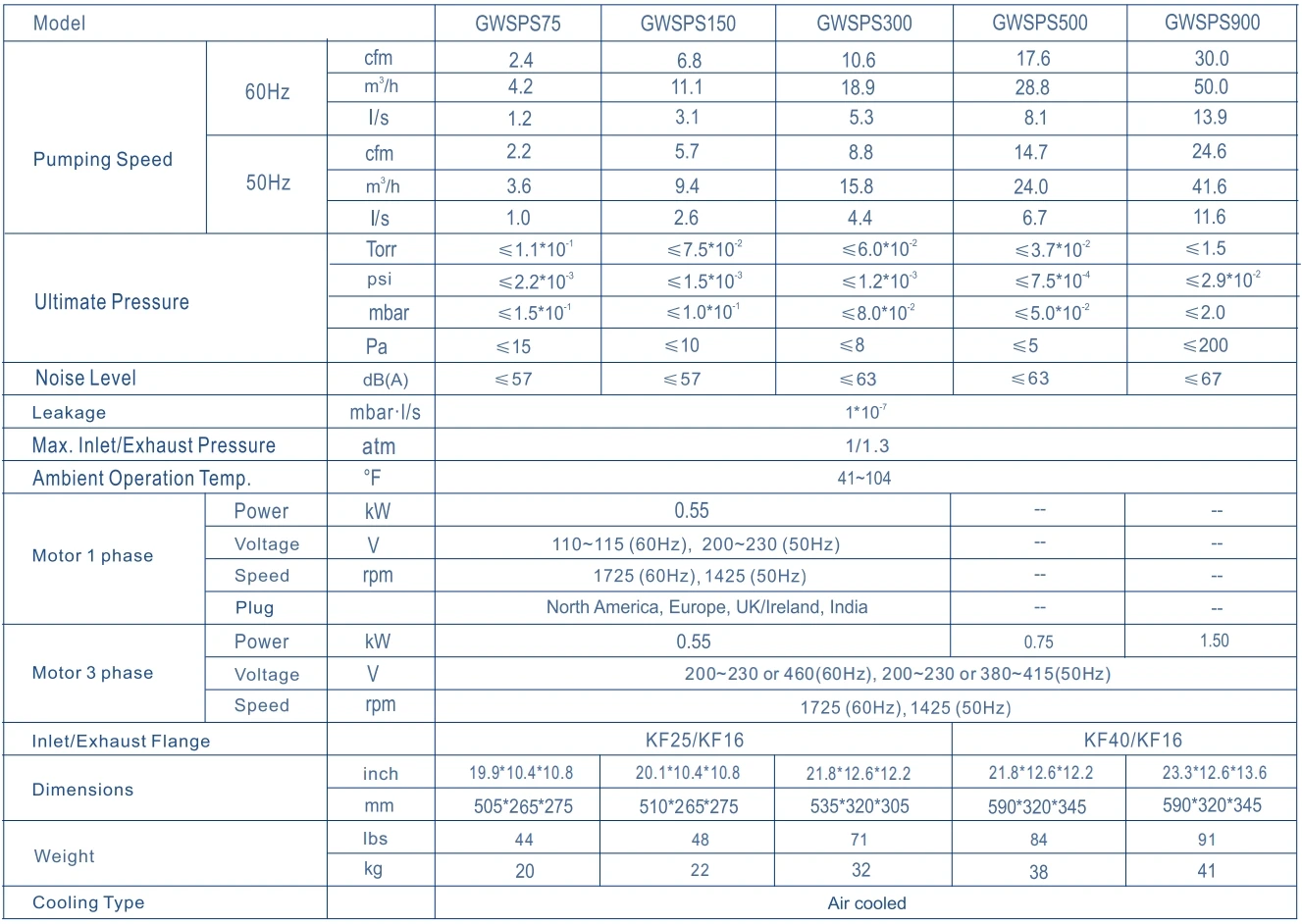

Technical Specifications

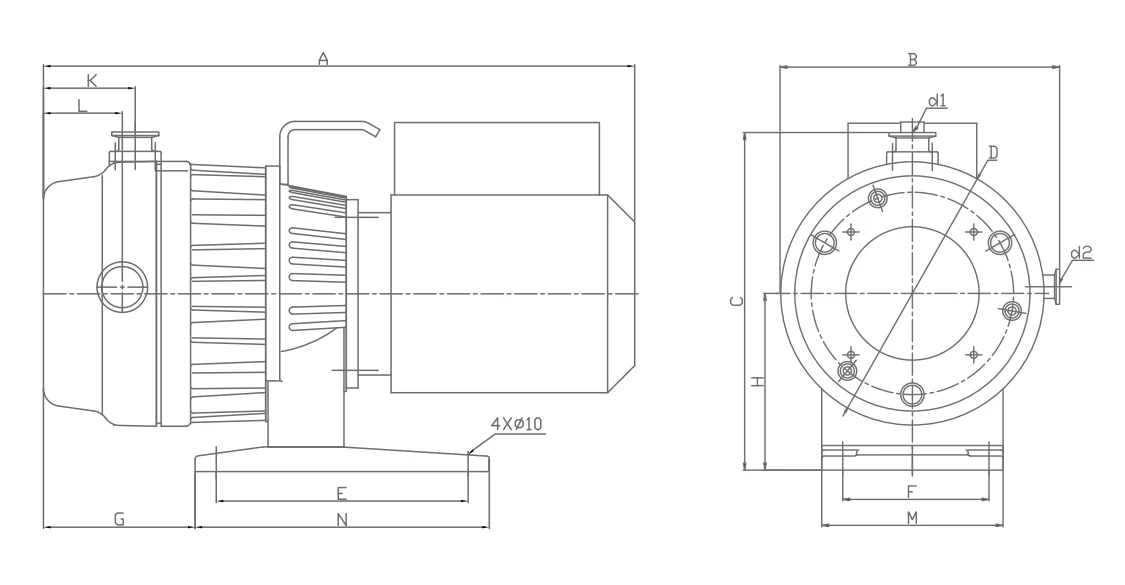

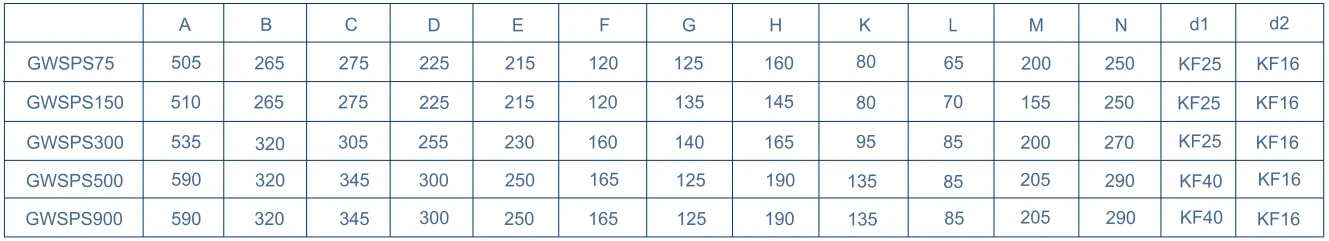

GWSP Structure Size

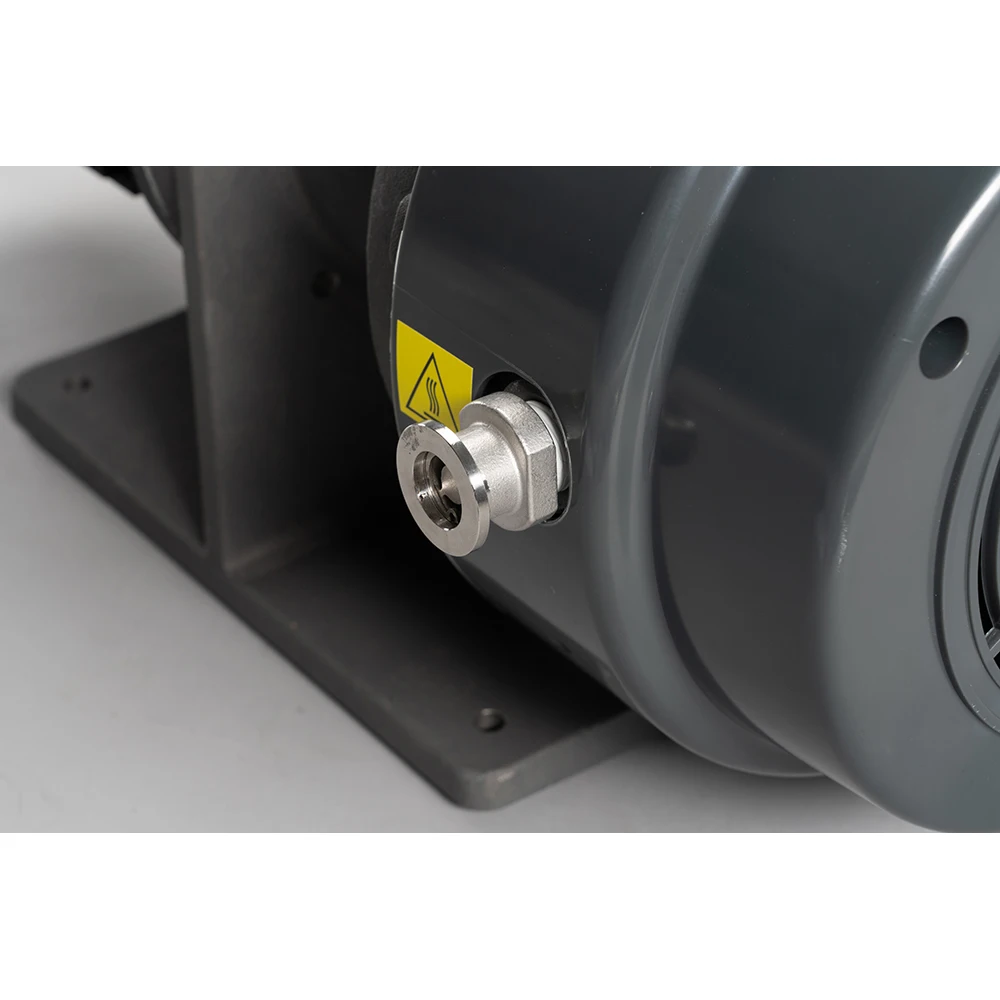

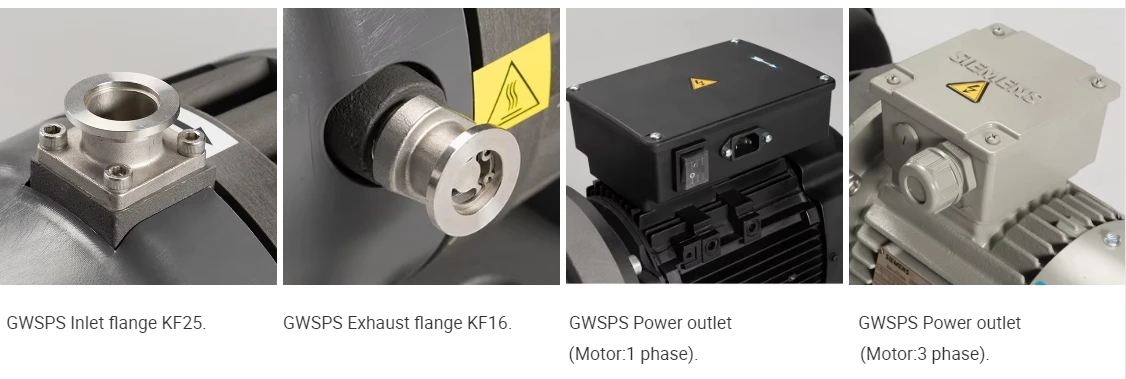

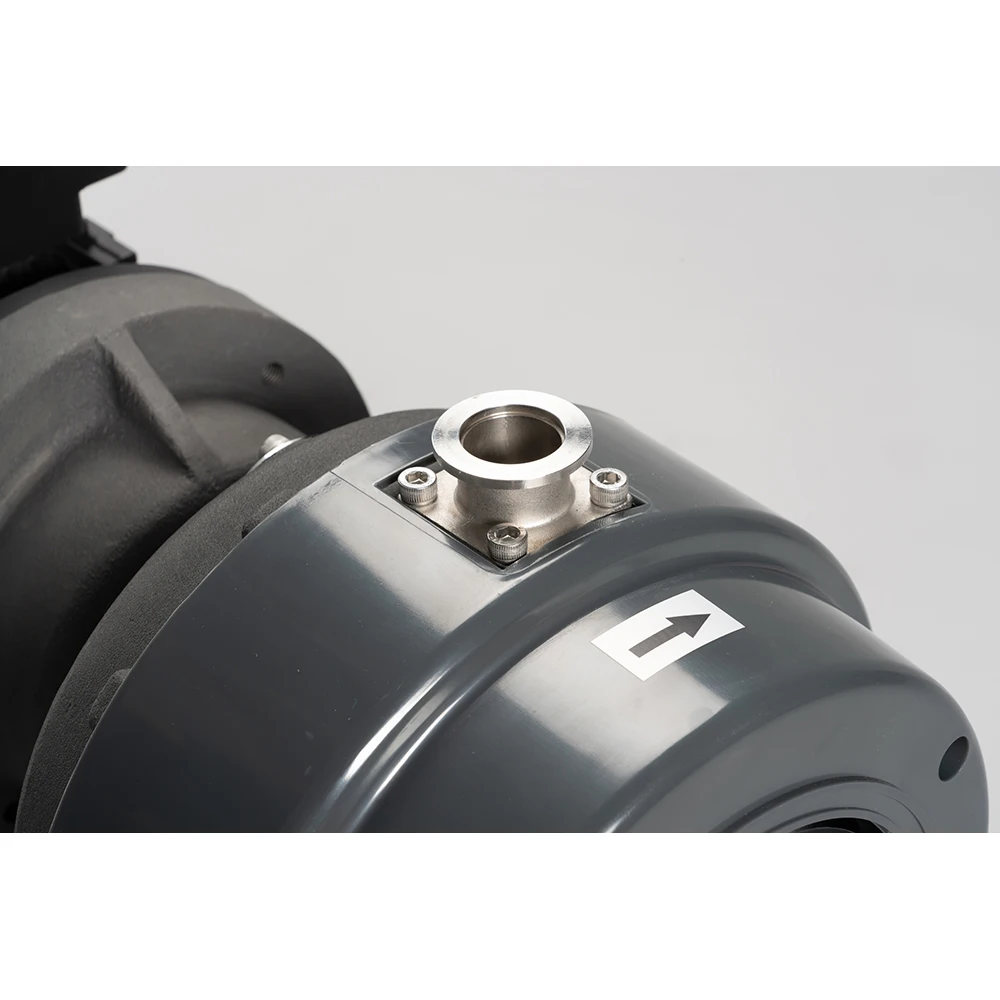

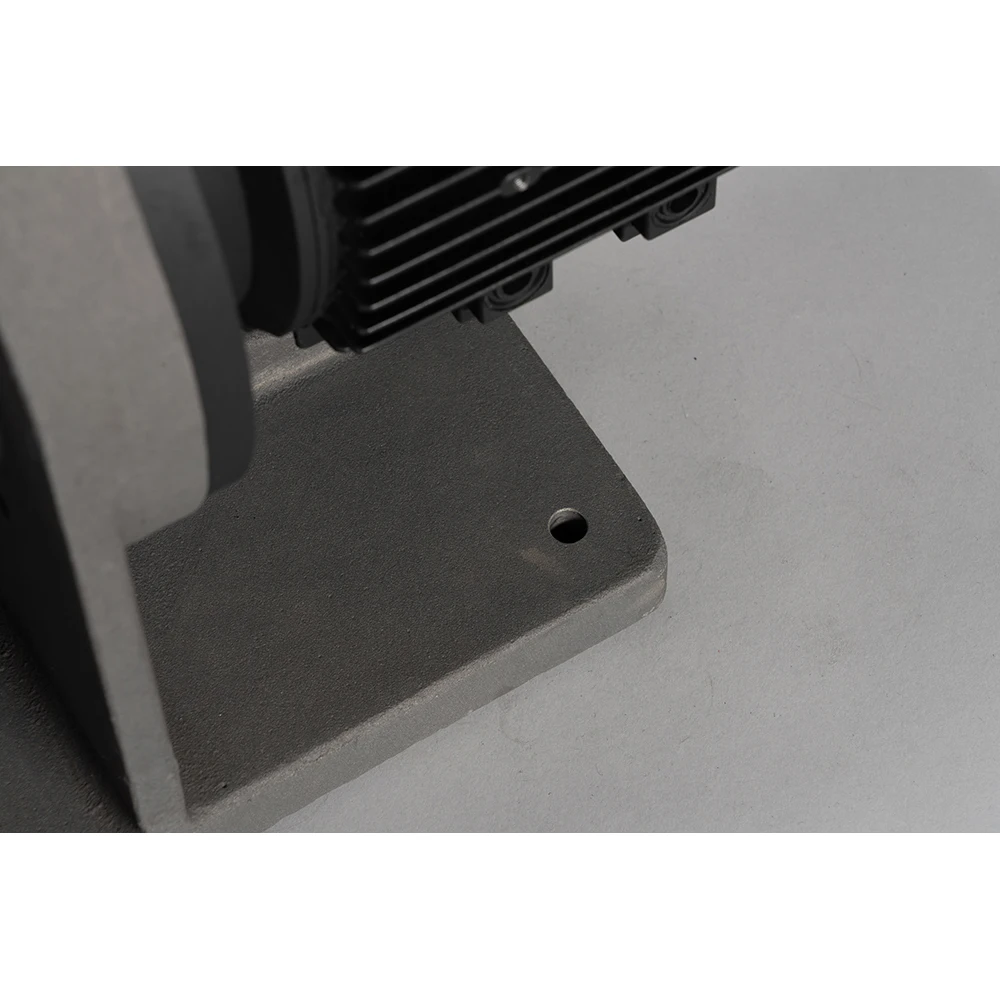

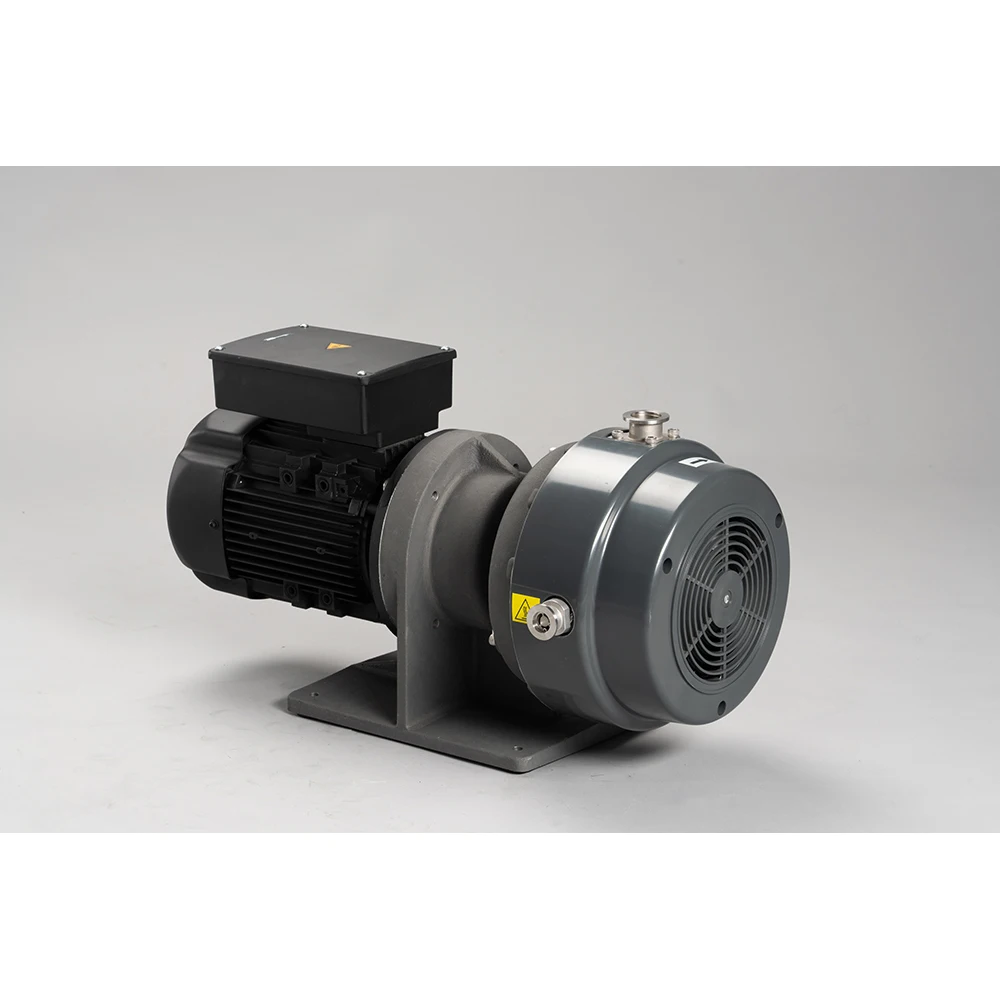

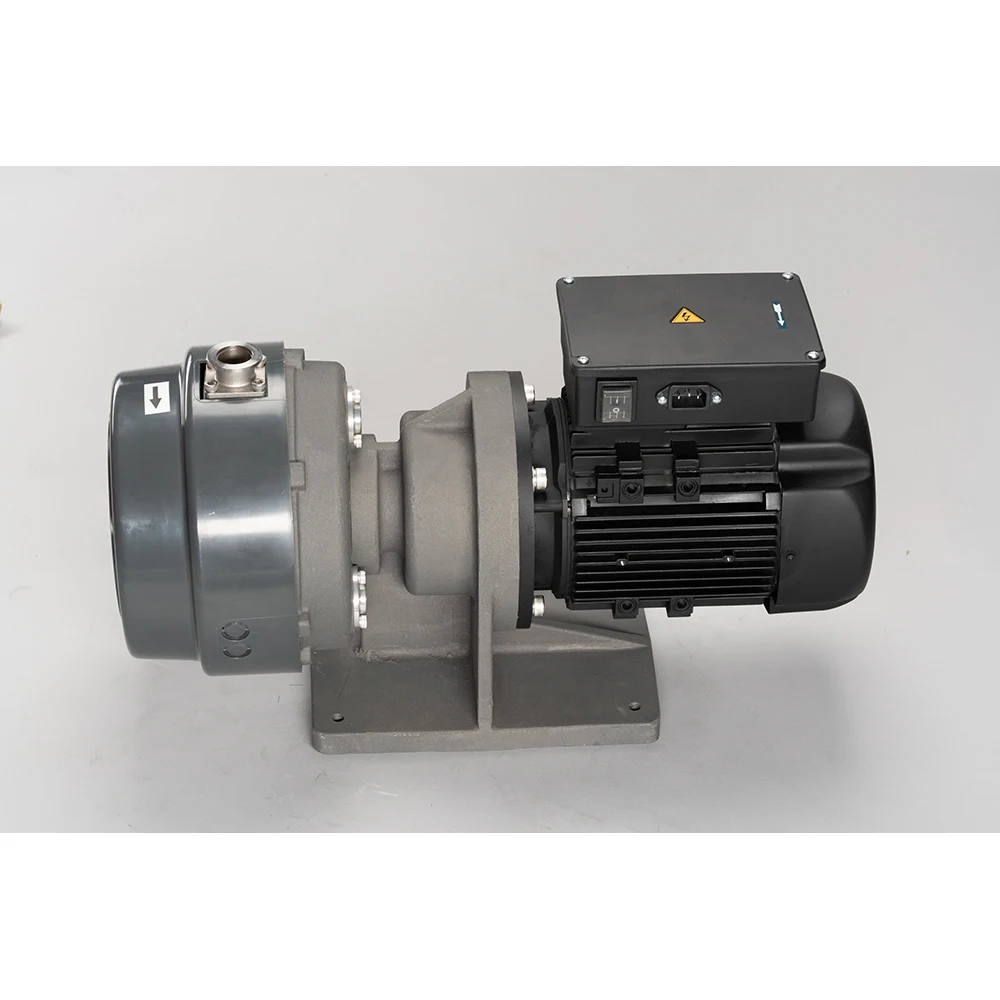

Product details
Related Products

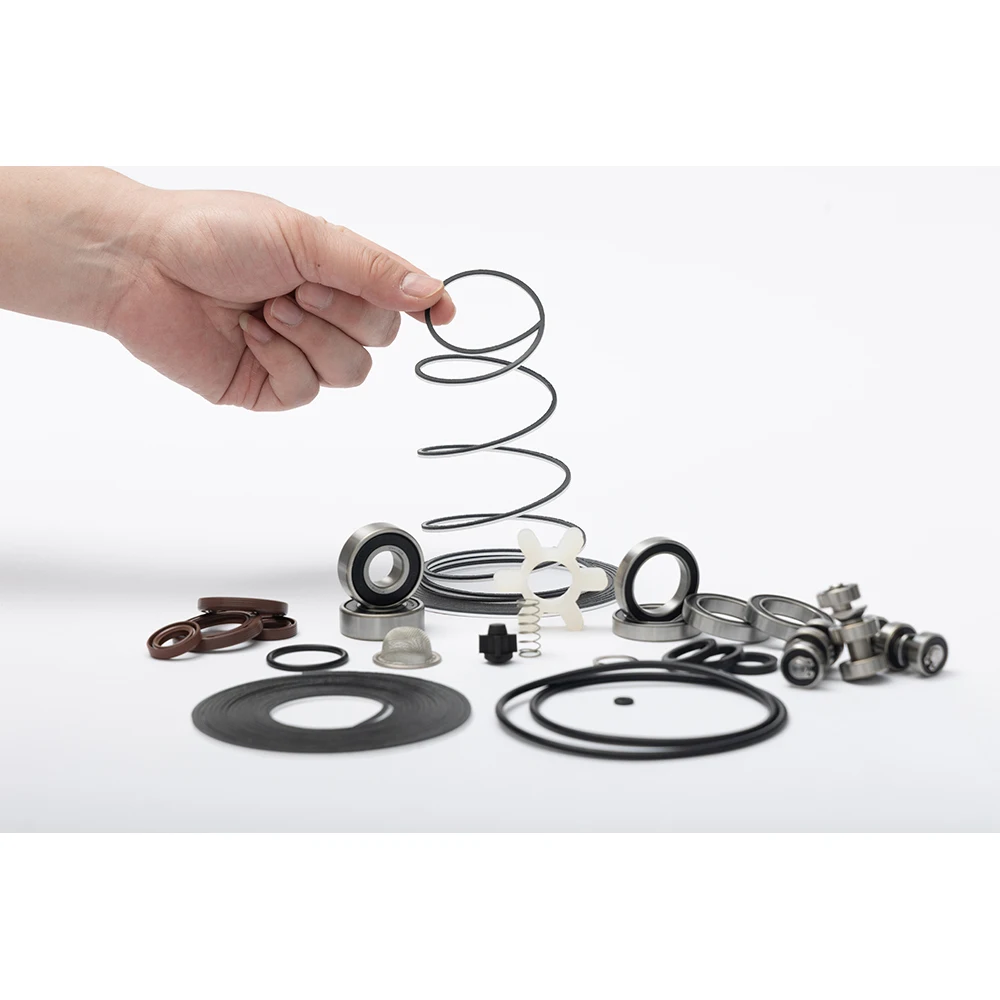

Major Maintenance Kit GWMMK.
1)Performance:
Prolong the service life of the product.
2)Application:
For the major maintenance of oil free scroll vacuum pump GWSP.

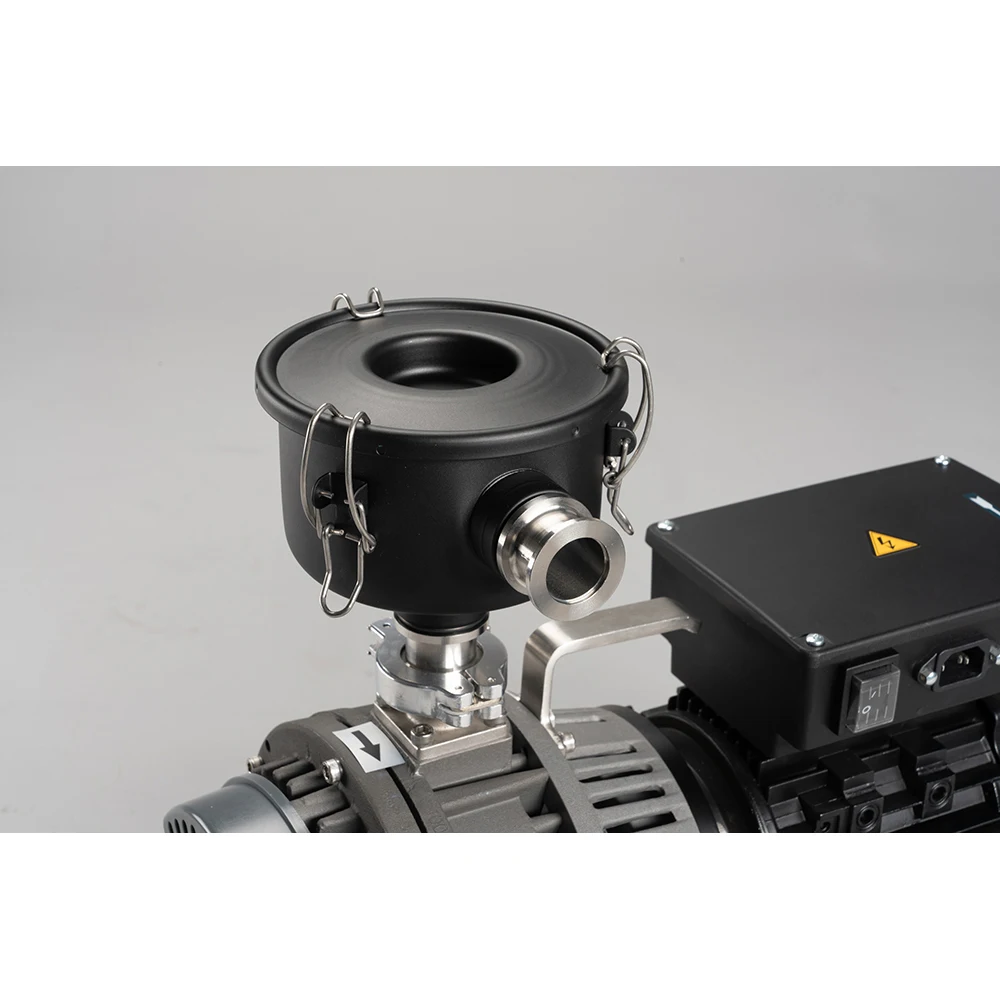

Foreline Filter GWT.
1)Performance:
Filter out the dust particles contained in the intake gas.
2)Application:
Oil free vacuum pump.

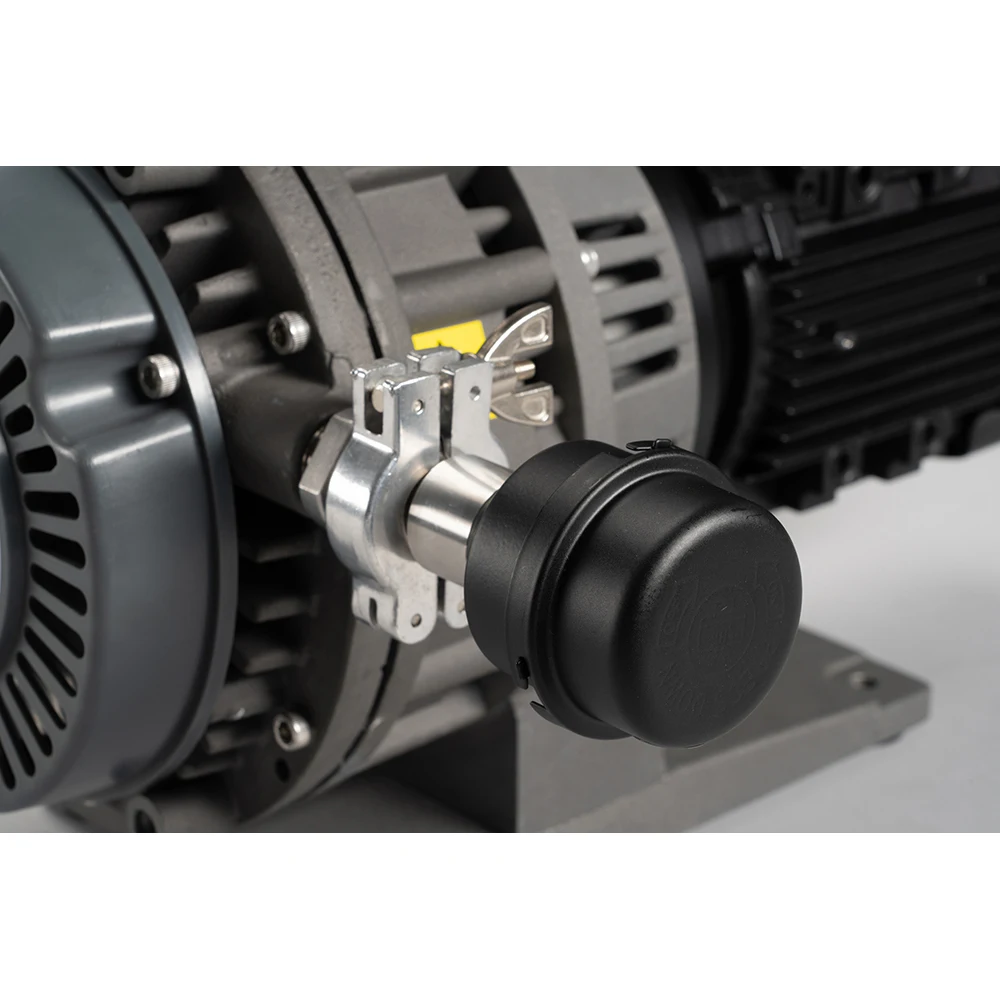

Exhaust Silencer GWS16.
1)Performance:
Reduce exhaust noise from oil-free vacuum systems.
2)Application:
Oil free vacuum pump.
Quality Control
Application Field
Company Profile
Company Information.
GEOWELL VACUUM CO.,LTD. is a HI-TECH enterprise in China dedicating in manufacturing, research anddevelopment, marketing of oil free scroll vacuum pumps and vacuum compressors since 2002. GEOWELL has been providing users and partners with premium quality products that are efficient and dependable, GEOWELL believe the integration of high performance and high reliability product and service will bring the highest value to both our customers and ourselves.
Certificates.
GEOWELL created a road of independent R&D of oil-free scroll vacuum pump technologies. From basic theoretical research,application development to mass production, GEOWELL accumulated more than 60 technical patents and proprietary technologies, andcertificated with CE of Europe, EAC of RUSSIA and ISO9001.
GEOWELL
GEOWELL participated in overseas market exhibitions and exported its products to overseas markets.
Packaging and shipping
