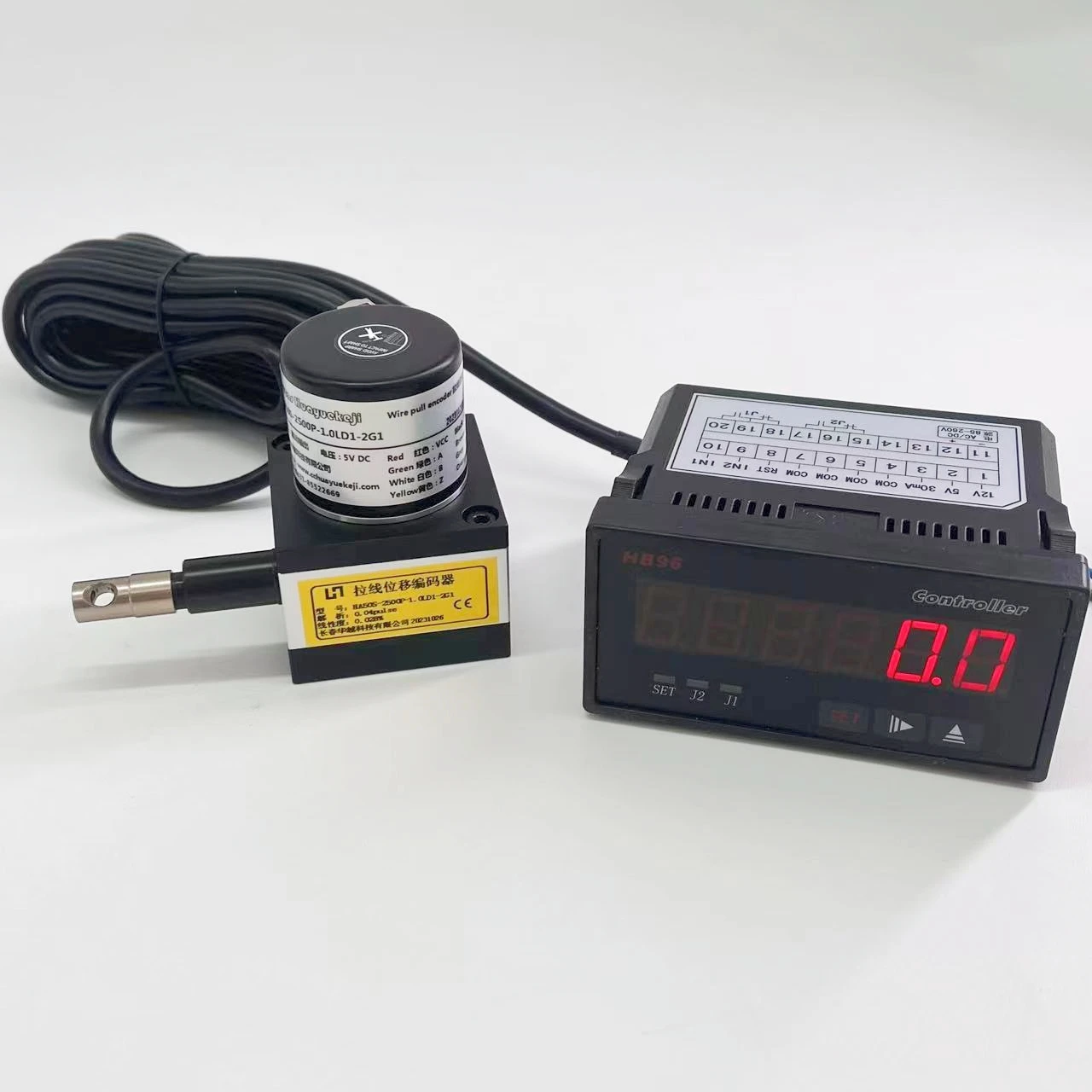

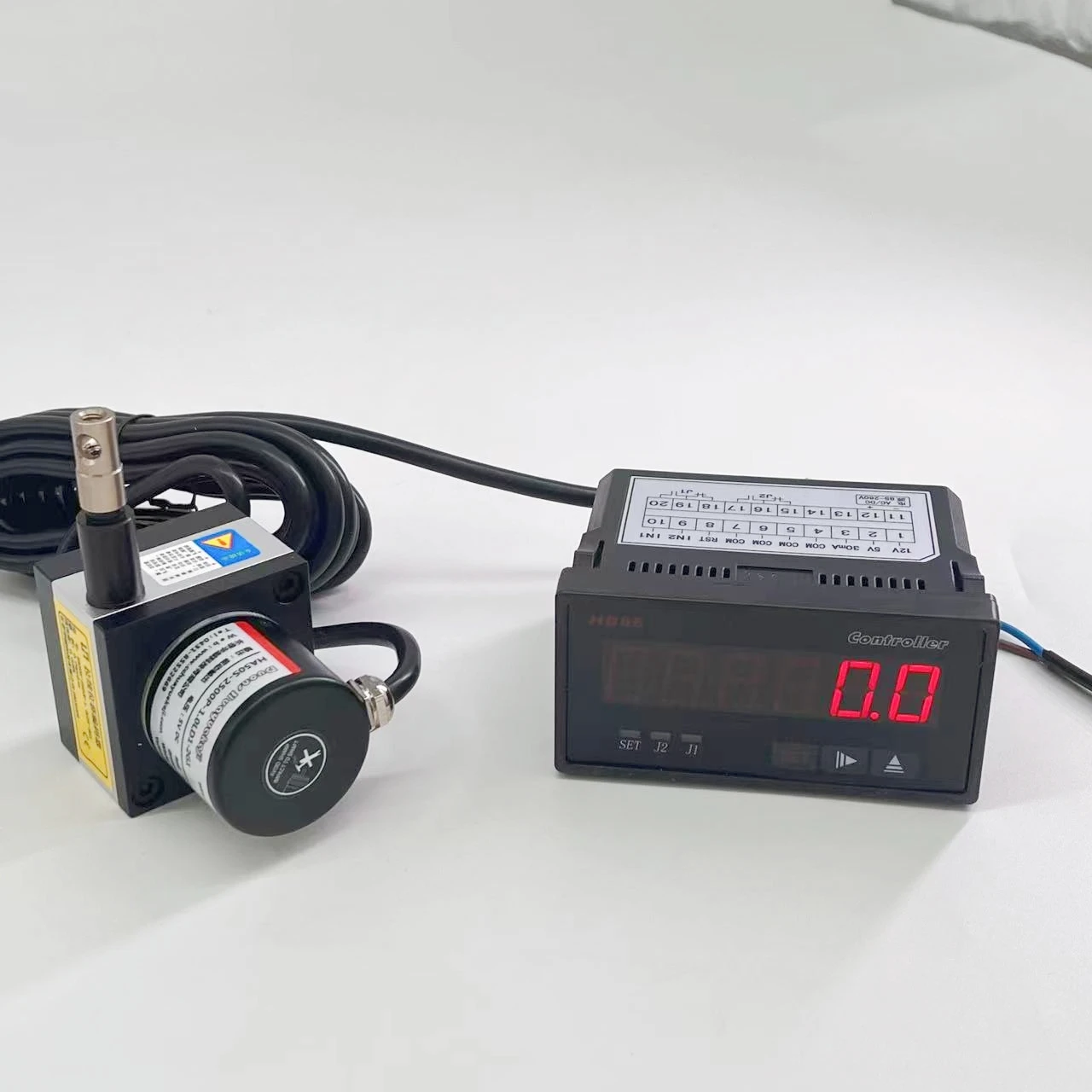

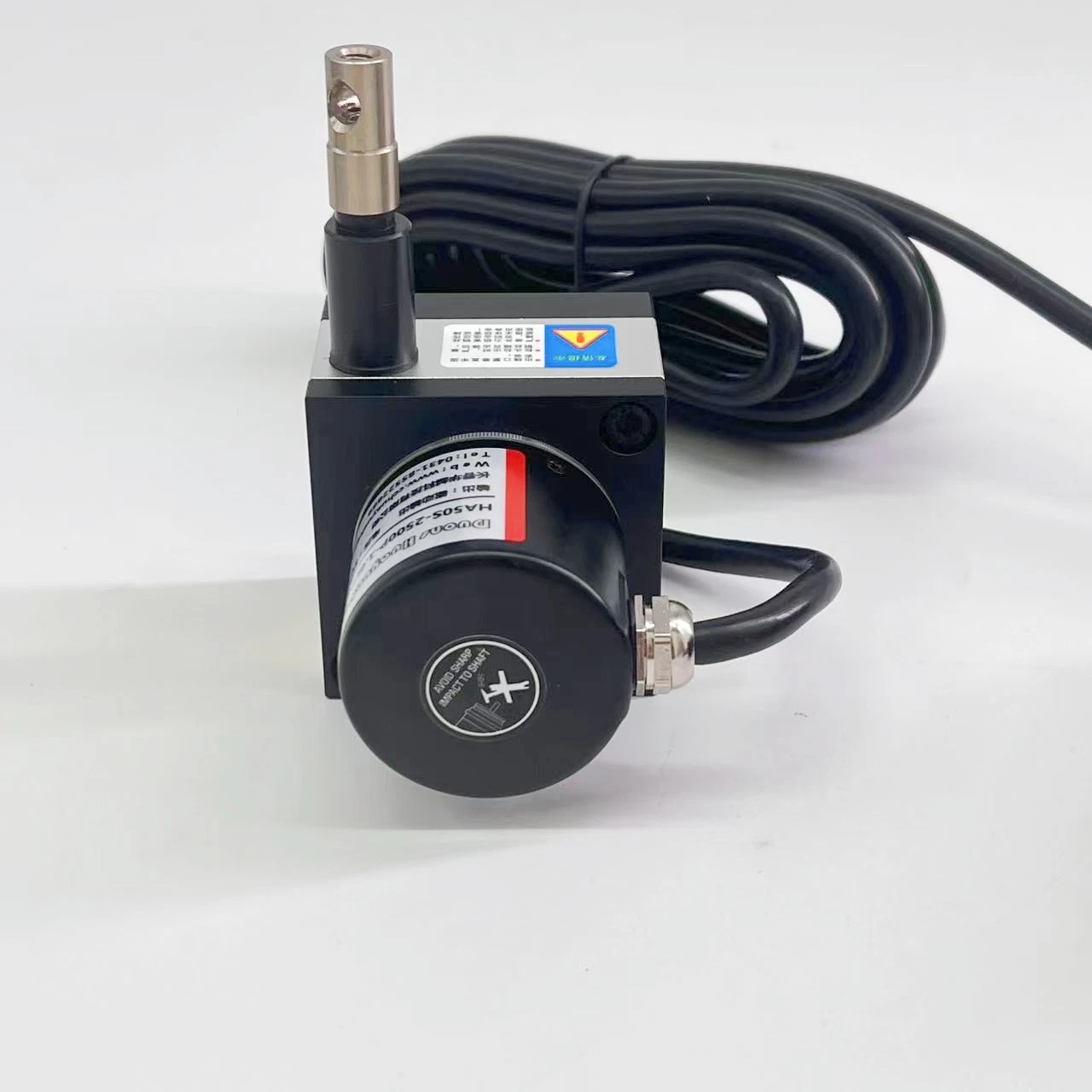

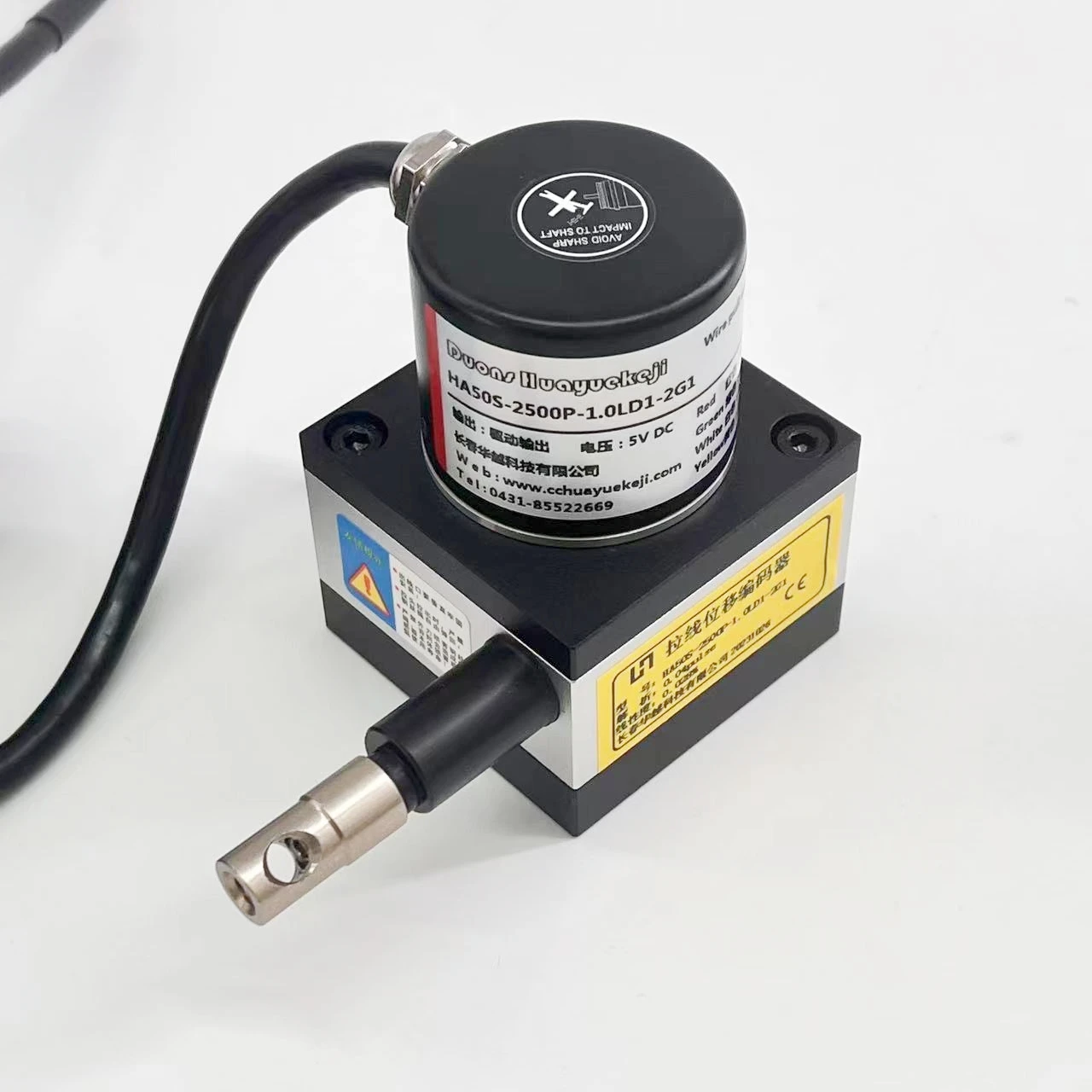

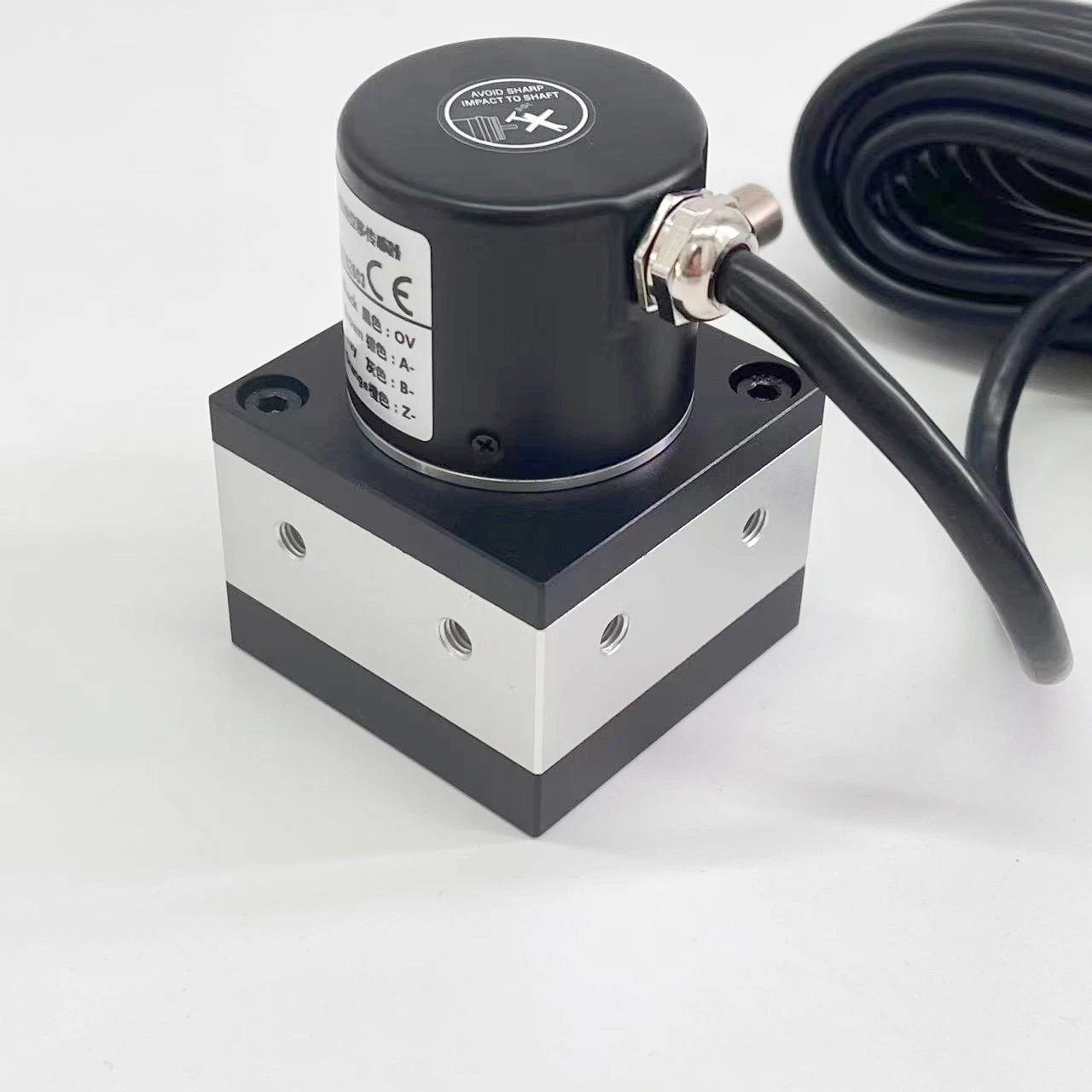

High Precision 485 Output 1000mm Length Sensor Wire Pull Encoder With Display Rope Absolute Encoder
- Category: >>>
- Supplier: Changchun Huayue Technology Co. Ltd.
Share on (1600979930751):
Product Overview
Description
Sensor type | Digital signal cable displacement sensor |
Measuring Range | 0mm-1500mm |
Linear Accuracy | 0.01% FS |
Repeatability Accuracy | 0.05% |
Output pulse | 10ppr...10000ppr |
Output | Voltage/NPN/PNP/Push pull/Drive output/485modbus |
Wire retraction force | 4N |
Maximum reciprocating speed | 1000mm/s |
Protection level outside the pull box | IP54 |
Life | More than 2 million reciprocating cycles |
Operation temperature | -30℃~+90℃ |
Working voltage | 5V;8~24V;10~30V;12V |
Cable Length | Optional；Standard configuration 2m |
Wire rope diameter | 0.6mm Imported coated steel wire rope |
Housing Material | Aluminium alloy, oxidation surface treating,wear and corrosion prevention |
Q1:How to order our product ?
A:1).Please tell us the model and quantity and other requestyou need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you afterreceiving your payment.
4).After the goods finished, we send the goods out to you andtell you the tracking number.
5).We will track your goods until you receive the goods.
Q2:Can I have a sample for testing?
A: Actually we have a very good price principle, when youmake the bulk order then cost of sample will be return to you.The price is the same for 1-20 sets including the sample
Q3:Can I add my logo on the encoder ?
A:1).Please tell us the model and quantity and other requestyou need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you afterreceiving your payment.
4).After the goods finished, we send the goods out to you andtell you the tracking number.
5).We will track your goods until you receive the goods.
Q2:Can I have a sample for testing?
A: Actually we have a very good price principle, when youmake the bulk order then cost of sample will be return to you.The price is the same for 1-20 sets including the sample
Q3:Can I add my logo on the encoder ?
A:Yes,OEM and ODM are available for us.
Q4:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send thespare parts,but you should pay. For our range hood motors itis lifelong maintenance.
Q5 :Do you have inspection procedures for encoder ?
Q4:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send thespare parts,but you should pay. For our range hood motors itis lifelong maintenance.
Q5 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
