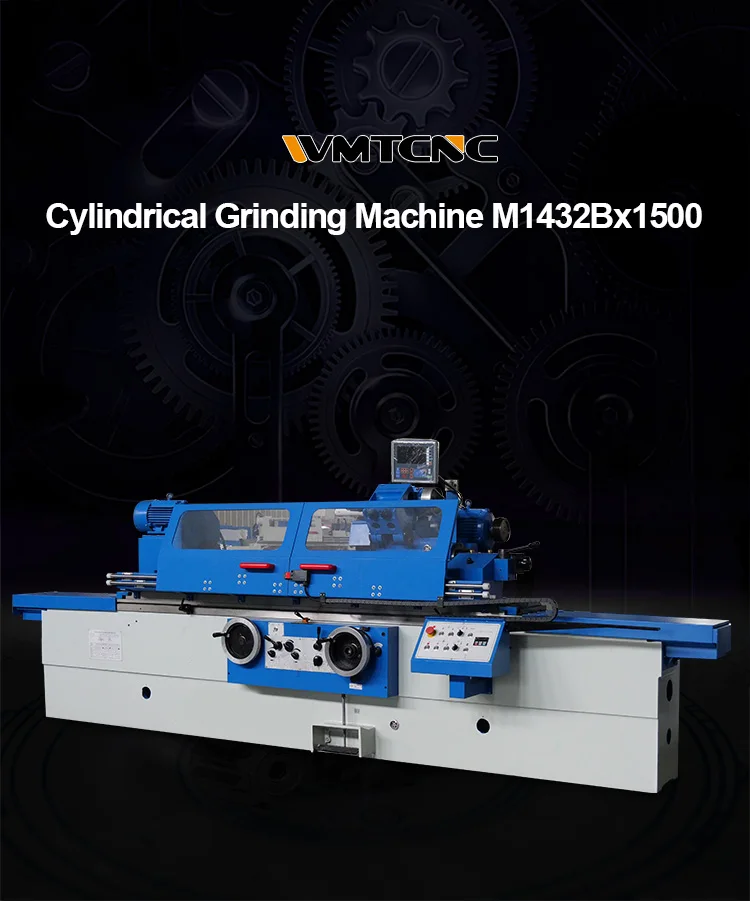

Precision grinding machine M1432BX1500 Internal and external cylindrical grinder with digital display
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1600979996243):
Product Overview
Description
Product Description
Main Features:

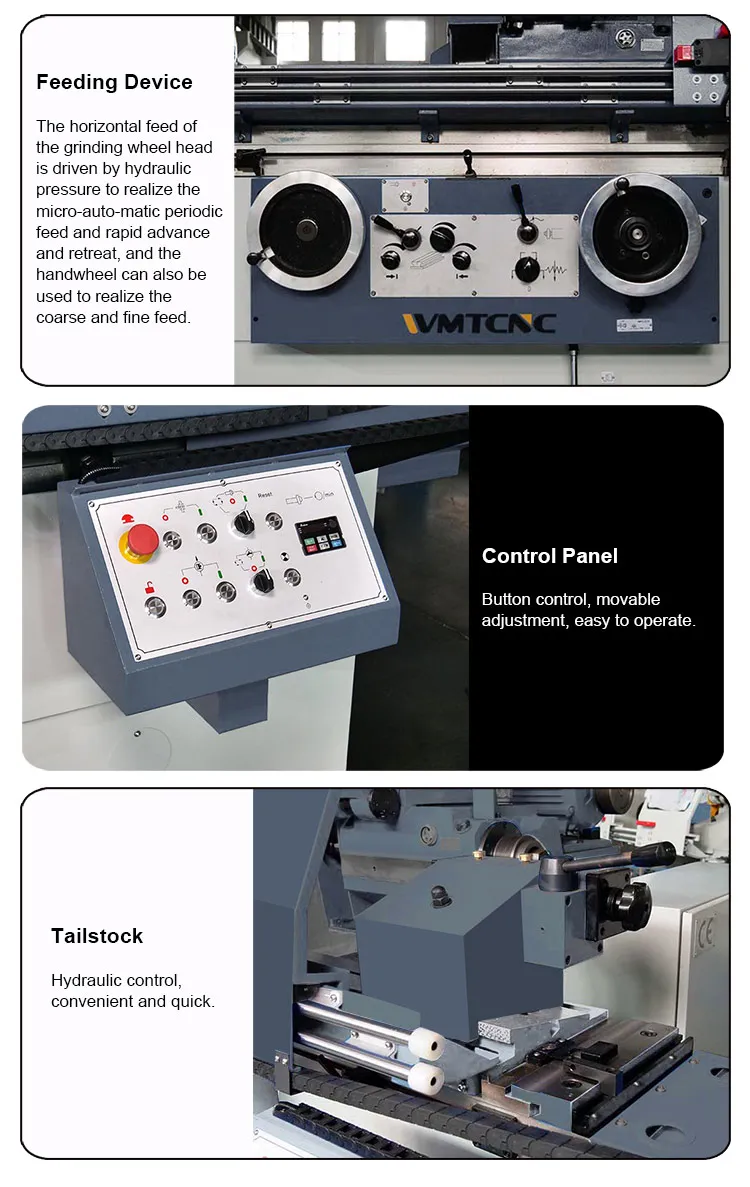

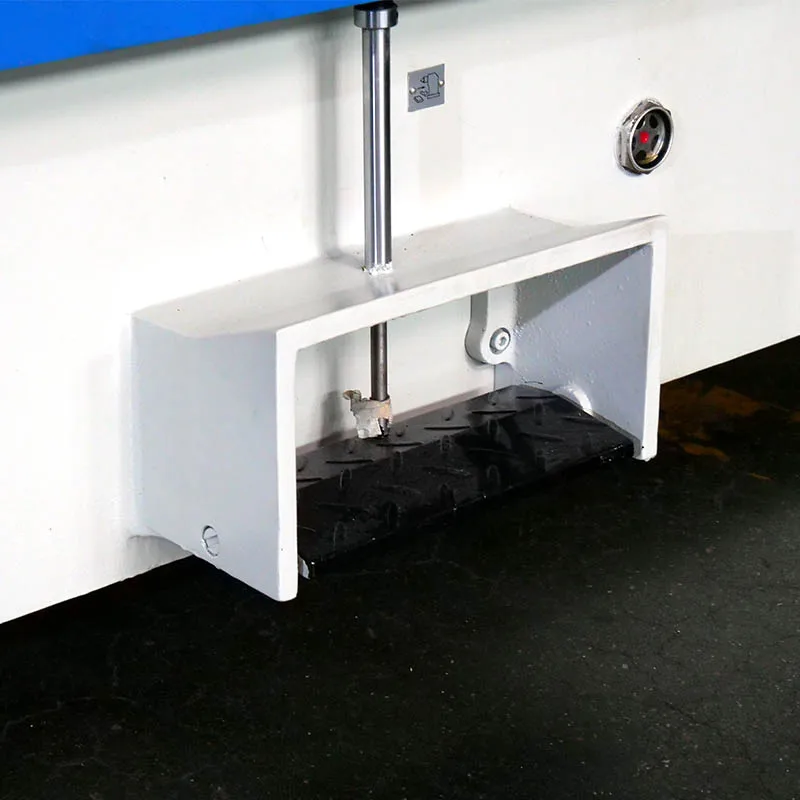

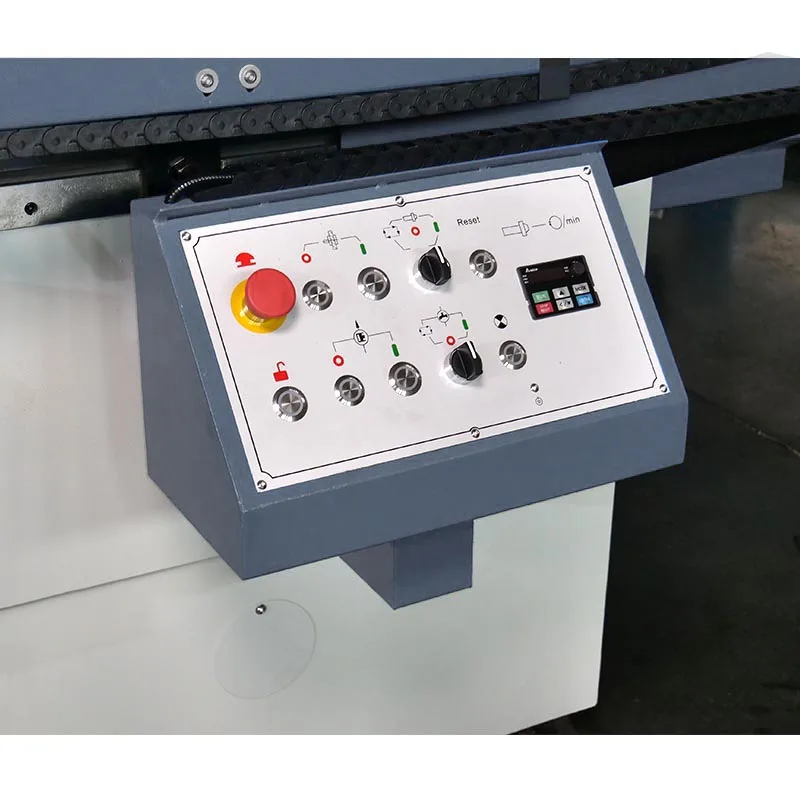

1. Machine table longitudinal travel, wheelhead rapid approach and withdrawal and automatic periodic cross infeed are driven hydro-electrically by pushing button operation. The machine also has the following functions: hand-operated worktable and wheelhead manually traverse infeed plus hydraulic tailstock quill retraction by foot.

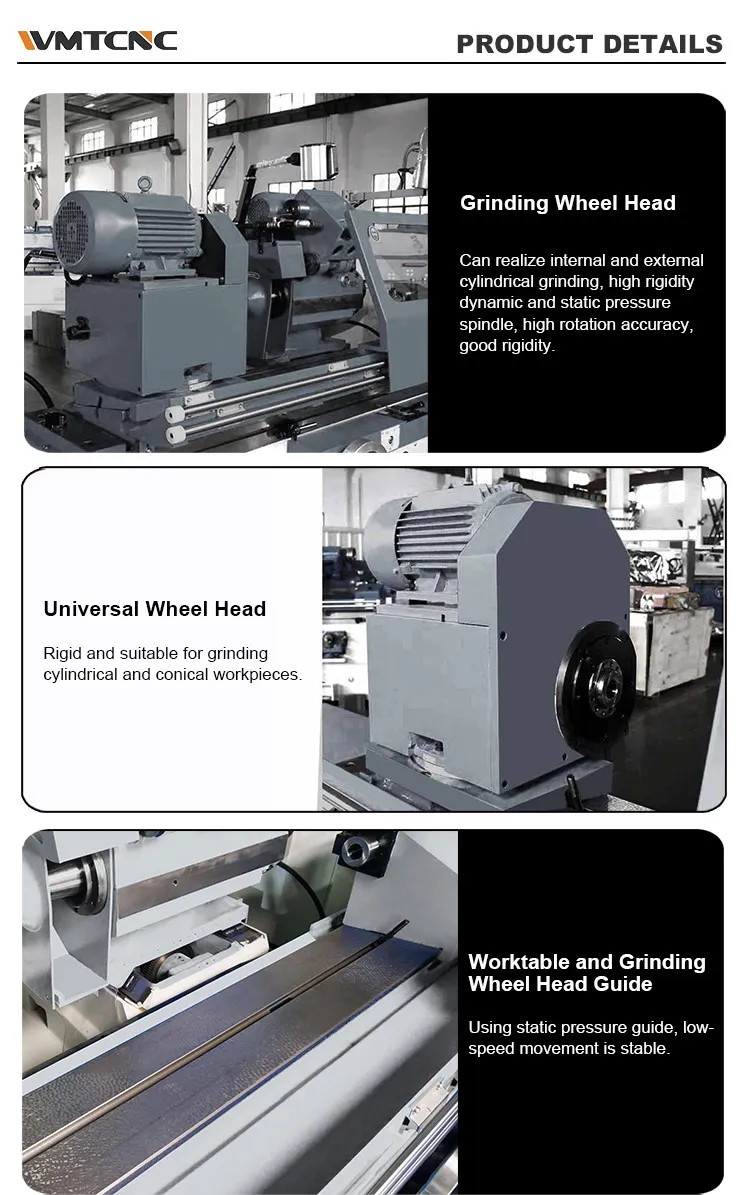

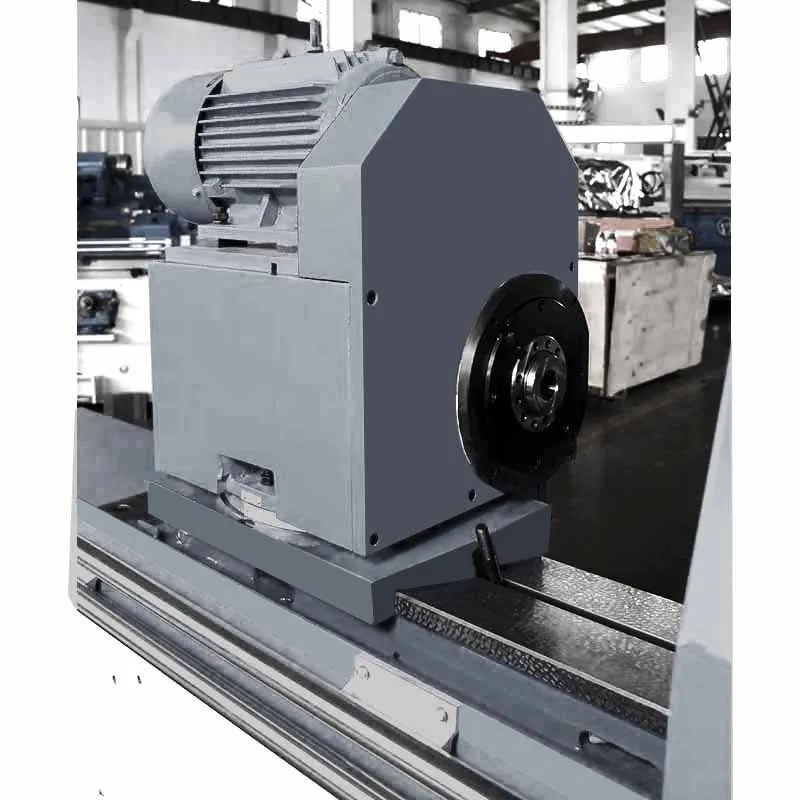

2. The headstock can be swiveled in counter-clockwise direction in 90 degree range. By swiveling the headstock, or wheelhead or table, components with different external or internal taper can be ground. By turning down the internal grinding attachment, internal surface of components can be provided for grinding selection. The chuck mounted using short axis.

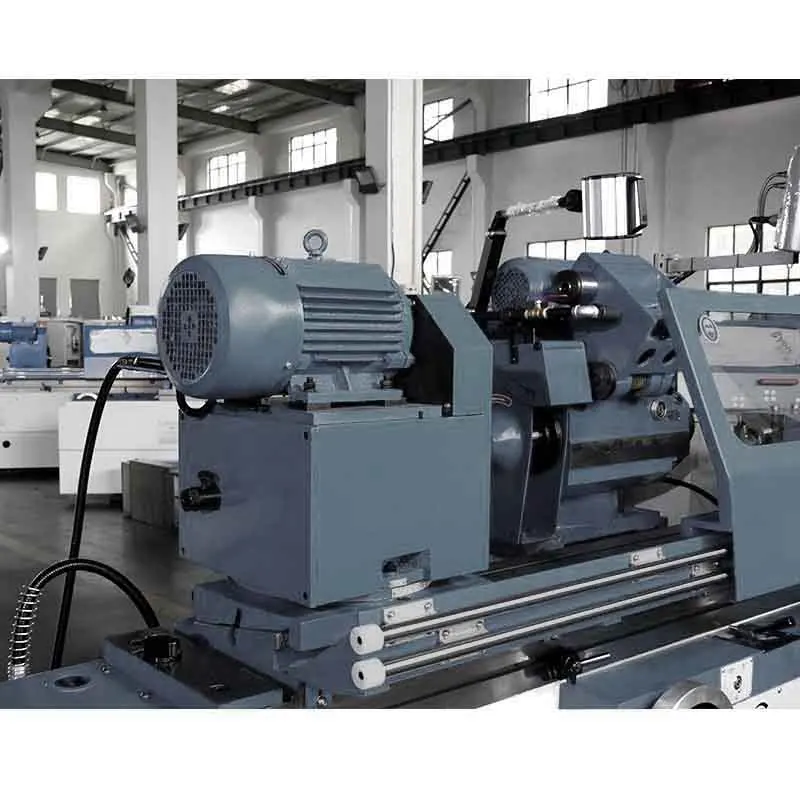

3. Workpiece, external and internal grinding wheels, hydraulic and coolant pumps are all driven separately by individual motors.
4. All the power moving portions of the machine are interlocked by electro hydraulic mechanism to ensure safety in operation. External and internal grinding wheels are guarded in sound and covers.
1. Machine table longitudinal travel, wheelhead rapid approach and withdrawal and automatic periodic cross infeed are driven hydro-electrically by pushing button operation. The machine also has the following functions: hand-operated worktable and wheelhead manually traverse infeed plus hydraulic tailstock quill retraction by foot.
2. The headstock can be swiveled in counter-clockwise direction in 90 degree range. By swiveling the headstock, or wheelhead or table, components with different external or internal taper can be ground. By turning down the internal grinding attachment, internal surface of components can be provided for grinding selection. The chuck mounted using short axis.
3. Workpiece, external and internal grinding wheels, hydraulic and coolant pumps are all driven separately by individual motors.
4. All the power moving portions of the machine are interlocked by electro hydraulic mechanism to ensure safety in operation. External and internal grinding wheels are guarded in sound and covers.
5. Remark: according to your requirements, the internal grinding rod is φ10 and φ16, so that the internal grinding wheel
configured to 50x40x16mm and 45x35x10mm.
configured to 50x40x16mm and 45x35x10mm.
Description | M1432B×1500 |
Grinding length（O.D/I.D） | 1500/125 mm |
Grinding dia.（O.D/I.D） | Φ8~Φ320/Φ30~Φ100 mm |
Center height | 180 mm |
Max. workpiece weight | 150 kg |
Worktable speed | 0.1~4 m/min |
Max. peipheral speed of grinding wheel | 38 m/s |
Max. travel of table | 1600 mm |
Swivel range of worktable | -3~+6° |
External wheel size | Φ400×50×Φ203 mm Φ500×50×Φ203 mm |
Spindle speed of headstock | 50Hz:25~220 stepless r/min 60Hz:30~264 stepless r/min |
Headstockand tailstock center | MT4 |
Wheelhead displacement per div. of handwheel coarse/fine | 0.01/0.0025 mm |
Total motor power | 9 kw |
Overall dimensions(L×W×H) | 4605×1810×1515 mm |
Machine weight | 4300 kg |
Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
