Industrial Fanless MINI PC VENOEN P01GM i7 1255U 64GB RAM 1TB HDD M.2 SSD Soft Router Firewall Appliance
- Category: >>>
- Supplier: Xuzhou Venoen Technology Co. Ltd.
Share on (1600980056656):
Product Overview
Description
Product Description
Processor parameter
1.12th Gen Alder Lake Core i5 1235U 10 Core 12 threads,1.3GHz up to 4.4GHz,12MB Cache,TDP 15W,Intel Iris Xe graphics
2.12th Gen Alder Lake Core i7 1255U 10 Core 12 threads,1.25GHz up to 4.7GHz,12MB Cache,TDP 15W ,Intel Iris Xe graphics
Product Highlight
Dimension:170mm(L)x126mm(W)x51mm(H)
CPU: Intel Core i5-1235U/i7-1255U
GPU: Intel Iris Xe Graphics
Ram: 2 x SO-DIMM DDR4 slots, support 3200MHz
SSD: 1xM.2 2280 PCIE4.0x4, 1xM.2 2280 PCIE3.0x4/SATA
HDD: Support 2.5inch 7mm HDD/SSD
WiFi: 802.11AX WiFi6 with Bluethooth5.2
RJ45: 2 x intel i225/i226 100/1000/2500M, can be configured as a host server or router

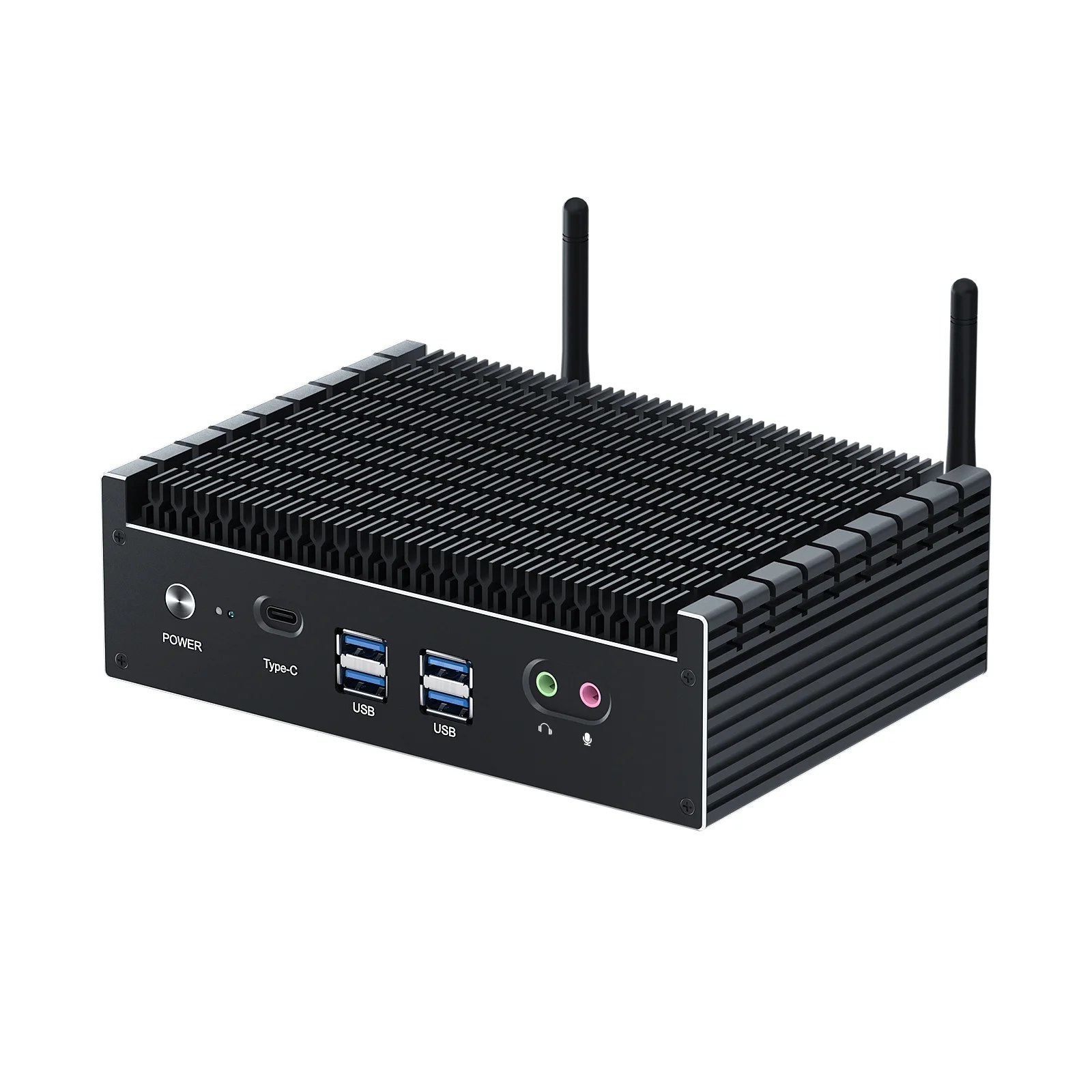

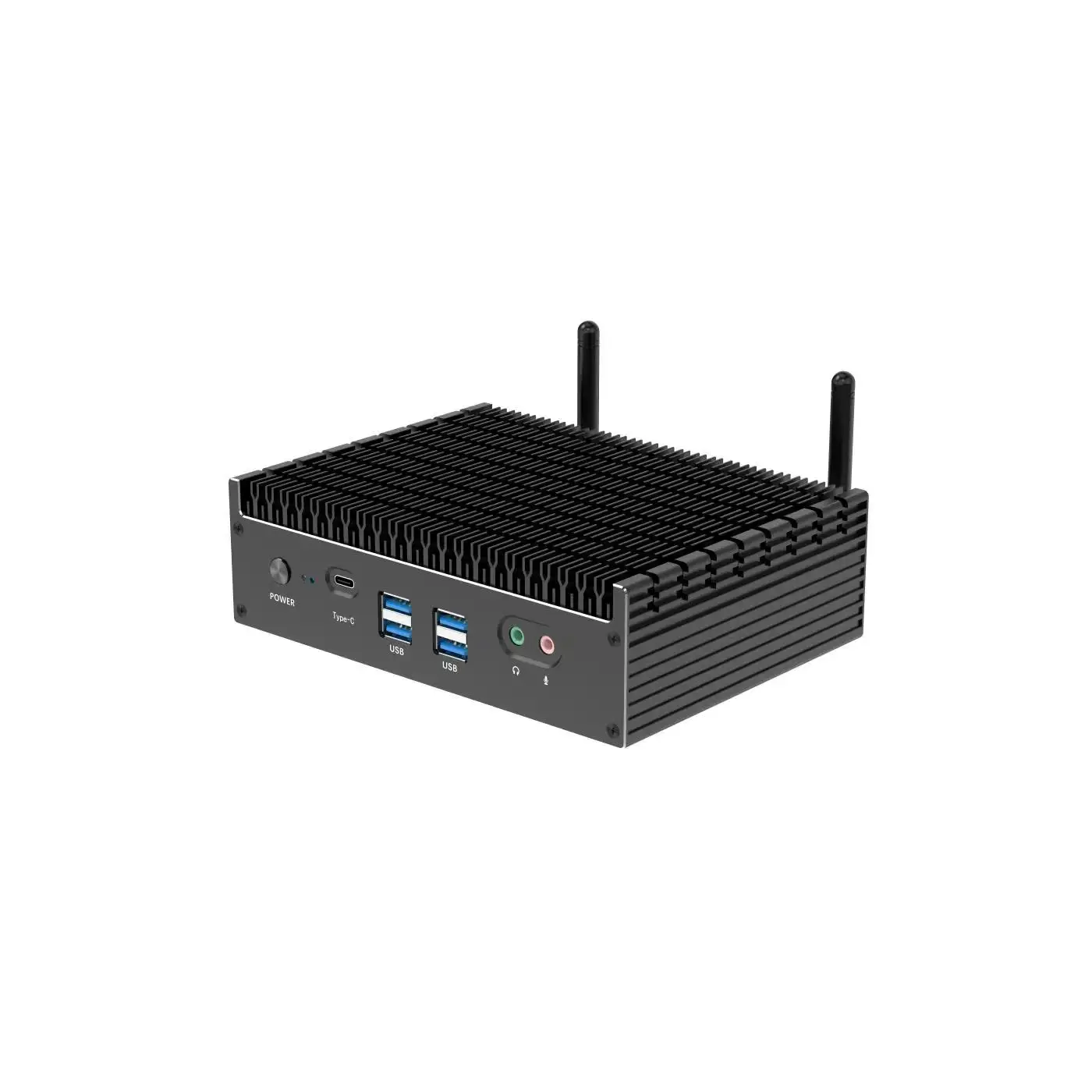

Front I/O: 4 x USB 3.2, 1 x Type-C thunderbolt 4, 1 x Earphone, 1 x MIC, 1 x Switch

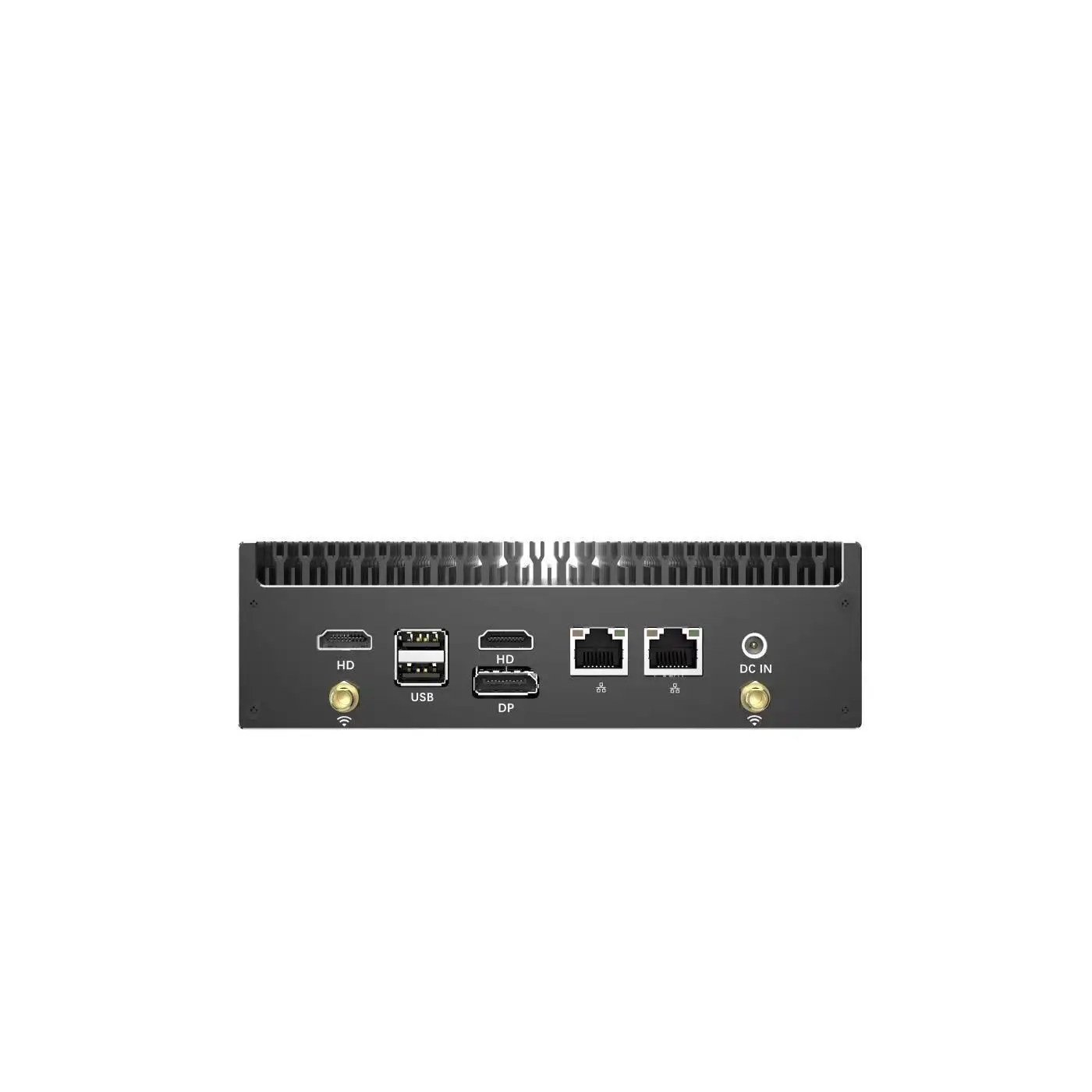

Rear I/O: 2 x USB 2.0, 2 x HDMI2.0, 1 x DP1.4, 2 x RJ45 LAN, 1 x DC-IN
OS: Windows 11 / Ubuntu etc
Power: 19V 4.74A
BIOS: AMI UEFI, support Auto power on, Wake on Lan, PXE, RTC etc
Basic Information: | ||
CPU | Intel Core i7 1255U i5 1235U | |
TDP | 15W | |
Memory | 2 x SO-DIMM DDR4 slot, up to 64GB 2133MHz/2400MHz/2666MHz/3200MHZ | |
OS | Windows 11/Windows 10/Linux | |
PXE | YES | |
Audio | Onboard HD audio chip | |
Network | Onboard I225/I226 2.5G network card chip | |
Video | Intel® Iris Xe Graphics | |
External I/O | ||
Switch | 1 x Power On/Off Switch | |
USB | 2 x USB 2.0, 4 x USB 3.2 | |
Display | 2 x HDMI 2.0 4K 60HZ, 1 x DP 1.4 | |
LAN | 2 x RJ45 LAN 2.5G | |
Type-C | 1 x Type-C (Thunderbolt4),Support 8K | |
Storage | ||
M.2 | 1 x M.2 2280 slot, support NVME PCIE x4/SATA3.0 | |
M.2 | 1 x M.2 2280 slot, support NVME PCIE x4 GEN4 | |
Wi-Fi | ||
Module | 1×M.2 2230 slot WIFI:802.11 b/g/n/AC/AX Bluetooth 4.0 or above | |
Antenna | 2 x external Wifi antennas | |
Power and Working Environment | ||
Input | DC100-240V AC/50-60Hz | |
Output | DC 12-19V 65W/90W | |
Operating Temperature | 0/+70 Centigrade (32~140°F) | |
Relative Humidity | -20/+80 Centigrade (-68~176°F) | |
Product Dimension & Details | ||
Size | 175*128*46mm | |
Weight | Net 1.2kg, Gross 1.5kg | |
Shell | Alloy Aluminuim | |
Package Content | ||
Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xSATA power&data cables | |
Packing&Shipping
Packing List:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Related Products
OEM&ODM Service
We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo)
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
Company Introduction
VENOEN Technology Co., Limited was founded in 2013 in XuZhou as a mini computer developer and wholesaler, our factory is located in Shenzhen, producing and supplying thin client and mini PC since 2006. There are 10 professional international sales person in VENOEN overseas sales offices, most of them has 3 to 8 years international sales experience; 5 technical support team has 10 years computer support experience and also support technical guidance in our factory since 2006.
We support retail, wholesale or agency of mini PC, OEM and ODM service and Drop Shipping services to all over the world.
As Quality is our culture, we fully believe quality is the soul of an enterprise, all our products are high quality finishes with
CE, RoHS, FCC, SGS, certifications, with 3 years warranty and competitive price, our products will give you an edge over your competitors;
We support retail, wholesale or agency of mini PC, OEM and ODM service and Drop Shipping services to all over the world.
As Quality is our culture, we fully believe quality is the soul of an enterprise, all our products are high quality finishes with
CE, RoHS, FCC, SGS, certifications, with 3 years warranty and competitive price, our products will give you an edge over your competitors;
FAQ
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
