API 7K F 500, F 800, F 1000, F 1300, F 1600 Mud Pump Spare Parts /Valve Assembly/ Valve Seat for Oilfield Drilling
- Category: >>>
- Supplier: Shandong Sunrise Petroleum Equipment Co. Ltd.Shandong Ltd.
Share on (1600980110454):
Product Overview
Description
Products Description

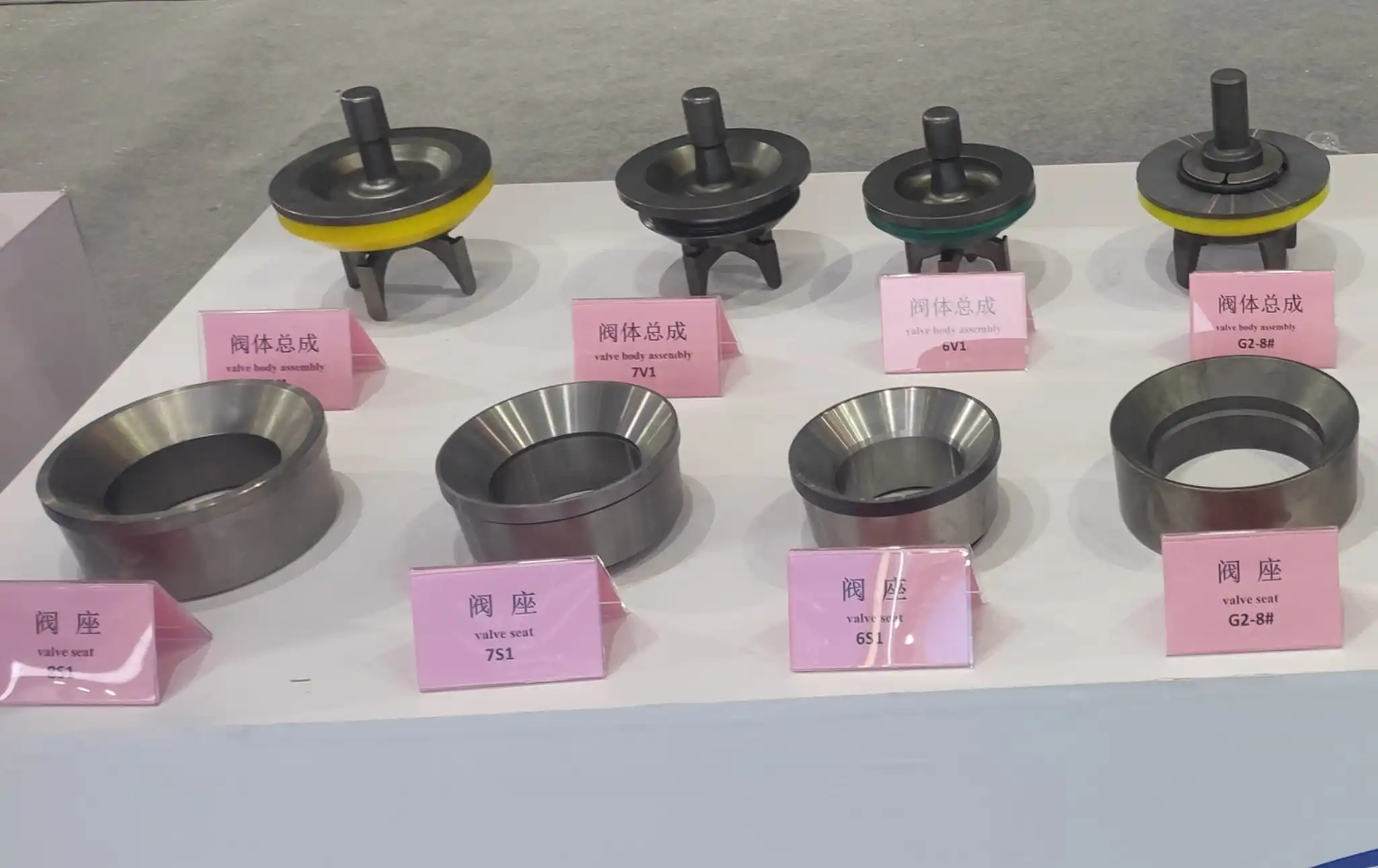

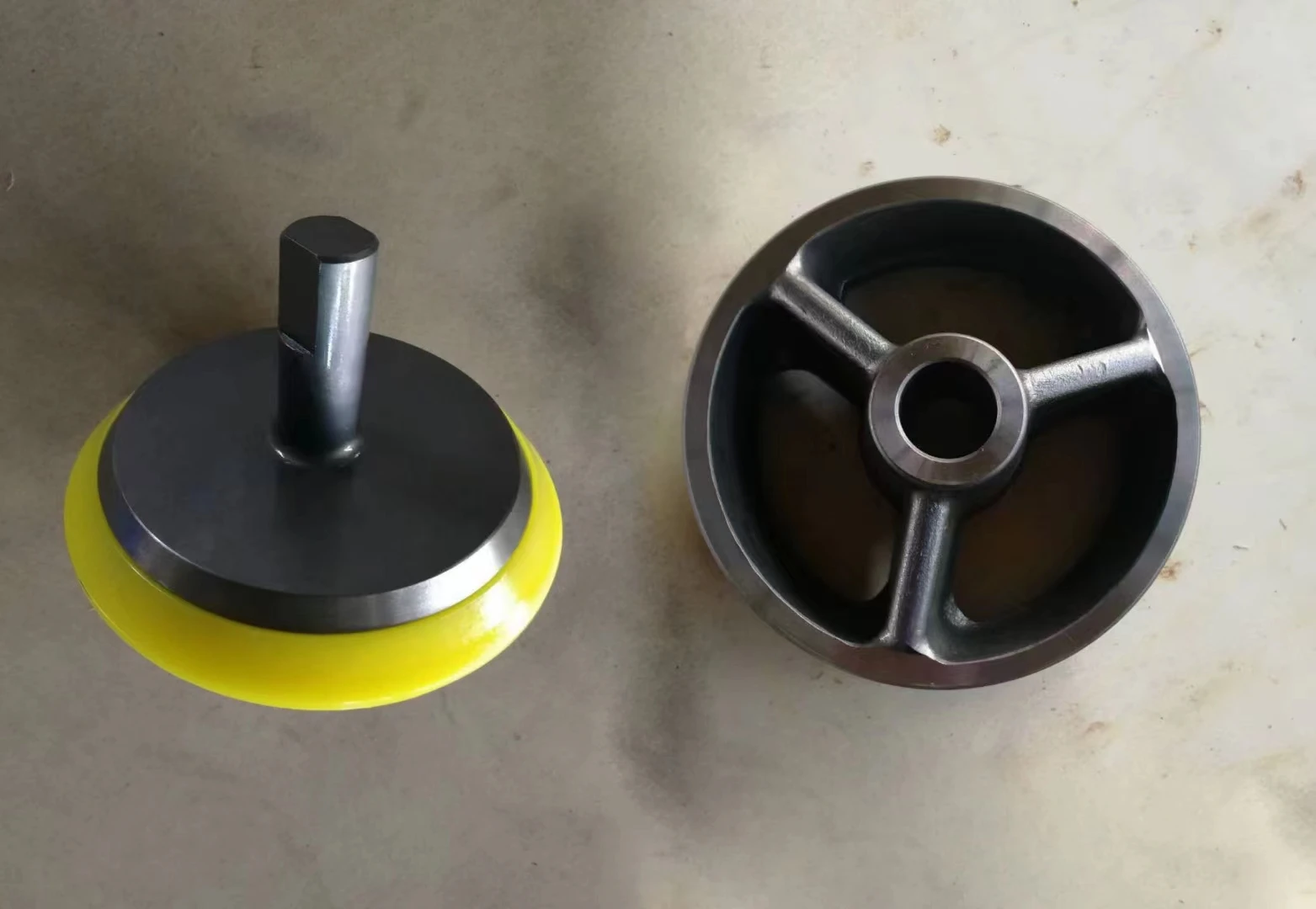

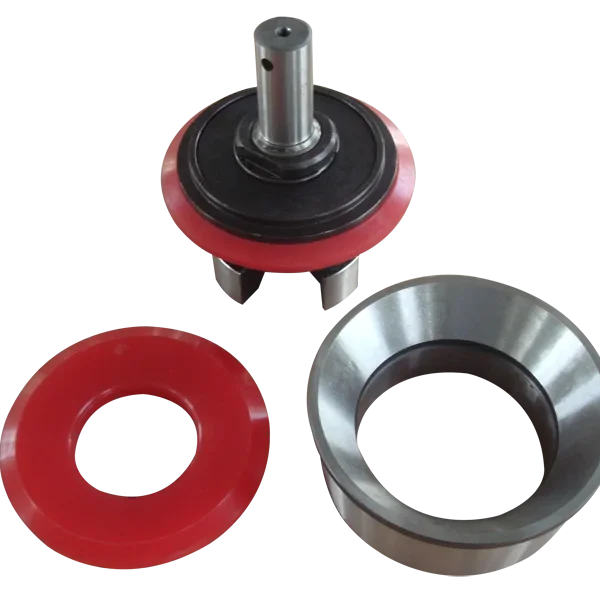

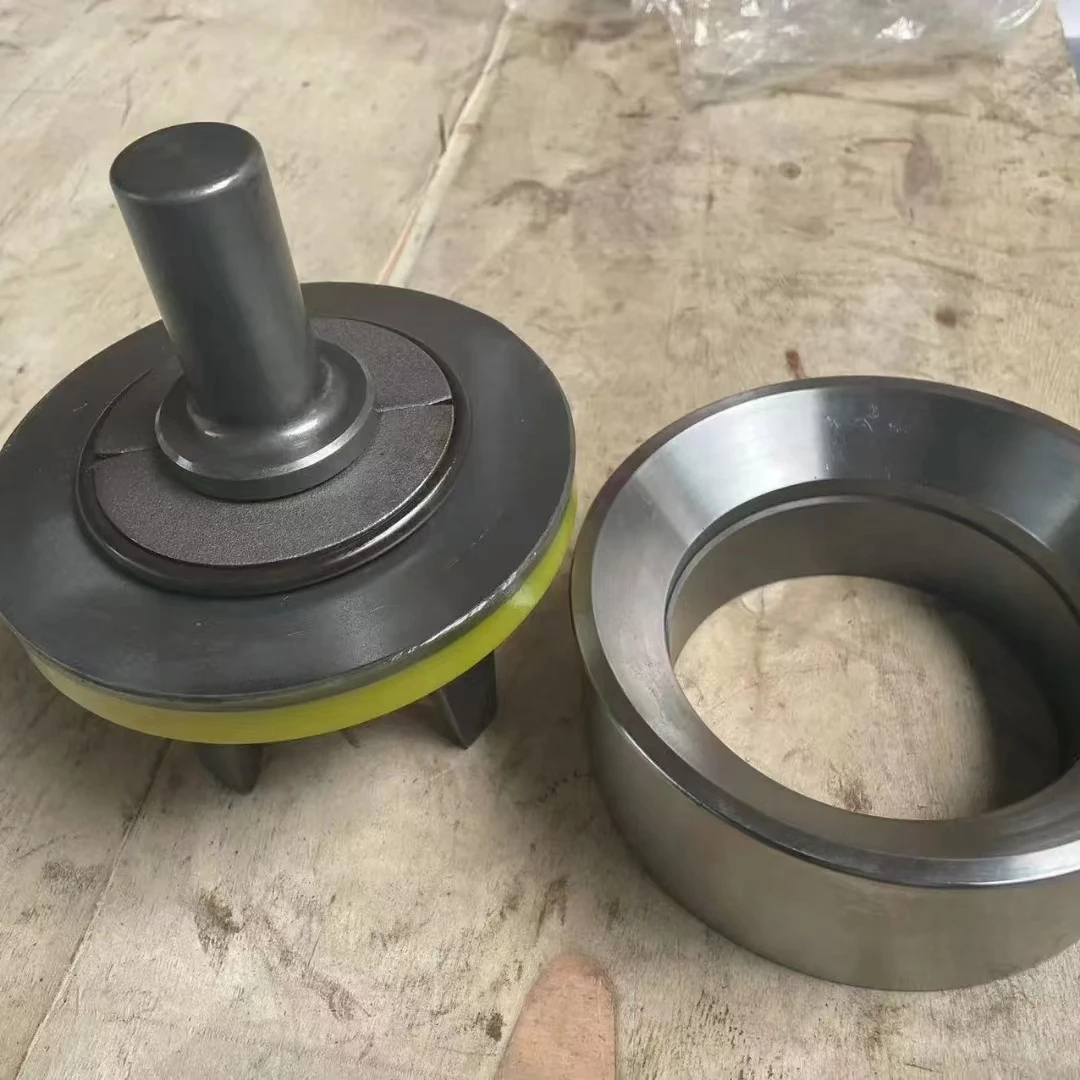

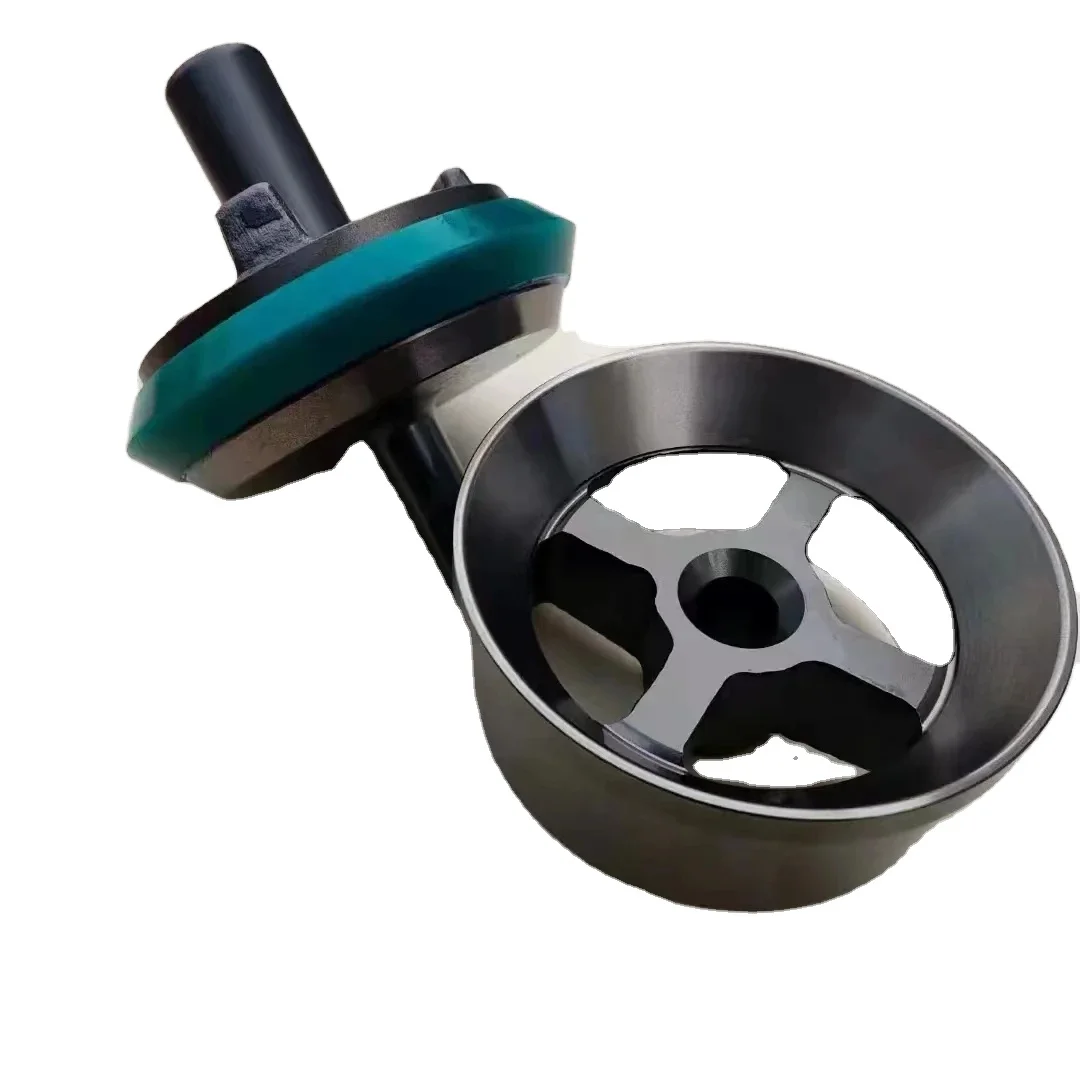

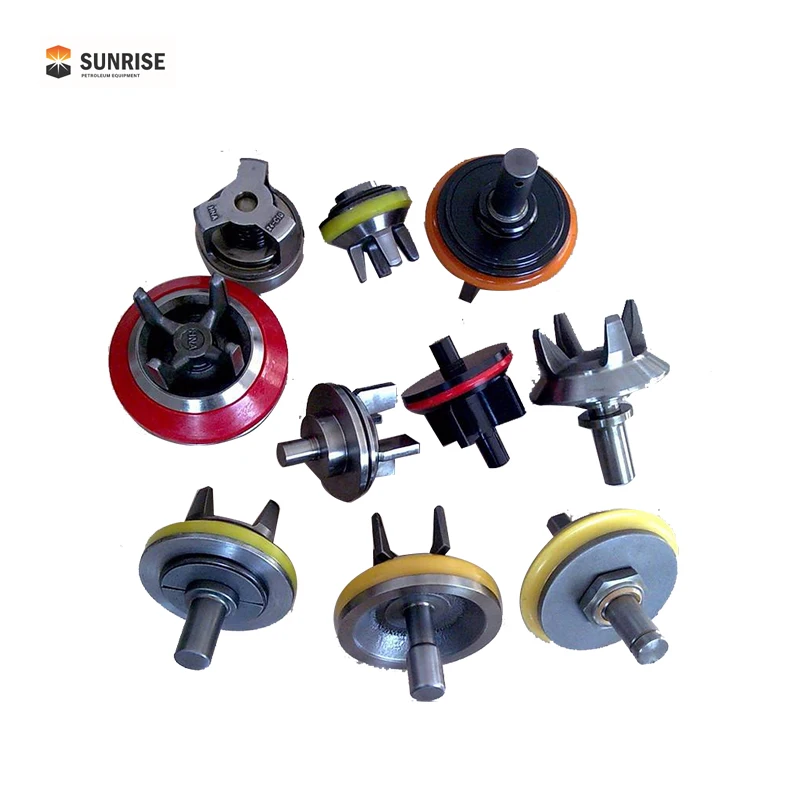

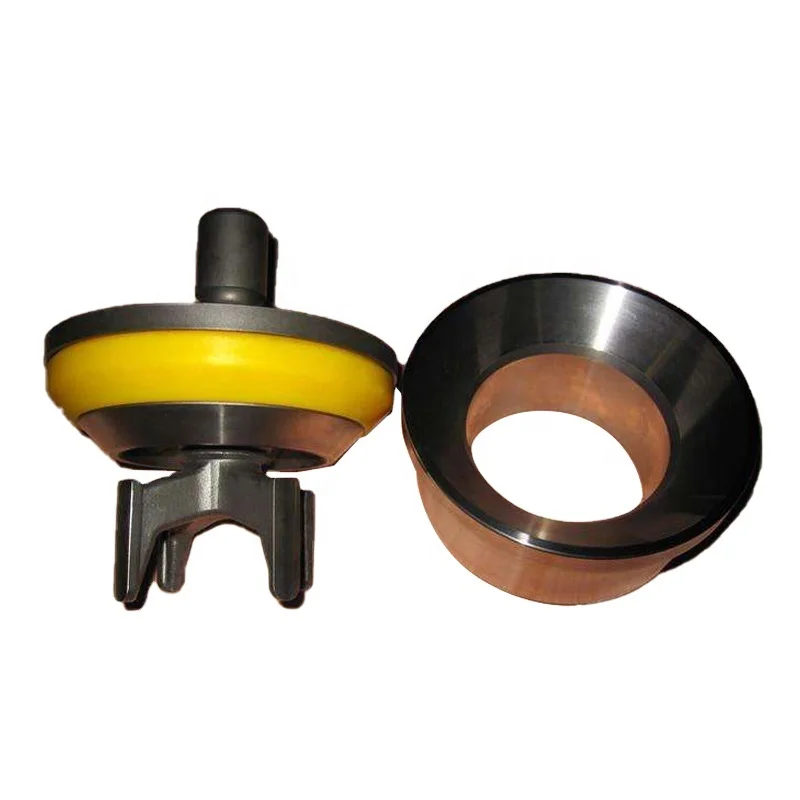

Mud pump valve assembly
The valve assembly is a key component of the hydraulic end of the mud pump, with high operating frequency and significant impact. Its quality directly affects the service life of the hydraulic cylinder and is the main vulnerable part of the mud pump.
The valve body and seat of the valve assembly are made of high-quality composite steel 20CrMnTi, which has been carburized and quenched. The surface hardness is greater than HRC60. The conical surface is ground and processed to ensure high roughness requirements and geometric dimensions. The rubber is made of polyurethane material, which greatly improves the overall service life of the valve assembly, with an effective usage time of more than 300 hours.
The valve assembly is a key component of the hydraulic end of the mud pump, with high operating frequency and significant impact. Its quality directly affects the service life of the hydraulic cylinder and is the main vulnerable part of the mud pump.
The valve body and seat of the valve assembly are made of high-quality composite steel 20CrMnTi, which has been carburized and quenched. The surface hardness is greater than HRC60. The conical surface is ground and processed to ensure high roughness requirements and geometric dimensions. The rubber is made of polyurethane material, which greatly improves the overall service life of the valve assembly, with an effective usage time of more than 300 hours.
F500 pump ------Use API5 # valve assembly
F800/F1000 pump------ Universal API6 # valve assembly
F1300/F1600 pump------Universal API7 # valve assembly
F800/F1000 pump------ Universal API6 # valve assembly
F1300/F1600 pump------Universal API7 # valve assembly
Suitable for the following models of mud pumps:
Model | F-500 | F-800 | F-1000 | F-1300 | F-1600 | F-2200 | ||
Rated power | HP/kw | 500/373 | 800/597 | 1000/746 | 1300/969 | 1600/1193 | 2200/1618 | |
Rated stroke | SPM | 165 | 150 | 140 | 120 | 120 | 105 | |
Stroke length | in/mm | 7.5"/190.5 | 9"/228.6 | 10"/254 | 12"/305 | 12"/305 | 14"/356 | |
Gear ratio | 4.286 | 4.185 | 4.207 | 4.206 | 4.206 | 3.512 | ||
Inlet Dia. | in/mm | 8"/203 | 10"/254 | 12"/305 | 12"/305 | 12"/305 | 12"/305 | |
Outlet Dia. | in/mm | 4" Flange 5000psi | 5-1/8" Fla 5000psi | 5-1/8" Fla 5000psi | 5-1/8" Fla 5000psi | 5-1/8" Fla 5000psi | 130 | |
Valve | API5# | API6# | API6# | API7# | API7# | API8# | ||
Max line Dia. | in/mm | 6.75"/170 | 6.75"/170 | 6.75"/170 | 7"/180 | 7"/180 | 230 | |
Weight | kg | 9800 | 14500 | 18700 | 24500 | 24700 | 39000 | |

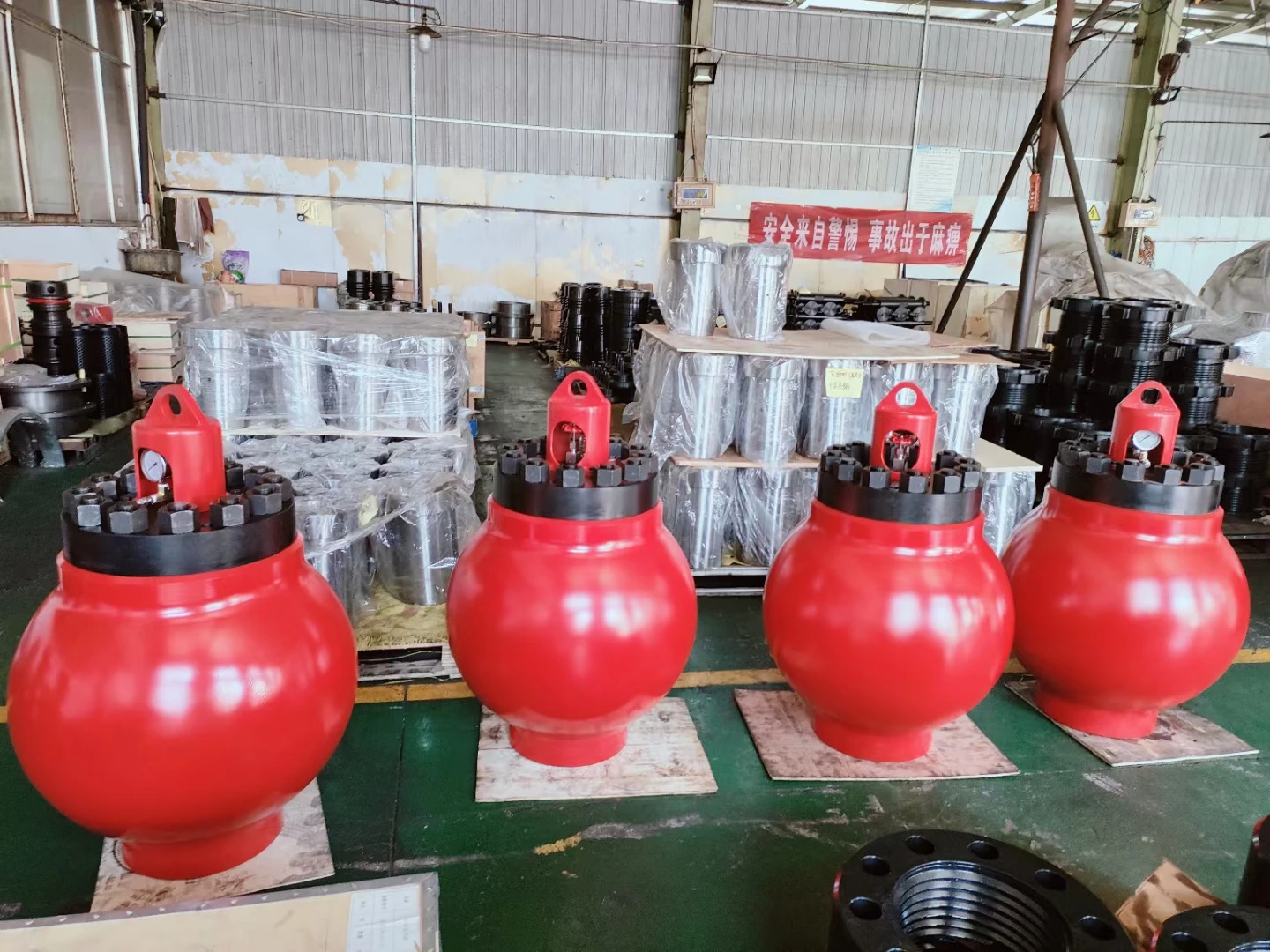

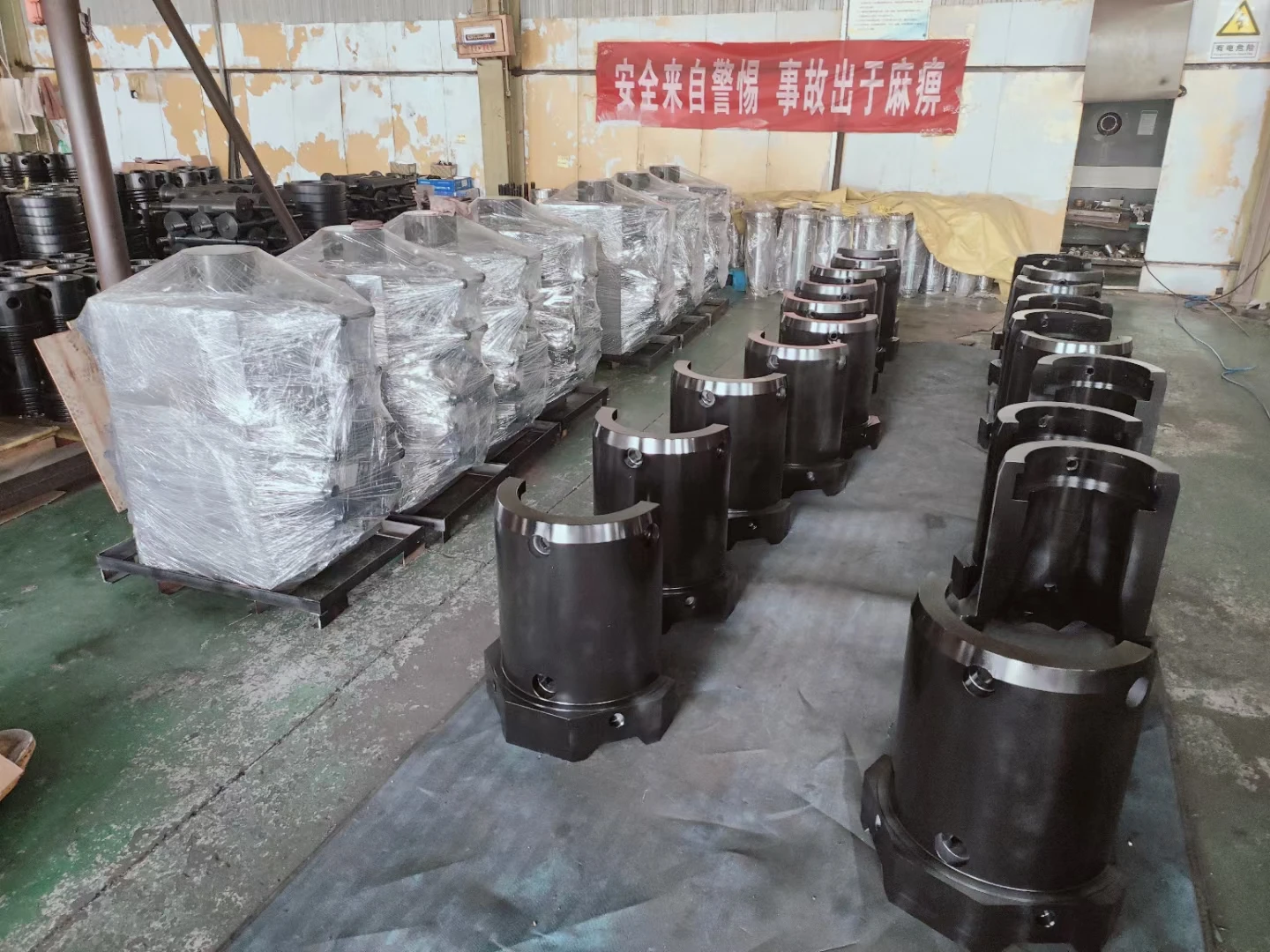

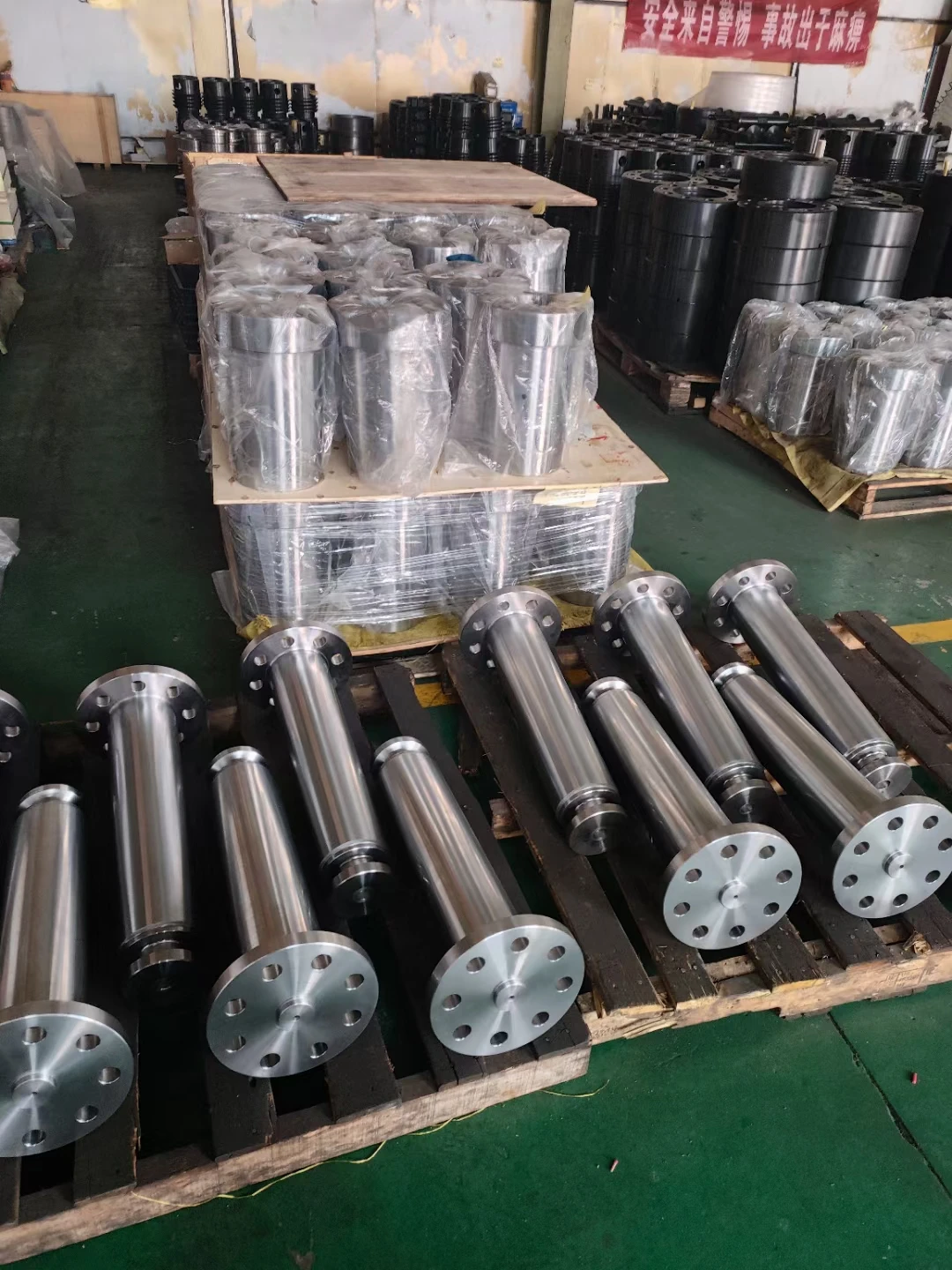

Our factory

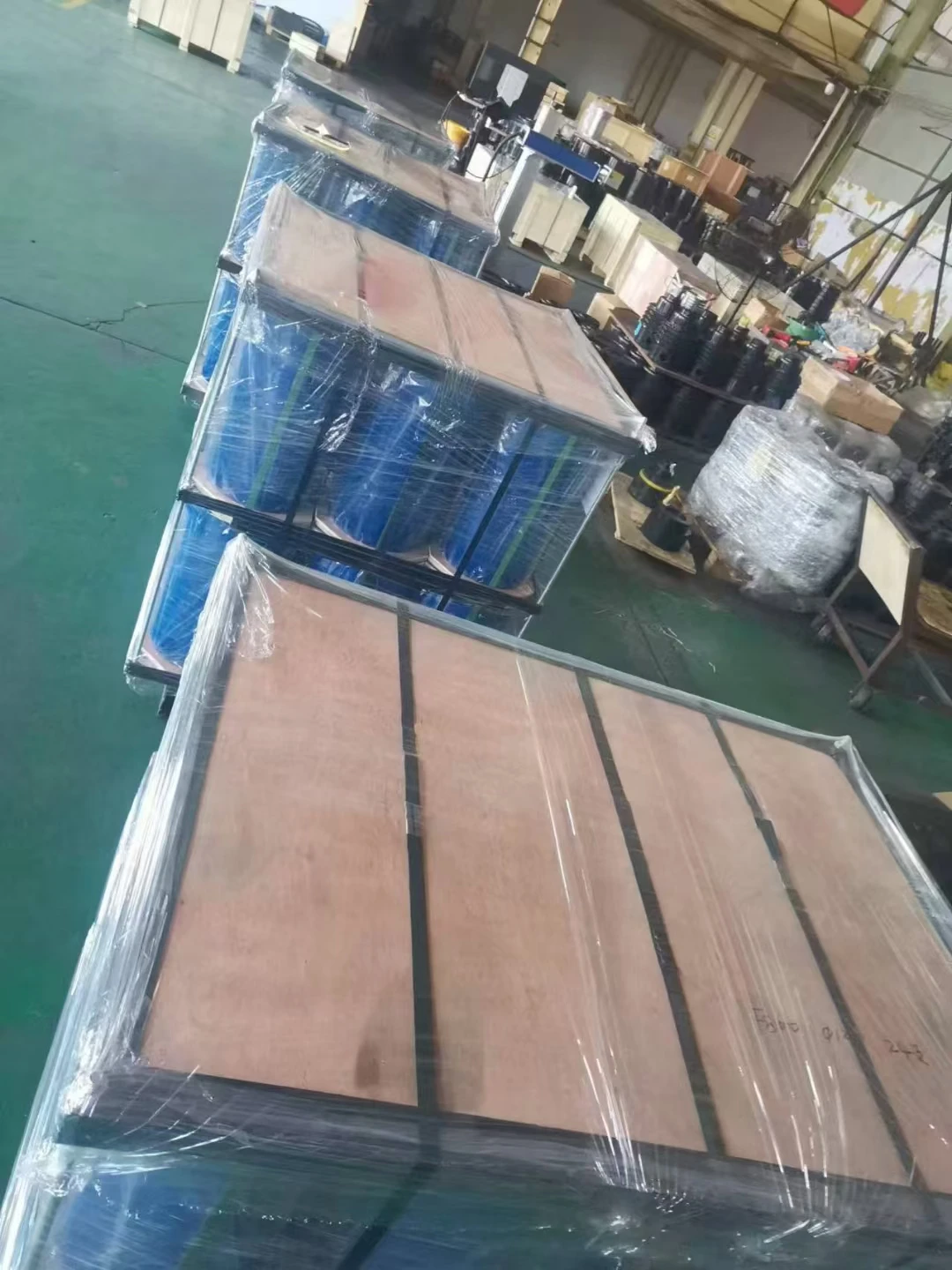

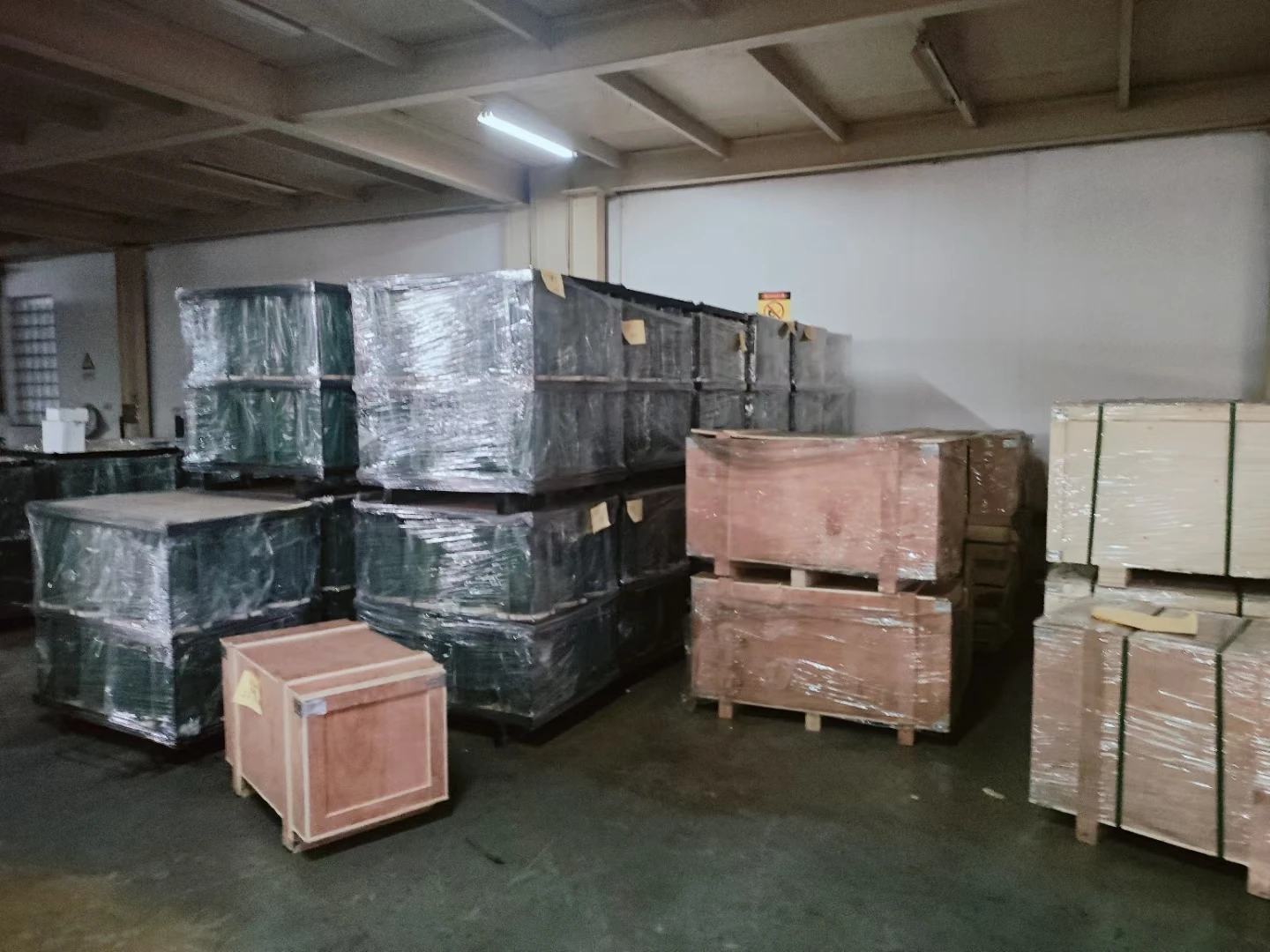

Transportation &Packaging
