SWI Customized 3.5inch 320x480 Full Viewing Angel IPS TFT LCD Display Screen Touch Screen Display
- Category: >>>
- Supplier: Dongguan Shineworld Innovations Technology Co. Ltd.
Share on (1600980200463):
Product Overview
Description
Display General Description

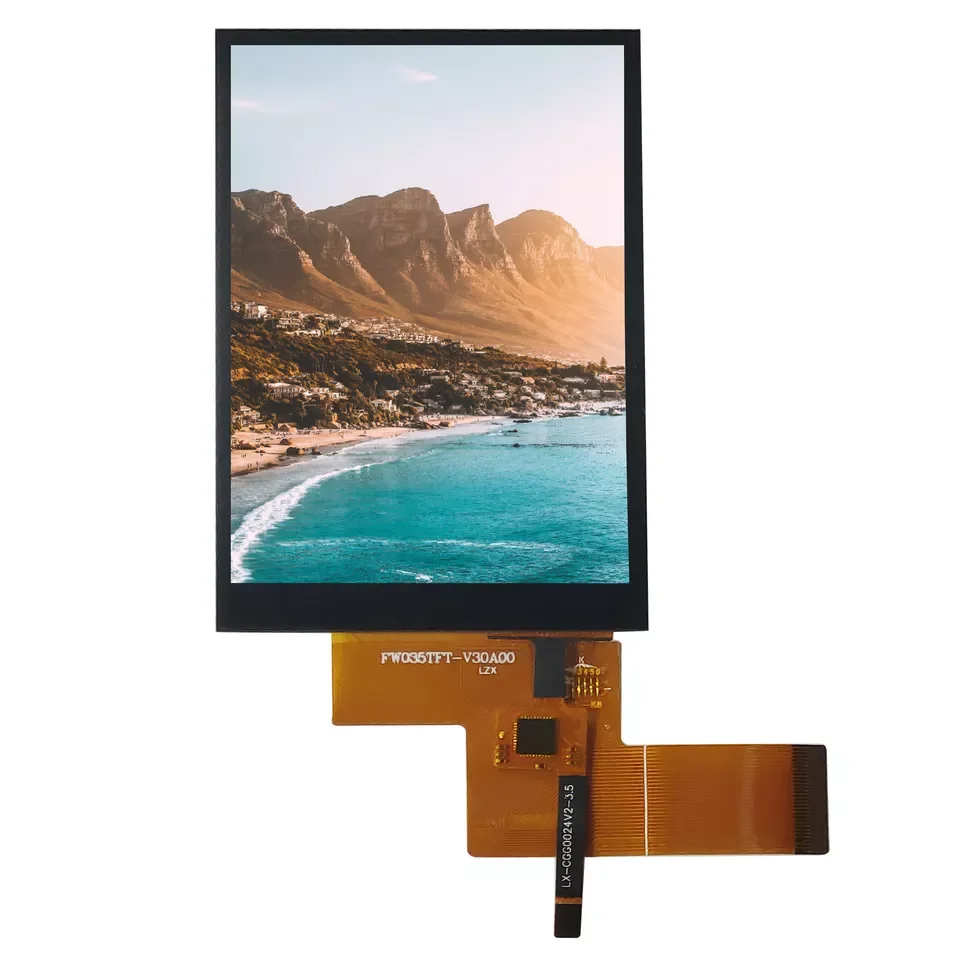

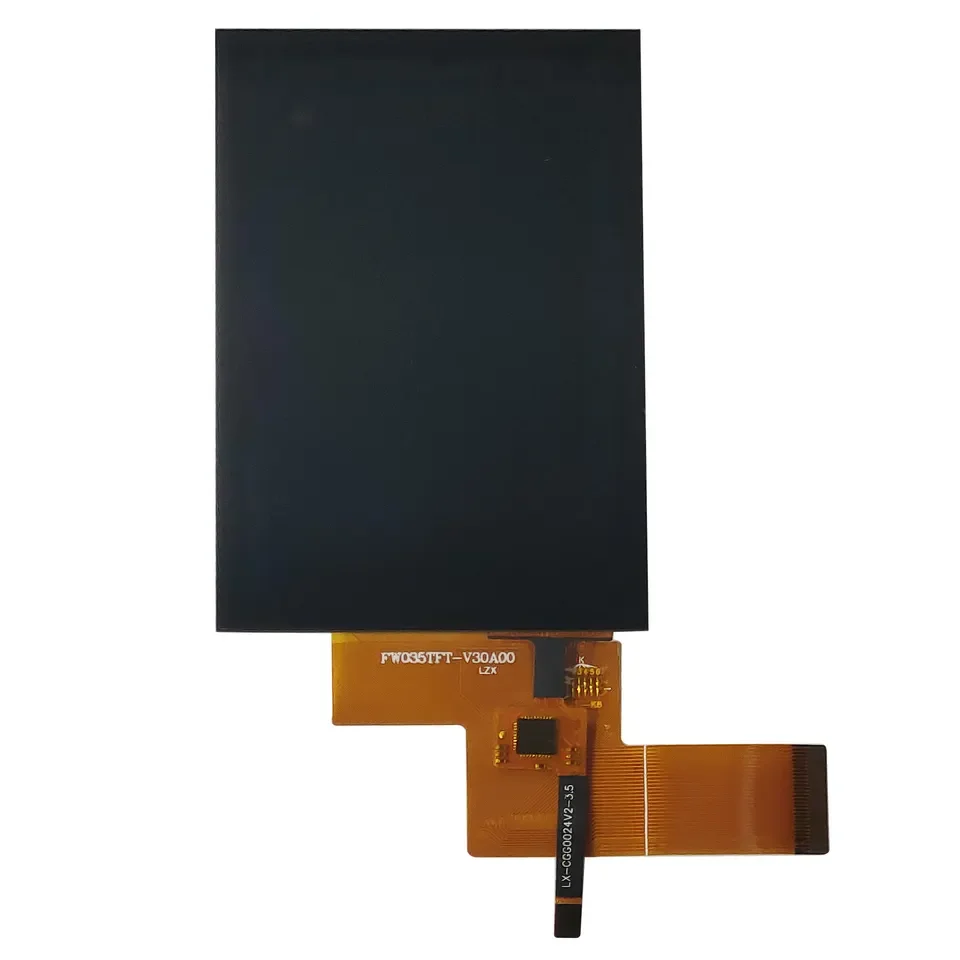

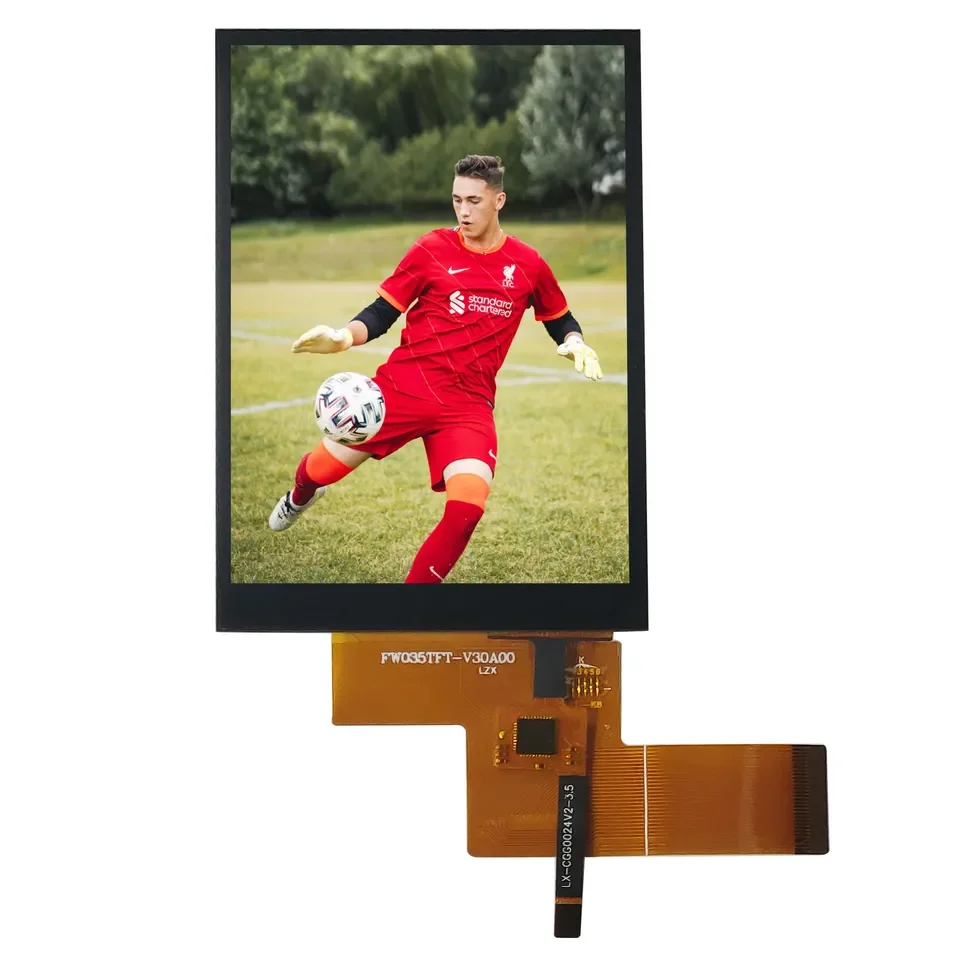

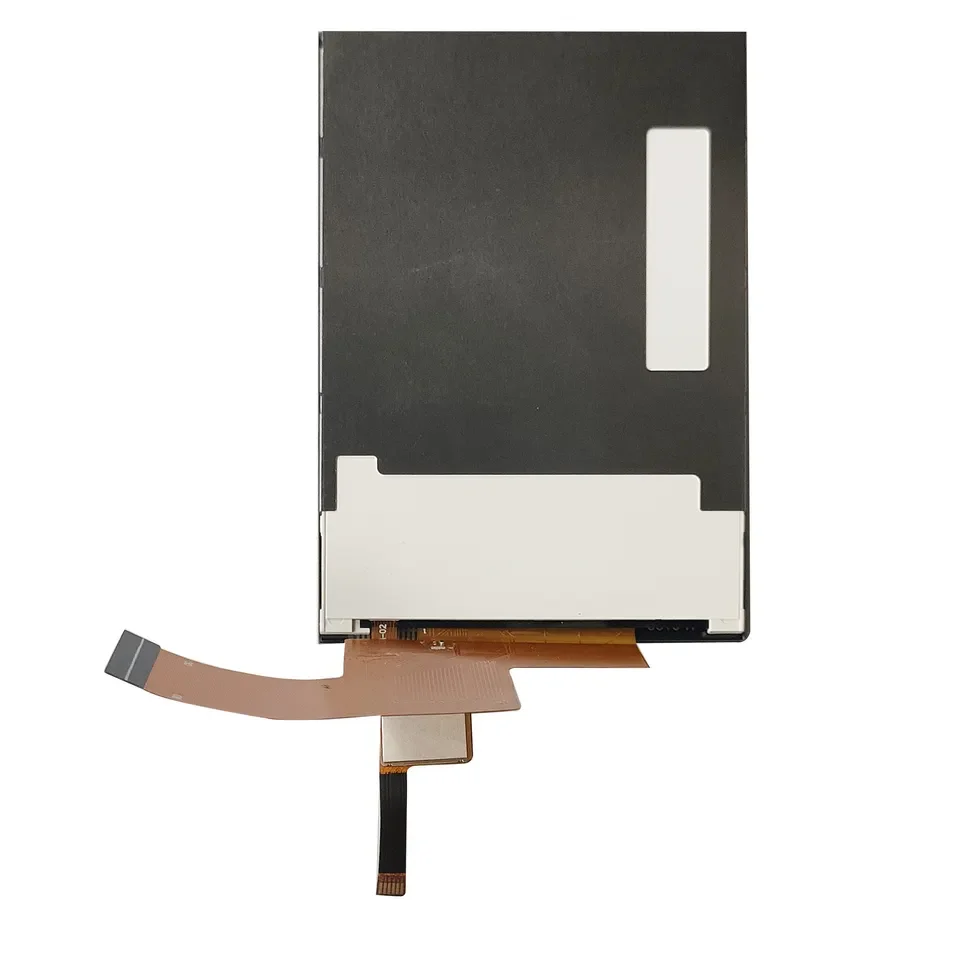

The YH035GQ3001-CGG024 by SWICN is a 3.5-inch IPS TFT LCD module with a capacitive touchscreen. It features a TFT panel, TFT driver IC (ST7796S), FPC, backlight, capacitive touch panel (CTP), and CTP driver IC (FT6336G). The module displays a resolution of 320x480 RGB pixels on a black background and has a typical brightness of 260cd/m2, ensuring sharp and vibrant visuals. The capacitive touchscreen provides a responsive touch function, making it ideal for applications that require a user-friendly interface.
This module by SWI is highly compatible with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This broad compatibility allows for seamless integration into different projects, catering to diverse application needs across various
industries. The module is designed for versatility, featuring 8-bit and 16-bit 8080 MCU interfaces for the TFT and an I2C
interface for the touch panel. This design ensures compatibility with a wide range of applications, including embedded systems,
industrial devices, wearables, MP3 players, security systems, medical equipment, consumer electronics, banking devices, and
handheld devices.
With its Flexible Printed Circuit (FPC) and FPC-connector mode, the YH035GQ3001-CGG024 simplifies the integration process by easily connecting to your PCB's ZIF connector. This ensures a secure and reliable link, saving you valuable time and effort.
Shineworld Innovations Limited offers tailored solutions that allow customers to customize the FPC, integrate cover lenses, add
touch screens, or even customize driver boards. This flexibility ensures that customers receive an optimized display solution that
perfectly aligns with their unique needs and preferences. Additionally, upon customer request, SWI provides customized demo kits, offering a hands-on experience with the products to facilitate the evaluation and decision-making processes.
This module by SWI is highly compatible with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This broad compatibility allows for seamless integration into different projects, catering to diverse application needs across various
industries. The module is designed for versatility, featuring 8-bit and 16-bit 8080 MCU interfaces for the TFT and an I2C
interface for the touch panel. This design ensures compatibility with a wide range of applications, including embedded systems,
industrial devices, wearables, MP3 players, security systems, medical equipment, consumer electronics, banking devices, and
handheld devices.
With its Flexible Printed Circuit (FPC) and FPC-connector mode, the YH035GQ3001-CGG024 simplifies the integration process by easily connecting to your PCB's ZIF connector. This ensures a secure and reliable link, saving you valuable time and effort.
Shineworld Innovations Limited offers tailored solutions that allow customers to customize the FPC, integrate cover lenses, add
touch screens, or even customize driver boards. This flexibility ensures that customers receive an optimized display solution that
perfectly aligns with their unique needs and preferences. Additionally, upon customer request, SWI provides customized demo kits, offering a hands-on experience with the products to facilitate the evaluation and decision-making processes.
General Data
NO. | ITEM | SPECIFICATIONS | UNIT |
1 | Display Mode | TFT+CTP (G+G) | - |
2 | Diagonal Size | 3.5 | Inch |
3 | Resolution | 320(RGB)x480 | Dots |
4 | Active Area | 48.96(H) x 73.44(V) | mm |
5 | TFT Outline Dimension | 54.50(H) x 83.00(V) | mm |
6 | Outline Dimension (TFT+TP) | 55.4(H) x 85.16(V) | mm |
7 | Thickness (TFT+TP) | 3.9±0.2 | mm |
8 | Pixel Pitch | 0.153x0.153 | mm |
9 | Pixel Size | 0.153x0.153 | mm |
10 | Display Driver IC | ST7796S | - |
11 | Touch Driver IC | FT6336G | - |
12 | Display Color | 262K | - |
13 | Gray Scale | 8 | Bit |
14 | Brightness | 260 (Typ.) | cd/m2 |
15 | Contrast Ratio | 700:1 (Typ.) | - |
16 | TFT Interface | 8/16 Bit 8080 MCU | - |
17 | TP Interface | I2C | - |
18 | TFT Module Connecting Type | Connector (Pitch:0.5mm) | - |
19 | TP Connecting Type | Connector (Pitch:0.5mm) | - |
20 | IC Package Type | COG | - |
21 | TFT Pins | 30 | Pins |
22 | TP Pins | 6 | Pins |
23 | Surface Hardness | ≥6H | - |
24 | CTP Light transmissivity | ≥86% | - |
25 | Operating Temperature | -20~70 | ℃ |
26 | Storage Temperature | -30~80 | ℃ |

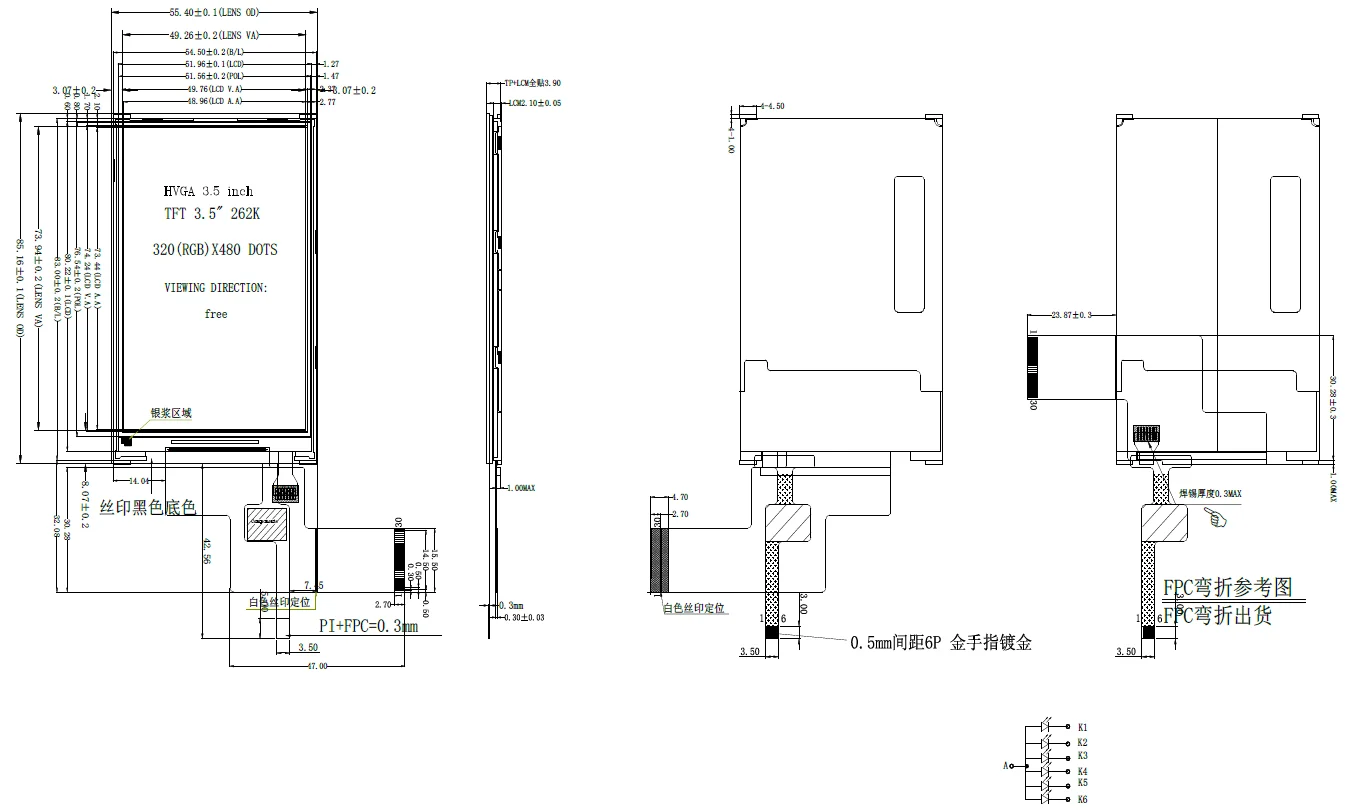

Drawings
Product Details
Packing
CTP and Direct Bonding
CTP and DIRECT BONDING

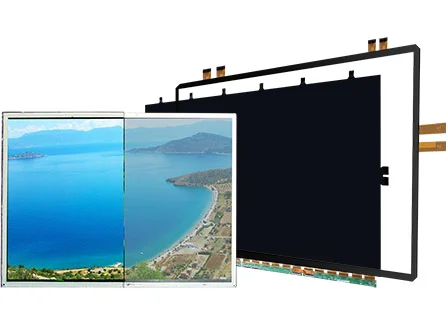

SWI makes customized touch sensors and touch screen display assemblies as well as the direct bonding processing using OCA, SCA or OCR.
We supply touch sensors or integrate them with a customized LCD, OLED display, EPD and/or cover lens. Our bonding size capability is up to 110”.
We supply touch sensors or integrate them with a customized LCD, OLED display, EPD and/or cover lens. Our bonding size capability is up to 110”.
CTP :
0.4” - 86” Sizes, G+G | G+F,
Flat | Curved | Glass Sensor |Film
Direct Bonding:
0.4”-110”, G+F | G+G | G+P,
OCA | SCA | OCR Lamination
0.4” - 86” Sizes, G+G | G+F,
Flat | Curved | Glass Sensor |Film
Direct Bonding:
0.4”-110”, G+F | G+G | G+P,
OCA | SCA | OCR Lamination
