XCMG mini vibratory roller road XD100 light roller compactor with price
- Category: >>>
- Supplier: Xuzhou Construction Machinery Group Import & Export Co. Ltd.
Share on (1600980282298):
Product Overview
Description

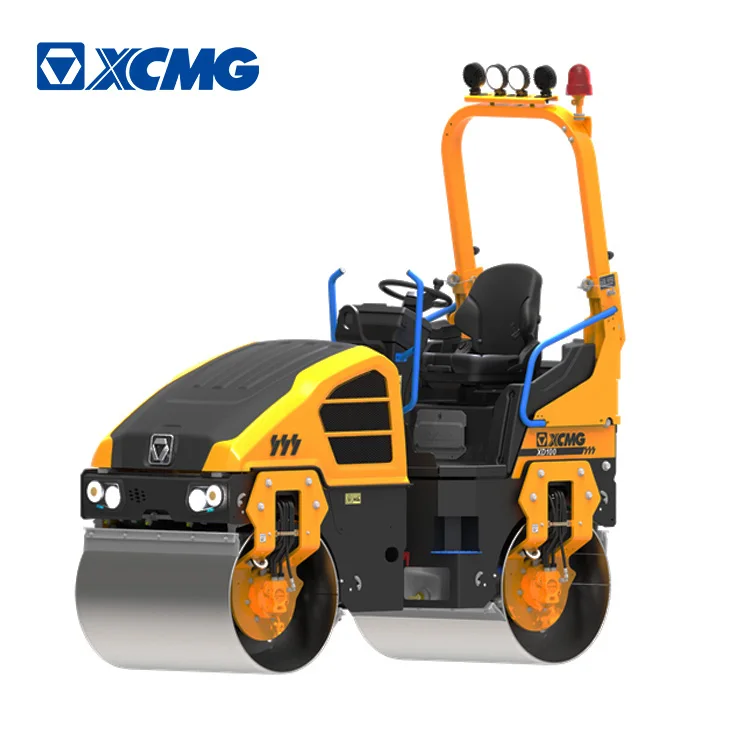

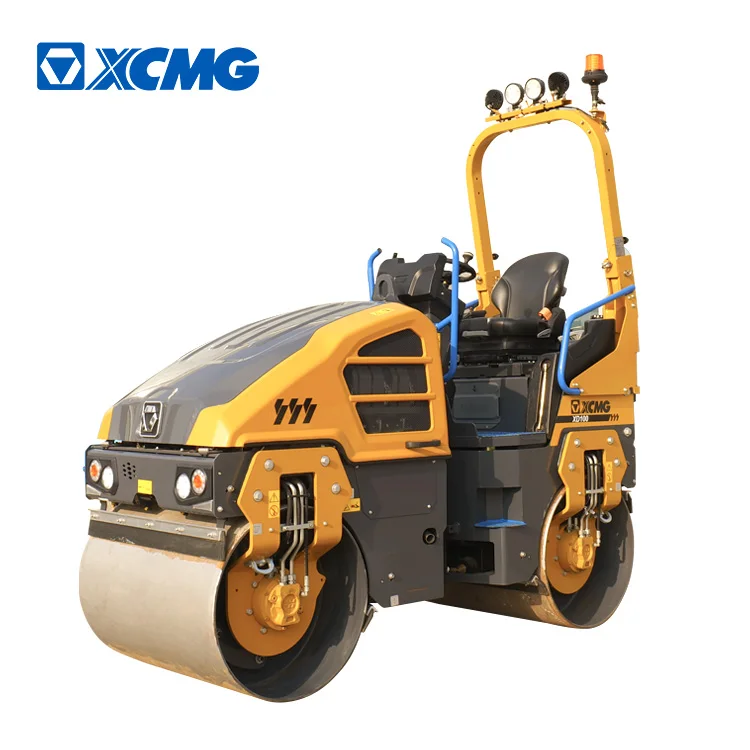

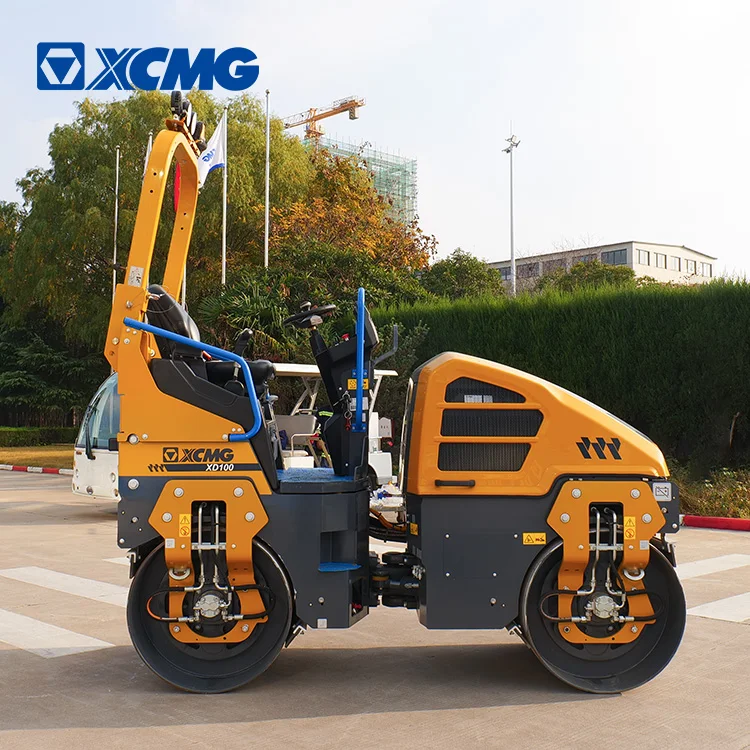

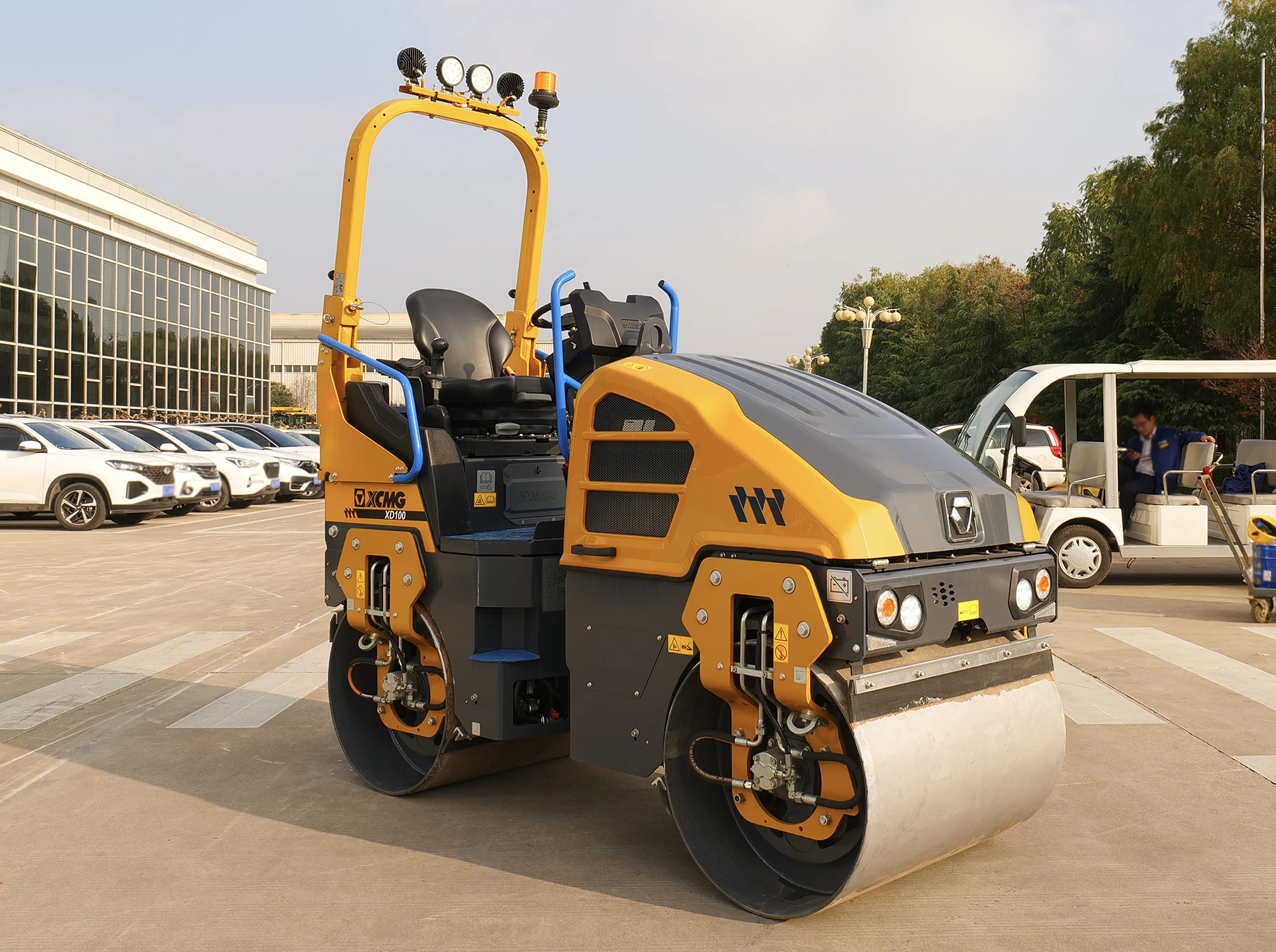

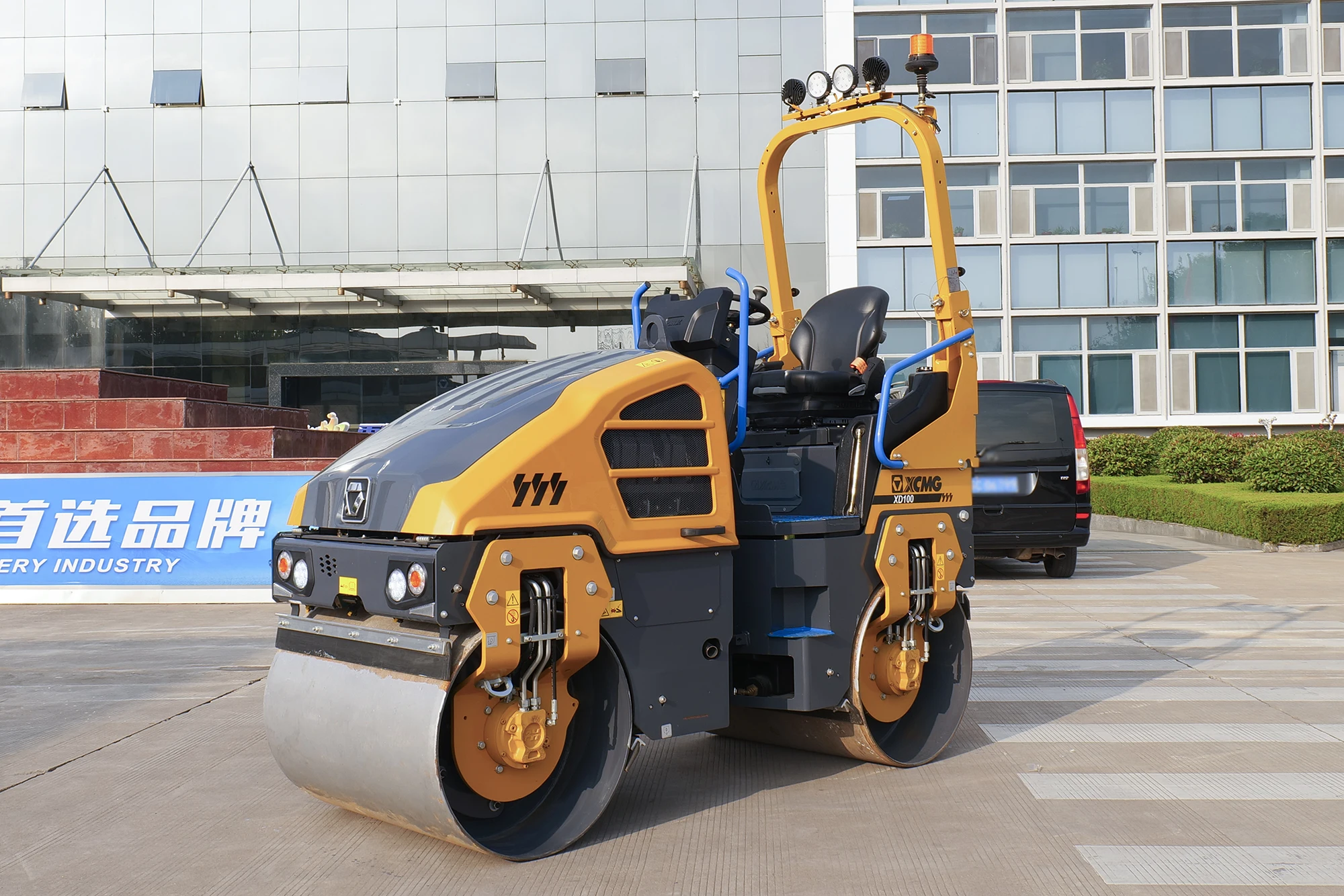

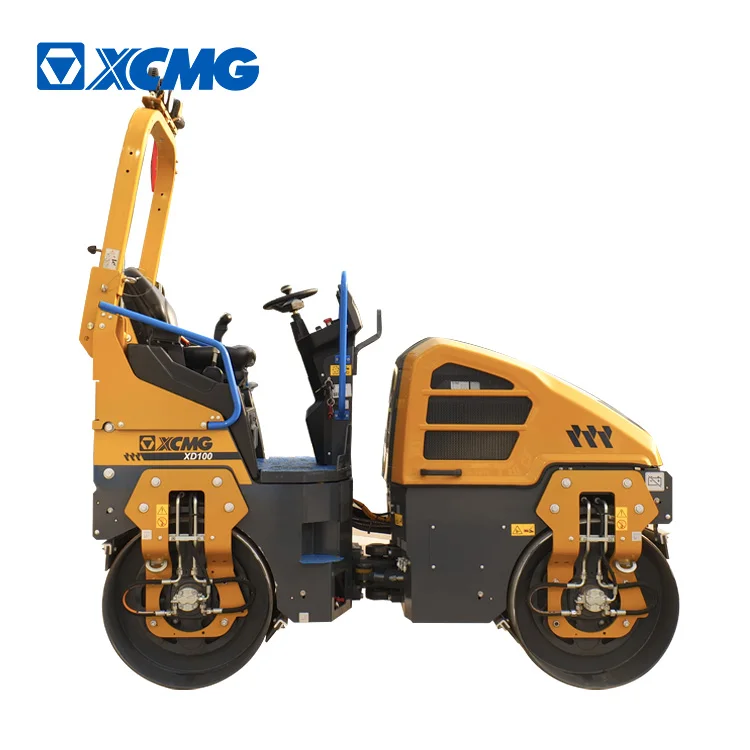

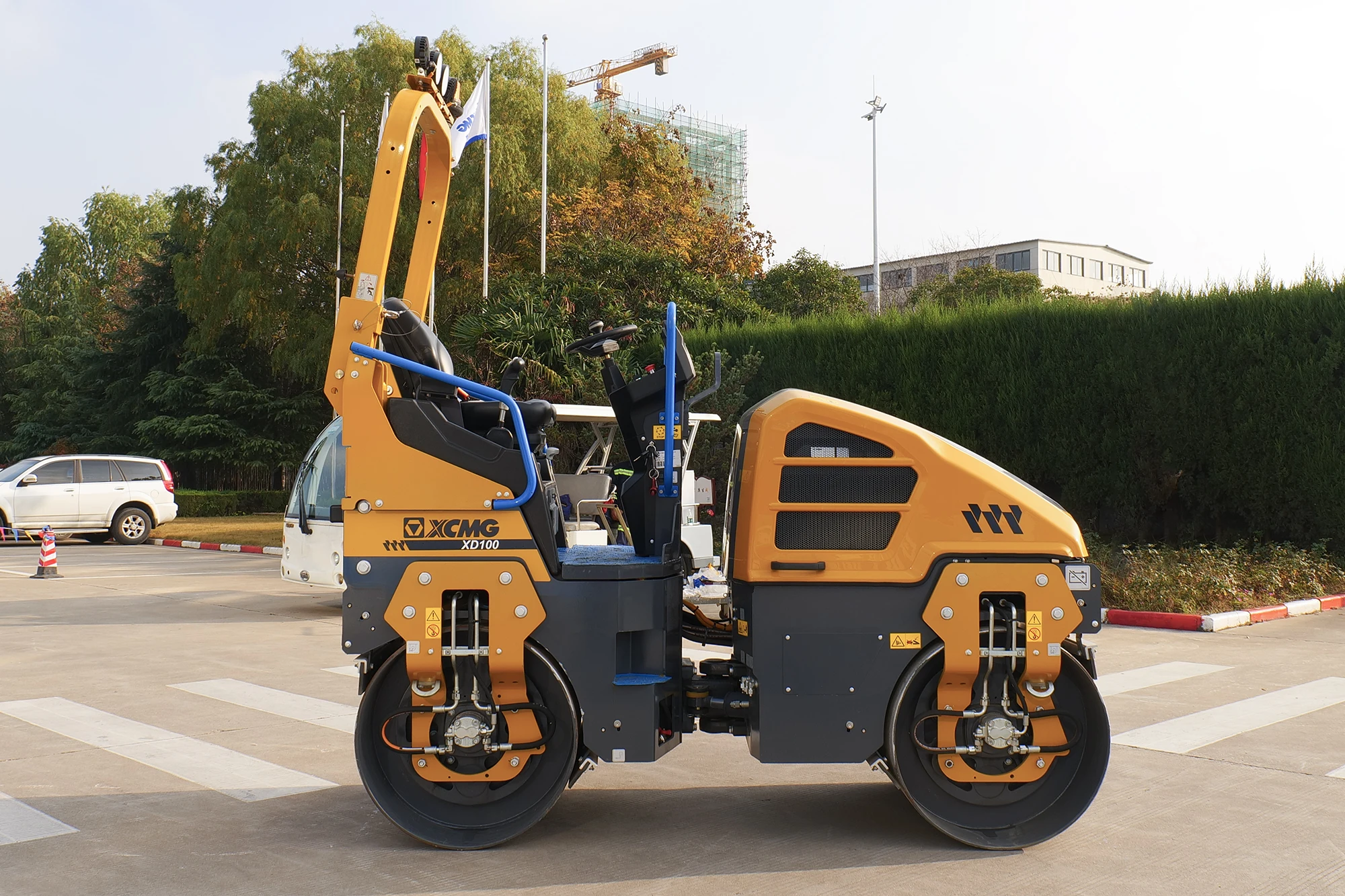

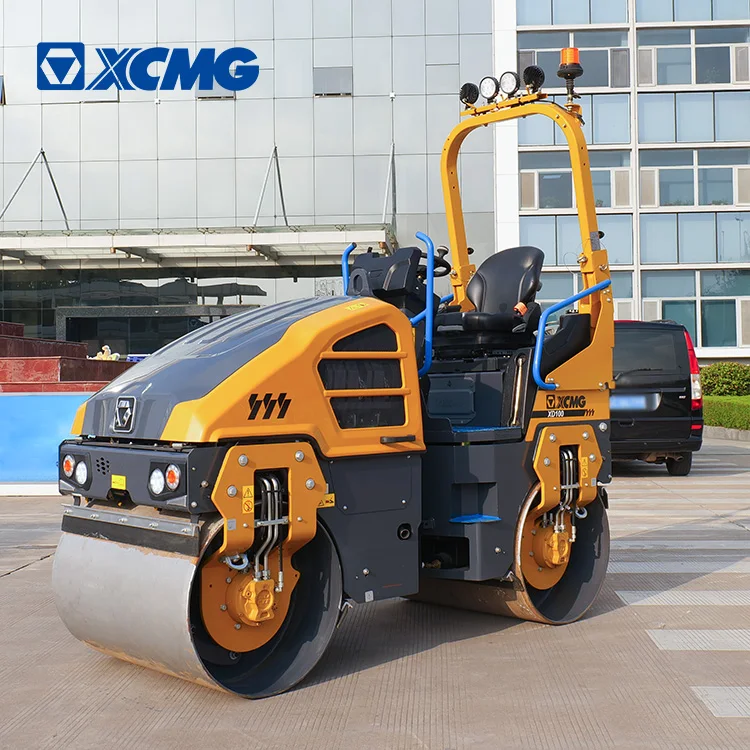

XCMG official manufacturer mini vibratory roller road roller XD100
*XD100 vibratory roller is dual drive dual vibration road roller for European and American markets. With compact structure, high flexibility, small blind area and high operating comfort, it is an ideal compaction equipment for municipal maintenance and highway custody.
*The machine uses EU-stage 5 engine, low fuel consumption, low noise and environmental friendly;
*High frequency large diameter drum is specially designed for high grade asphalt pavement compaction, increasing compaction efficiency by 20% ;
*Operation switches are arranged based on functionality and use frequency.
*Large capacity water tank and multi-gear control sprinkler improve the construction quality and endurance mileage;
*Large angle opening hood and front and rear lampstands can be easily maintained.
*The machine uses EU-stage 5 engine, low fuel consumption, low noise and environmental friendly;
*High frequency large diameter drum is specially designed for high grade asphalt pavement compaction, increasing compaction efficiency by 20% ;
*Operation switches are arranged based on functionality and use frequency.
*Large capacity water tank and multi-gear control sprinkler improve the construction quality and endurance mileage;
*Large angle opening hood and front and rear lampstands can be easily maintained.
Item | Content | Unit | XD100 |
Weights | Operating weight | kg | 2650 |
Maximum operating weight | kg | 3250 | |
Front axle weight | kg | 1250 | |
Rear axle weight | kg | 1400 | |
Static linear load | N/cm | 122/137 | |
Maneuverability | Operating speed | km/h | 0-10 |
Gradeability | % | 30 | |
Minimum turning radius(outer) | mm | 3600 | |
Minimum ground clearance | mm | 275 | |
Wheel base | mm | 1773 | |
Steering angle | ° | ±32 | |
Oscillation angle | ° | ±8 | |
Compaction parameters | Vibration frequency | Hz | 63/67 |
Nominal amplitude | mm | 0.5 | |
Excitation force | kN | 30/34 | |
Drum diameter | mm | 720 | |
Drum width | mm | 1000 | |
Engine | Model | D1803 | |
Emission | EU Stage V/EPA TIER4F | ||
Rated power | KW | 24.6 | |
Rated speed | r/min | 2400 | |
Capacities | Fuel tank | L | 35 |
Water tank | L | 210 |
