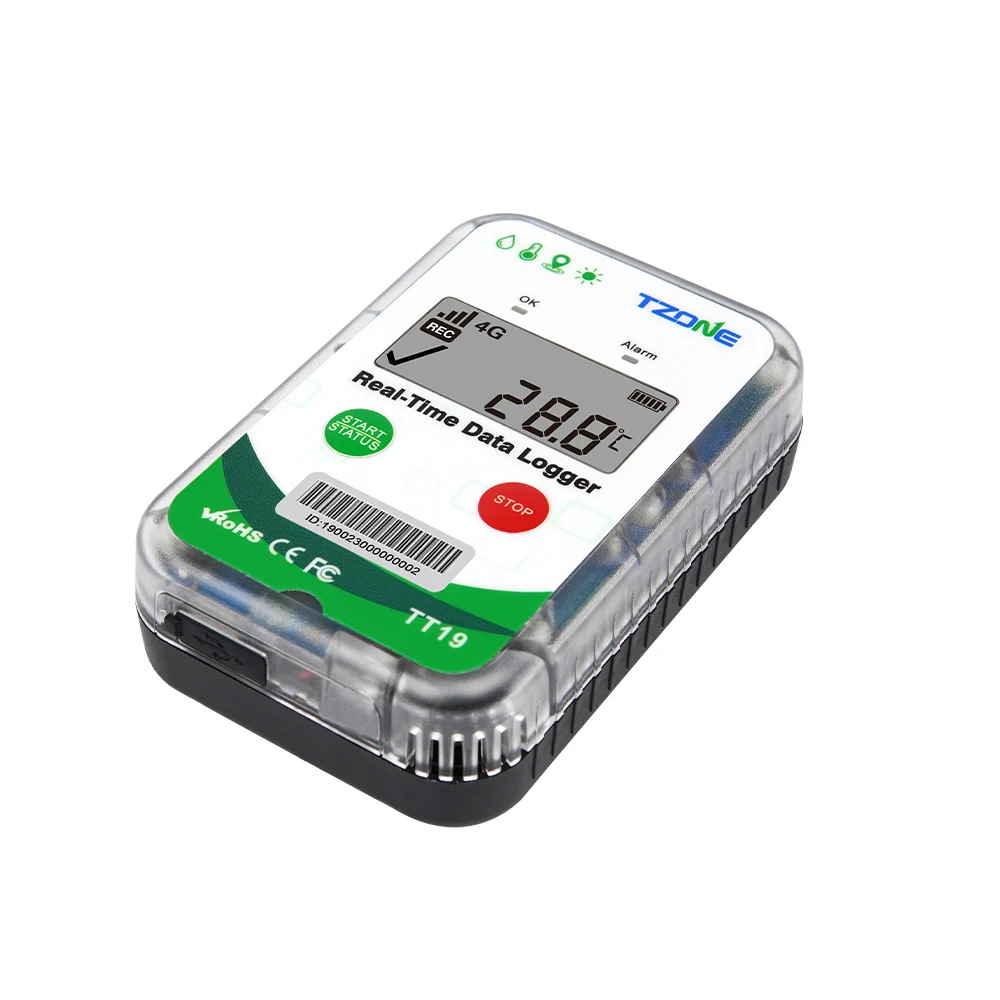

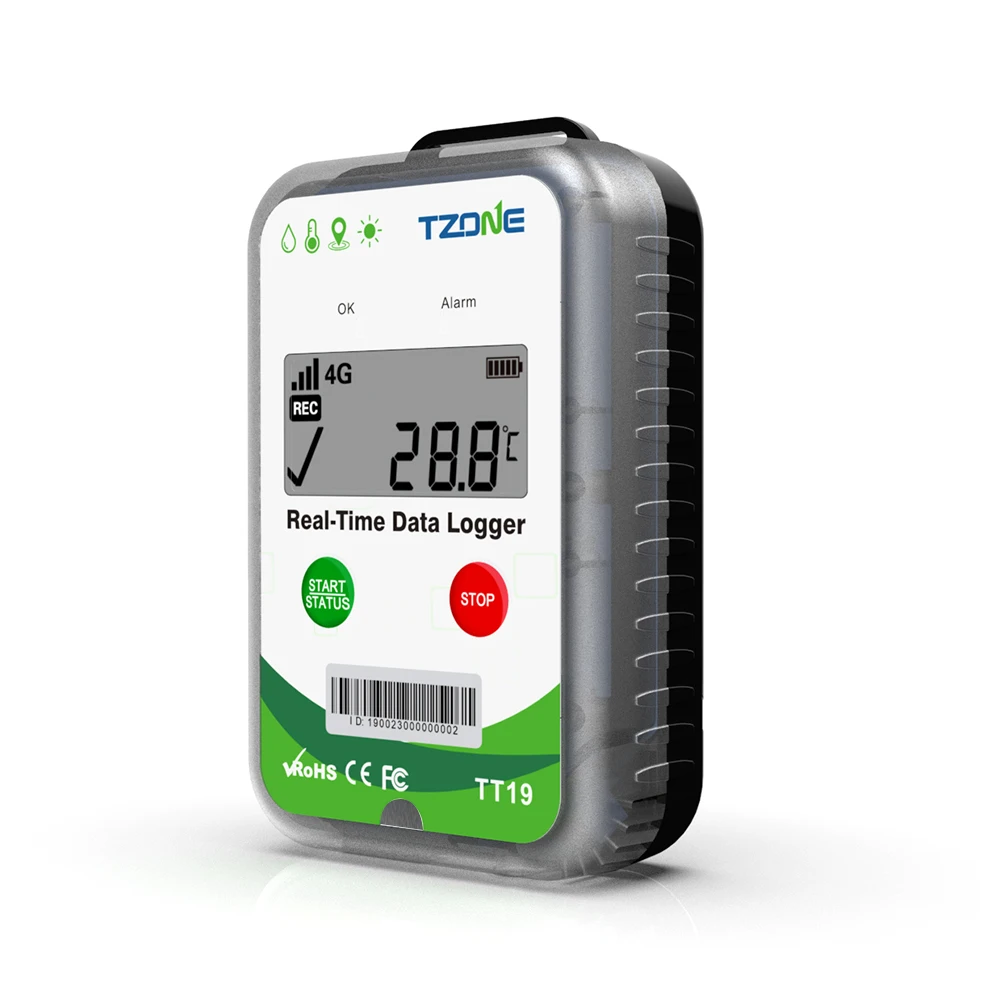

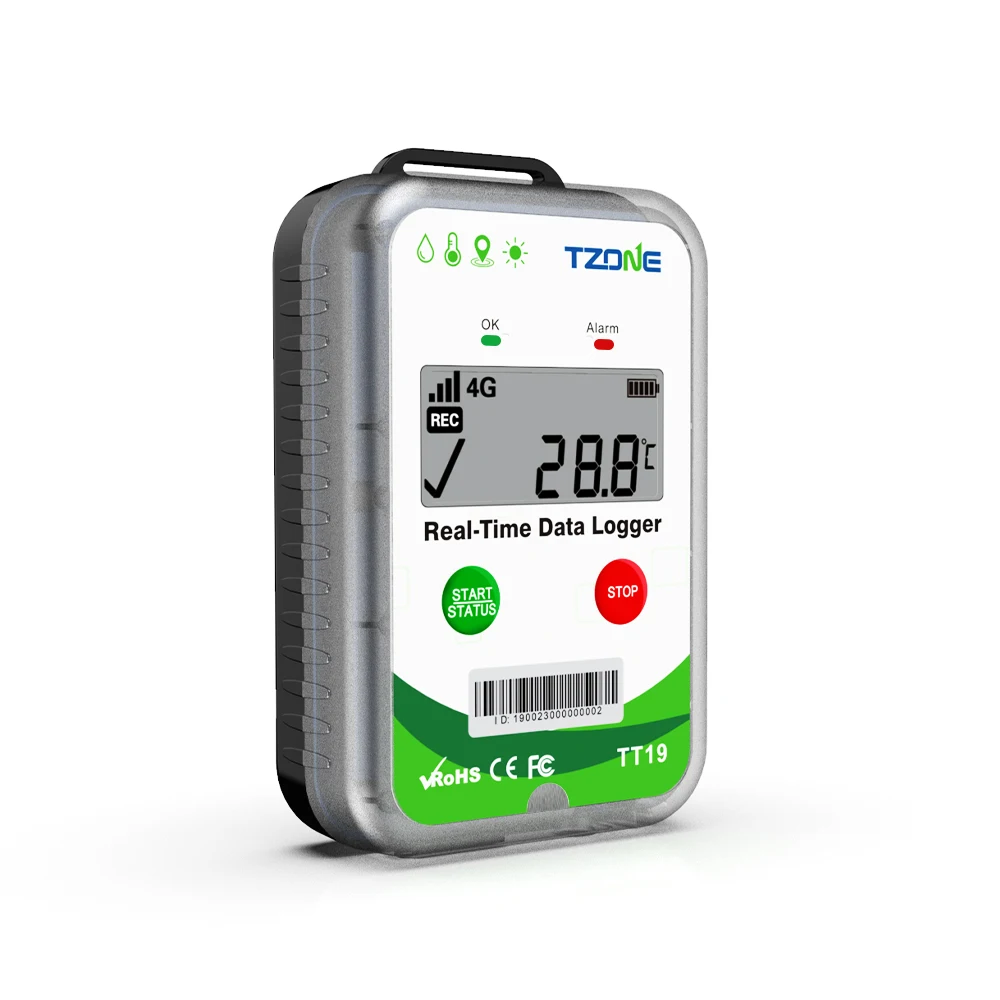

IoT wireless GPS temperature monitoring sensor system and asset gps tracker

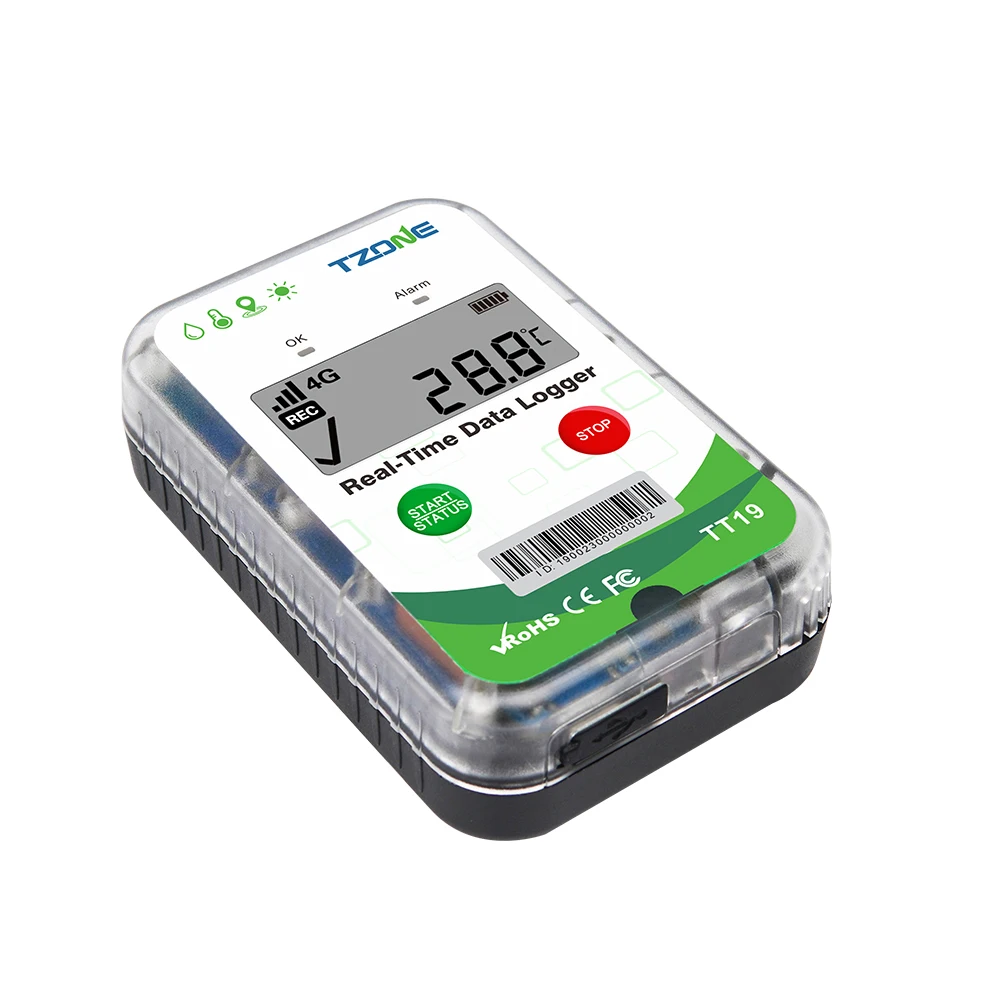

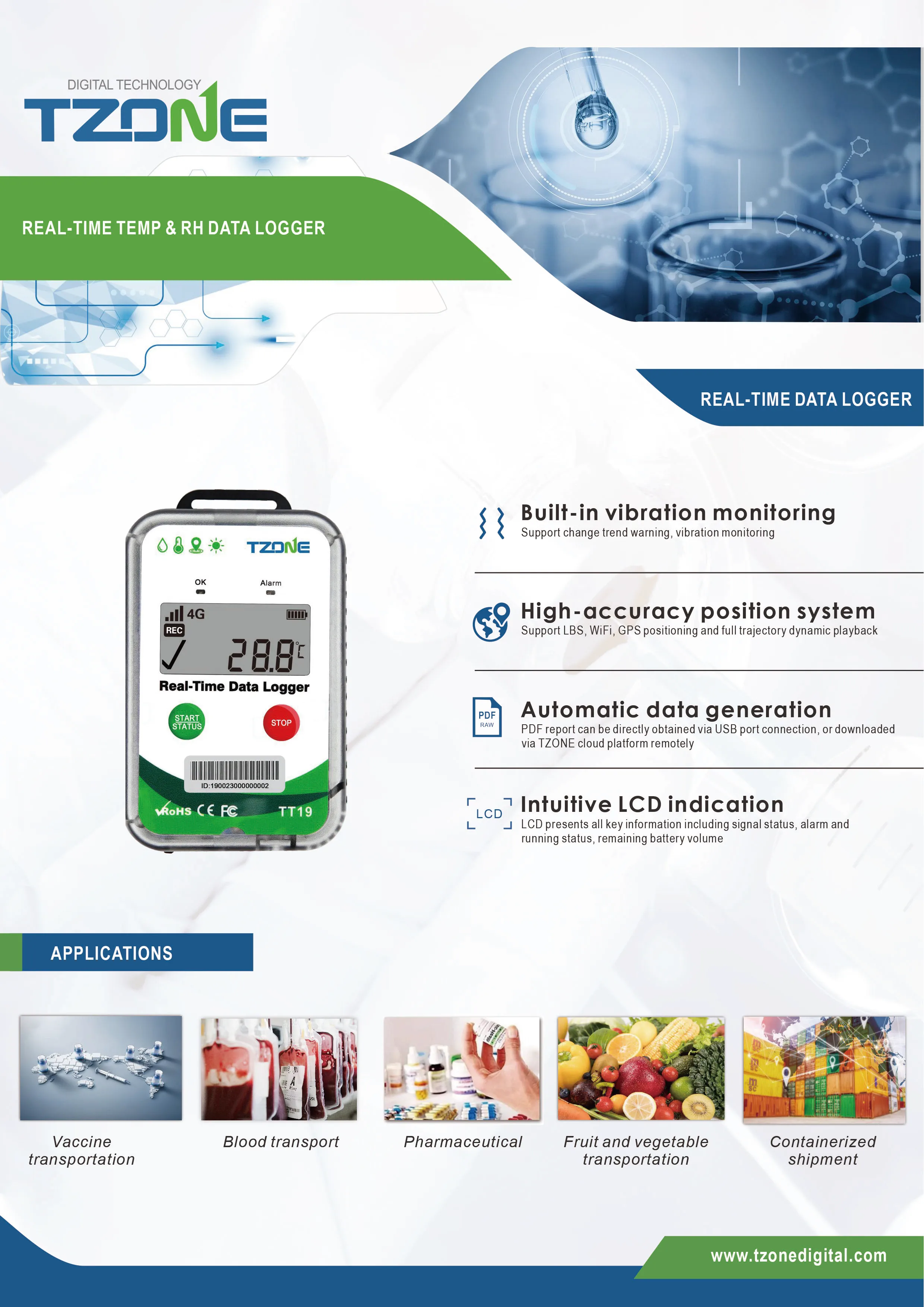

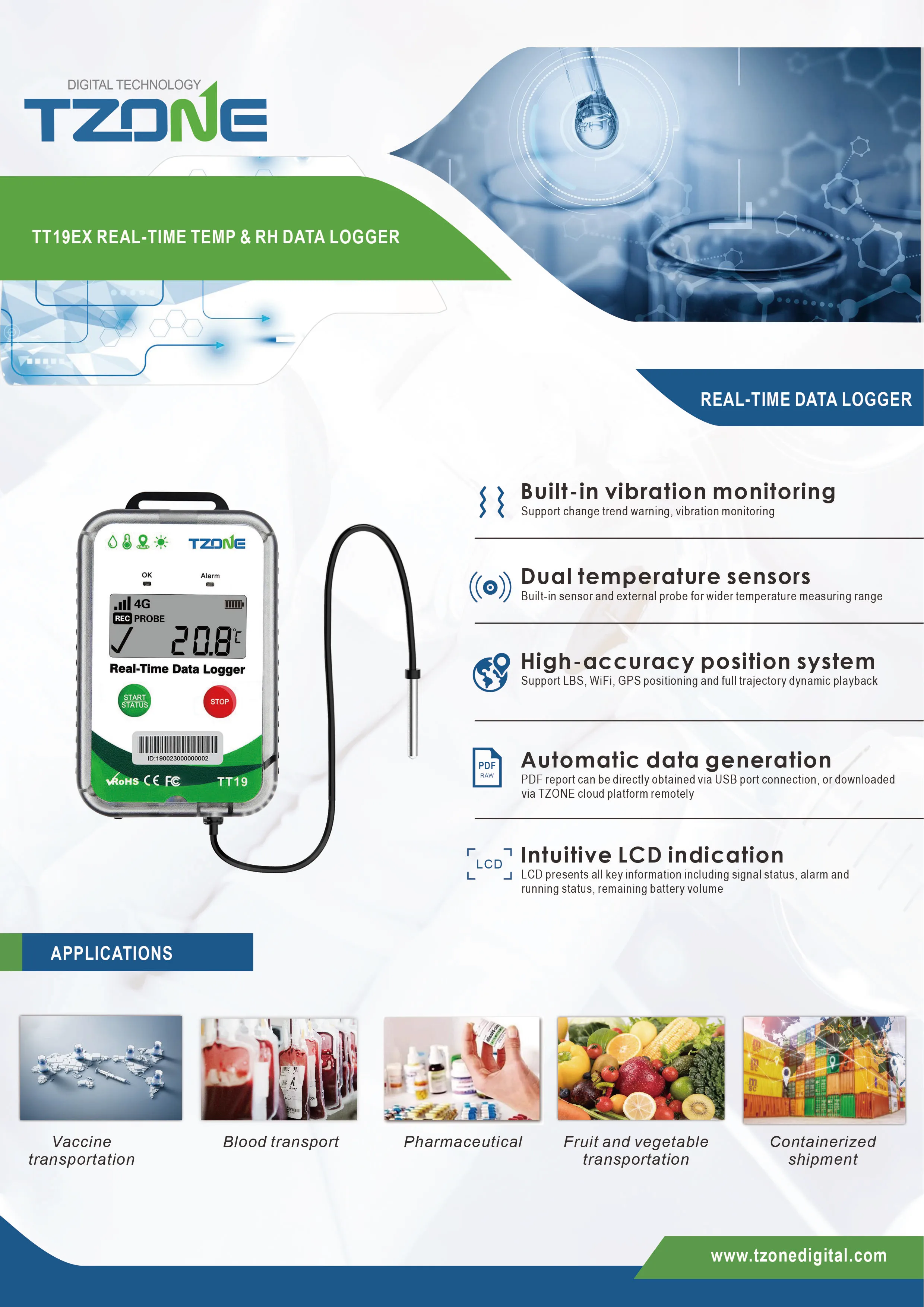

TT19 Real-Time Temp & RH Data Logger is a global 4G real-time temperature and humidity data logger with high-quality sensitive components and high measurement accuracy. It is embedded in 4G modules, GPS modules and WiFi modules. The data is sent to the cloud through the 4G network for monitoring and analysis, and it’s also with the function of automatically generating PDF reports. With 4000mAh big battery and low power consumption design, once charge, TT19 can work for a long time, it’s greatly adapt to different transportation temperature monitoring requirements.
Product Description

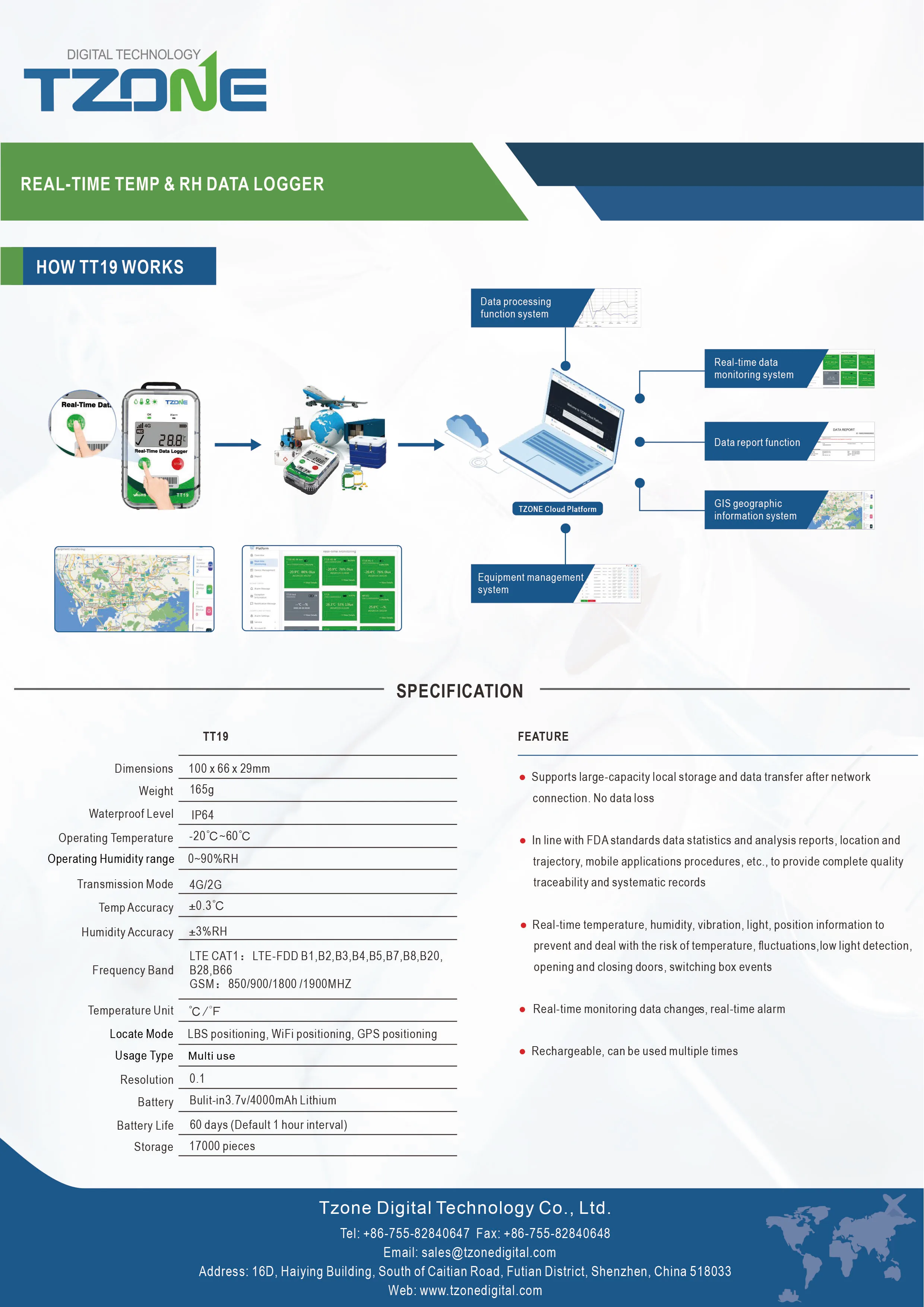

Product Name | IoT wireless GPS temperature monitoring sensor system and asset gps tracker |
Customized Support | OEM, ODM |
Usage Type | Multiple-use, global use, support LTE with 2G fallback |
Real-time Monitoring | Real-time monitor temperature, humidity, light, shock and location |
Inner Lithium Battery | Built-in 3.7V/4000mAh Lithium Battery |
Battery Life | 60 days based on default 1 hour interval |
Data Transmit Interval | 60mins (configurable) |
Waterproof Level | IP64 |
Detecting Temperature Range | -20°C to +60°C |
Detecting Humidity Range | -5% to 95% (non-condensing) |
Accuracy of Temperature | ±0.3℃ |
Accuracy of Humidity | ±3%RH |
Other Sensors | Light sensor, vibration sensors |
Location Type | Support GPS, WiFi and LBS multiple positioning |
Memory Capacity | 17,000 points of data |
Cloud Platform to Track | cloud.tzonedigital.cn/LoginIndex/ |
How to use
It's easy to use IoT wireless GPS temperature monitoring sensor system and asset gps tracker

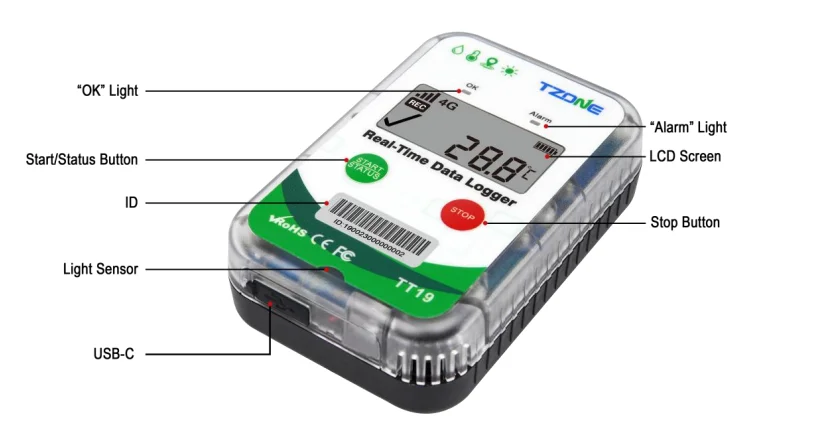

1. Turn on
Press the "START" button more than 3 seconds, the “OK” LED will light in green, and the LCD display will show temperature values which means you’ve turned on the device.
Press the "START" button more than 3 seconds, the “OK” LED will light in green, and the LCD display will show temperature values which means you’ve turned on the device.
2. Turn off
Press the "STOP" button more than 3 seconds, the “Alarm” LED will light in red and the LCD display will be off, which means you’ve turned off the device.
Press the "STOP" button more than 3 seconds, the “Alarm” LED will light in red and the LCD display will be off, which means you’ve turned off the device.
3. Data query

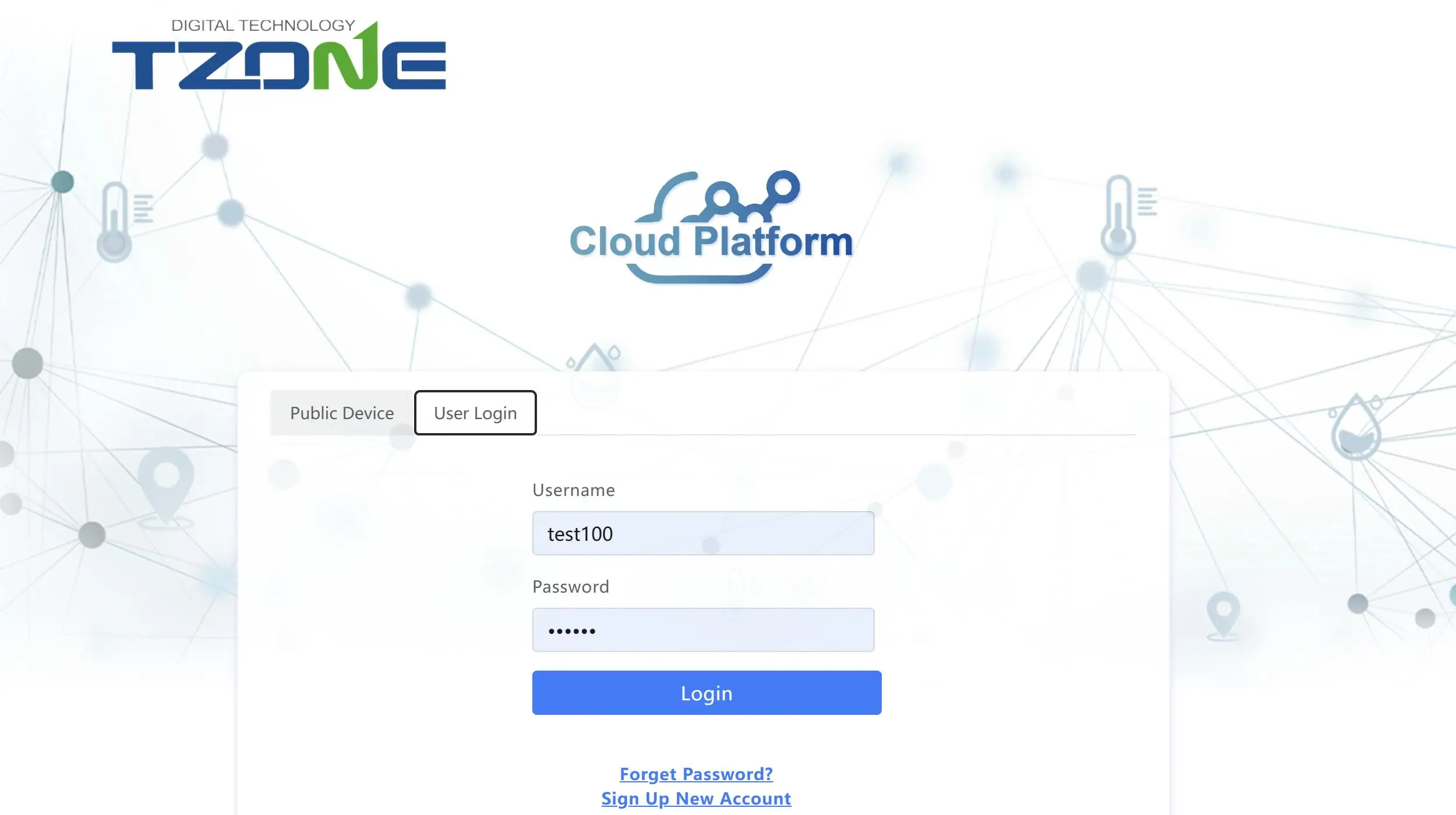

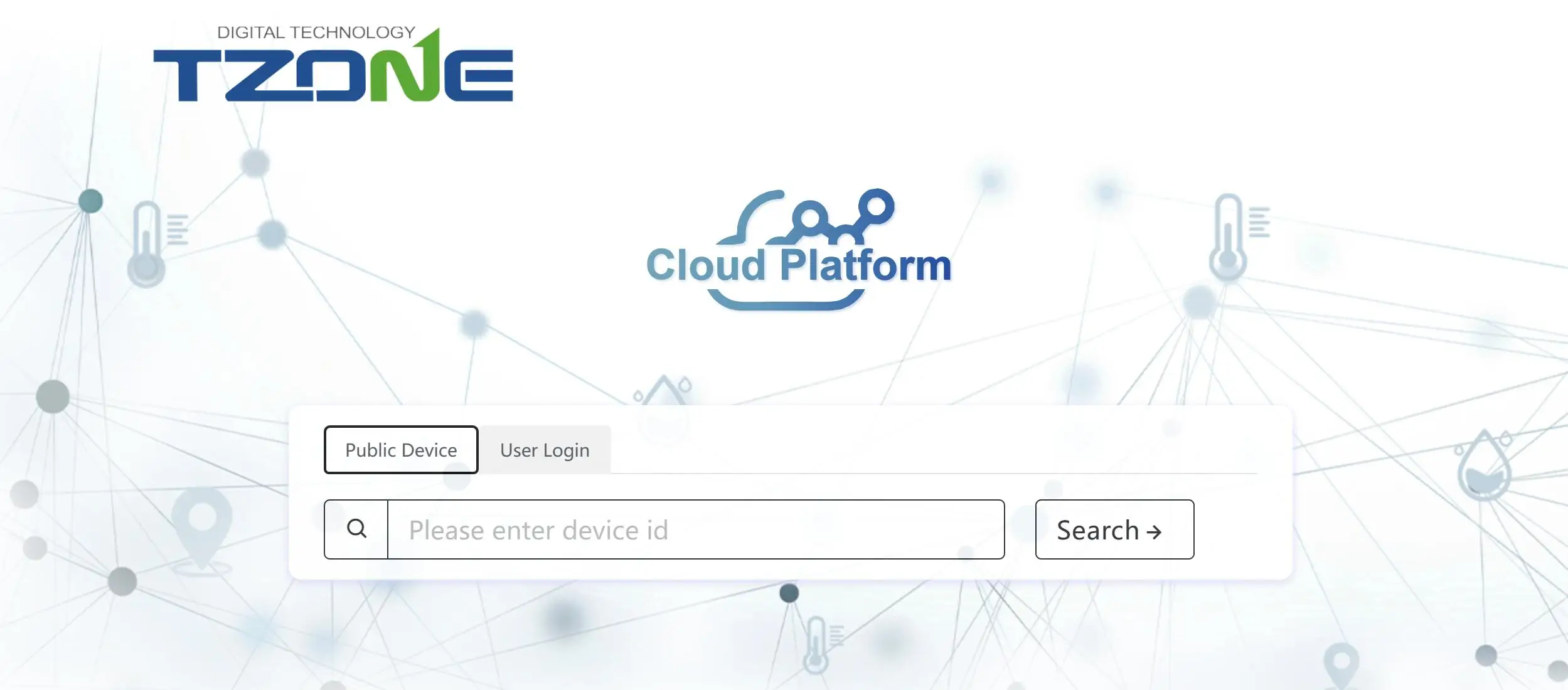

Tzone temperature and humidity cloud platform website: //cloud.tzonedigital.com/

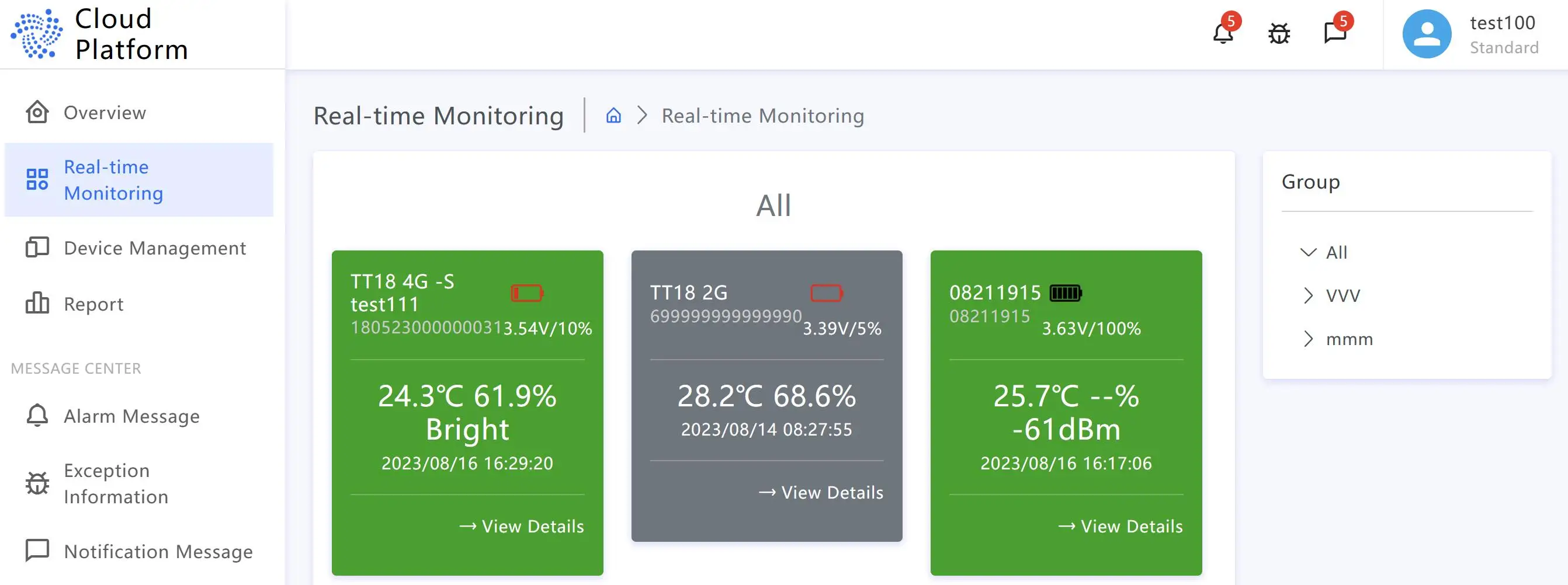

After turning on, the device data can be queried on TZONE cloud platform. Before entering the cloud platform, you will need to register an account. Once registered, log in and navigate to the "Device Management" section to add the TT19 ID.
Tzone temperature and humidity cloud platform website: //cloud.tzonedigital.com/
After turning on, the device data can be queried on TZONE cloud platform. Before entering the cloud platform, you will need to register an account. Once registered, log in and navigate to the "Device Management" section to add the TT19 ID.
Products Application
Wide applications of IoT wireless GPS temperature monitoring sensor system and asset gps tracker
With a complete cold chain visibility, traceability monitoring (temperature, humidity, light, shock, location) system, TT19 is helping customers digitize their supply chain, prevent the loss of shipments with in-transit visibility and alerts, automate and increase compliance, and speed up product release, extremely improve transportation efficiency and reduce product.
It is suitable for monitoring of transportation processes such as food, medicine, chemical products, can be used for real-time monitoring, and can also be used for data storage and extraction. It is widely used in all aspects of the logistics cold chain, such as refrigerated containers, refrigerated trucks, refrigerated delivery boxes, etc.
Packing & Delivery
Standard exporting carton package for IoT wireless GPS temperature monitoring sensor system and asset gps tracker
Company Profile
Tzone Digital Technology Co., Ltd., established in 2006, is a leading hi-tech enterprise with experienced R&D team, production line, quality management and sales department. Our production procedure is fully complied with ISO 9001 standard with around 1500 square meters production scale.
Tzone is the temperature and humidity monitoring expert with over 50 employees. Our products include USB temperature data logger, wireless temperature receiver and sensor, LoRa/LoRaWan gateway and sensor, temperature transmitters, thermometer and so on, which are widely used in laboratories, pharmaceuticals, medical, freezers, coolers, shipping containers, warehouses, environmental monitoring and food storage applications.
Tzone is the temperature and humidity monitoring expert with over 50 employees. Our products include USB temperature data logger, wireless temperature receiver and sensor, LoRa/LoRaWan gateway and sensor, temperature transmitters, thermometer and so on, which are widely used in laboratories, pharmaceuticals, medical, freezers, coolers, shipping containers, warehouses, environmental monitoring and food storage applications.

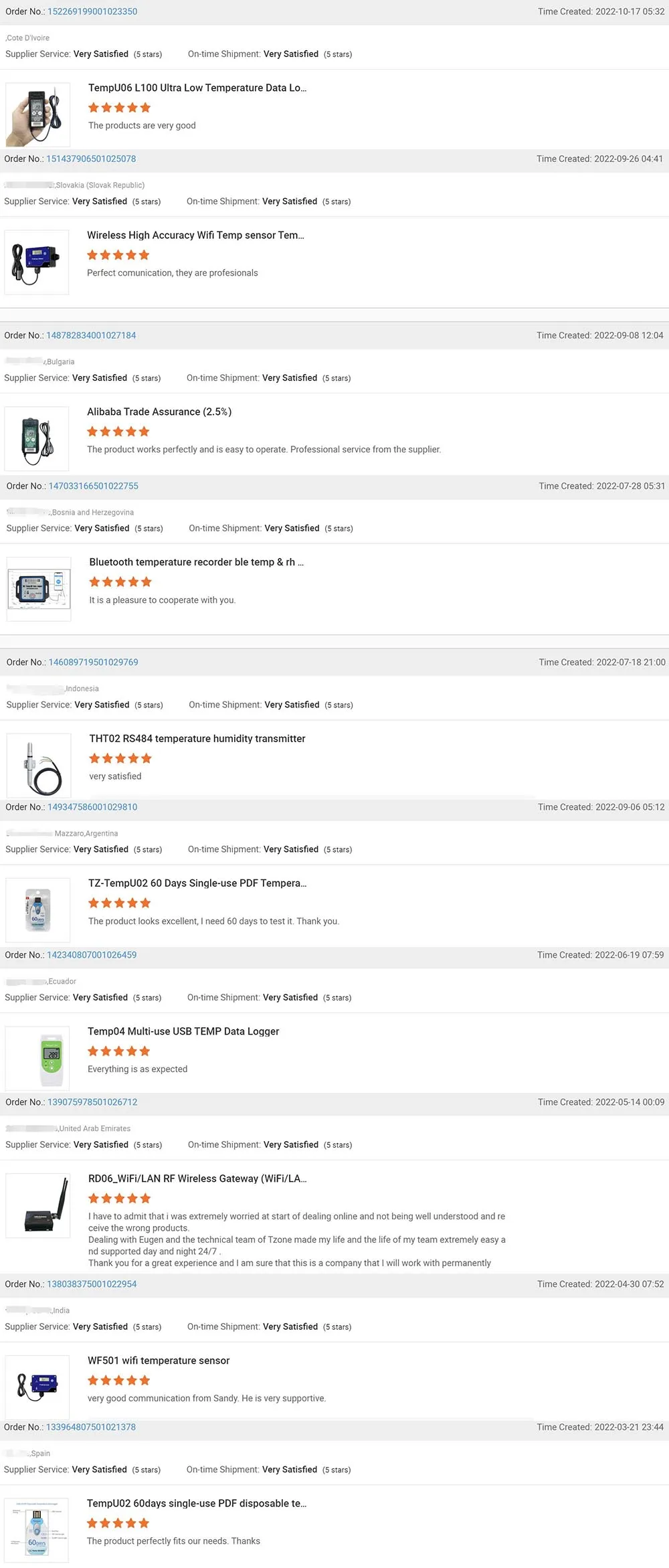

Customers Feedback
