Small Excavator For Agriculture Construction Site Excavator Small Four Drive Belt Excavator
- Category: >>>
- Supplier: Zhong Yun Intelligent Machinery (Yantai) Corp. Ltd.
Share on (1600980376987):
Product Overview
Description
Products Description
Introduction Of Renovation Of Old House Smashing Wall Small Excavator Multi-Functional Track Backhoe Small Hook Machine

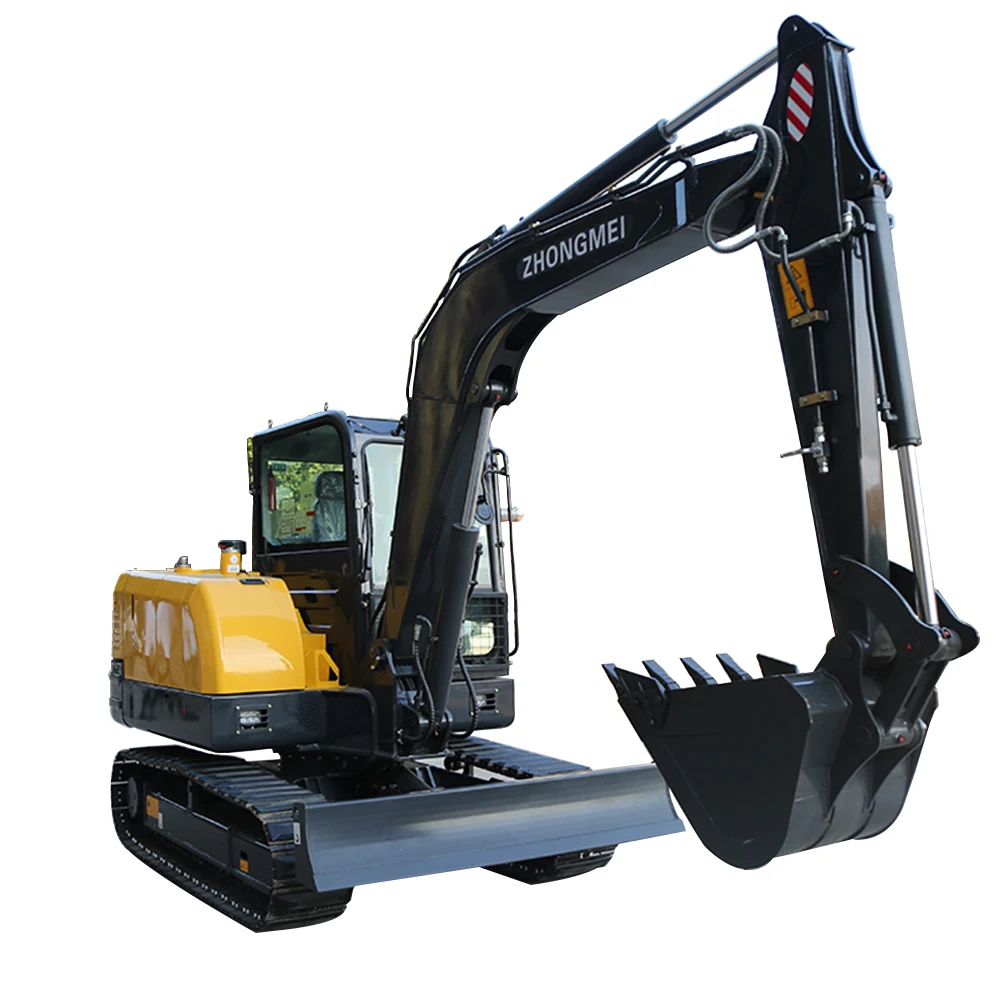

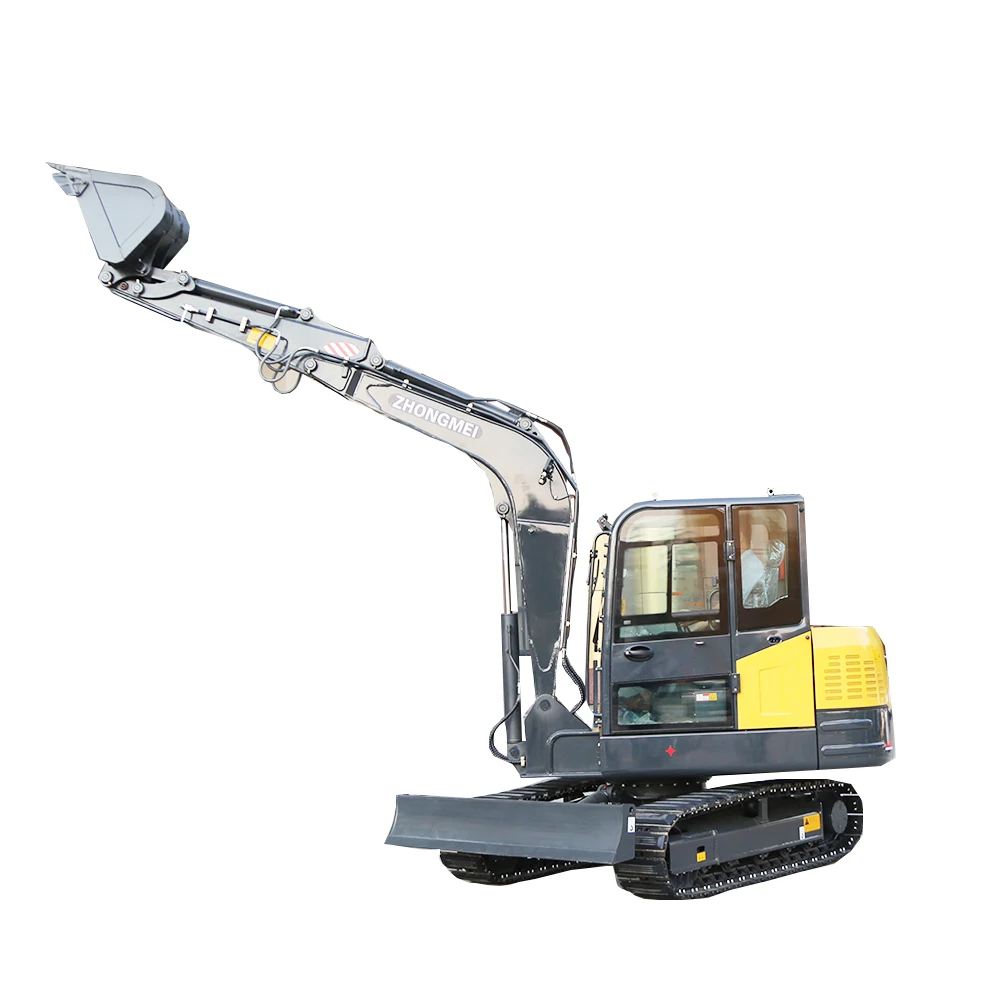

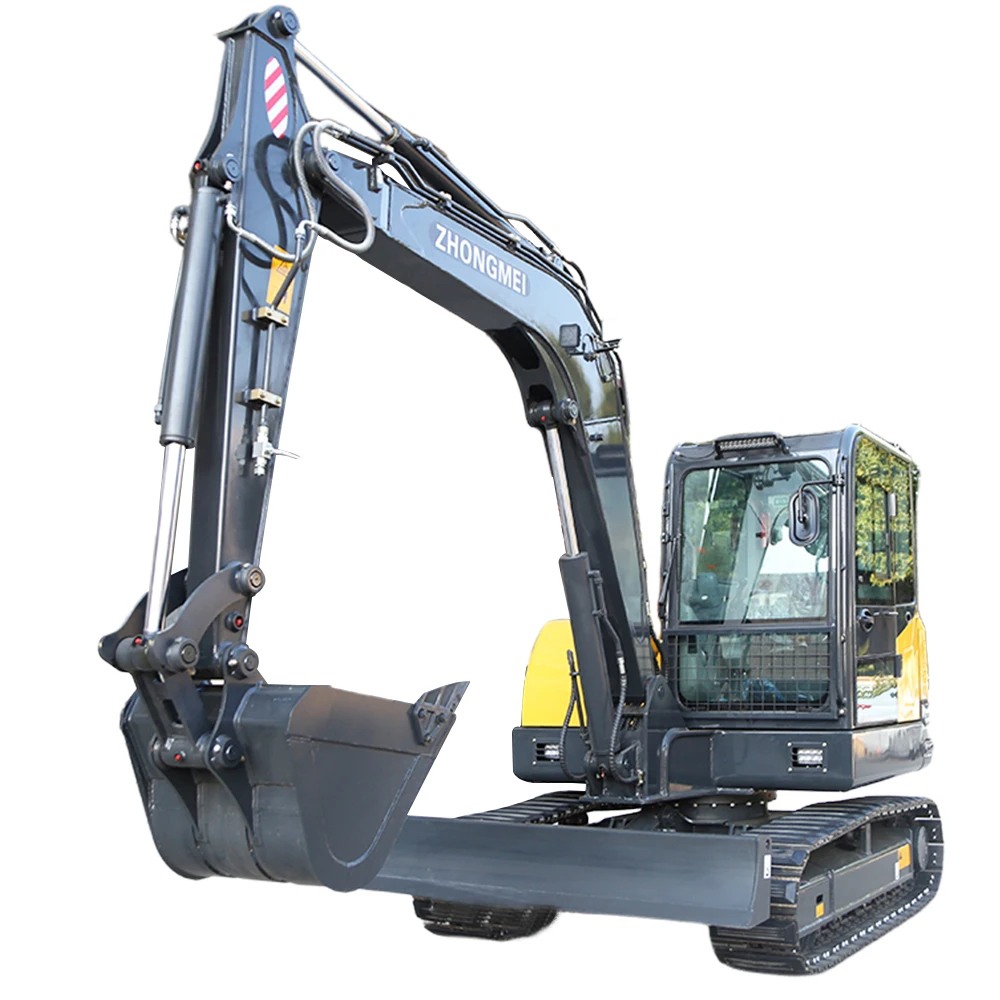

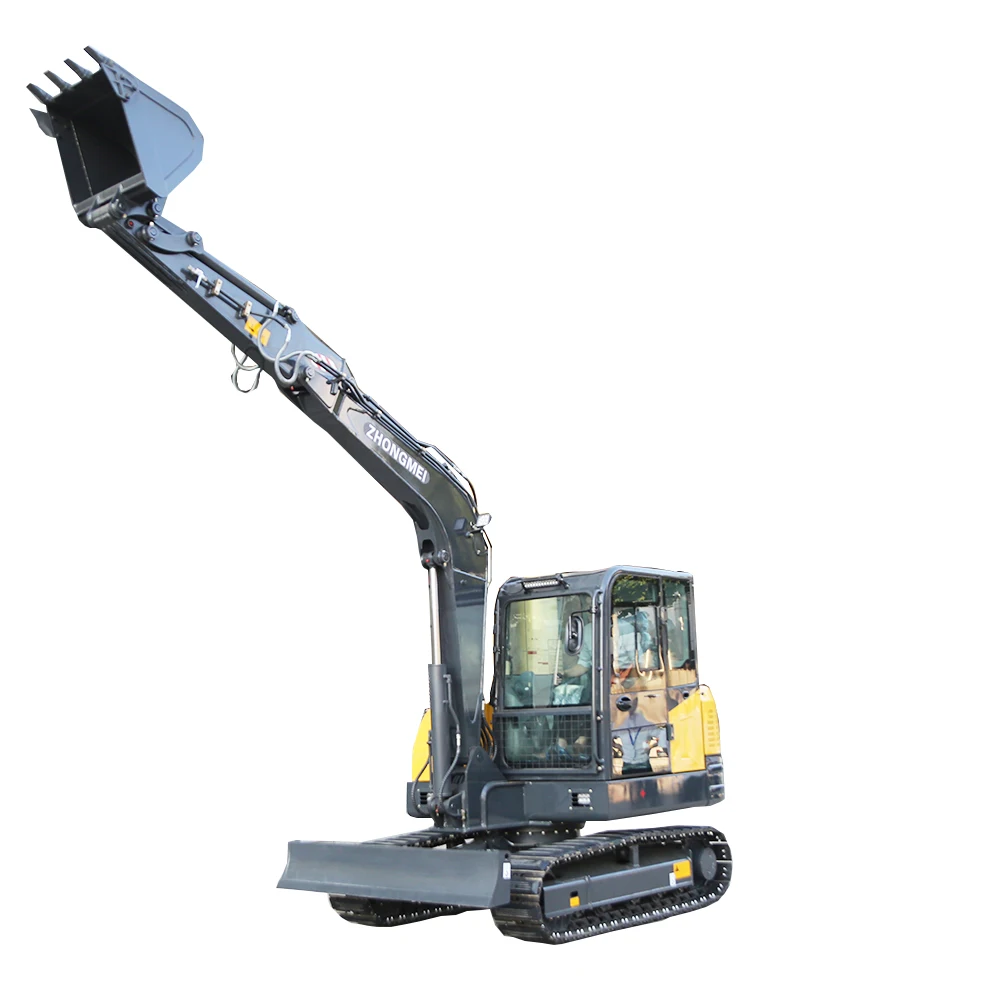

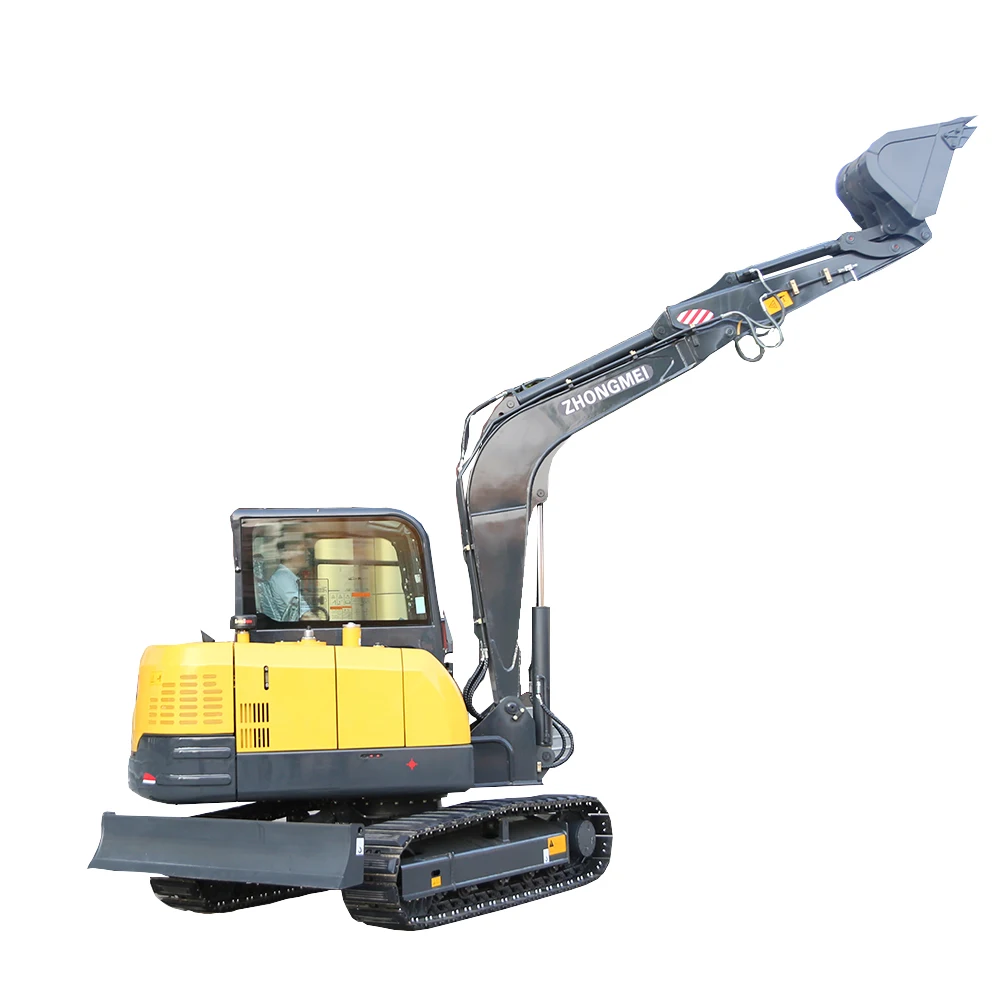

ZM 60.9 Crawler Excavator is an advanced and highly reliable heavy-duty construction equipment designed for demanding work environments. Built with a focus on durability and longevity, this excavator offers exceptional performance and high rigidity, making it suitable for a wide range of applications.
ZM 60.9 prioritizes operator comfort and safety. The low-noise and wide spacious cab provide a comfortable working environment. Equipped with standard air conditioning, ensuring a pleasant working atmosphere even in hot or humid conditions. For added safety and convenience, the optional rear-view monitor system offers improved visibility, minimizing blind spots and enhancing operational awareness.
One of the key features of ZM 60.9 is its strengthened frame structure and track system, ensuring stability and enhanced durability even during intense and prolonged operations. The use of world-class major components, including the engine, pump, motor, and valves, further enhances the overall reliability and performance of the excavator, making it a top-notch choice for heavy-duty tasks.
ZM 60.9 prioritizes operator comfort and safety. The low-noise and wide spacious cab provide a comfortable working environment. Equipped with standard air conditioning, ensuring a pleasant working atmosphere even in hot or humid conditions. For added safety and convenience, the optional rear-view monitor system offers improved visibility, minimizing blind spots and enhancing operational awareness.
One of the key features of ZM 60.9 is its strengthened frame structure and track system, ensuring stability and enhanced durability even during intense and prolonged operations. The use of world-class major components, including the engine, pump, motor, and valves, further enhances the overall reliability and performance of the excavator, making it a top-notch choice for heavy-duty tasks.
Product Paramenters
Performance Parameter | ||
MODEL | ZM60.9 | |
Operating weight (T) | 5.85 | |
Bucket capacity (m3) | 0.22 | |
Engine model | YANMAR 4TNV98 | |
Rated power (kw/r/min) | 44/2200 | |
Volume of fuel tank (L) | 100 | |
Travel speed (km/h) | 4.2/2.2 | |
Swing speed(r/min) | 9.5 | |
Gradeability（%） | 70 | |
Bucket digging force at power max (KN) ISO | 42 | |
Average grounding pressure(KPA) | 33.5 | |
Setting pressure (MPa) | 32 | |
Volume of hydraulic tank (L) | 80 | |
Overall Dimensions | ||
A Overall length (mm) | 5960 | |
B Overall width (mm) | 1960 | |
C Overall height （to top of boom）(mm) | 1995 | |
D Overall height （to top of cab）(mm) | 2690 | |
E Counterweight ground clearance (mm) | 700 | |
F Min. ground clearance (mm) | 360 | |
G Tail swing radius (mm) | 1700 | |
H Track grounding length (mm) | 2000 | |
J Track length (mm) | 2560 | |
K Track gauge(mm) | 1560 | |
L Track width (mm) | 1960 | |
M Track shoe width (mm) | 400 | |
N Turntable width (mm) | 1906 | |
Operating Range | ||
O Max. digging height (mm) | 5750 | |
P Max. dumping height (mm) | 3980 | |
Q Max. digging depth (mm) | 3860 | |
R Max. vertical wall digging depth (mm) | 3040 | |
T Max. digging reach (mm) | 6170 | |
U Max.digging reach at ground level (mm) | 6045 | |
V Min. swing radius (mm) | 2380 | |
W Max. height at min swing radius (mm) | 4395 | |
X Distance from swing center to rear (mm) | 1700 | |
Z Height of counterweight (mm) | 1685 | |
A1 Grounding length (in transportation) (mm) | 3370 | |
Arm length (mm) | 1630 | |
Boom length (mm) | 3000 | |
Details Images
FAQ
1. who are we?
We are based in Shandong, China, start from 2018,sell to Africa(20.00%),Southeast Asia(19.00%),Eastern Europe(16.00%),South America(15.00%),North America(7.00%),Mid East(7.00%),South Asia(6.00%),Oceania(5.00%),Central America(3.00%),Northern Europe(2.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Mini Excavator, Wheel Excavator, Forklift, Spider Crane, Road Roller, Road Loader
4. why should you buy from us not from other suppliers?
We are a factory in china for 24 years, have own technical team, accept OEM and ODM.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,German,French,Russian
We are based in Shandong, China, start from 2018,sell to Africa(20.00%),Southeast Asia(19.00%),Eastern Europe(16.00%),South America(15.00%),North America(7.00%),Mid East(7.00%),South Asia(6.00%),Oceania(5.00%),Central America(3.00%),Northern Europe(2.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Mini Excavator, Wheel Excavator, Forklift, Spider Crane, Road Roller, Road Loader
4. why should you buy from us not from other suppliers?
We are a factory in china for 24 years, have own technical team, accept OEM and ODM.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,German,French,Russian
