3inch 2800W 3HP Solar Pump with high efficiency MPPT pump inverter DC60 450V brushless solar surface water pump for agriculture
- Category: >>>
- Supplier: Yiwu Yi Fan E-Commerce Firm
Share on (1600980415307):
Product Overview
Description
Products Description
Install Ready

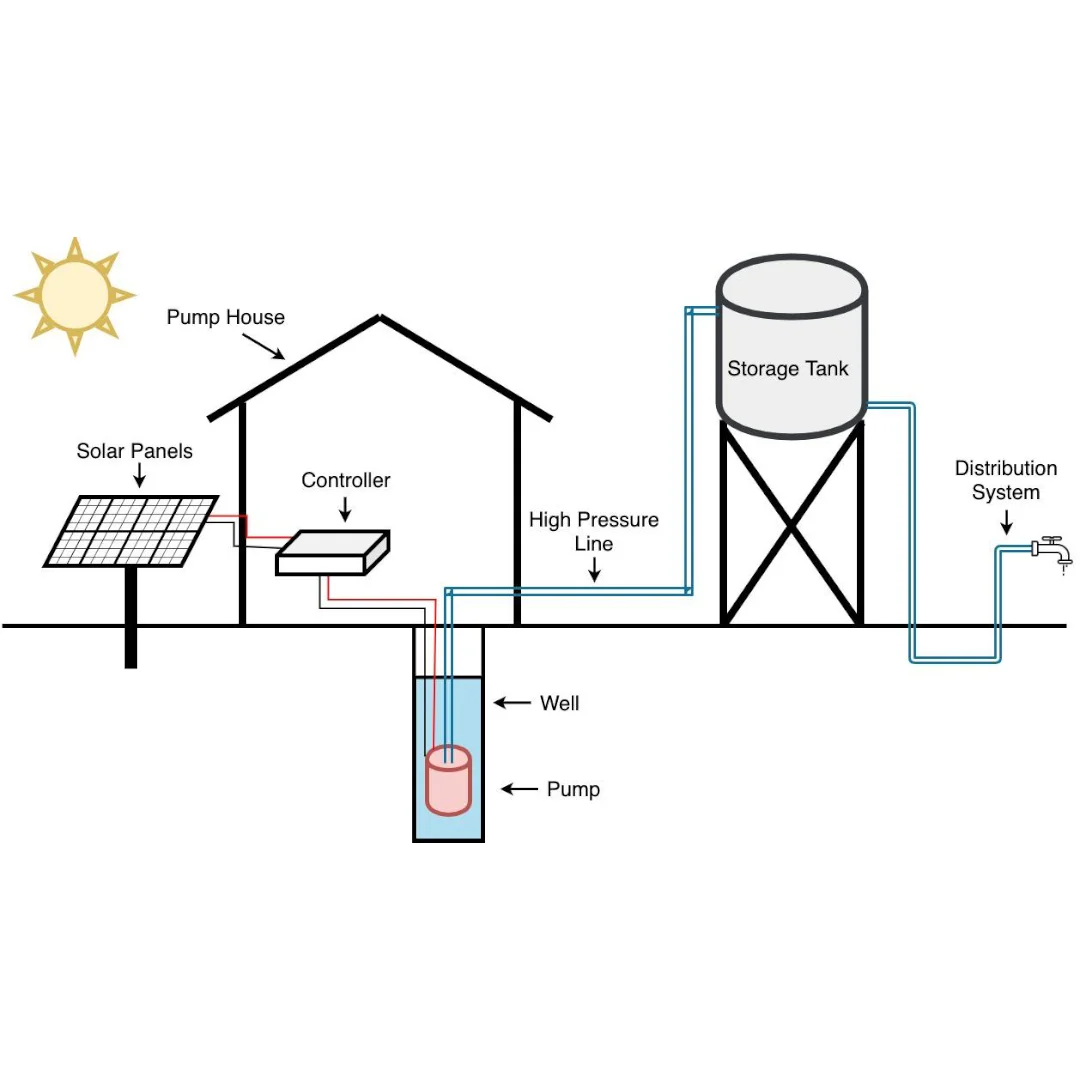

Solar Water Pumping Systems
WattRabbit solar water pumping systems are sun powered PV kits that enable users to pump water in remote locations with minimal or no grid access. WattRabbit Solar Water Pump kits are reliable, stand-alone systems that require no fuel or batteries and require minimal maintenance. Each WattRabbit solar water pump kit has a water pump inverter that can connect to the grid or work with a generator if longer water pumping hours are required (optional).
Solar Water Pumping Systems
WattRabbit solar water pumping systems are sun powered PV kits that enable users to pump water in remote locations with minimal or no grid access. WattRabbit Solar Water Pump kits are reliable, stand-alone systems that require no fuel or batteries and require minimal maintenance. Each WattRabbit solar water pump kit has a water pump inverter that can connect to the grid or work with a generator if longer water pumping hours are required (optional).
From small or large scale agricultural or municipality water projects, WattRabbit solar water pump systems are highly versatile and dynamic in their application. Designed for easy installation, WattRabbit solar water pump kits are engineered to be particularly robust and are designed for long term daily use. Each solar water pump kit can be outfitted with a deep well or surface pump thus ensuring the best solution possible. Water can be pumped to a holding tank or used directly on such things as agricultural crops, livestock, or human consumption.
With multiple submersible pump sizes offered, users have flexibility in choosing water head, depths and required daily water flows. Whether a remote location or in an urban setting, solar water pumping is the practical way to deliver water in where you need it the most.
With multiple submersible pump sizes offered, users have flexibility in choosing water head, depths and required daily water flows. Whether a remote location or in an urban setting, solar water pumping is the practical way to deliver water in where you need it the most.
Submersible Solar Pumps can lift up to 200 meters and fit in a 8″ or larger well casing and are used when the water supply is deeper than 6 meters from the surface. Submersible solar pumps kits can operate directly off solar panels, generator or an AC power source. Water is pumped during the day when the sun is shining and stored in a water cistern or water tank for a 24 hour water supply.
Surface Solar Pumps are good for applications with shallow wells less then 6 meters, springs, ponds, streams or storage tanks.
Surface pumps should be mounted in dry, weatherproof locations or housings as close to the water source as possible. Surface pumps can’t lift water very high from a deep source but they can then push water great distances and are optimal for many applications.
Surface Solar Pumps are good for applications with shallow wells less then 6 meters, springs, ponds, streams or storage tanks.
Surface pumps should be mounted in dry, weatherproof locations or housings as close to the water source as possible. Surface pumps can’t lift water very high from a deep source but they can then push water great distances and are optimal for many applications.
Solar Energy Making
Water Irrigation Simple
WattRabbit solar pump kits are designed to extract water for a diversified range of agricultural applications including livestock and crop irrigation. These systems require no batteries and are often used in remote areas where the cost of running traditional AC powered water pumps is cost prohibitive.
Common Applications
* Livestock and agriculture
* Wildlife irrigation systems
* Waste water treatment
* Homes, farms, ranches and cabins
* Villages, businesses and communities
* Pumped water storage systems
Water Pump Benefits
* Provide clean water with only solar energy
* Minimal maintenance
* Can be installed in almost any location
* No batteries required
* Water can be stored in holding tanks for continues use
* Can be connected to the grid or with backup generator
Water Irrigation Simple
WattRabbit solar pump kits are designed to extract water for a diversified range of agricultural applications including livestock and crop irrigation. These systems require no batteries and are often used in remote areas where the cost of running traditional AC powered water pumps is cost prohibitive.
Common Applications
* Livestock and agriculture
* Wildlife irrigation systems
* Waste water treatment
* Homes, farms, ranches and cabins
* Villages, businesses and communities
* Pumped water storage systems
Water Pump Benefits
* Provide clean water with only solar energy
* Minimal maintenance
* Can be installed in almost any location
* No batteries required
* Water can be stored in holding tanks for continues use
* Can be connected to the grid or with backup generator
• Wide voltage range,Supply Voltage :60-450VDC
• double Shielded motor, brushless, permanent magnet motor
• Built-in electronics, easy installation
• MPPT
• High Efficiency (Dynamic MPPT more than 93%)
• User self-design control model, automatic running
• Enough protect(dry protection, overload protction,reverse protection(we have not nagetive and positive different,),lose phase protection....)

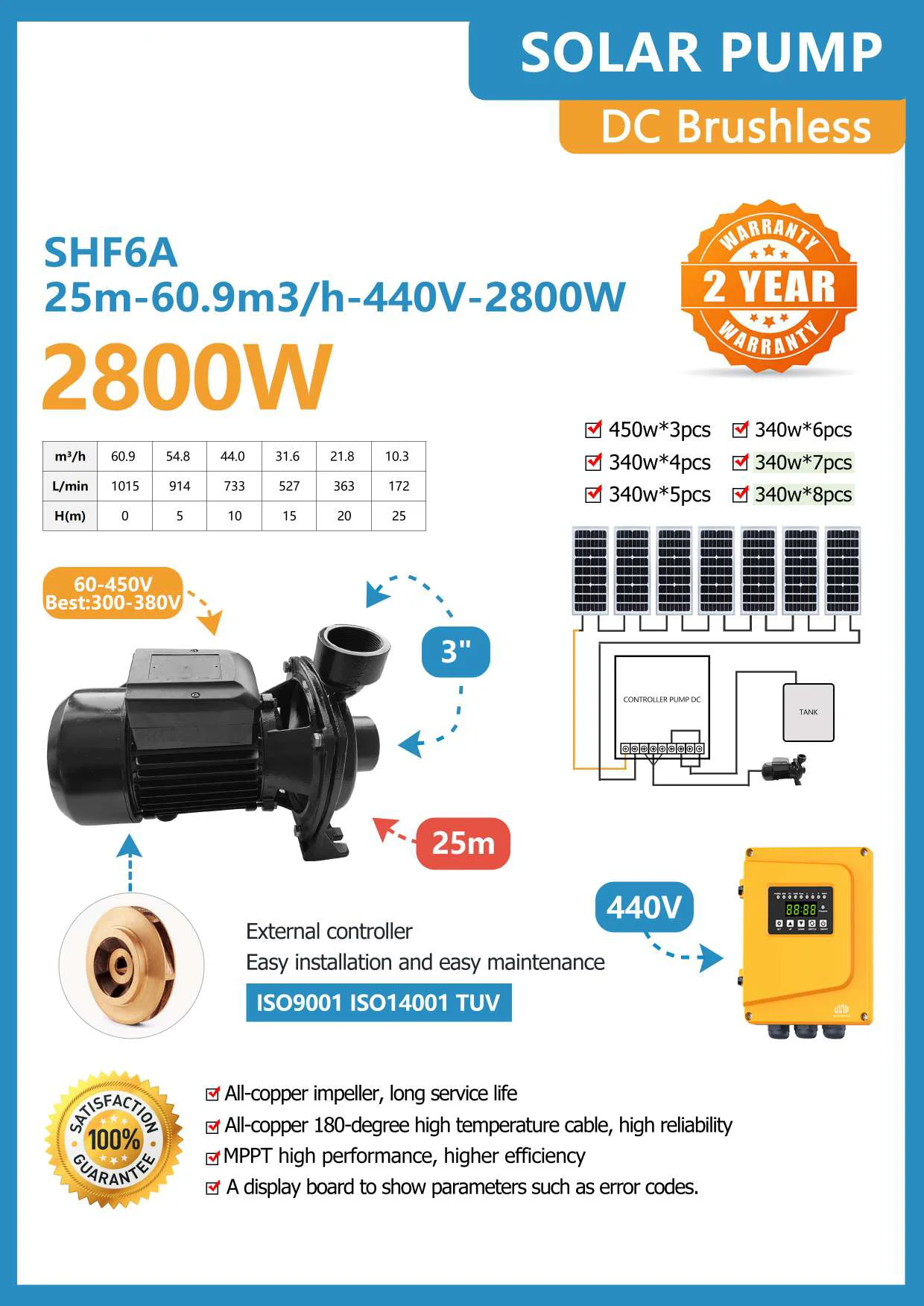

Model | Flow max | Head max | DC voltages range |
SHF6A-25M-60.9M3-2800W | 1015L/min | 25 Meter | 60-450VMP |
PV Connection | Max input power | ||
Series | 2800W | ||
Outlet | Motor Size | ||
3 inch | 4inch |

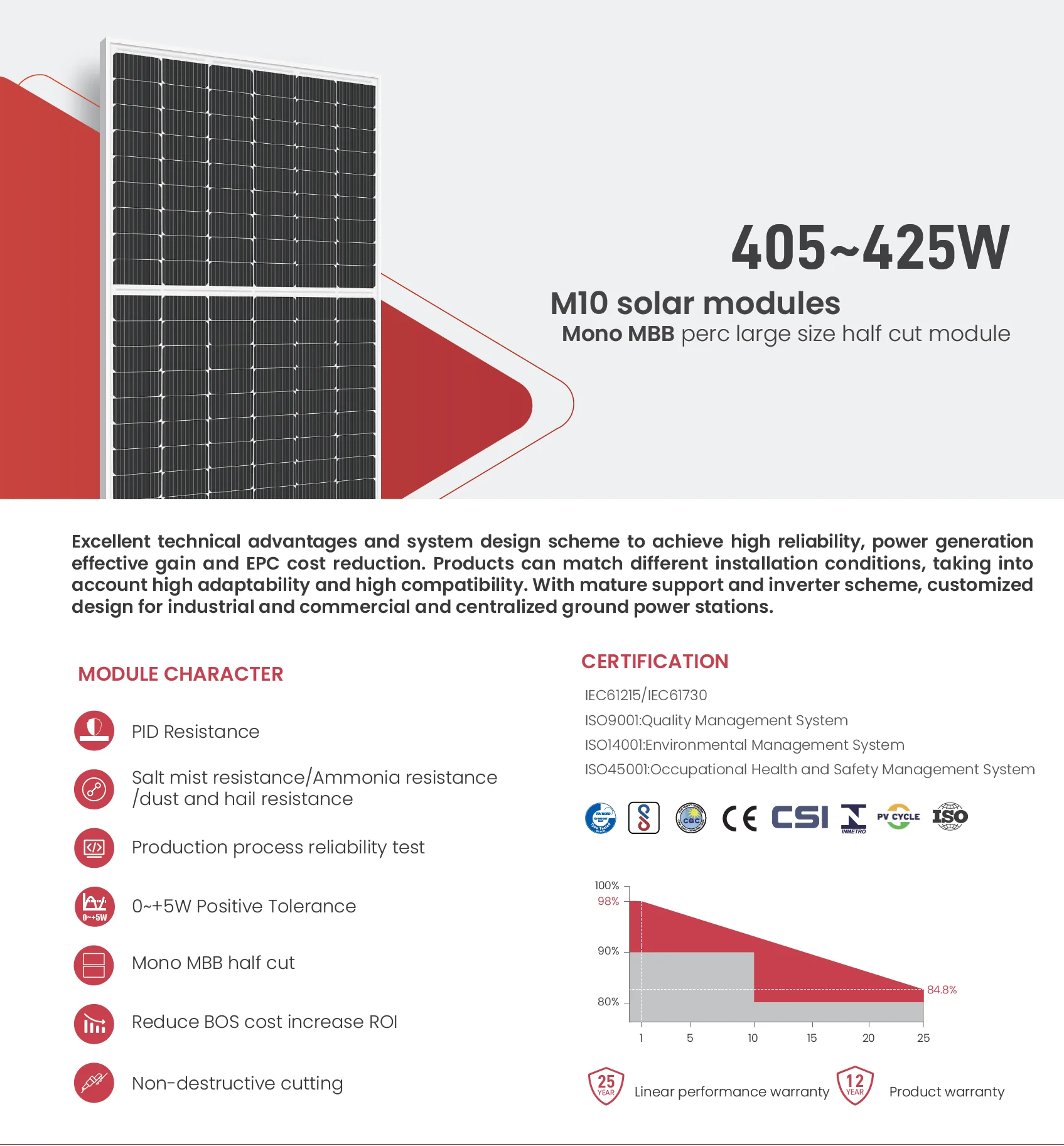

* Snow load up to 6000 Pa and wind load up to 4000 Pa
* 25-year power-output warranty
* 12-year warranty on materials and workmanship
* Reduces installation cost with higher power bin and efficiency
* High and stable efficiency of up to 21,3% thanks to innovative manufacturing technology
* Positive power tolerance up to +5 W
* Good cooperation with power optimizers
* High-density technology - reduced cell spacing from 2 to 0.5 mm means a larger active cell surface
* Excellent performance even with low solar radiation
* Multi-busbar technology improves light absorption and current dissipation, lower series resistance
* Low power losses and low thermal coefficients for higher energy yield at elevated operating temperatures thanks to the half-cut technology
* Certified resistance to salt mist, ammonia and blasting sand
* 25-year power-output warranty
* 12-year warranty on materials and workmanship
* Reduces installation cost with higher power bin and efficiency
* High and stable efficiency of up to 21,3% thanks to innovative manufacturing technology
* Positive power tolerance up to +5 W
* Good cooperation with power optimizers
* High-density technology - reduced cell spacing from 2 to 0.5 mm means a larger active cell surface
* Excellent performance even with low solar radiation
* Multi-busbar technology improves light absorption and current dissipation, lower series resistance
* Low power losses and low thermal coefficients for higher energy yield at elevated operating temperatures thanks to the half-cut technology
* Certified resistance to salt mist, ammonia and blasting sand
Why Choose us
1. Rich Experienced.
Our company has over 12 years experience in solar powered system.We have our own factory with very good production level. If you
have problem, we can solve it by the fastest speed.
2. Advanced Technology.
We have the most advanced R&D team to make sure each product are in best performance, including home solar powered sytem,solar
street light, solar garden light, led street light etc.
3. Quality
Solar Panels> 25 years Warranty
Controller> 5 years Warranty
Pump> 2 years Warranty
FAQS
Q: Is the system solution always the same? Can I customize one?
A: Yes we have our professional teams making solutions for our clients. Solutions are mainly customized based on different
sunshine time and power consumption. So the 1kw system may be with different configuration.
Q: Is the solution for complete set? If not, what else are needed?
A: Yes we can provide solution of complete set. If you don't need complete set, basic parts are also available.
Q: Who arranges the shipping?
A: We could help you arrange the shipment, we have good service forwarder.
Q: What's the difference between off grid and on grid solar power system?
A: Off grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller,
batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the
electricity power to supply the appliances working through the inverter.
On grid solar power system connects to the power grid. In general, it includes solar panels, grid-connected inverter, the solar
power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will
replenish the electricity power to appliances working.
Q: Can the inverter switch automatically to national grid to protect batteries.
A: Yes. It can also connect to third generator like diesel generator. Please tell our sales before production.
Q: What is the lifetime of the solar power system?
A: Solar panels' lifetime are more than 30 years, inverters 10 years, batteries 10~13 years.
1. Rich Experienced.
Our company has over 12 years experience in solar powered system.We have our own factory with very good production level. If you
have problem, we can solve it by the fastest speed.
2. Advanced Technology.
We have the most advanced R&D team to make sure each product are in best performance, including home solar powered sytem,solar
street light, solar garden light, led street light etc.
3. Quality
Solar Panels> 25 years Warranty
Controller> 5 years Warranty
Pump> 2 years Warranty
FAQS
Q: Is the system solution always the same? Can I customize one?
A: Yes we have our professional teams making solutions for our clients. Solutions are mainly customized based on different
sunshine time and power consumption. So the 1kw system may be with different configuration.
Q: Is the solution for complete set? If not, what else are needed?
A: Yes we can provide solution of complete set. If you don't need complete set, basic parts are also available.
Q: Who arranges the shipping?
A: We could help you arrange the shipment, we have good service forwarder.
Q: What's the difference between off grid and on grid solar power system?
A: Off grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller,
batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the
electricity power to supply the appliances working through the inverter.
On grid solar power system connects to the power grid. In general, it includes solar panels, grid-connected inverter, the solar
power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will
replenish the electricity power to appliances working.
Q: Can the inverter switch automatically to national grid to protect batteries.
A: Yes. It can also connect to third generator like diesel generator. Please tell our sales before production.
Q: What is the lifetime of the solar power system?
A: Solar panels' lifetime are more than 30 years, inverters 10 years, batteries 10~13 years.
