Popular Design Lte 4G With Solar Power Sim Card Wireless Wifi Router
- Category: >>>
- Supplier: Hefei Maskura Supply Chain Management Co. Ltd.
Share on (1600980427864):
Product Overview
Description

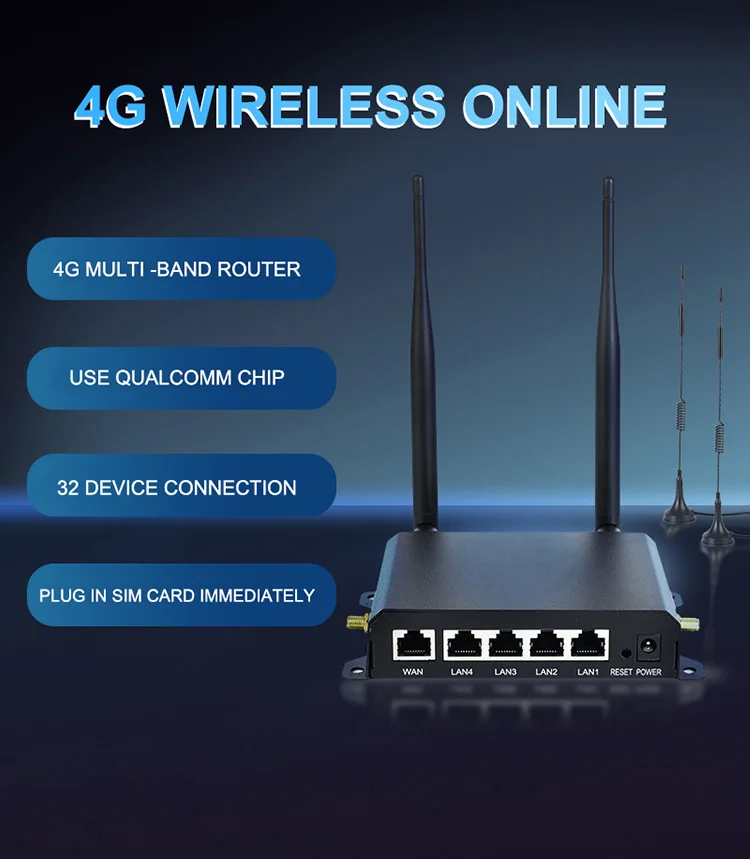

MKS-10 is a 4G wireless router that can achieve WiFi coverage for regular mobile office networking, engineering project office networking, vending machines, automatic express pickup cabinets, etc. The device supports TDD, FDD, WCDMA network standards, standard large SIM card, all domestic Netcom, no card binding mobile card, telecom card, Unicom card can be changed at will, the system automatically recognizes, you can easily connect to the Internet without complicated settings, and it can also be used abroad. It can be matched with modules suitable for the country where you are located (for foreign use, you need to inform before placing an order); plug in a SIM card with traffic and it can be converted into a WiFi signal , and it can also be converted into a wired network for desktop computers, Internet TV , wired smart home and other devices that need to be connected to the Internet, the theoretical speed can reach up to 150Mbps.
Product Features
4G network can be converted into wireless and wired network, and broadband can also be converted into wireless wired network . When both are connected at the same time, wired network is preferred .
Wireless rate 300Mbps
5 10/100Mbps adaptive network ports
Support WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK encryption protocol
Comply with IEEE 802.11b/g/n 2.4GHz standard protocol, IEEE802.3, IEEE802.3u standard protocol
Can bring cloud management
Product Specifications
Hardware Specifications |
|
|
CPU |
| QCA9531 |
storage |
| Flash: 16MB; DDR: 128MB |
wired standard |
| IEEE802.3, IEEE802.3u |
Ethernet interface |

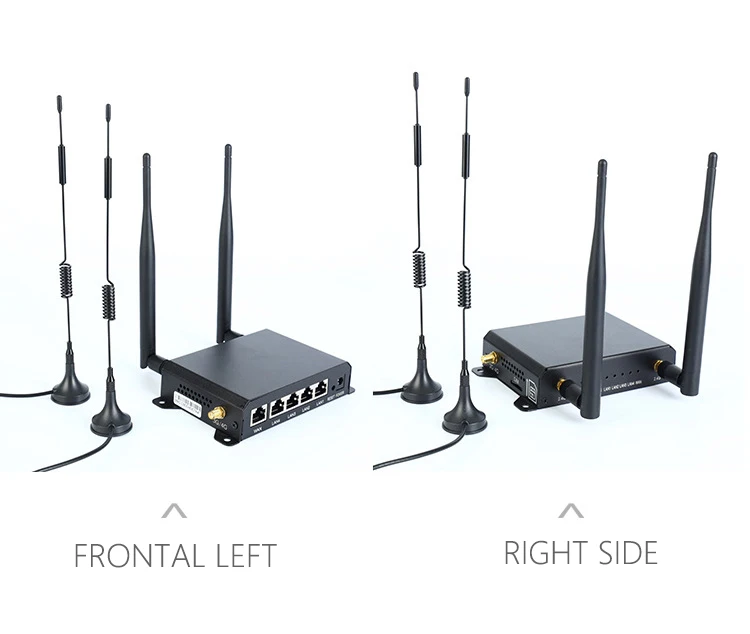

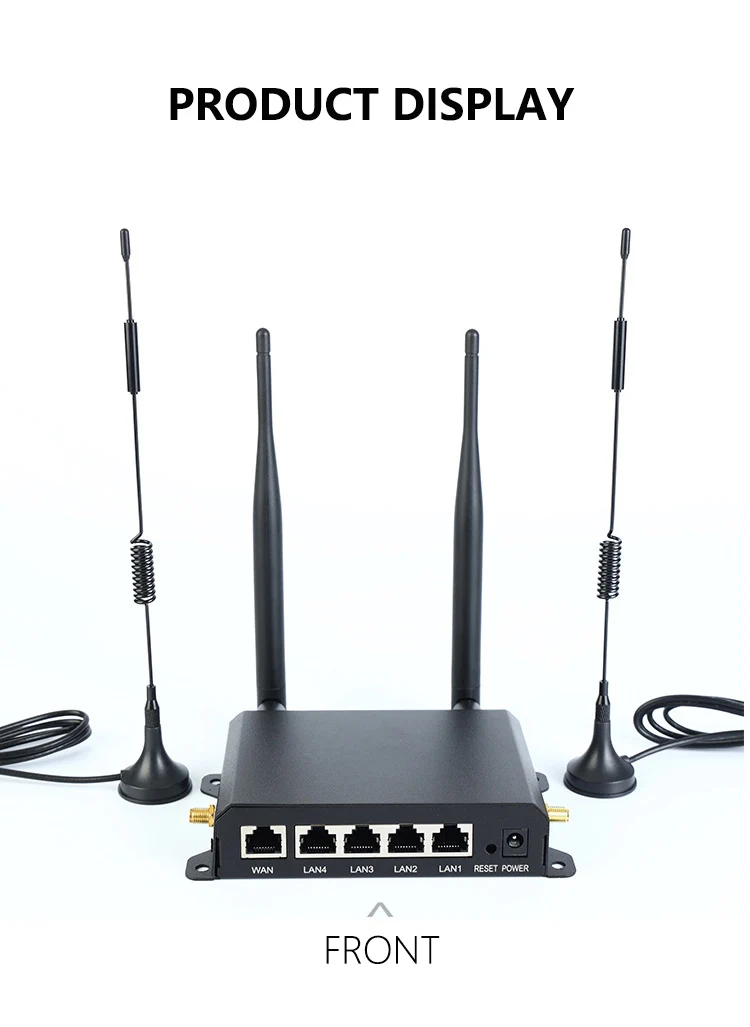

| 10/100Mbps WAN port*1, 10/100Mbps LAN port*4 |
antenna |
| 2.4GHz: 5dbi external omnidirectional antenna*2; 5.8GHz: 5dbi external omnidirectional antenna*2 |
4G module |
| CAT4, support downlink rate 150Mbps and uplink maximum rate 50Mbps LTE TDD:B34/B38/B39/B40/B41;LTE FDD:B1/B3/B5/B8;GSM:900/1800MHz |

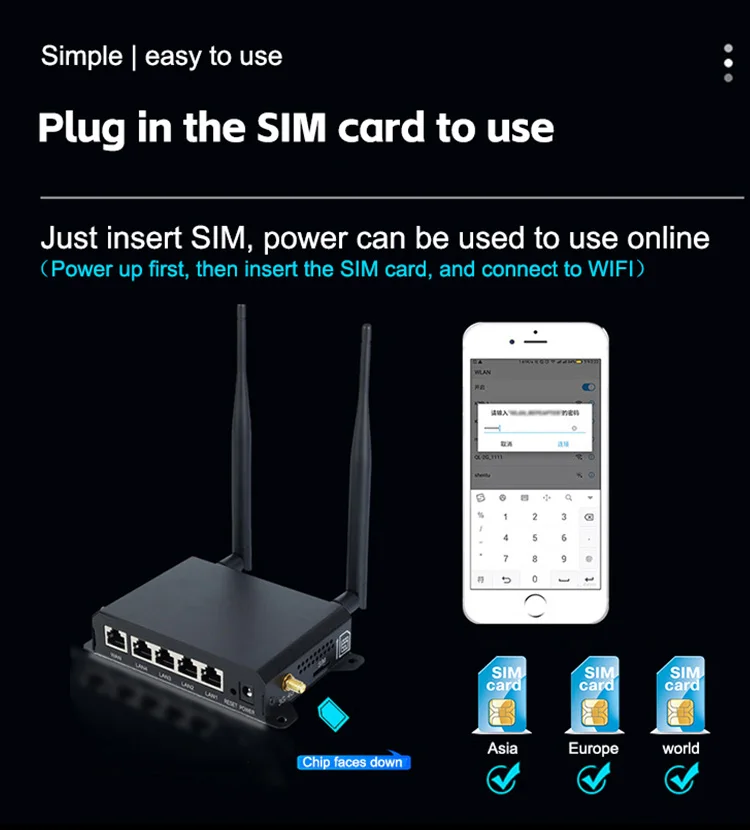

SIM card |
| Support standard SIM card 25*15mm |
button |
| Reset Button *1 |
Power supply |
| DC input 12V/1A |
panel indicator |
| LED* 8 POWER, 4G, WiFi, LAN1, LAN2, LAN3, LAN4, WAN |
Software Specifications |
|
|
Operating mode |
| WAN mode: DHCP, PPPoE, static (fixed IP) |
network |
| LAN/WAN replacement, LAN, DHCP server, VLAN, QoS, DDNS |
| VPN: PPTP client/L2TP client, static routing, network detection | |
| Virtual Server: Port Forwarding, Virtual Server: DMZ | |
Safety |
| MAC address filtering, IP address filtering, domain name filtering, WPS, WiFi plan, remote management |
other |
| With cloud management, time zone, firmware upgrade, backup/restore, management password, WatchCat, scheduled restart/restart |
Diagnostic tools |
| PING network continuity detection, TRACEROUTE trace route, NSLOOKUP |
Factory default settings |
| IP address: 192.168.1.254, login username/password: admin |
Product Specifications
Wireless Specifications |
|
|
wireless standard |
| IEEE 802.11b/g/n |
wireless rate |
| 300Mbps |
wireless power |
| 20dBm |
Wireless Acceptance Sensitivity |
| -94dBm |
wireless band |
| 2.4GHz |
wireless encryption |
| WPA-PSK,WPA2-PSK,WPA-PSK/WPA2-PSK |
Other specifications |
|
|
Application Environment |
| Working temperature: -30℃~70℃ |
|
| Working humidity: 10%~90% RH non-condensing |
|
| Storage temperature: -40℃~80℃ |
|
| Storage humidity: 5%~90% RH non-condensing |

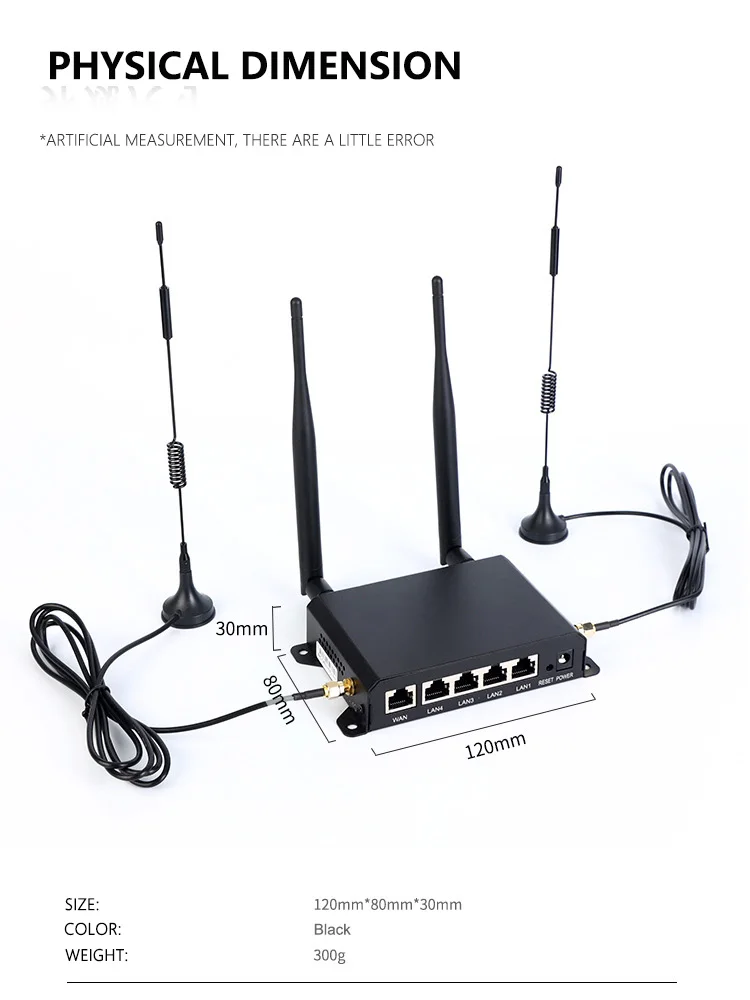

Product Size |
| 140*85*30mm |
Installation method |
| desktop, wall mount |

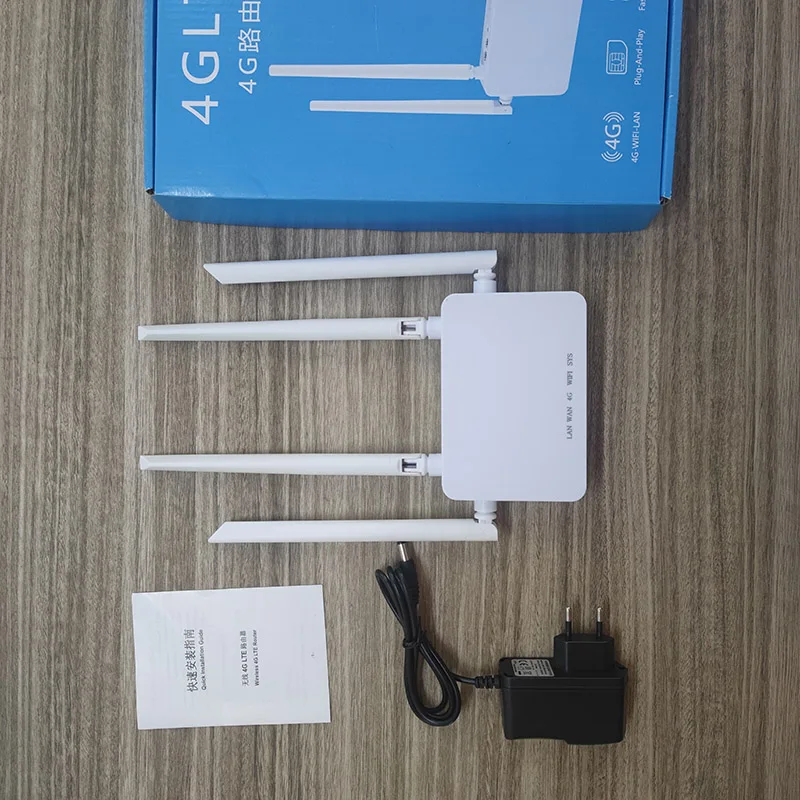

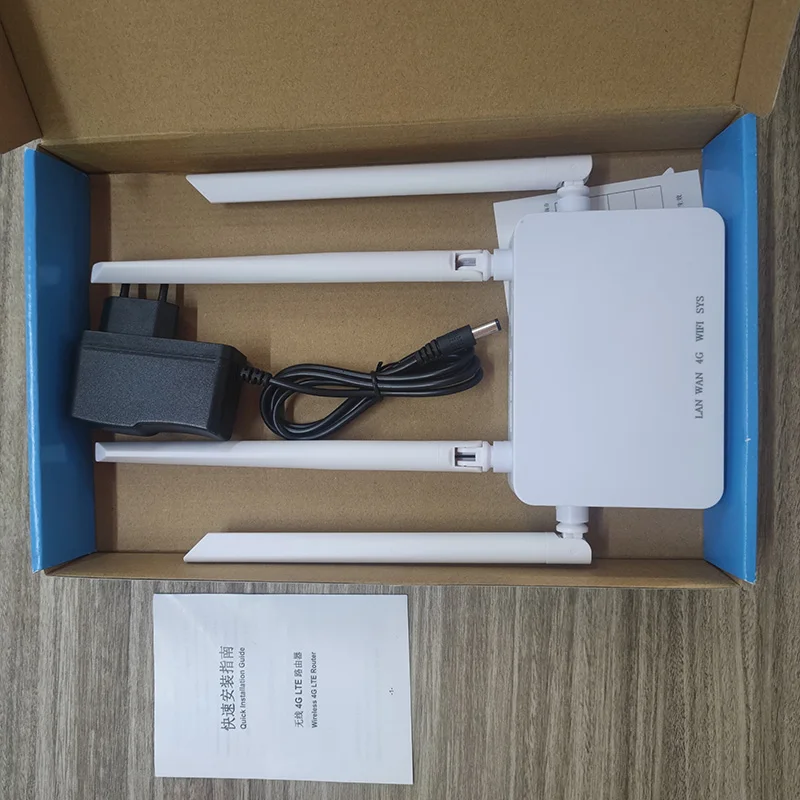

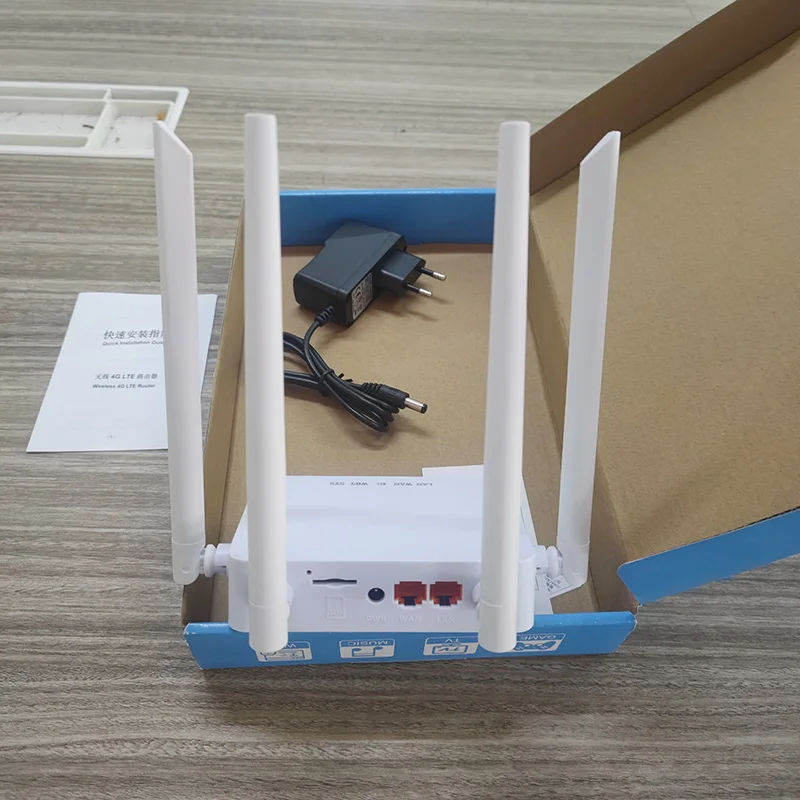

Package Contents |
| One router |
|
| A power adapter |
|
| Manual, certificate, warranty card |
9531-5I
logistics
FAQ
Q: Are you a manufacturer?
A: Yes, we are the manufacturer. We can provide OEM/ODM customized services according to various applications and needs of customers. All our products are fully patented, ID/MD design, hardware and software, mold, assembly are done by our own team.
Q: What is the minimum order quantity (MOQ)?
A: We accept a set of standard products. We can even customize your logo if desired. If OEM is required, will see the detailed requirements and determine the MOQ our sales department will give you.
Q: How to order and pay?
A: We accept T/T, L/C at sight, Western Union, MoneyGram, Paypal, Secure Payment (Alibaba) and Credit Card.
